Build Summary
RawMaxx SDX Dump Trailer
Build Summary
RawMaxx SDX Dump Trailer
At a glance ValuesPRODUCT DETAILS
Product Features
Robust Frame Construction
Constructed with a 5" C-channel main frame and 4" x 3" x 3/16" tubing cross-members, the SDX Dump Trailer ensures durability and strength. The dump bed features 12-gauge formed side walls and a 10-gauge steel floor, complemented by 12-gauge diamond plate steel fenders and welded D-rings in the inside corners for added functionality and resilience.
Hydraulic Lift System
The SDX is equipped with a heavy-duty scissor lift powered by a KTI 12V hydraulic pump, providing a tilt angle of 41° for efficient dumping operations. The system includes a 5" x 16" cylinder and is controlled by a 14' cable, offering both power-up and power-down capabilities for versatile operation.
Durable Running Gear
The SDX Dump Trailer is equipped with two spring axles, each rated at 3,500 lbs, paired with ST205/75R15 radial tires. These 8-ply tires are mounted on 15” black mod wheels with a bolt pattern of 550, providing stability and reliable load-bearing capacity. The electric brakes on both axles enhance safety and control during transport.
Practical Cargo Management

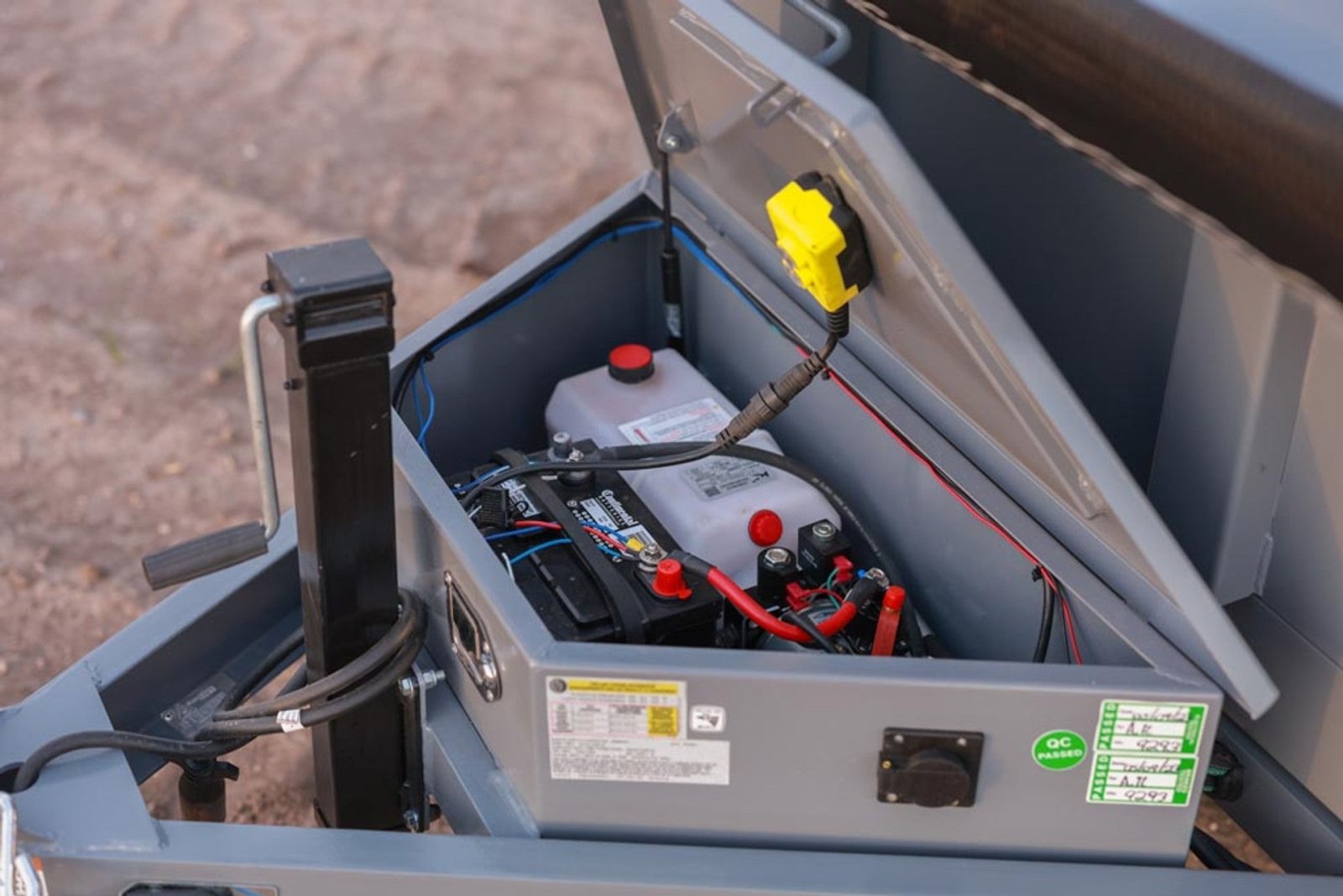

The SDX includes a spacious tongue tool box for the pump, battery, and charger, adding to its practicality. The rear gate features 3-way doors with EZ Slam door latches and 5' slide-in channel ramps for easy loading and unloading of cargo. The manual tarp kit provides additional protection for the load.
DURABLE POWDER COAT FINISH
The trailer is finished with a high-quality powder coat applied after a thorough grit blast preparation. This finish offers excellent resistance to rust and corrosion, ensuring the trailer remains in top condition even in harsh environments. The standard color is Jet Black, providing a sleek and professional appearance.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.Description
Dimensions
- Length: 10'
- Width: 60"
- Deck Height: 22"
Weight Rating
- GVWR (Gross Vehicle Weight Rating): 7,000 lbs
- GAWR (Gross Axle Weight Rating): 3,500 lbs
- Empty Weight: 2,494 lbs
- Load Capacity: 5,181 lbs
Finish Type
- Type: Powder Coat
- Prep: Grit Blast
- Standard Color: Jet Black
Warranty
- Axle: 5 Year Dexter
- Trailer: 3 Year Structural / 1 Year Paint
Tongue Coupler
- Coupler: 2” Adjustable Ball Coupler
- Jack: 1 Side Wind Drop Leg - 7,000 lbs
Tool Box
- Tongue Tool Box: Tool Box for Pump, Battery & Charger
Tongue
- Tongue: 5" C Channel Tongue
- Length: 46"
Safety System
- Safety Chains: 1/4" Safety Chains
- Breakaway System: Electric Breakaway Kit
- Reflective Tape: 3M DOT Compliant Reflective Tape
Chassis Frame
- Main Frame: 5" C Channel Frame
- Cross-Member: 4" x 3" x 3/16" Tubing
Dump Bed
- Tilt Frame Type: 5" C Channel
- Cross-Members: 3" Channel / 16" Spacings
- Dump Bed Inside Width: 60"
- Side Height: 19"
- Side Walls: 12G Formed Walls
- Flooring: 10G Steel Floor
- Fenders: 12G Diamond Plate Steel
- Stake Pockets: 3-7/8" x 1-13/16" (ID) Stake Pockets
Dump Bed (cont.)
- D-Rings: 4 D-Rings (Welded Inside Corners)
- Cargo Capacity: 3 Cubic Yards
- Rear Gate: 3 Way Doors
- Latching System: EZ Slam Door Latches
- Ramps: 5’ Slide-In Channel Ramps
- Lift System: Hydraulic - Power Up - Down
- Pump: KTI 12V Hydraulic Pump
- Controller: 14’ Cable with Control Scissor
- Heavy Duty Scissor Lift Cylinder: 5" x 16" Cylinder
- Tilt Angle: 41°
- Tarp: Manual Tarp Kit
- Spare Tire Mount: 3" Tubing / 3/16" Plate
Running Gear
- Tires Type: Radial Tires
- Size: ST205/75R15
- Ply: 8 Ply
- Rating: 2,040 lbs
- Rims: 15” Black Mod Wheels
- Bolt Pattern: 550
- Suspension Axle Type: Spring
- Axles: 2
- Rating: 3,500 lbs
- Brakes: Electric
Electrical & Lighting
- Wiring Front Plug: 7 - Way RV
- Frame Wiring: All Weather Wiring Harness
- Lighting Side Markers: 3/4" LED Bullet Lights
- Rear Lights: DOT Approved LED Lights
- Battery: 27M Deep Cycle Marine Battery
- Charging System: 110V Integrated Trickle Charger
