Build Summary

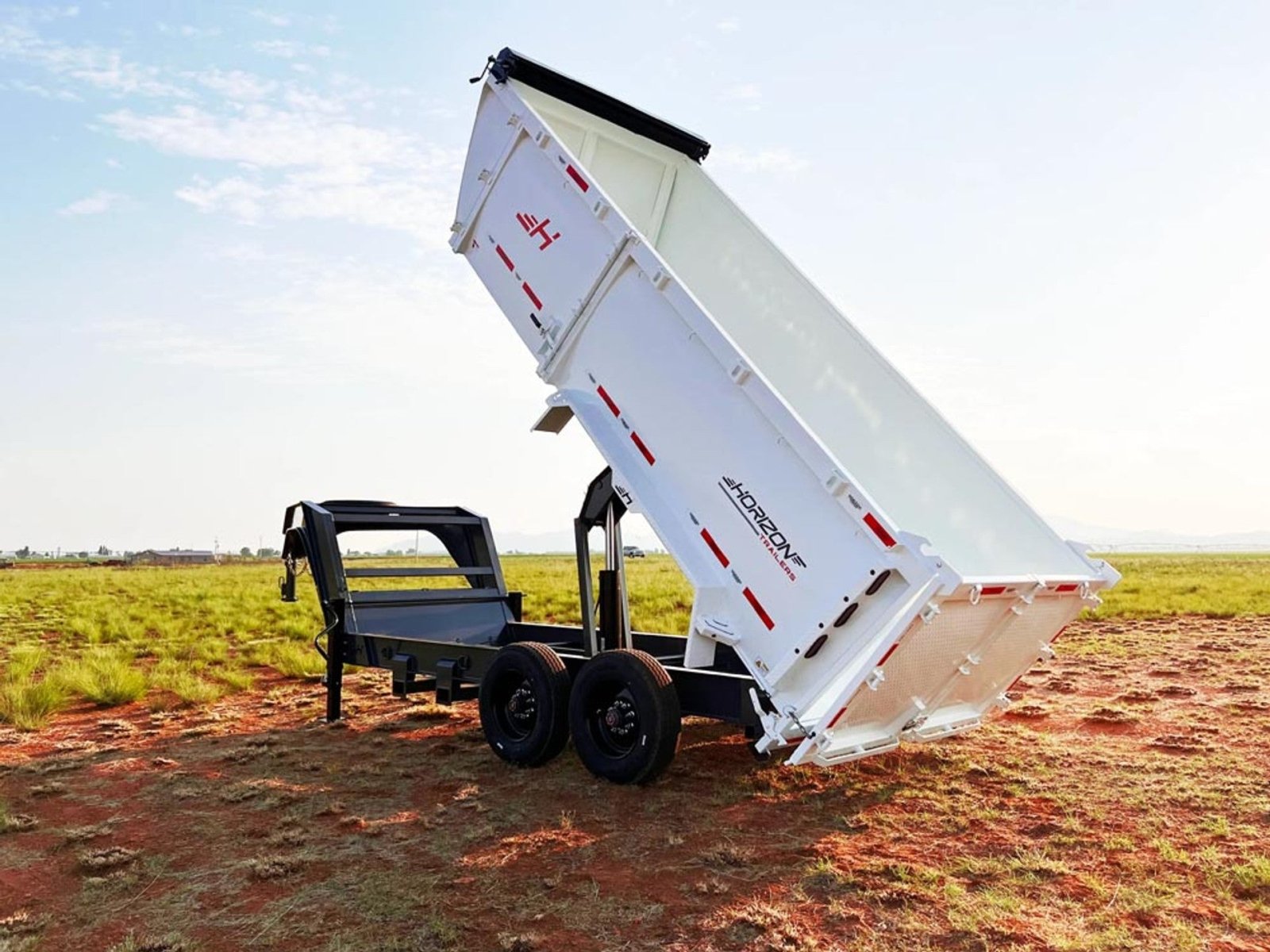

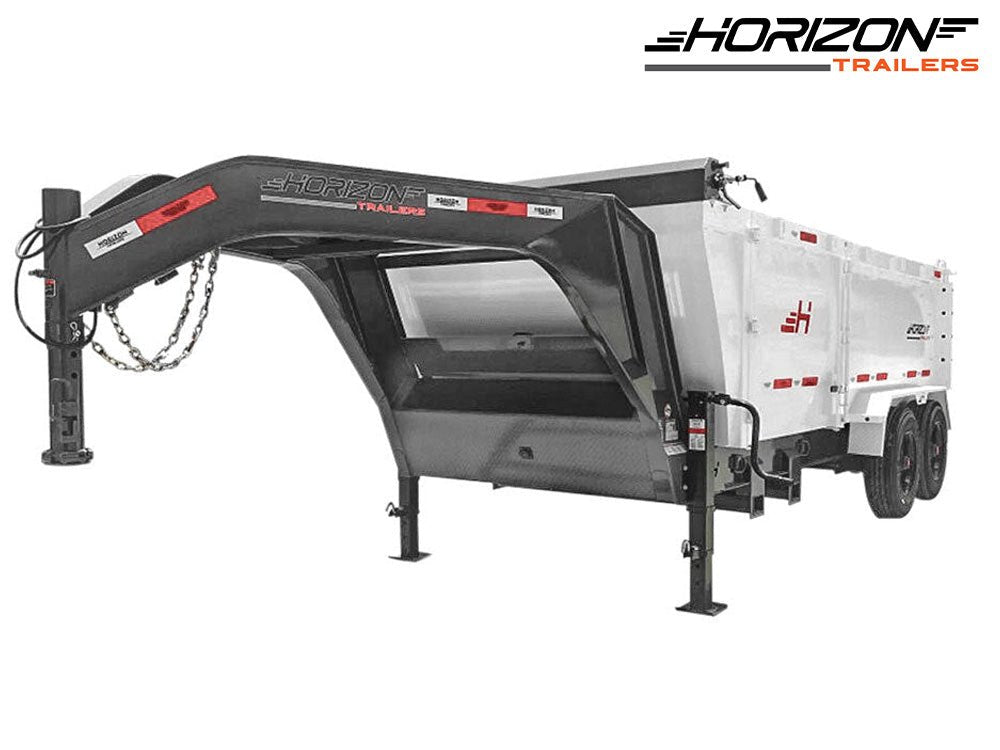

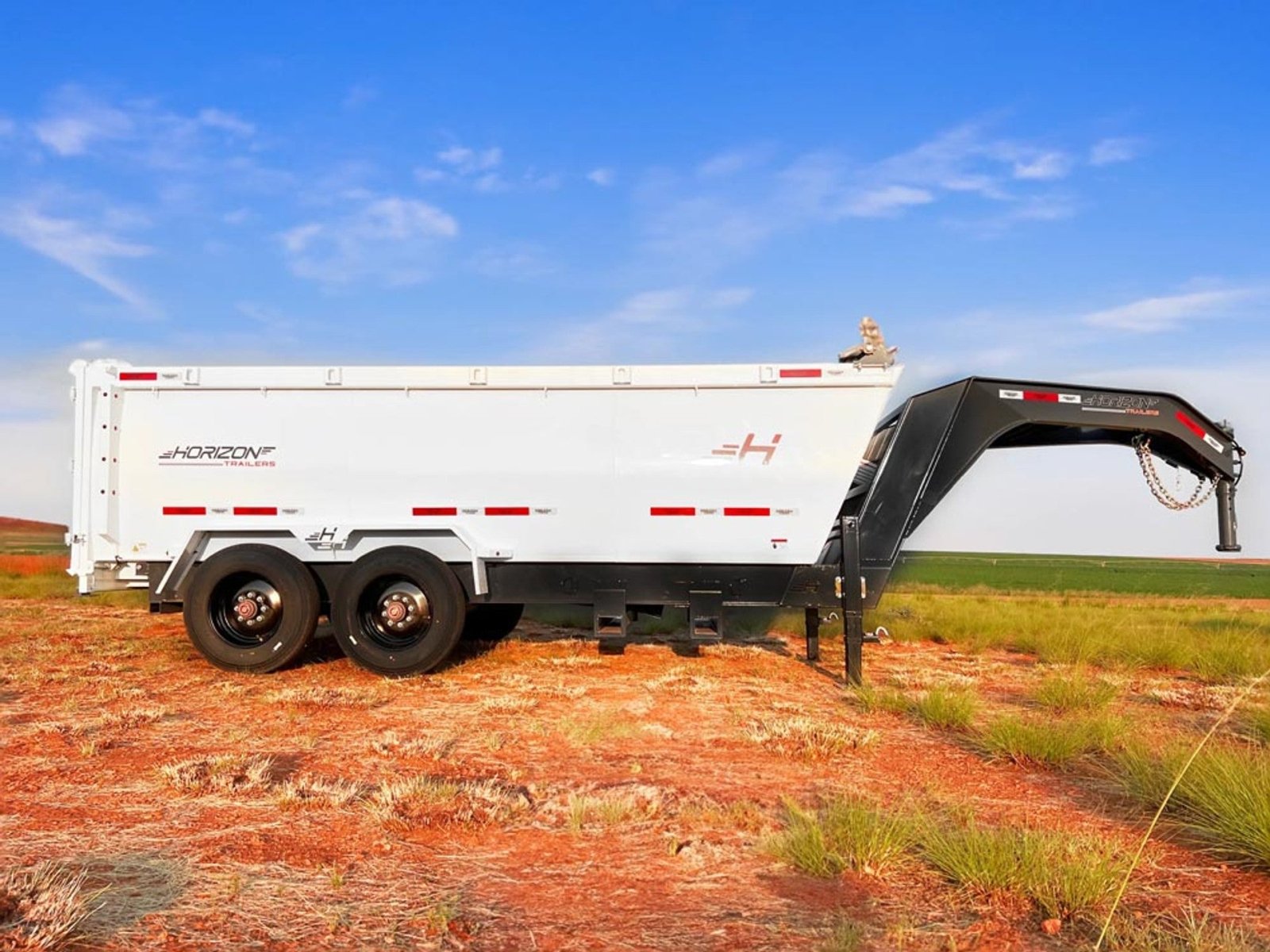

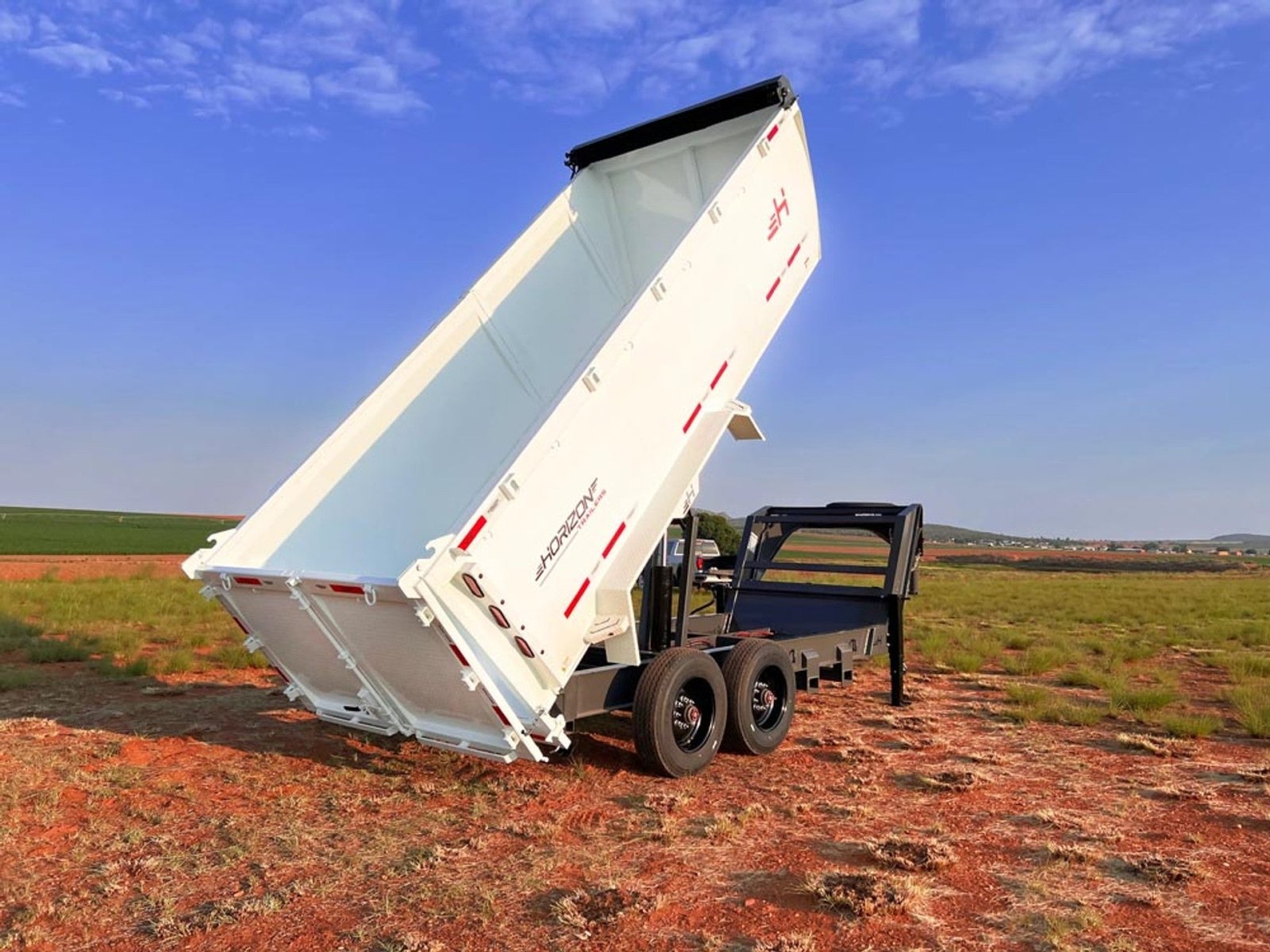

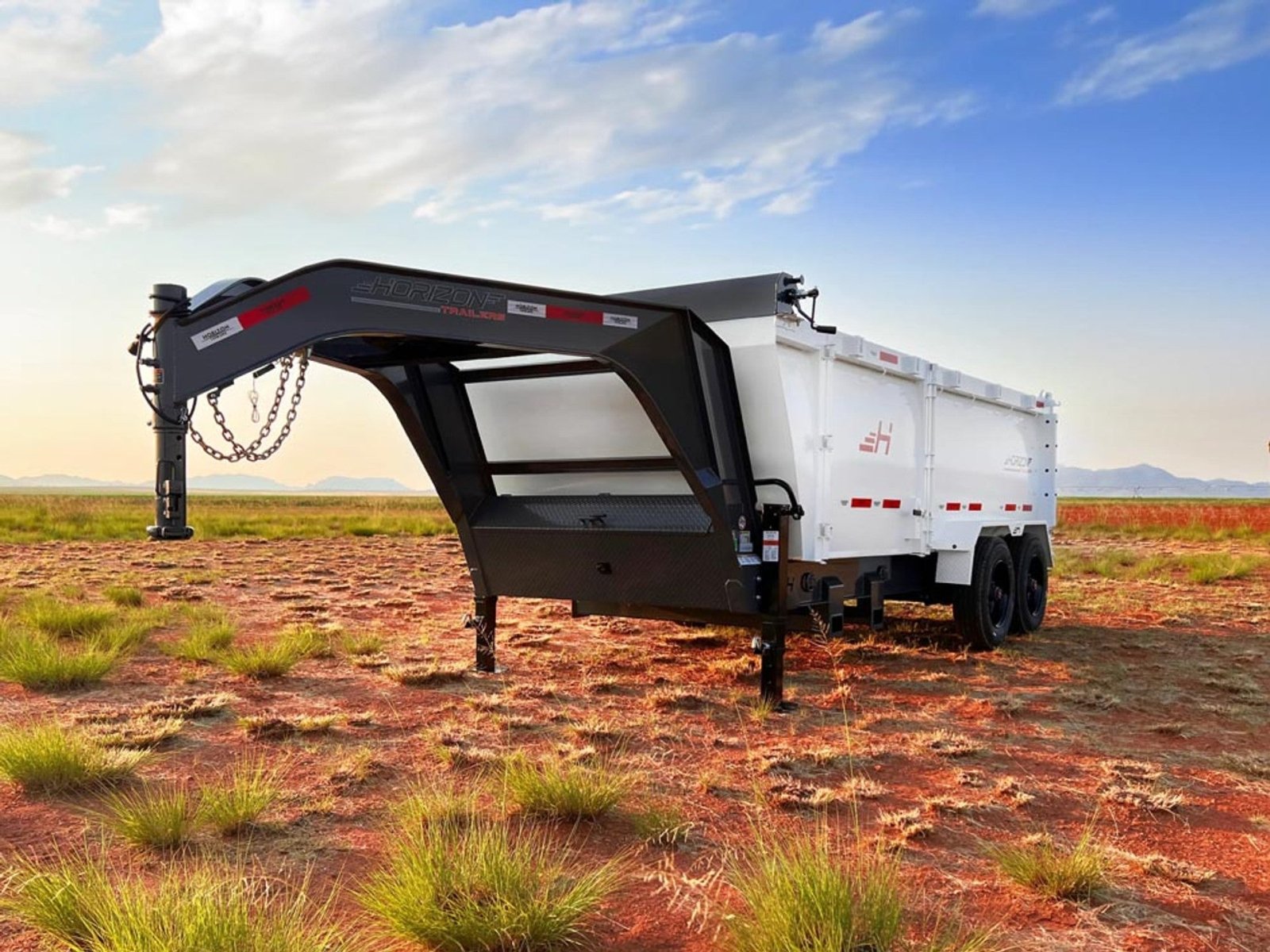

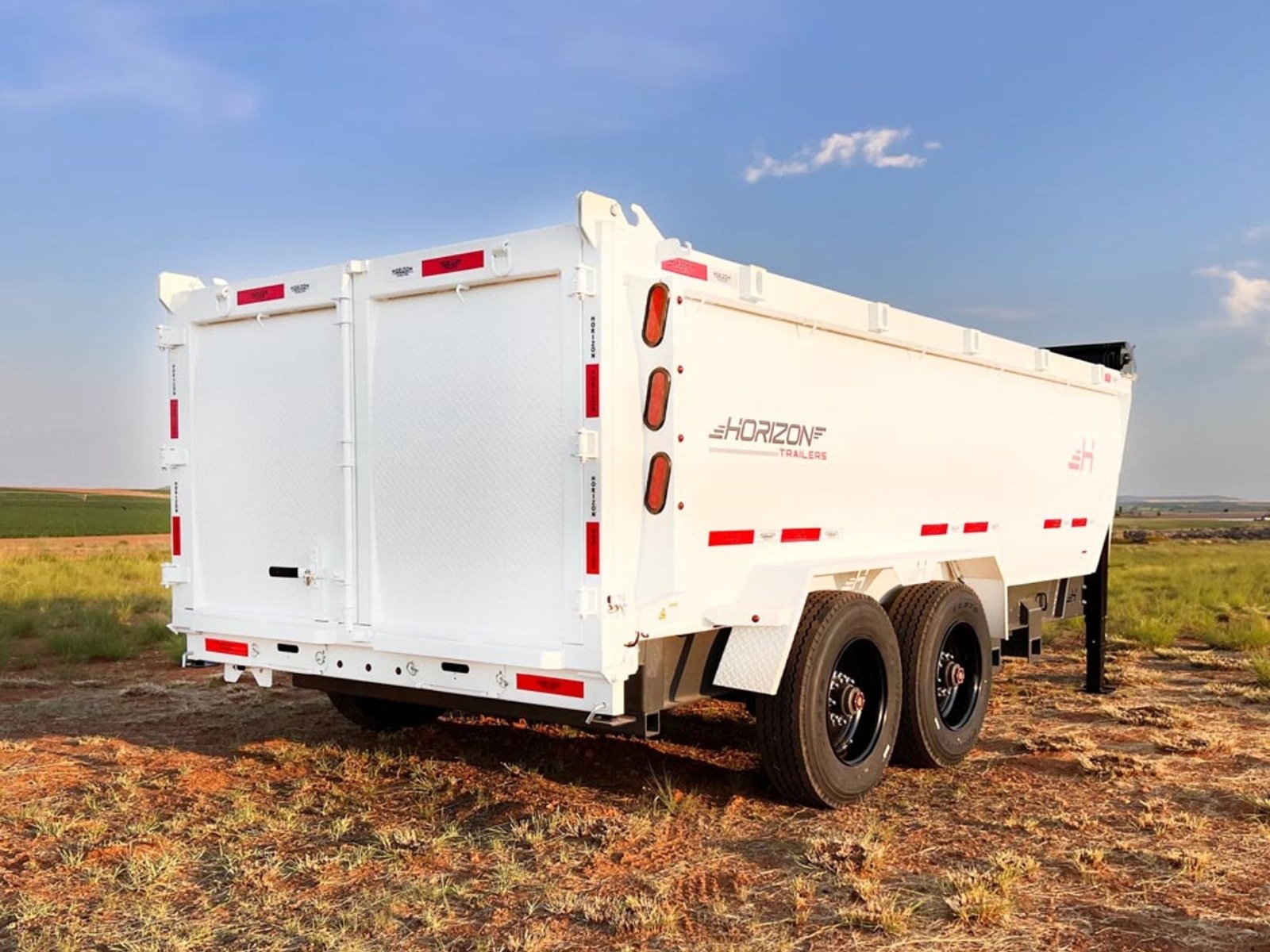

Horizon HZX Gooseneck Dump Trailer
Build Summary
Horizon HZX Gooseneck Dump Trailer
At a glance ValuesPRODUCT DETAILS
Featured Video
Product Features
Spreader Gate
The Horizon spreader gate allows for controlled spreading of contents such as gravel, sand, or mulch, providing efficient and precise distribution over a area. By regulating the flow of materials, the spreader gate enhances productivity and ensures uniform coverage.

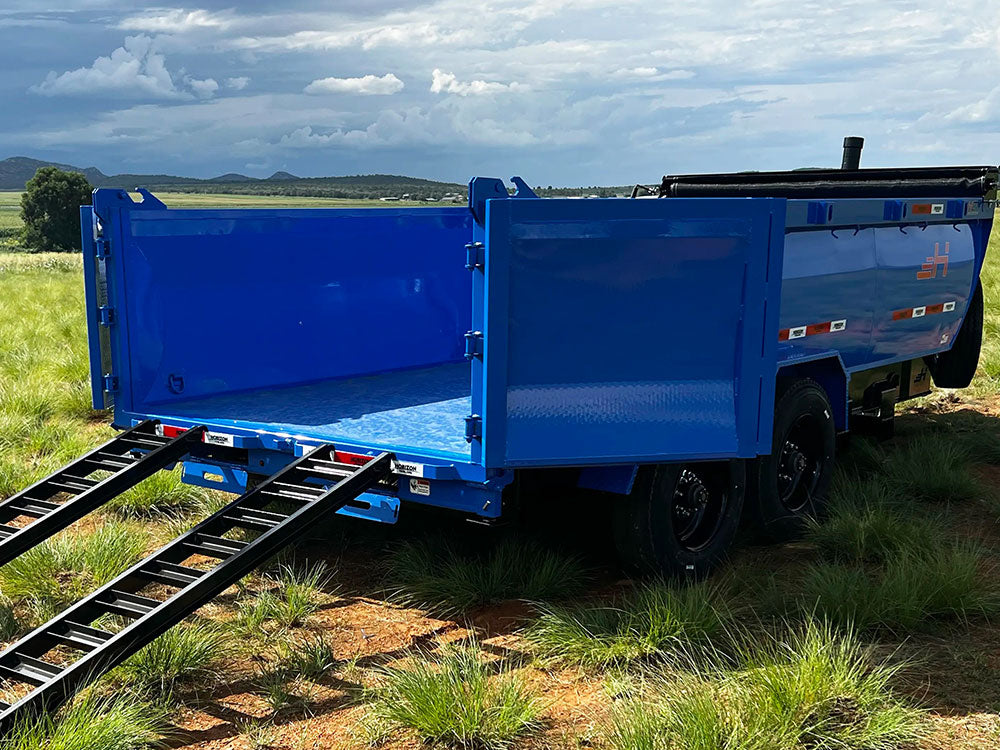

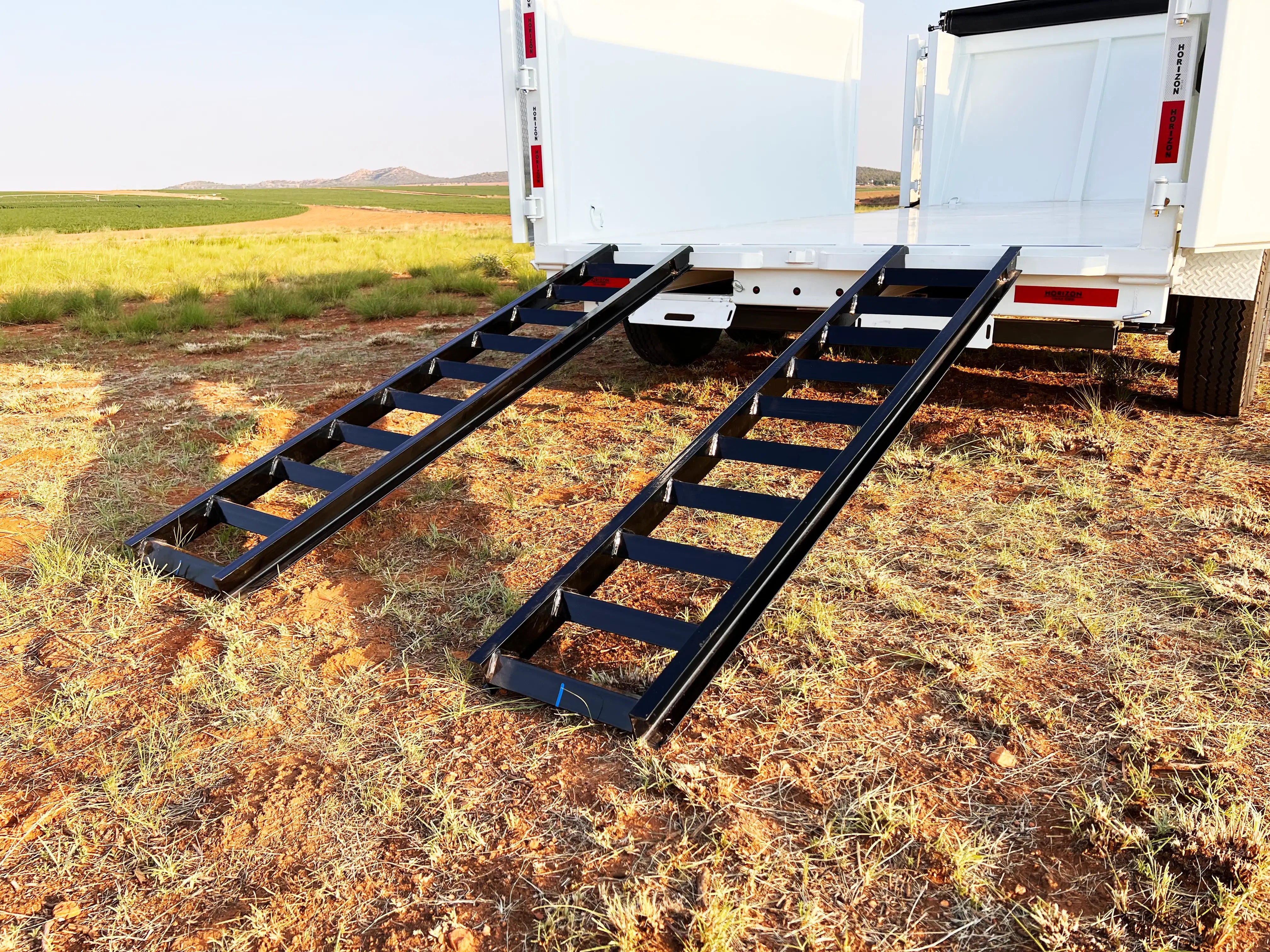

Utility Ramps
Designed to facilitate the loading and unloading of equipment, vehicles, or heavy machinery onto the trailer bed. These ramps provide a convenient and safe means of transition, allowing for efficient loading and unloading processes.

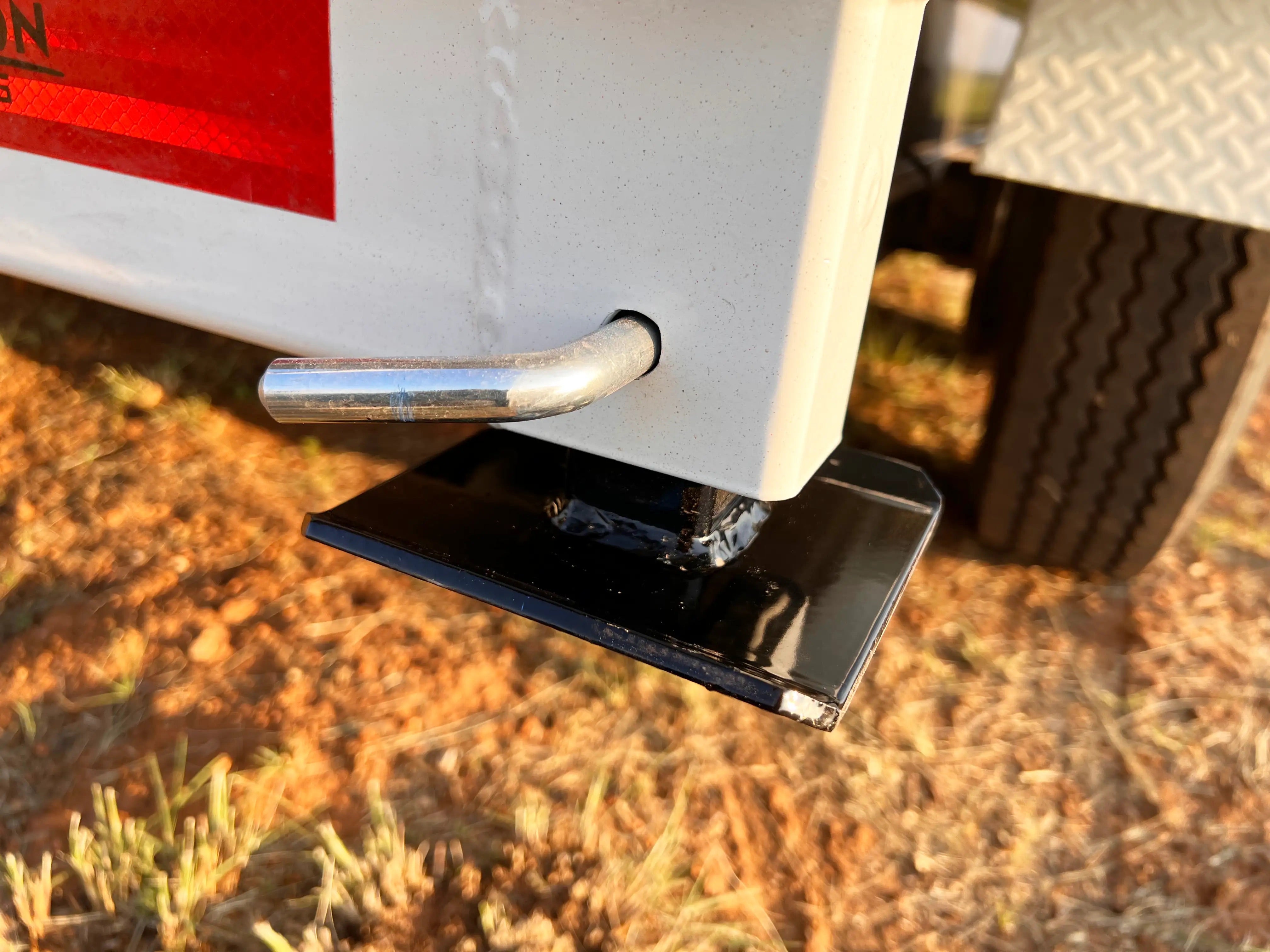

Corner Jack
These jacks provide crucial support and stability during loading and unloading operations, particularly on uneven terrain. By independently adjusting each corner, they ensure a level and secure platform, enhancing safety and efficiency.
DURABLE POWDER COAT FINISH
The HZX dump trailer boasts a premium powder-coated finish that provides superior durability and corrosion resistance. Its rugged construction and high-quality finish ensure long-lasting performance and maintain the trailer's structural integrity, even under harsh environmental conditions.
Heavy-Duty Construction
The HZX dump trailer is built with a robust 8-gauge steel frame and reinforced structural components, designed to handle demanding loads of up to 18,000 lbs. Its rugged construction ensures durability and reliability, making it the perfect choice for heavy-duty applications in construction, agriculture, and landscaping.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Description
Dimensions
- Length: 16', 18', 20'
- Side Height: 2', 3', 4'
- Bed Width: 80.5"
- Bed Height: 28"
Weight Ratings
- GAWR: 10,000 lbs
- GVWR: 21,000 lbs - 22,400 lbs
- Estimate Dry Weight: 6,545 lbs - 8,860 lbs
- Estimate Payload: 13,540 lbs - 14,455 lbs
- Estimate Tongue Weight: 1,200 lbs - 1,300 lbs
Finish
- Paint Type: Powdercoat
- Prep: Steel Grit Blasted
- Style: 2 Tone Colors Available, Chassis / Dump
Warranty
- Axle Warranty: 11 Year Lippert Torsion Axle Warranty
- Trailer Warranty: Three (3) Year Frame, One (1) Year Parts Warranty
Dump
- Bed Width: 80.5"
- Bed Height: 28"
- Flooring: 7ga. Steel Bed
- Frame: 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D Rings Welded Inside Box

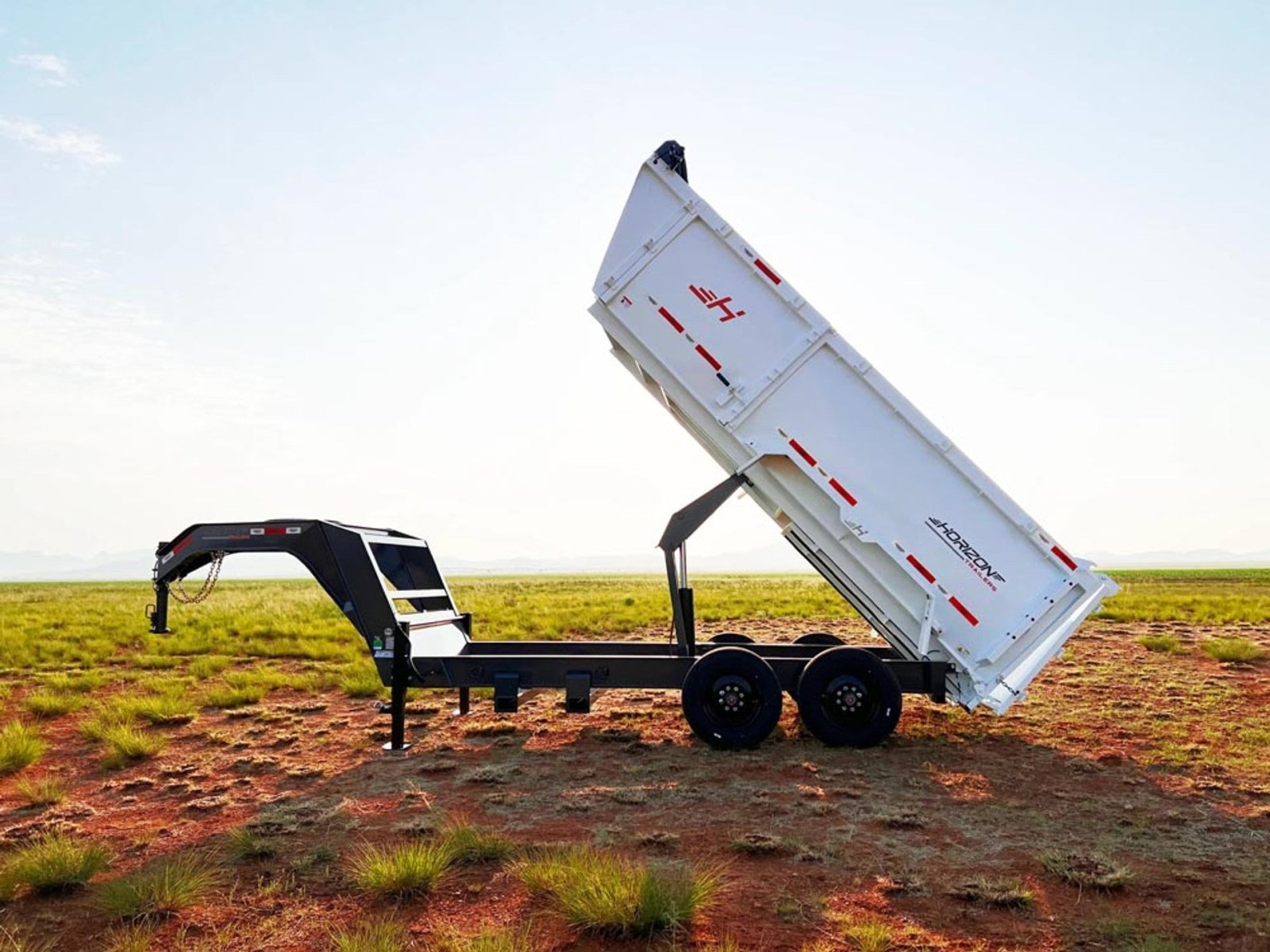

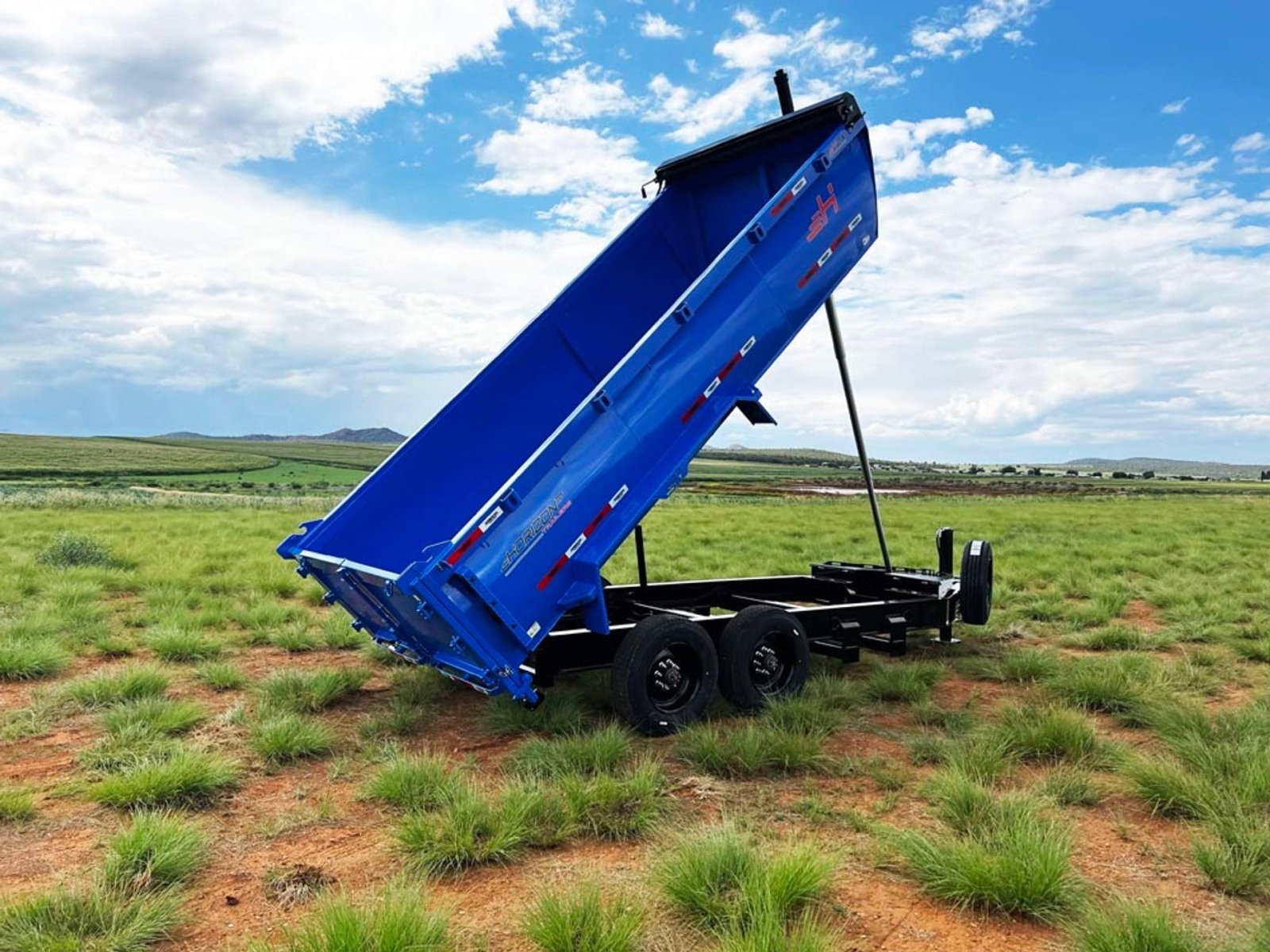

- Dump Angle: 47°
Rear

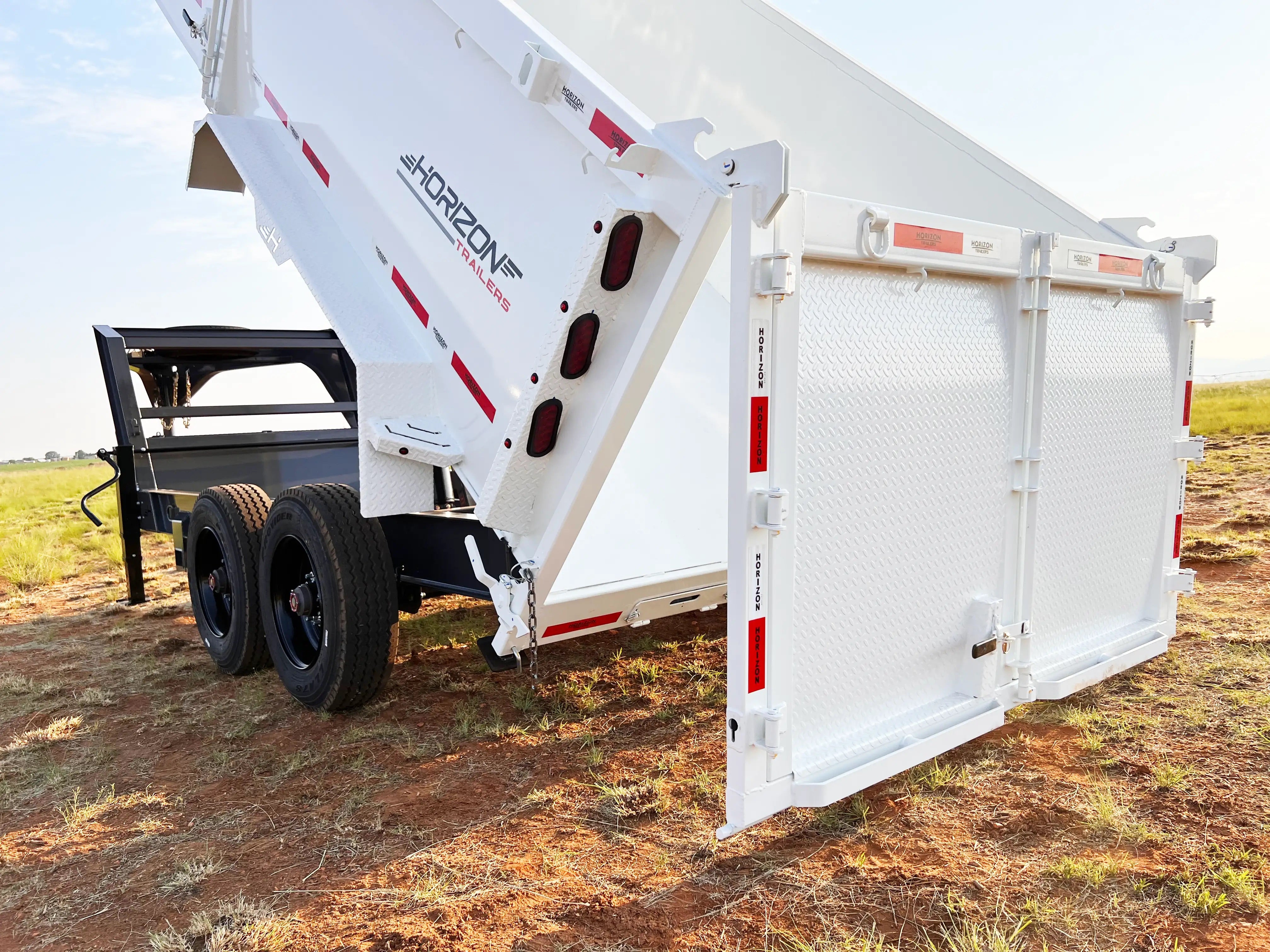

- Gate: 2 Way Door
- Safety: Crank Style Roll-Up Tarp
Sides
- Height: 2', 3', 4'
- Thickness: 10ga.
- Type: Rounded Steel
- Stake Pockets: 1-5/8" x 3-5/8" (ID) Stake Pockets
- Hooks: 3/8" Round "L" Hooks
- Fenders: 12ga. Diamond Plate Steel Fenders
Tongue
- Bumper Pull
- Type: 10" I-Beam (17 lbs/ft)
- Length: 60"

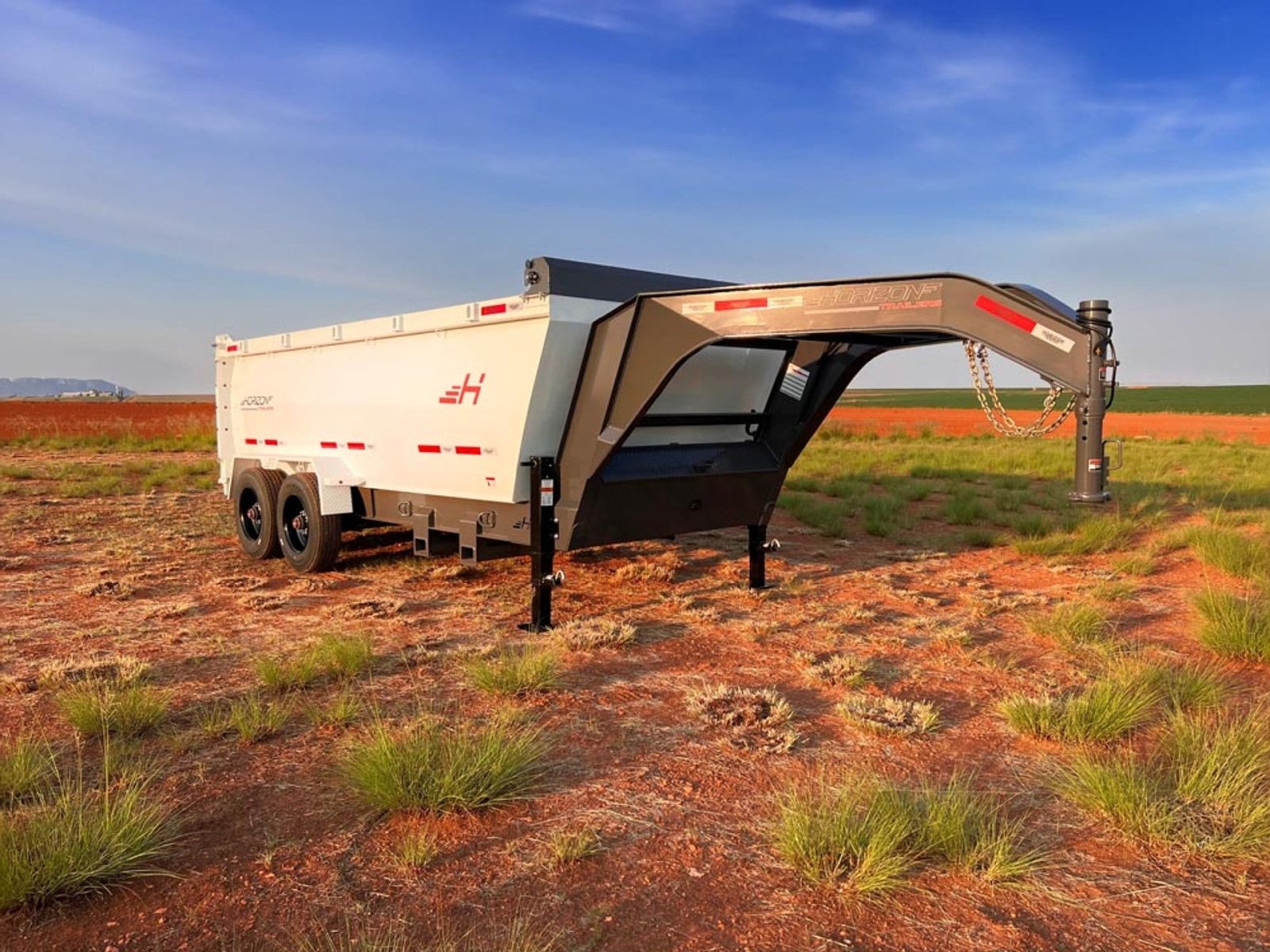

- Gooseneck
- Type: Fabricated I-Beam
- Length: 98" (From Behind Riser)
- Height: 70" (From Underneath Neck)
- Coupler: Demco EZ Latch 2-5/16" Coupler (21,000 lbs) / 2-5/16" Coupler (30,000 lbs)
- Jacks: 1 Side Wind Drop Jack Leg (12,000 lbs) / 2 Side Wind Drop Jack Legs (12,000 lbs)
- Toolbox: Lockable Toolbox (Houses Battery and Pump)
- Frame: Main Frame: 10" I Beam (17 lbs/ft)
Safety System
- Breakaway System: 2382 Brightway Group Electric Breakaway Kit
- Reflective Tape: 3M DOT Compliant Reflective Tape
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
Hydraulics
- System: Hydraulic - Power Up / Gravity Down
- Pump: KTI 12V Hydraulic Pump
- Controller: 14' Control Cable
- Lift Platform
- 16' Cylinder: 6" x 21" Single Push Cylinder, Hoist Capacity 20,000 lbs
- 18', 20' Cylinder: 6" x 30" Single Push Cylinder, Hoist Capacity 20,000 lbs
Tires
- Type: Radial Tires
- Size: ST235/75R17.5, Super Single
- Ply: 18
- Rating: 6,005 lbs
- Rims: 17.5" Black Mod Wheels
Suspension
- Axle Type: 2 - 10k Lippert Electric Brake Oil Bath Torsion Axles
- Bolt Pattern: 8 On 6.5"
- Axle Count: 2
- Suspension Type: Torsion
- Axle Warranty: 11 Year Lippert Torsion Axle Warranty
Electrical & Lighting
- Battery: Interstate 27 Deep Cycle Battery
- Charging System: 110V Integrated Trickle Charger
- Wiring Harness: All-Weather Wiring Harness (7-Way RV)
- Frame Wiring: Double Insulated Wiring Harness
- Lighting: DOT Approved Tecniq LED Lights
Shipping Data
Fitment Data
