Product Features

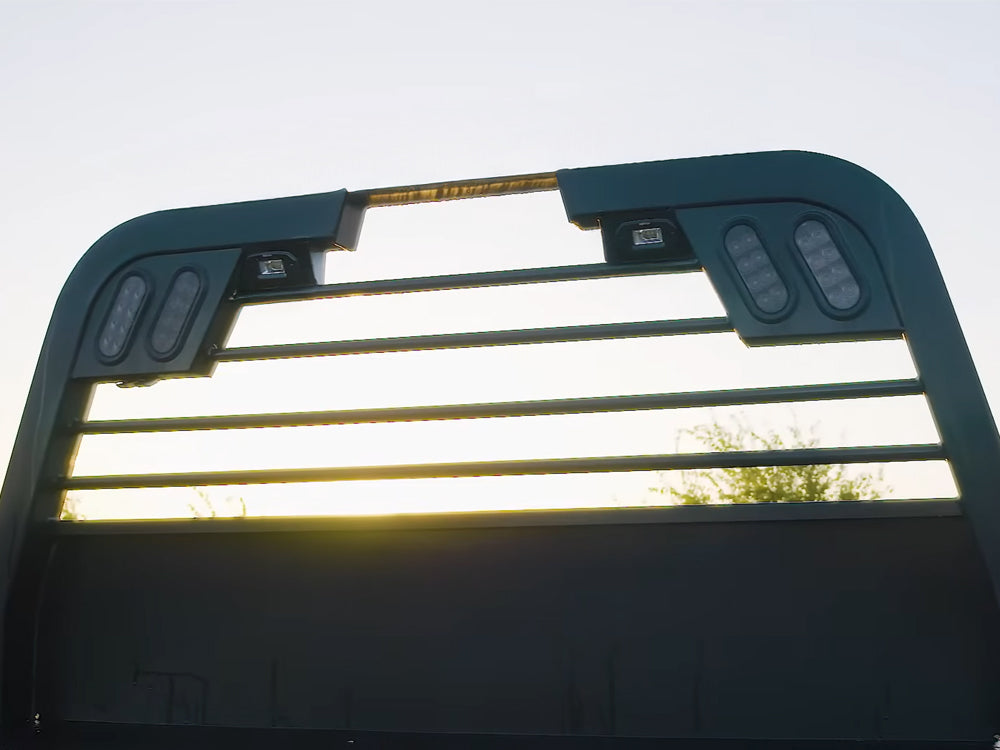

DUAL 20 WATT HEAD RACK WORK LIGHTS
Two 20-watt LED work lights are mounted directly in the head rack, throwing focused light forward over the cab. Whether you're hitching up before sunrise or wrapping up after dark, you've got the visibility to get it done safely.

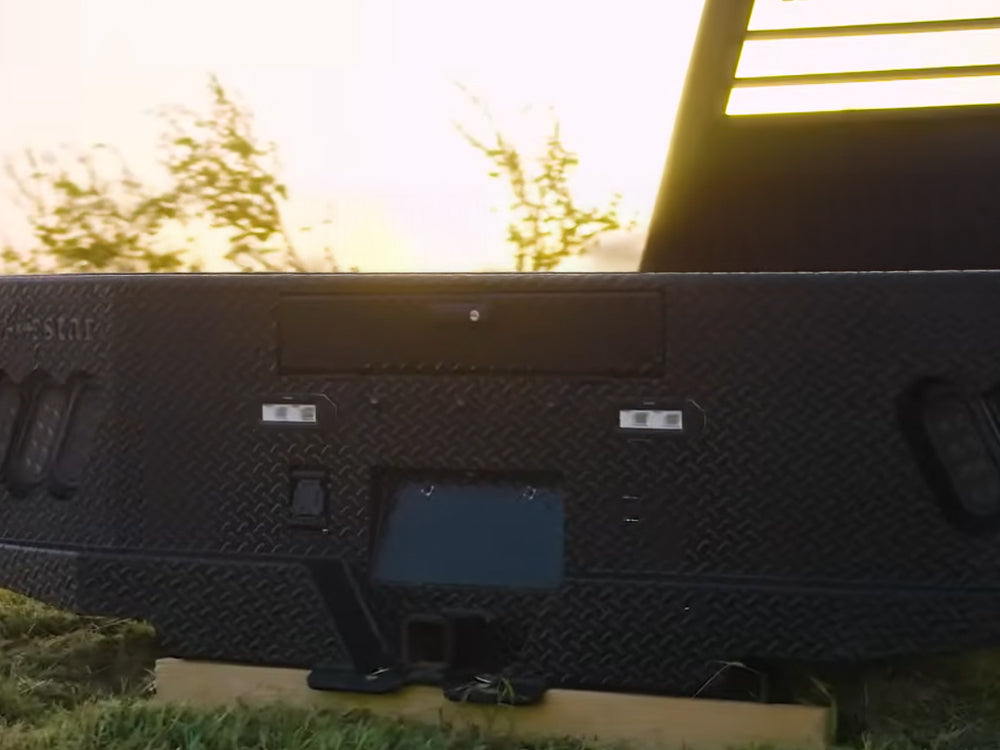

DUAL 40 WATT REAR WORK LIGHTS
A pair of 40-watt LED work lights mounted at the rear of the bed put serious light exactly where you need it. Loading, unloading, or working the gooseneck at night — the SR keeps the work area lit without needing an extra setup.

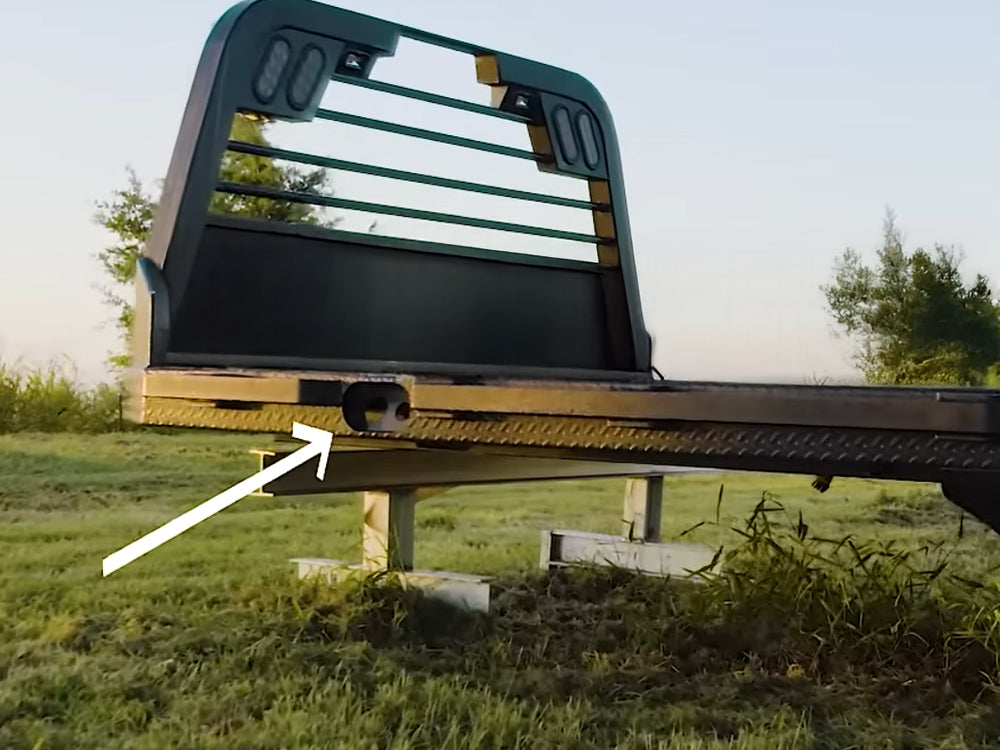

DEF AND FUEL FILLS
The SR routes both the DEF and fuel fills to the same location on the bed, making refueling fast and straightforward without reaching around or under the truck. It's a small detail that saves real time when you're filling up every day.

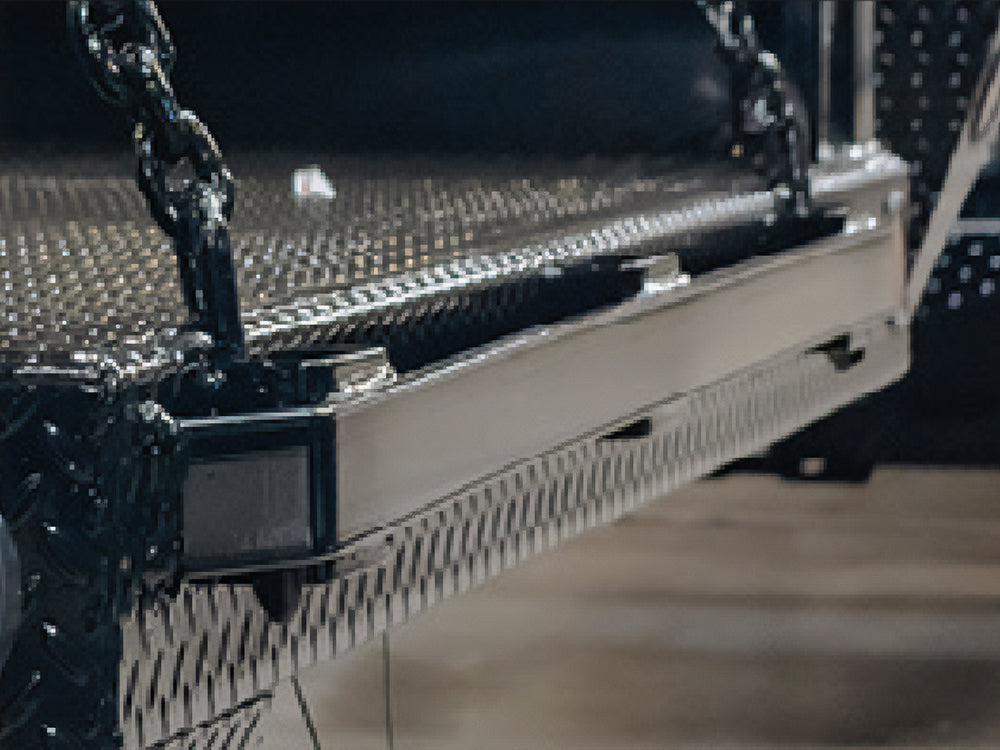

DIAMOND PLATE RUB RAIL
The SR's diamond plate side rails run the full length of the bed with built-in stake pockets and a rub rail that protects against cargo shift and loading damage. It gives the bed a finished, heavy-duty look while adding real functional protection every time you load up.

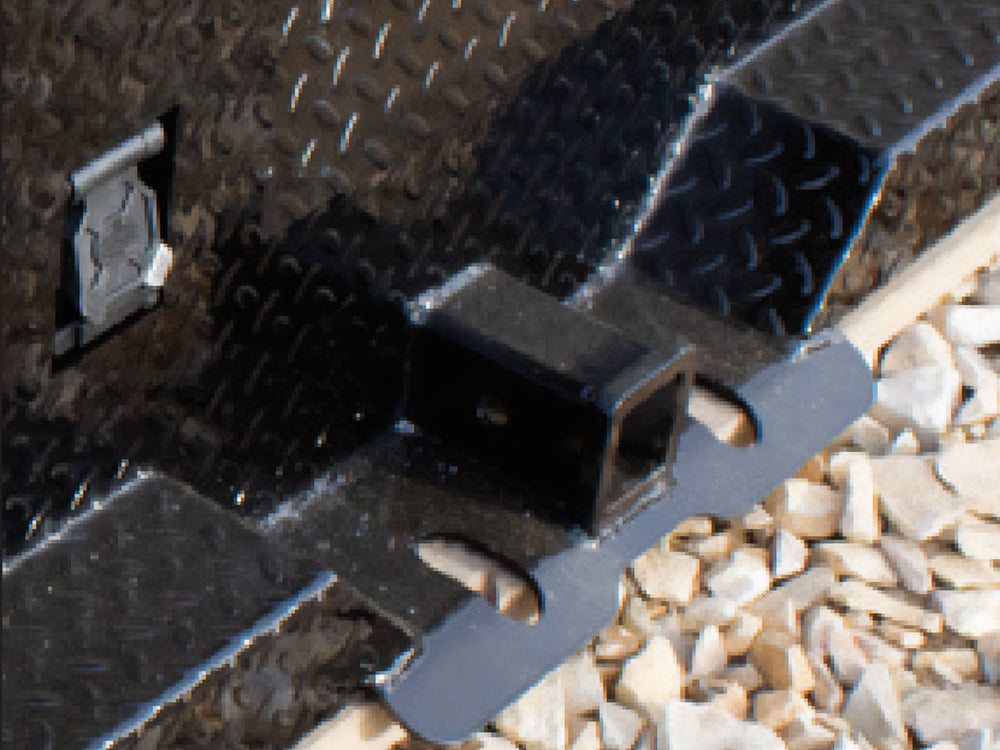

2.5" 18.5K RATED RECEIVER
This model comes standard with a 2.5" receiver rated at 18,500 lbs, giving you a rock-solid bumper pull connection for trailers, ball mounts, and accessories. Paired with the 30k rated gooseneck ball, the SR is ready for just about anything you need to pull.

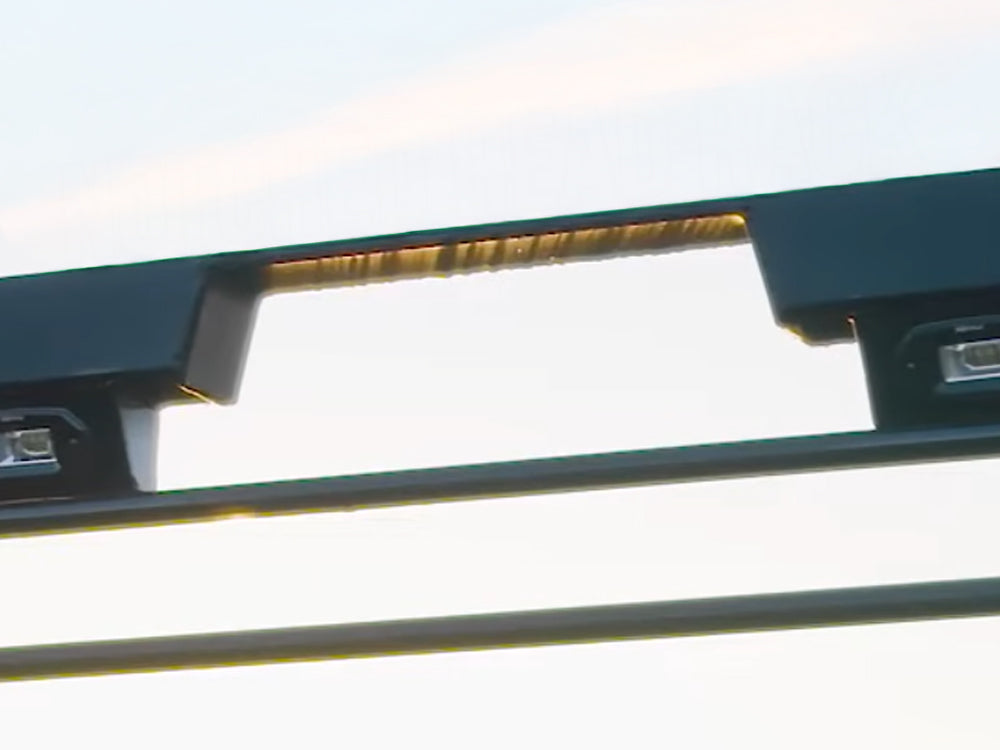

NOTCHED HEAD RACK
Designed with a notched head rack to keep the gooseneck hitch clear and your truck's 3rd brake light fully visible. It's a detail that matters for both DOT compliance and trailer-towing safety on every haul.
Product Details
DIMENSIONS & CAPACITY
- MODEL:
- SR
- TRUCK BED TYPE:
- Flatbed / Gooseneck
- LENGTH:
- 84" – 11'4"
- WIDTH:
- 84", 90", 97"
- CAB TO AXLE (CTA):
- 40", 56", 60", 84"
- DECK WIDTH:
- 80", 90", 93"
- WEIGHT (APPROX):
- 955 – 1,250 lbs
RATINGS
- GOOSENECK RATING:
- 30,000 lbs
- GN BALL RATING:
- 30k Rated 2 5/16" GN Ball
- BUMPER PULL RATING:
- 18,500 lbs
- RECEIVER RATING:
- 2.5" 18.5k Rated Receiver
FINISH
- PAINT TYPE:
- Primer & Powder Coated Black
- COLORS:
- Black, Diamond White (Optional)
FRAME & STRUCTURE
- FRAME:
- Structural Steel Frame
- FLOOR:
- Steel 1/8" Diamond Plate Floor
- CROSSMEMBERS:
- Formed 3 x 3/16" Channel Cross Members
- RUNNER CHANNELS:
- 4" Runner Channels (Adjustable on 84", 8'6" Only)
- GOOSENECK WELL:
- Built-In Gooseneck Well w/ Ball Mounted & Diamond Plate Lid
- HEAD RACK:
- Steel Tube Notched Head Rack with Cross Bars, Cargo, Tail & Reverse Lights
- REAR BUMPER:
- 11 Ga Skirted Rear Bumper with Anti-Slip Step
- REAR SKIRT:
- Diamond Plate Rear Skirt
- RUB RAILS & STAKE POCKETS:
- Diamond Plate Side Rails with Stake Pockets and Rub Rail
- FUEL FILLER:
- Angled Fuel Filler Neck and DEF Ready
- STORAGE COMPARTMENT:
- Rear Lockable Compartment
- MUDFLAP BRACKETS:
- Adjustable Mudflap Brackets
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Molded Sealed Harness with Resistors
- PLUG:
- 4/5 & 7 Way Receiver Female Plug with Adapter
- GN WELL PLUG:
- 7 Way Plug in Gooseneck Well
- MARKER LIGHTS:
- 3/4" LED Reflective Marker Lights
- REVERSE LIGHTS:
- 4 Smoked 6" Oval LED Reverse Lights
- ST/TL/TN LIGHTS:
- 6 Smoked 6" Oval Red LED ST/TL/TN Lights
- UTILITY LIGHTS:
- High Visibility LED Utility Lights
- WORK LIGHTS (REAR):
- 2 Rear Work Lights w/ Switch, 40W Each
- WORK LIGHTS (HEAD RACK):
- 2 Work Lights in Head Rack w/ Switch, 20W Each
- LICENSE PLATE LIGHT:
- Single LED License Plate Light
OPTIONS/CONFIGURATIONS
FITMENT GUIDE
*WEIGHT OF UNITS ARE APPROXIMATES ONLY AND SUBJECT TO CHANGE DEPENDING ON OPTIONS.
