At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GrayTrue RedPearl WhiteCloud GrayNavy BlueSunset Orange
Featured Video
Product Features

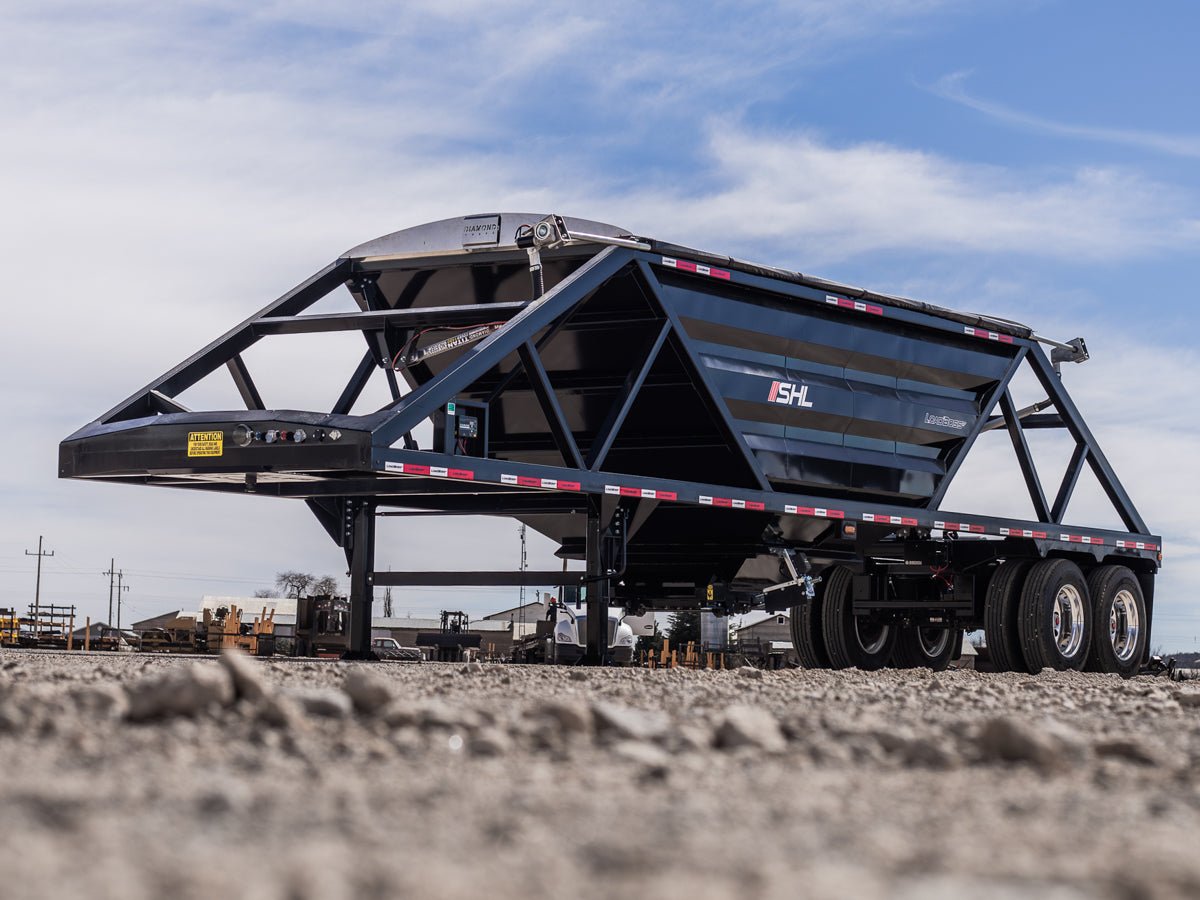

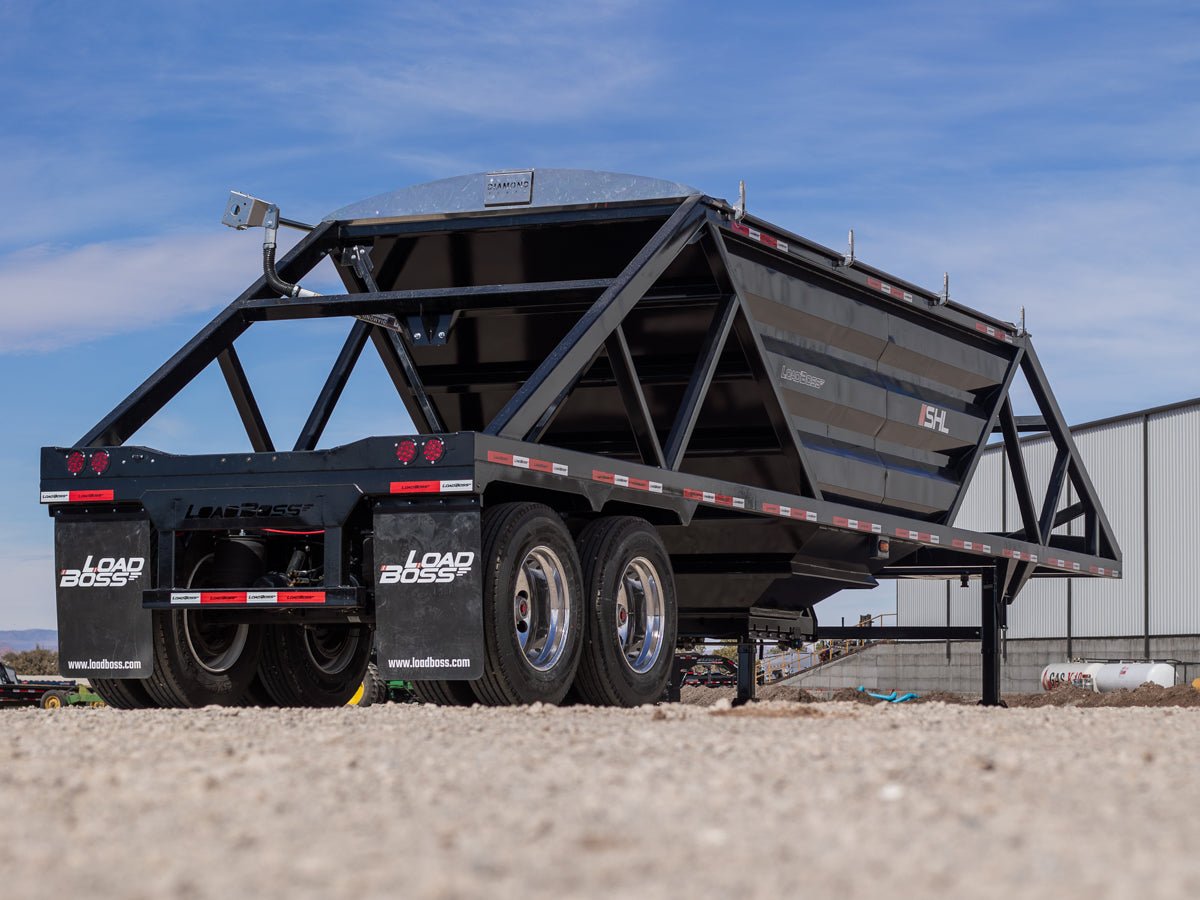

26 Cubic Yard Hopper Capacity
Built with a massive 26 cubic yard hopper capacity for maximum material hauling per trip. The 8' wide by 21' long top opening makes loading fast and efficient with any standard overhead bin or conveyor system.
AR400 Steel Hopper Construction
Upper and lower hopper plates are constructed from reinforced 3/16" AR400 grade steel. This abrasion-resistant material is specifically engineered to withstand the extreme wear of sand, gravel, and aggregate dumping.

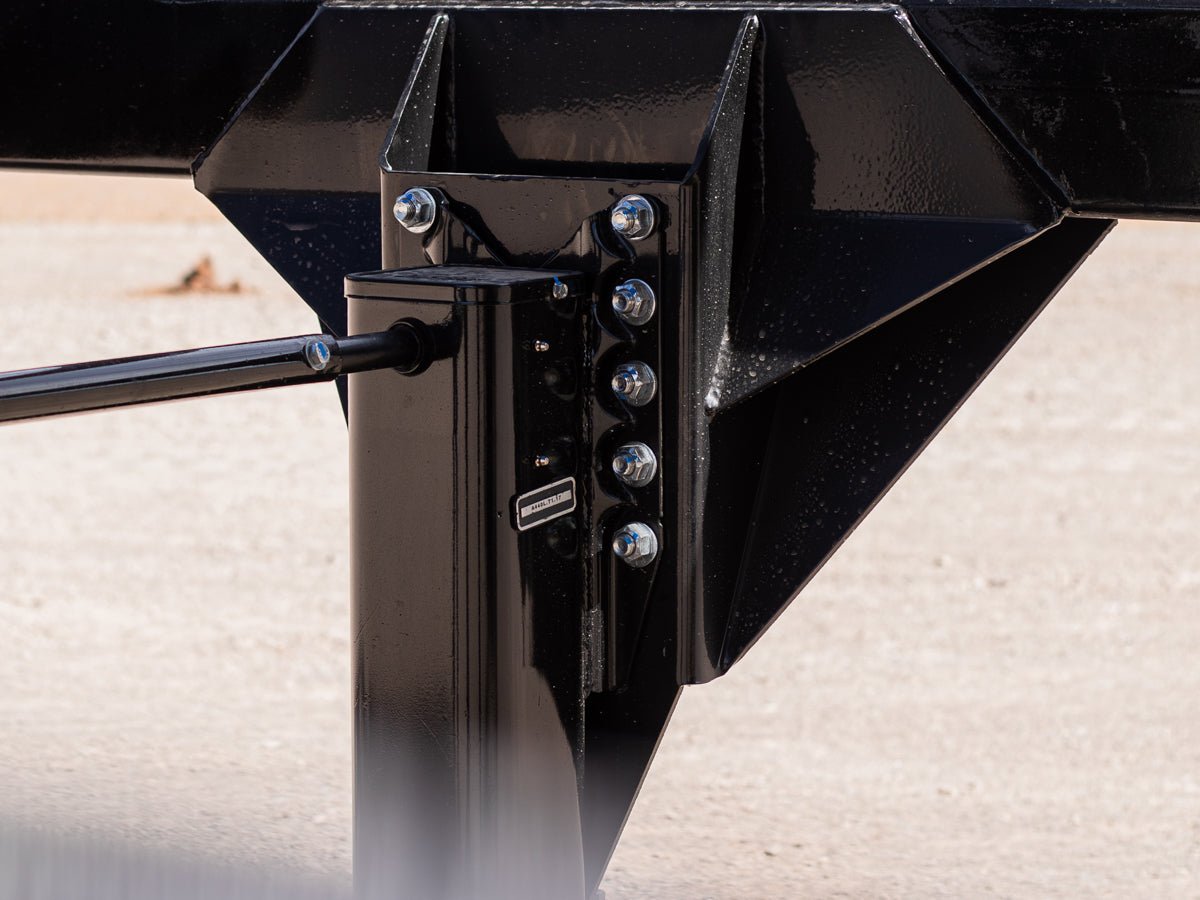

170,000 lb Jost Landing Gear & 30k Ampro Axles
Equipped with Jost A440 Magnum Series landing gear rated at 170,000 lbs static load. The running gear features Ampro 30,000 lb axles with Hutchens H-9700 3-leaf spring suspension for heavy-duty stability.

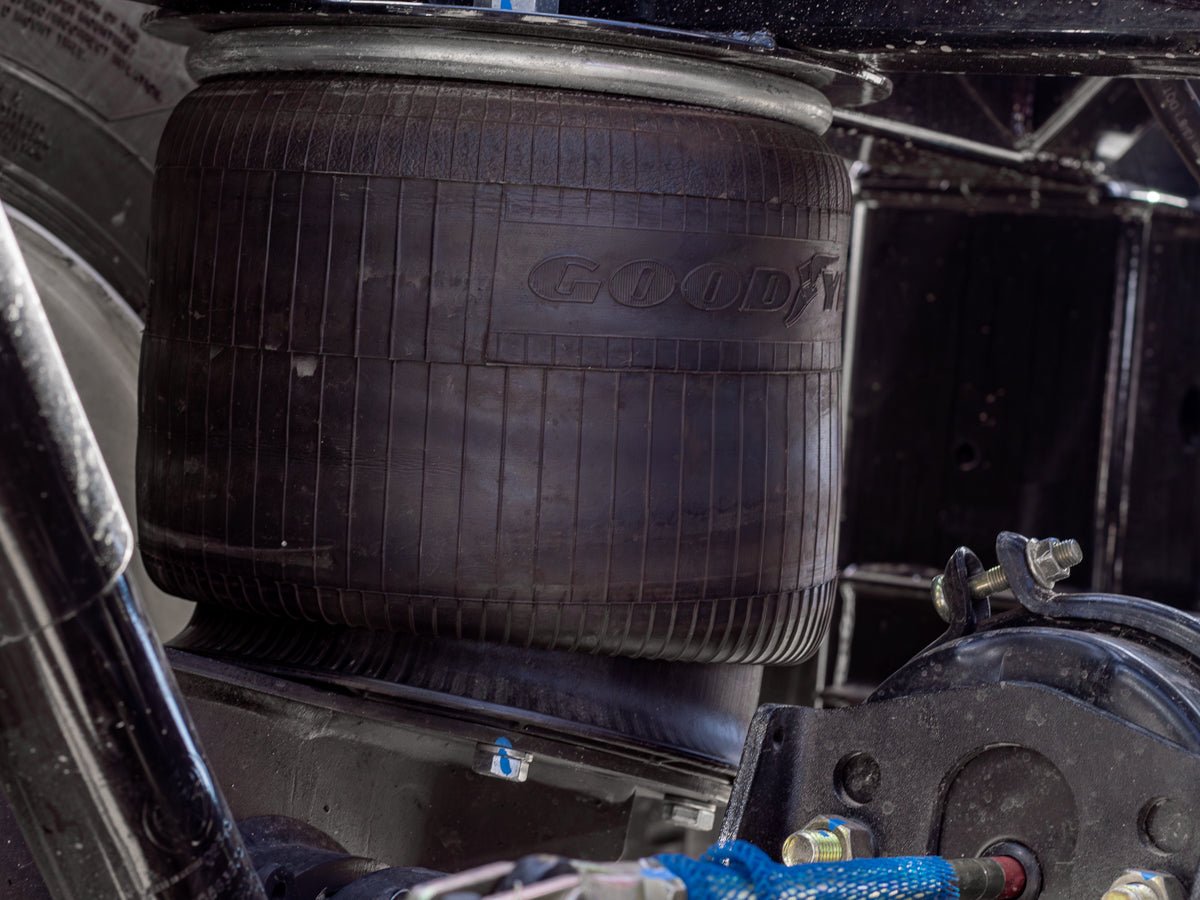

Ridewell Air Ride Suspension Upgrade
Upgrade to Ridewell air ride suspension with 25,000 lb capacity for a smoother, more controlled ride. Air ride reduces shock to the trailer and hopper components, extending equipment life.

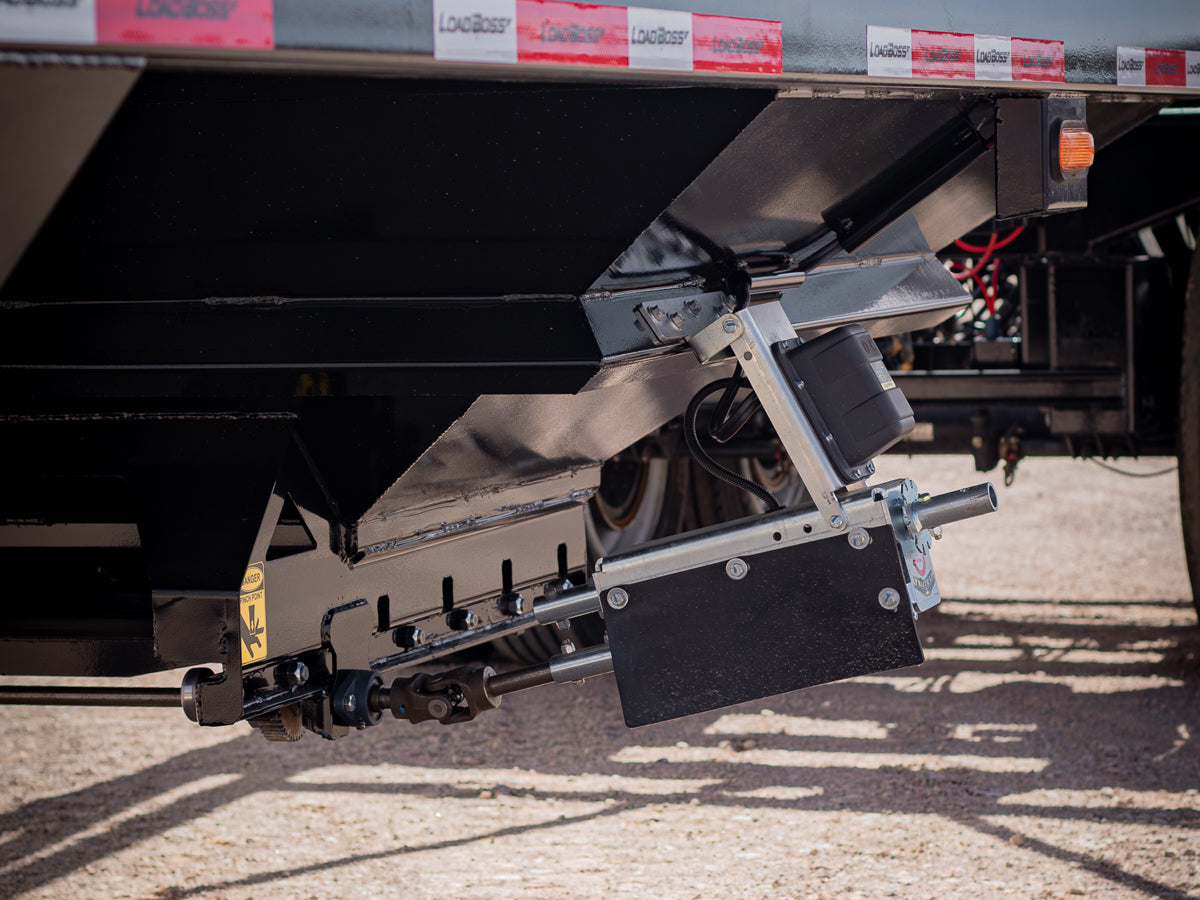

Electric Hopper Gate Opener Upgrade
Available with a Shurco electric motor hopper gate opener with wireless remote. This upgrade eliminates manual cranking, allowing you to open the gate from the cab with the push of a button.

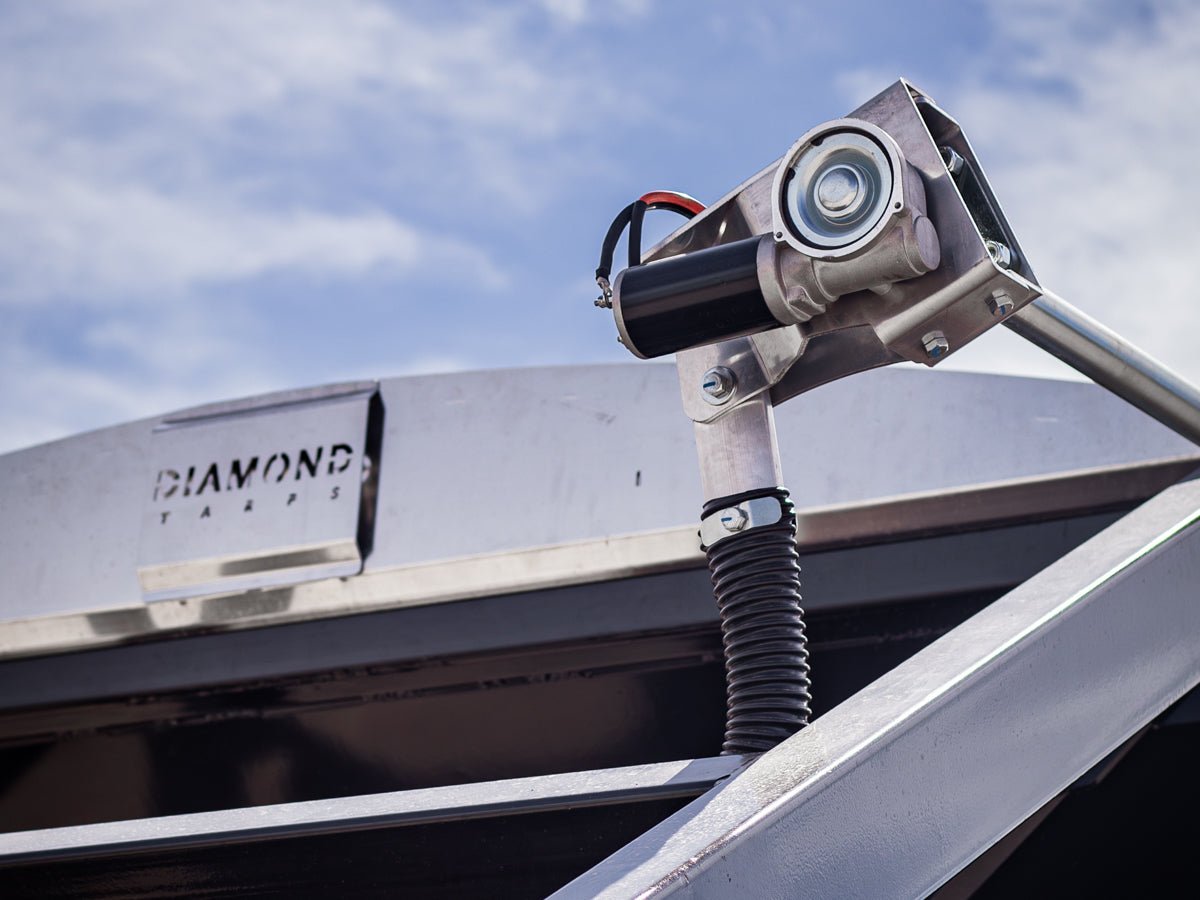

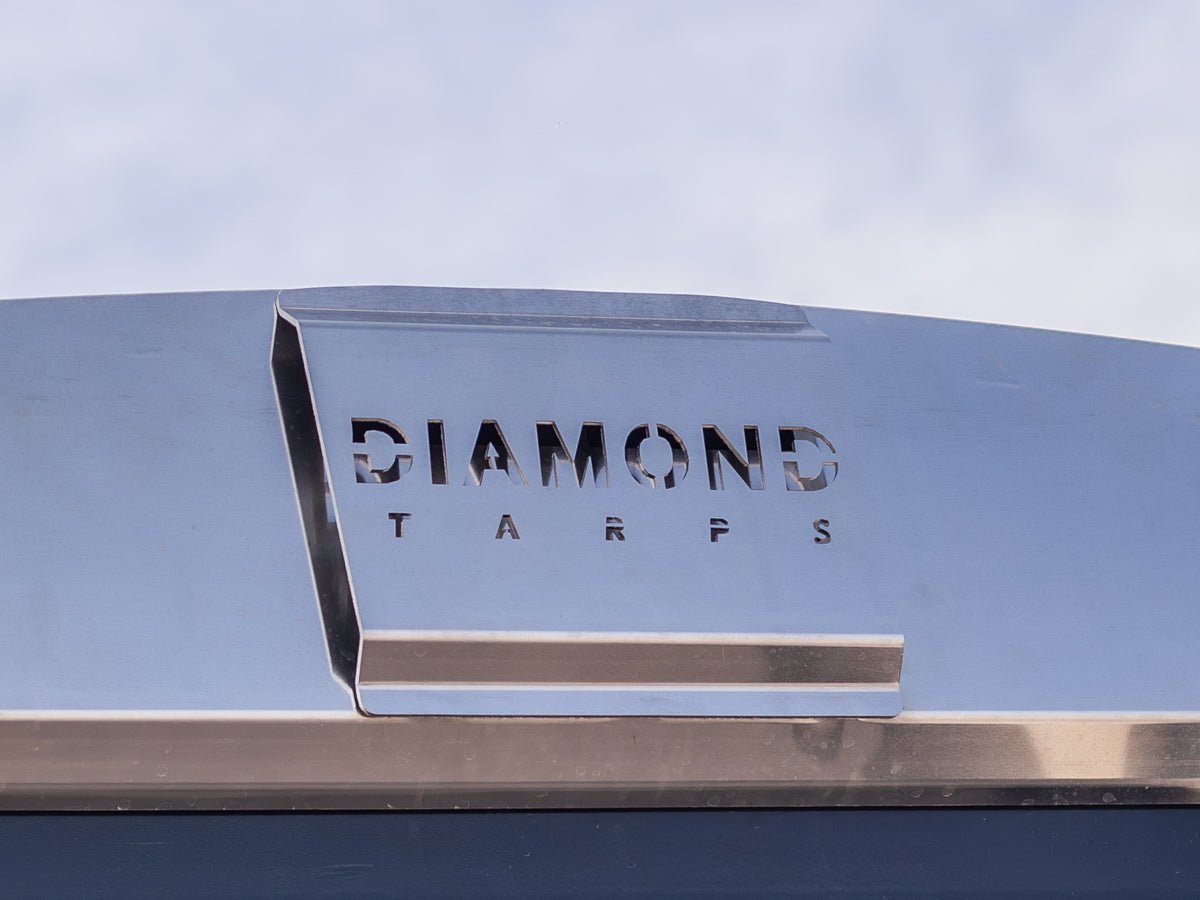

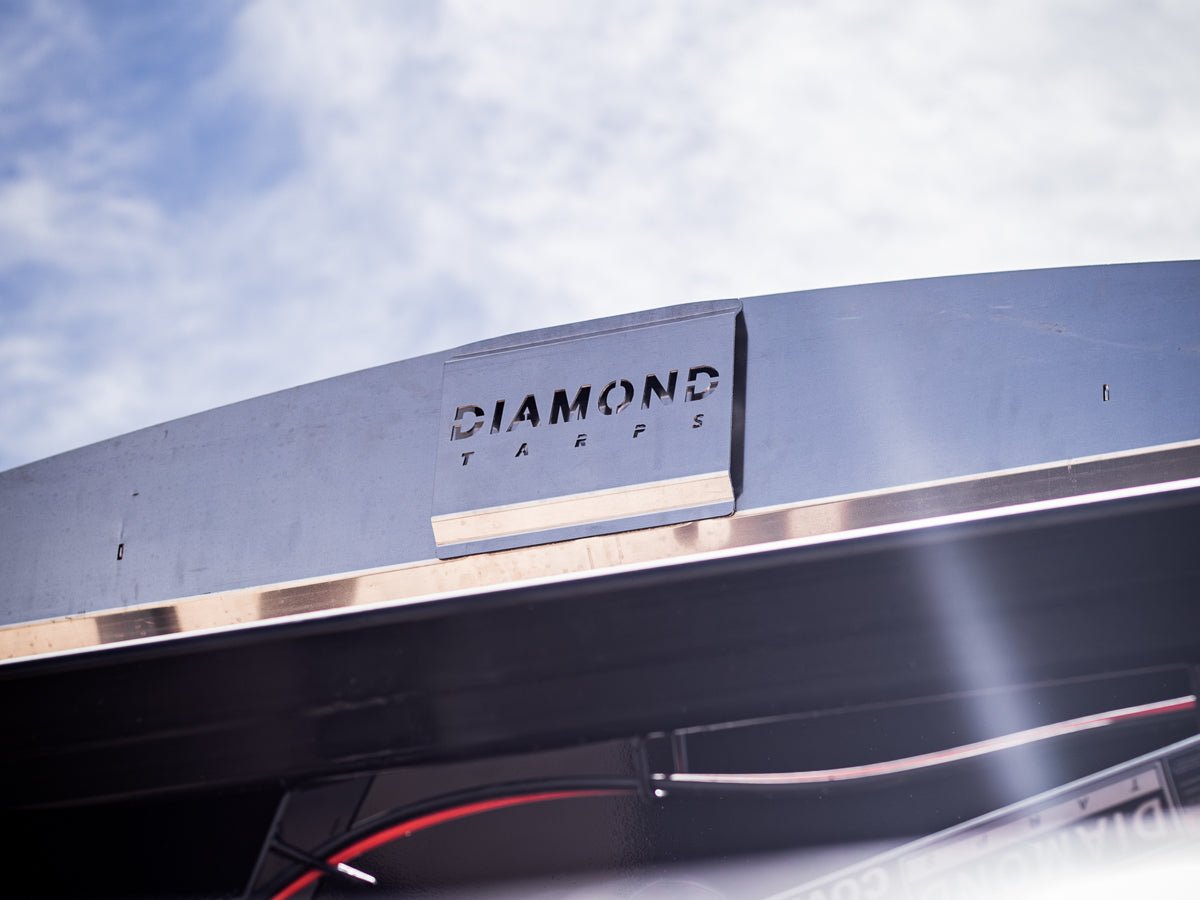

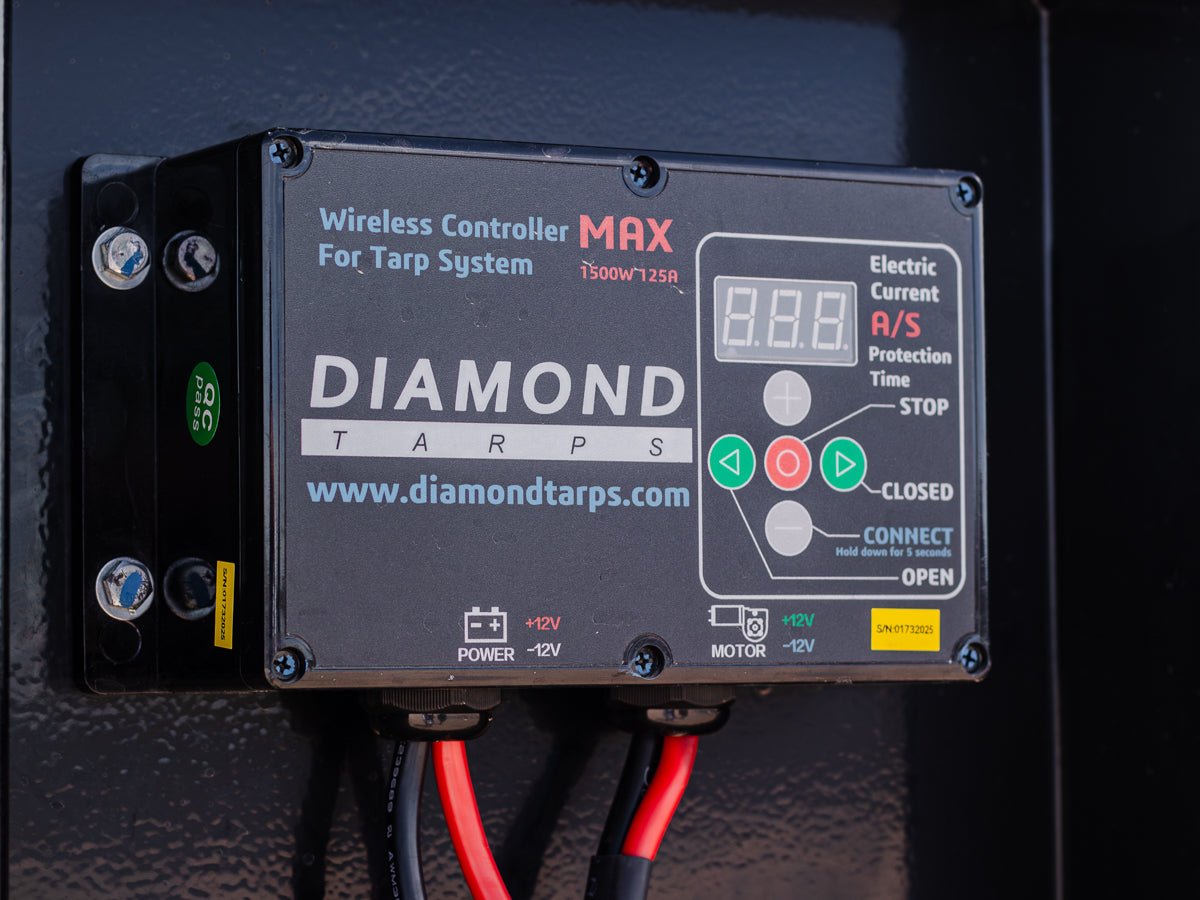

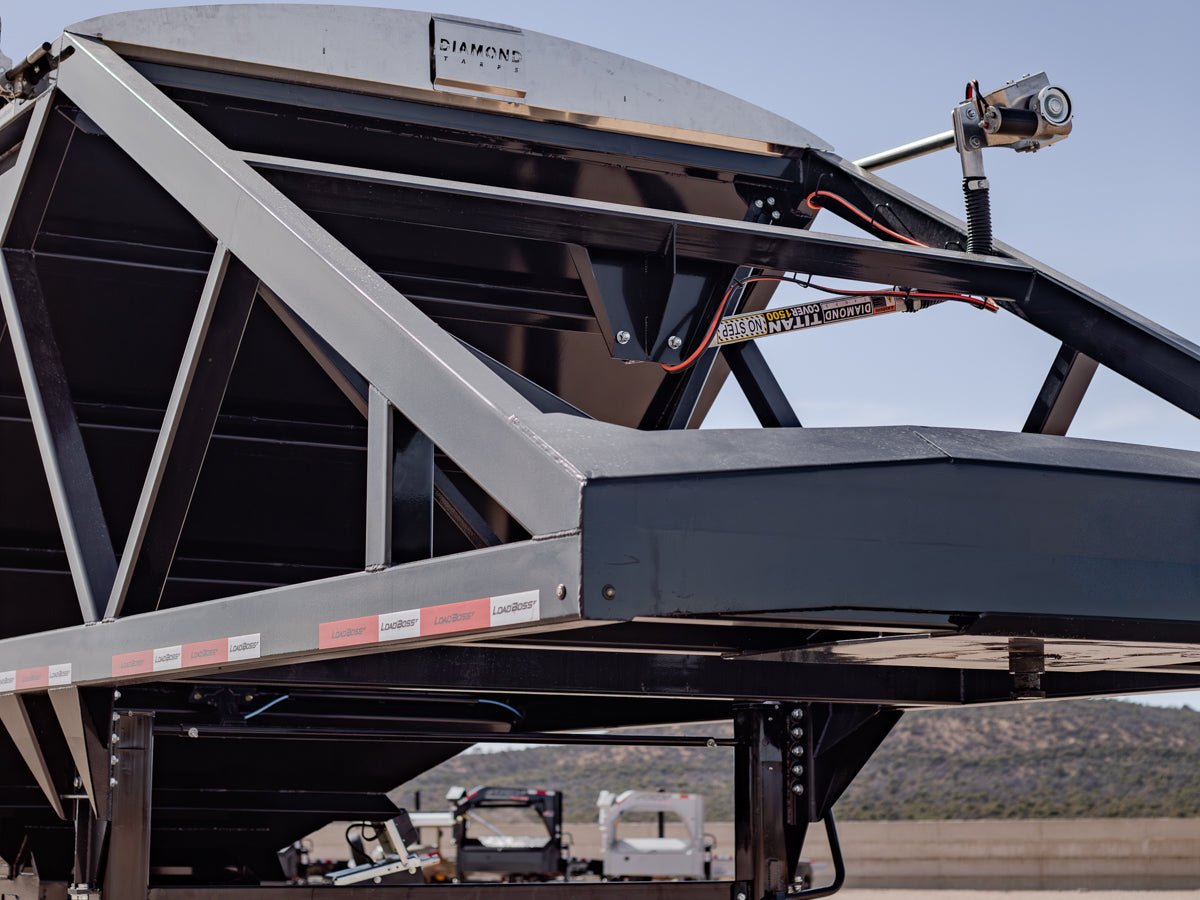

Electric Side Roll Tarp Kit
Includes an electric side roll tarp kit for fast, one-person coverage of the 21' long top opening. The electric operation eliminates manual cranking and keeps your load covered and secure.
Product Details
DIMENSIONS
- LENGTH:
- 40'
- WIDTH:
- 102"
- HOPPER CAPACITY:
- 26 Cubic Yds
- HOPPER HEIGHT:
- 8'
- OVERALL HEIGHT:
- 10'
- TRAILER TYPE:
- Sand Hopper
- PULL TYPE:
- King Pin (Semi Trailer)
- COLLECTION:
- Semi Trailer
- MODEL:
- SHL 72K 102" Sand Hopper
WEIGHT RATINGS
- GVWR:
- 72,000 LBS
- GAWR:
- 30,000 LBS
- ESTIMATE DRY WEIGHT:
- PENDING
- ESTIMATED PAYLOAD:
- PENDING
- AXLE COUNT:
- 2
HOPPER SPECS
- HOPPER CAPACITY:
- 26 Cubic Yds
- TOP RAIL:
- 21' Long x 8' Wide
- SIDEWALL HEIGHT:
- 5'5"
- INSIDE OVERALL HEIGHT:
- 9'5" (Bottom of Hopper to Top of Sidewall)
- UPPER HOPPER:
- 3/16" AR400 Steel Hopper Plate
- LOWER HOPPER:
- 3/16" AR400 Steel Hopper Plate
- HOPPER PLATE:
- Reinforced 3/16" AR400 Steel Plate
- FRONT WALL:
- Reinforced 12GA. GR50 Steel Plate
- REAR WALL:
- Reinforced 12GA. GR50 Steel Plate
- SIDEWALLS:
- Formed 14GA. GR50 Steel Plate
- FLOOR LINER:
- UHMW-PE High Resistance Bolt-On Liner (Standard)
- FRONT WALL LINER:
- UHMW-PE High Resistance Bolt-On Liner
- REAR WALL LINER:
- UHMW-PE High Resistance Bolt-On Liner
FINISH
- PAINT TYPE:
- Sherwin Williams Top Quality Powdercoat
- PREP:
- Steel Grit Blasted
- UNDERCOAT:
- Zinc Rich Epoxy Primer
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange

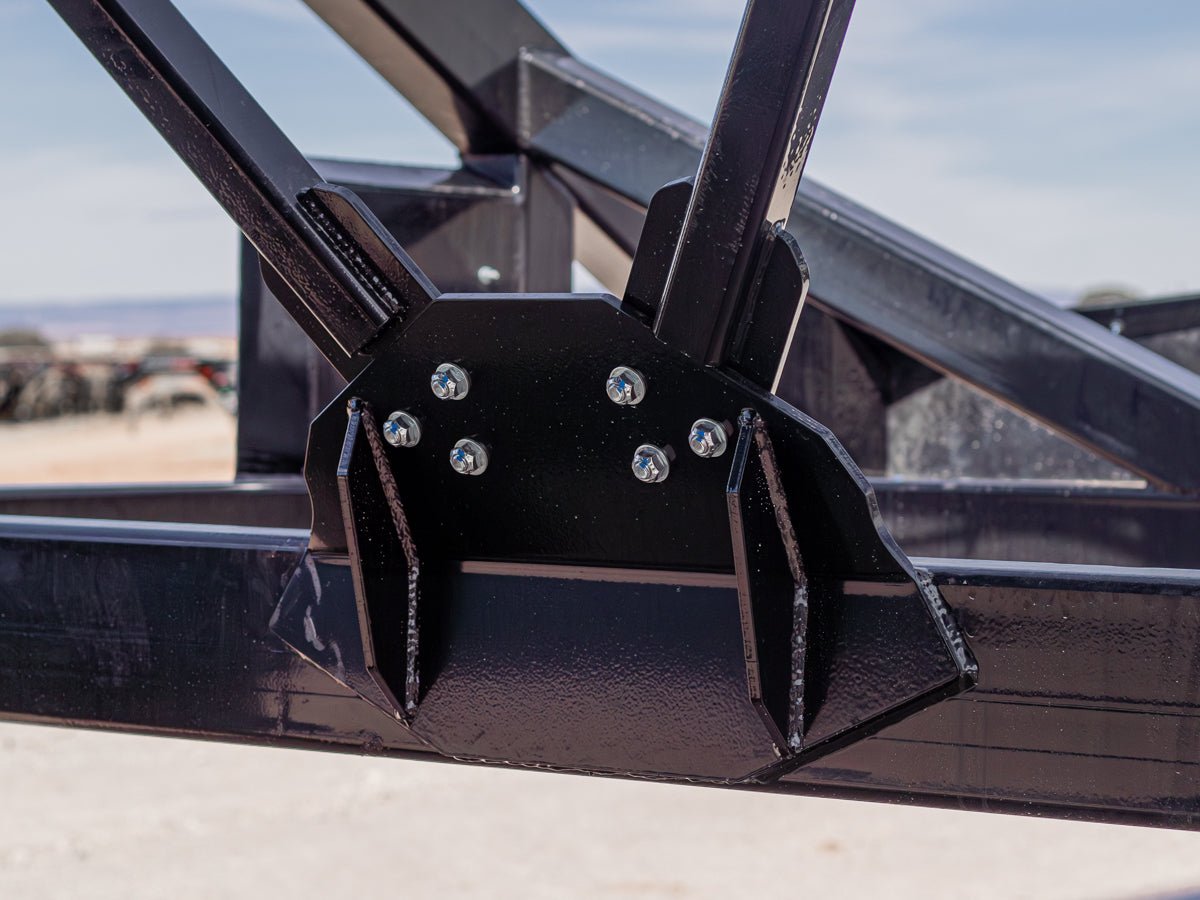

FRAME & CONSTRUCTION
- FRAME:
- 4" x 6" x 7GA. Tubing
- BOTTOM FRAME:
- 4" x 6" x 7GA. Tubing
- TOP FRAME:
- 4" x 6" x 7GA. Tubing
- CROSS SUPPORTS:
- 2" x 2" x 1/4" Square Tubing Bolt-On Supports

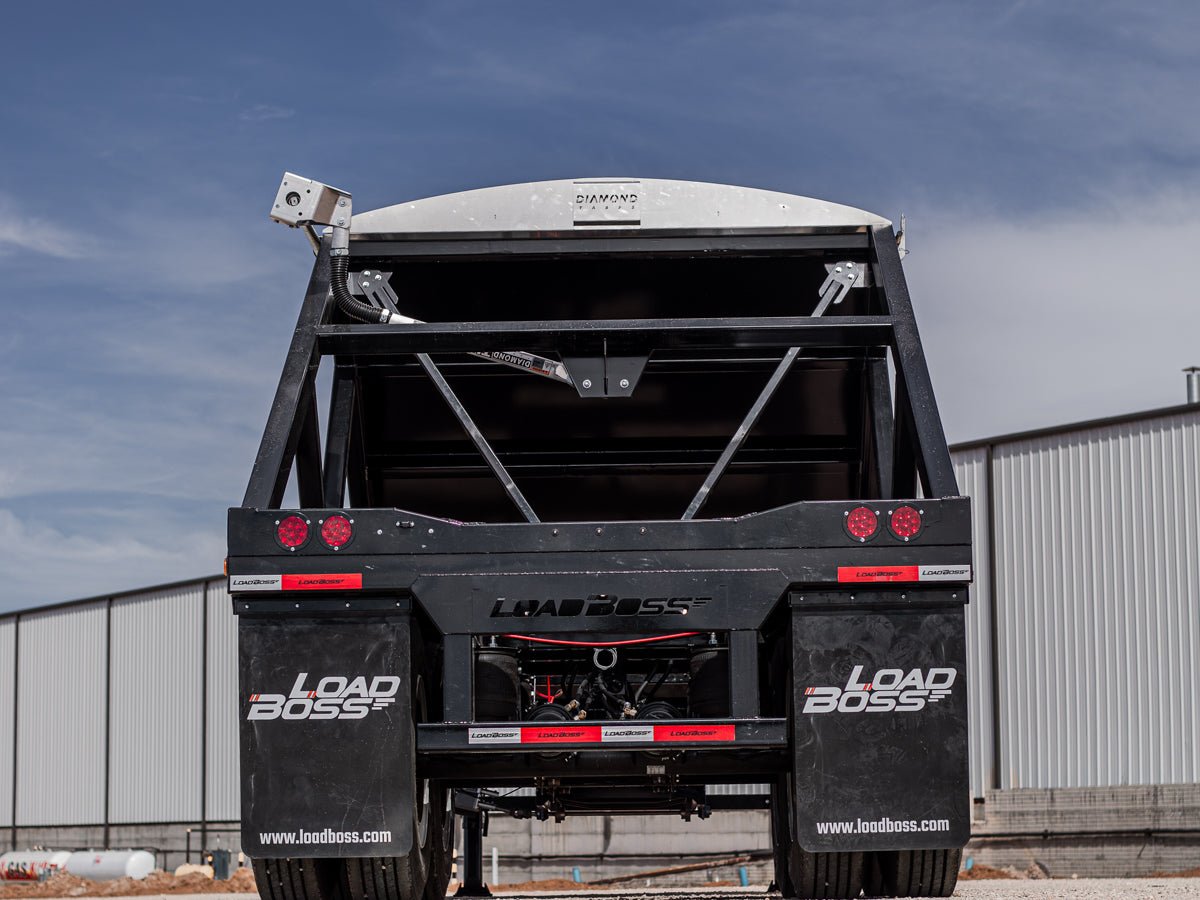

- REAR BUMPER:
- Certified Rear Impact Guard — Meets or Exceeds All Transport Canada & US DOT Regulatory Requirements
- MUD FLAPS:
- Heavy Duty Black Rubber w/ LoadBoss Logo

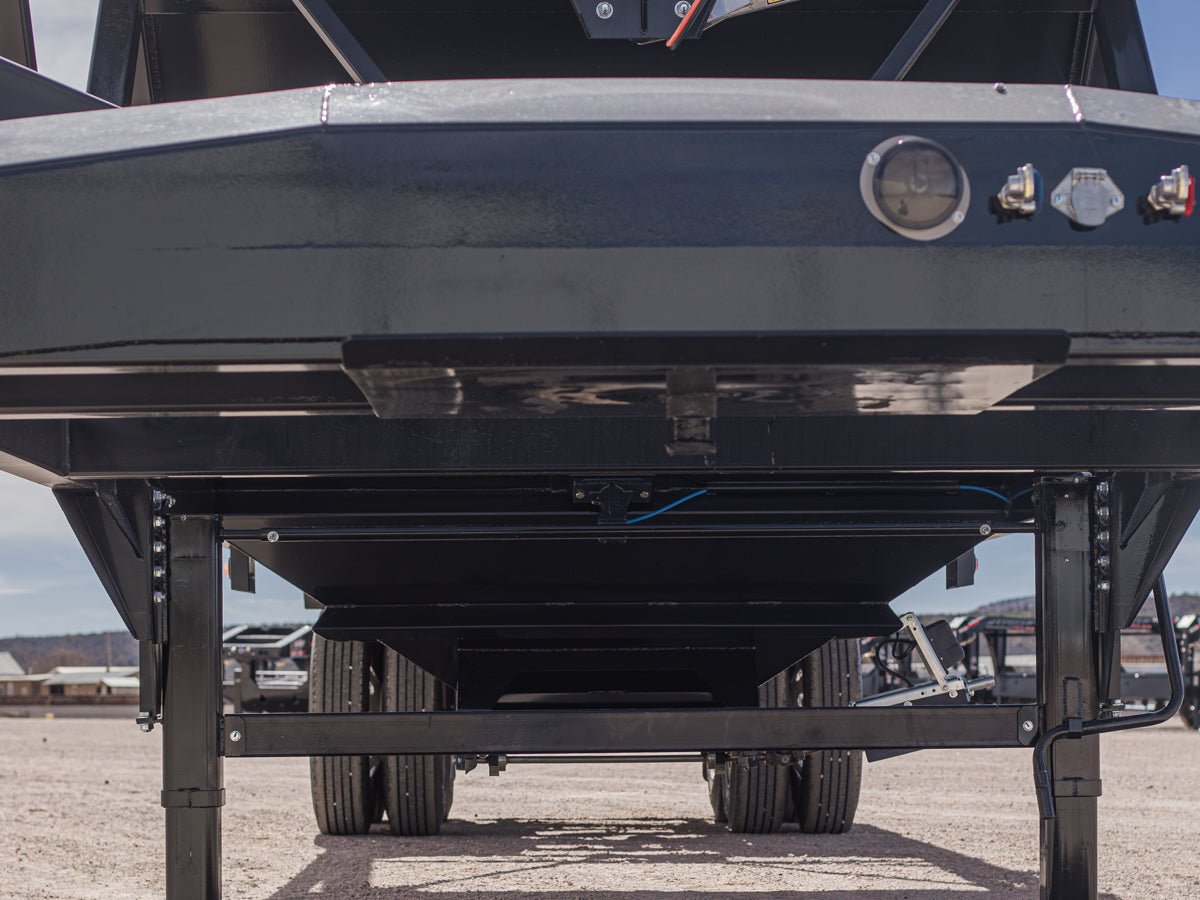

GOOSENECK
- COUPLER PLATE:
- 5/16" Plate
- COUPLER HEIGHT:
- 46"
- KING PIN:
- Jost
- KING PIN SETBACK:
- 16" From Front Of Bolster
- LANDING GEAR:
- Jost A440 Magnum Series — 170,000 LBS Static Load Rating
- DOCUMENT HOLDER:
- Trucklite 97960-P

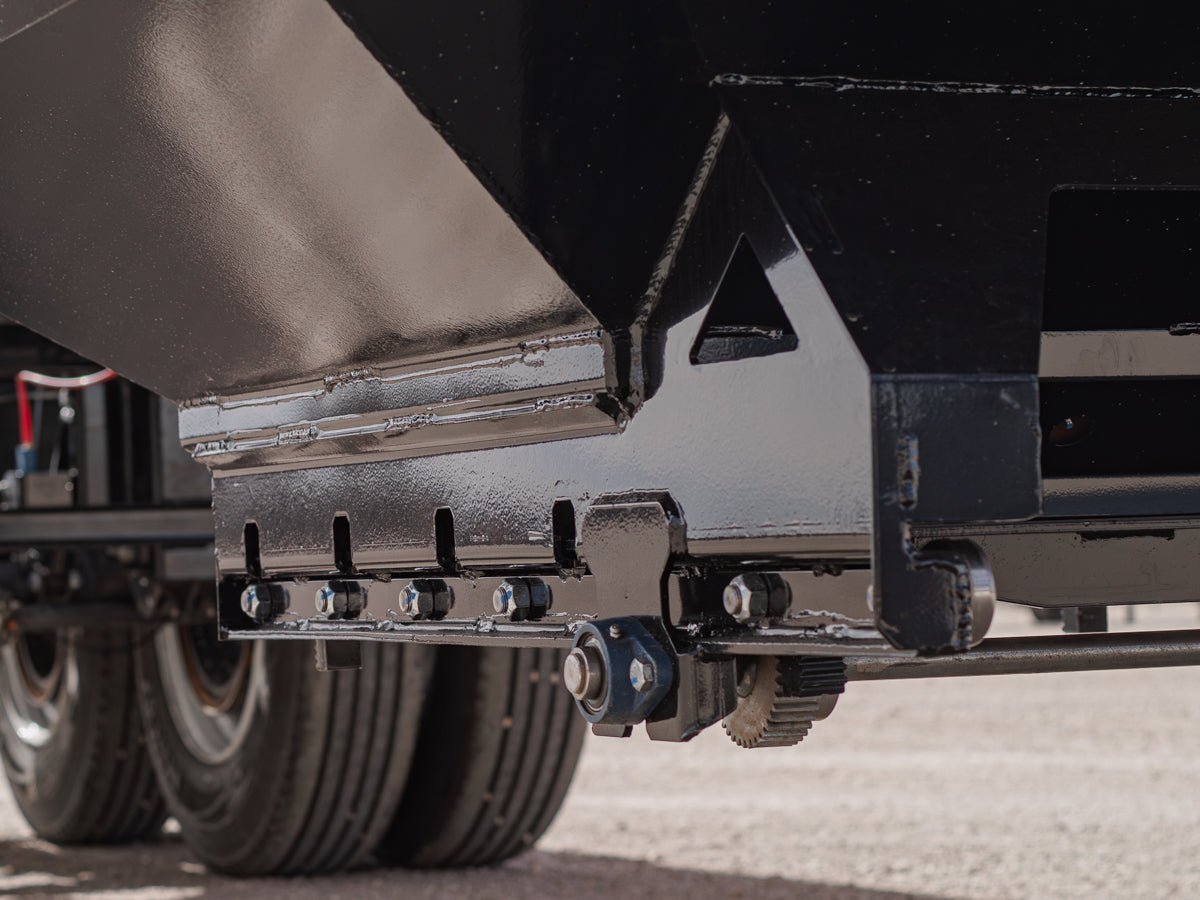

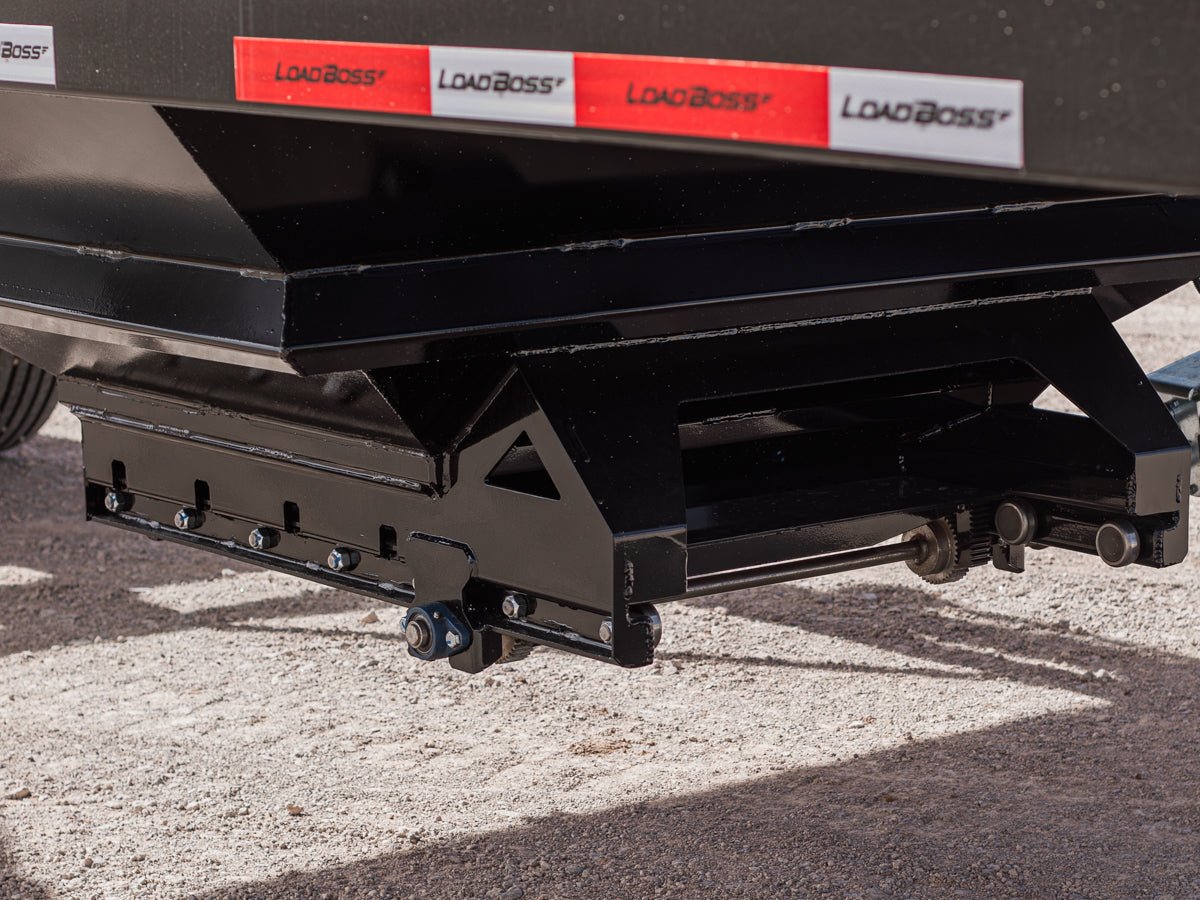

GATE SPECS
- GATES:
- 1/4" Grade 50 Gate
- GATE OPENING:
- 24" x 24"
- GATE OPERATION:
- Crank Handle
- TARP:
- Electric Side Roll Tarp Kit
RUNNING GEAR
- AXLE TYPE:
- Ampro Axles 30,000 LBS Capacity
- AXLE SPACING:
- 49"
- TRACK WIDTH:
- 77.5"
- BOLT PATTERN:
- 10 On 11.25"
- SUSPENSION TYPE:
- Hutchens Industries H-9700 3 Leaf Spring Suspension

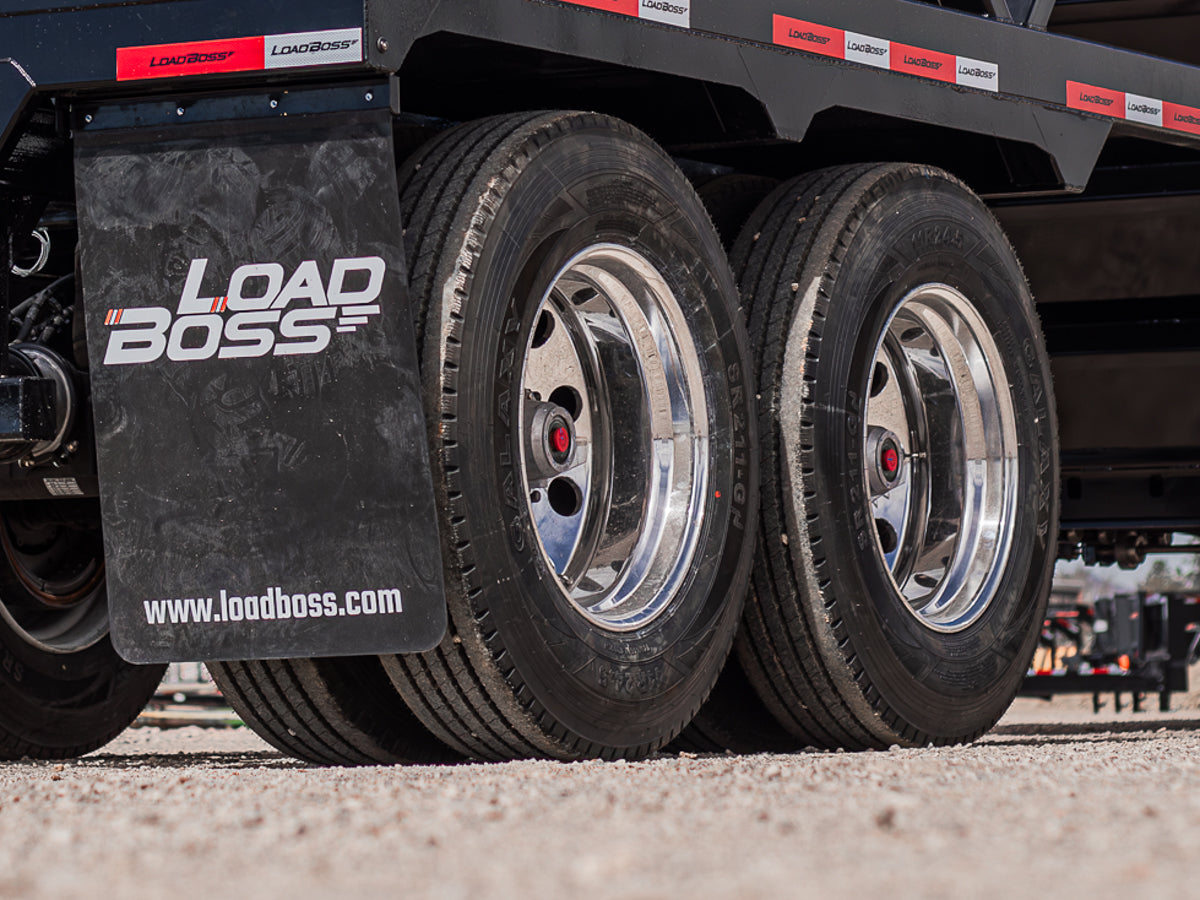

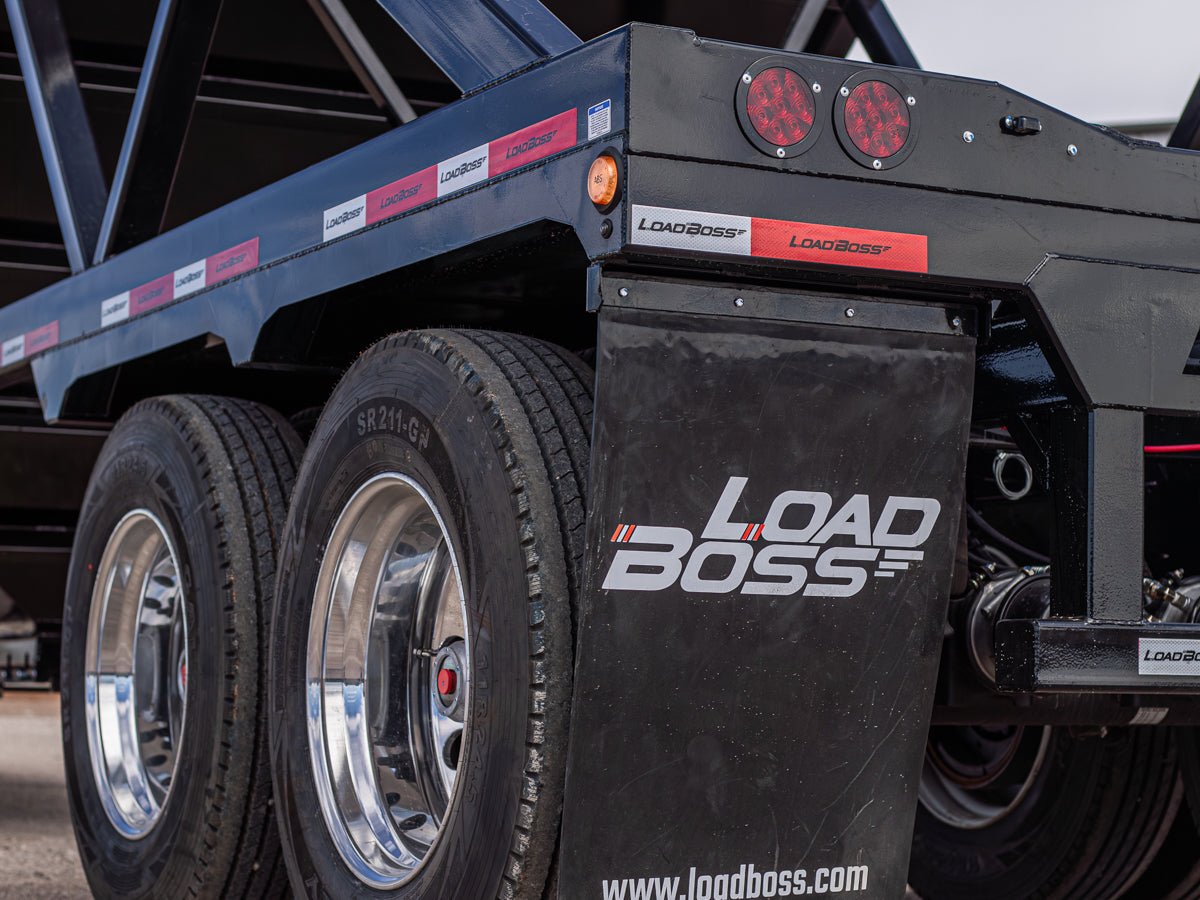

TIRES & WHEELS
- TIRE TYPE:
- Radial Tires
- TIRE SIZE:
- 11R24.5
- TIRE PLY:
- 16
- TIRE RATING:
- 7,160 LBS
- OUTER WHEELS:
- White Steel 24.5" Wheels — 8,000 LBS Rating / 8.25" Wide
- WHEEL WIDTH:
- 8.25"
BRAKES
- BRAKE DRUMS:
- Ampro Standard Cast Iron Drums
- BRAKE SIZE:
- 16.5" x 7" Brakes
- BRAKE CAPACITY:
- 30K
- SLACK ADJUSTERS:
- Ampro Standard Automatic Slack Adjusters
- BRAKE CHAMBERS:
- Type 30/30 Air Brake Chambers
- ABS SYSTEM:
- Haldex 2S/1M DOT Certified ABS System
AIR PLUMBING

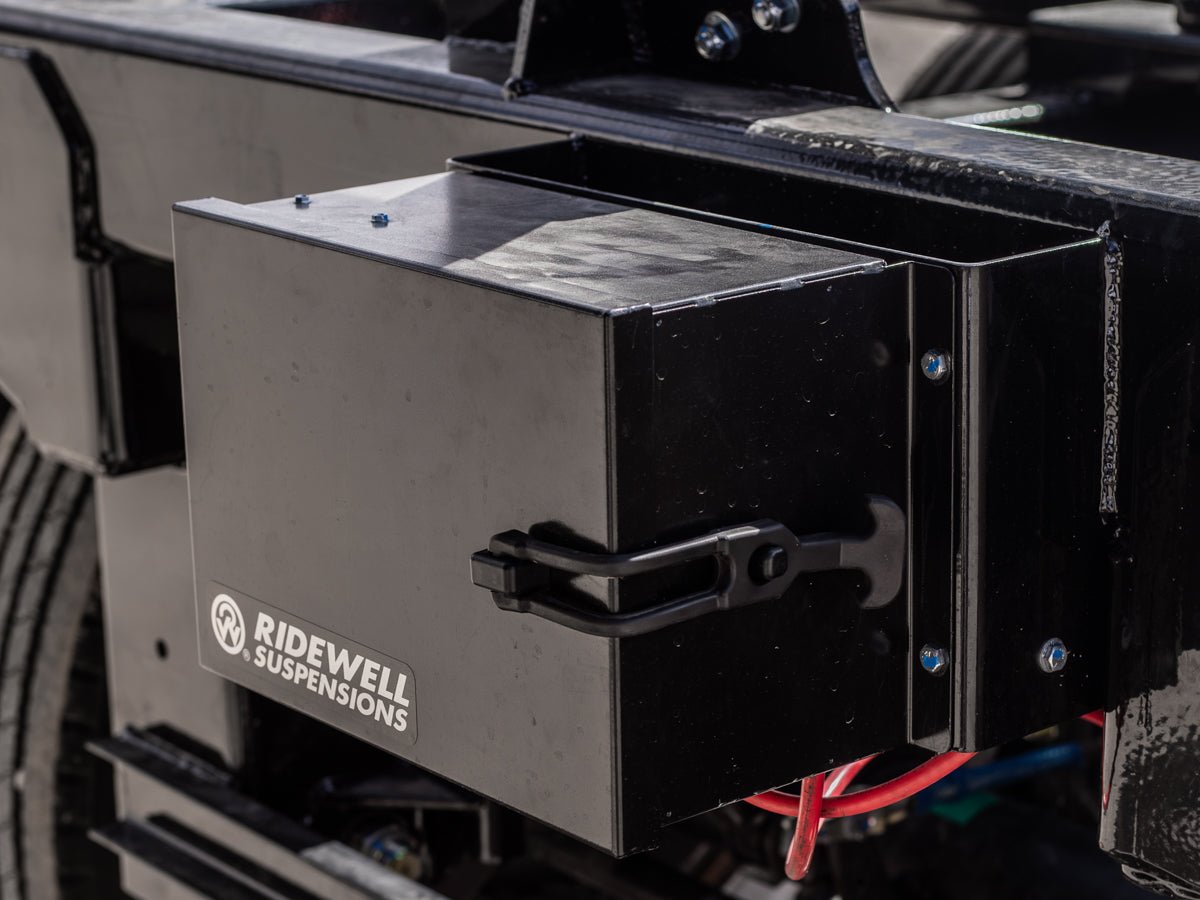

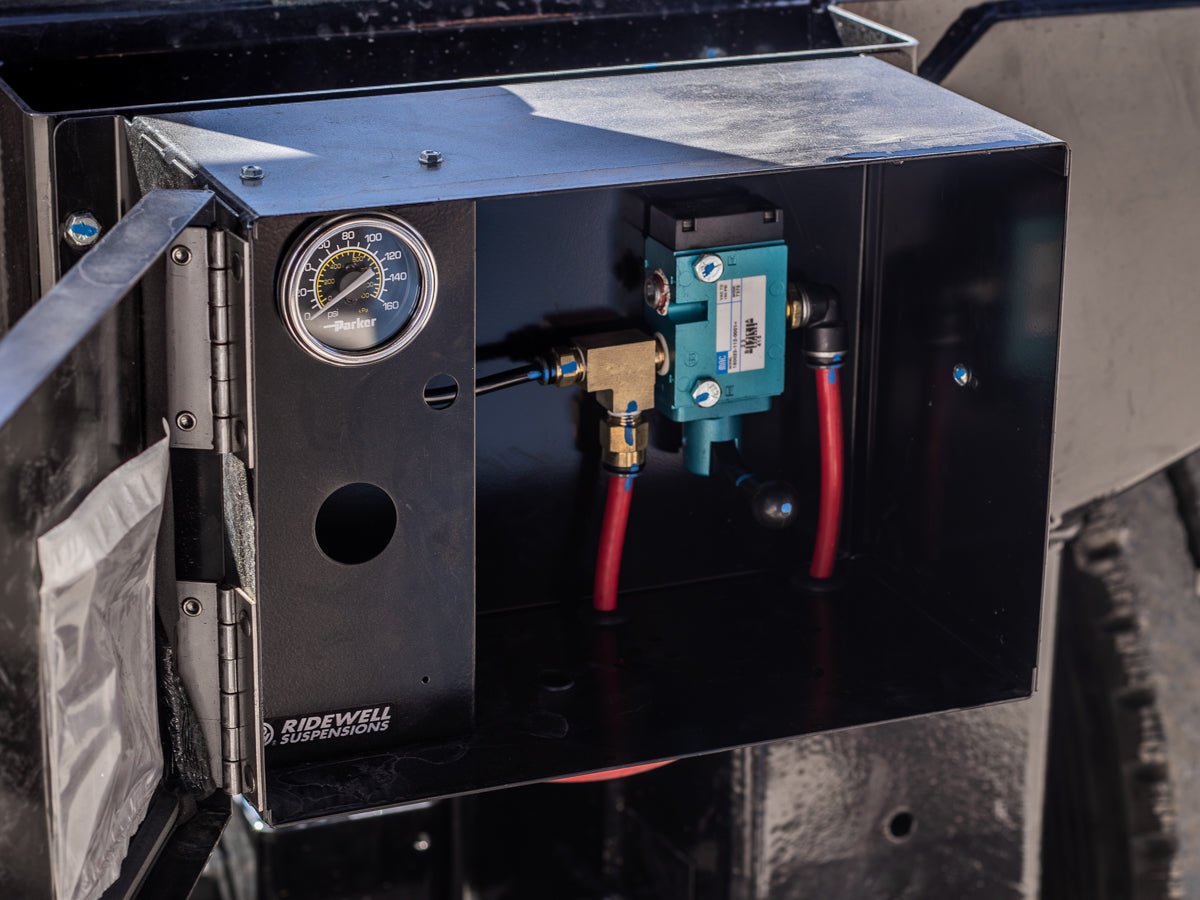

- AIR GAUGE BOX:
- Ridewell Black Steel Box w/ Air Gauge & Dump Valve
- AIR TANKS:
- 2 - Ridewell 1,488 Cubic Inch Tanks — Meets or Exceeds Transport Canada & US DOT Regulatory Requirements
- HEIGHT CONTROL VALVE:
- Ridewell Extreme Air HCV

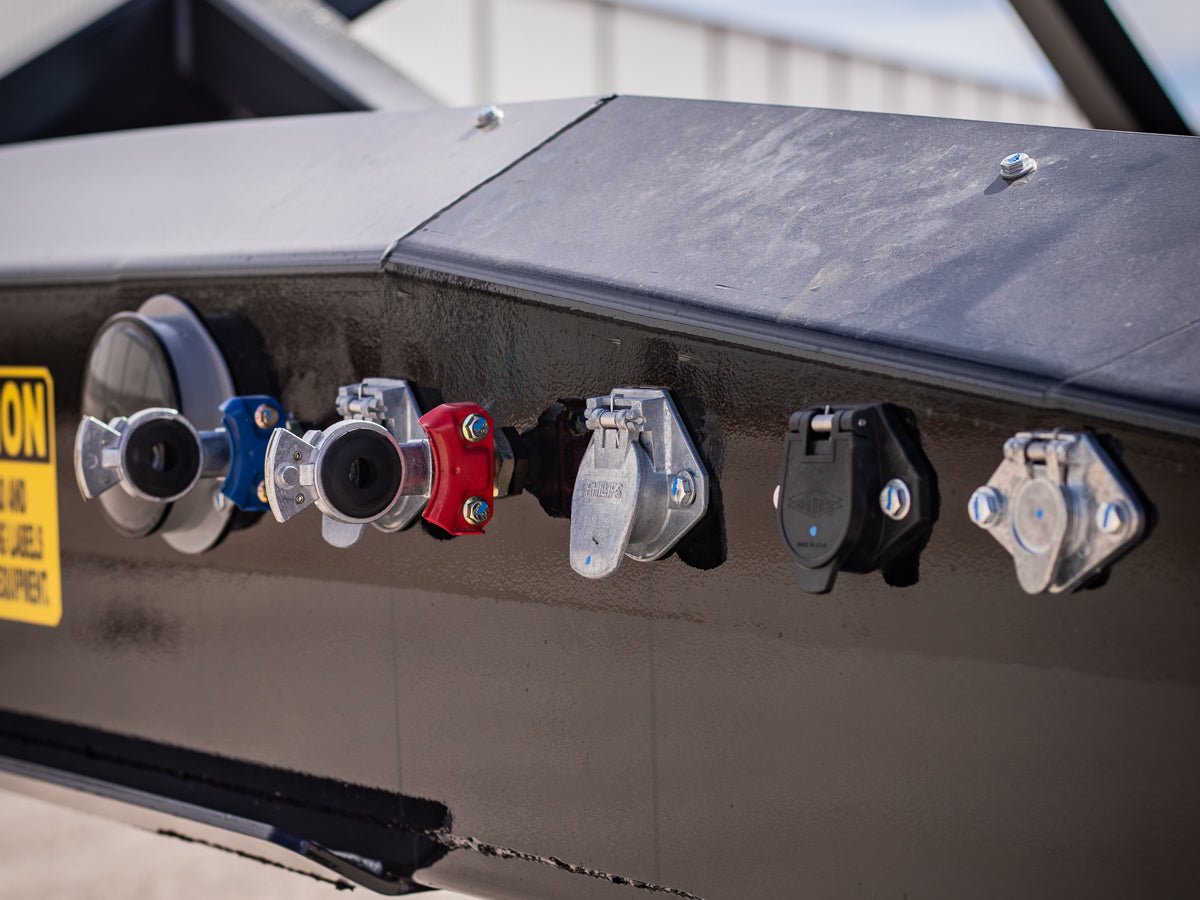

- GLADHANDS:
- Phillips Standard Gladhands
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Double Insulated Wiring Harness
- 7-WAY RECEPTACLE:
- Phillips
- LIGHTING:
- DOT Approved Tecniq LED Lights
- REFLECTIVE TAPE:
- 3M DOT Compliant Conspicuity Tape
WARRANTY
- TRAILER WARRANTY:
- 5 Year Frame & Structure Warranty
- PARTS WARRANTY:
- 1 Year Parts Warranty (Unless Otherwise Specified)
- PAINT WARRANTY:
- 3 Year Paint Warranty
OPTIONS
