At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GrayTrue RedPearl WhiteCloud GrayNavy BlueSunset Orange
Featured Video
Product Features

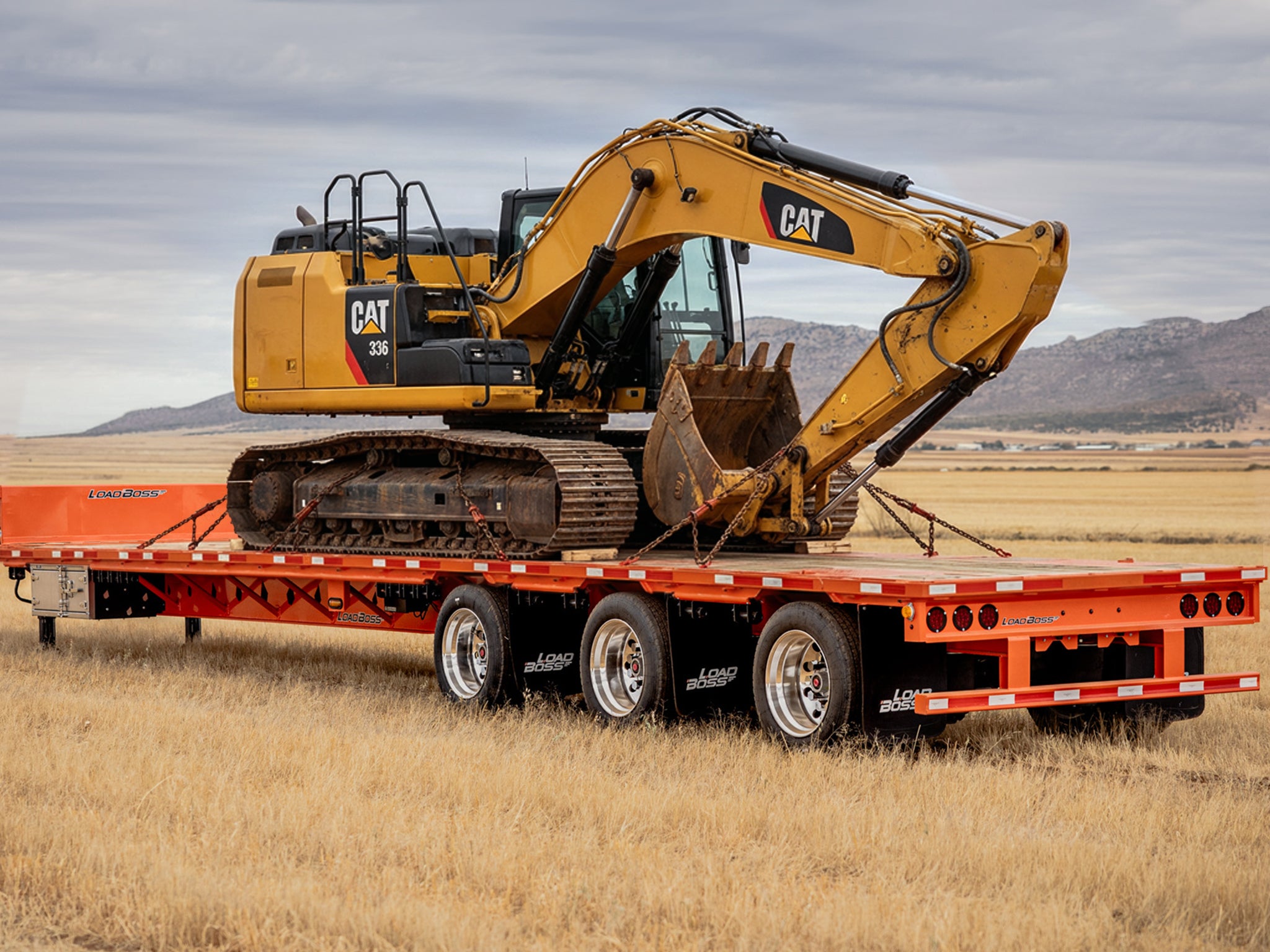

Powerful Payload
Superior engineering allows this 16,700lb trailer to handle up to a 79,300lb payload. From lease roads to highways, this trailer is constructed with a 130 KSI High Tensile Steel frame to handle the toughest terrains with massive freight. Move more per haul, cut trips, and maximize profit every use.
Premium Standard Features
All SDL’s are thoughtfully equipped with high value features to maximize performance and convenience, including a dunnage rack, 2 aluminum toolboxes, outside aluminum wheels, 11 sliding ratchets, extra life brake pads, front & rear bolster stake pockets, and a in-line air filter system.
Warranty that speaks
Backed by a 5-year structural, 3-year paint, and 1-year parts warranty, this step deck is built with confidence in mind. Take on any load knowing you’re supported by the people who stand behind their product. Coverage you can count on, mile after mile and job after job.
Durable Powder Coat Finish
Designed to withstand chains, forklifts, and daily abuse, each piece undergoes steel grit blasting, followed by a zinc-rich primer and finished with one of 13 Sherwin-Williams powder-coating color options–ensuring your paint continues to catch eyes for years to come.
Industry Leading Components
Equipped with Ridewell axles, Jost landing gear, Haldex ABS & automatic slack adjusters- this step deck trailer is designed for reliable convenience. With top of the line LED lighting, 3M reflective tape, and Ridewell air tanks, every single detail offers superior safety and efficiency.
Driver Focused Options
Options include lift axles, dovetails with ramps, multiple selections of coupler heights, kingpin locations, weld on and sliding ratchets, steel and aluminum toolboxes, D-rings, chain pull outs and much more! You can customize the SDL to be the step deck of your dreams!

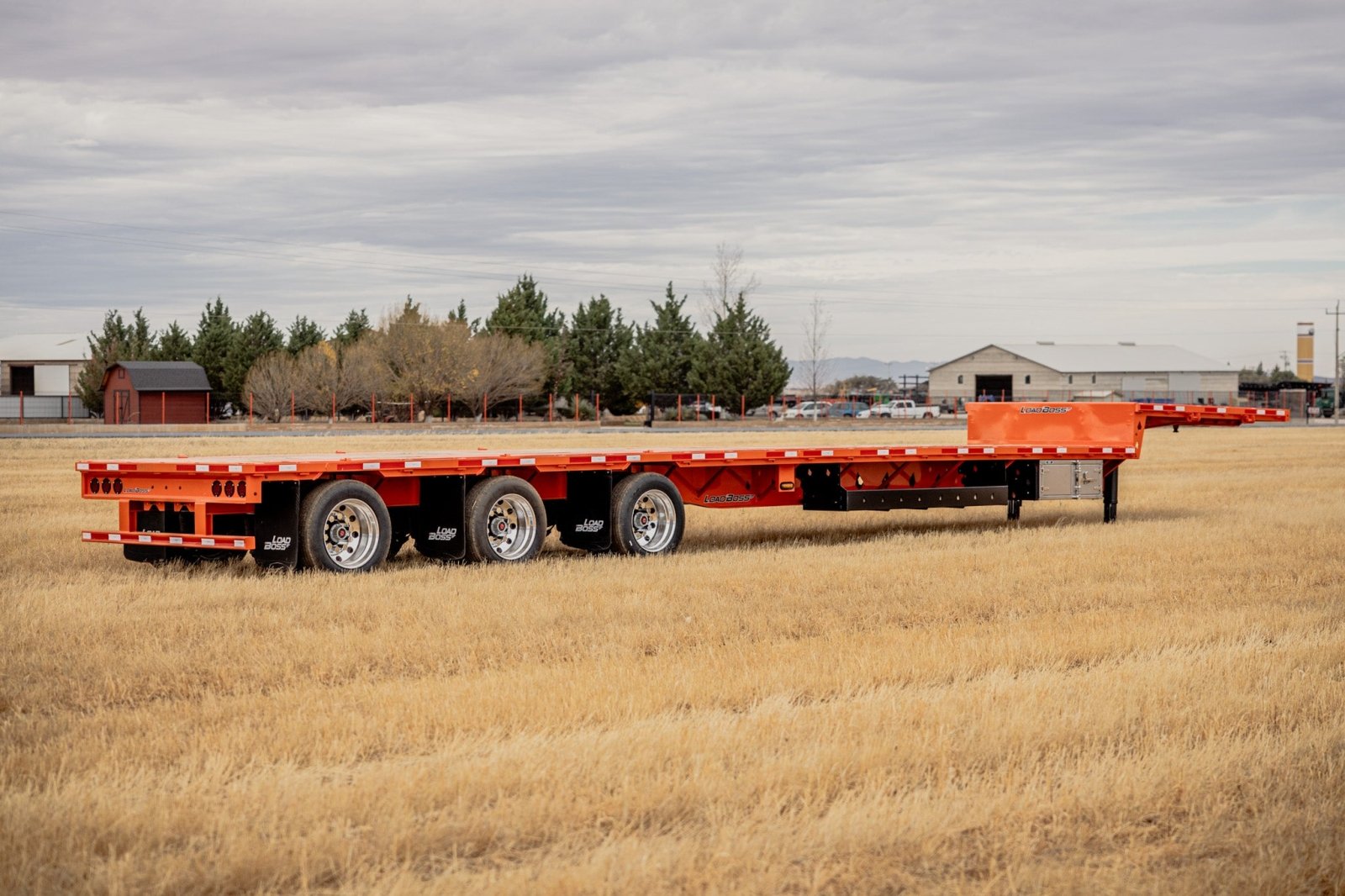

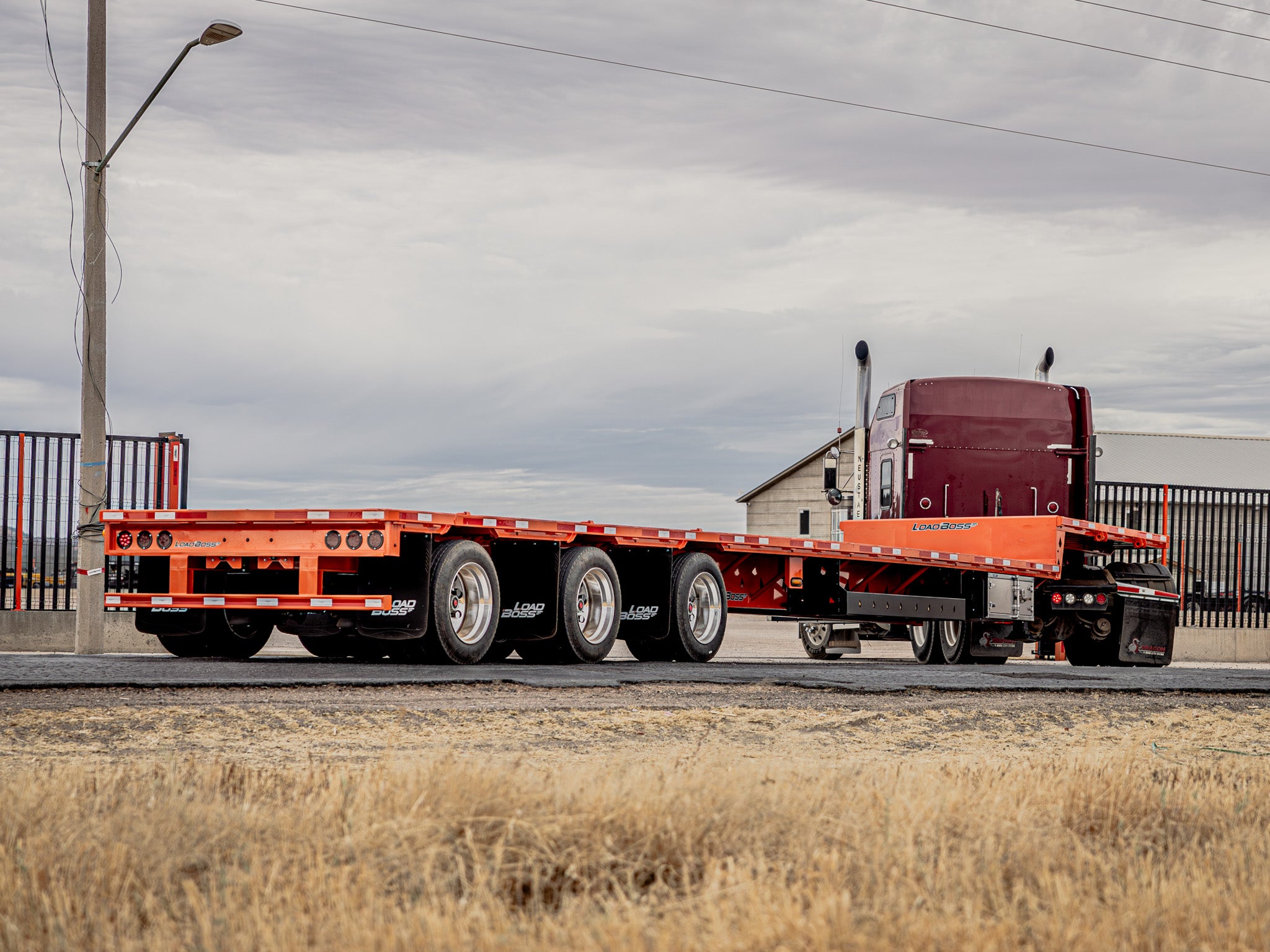

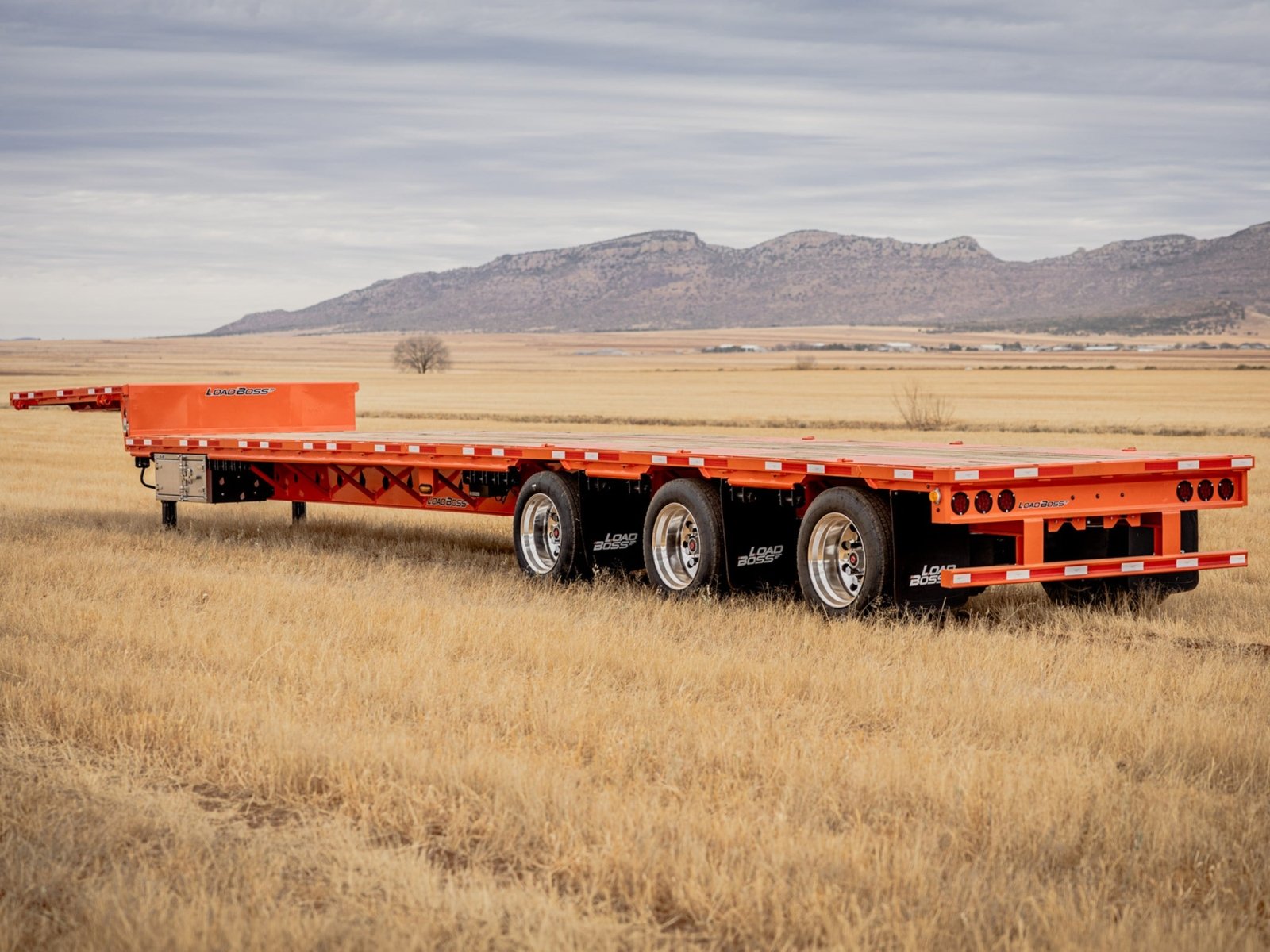

Product Details
DIMENSIONS
- LENGTH:
- 72K: 40', 45', 48', 53' / 96K: 45', 48', 53'
- DECK WIDTH:
- 102"
- LOWER DECK HEIGHT:
- 41"
- UPPER DECK HEIGHT:
- 59"
- UPPER DECK LENGTH:
- 11'
- LOWER DECK LENGTH:
- 42' (on 53' trailer)
- TRAILER TYPE:
- Step Deck
- PULL TYPE:
- King Pin (Semi Trailer)
WEIGHT RATINGS
- GVWR:
- 72K: 72k / 96K: 96k
- GAWR:
- 23k
- ESTIMATE DRY WEIGHT:
- 72K: Pending / 96K: 16.7k lbs
- ESTIMATED PAYLOAD:
- 72K: 60k lbs (10' Load Span Max) / 96K: 79.3k lbs (Even Distribution)
- AXLE COUNT:
- 72K: 2 Axles / 96K: 3 Axles

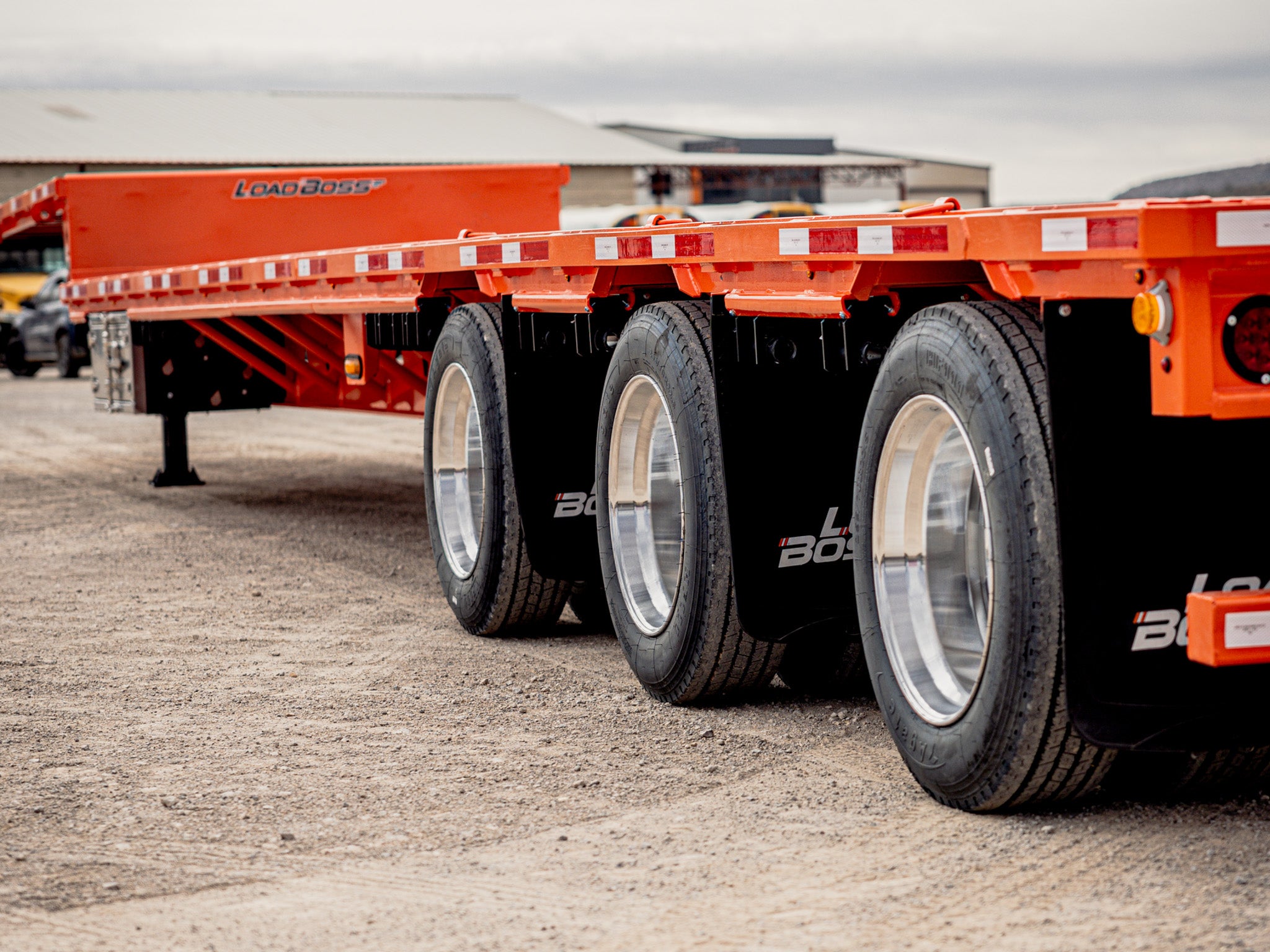

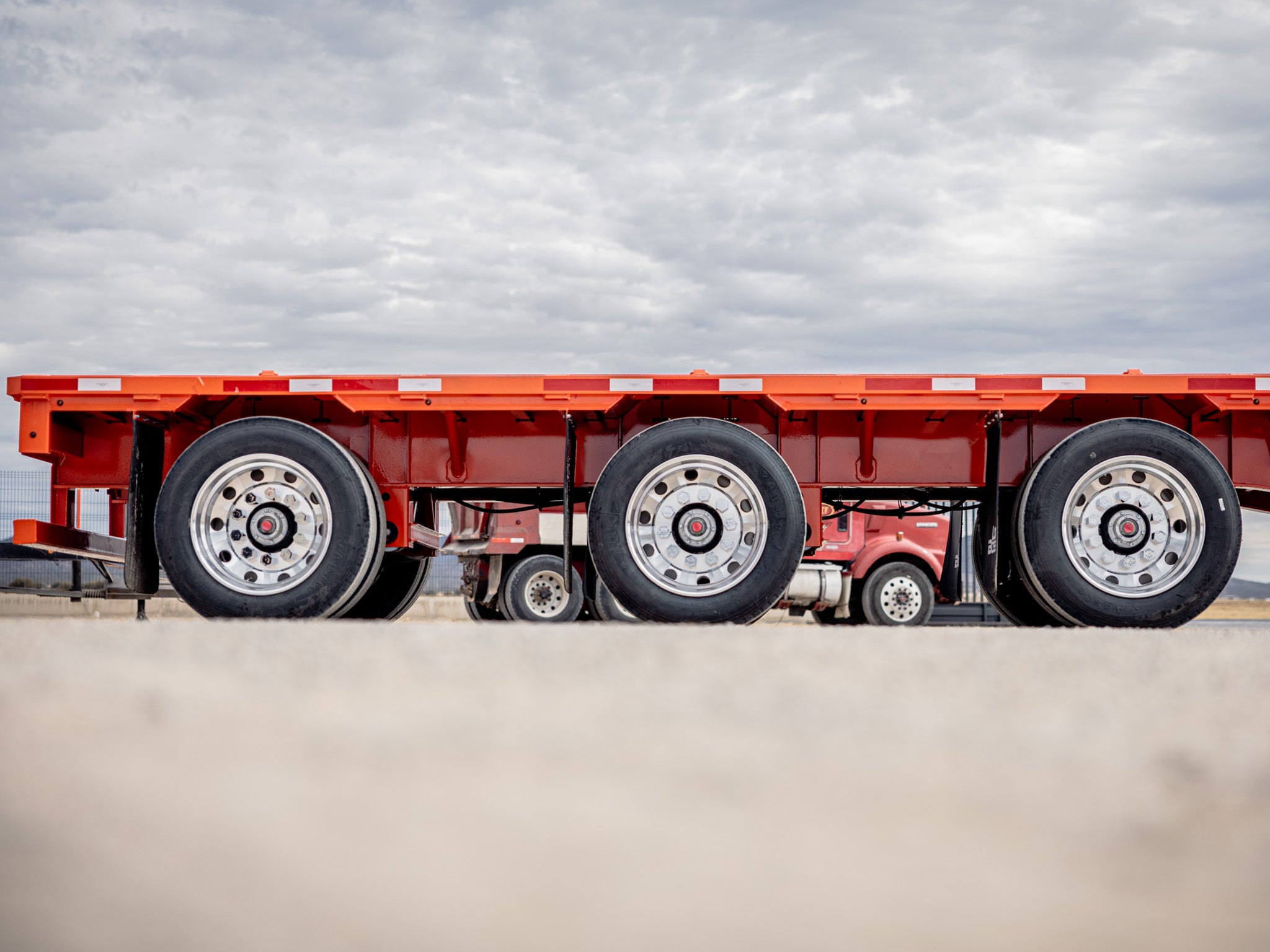

RUNNING GEAR
- AXLE TYPE:
- Ridewell 23k lbs Capacity
- AXLE COUNT:
- 2 or 3
- BOLT PATTERN:
- 10 On 11.25"
- SUSPENSION TYPE:
- Ridewell Air Ride — 25k lbs Capacity
- BRAKE DRUMS:
- Ridewell Cast Iron "TruTurn"
- BRAKE SIZE:
- 16.5" x 7"
- BRAKE CAPACITY:
- 72K: 23k / 96K: 23k (Extra Life)
- SLACK ADJUSTERS:
- Ridewell Standard Auto
- BRAKE CHAMBERS:
- Type 30/30 Air
- TIRE BRAND:
- Galaxy Tires
- TIRE TYPE:
- Radial
- TIRE SIZE:
- 255/70R22.5
- TIRE PLY:
- 16
- TIRE RATING:
- 5,355 lbs
- OUTER WHEELS:
- 72K: 22.5" White Steel — 7.4k lbs / 96K: 22.5" Alum. — 8k lbs
- INNER WHEELS:
- 72K: — / 96K: 22.5" Steel — 7.4k lbs
- WHEEL WIDTH:
- 8.25"
GOOSENECK
- NECK:
- 9" Manufactured Beam
- NECK FLANGES:
- 1/2" x 5" High Tensile 130 KSI
- NECK WEB:
- High Tensile Grade 80
- COUPLER PLATE:
- 5/16" Plate
- COUPLER HEIGHT:
- 50" Standard (Options: 45"–54")
- KING PIN:
- Jost
- KING PIN SETBACK:
- 24" From Front Of Bolster

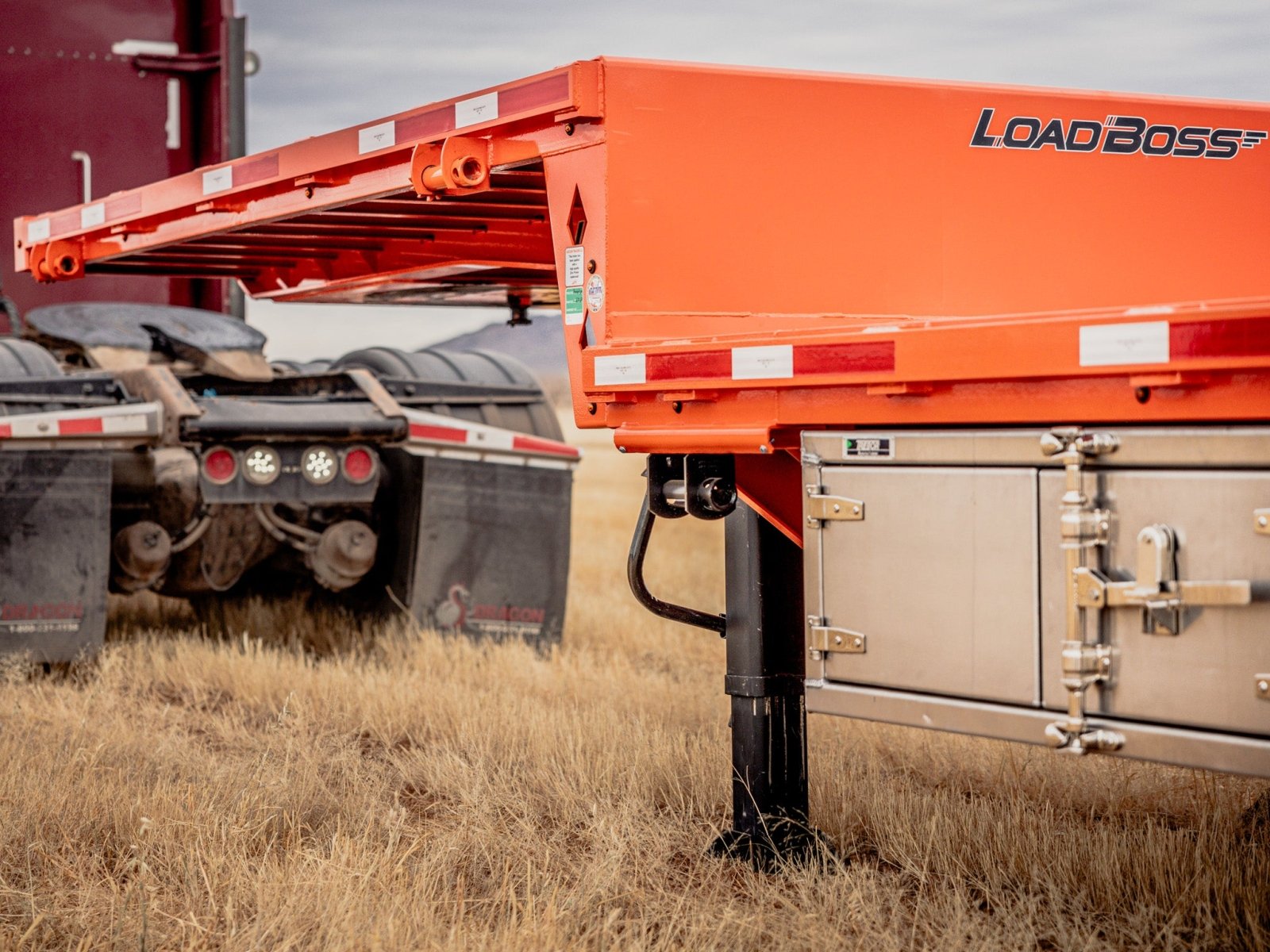

- LANDING GEAR:
- Jost A440 Magnum Series — 170k Static Load Rating
- DOCUMENT HOLDER:
- Trucklite 97960-P

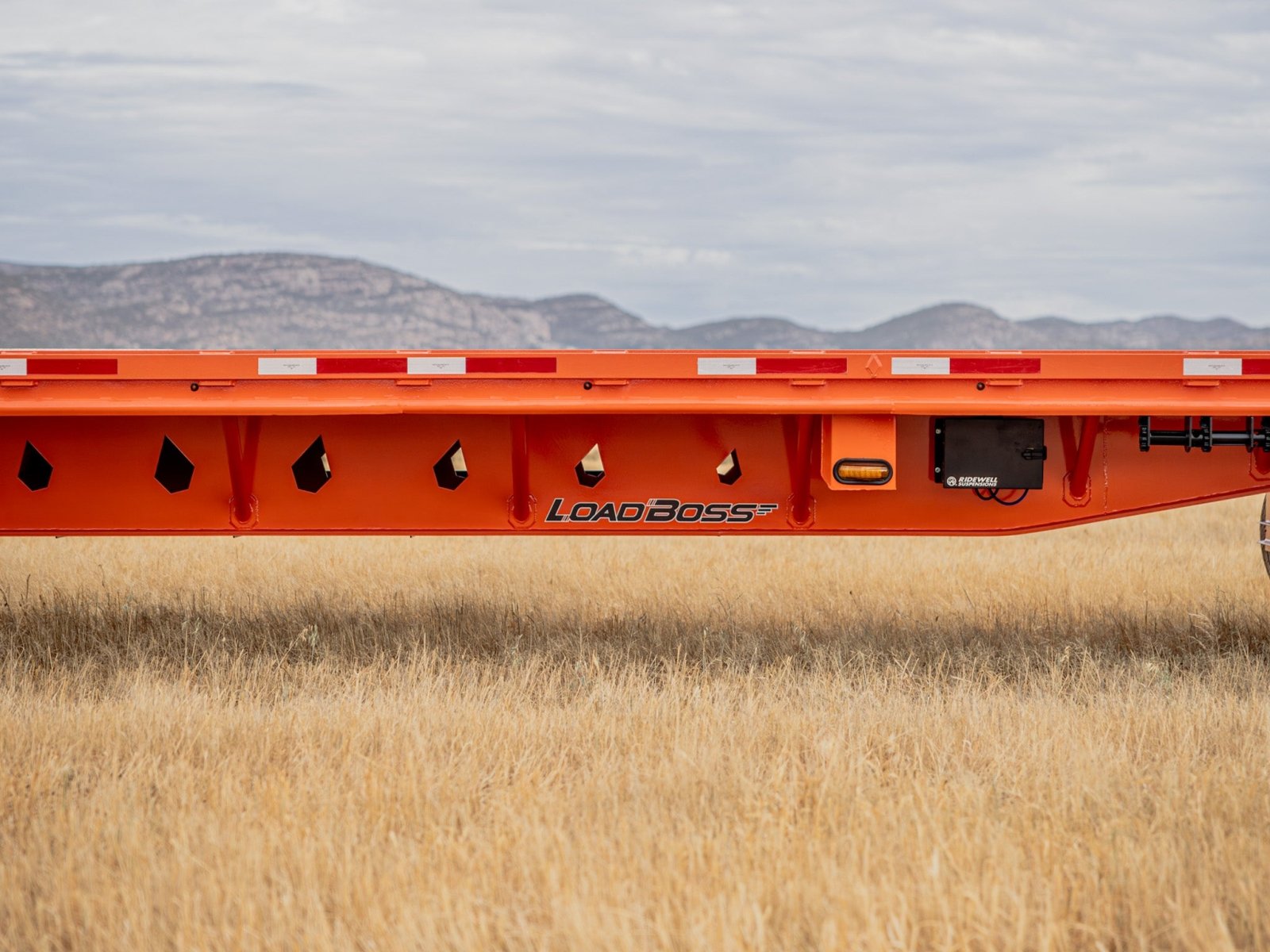

FRAME & CONSTRUCTION
- MAIN FRAME FLANGES:
- 1/2" x 5" High Tensile 130 KSI
- MAIN FRAME WEB:
- High Tensile Grade 80 KSI
- CAMBER:
- Cambered I-Beam
- CROSSMEMBERS:
- 4" I-Beam 12" Spacing
- FRAME CHANNEL:
- 6" Channel (8.20 lbs/ft)
- FLOORING:
- 2" x 8" T&G Oak Wood Lumber
- RUB RAIL:
- 3" x 3/8"
- STAKE POCKETS:
- 1-5/8" x 3-5/8" (ID) @ 24" Spacing
- PIPE SPOOLS:
- 2" x 10ga. @ 24" Spacing
- KNEE BRACES:
- Steel Tubing @ 36" Spacing
- FRONT BOLSTER:
- Fabricated Steel w/ 4 Stake Pockets

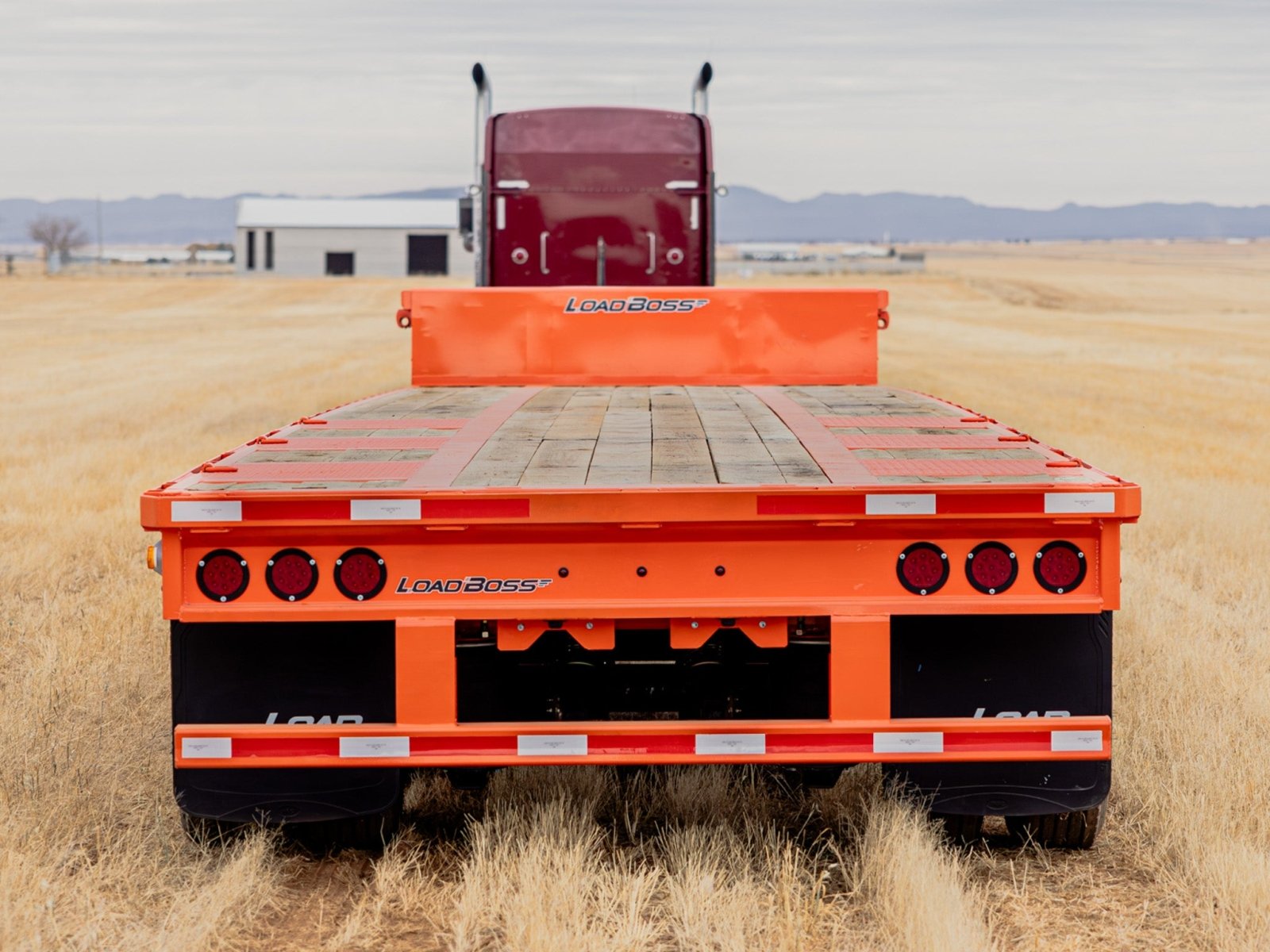

- REAR BOLSTER:
- Fabricated Steel w/ 5 Stake Pockets
- REAR BUMPER:
- Certified Rear Impact Guard (DOT/Transport Canada)
- MUD FLAPS:
- Heavy Duty Black Rubber w/ Loadboss Logo
CARGO & TIE-DOWN
- UPPER DECK RATCHETS:
- 72K: Optional / 96K: 5 - Kinedyne 5.5k lbs Weld-On (Std)
- LOWER DECK RATCHET RAIL:
- 72K: Optional / 96K: C-Channel Steel Rail (Std)

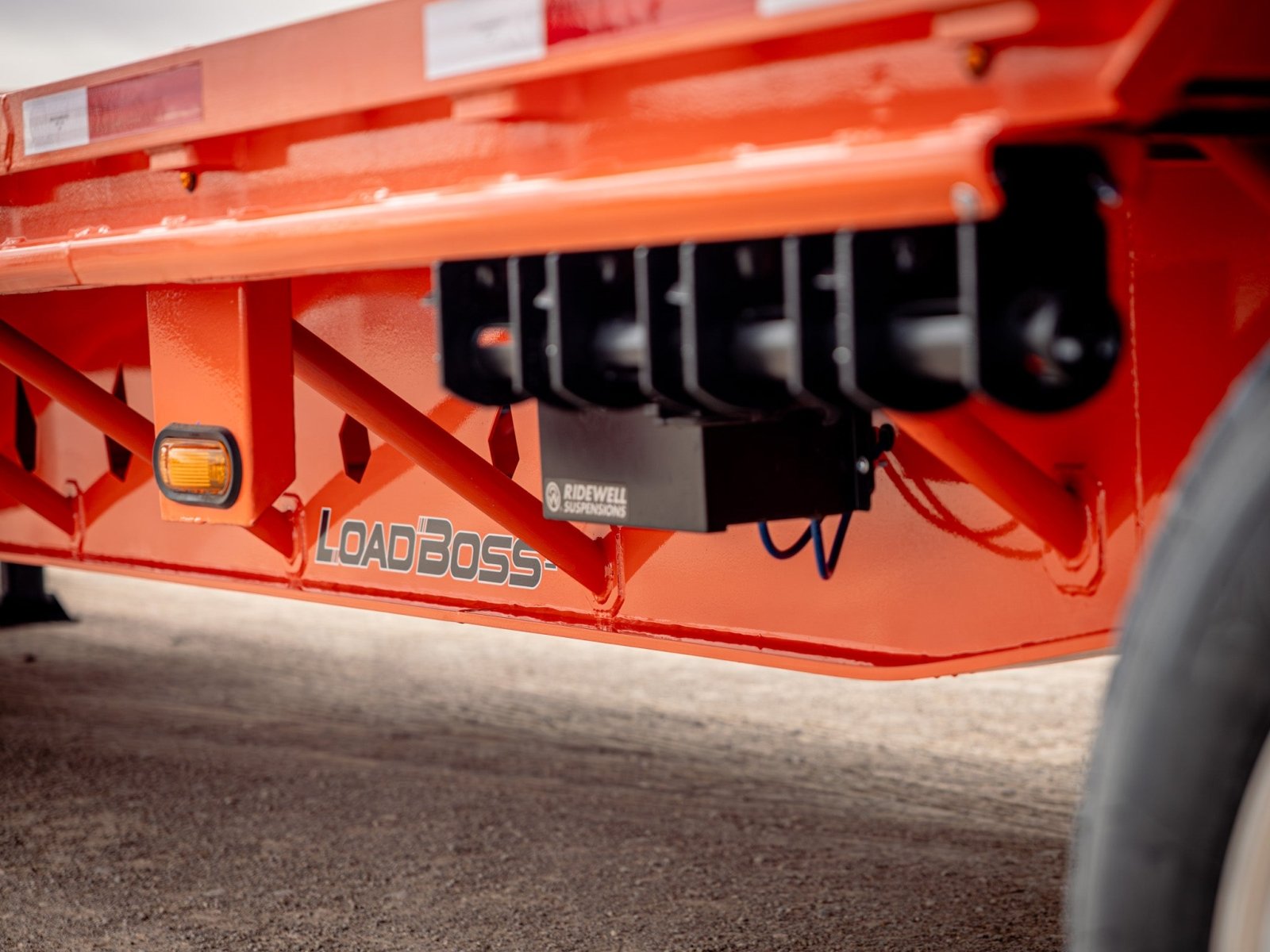

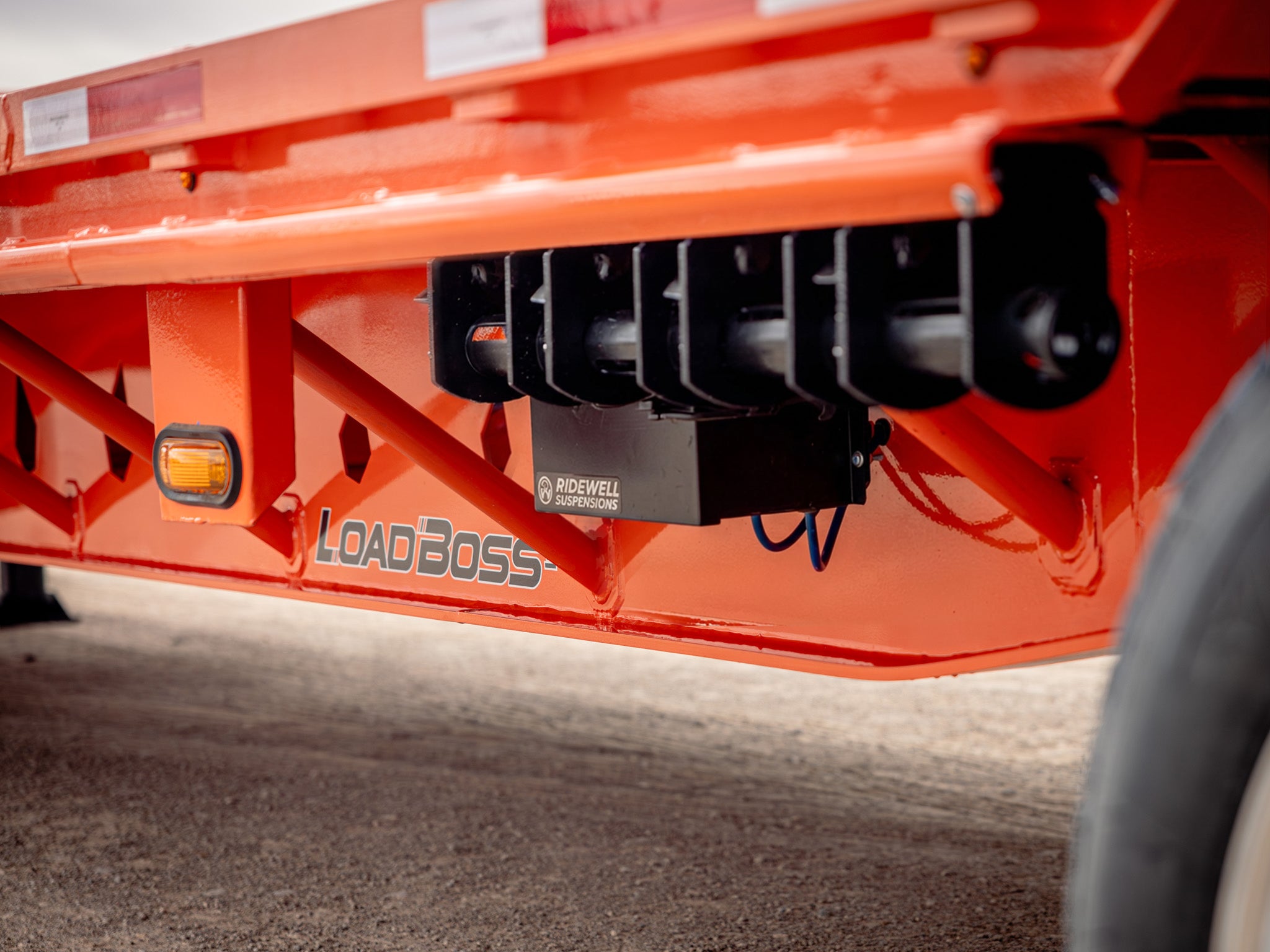

- LOWER DECK SLIDING RATCHETS:
- 72K: Optional / 96K: 11 - Kinedyne 6.67k lbs Sliding (Std)
- D-RINGS:
- 72K: 1/2" Above Wheel Wells 4k lbs / 96K: 1/2" Above Wheel Wells 4k lbs

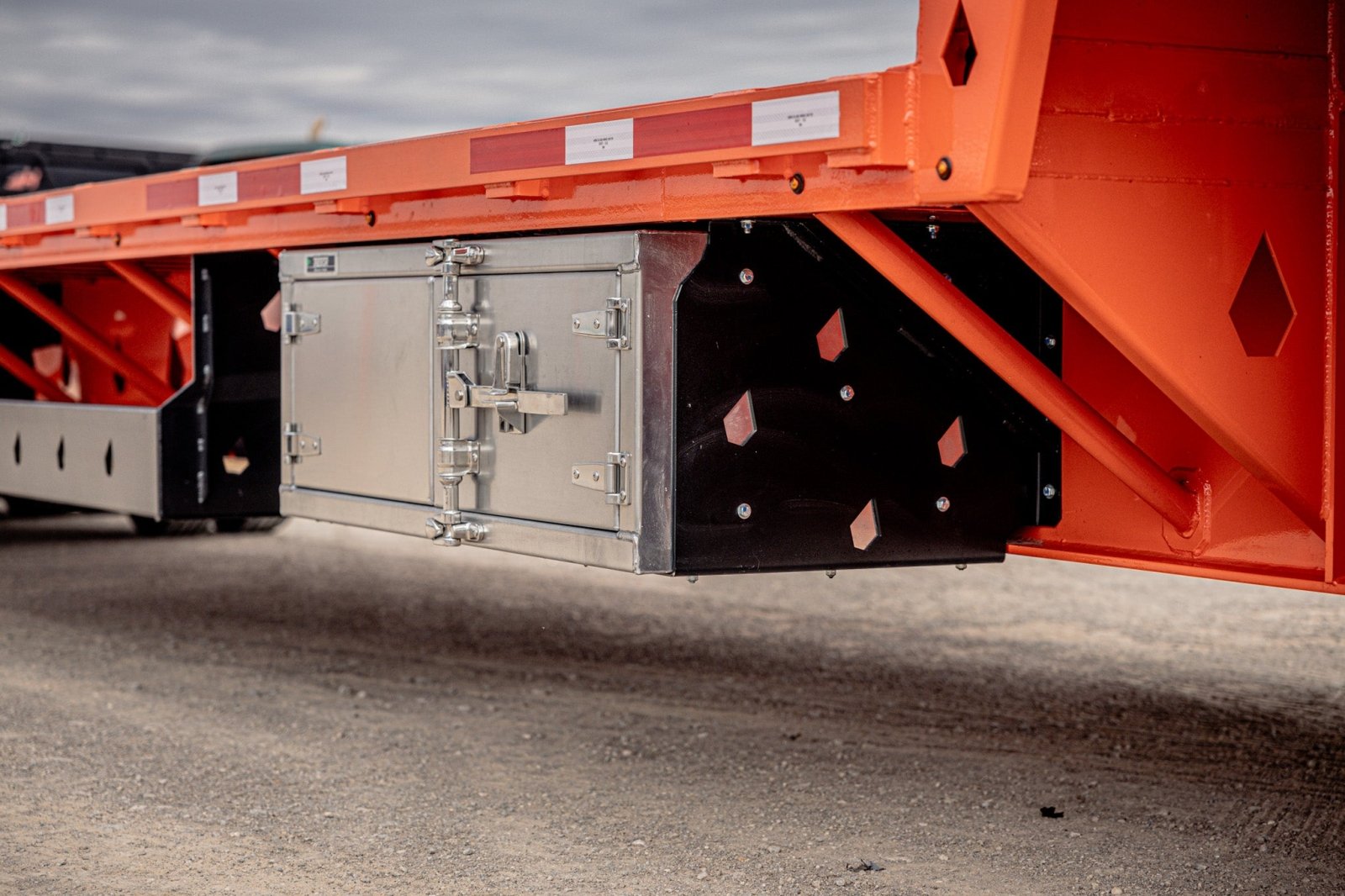

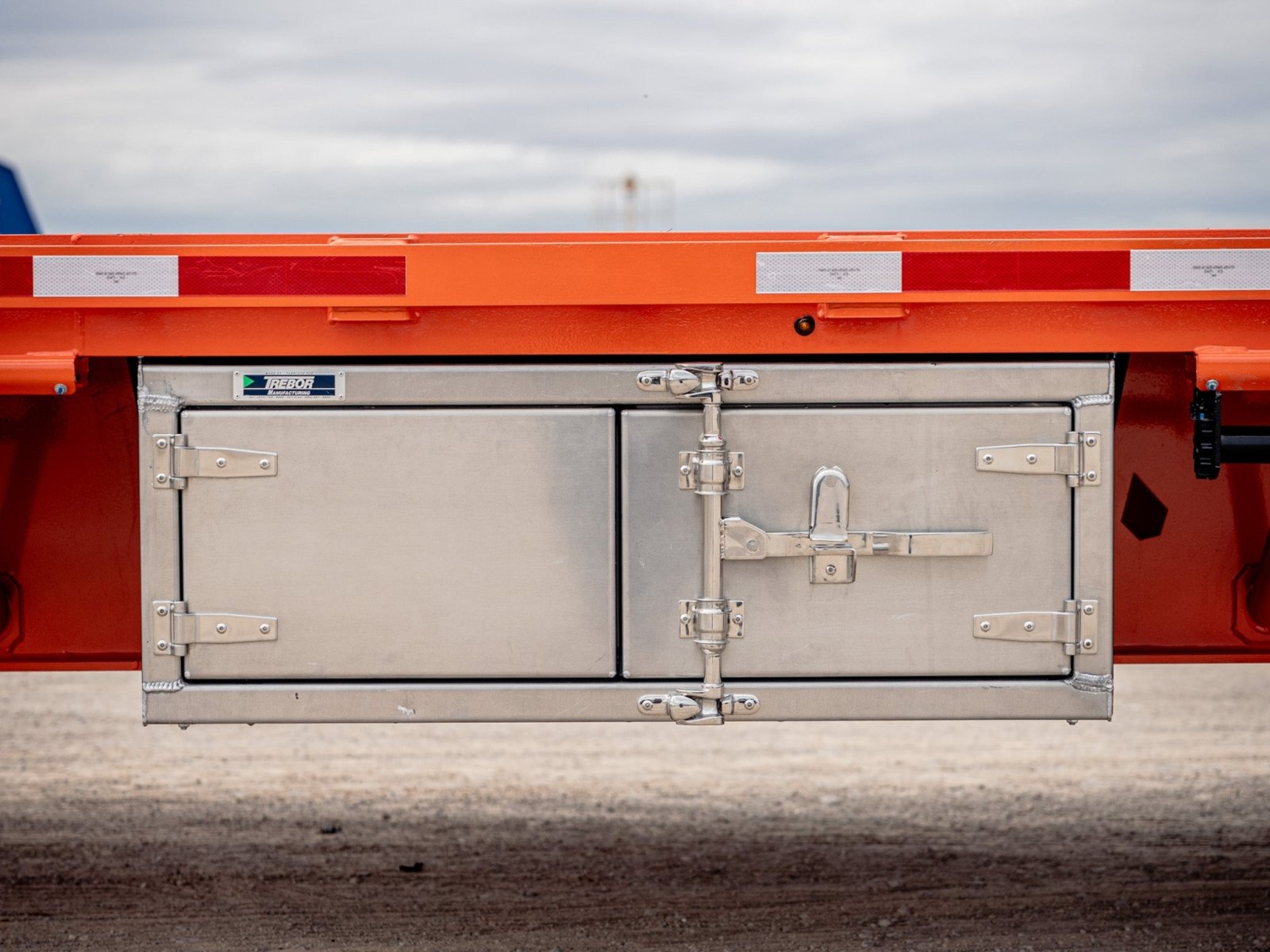

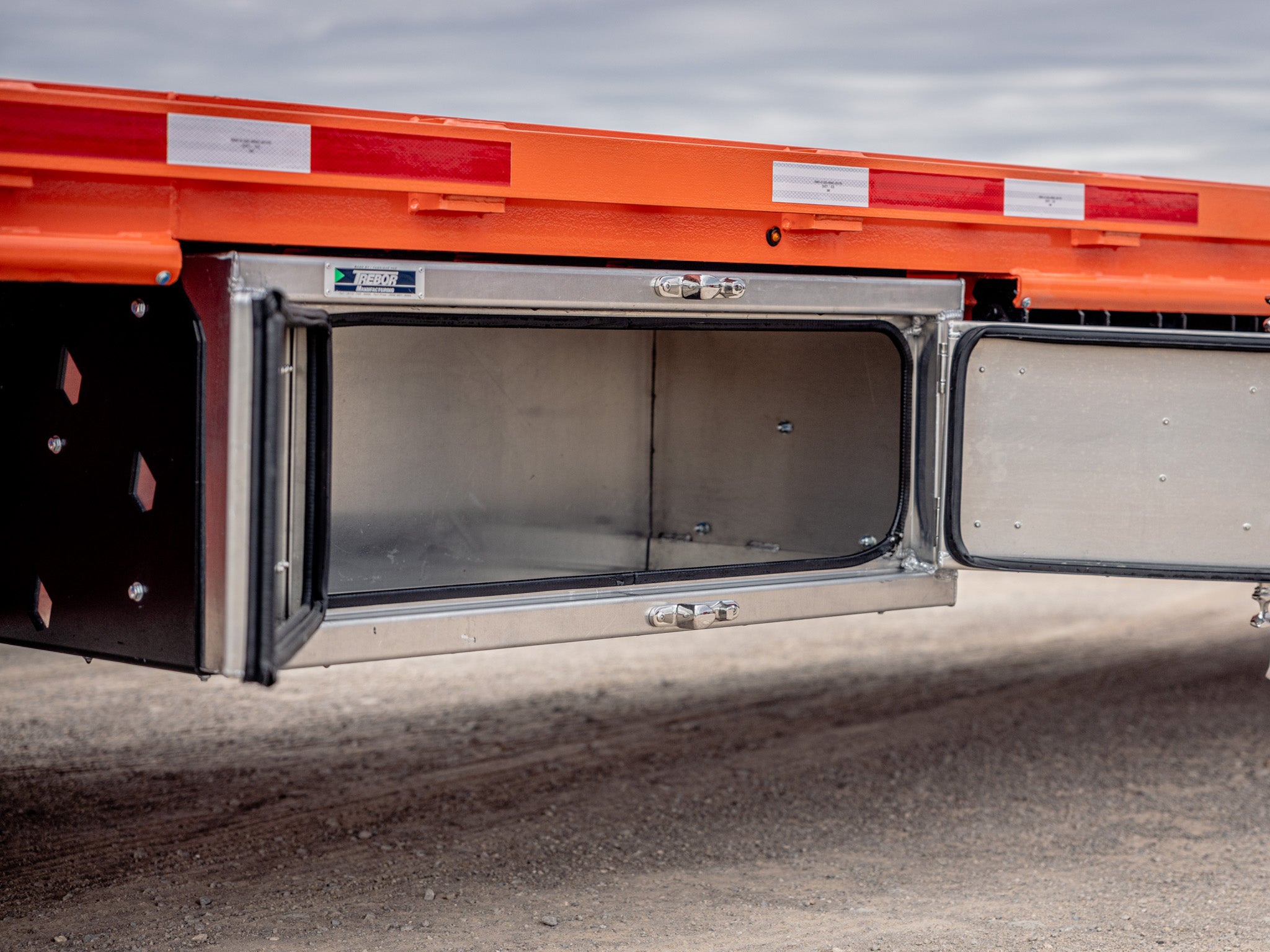

- TOOLBOXES:
- 72K: Optional / 96K: 2 - Trebor Alum. Side Mount 48"L x 24"W x 18"H (Std)
- DUNNAGE RACK:
- 72K: Optional / 96K: 1 - Steel Side Mount 9'L x 24"W x 8"H (Std)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Double Insulated
- 7-WAY RECEPTACLE:
- Phillips
- LIGHTING:
- DOT Approved Tecniq LED Lights
- REFLECTIVE TAPE:
- 3M DOT Compliant Conspicuity Tape
- ABS SYSTEM:
- 72K: Haldex 2S/1M DOT Certified / 96K: Haldex 4S/2M DOT Certified
AIR PLUMBING

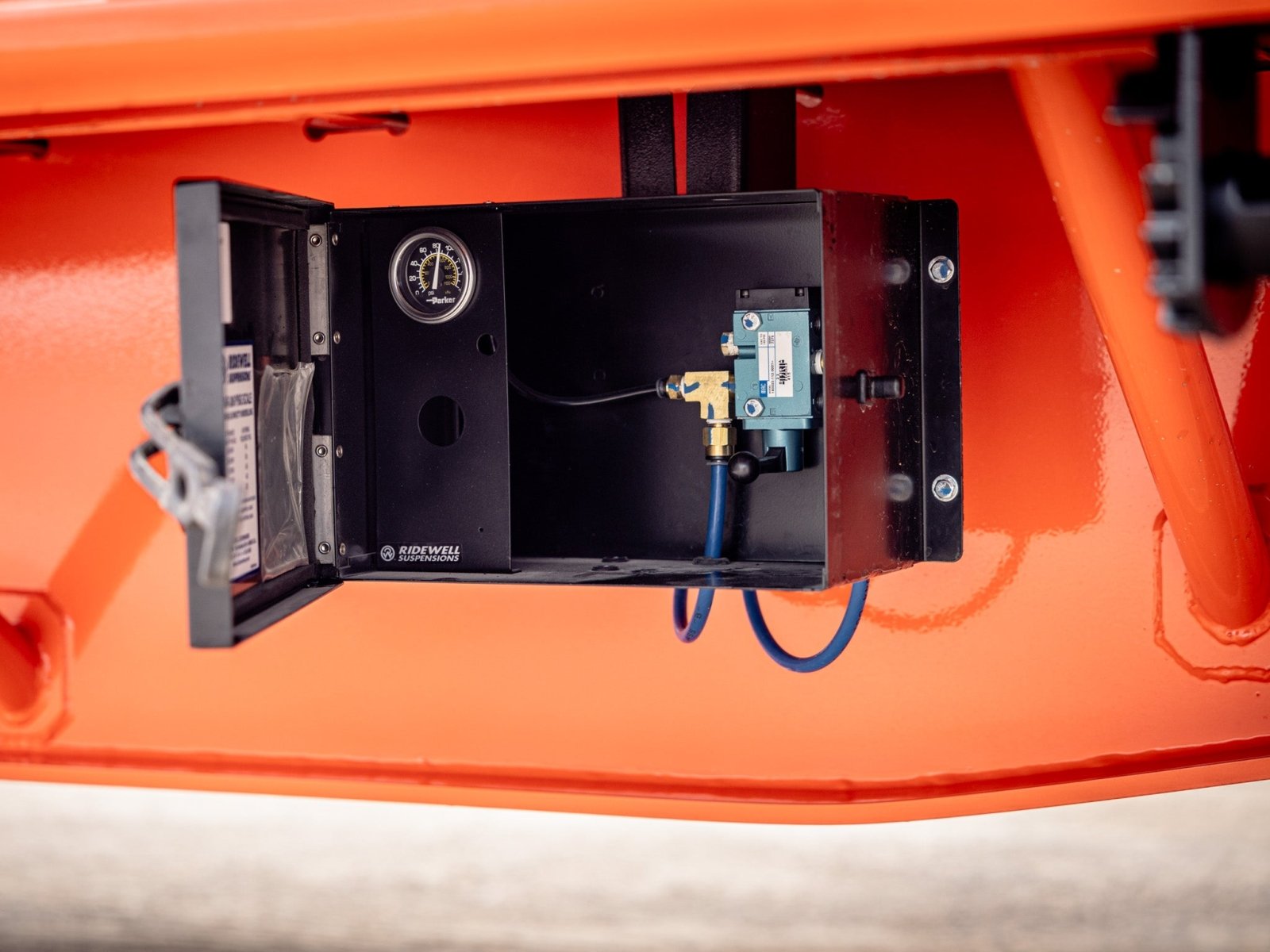

- AIR GAUGE BOX:
- Ridewell Black Steel Box w/ Air Gauge & Dump Valve
- AIR TANKS:
- 72K: 2 - Ridewell 1,488 Cu. In. Tanks / 96K: 3 - Ridewell 1,488 Cu. In. Tanks
- HEIGHT CONTROL VALVE:
- Ridewell Extreme Air HCV
- AIR FILTER:
- In-Line (Debris & Moisture Protection)
- GLADHANDS:
- Phillips Standard
FINISH
- PAINT TYPE:
- Sherwin Williams Powdercoat
- PREP:
- Steel Grit Blasted
- UNDERCOAT:
- Zinc Rich Epoxy Primer
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Gray, True Red, Pearl White, Cloud Gray, Navy Blue, Sunset Orange
WARRANTY
- TRAILER WARRANTY:
- 5 Year Frame & Structure
- PARTS WARRANTY:
- 1 Year (Unless Otherwise Specified)
- PAINT WARRANTY:
- 3 Year
OPTIONS
