At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GrayTrue RedPearl WhiteCloud GrayNavy BlueSunset Orange
Featured Video

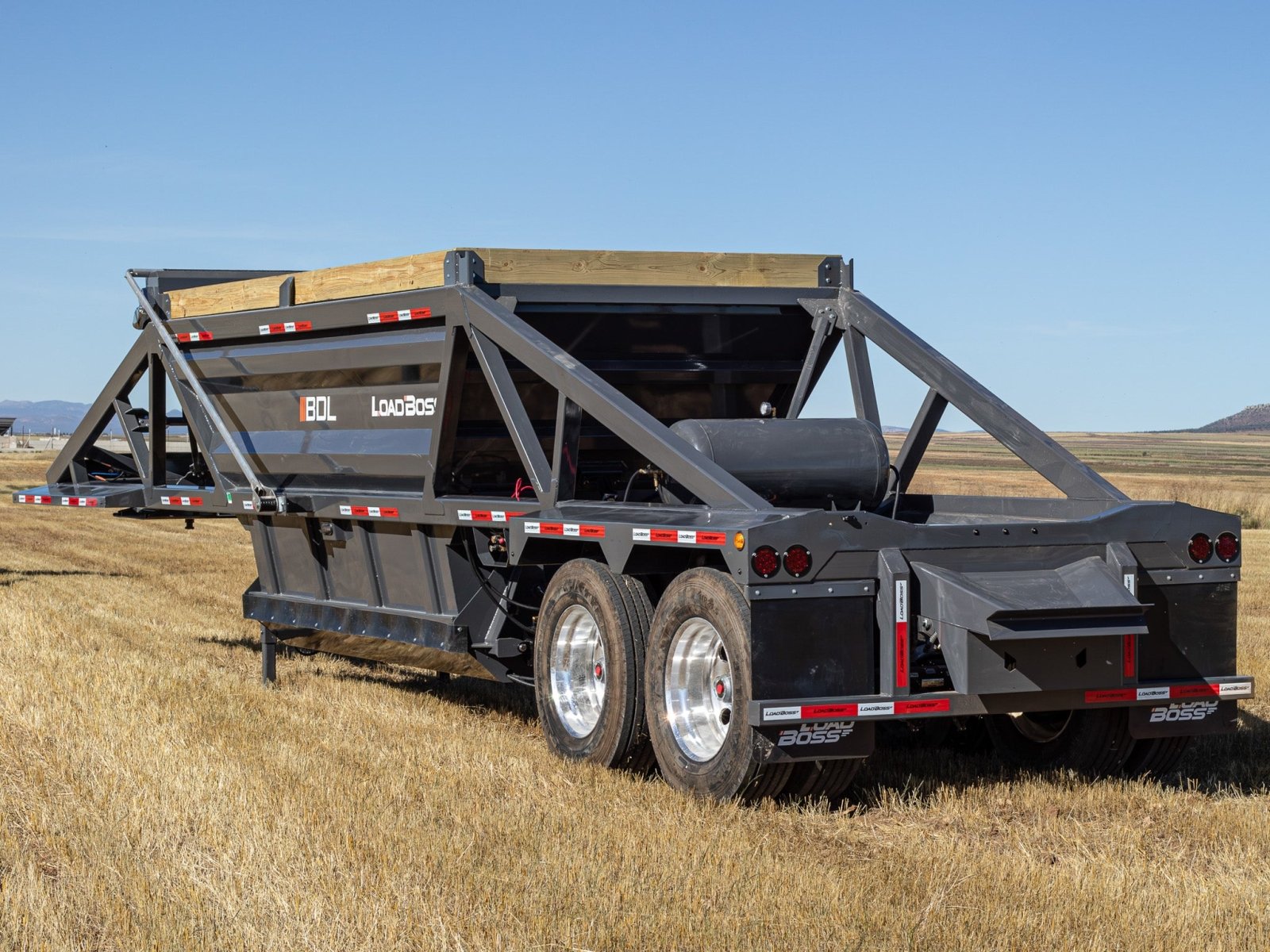

Product Features

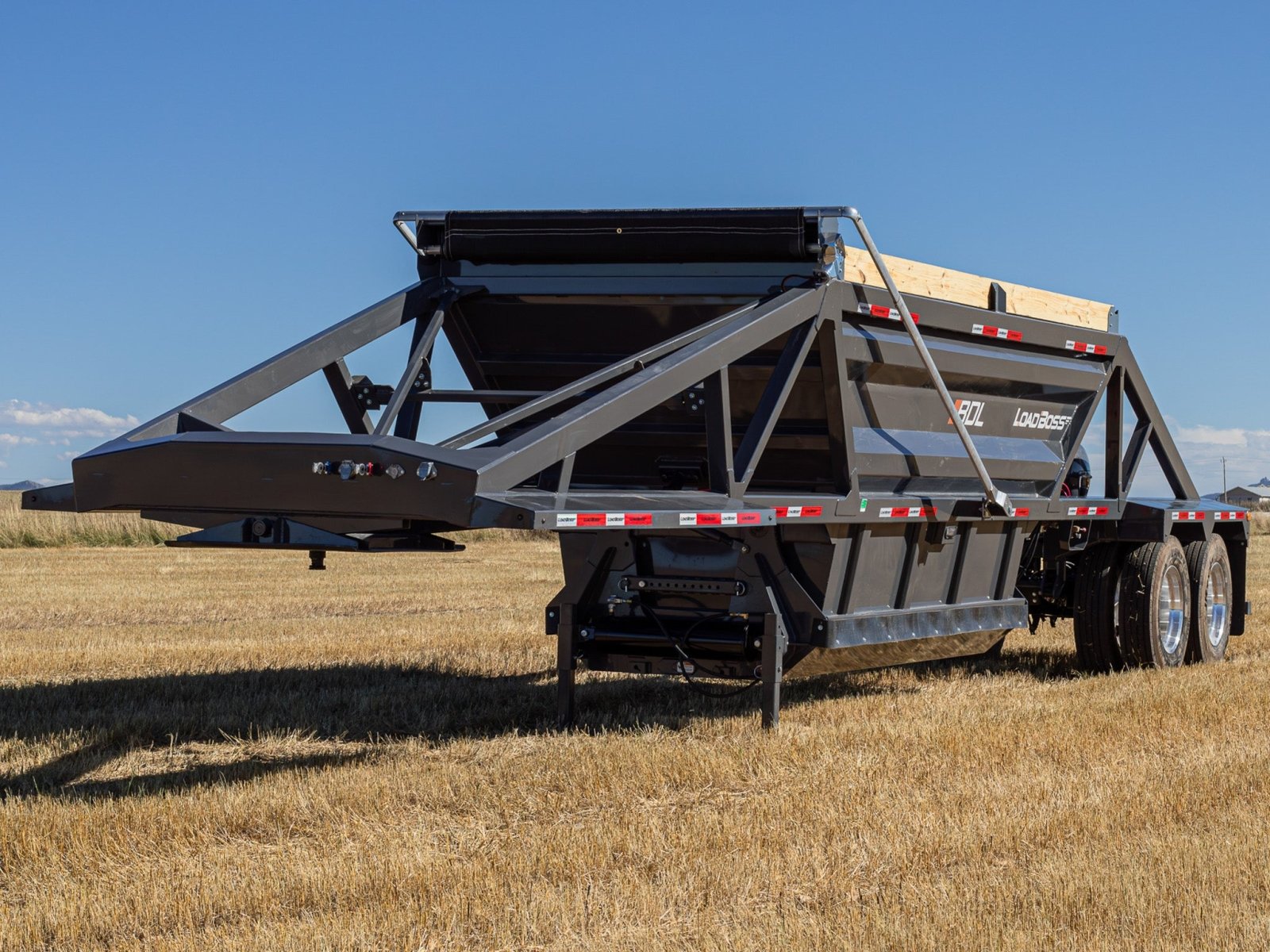

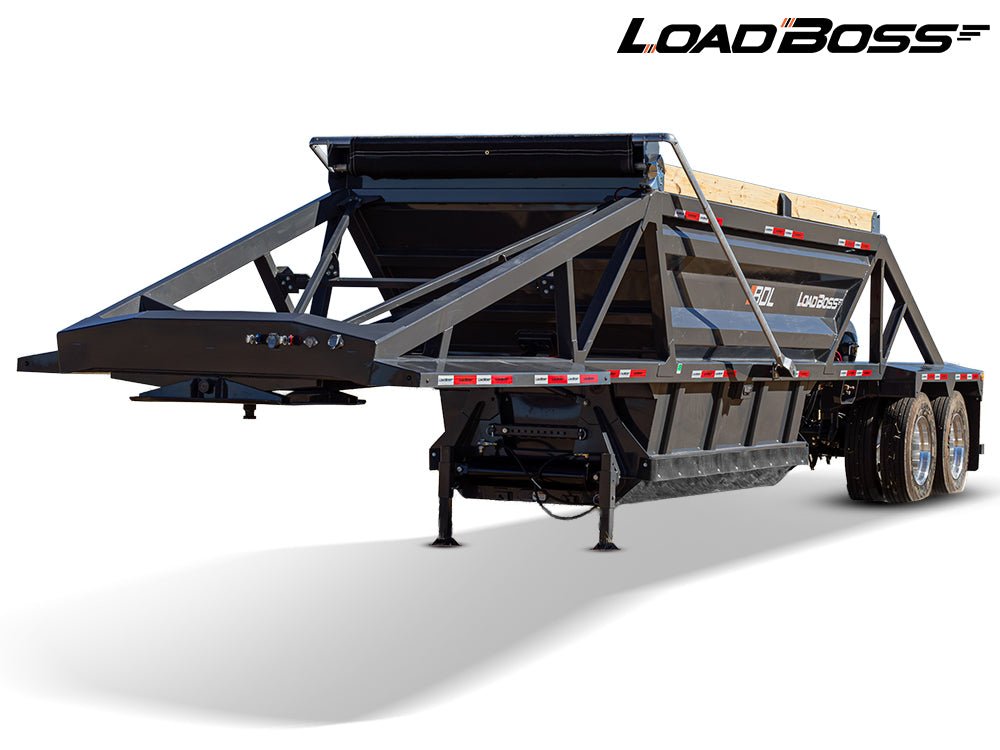

Maximum Payload Capacity

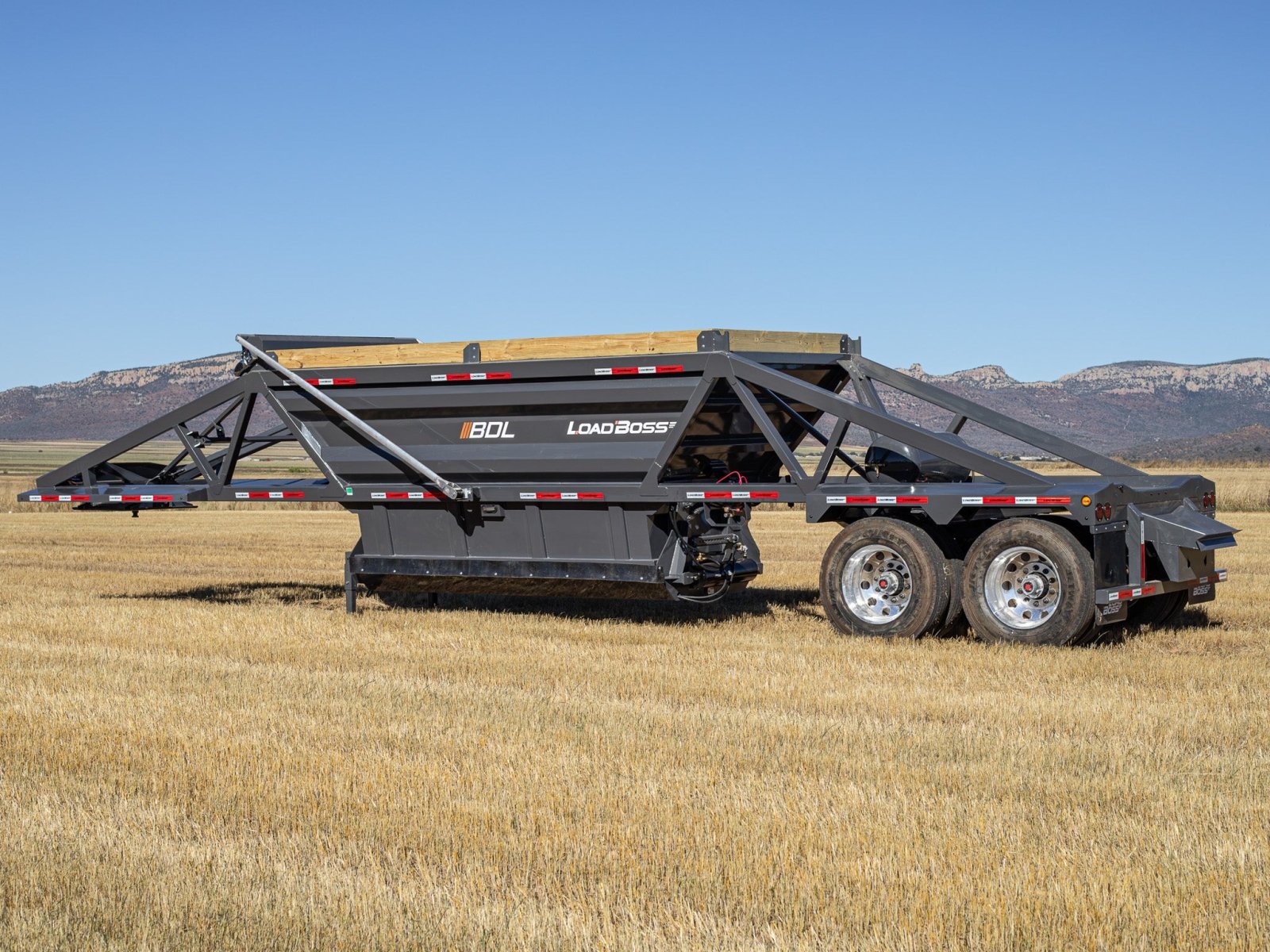

Designed for dependable performance, the BDL is built to handle demanding loads with ease. Equipped with 2-30K axles, Hutch Spring Suspension, and a 72k GVWR reflecting its engineering, you can trust that even with a new loader operator you’ll stay within safe operating limits.

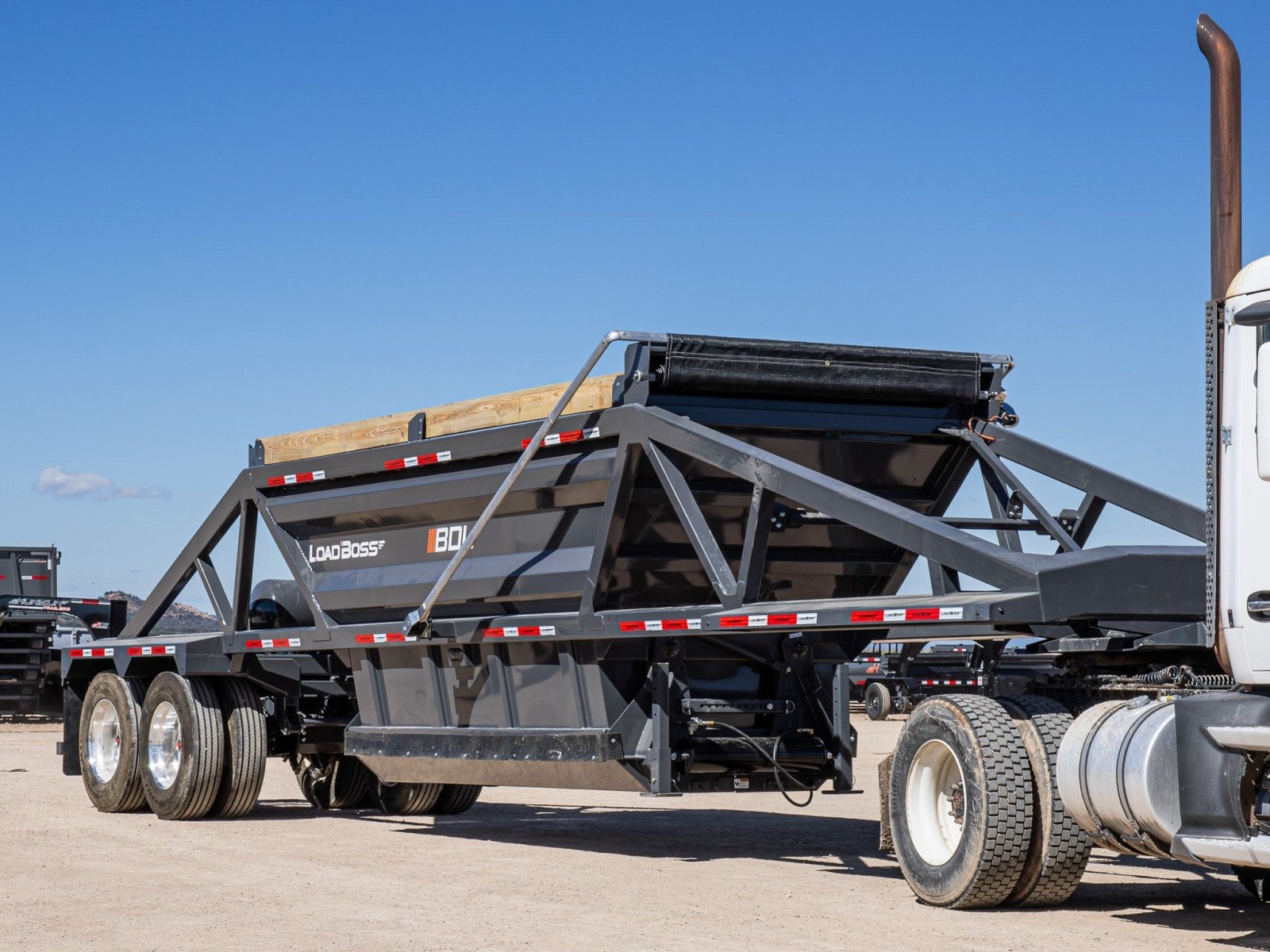

Easy Loading
The BDL introduces a new standard to the industry with a height of only 9.5 feet. Whether you're coming in and out of the pits or the jobsite, with a shorter top board, even skid steers can get you loaded! Versatility matters, never say no to an opportunity while pulling the pinnacle of innovation.
Warranty That Speaks
With a 5-year frame, 5-year structure, and 3-year paint warranty, you can have peace of mind taking the BDL down the un-beaten path knowing you are backed by the people who built it- years after purchase. Built to perform, supported to last, true quality doesn't stop at delivery.

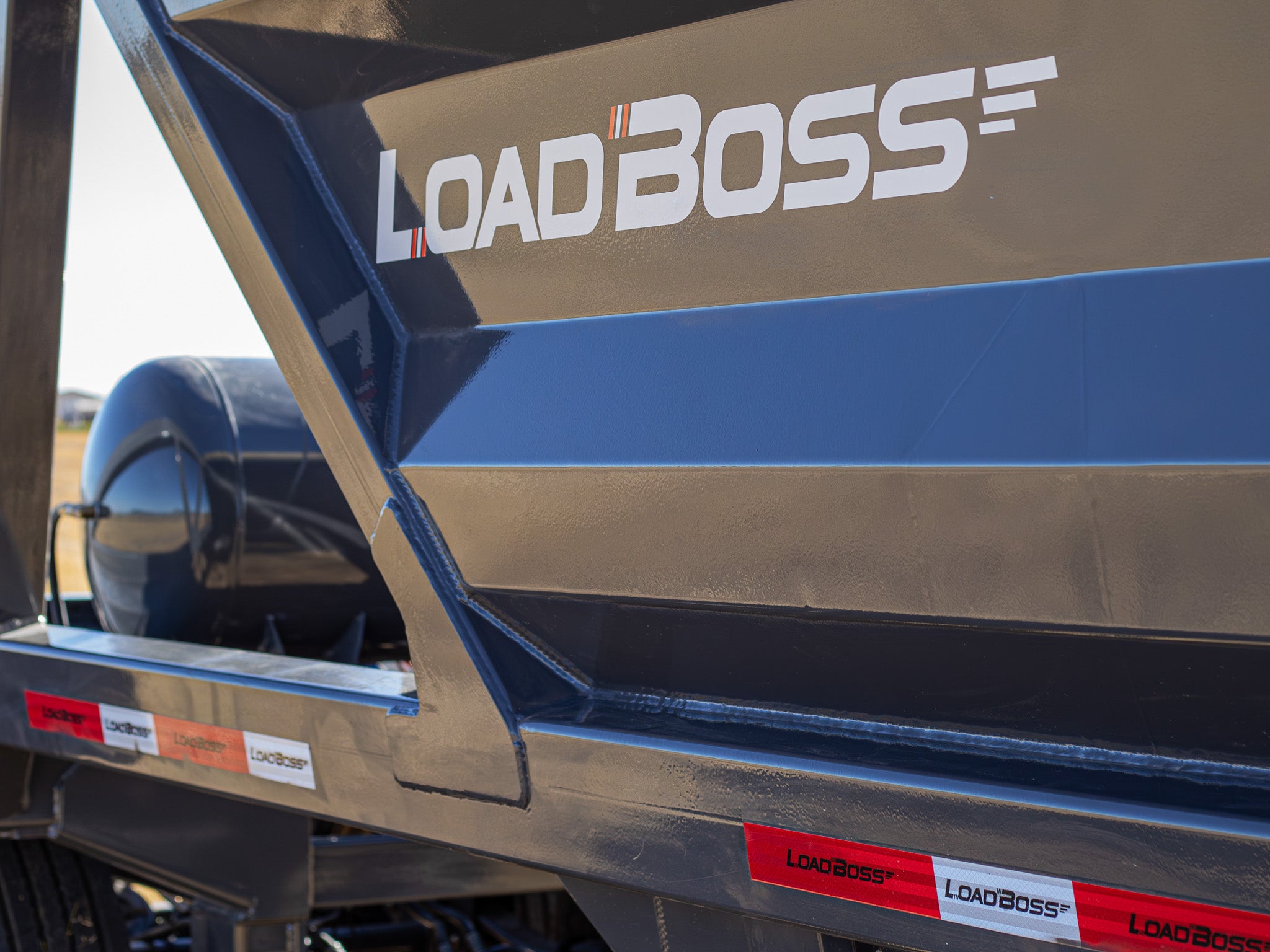

Powder Coat Finish
Designed to resist wear from rocks, brush, and harsh conditions, every BDL is steel grit blasted, primed with a zinc-rich coating, and finished with Sherwin Williams powder coat. Choose from 13 standard color options for a finish that will maintain its unique appearance for years to come.

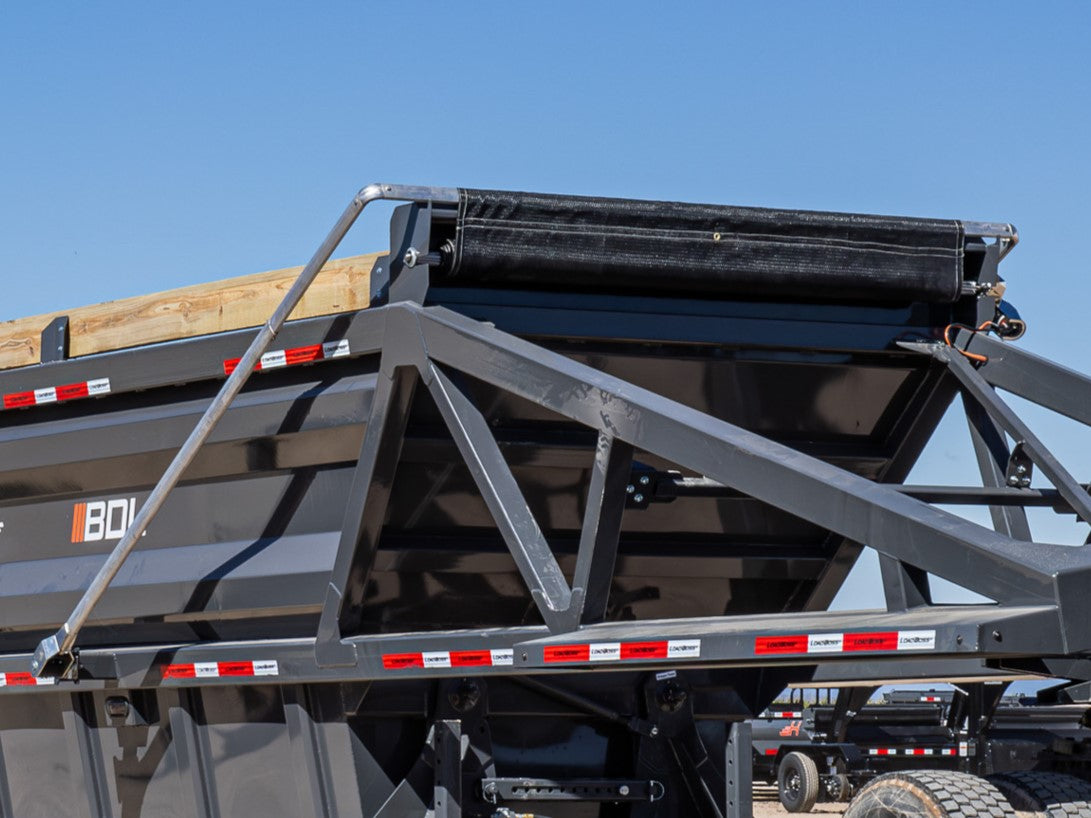

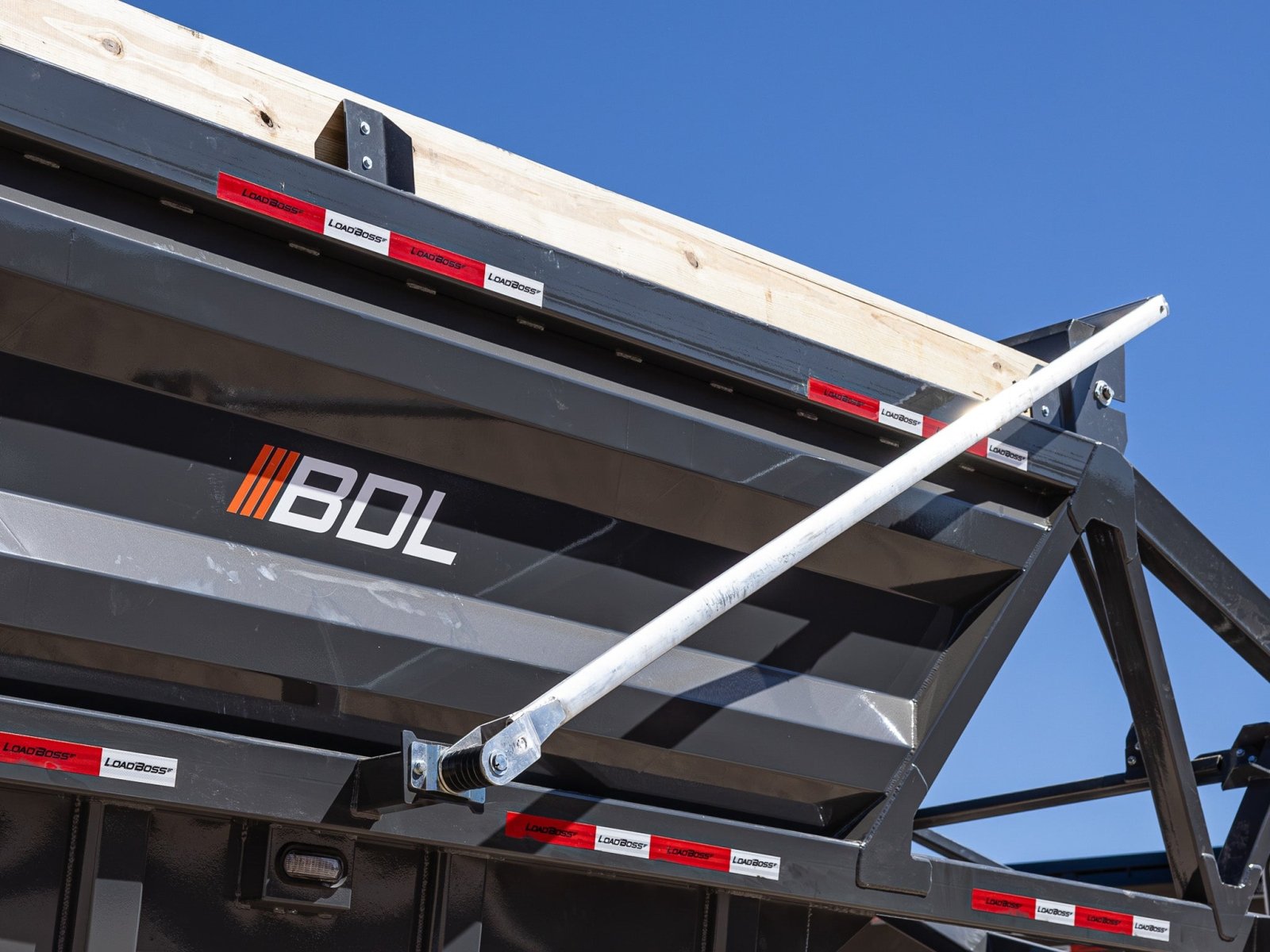

Standard Electric Tarp
Every trailer comes equipped with a high-quality electric tarp system and a cab-mounted control control kit, allowing for quick, safe, and efficient operation without ever leaving the driver’s seat. Built for durability and ease of use, it’s one less thing to worry about every load.
Optional Features
Tailor your BDL with a selection of high-performance upgrades, including Navco Air-Operated vibrators, aluminum wheel packages, your choice of tires, and custom paint matching. Each addition is designed to improve efficiency, payload, and overall presentation.
Product Details
DIMENSIONS
- LENGTH:
- 41.5'
- DECK WIDTH:
- 102"
- TRAILER TYPE:
- Belly Dump
- PULL TYPE:
- King Pin (Semi Trailer)
- MODEL:
- BDL BD 41'x102" 72K Belly Dump
WEIGHT RATINGS
- GVWR:
- 72k
- GAWR:
- 30k
- ESTIMATE DRY WEIGHT:
- 14.8k lbs
- ESTIMATED PAYLOAD:
- 57.2k lbs
- AXLE COUNT:
- 2
HOPPER SPECS
- HOPPER CAPACITY:
- 23.5 Cu. Yards
- TOP RAIL:
- 16'9" Long x 7'4" Wide
- SIDEWALL HEIGHT:
- 44"
- INSIDE OVERALL HEIGHT:
- 81" (Bottom Of Hopper To Top Of Sidewall)
- TOP OF HOPPER:
- Formed 10ga. Grade 50 Steel Plate
- BOTTOM OF HOPPER:
- Reinforced 10ga. Grade 50 Steel Plate
- FRONT WALL:
- Reinforced 10ga. Grade 50 Steel Plate
- REAR WALL:
- Reinforced 10ga. Grade 50 Steel Plate
FINISH
- PAINT TYPE:
- Sherwin Williams Powdercoat
- PREP:
- Steel Grit Blasted
- UNDERCOAT:
- Zinc Rich Epoxy Primer
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Gray, True Red, Pearl White, Cloud Gray, Navy Blue, Sunset Orange

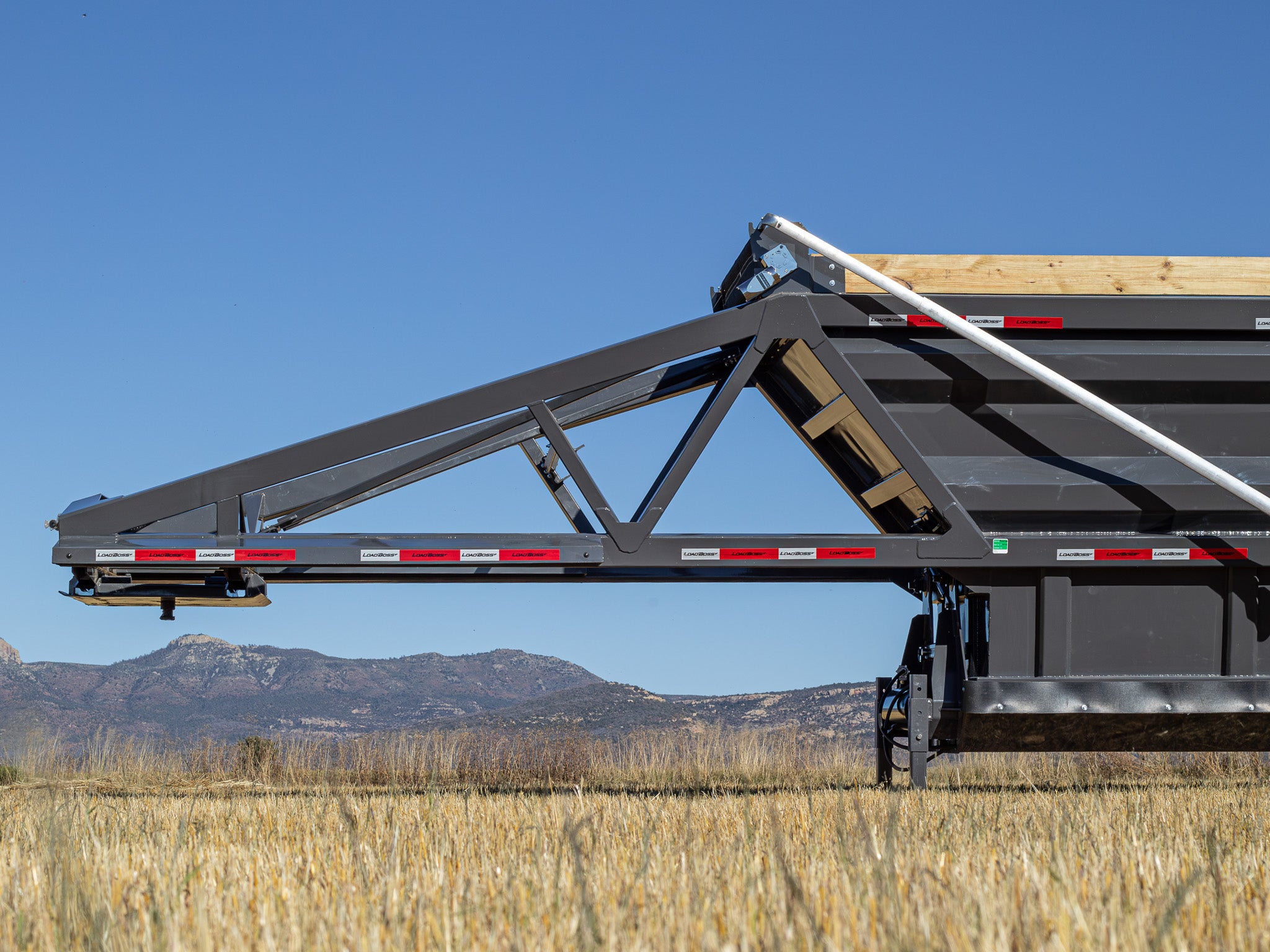

GOOSENECK
- COUPLER PLATE:
- Swivel Plate w/ Greasable Pins — 5/16" Plate
- COUPLER HEIGHT:
- 46"
- KING PIN:
- Jost
- KING PIN SETBACK:
- 16" From Front Of Bolster
- LANDING GEAR:
- 3" x 3" x 1/4" Square Tubing w/ Pin Holes
- DOCUMENT HOLDER:
- Trucklite 97960-P
FRAME & CONSTRUCTION
- MAIN FRAME:
- 4" x 6" x 7ga. Tubing
- CROSSMEMBERS:
- 2" x 2" x 1/4" Square Tubing Bolt-On Supports

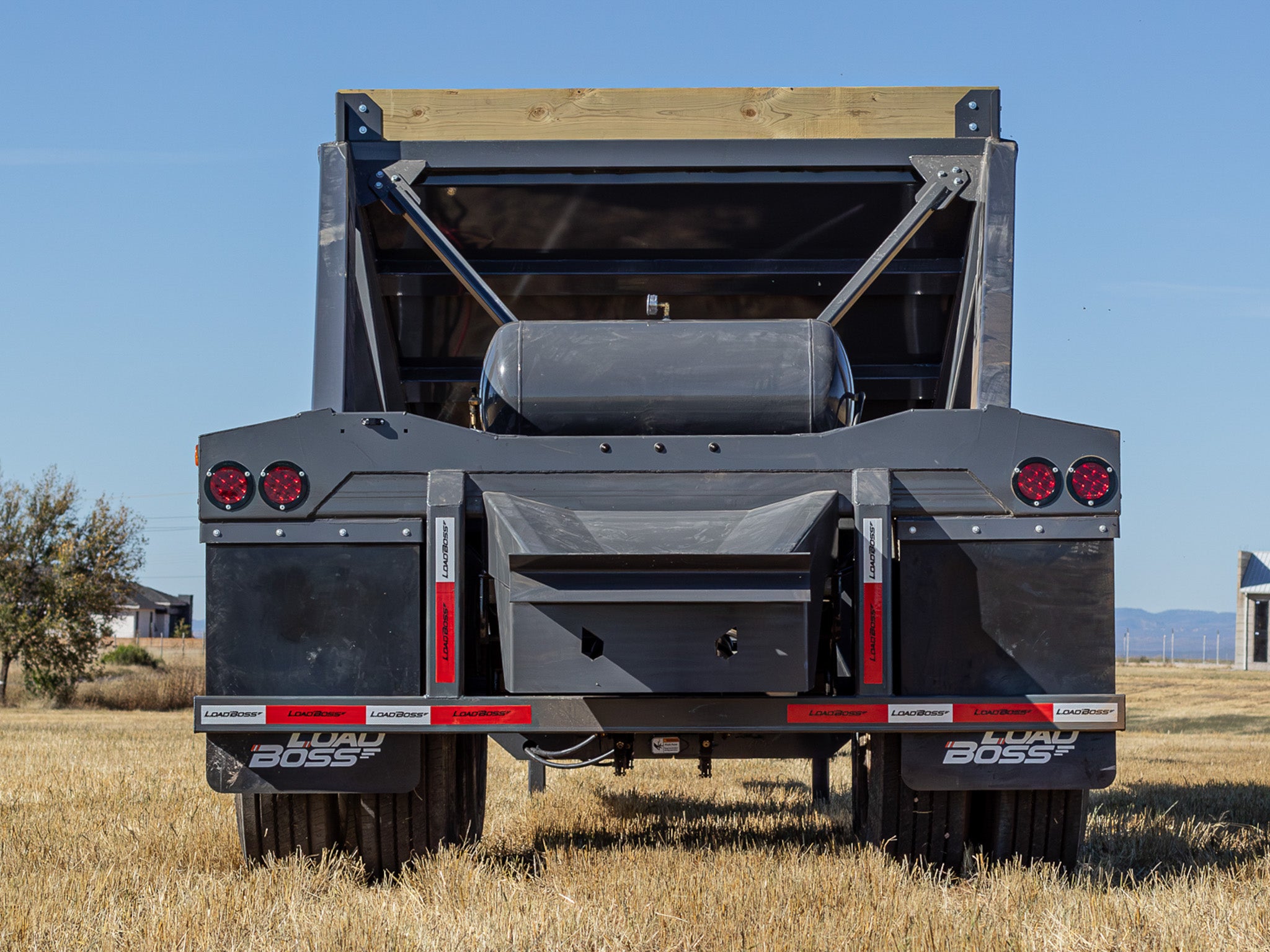

- REAR BUMPER:
- Certified Rear Impact Guard (DOT/Transport Canada)
- REAR BUMPER EXTRAS:

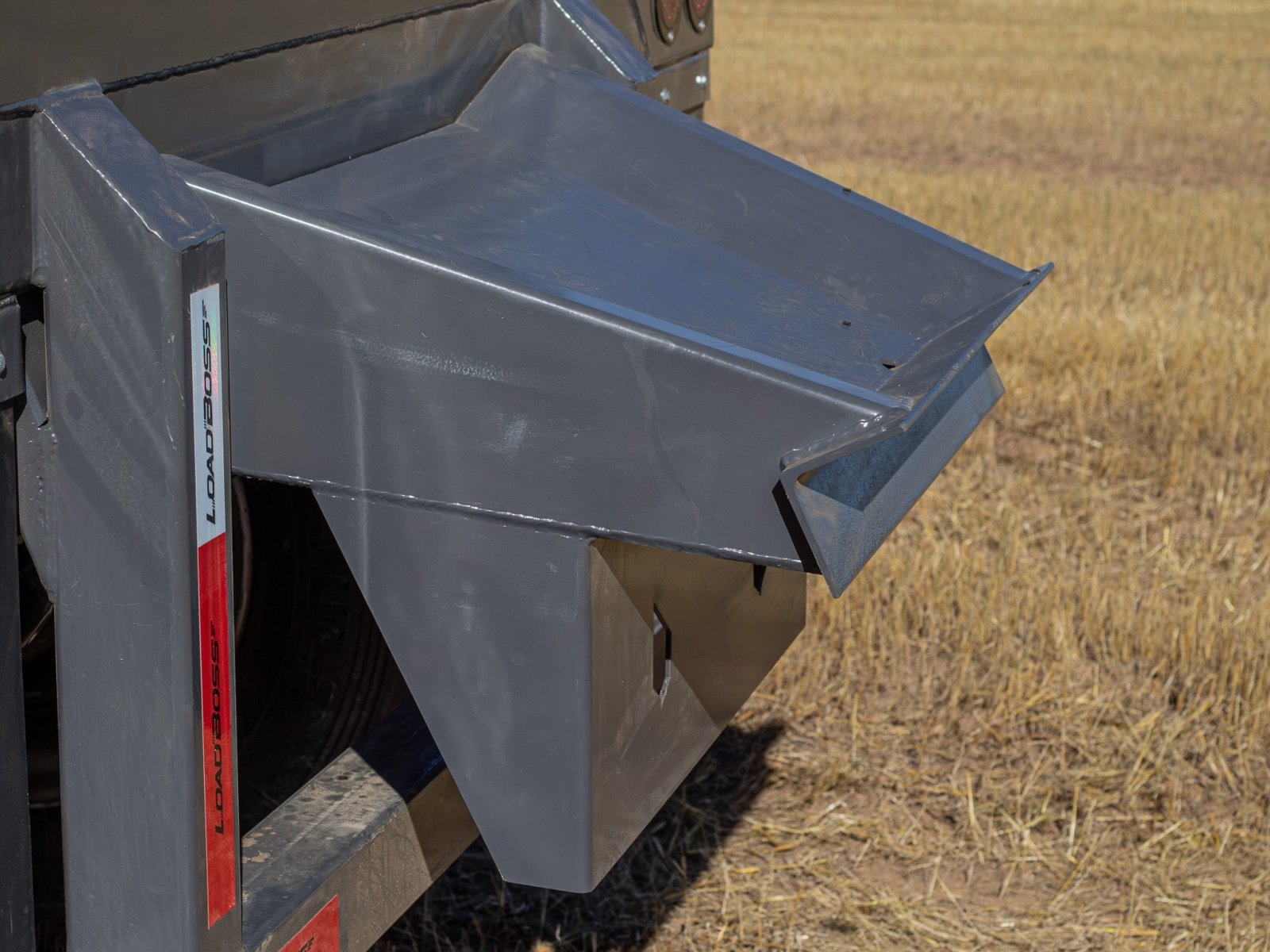

- Angle Iron "V" Push Block
- MUD FLAPS:
- Heavy Duty Black Rubber w/ Loadboss Logo
GATE SPECS
- GATES:
- 3/16" Grade 50 Double Plated Reinforced Gates
- GATE LENGTH:
- 11'8"
- GATE OPENING:
- 34" Wide

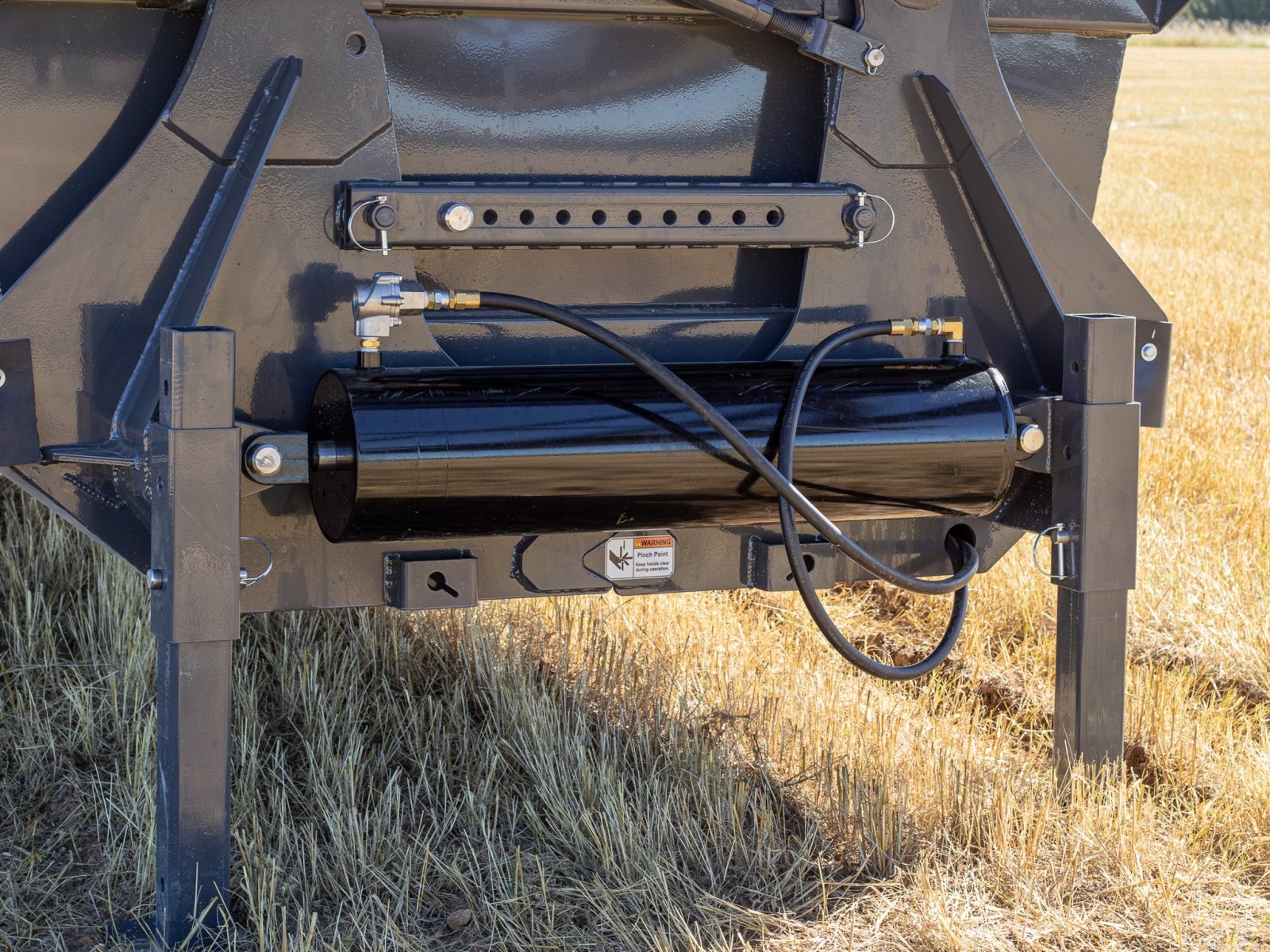

- GATE OPERATION:
- Inside Cab Control Box / Electric Over-Air
- GATE STOP:
- Multi Position

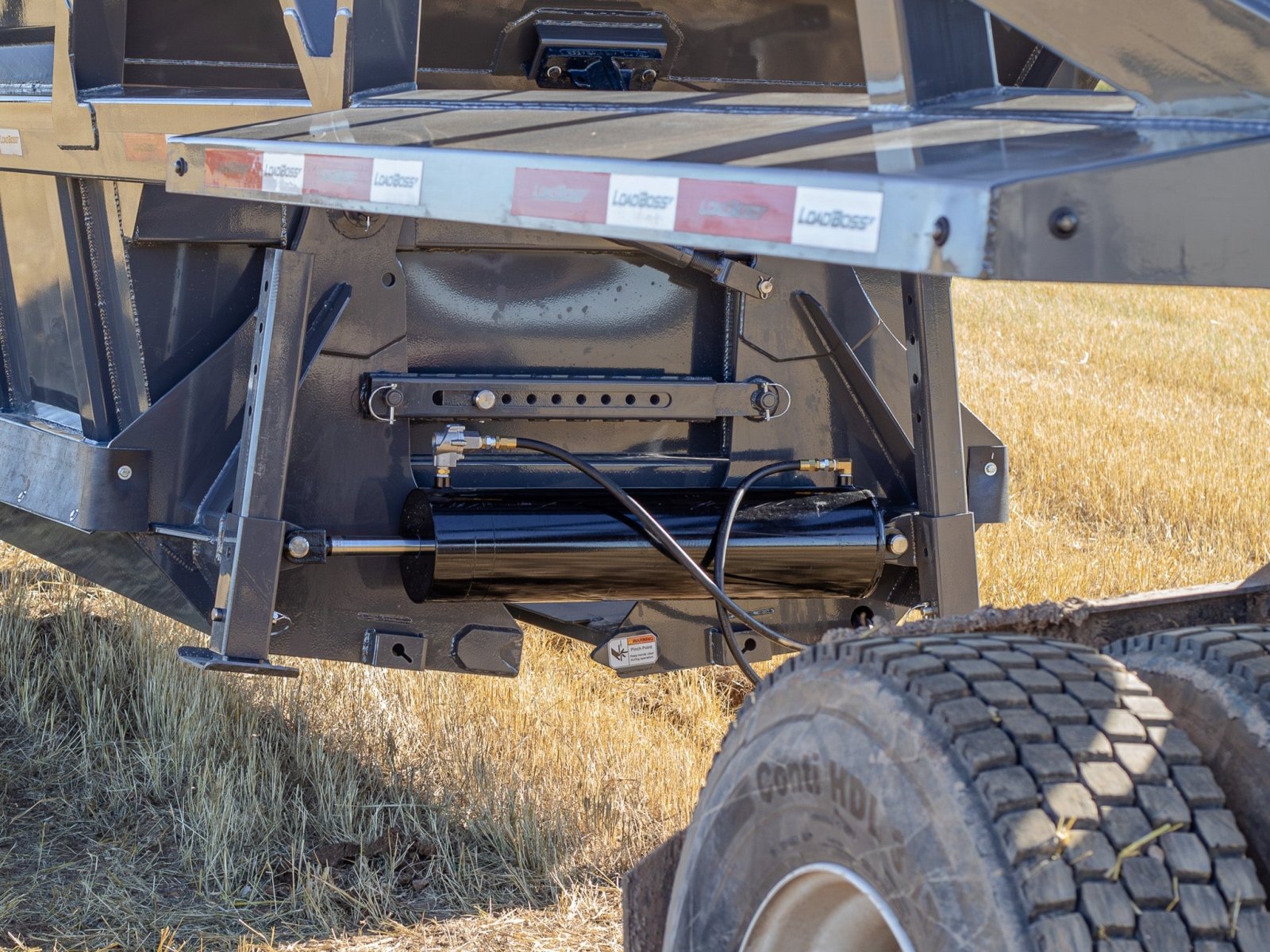

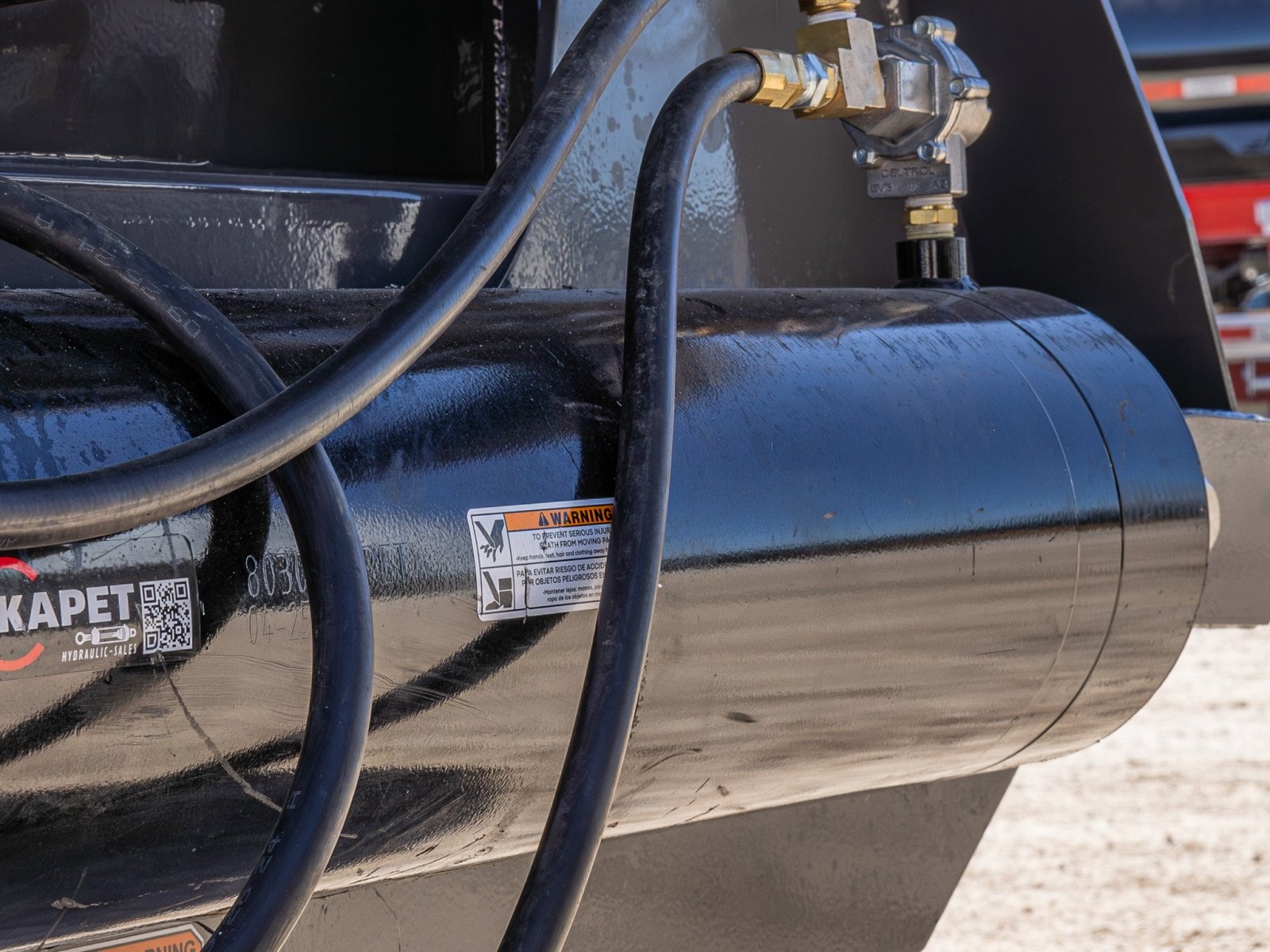

- GATE CYLINDERS:
- 2 - Neumatic Air Cylinders 8" Bore

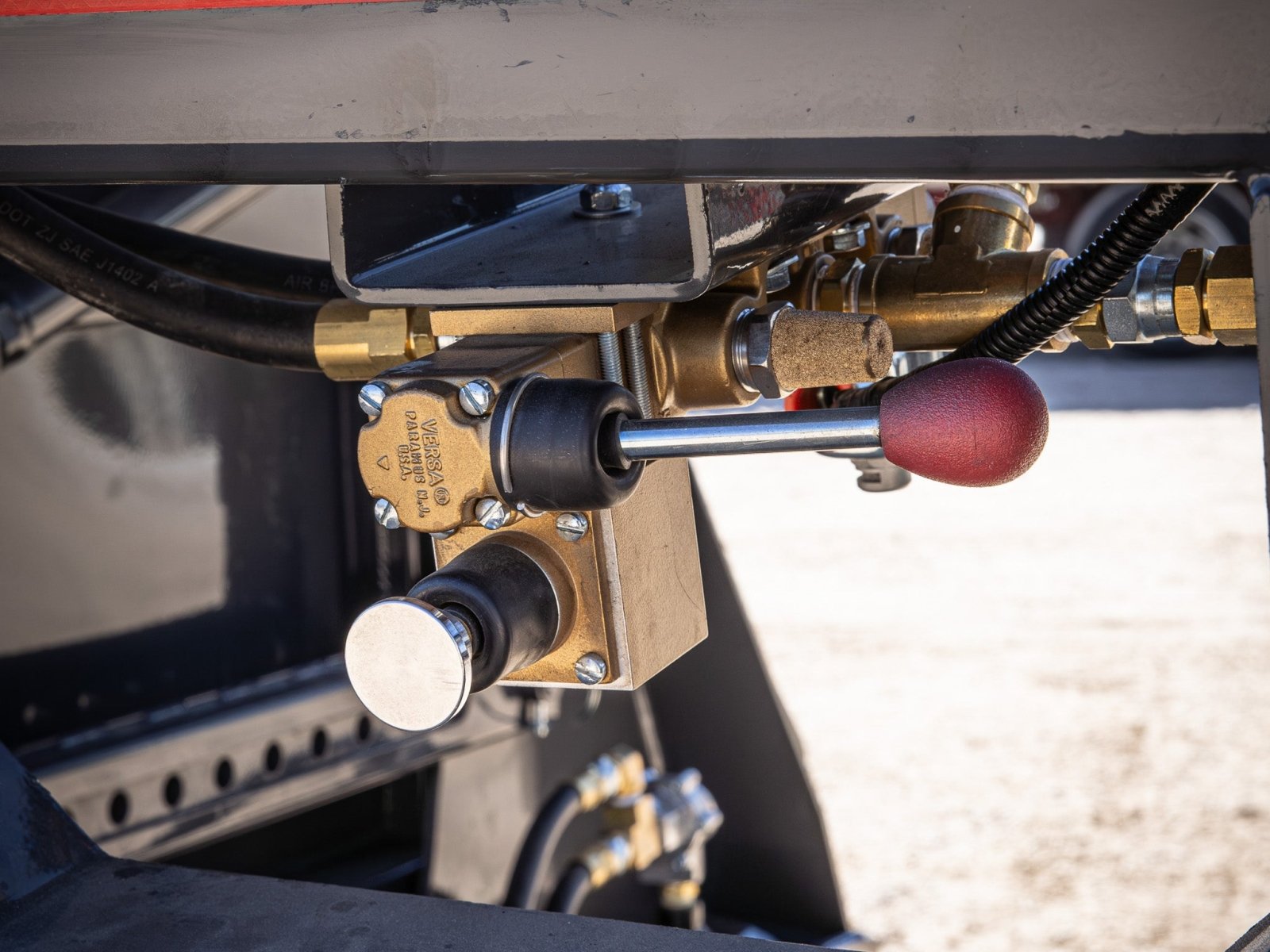

- GATE VALVE:
- VERSA Valve (Inside Toolbox)
- TARP:
- Electric Tarp Kit (Inside Cab Control Box)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Double Insulated
- 7-WAY RECEPTACLE:
- Phillips

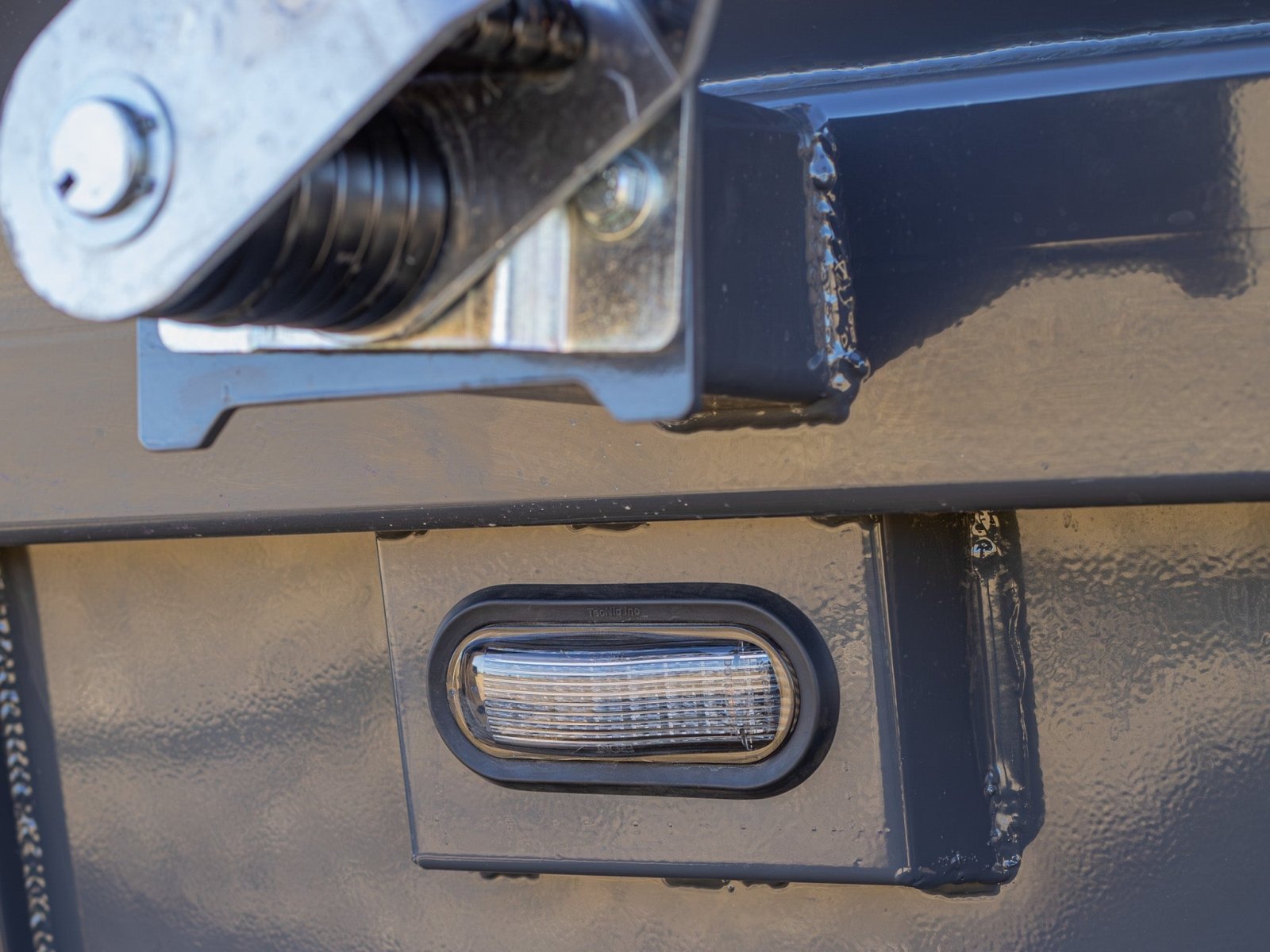

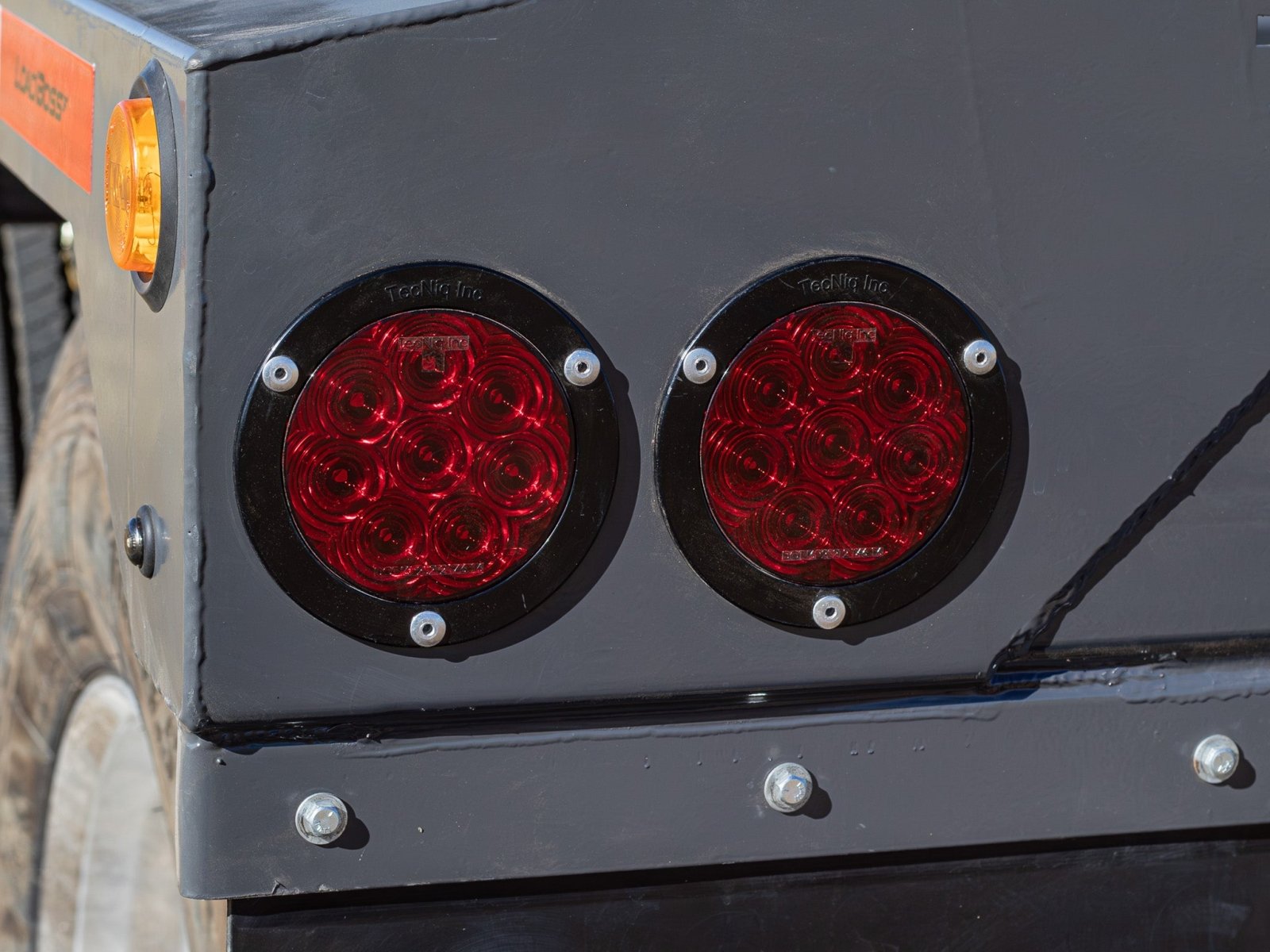

- LIGHTING:
- DOT Approved Tecniq LED Lights
- REFLECTIVE TAPE:
- 3M DOT Compliant Conspicuity Tape
- ABS SYSTEM:
- Haldex 2S/1M DOT Certified

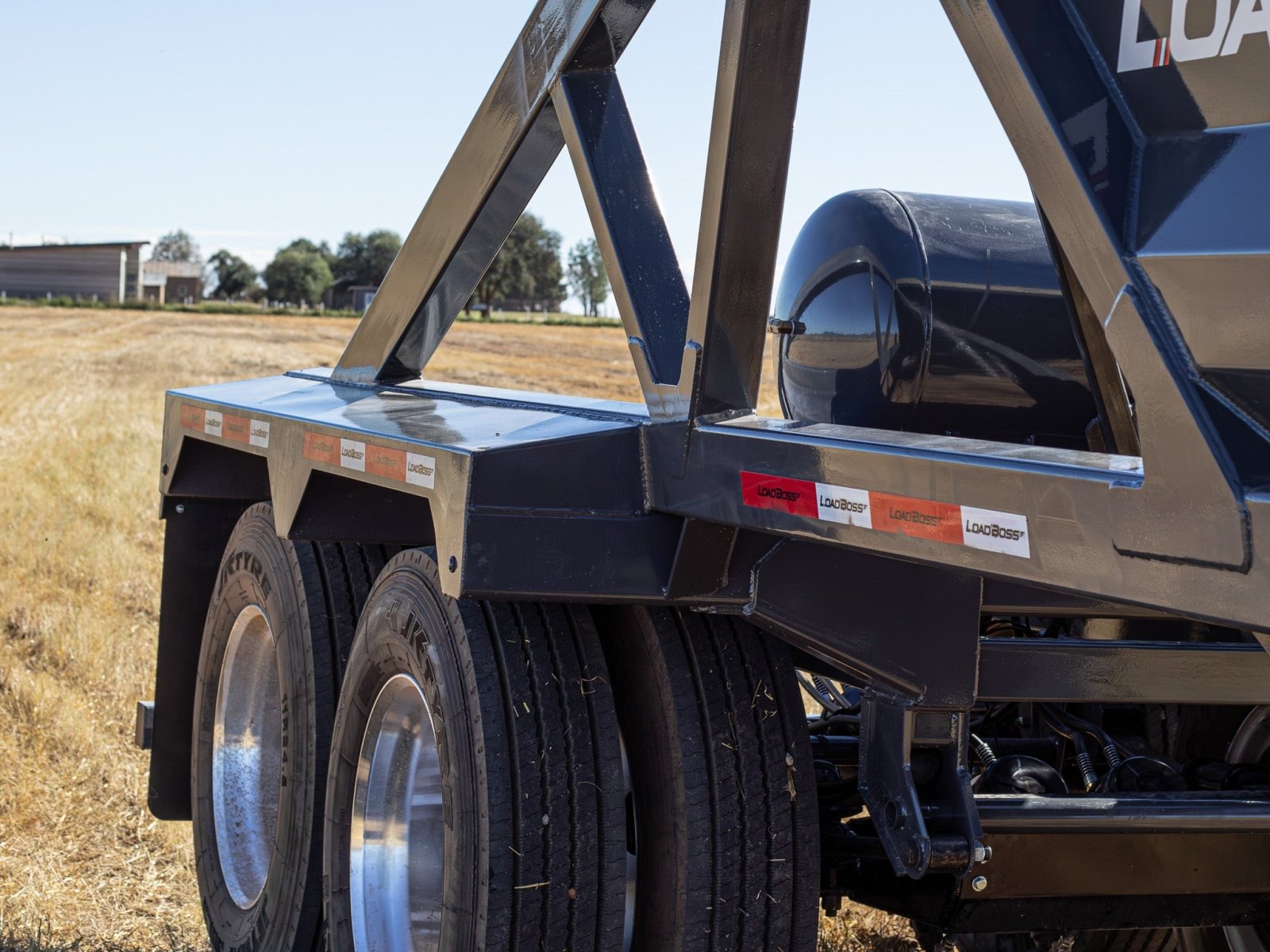

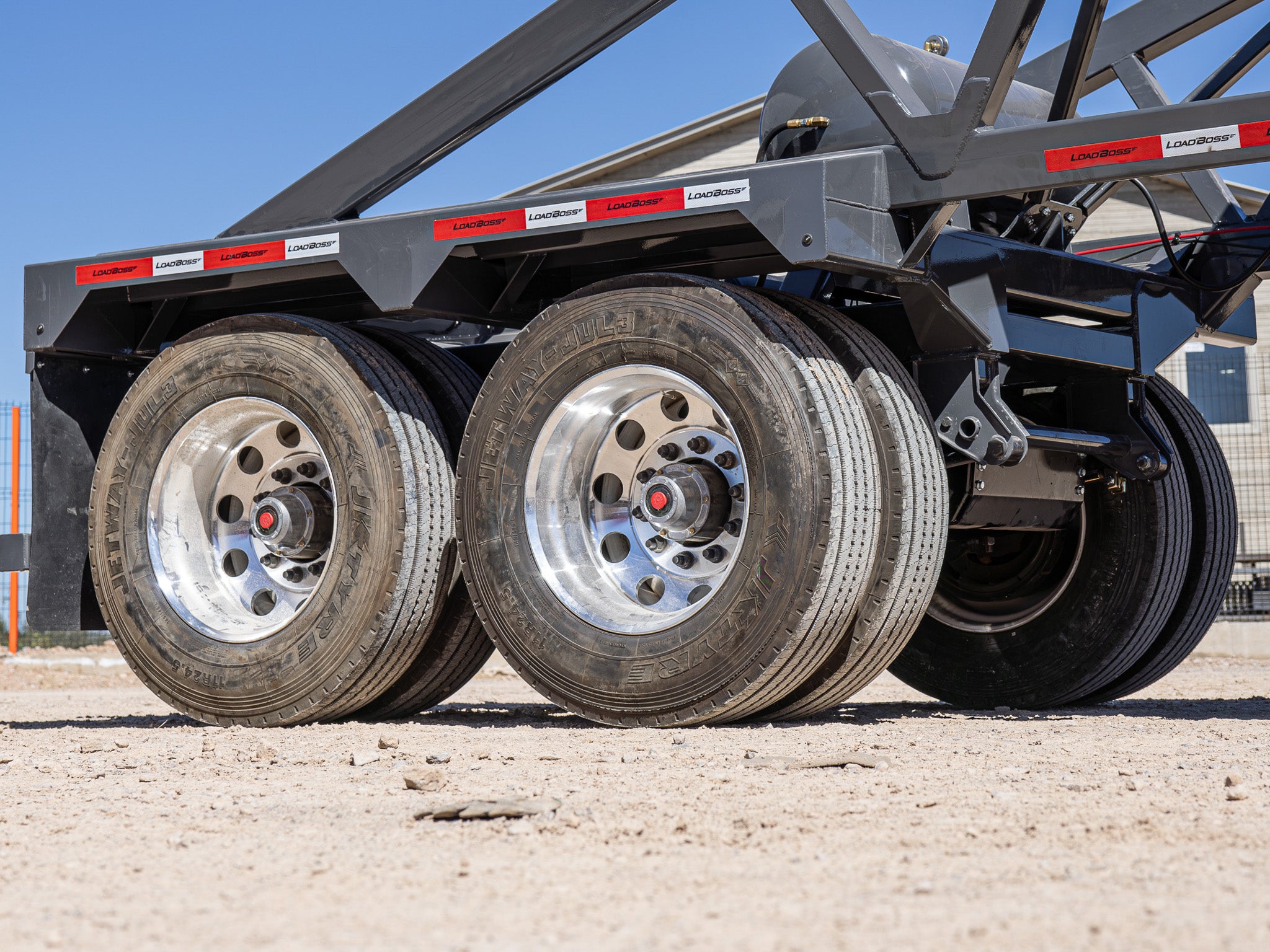

RUNNING GEAR
- AXLE TYPE:
- Ampro 30k lbs Capacity
- AXLE SPACING:
- 49"
- TRACK WIDTH:
- 71.5"
- BOLT PATTERN:
- 10 On 11.25"
- SUSPENSION TYPE:
- Hutchens Industries H-9700 3 Leaf Spring

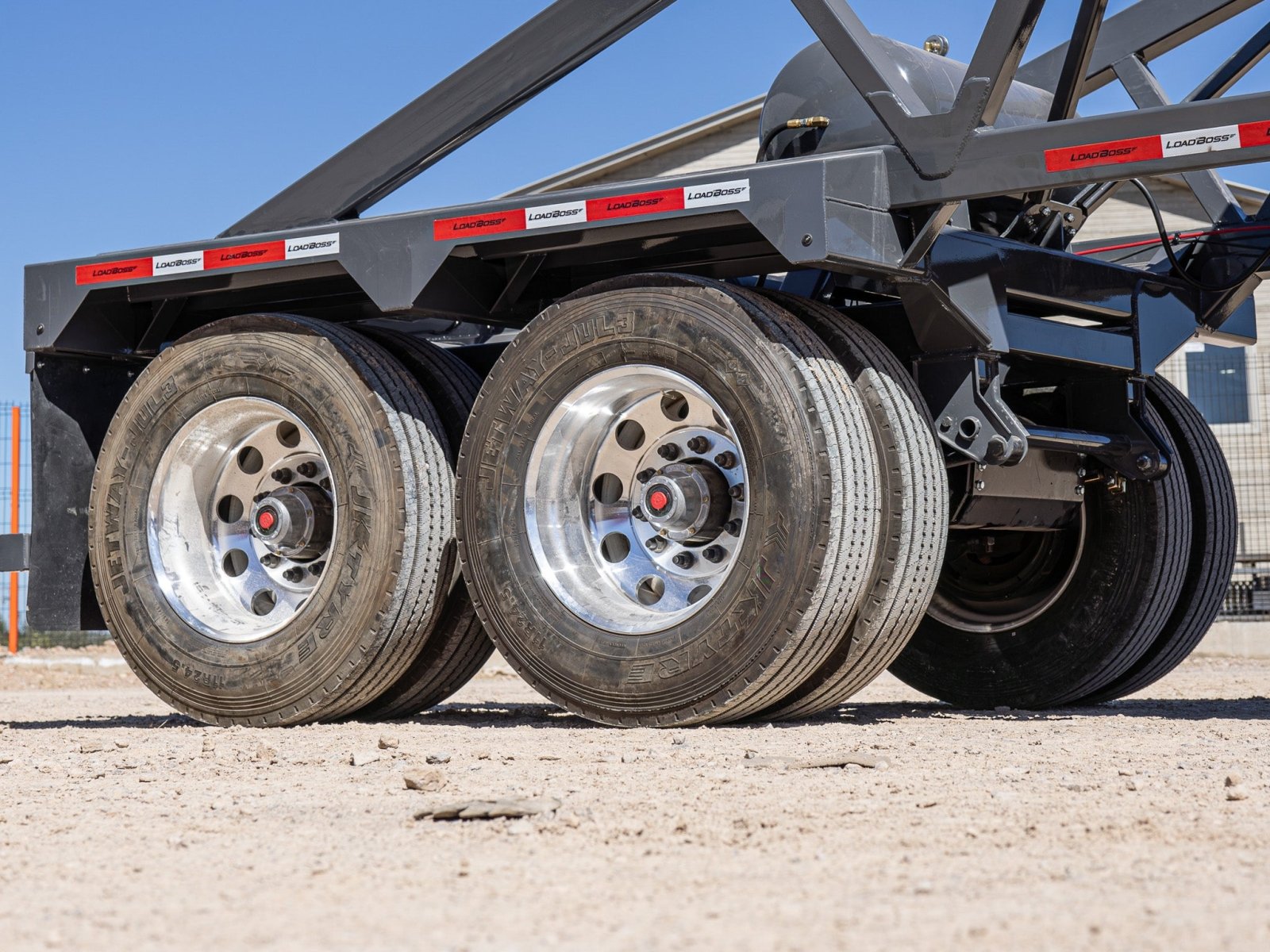

TIRES & WHEELS
- TIRE BRAND:
- Galaxy
- TIRE TYPE:
- Radial
- TIRE SIZE:
- 11R24.5
- TIRE PLY:
- 16
- TIRE RATING:
- 6,610 lbs
- OUTER WHEELS:
- 24.5" White Steel — 7.4k lbs / 8.25" Wide
- WHEEL WIDTH:
- 8.25"
BRAKES
- BRAKE DRUMS:
- Ampro Standard Cast Iron
- BRAKE SIZE:
- 16.5" x 7"
- BRAKE CAPACITY:
- 30k
- SLACK ADJUSTERS:
- Ampro Standard Auto
- BRAKE CHAMBERS:
- Type 30/30 Air

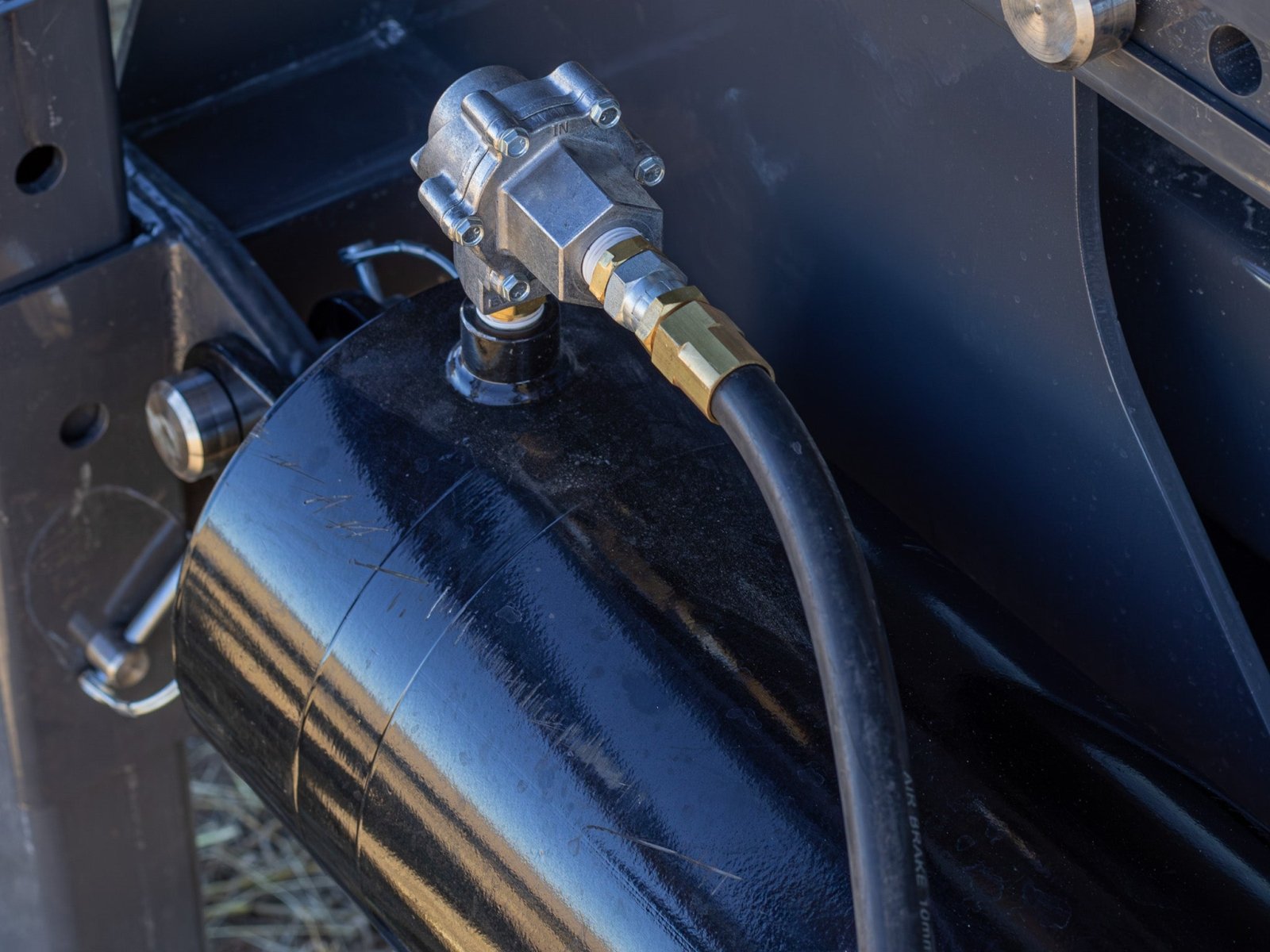

AIR PLUMBING

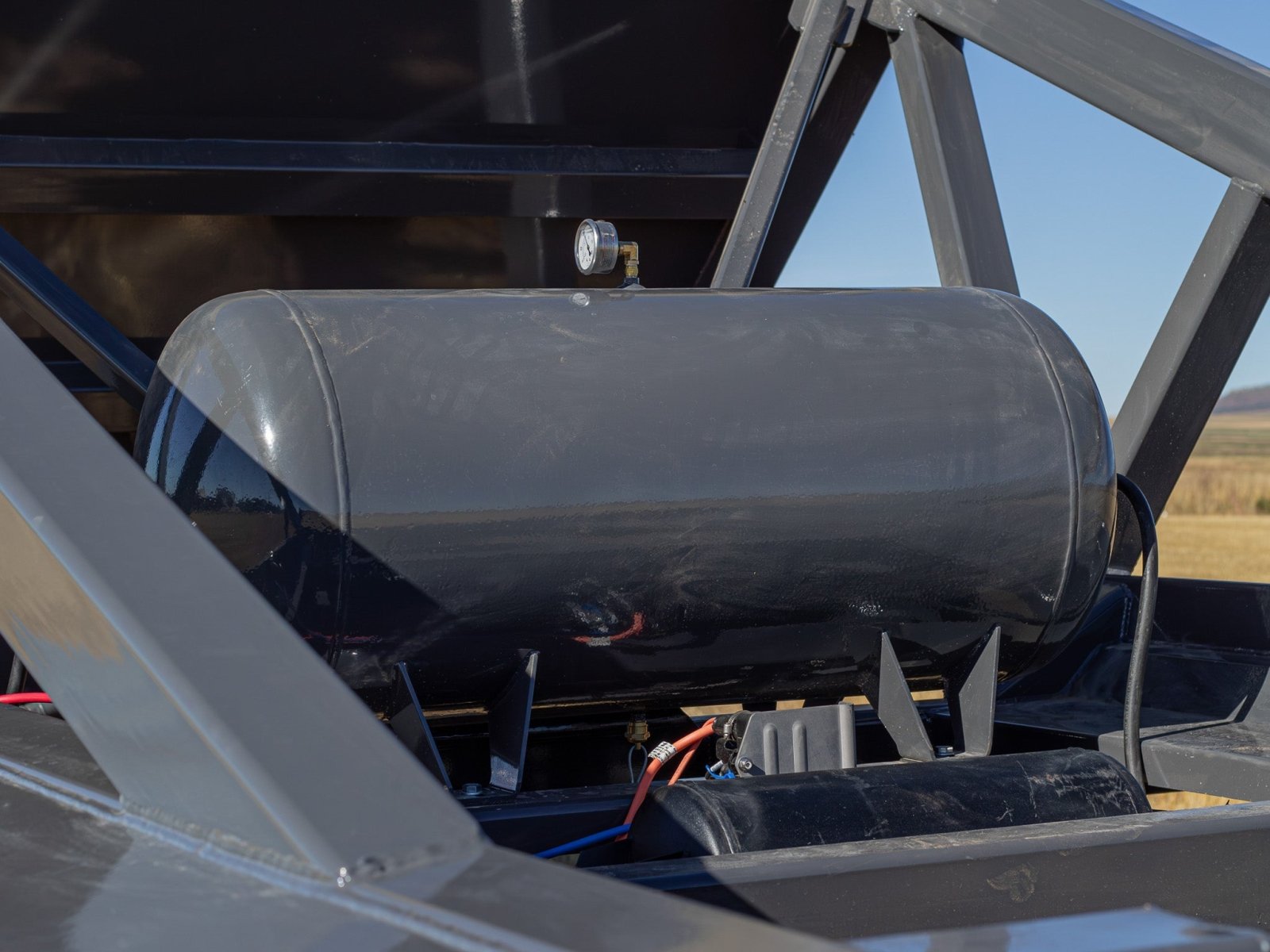

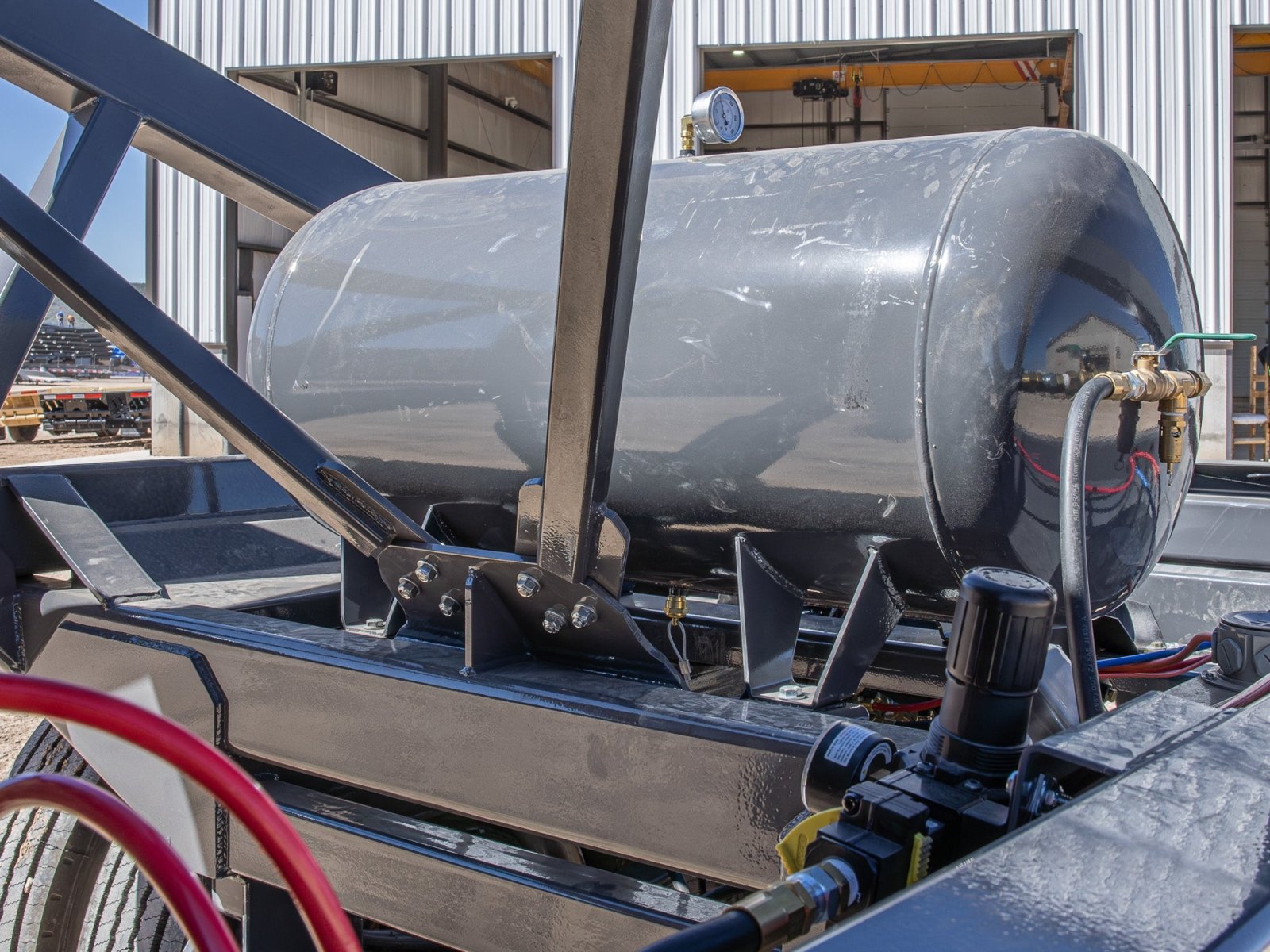

- AIR TANKS:
- Brake: 1 - Ridewell 1,488 Cu. In. / Gate: 1 - 60 Gal. (Hooked Up w/ Ridewell Tank)
- AIR FILTER:
- Norgren Auto Drain w/ Air Gauge (In Toolbox)

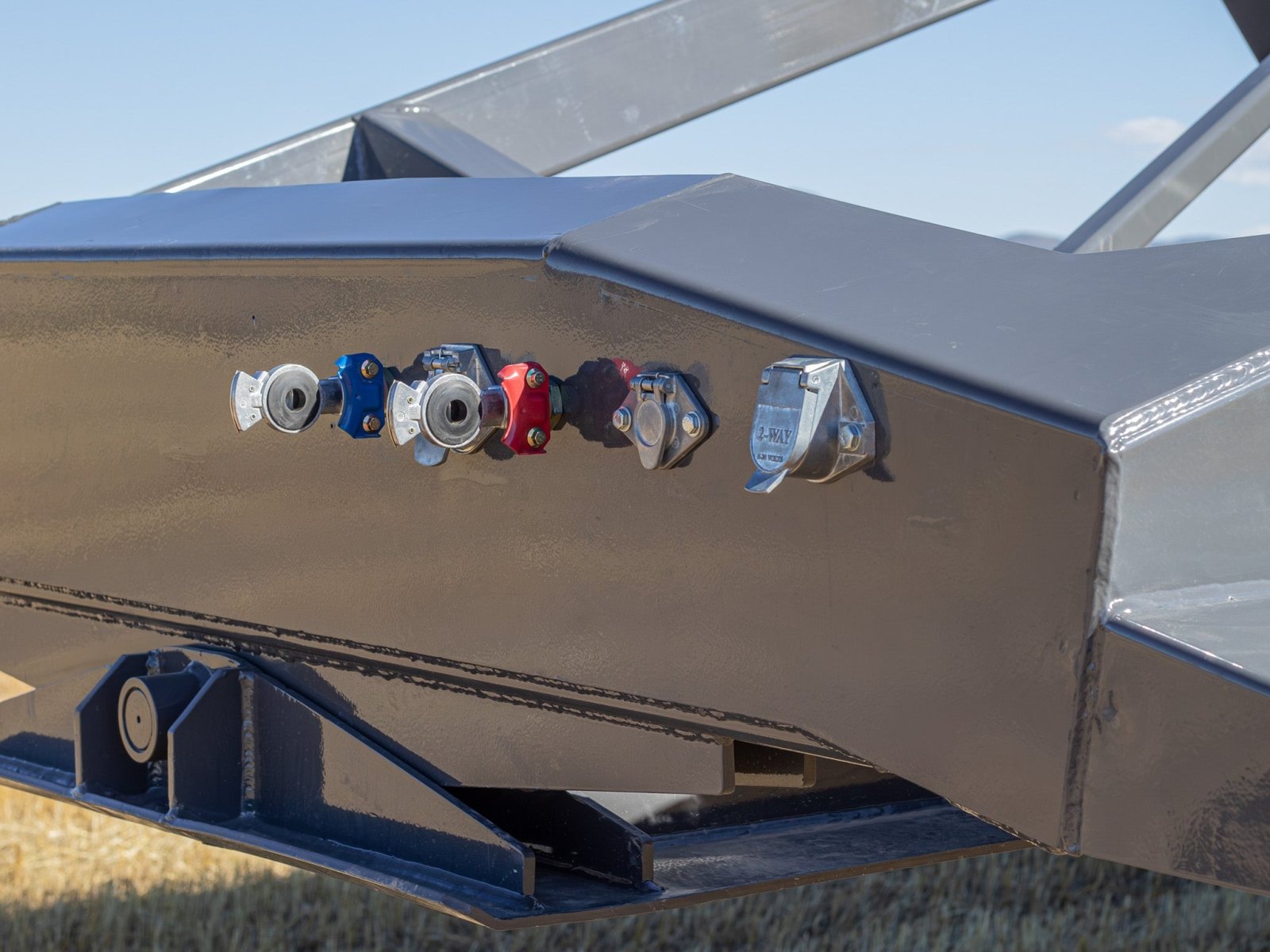

- GLADHANDS:
- Phillips Standard
WARRANTY
- TRAILER WARRANTY:
- 5 Year Frame & Structure
- PARTS WARRANTY:
- 1 Year (Unless Otherwise Specified)
- PAINT WARRANTY:
- 3 Year
OPTIONS
