At a Glance
- Colors:
-
WhiteGrayDark GrayBlackYellowGreenBlueNavyRed
Featured Video
Product Features
Invincible Steel
The ELD brings some of the industry’s most durable steel options to the table, offering AR400, AR450 & AR500 steel, which are all able to handle even the roughest materials.With the rear 8’ being 5/16, it is engineered for long term wear resistance and structural integrity under continuous use.

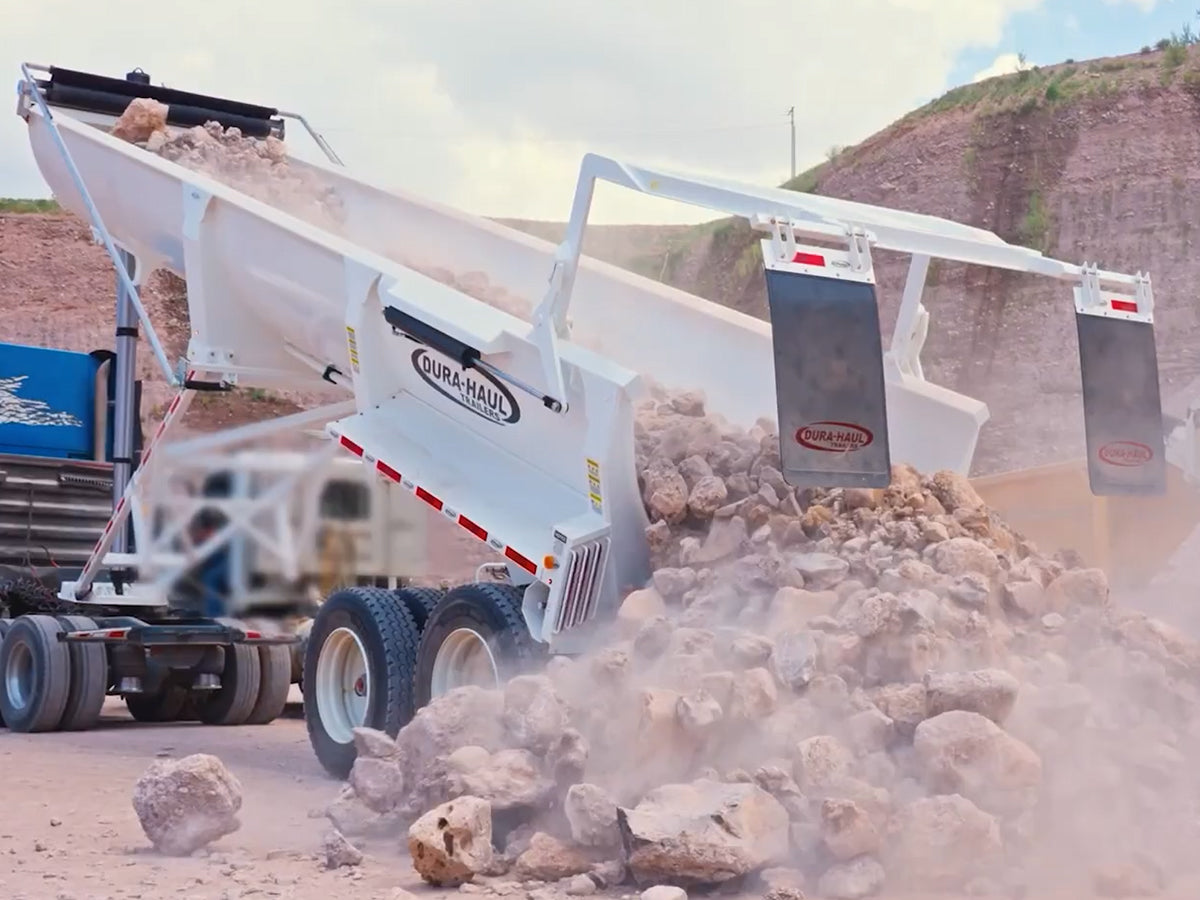

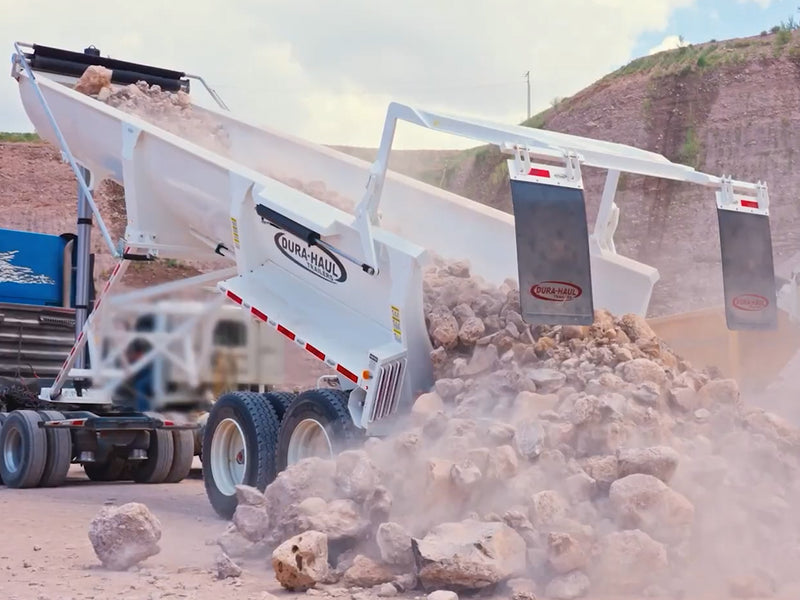

Hi-Lift Gate
Standard-equipped with a high lift gate, the ELD is designed to deliver efficient, consistent dumping across a wide range of materials. From sand to bull rock, this system reduces hang-ups, improving cycle times on your jobsite. Built for reliability and speed, this trailer keeps you working, not waiting, so you can move more material and maximize profits.
Safety

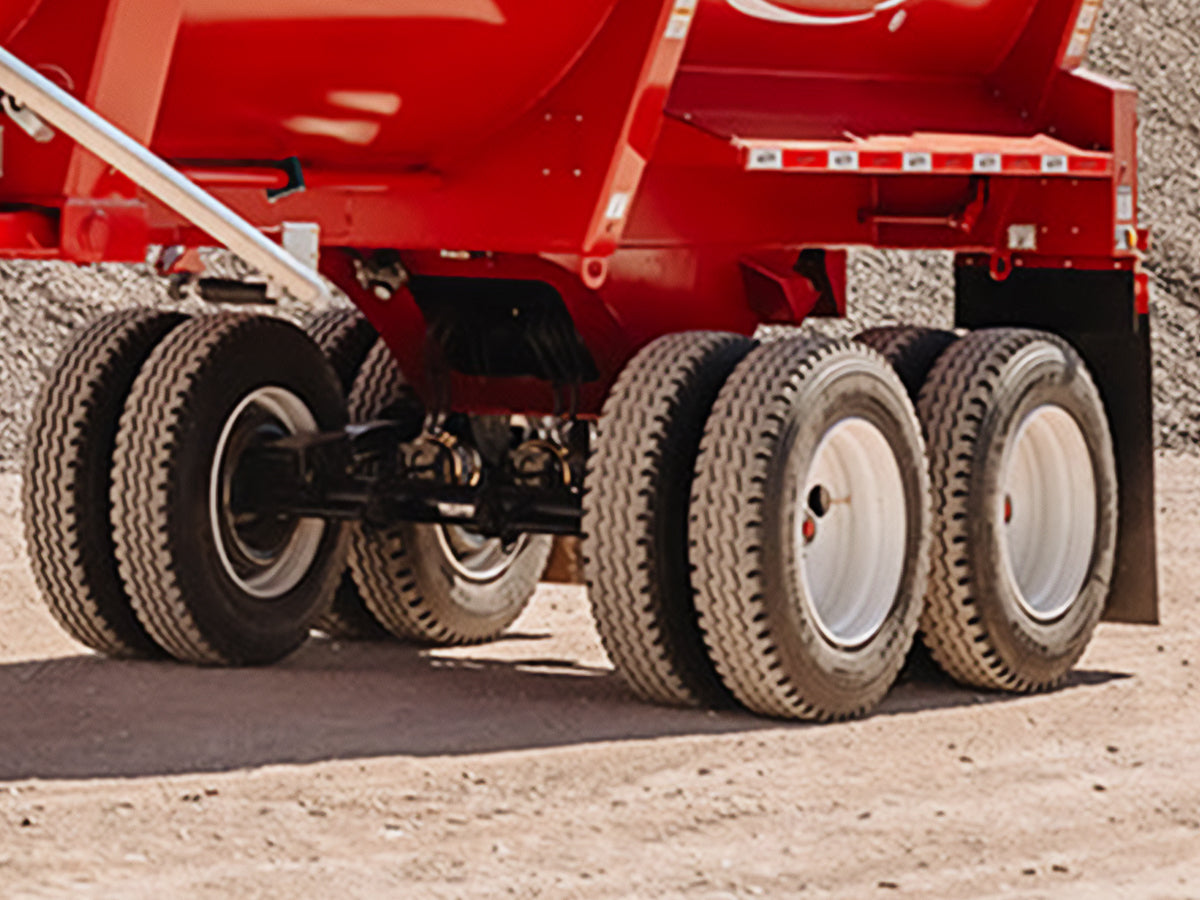

Safety is at the core of the ELD design, with every component engineered to promote complete control throughout the dumping process. Equipped with a Hutch H-900 single point spring suspension, this trailer maintains a stable, balanced stance regardless of uneven terrain. Built to perform with consistency and predictability, the ELD gives operators the assurance to work with confidence on every load.
The Right Size
With lengths ranging from 28ft to 38ft, side heights from the standard 45” up to 57”, and capacities from 23 to 30.7 cubic yards, the ELD offers flexibility to meet a wide range of hauling demands. From higher-volume loads to jobs with tighter spaces, each configuration is designed to deliver the perfect fit, superior performance, and the right advantage for your operation.

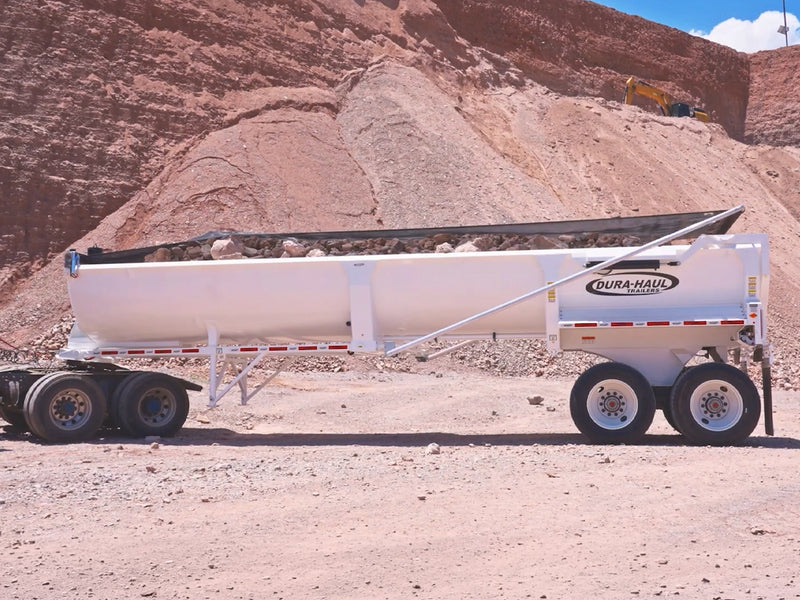

Comprehensive Options

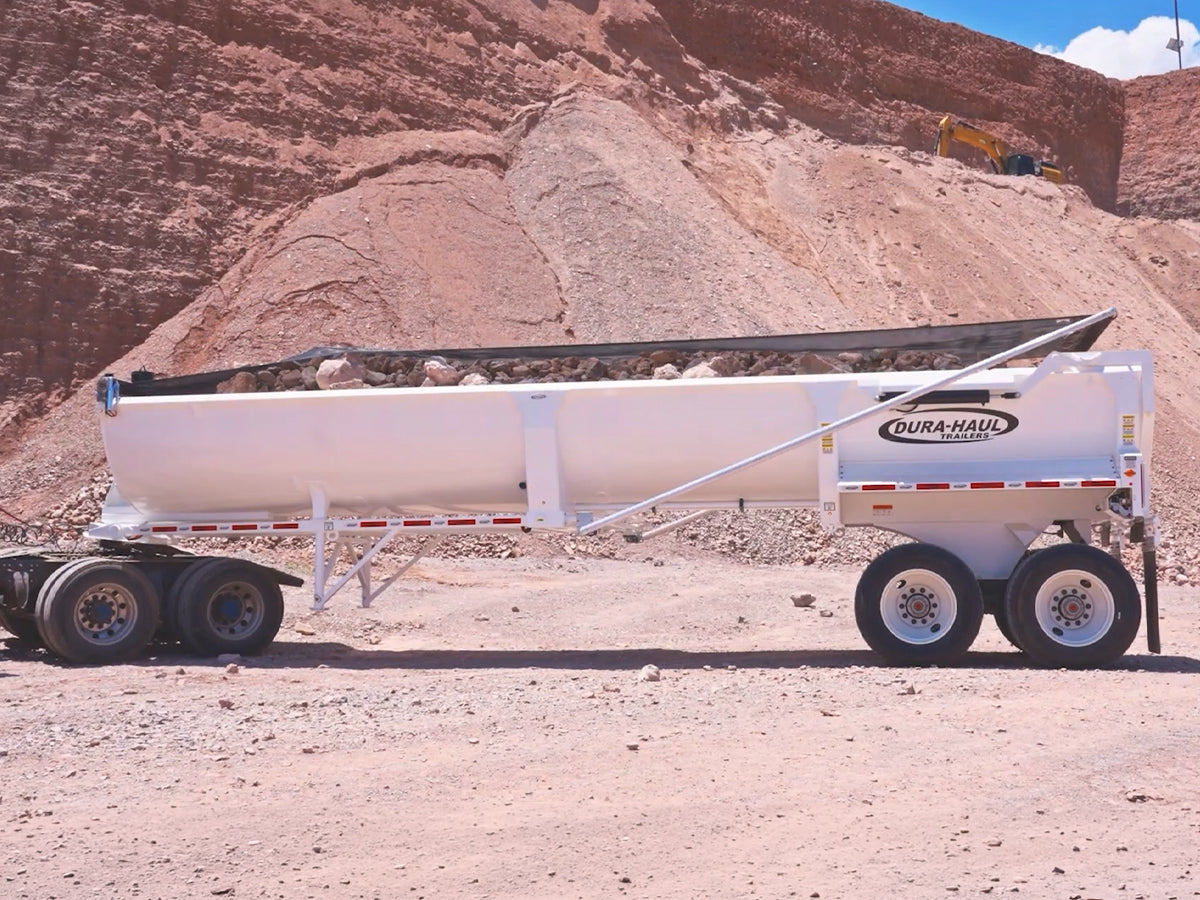

Customize your ELD with a complete line up of options including air ride suspension, custom lengths and side heights, front and rear fenders, tarping systems, aluminum wheel packages, tire selections, custom colors, lightweight 3/16 steel and more.Whatever your preferences, this trailer is built to match.

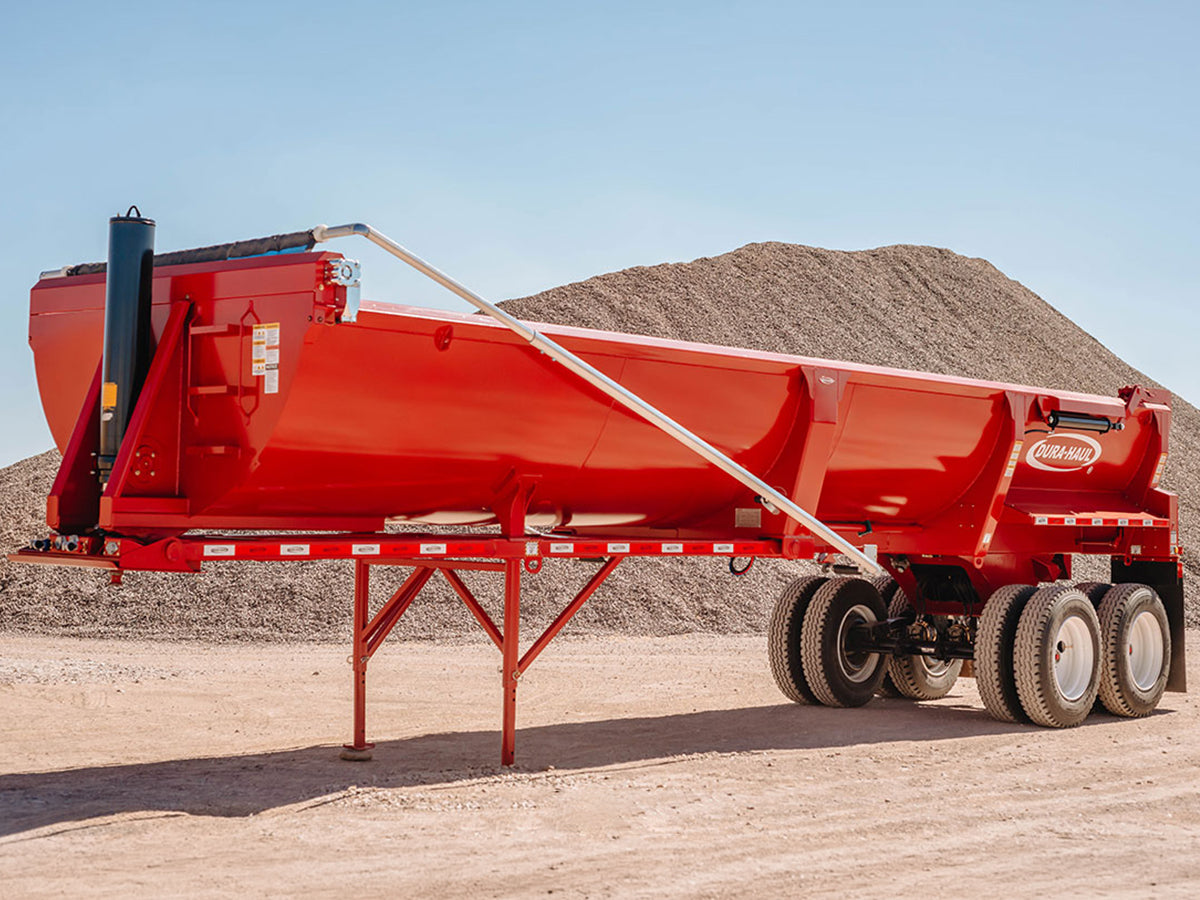

Advanced Powder Coat Protection
Desinged to withstand the toughest materials and conditions, each ELD is steel grit blasted, acid washed, phosphate treated, heated silicone treated, and finished with a durable powder coat engineered for long-term durability. Choose from 10 standard color options for a finish that maintains a sharp, eye-catching appearance for years ahead.
Product Details
DIMENSIONS
- LENGTH:
- 28', 32', 34', 36', 38'
- BODY WIDTH:
- 102"
- TRAILER TYPE:
- End Dump
- PULL TYPE:
- King Pin (Semi Trailer)
- COLLECTION:
- Semi Trailer
- MODEL:
- Dura-Haul ELD End Dump
WEIGHT RATINGS
- GVWR:
- 68k lbs
- ESTIMATE DRY WEIGHT:
- 14.1k - 15.4k lbs (+/- 1%)
- AXLE COUNT:
- 2
FINISH
- PAINT TYPE:
- Powder Coat
- PREP:
- Steel Grit Blasting / Acid Wash / Phosphate Treatment / Heated Silicone Treatment
- COLORS:
- White (DH-G01)
Gray (DH-G02)
Dark Gray (DH-G03)
Dark Blue (DH-G04)
Black (DH-G04)
Yellow (DH-Y01)
Blue (DH-B01)
Navy (DH-B02)
Red (DH-R01)
GENERAL COMPONENTS
- LANDING GEAR:
- Drop Down Adjustable Landing Legs
- FRONT FENDERS:
- Steel Bolt-On (Aluminum Available)
- REAR FENDERS:
- Steel Bolt-On (Aluminum Available)
- LADDER:
- Located In Front
- MUD FLAPS:
- Integrated Mud Flaps (Tailgate)
GATE SPECS
- GATES:
- Air-Operated Hi-Lift Tailgate
- GATE OPERATION:
- Rexroth Valve — Manual & Cab Control

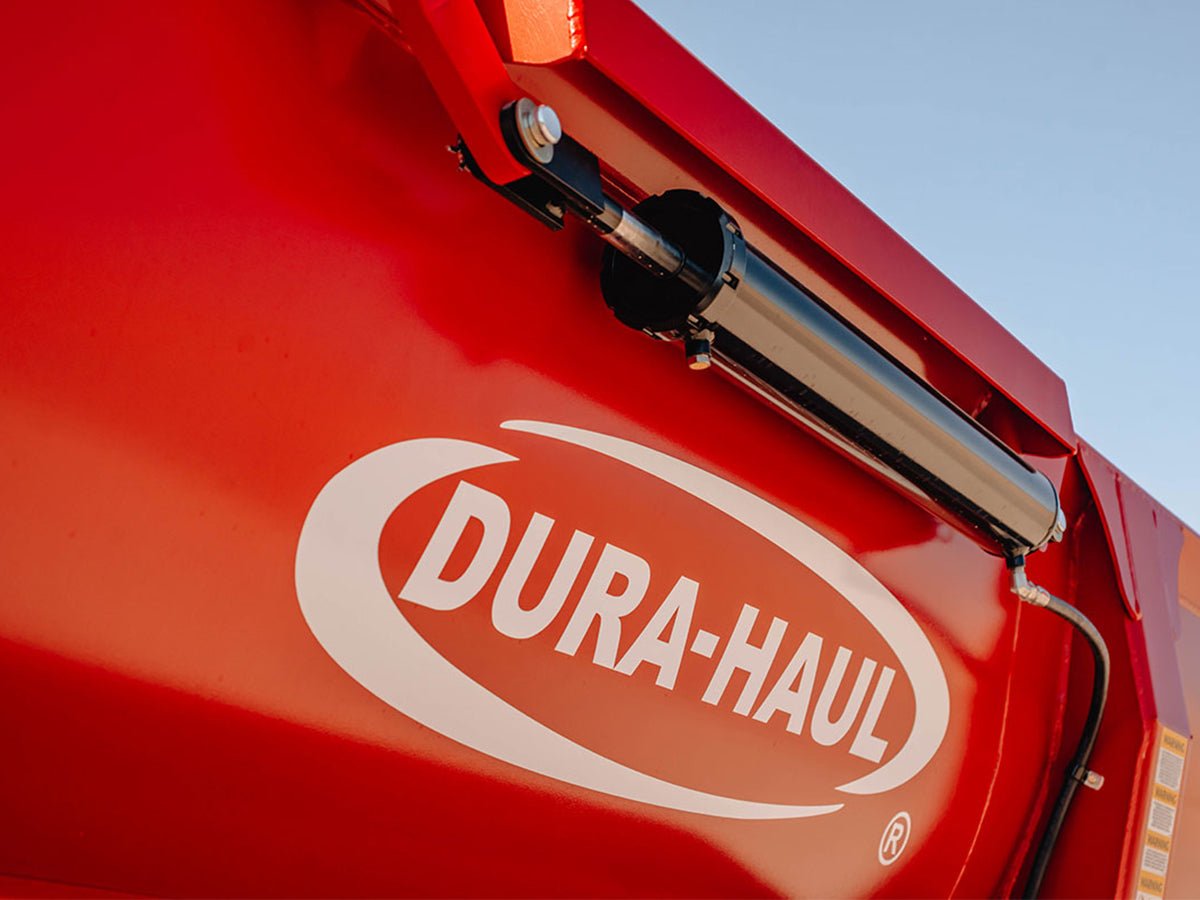

- GATE CYLINDERS:
- 4" Air Operated Cylinders
- GATE VALVE:
- Rexroth Valve (Manual & Cab Control)
- HOIST:
- 8" - 5 Stage Custom Hoist
- TARP:
- Numerous Tarp Options Available

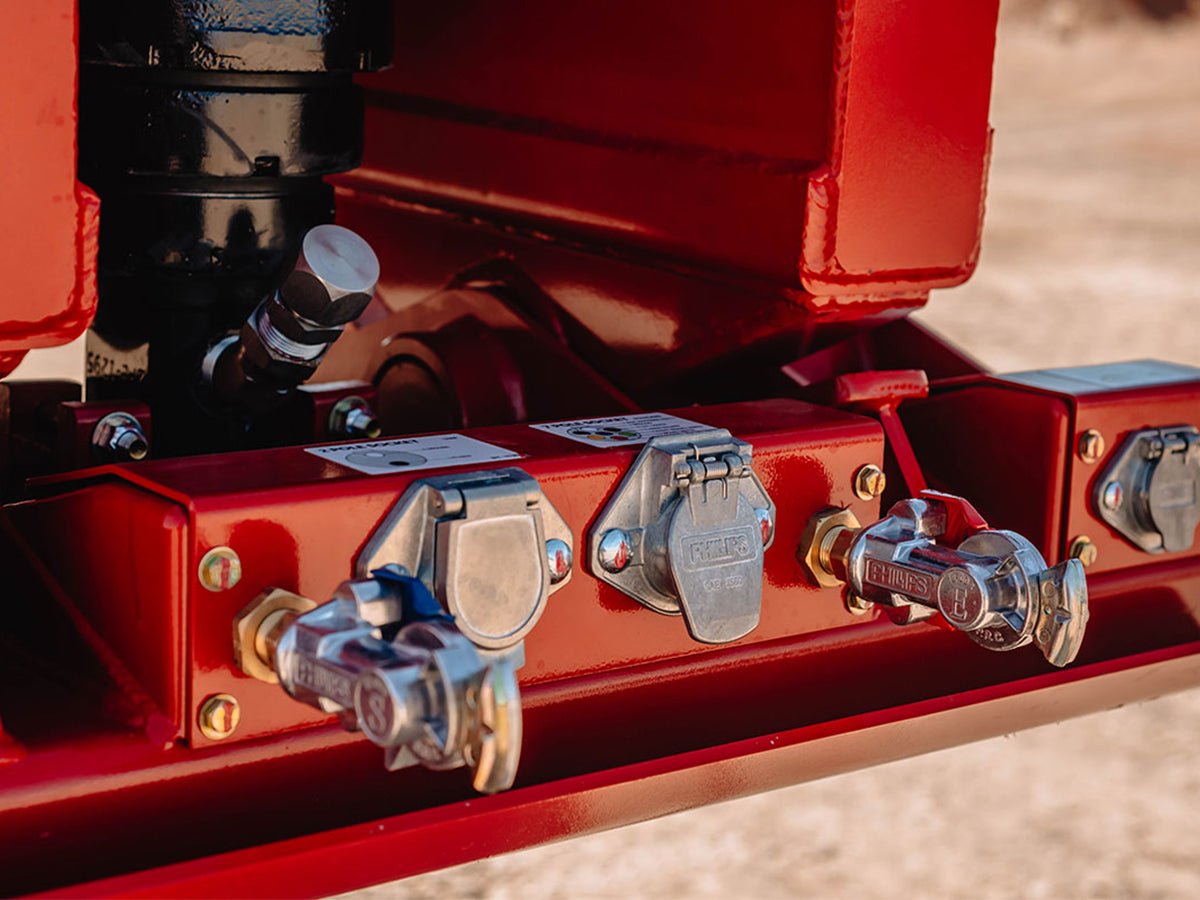

ELECTRICAL & LIGHTING
- LIGHTING:
- High Quality Sealed LED's with Junction Box
- ABS SYSTEM:
- ABS Sensors on Rear Axle
RUNNING GEAR
- AXLE TYPE:
- Heavy Duty Axles
- TRACK WIDTH:
- 77.5"

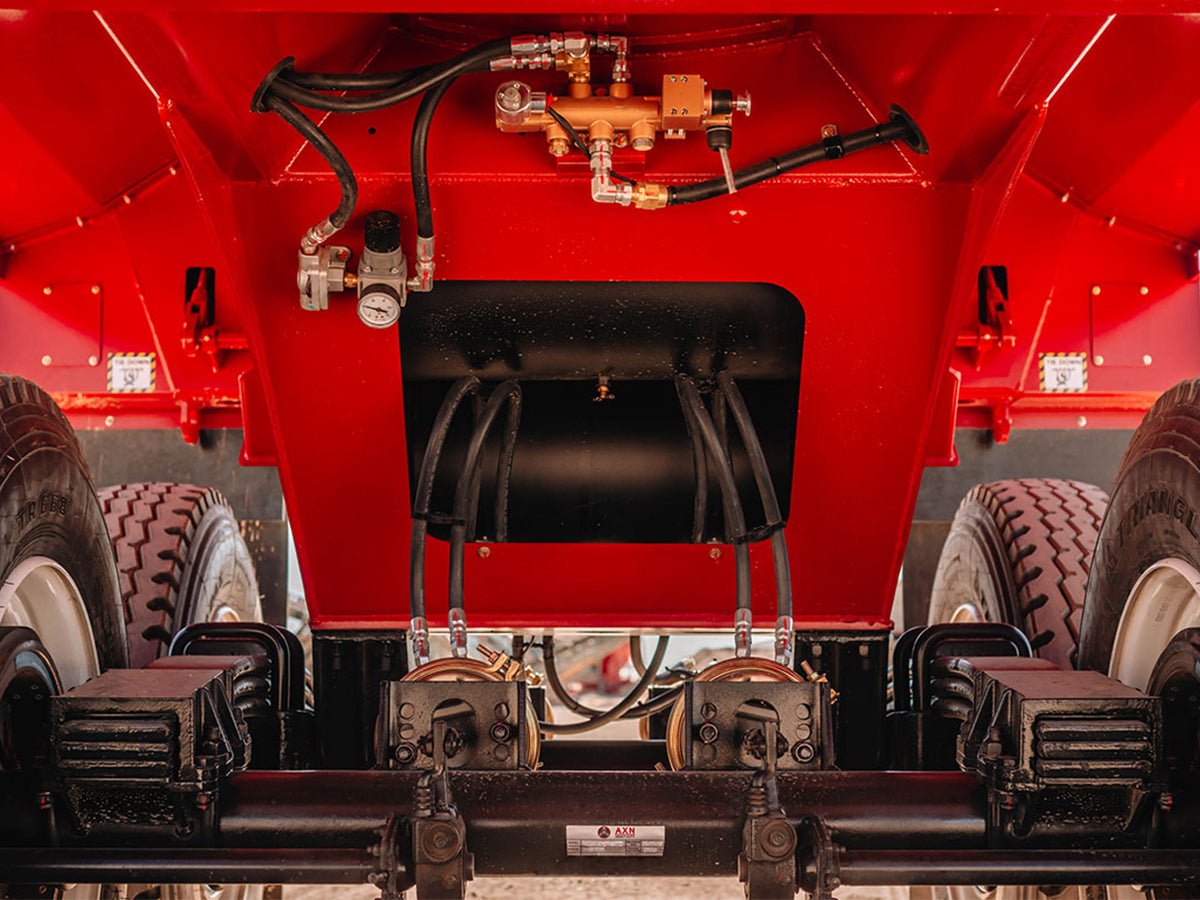

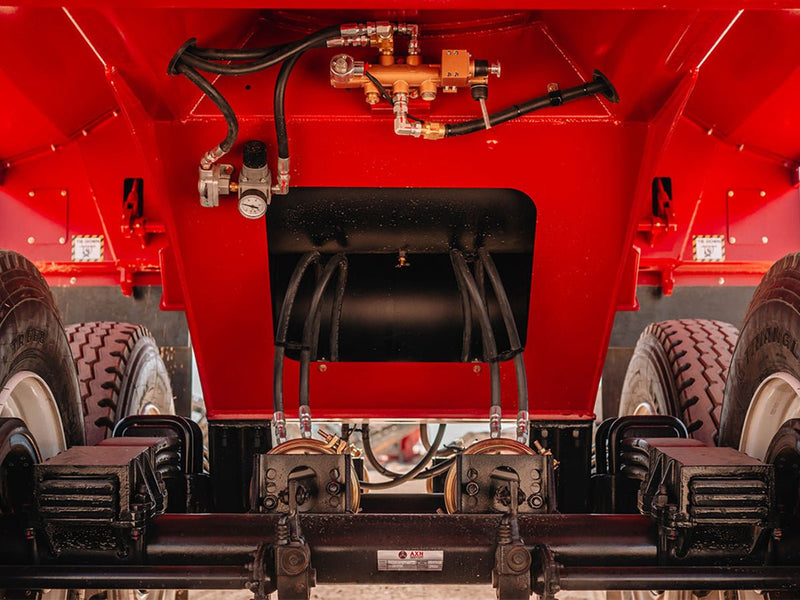

- SUSPENSION TYPE:
- Hutch H-900 3-Spring Single Point
TIRES & WHEELS
- TIRE SIZE:
- 11R x 24.5
- OUTER WHEELS:
- 8 - 8.25 x 24.5 Steel Wheels
- WHEEL WIDTH:
- 8.25"
BRAKES
- ABS SYSTEM:
- ABS Sensors on Rear Axle
BODY SPECS
- BODY CAPACITY:
- 23 - 30.7 Cu. Yards (by length)
- TOP RAIL:
- 102" Wide / 45" Side Height
- SIDEWALL HEIGHT:
- 45"
- TUB STEEL:
- 1/4" AR400, AR450, AR500 (Rear 8ft = 5/16")
- TOP OF BODY:
- 1/4" AR400 / AR450 / AR500 (Rear 8ft = 5/16")
- BOTTOM OF BODY:
- 1/4" AR400 / AR450 / AR500 (Rear 8ft = 5/16")
- FRONT WALL:
- 1/4" AR400 Plate (AR450 & AR500 Available)
- REAR WALL:
- 1/4" AR400 Plate (AR450 & AR500 Available)
OPTIONS
