Product Features

Versatility

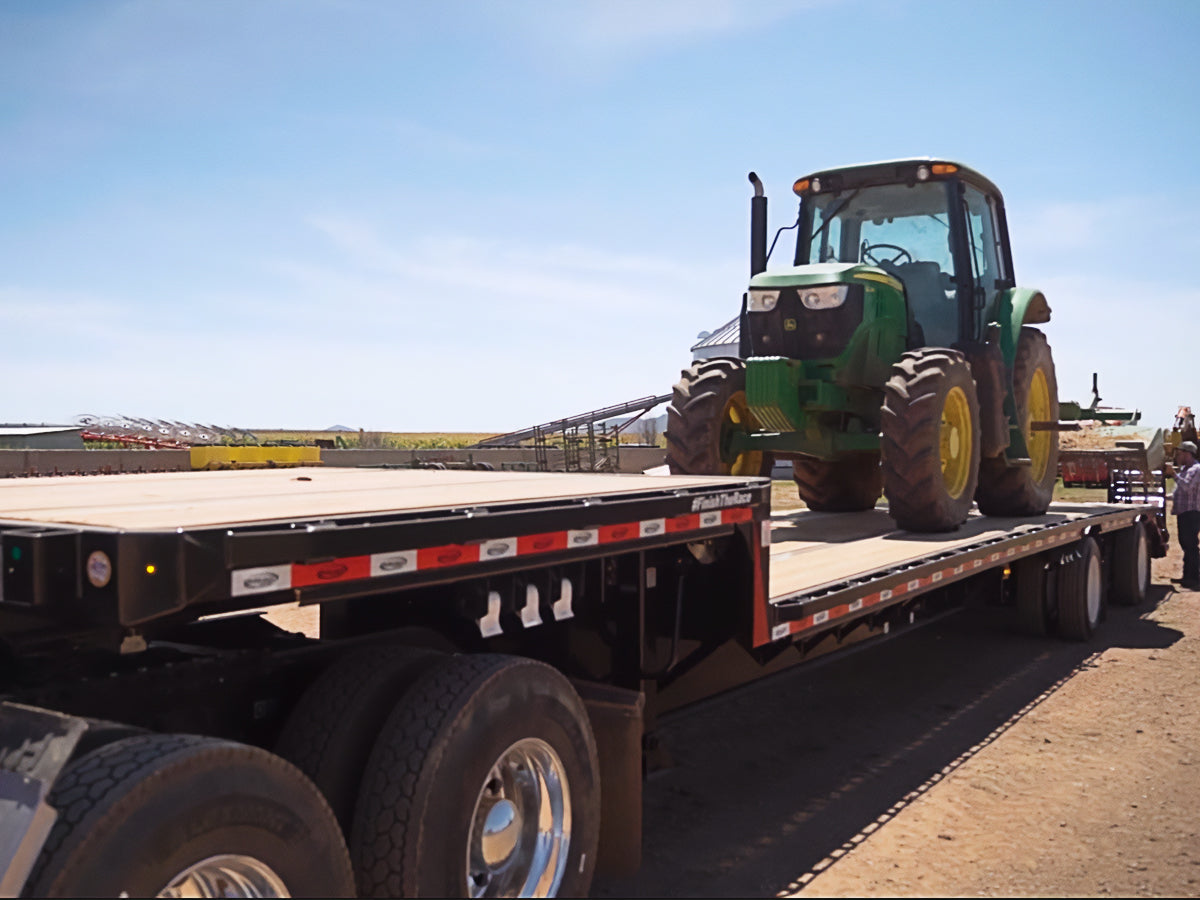

Featuring an 80,000lb GVWR, 66,080lb payload, 11’ top deck, 37’ main deck, and 5’ of deck-level integrated ramps, the BLT delivers exceptional versatility across both equipment and freight applications. This trailer is built to handle a wider range of loads so you can take on more work, more often, with confidence.

Purpose-Built Reliability

Boasting a 80KSI high tensile main frame, 4” I-beam crossmembers on 12’ spacing, Apitong flooring, Hutch air ride suspension and Jost Landing Gear, this trailer is engineered to deliver dependable performance and long-term confidence. Every detail is made to minimize downtime and keep your operation moving.

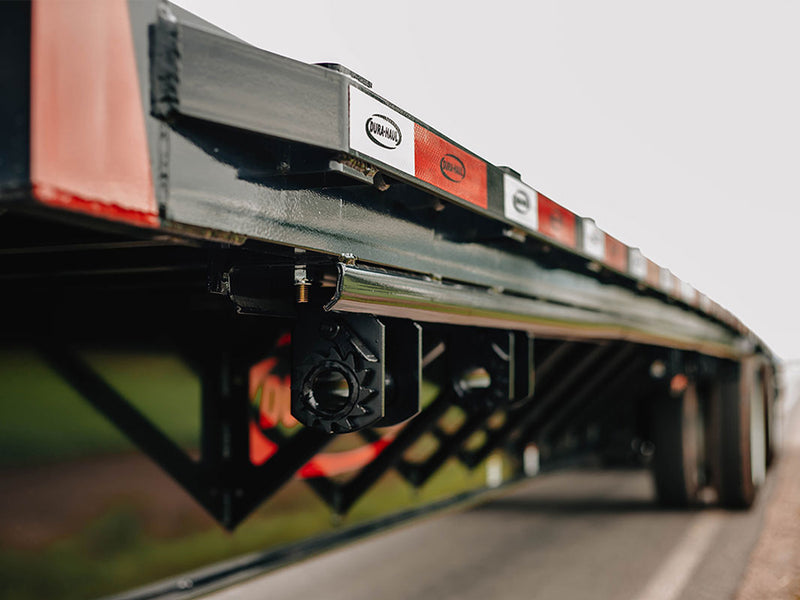

Ultimate Load Securement

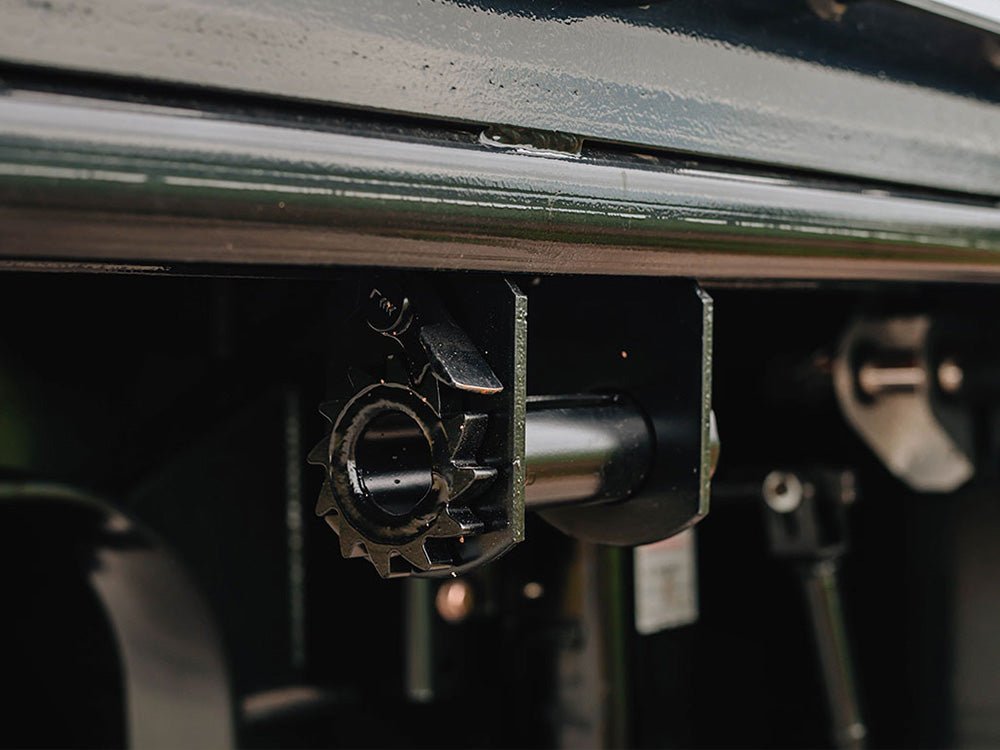

Equipped with 14 sliding ratchets and stake pockets spaced every 24” inside of a 3/8 steel rub rail, the BLT delivers a highly adaptable securement system. This layout provides multiple tie-down points for chains and straps, allowing you to confidently secure a wide range of load types with precision and control.

Durable Powder Coat Protection

Desinged to withstand abuse such as chains, forklift scratches and brush, each BLT is steel grit blasted, acid washed, phosphate treated, heated silicone treated, and finished with a durable powder coat engineered for the long haul. Choose from 10 standard color options for a finish that's built to maintain a bold, professional appearance that reflects the strength of your trailer.

Optimized Loading Capability

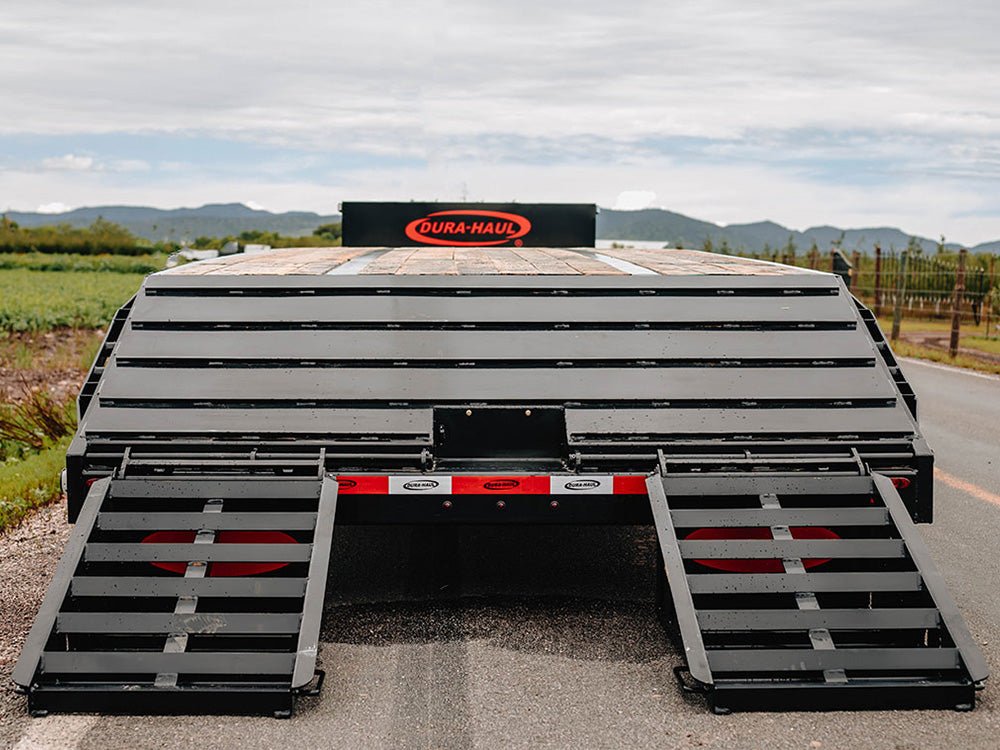

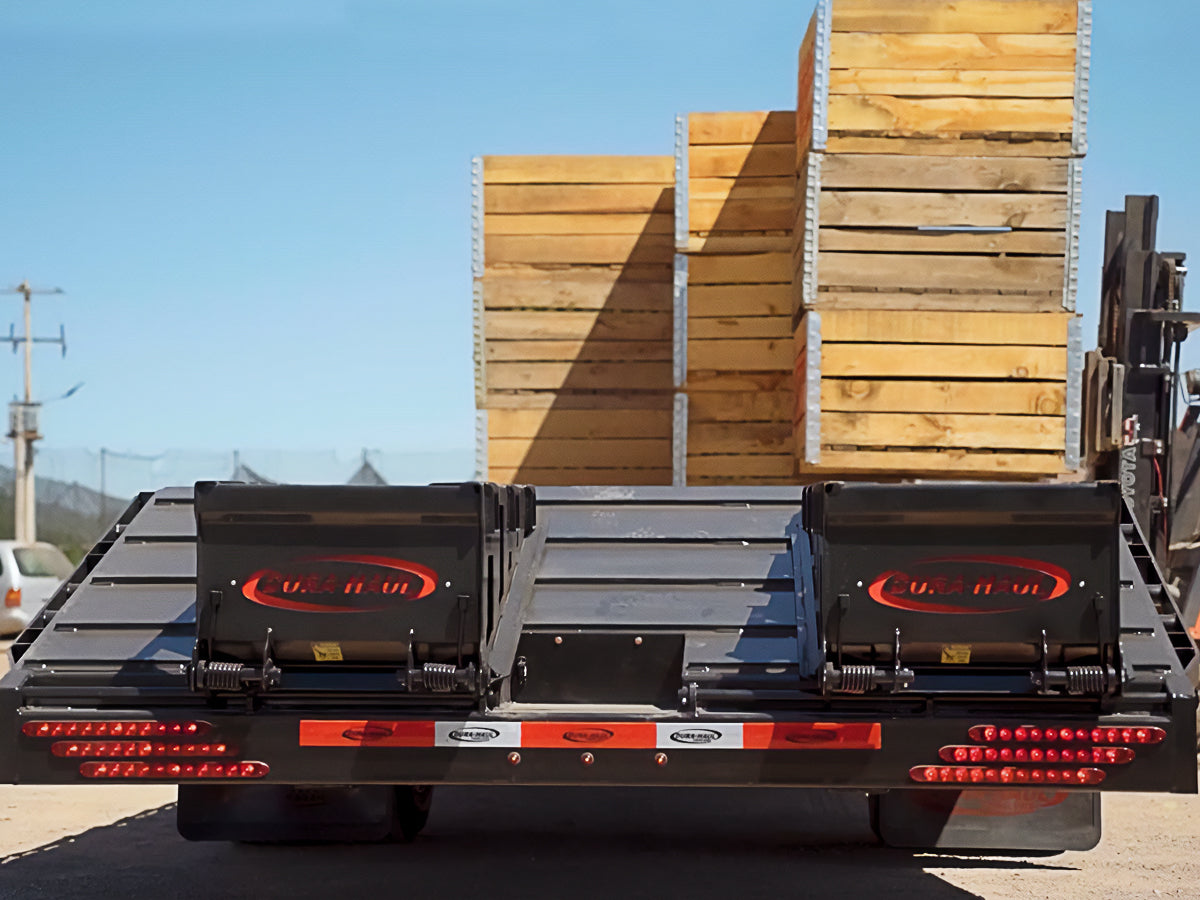

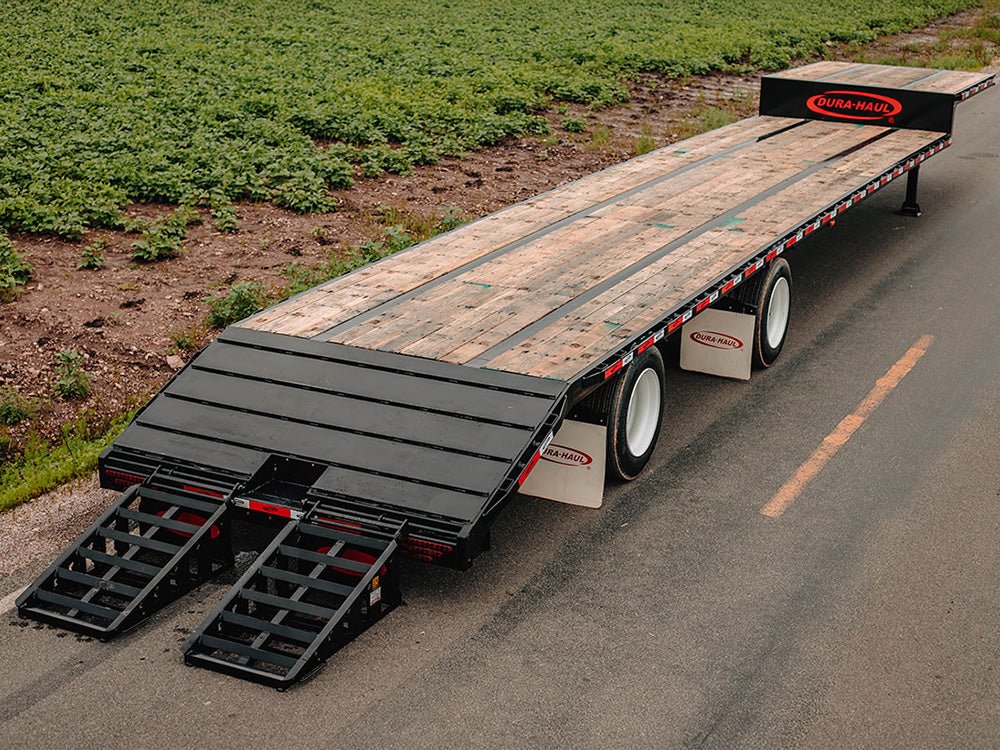

Designed for efficiency at every stage, the BLT features an intuitive loading system that enhances total functionality. From the conveniently placed rear dump switch to the spring-loaded ramps with seamless deck-level integration when closed, every detail is thoughtfully engineered to deliver smooth, efficient operation. This versatile setup allows the ramps to function as both loading access and additional deck space.

The NEW Dura-Haul

Completely re-engineered from the ground up, the BLT sets a new benchmark for stepdeck performance. Featuring a new and improved 80KSI high tensile steel frame, Hutch suspension for enhanced smoothness and a clear, easy-to-use spring loaded ramp system, every detail has been refined to deliver a stronger performance, greater durability, and more dependable operation in the field than ever before.

Product Details

DIMENSIONS

LENGTH:

48' / 53'

DECK WIDTH:

102"

LOWER DECK HEIGHT:

41"

UPPER DECK HEIGHT:

62"

UPPER DECK LENGTH:

10'6"

LOWER DECK LENGTH:

48': 33'1" / 53': 38'1"

TRAILER TYPE:

Step Deck

PULL TYPE:

King Pin (Semi Trailer)

COLLECTION:

Semi Trailer

MODEL:

Dura-Haul BLT Beaver Tail

WEIGHT RATINGS

GVWR:

80k

GAWR:

25k

ESTIMATE DRY WEIGHT:

48': 13.3k lbs / 53': 13.9k lbs (+/- 3%)

AXLE COUNT:

2

FINISH

PAINT TYPE:

Powder Coat

PREP:

Steel Grit Blasting / Acid Wash / Phosphate Treatment / Heated Silicone Treatment

COLORS:

White (DH-G01)
Gray (DH-G02)
Dark Gray (DH-G03)
Dark Blue (DH-G04)
Black (DH-G04)
Yellow (DH-Y01)
Blue (DH-B01)
Navy (DH-B02)
Red (DH-R01)

GOOSENECK

COUPLER PLATE:

1/4" Plate

COUPLER HEIGHT:

48"

KING PIN:

2" Holland

KING PIN SETBACK:

24" or 18"

LANDING GEAR:

Jost HD 2-Speed Gear Drive — 160k Static Load Rating

FRAME & CONSTRUCTION

MAIN FRAME FLANGES:

27" High Tensile Steel

MAIN FRAME WEB:

Grade 80 High Tensile Steel

CROSSMEMBERS:

4" Steel I-Beam on 12" Centers

SIDE RAIL:

6" Steel Channel

FLOORING:

1-1/8" Apitong Hardwood

RUB RAIL:

3/8" x 2-1/2" Steel

STAKE POCKETS:

Steel, External Mount, 24" OC w/ Double Pipe Spools

PIPE SPOOLS:

Double Pipe Spools (w/ Stake Pockets)

FRONT SKIRT:

Formed Steel w/ Tapered Corners

REAR SKIRT:

Formed Steel w/ Integral Stake Pockets

MUD FLAPS:

Heavy Duty Rubber

ELECTRICAL & LIGHTING

LIGHTING:

High Quality Sealed LED Lights

ABS SYSTEM:

Wabco 2S1M

CARGO & TIE-DOWN

LOAD SECUREMENT:

Sliding Winch C-Track — Driver Side

WINCHES:

48': 12 Winches / 53': 14 Winches

RUNNING GEAR

AXLE TYPE:

Heavy Duty 25k lbs Capacity

BOLT PATTERN:

10-Stud Unimount Hub Piloted

HUBS:

Standard Cast, Oil Lubricated, 10-Stud Unimount Hub Piloted

SUSPENSION TYPE:

Heavy Duty Air Ride 25k lbs Capacity

TIRES & WHEELS

TIRE SIZE:

22.5"

OUTER WHEELS:

Hub Piloted Steel

BRAKES

BRAKE DRUMS:

Standard Cast, Outboard Mount

BRAKE SIZE:

16.5" x 7" Quick Change

PARKING BRAKES:

All Axles

OPTIONS

TIRES & WHEELS

TIRE UPGRADE:

Wheels & Tire Options Available

WHEEL UPGRADE:

Wheels & Tire Options Available

LOAD SECUREMENT

SECUREMENT:

Extra Ratchets Available

KING PIN

KING PIN SETBACK:

24" or 18" Available
