At a Glance
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Featured Video
Product Features

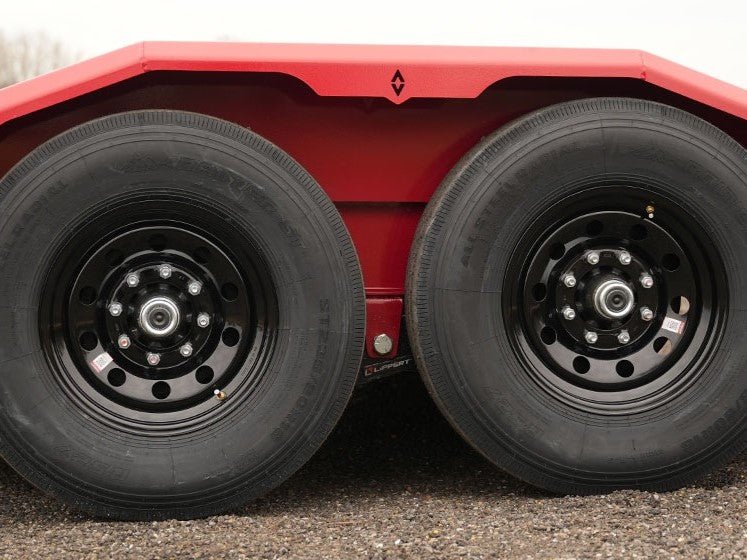

Heavy-Duty Torsion Axle System
Choose from 7k Super Lube, 8k Oil Bath, or 10k Oil Bath torsion axles for superior ride quality and ground clearance. The independent torsion suspension smooths out bumps better than leaf springs, protecting both your trailer and your valuable equipment from road shock.
Premium Powdercoat Protection
Your trailer is shielded by a durable powdercoat finish applied through a meticulous 5-step preparation process. Available in eight modern colors, this superior coating provides excellent resistance to rust, chips, and UV damage.
Rigid I-Beam Construction
Built with an 8" I-beam main frame and 3" I-beam crossmembers on tight 16" centers, this trailer provides exceptional strength without excess weight. The engineered beam frame creates a solid, stable platform that handles heavy, concentrated loads with minimal flex.

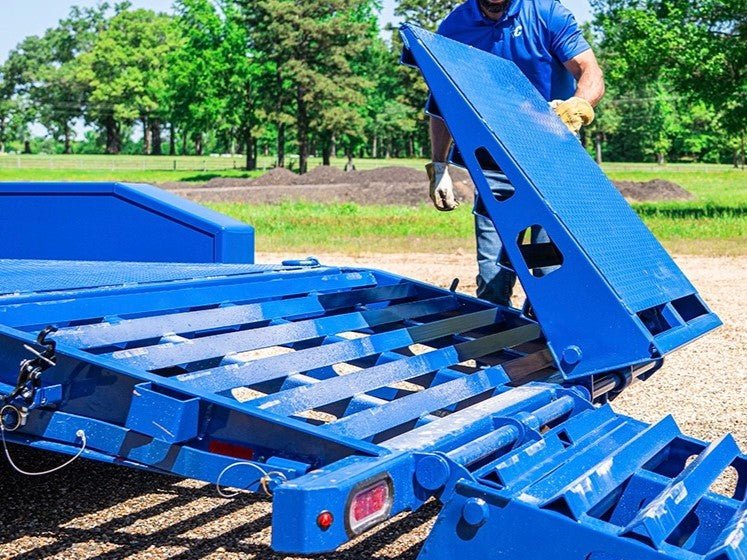

Extra Wide Spring Assist Ramps
The heavy-duty spring assist ramps make loading equipment effortless. Their extra width provides a confident path for machinery, while the spring mechanism reduces the physical effort required to position them, saving time and strain on every job.
V-Tongue Toolbox
Add convenient, accessible storage right at the front of your trailer. This heavy-duty diamond plate box provides secure, lockable storage for your essential gear, keeping chains, binders, and tools organized and within easy reach on every job.

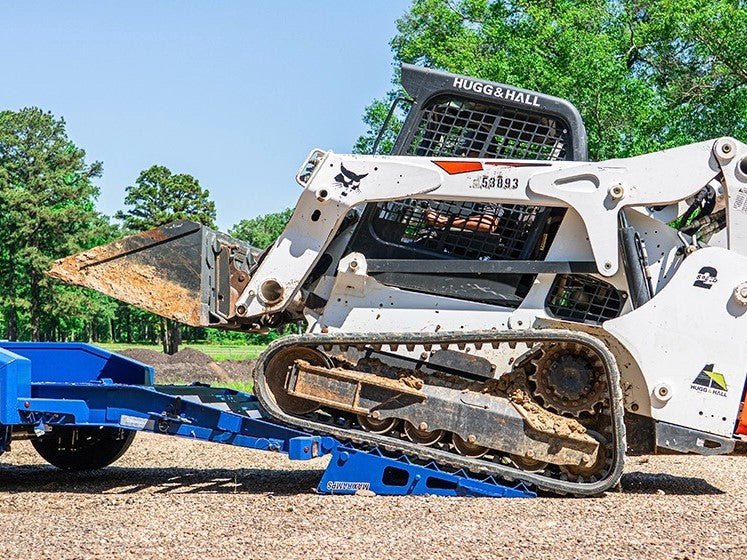

True Low-Profile Advantage
With a deck height significantly lower than standard equipment trailers, the LPX makes loading machinery and equipment easier and safer. The straight axles provide over 4 inches of ground clearance where it counts, while maintaining an accessible deck that reduces ramp angle and effort.
Product Details
DIMENSIONS
- LENGTH:
- 16' - 30'
- WIDTH:
- 80" - 102"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 14.9k - 20k
RUNNING GEAR
- TIRES:
- 235/80R16 / 215/75R17.5 (8k & 10k)
- TIRE PLY:
- 14 Ply / 18 Ply (8k & 10k)
- RIMS:
- 16" Black Wheels
16" Aluminum Two Tone Wheels
- AXLE TYPE:
- 2 - 7k Lippert Torsion
2 - 8k Lippert Oil Bath
2 - 10k Lippert Oil Bath
- AXLE COUNT:
- 2
- BRAKES:
- Electric Drum / Electric Over Hydraulic (10k)
- SUSPENSION:
- Slipper Roller
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 12" Engineered
- LENGTH:
- 103" Long
- JACKS:
- 2 - 12,000 lb Drop-Leg Jacks
- COUPLER:
- Curt Cushion (30,000 lbs)
- TOOLBOX:
- Diamond Plate Neck Box w/ Gas Shock Lid
- WINCH PLATE:
- Winch Mounting Plate
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (10lb - 15lb/ft)
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Bolt-On Fenders
3/16" HD DOF (Max Width)
- RAMPS:
- Extra Wide HD Spring Assist
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- Sealed Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Track (Right, Left, or Both)
- D-RINGS:
- Additional D-Rings Available
- RATCHETS:
- Weld On Ratchets
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component
OPTIONS
