At a Glance
Product Features

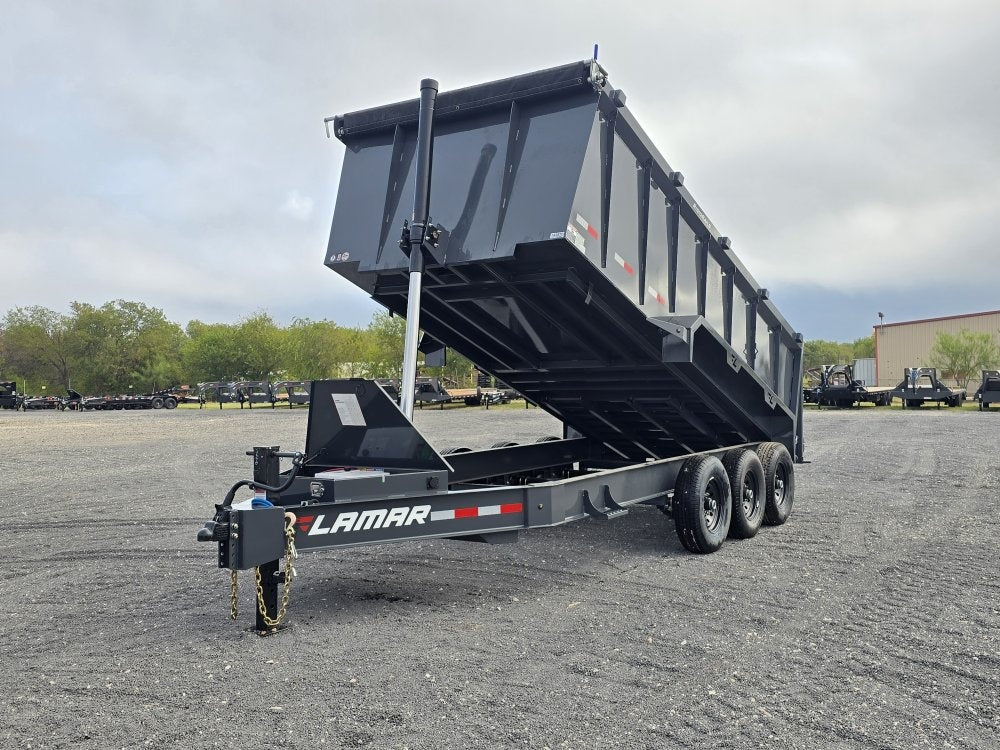

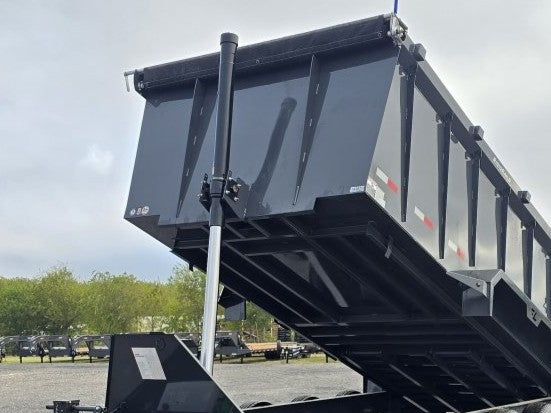

Telescopic Lift Cylinder System
Equipped with a telescopic hydraulic lift cylinder. This system provides reliable lifting power and excellent dump height for the trailer's 14,000 to 16,000 lb GVWR capacity.
28-Inch Low Profile Load Height
Features a 28-inch load height for easier loading. The low profile reduces physical strain and effort when loading material by hand or machine, improving overall job efficiency.
83-Inch Wide Dump Bed
Features an 83-inch wide dump bed, providing a high-volume capacity for material hauling. The width accommodates larger, bulkier loads common in contractor and landscaping work.
7-Gauge Steel Bed Floor
Built with a 7-gauge steel bed floor for maximum durability. The thick material withstands the impact and abrasion of heavy materials like rock, concrete, and demolition debris.

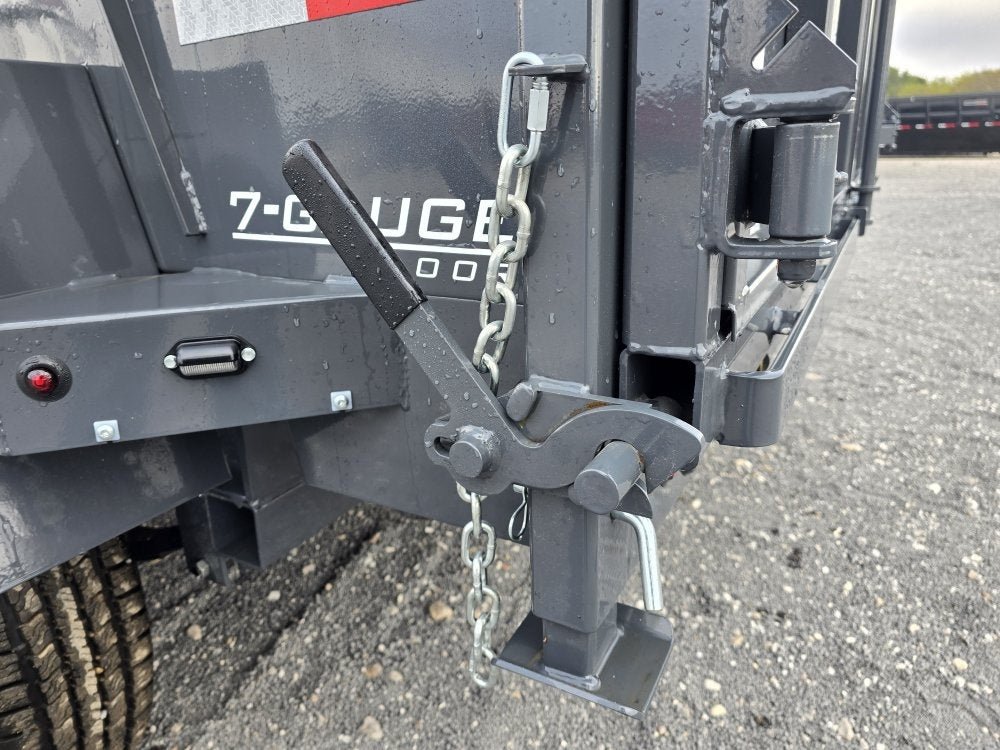

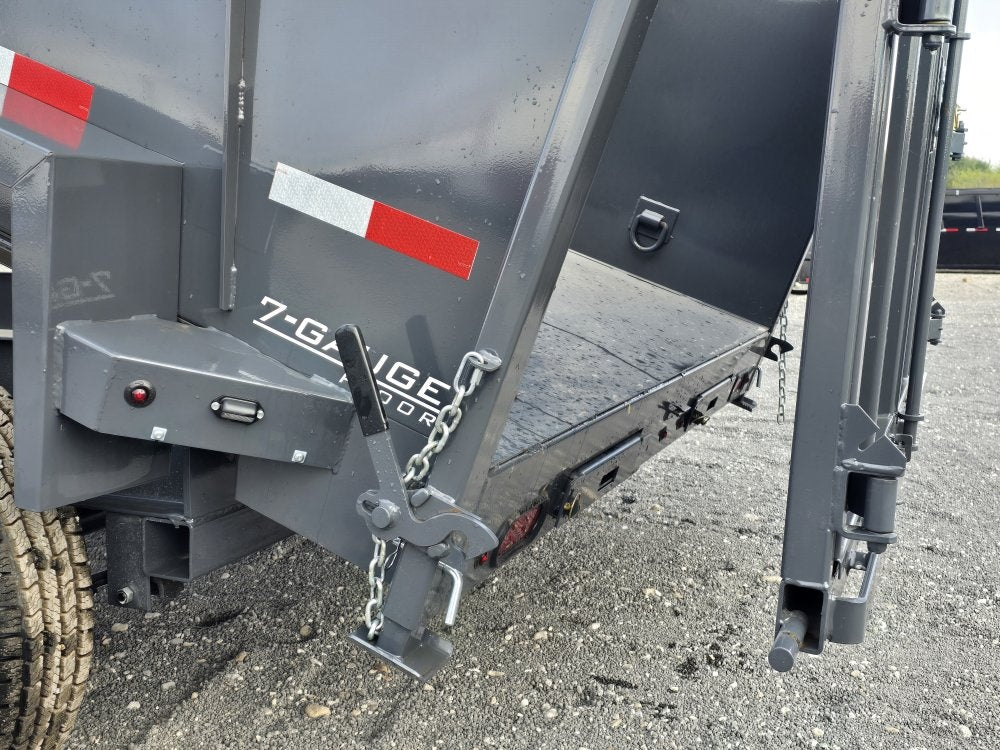

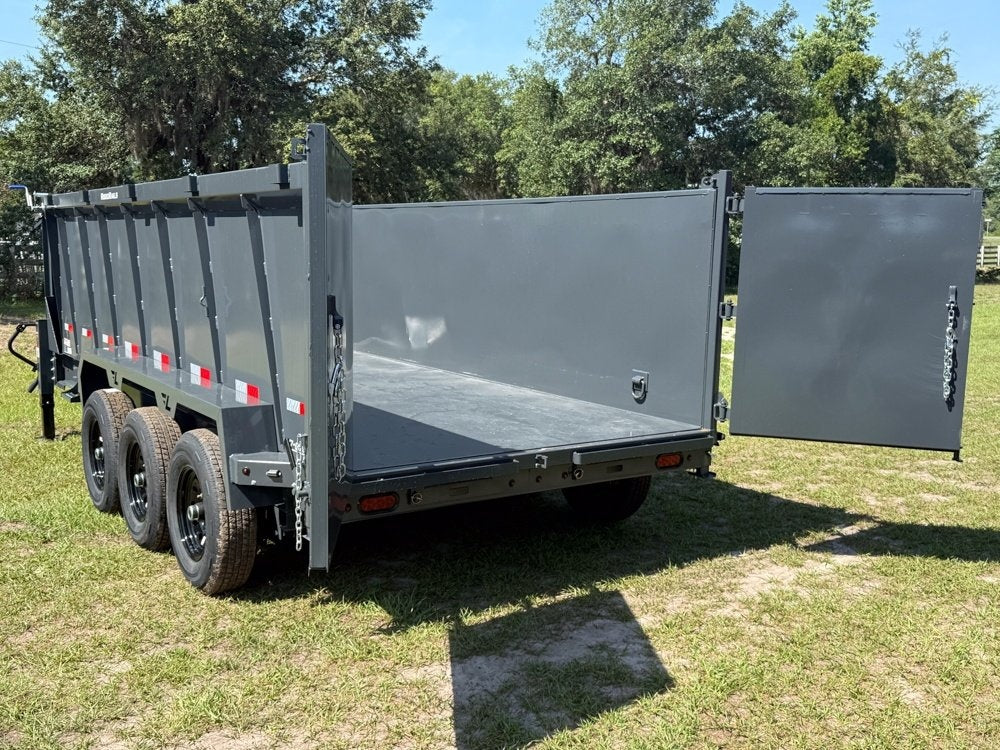

2-Way Spreader Gate
Equipped with a 2-way spreader gate. This allows for standard rear dumping or opening the gate to the sides for controlled spreading of materials like gravel or topsoil.

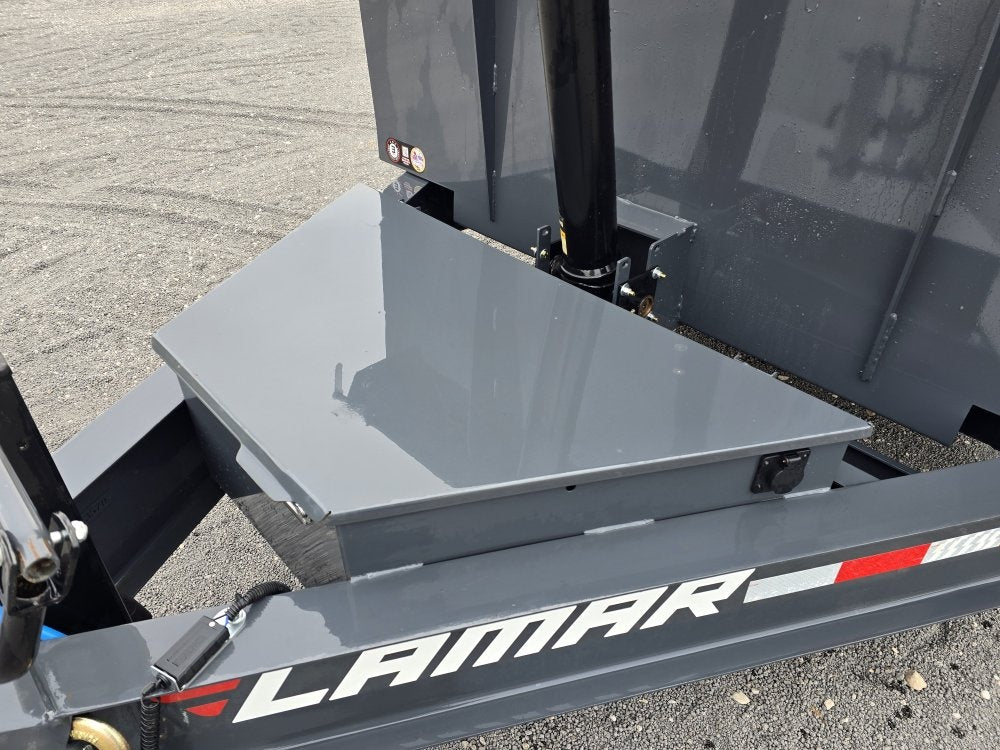

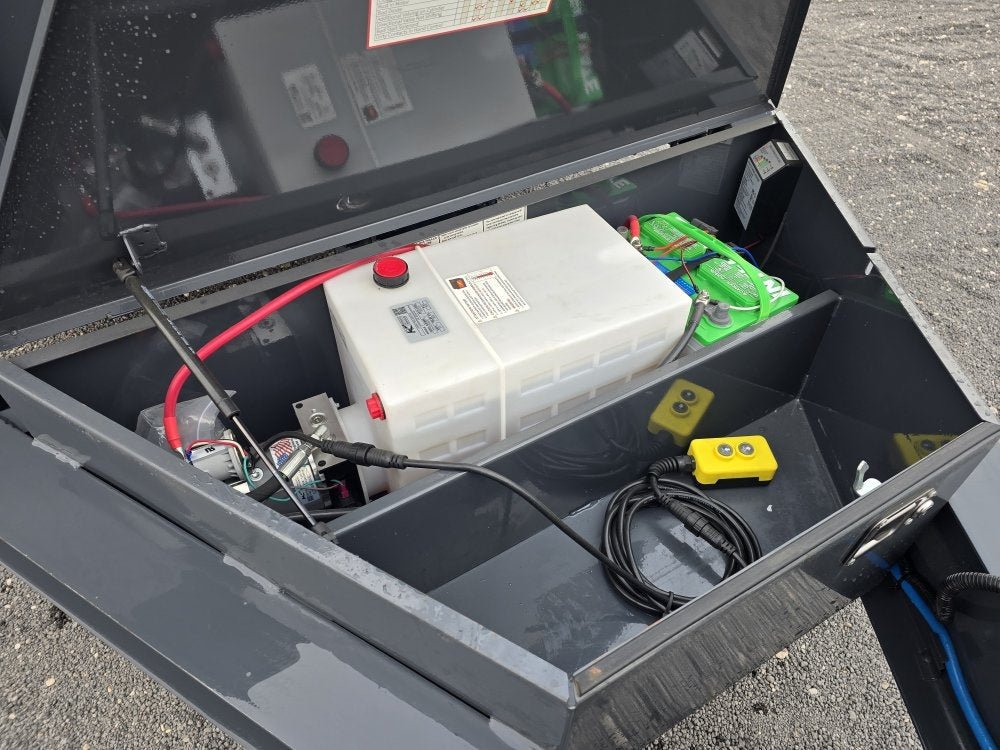

Large Front Lockable Toolbox
Includes a large, lockable toolbox integrated into the front of the trailer. This provides ample, secure storage for the battery, controller, and a variety of tools or equipment.
Product Details
DIMENSIONS
- LENGTH:
- 14' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 14k - 16k
RUNNING GEAR

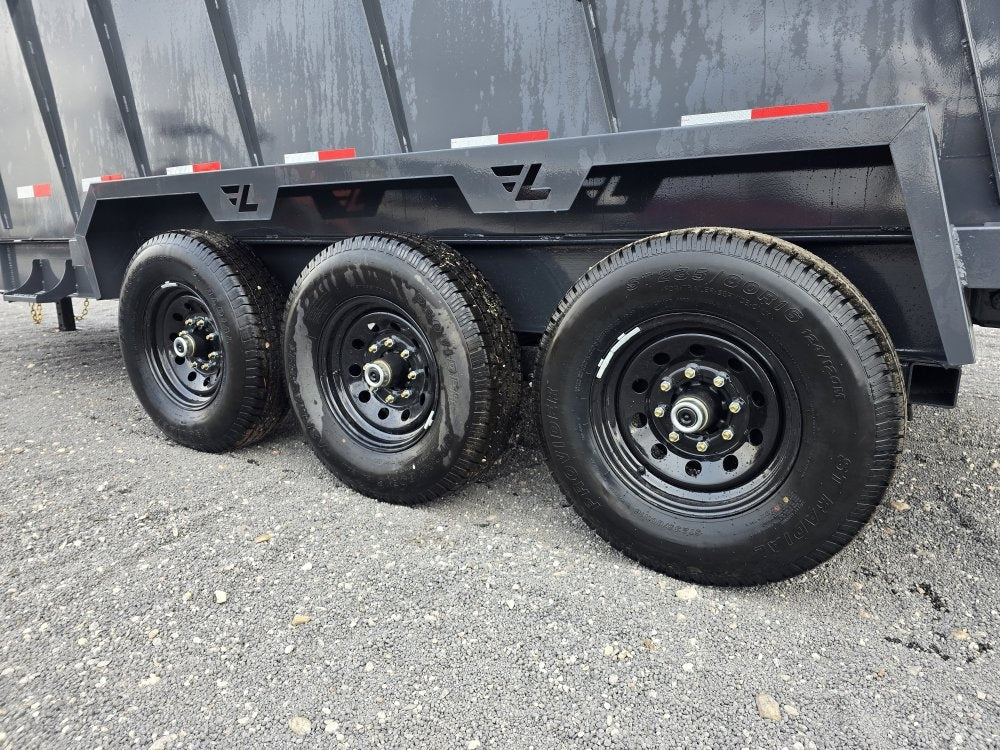

- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Easy Lube Axles
3 - 7k Easy Lube Axles
2 - 8k Easy Lube Axles
- AXLE COUNT:
- 2 or 3
- BRAKES:
- Electric
- SUSPENSION:
- Spring
BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" I-Beam
- JACK:
- Single 10k Drop-Leg Jack

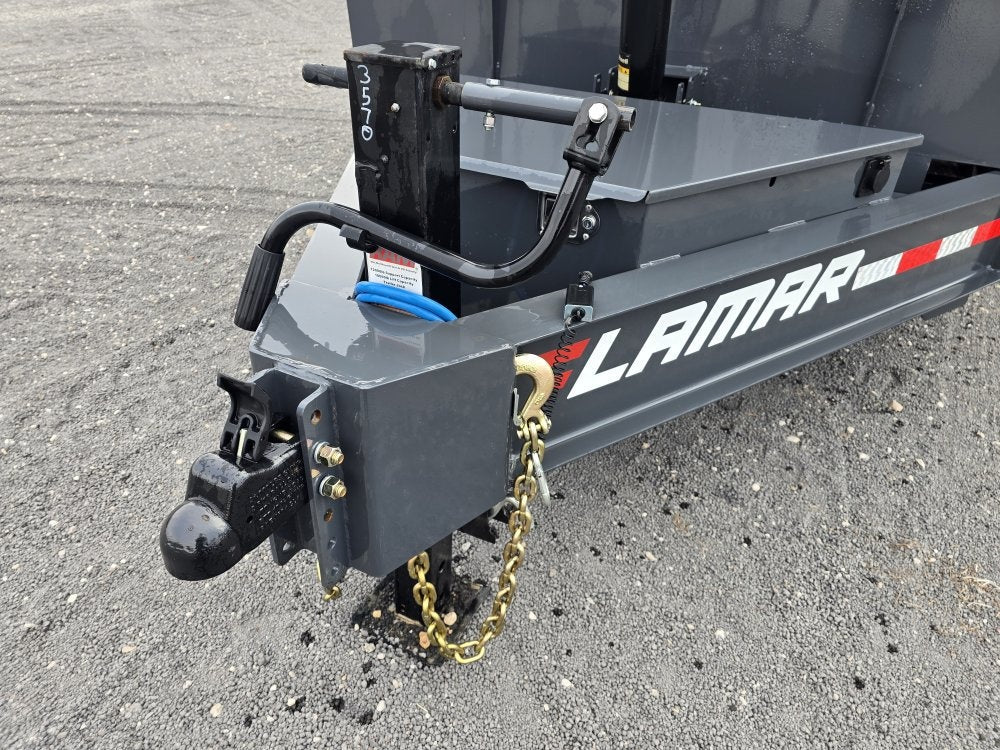

- COUPLER:
- Adjustable 2 5/16" (21,000 lbs)
- TOOLBOX:
- Large Front Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft)
- BED FRAME:
- 8" I-Beam

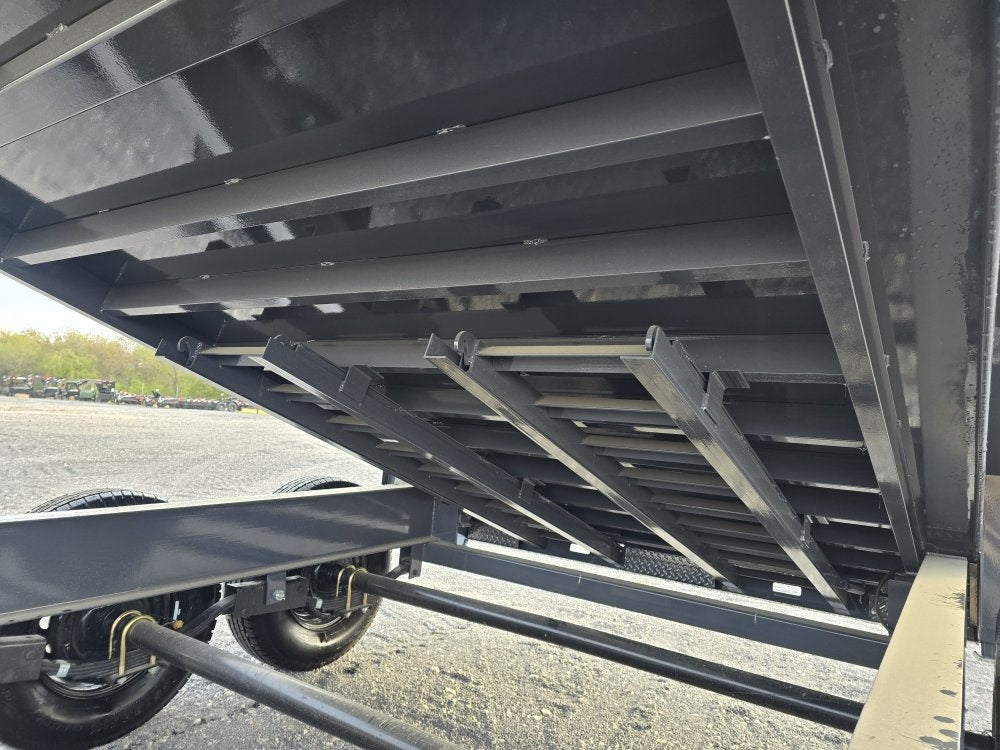

- CROSSMEMBERS:
- 12" Spaced Crossmembers
- FLOORING:
- 7ga. Steel Bed
- FENDERS:
- Diamond Plate Fenders

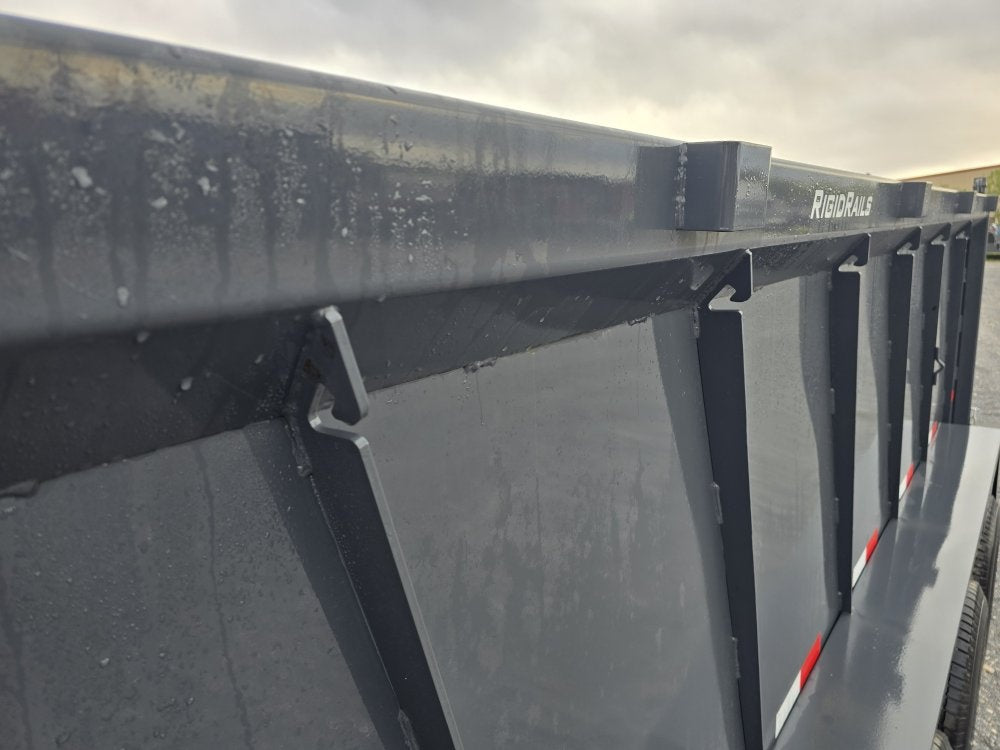

- STAKE POCKETS:
- Standard Stake Pockets
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER:
- Telescopic Cylinder
- DUMP ANGLE:
- 45 Degrees
CARGO & BODY
- GATE:
- 2 Way Spreader Gate

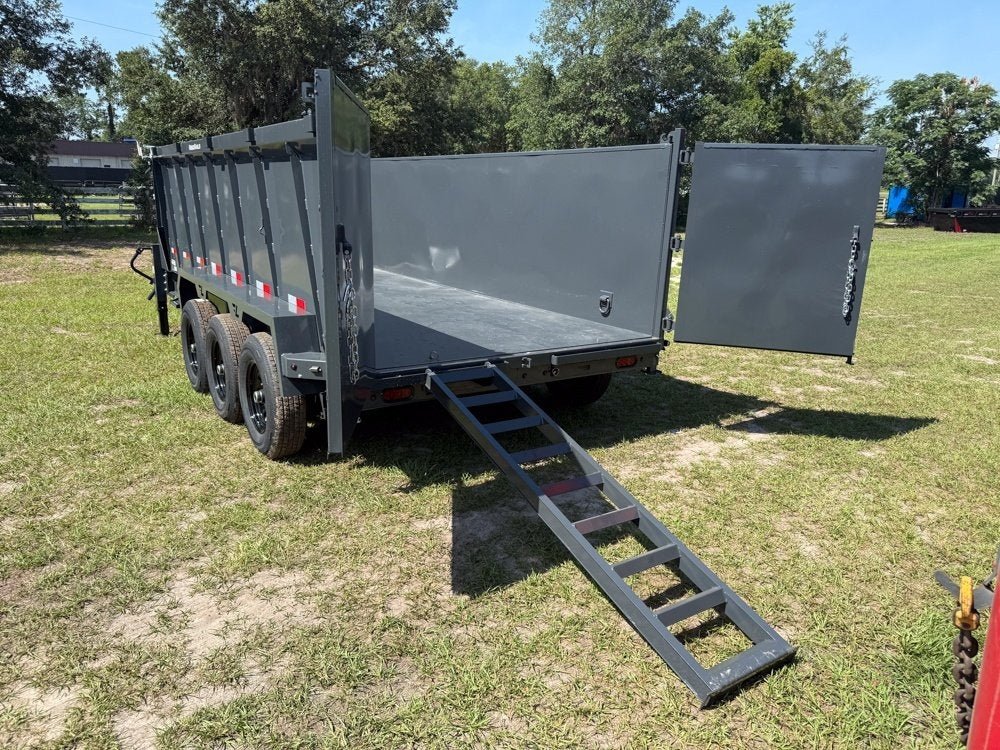

- RAMPS:
- Slide In Ramps

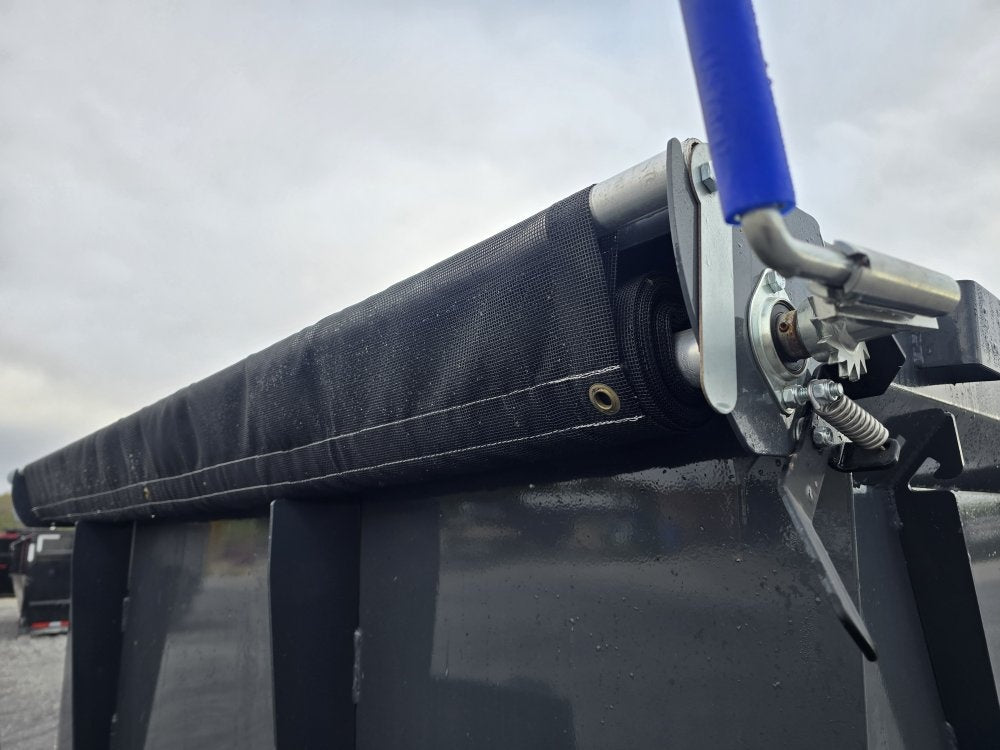

- TARP:
- Crank Style Roll-Up
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 5 Amp Trickle Charger
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- COLORS:
- Lamar Charcoal Gray
WARRANTY
- TRAILER WARRANTY:
- 3 Year Structural / 1 Year Component
OPTIONS
