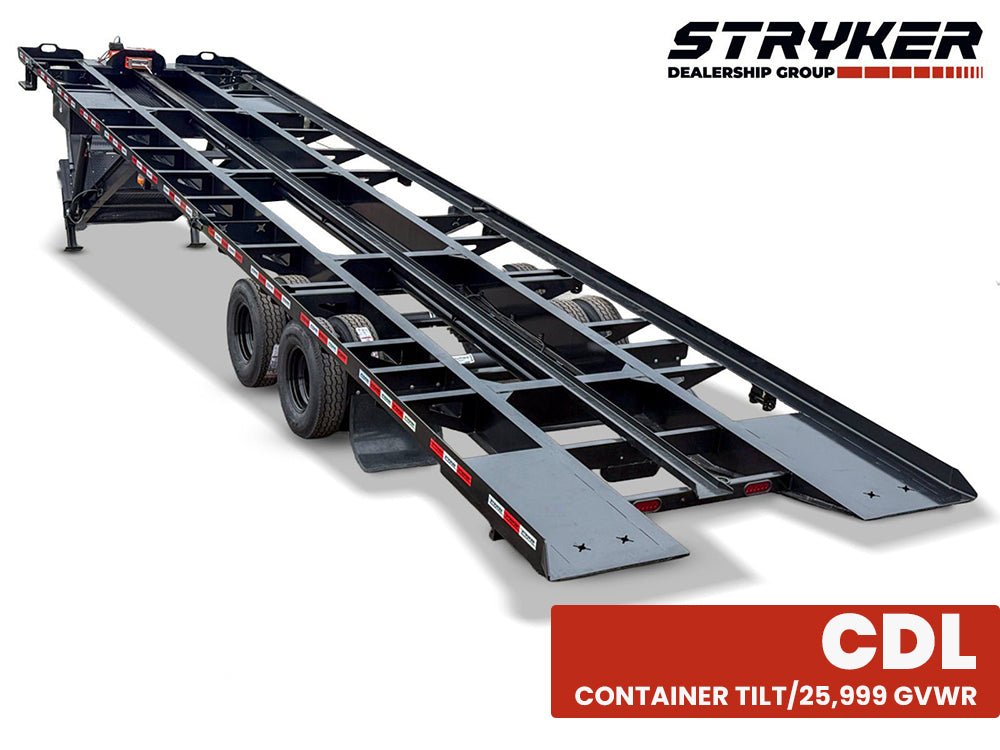

Stryker SCT Container Tilt Trailer - CDL

Stryker SCT Container Tilt Trailer - CDL

Price from

Regular price $25,995.00
Regular price Sale price $25,995.00
Sale Sold out

Build to order. Pick your color and options below to see your price as built.

Build & price yours View full details

Build & price yours

Pick your axles and color. Your price updates as you go.

1

Deck length

List price includes all standard features
2

Color

Powder coat color is included. Swatches are approximate; ask to see a sample.

3

Options

Open a section to add options. Where only one choice makes sense, picking one replaces the other. ยท

Loading optionsโ€ฆ

Featured Video

Product Features

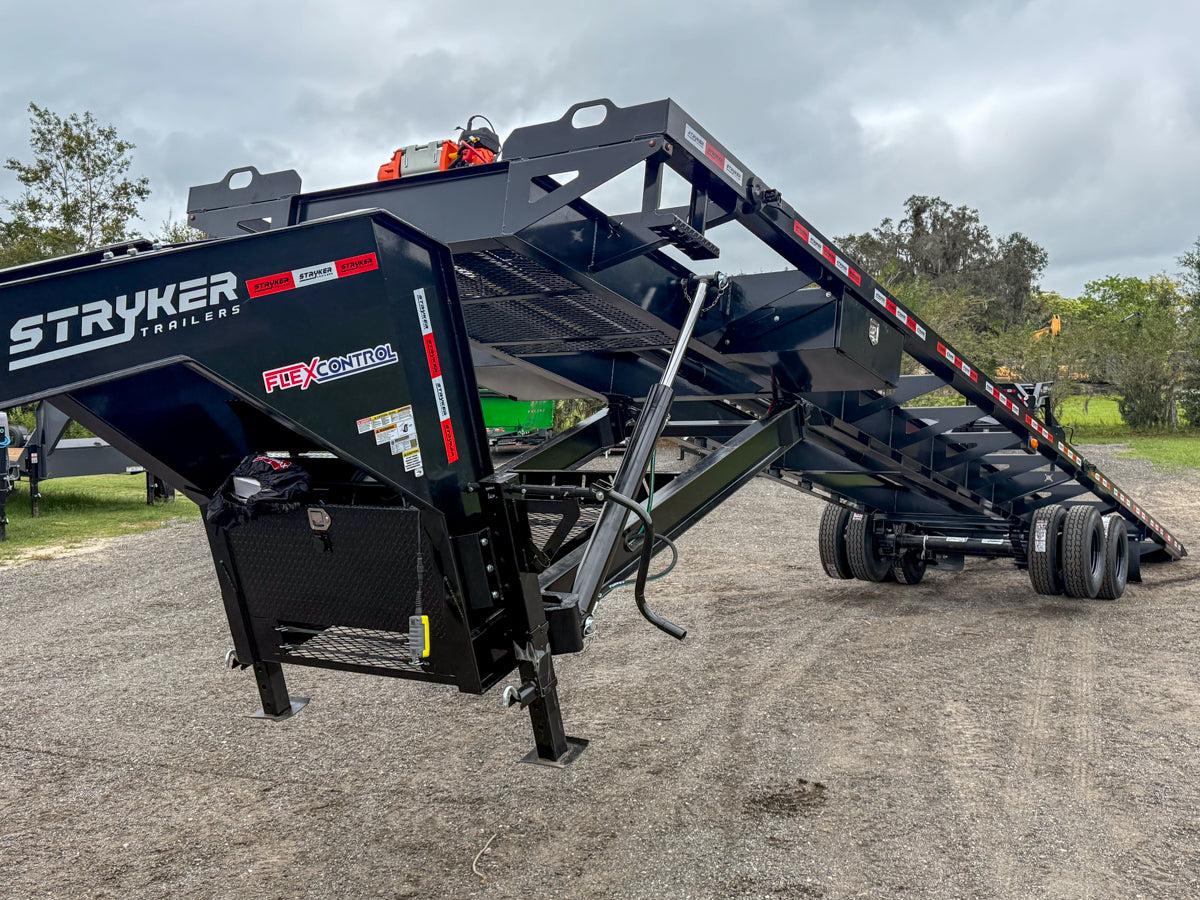

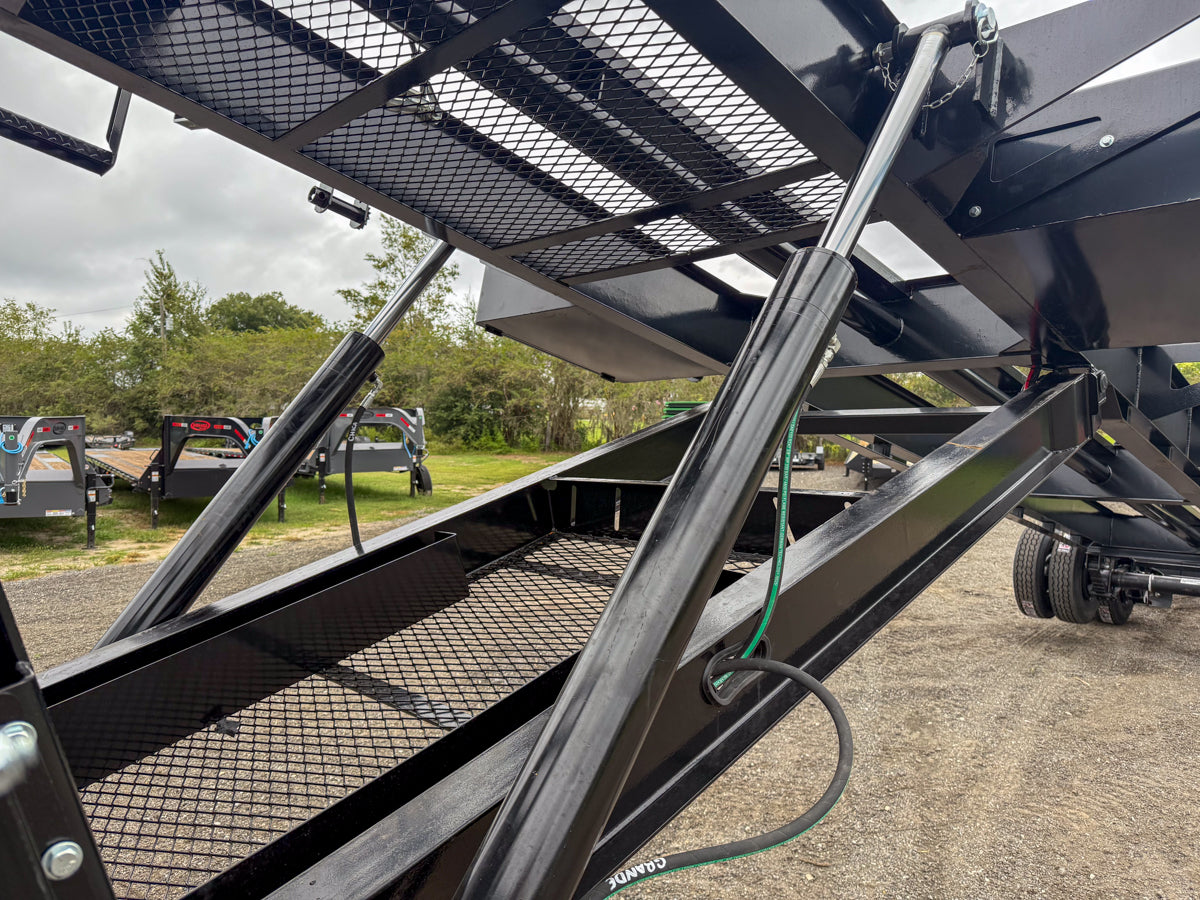

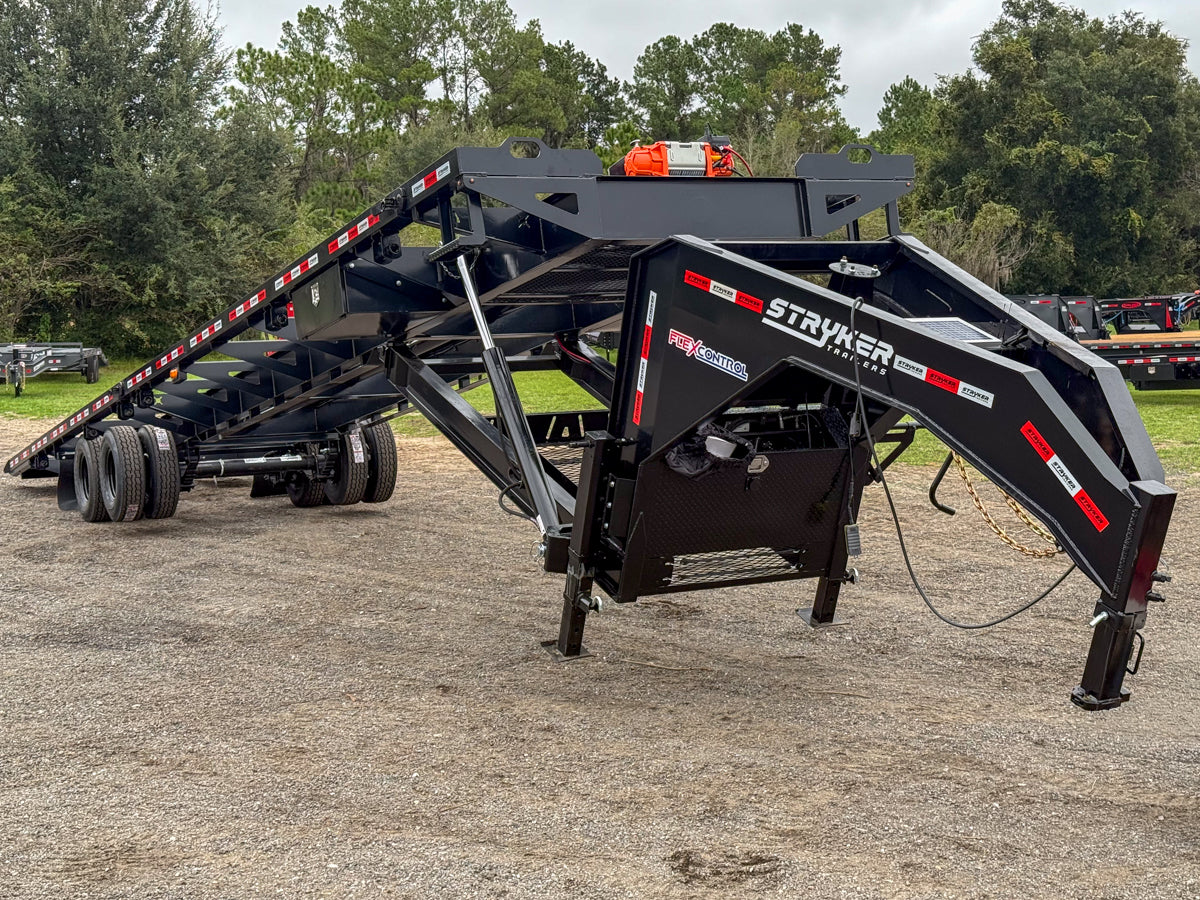

Powerful Hydraulic Tilt System

Experience effortless loading with a full-power hydraulic tilt system. The 12V hydraulic pump and dual cylinders provide smooth, reliable power-up and power-down operation, giving you complete control to easily create a loading ramp for any equipment or container.

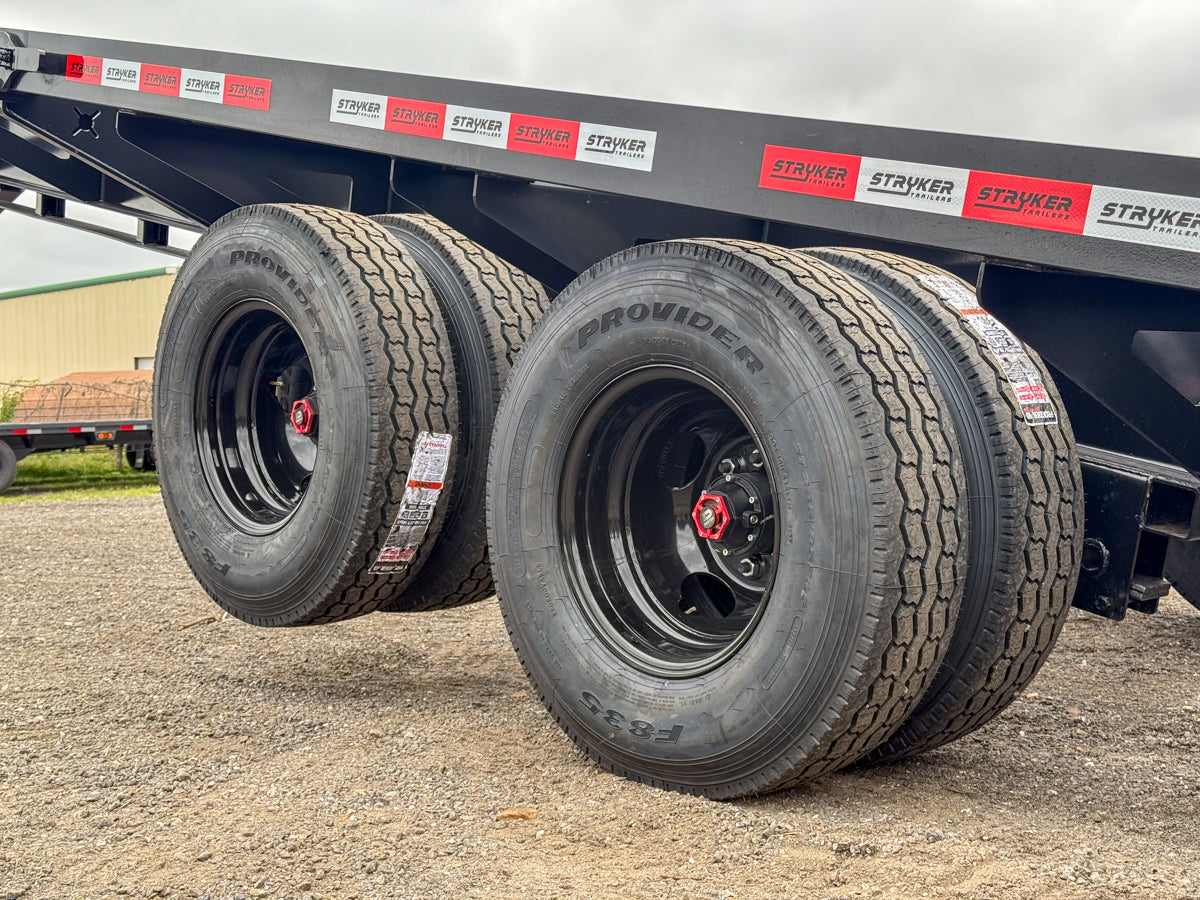

Heavy-Duty Oil Bath Axles

Built for reliability and smooth performance, this trailer features dual 12k Dexter Oil Bath Axles. The sealed oil bath system ensures constant lubrication for the hubs, running cooler and lasting longer than traditional grease-packed systems, which means less maintenance and more dependable hauling.

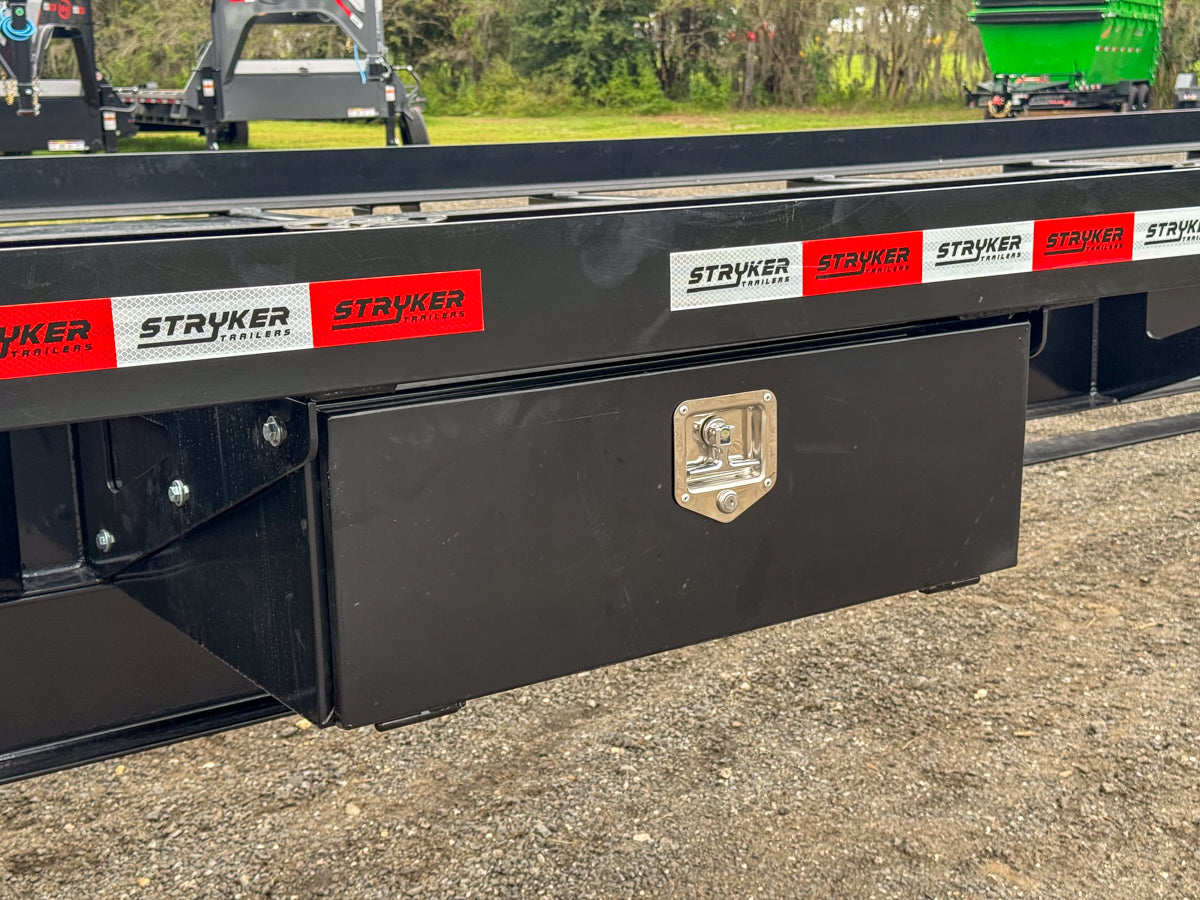

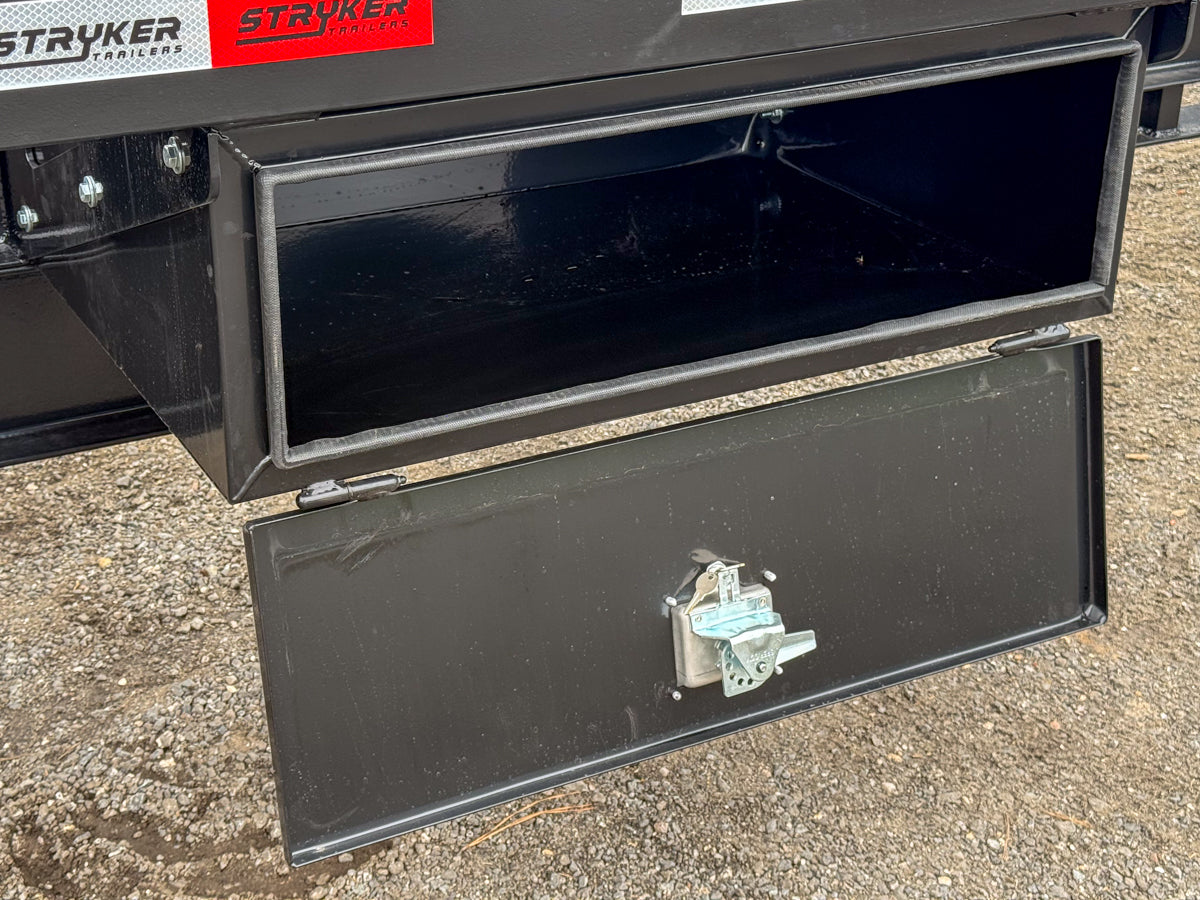

Versatile Side-Mount Toolbox & Container Locks

Our container tilt model includes two standard container locks. Configured for a single 40-foot container or two 20-foot containers. A rugged, lockable side-mount toolbox is also available for tool storage.

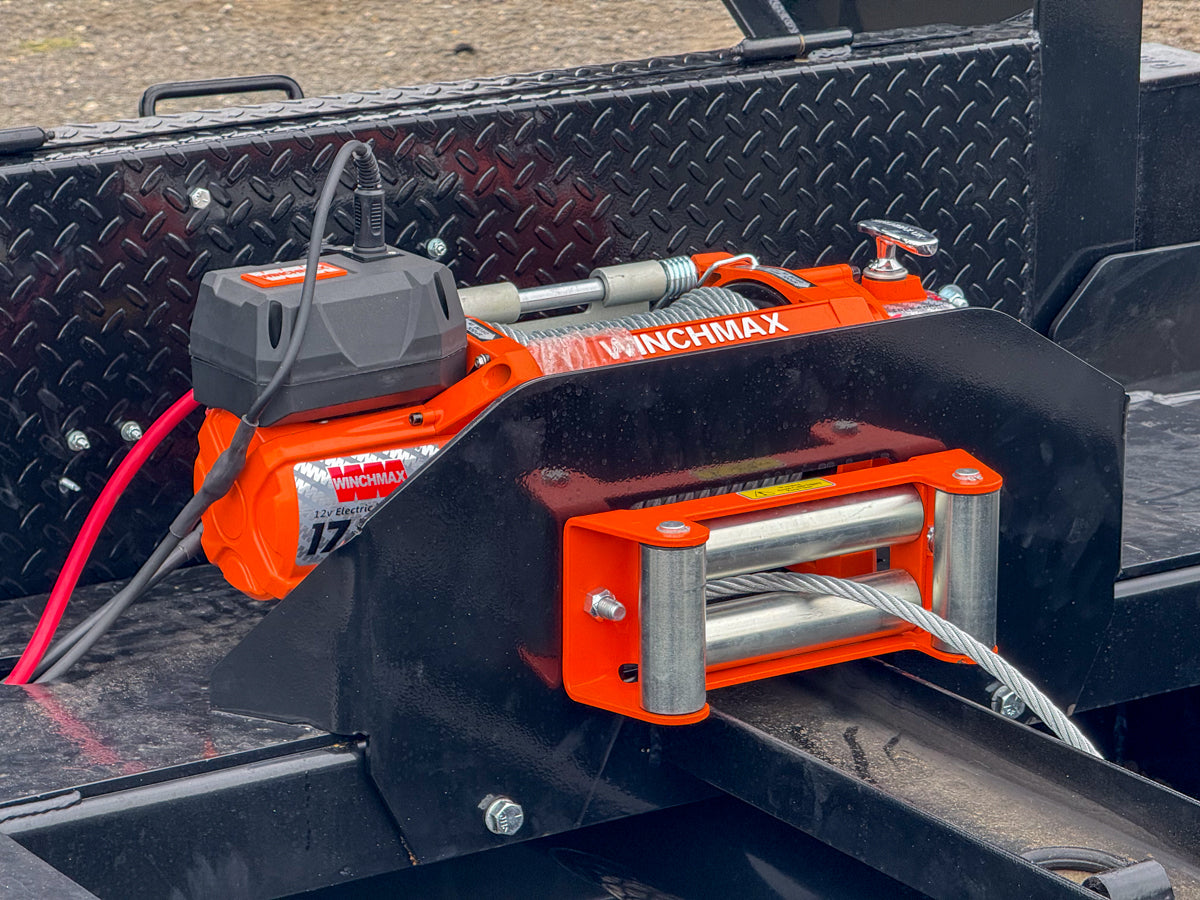

18,000 lb Wireless Winch

Dominate any loading situation with the massive 18,000 lb winch and convenient wireless remote. Mounted at the front of the deck, it provides the ultimate pulling power to effortlessly load heavy machinery or secure containers directly to the trailer.

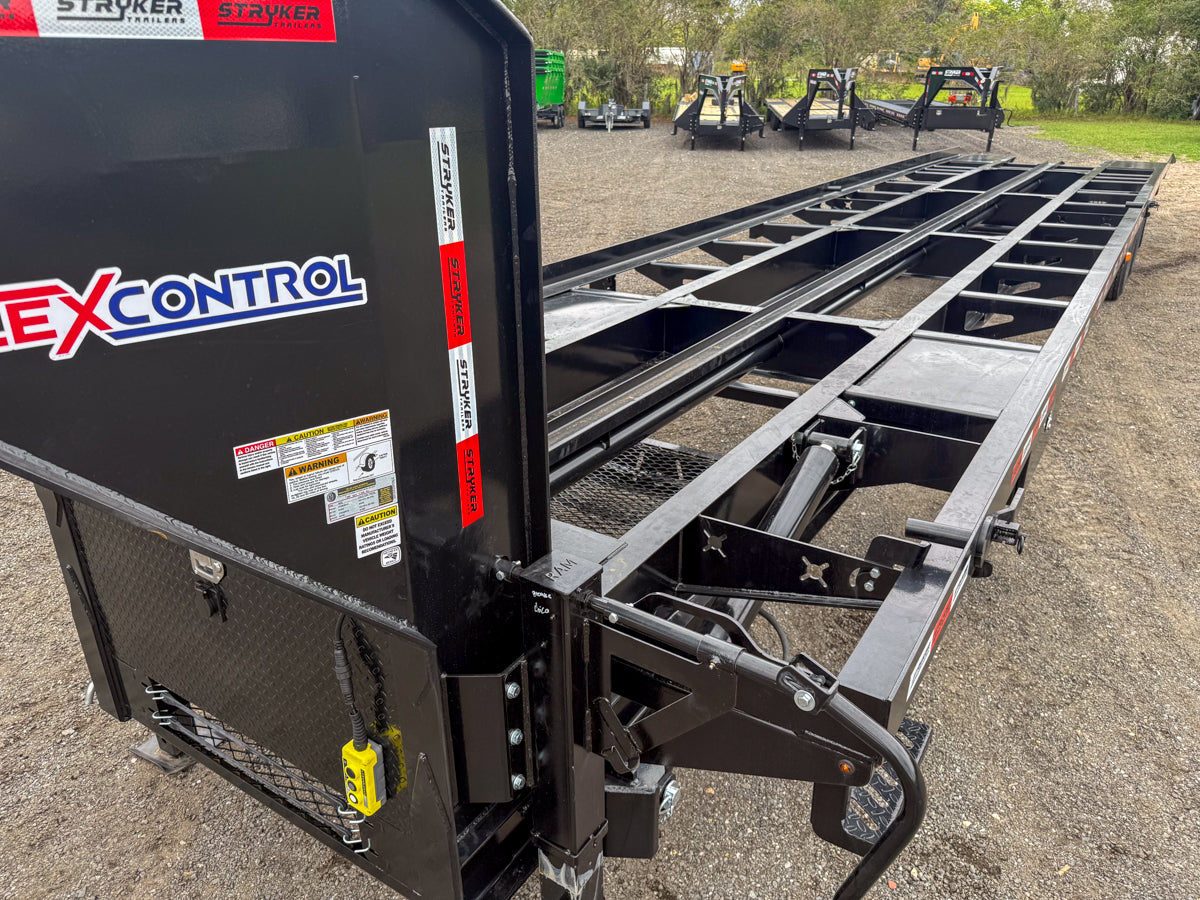

Engineered I-Beam Strength

The backbone of this trailer is its rugged 12" I-Beam main frame, providing the optimal balance of strength and weight for a smooth tilt function. Combined with 3" channel crossmembers on 16" centers, it delivers a solid, dependable platform for heavy containers and equipment.

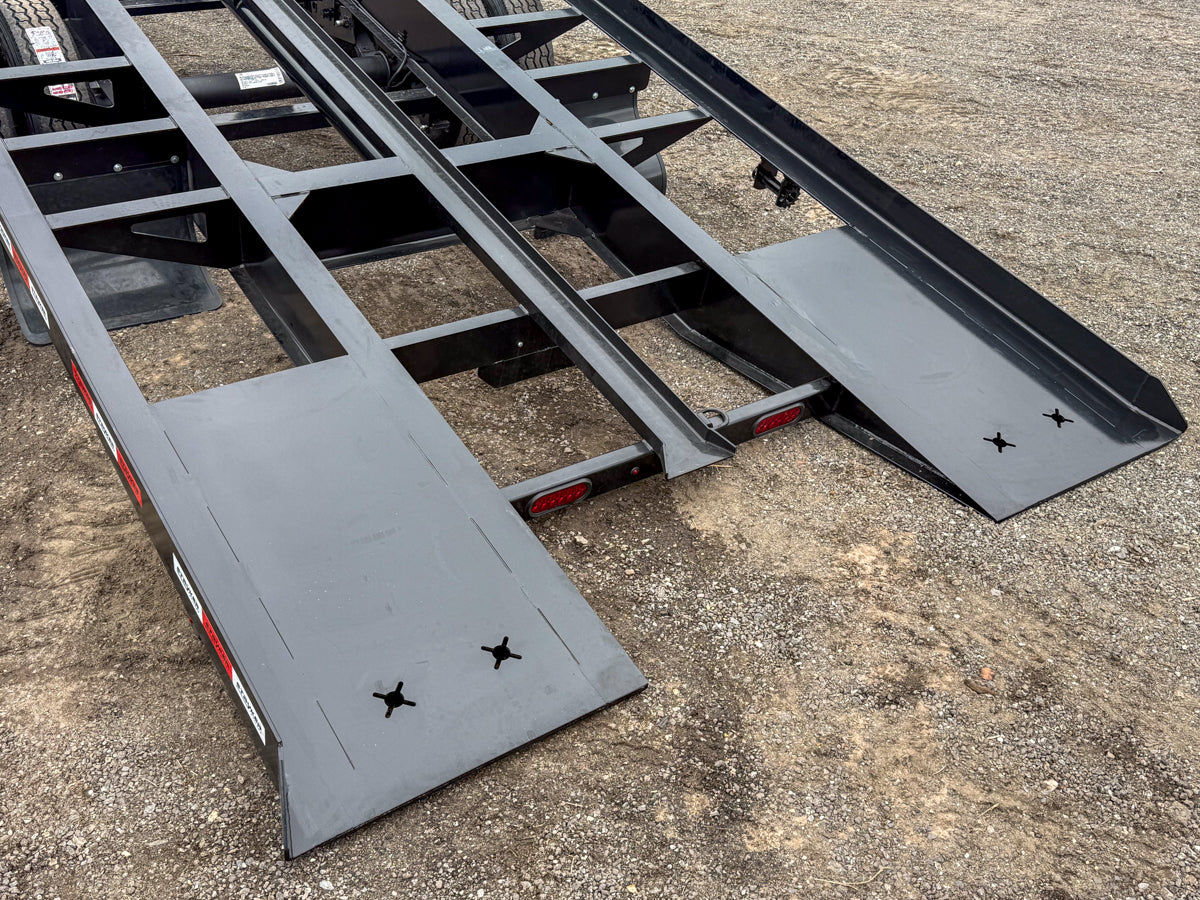

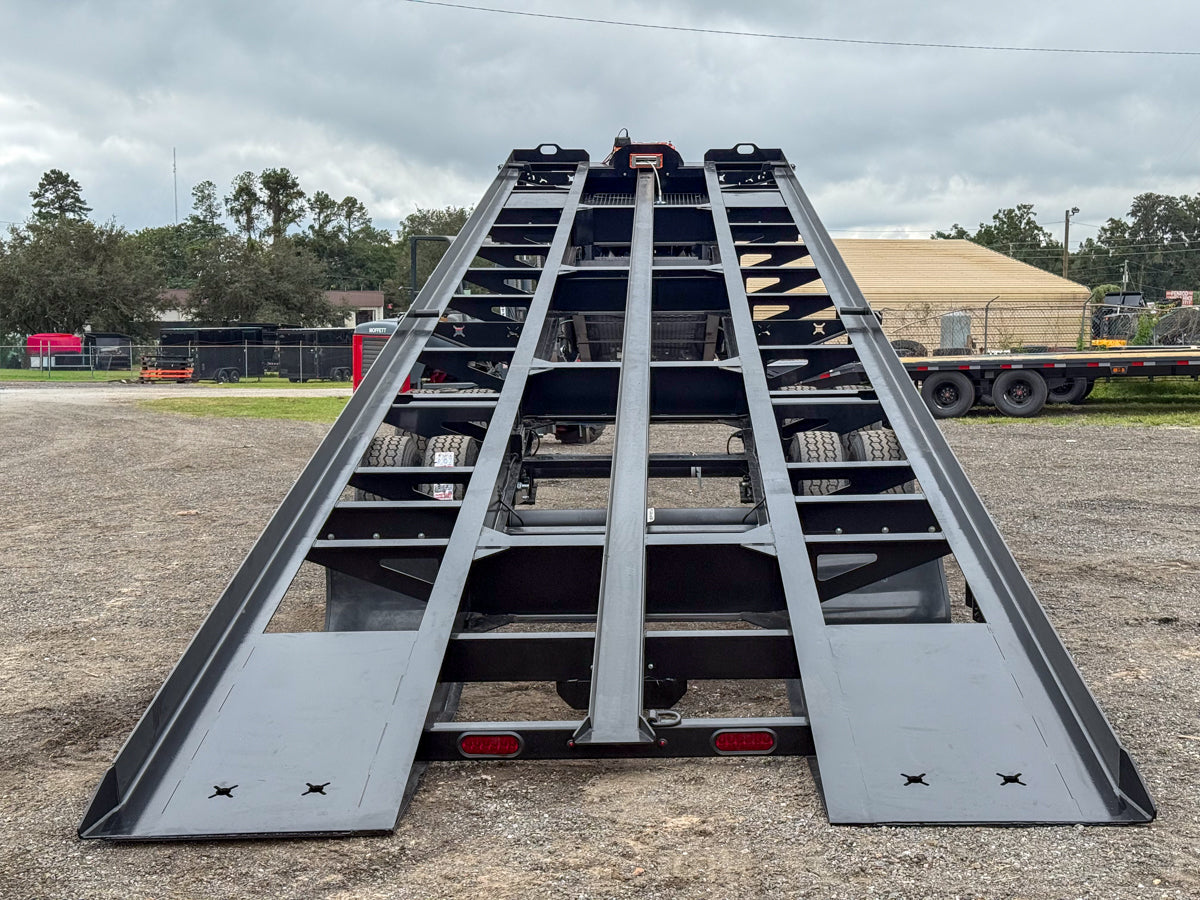

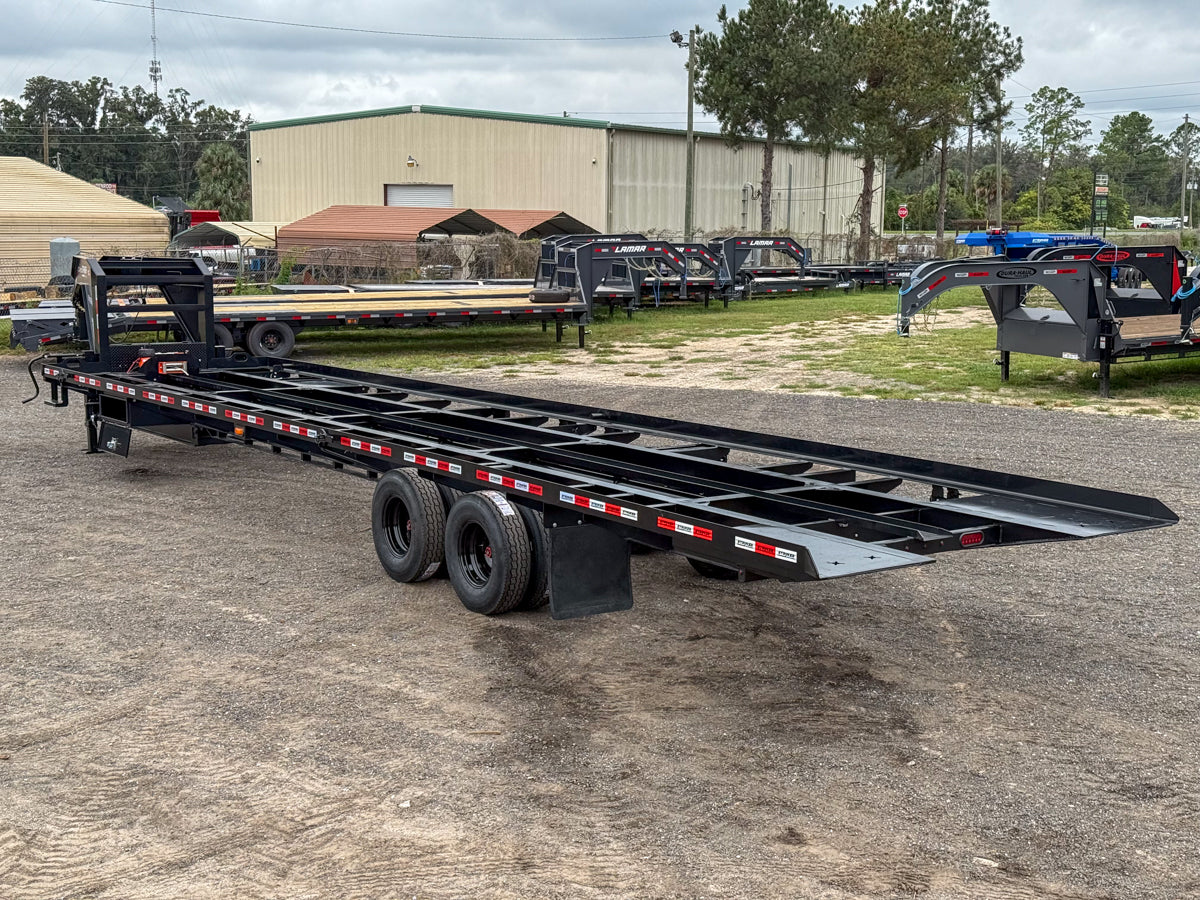

Angled Rear Alignment Rails & Welded Side Rail

Features a one-piece welded side rail with angled rear ends. These specially designed rails act as guides to help align and push the shipping container into the correct position if it is not perfectly square during loading.

Product Details

DIMENSIONS

LENGTH:
40'
WIDTH:
102"
DECK HEIGHT:
38"

WEIGHT RATINGS

AXLE OPTIONS:
12k
GVWR:
25k
GAWR:
12k

RUNNING GEAR

TIRES:
ST235/80R16
TIRE PLY:
10 Ply
RIMS:
16" Black Wheels
AXLE TYPE:
2 - 12k Dual Dexter Oil Bath Axles
AXLE COUNT:
2
BRAKES:
Electric Brakes

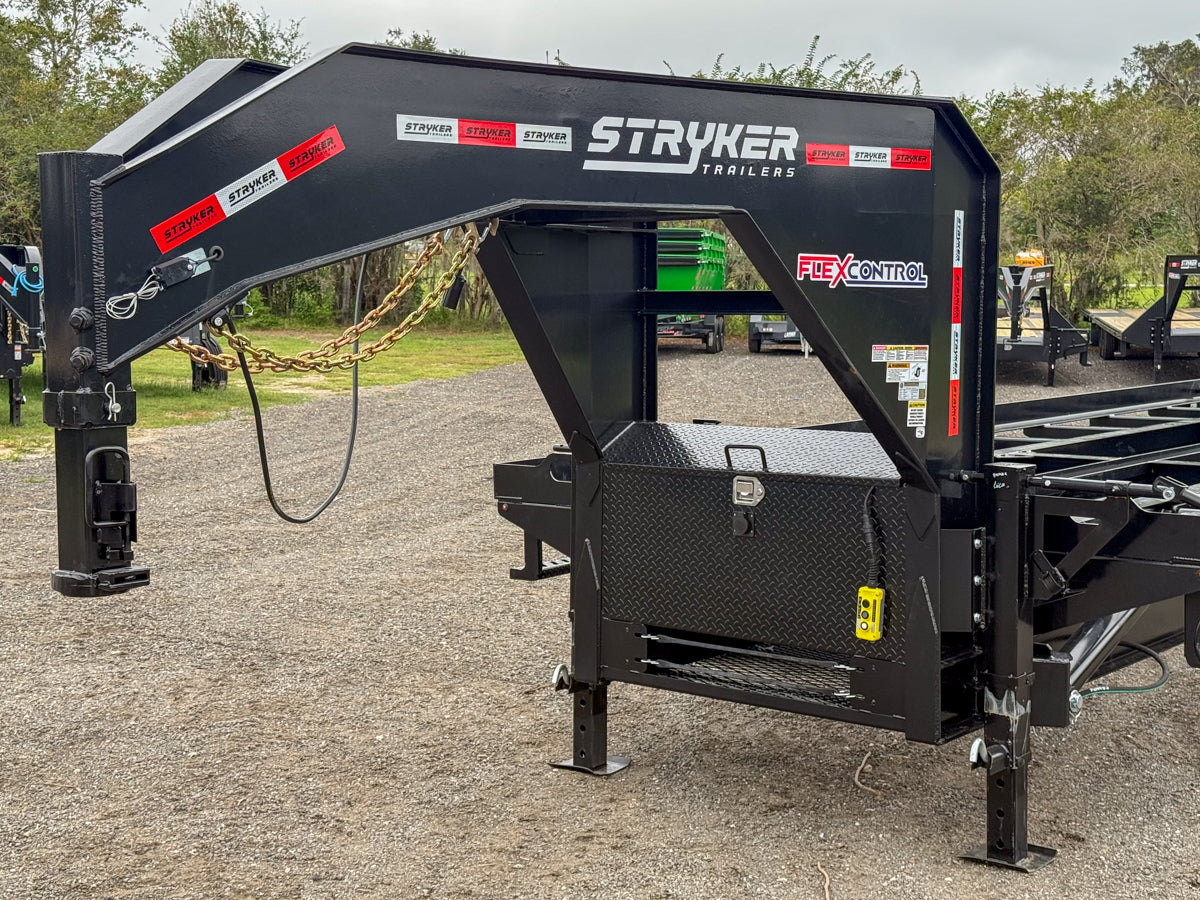

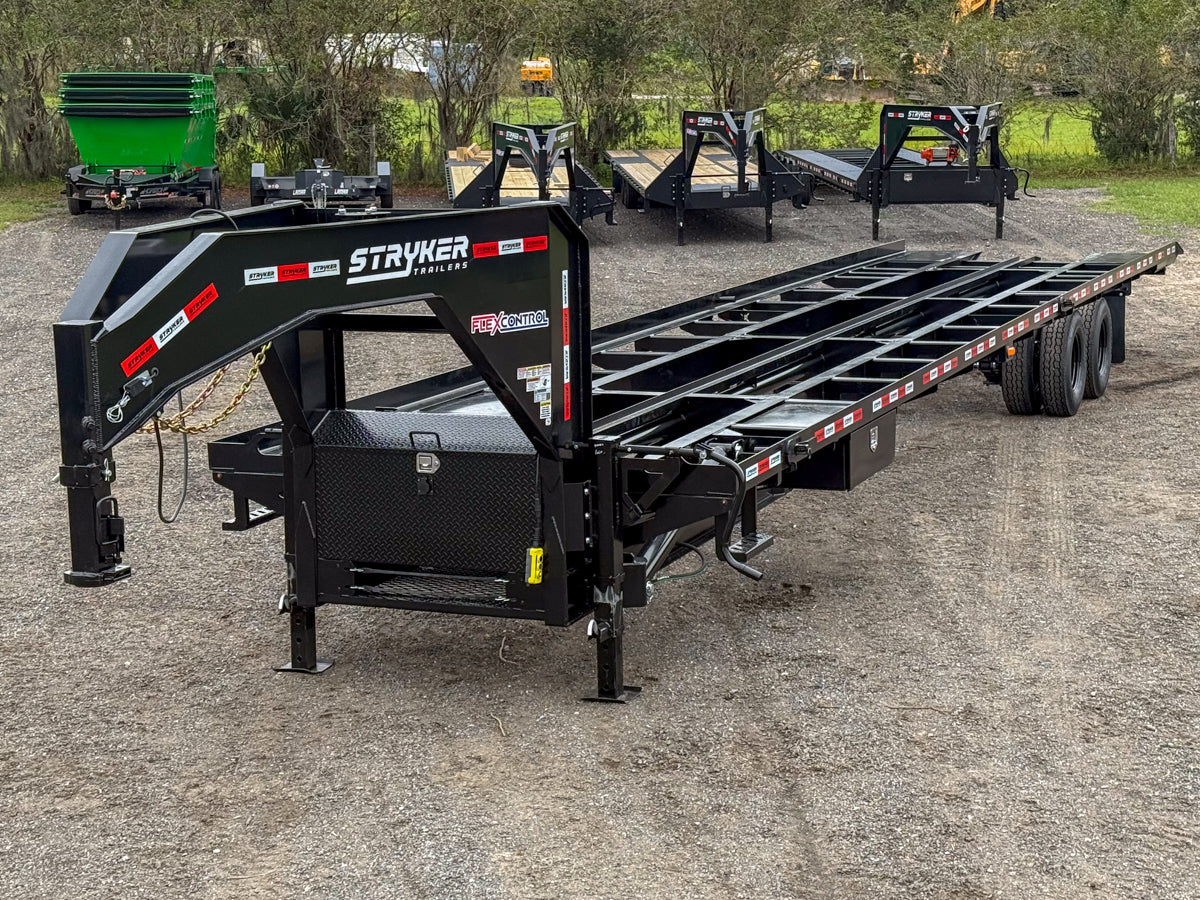

GOOSENECK

PULL TYPE:
Gooseneck
TONGUE:
Fabricated I-Beam
JACKS:
2 - 12k Drop-Leg Jacks
COUPLER:
Adjustable 2-5/16" Coupler (30,000 lbs)

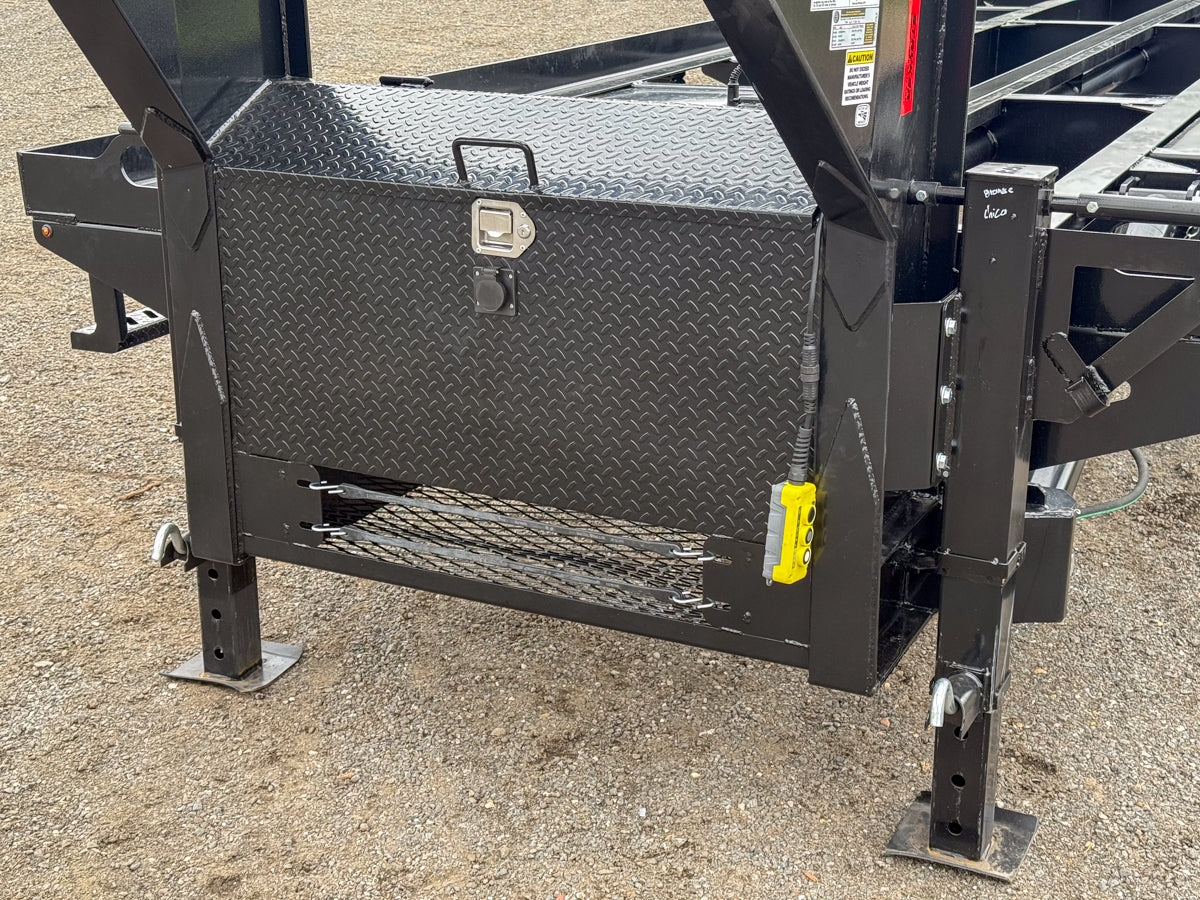

TOOLBOX:
Front Toolbox w/ Gas Shock Assisted Lid

FRAME & CONSTRUCTION

MAIN FRAME:
12" I-Beam (19lbs/ft)
CROSSMEMBERS:
3" Channel, 16" Spacing
DECK:
Metal Mesh Deck
TORQUE TUBE:
Standard On All Stryker Container Tilts
CHAIN SLOTS:
Multiple Front & Rear Slots For Chains
RATCHETS:
Six Ratchets On Passenger Side

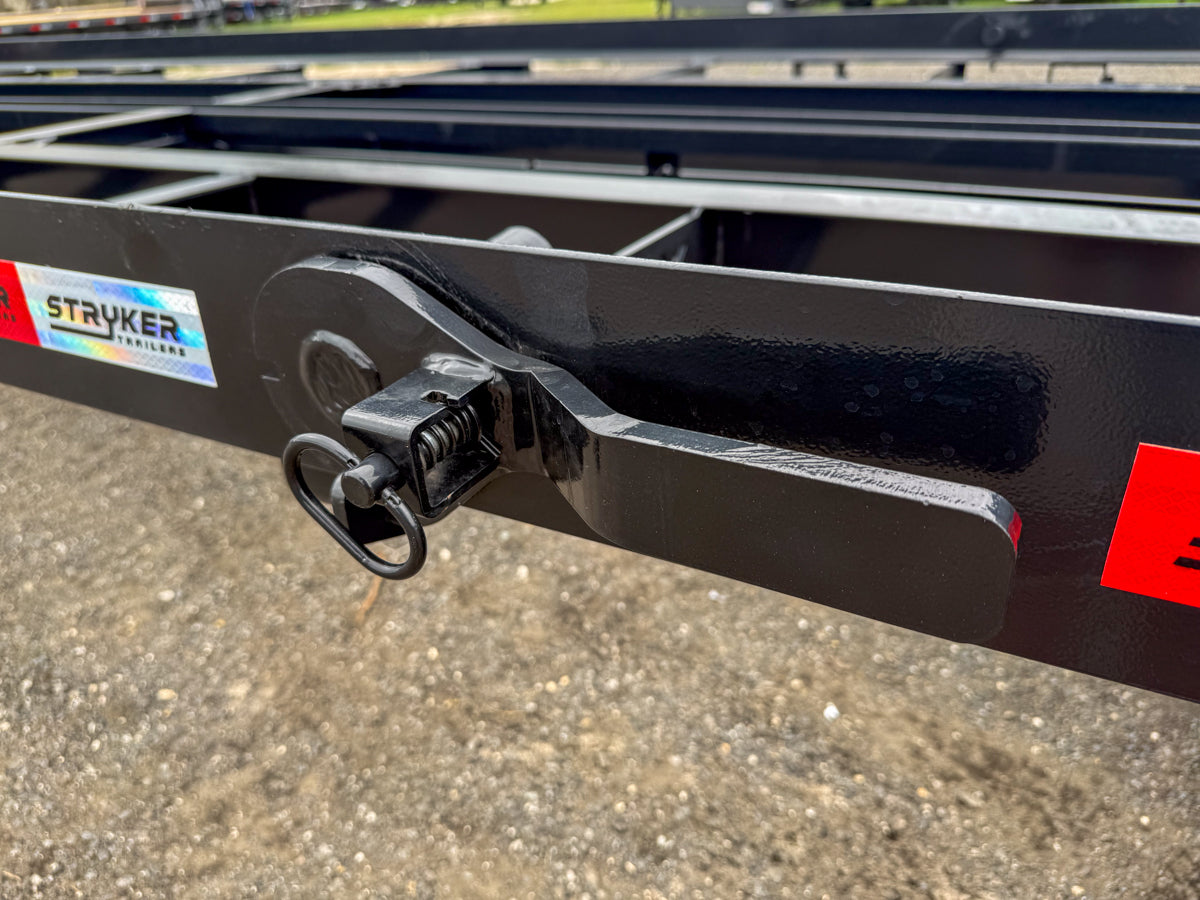

CONTAINER LOCKS:
Standard w/ Two Container Locks
CONTAINER CONFIGURATION:
(1) 40' or (2) 20' Containers

SAFETY SYSTEM

BREAKAWAY SYSTEM:
Safety Breakaway System w/ Cable
REFLECTIVE TAPE:
DOT Approved Safety Tape
SAFETY CHAINS:
2 Safety Chains

ELECTRICAL & LIGHTING

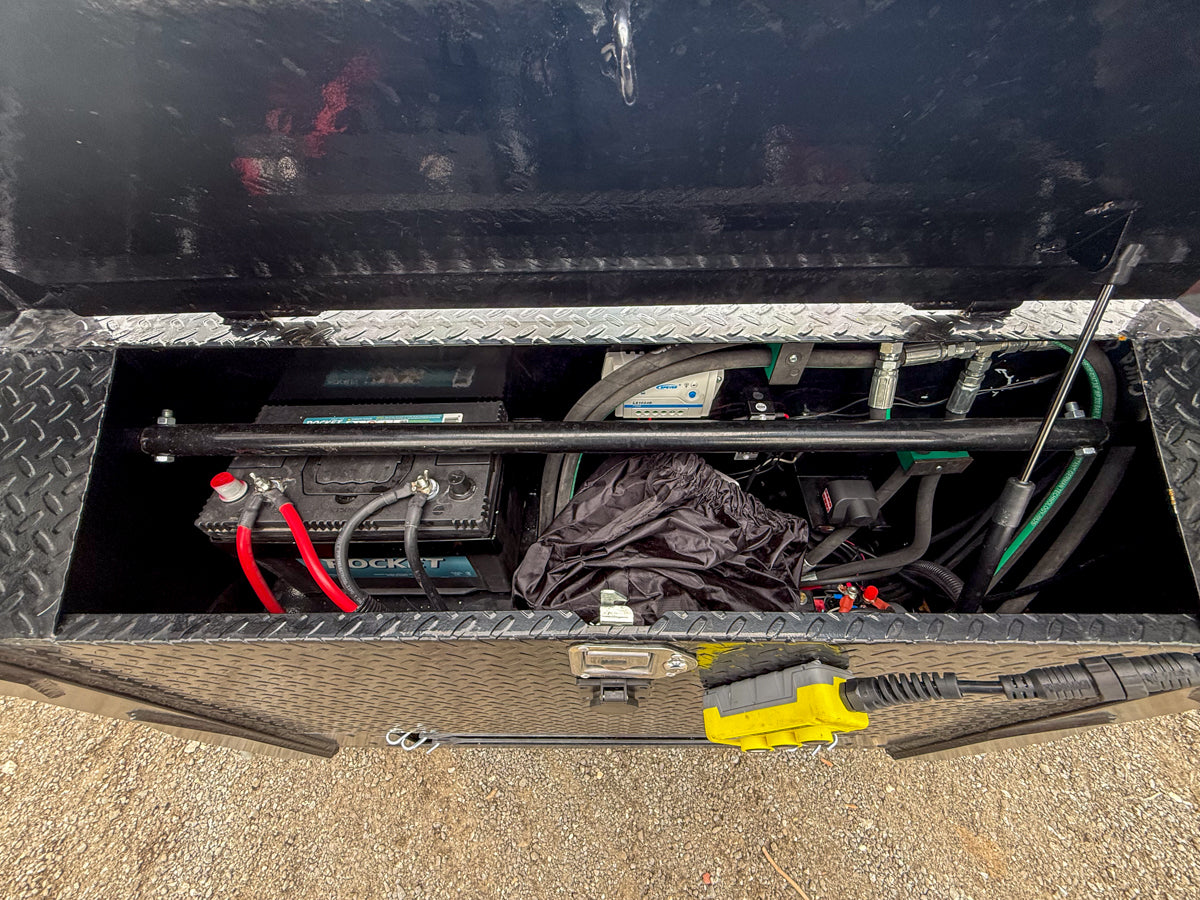

BATTERY:
Group 27 Series Battery
CHARGING SYSTEM:
Solar Panel For Battery Charging
WIRING HARNESS:
Weather Resistant Wiring Harness
REAR LIGHTS:
DOT Approved LED Lighting

HYDRAULIC TILT SYSTEM

TILT METHOD:
Power Up & Power Down
TILT DECK:
Full Tilt
PUMP:
12 V Hydraulic Pump
LIFT CYLINDERS:
2 Hydraulic Cylinders
WINCH:
18,000 lb Winch w/ Wireless Remote
WINCH PLATE:
Front of Deck

FINISH

PAINT TYPE:
Powdercoat
PREP:
Steel Grit Blasted
COLORS:
Black (#000000), Gray (#808080), White (#FFFFFF), Light Grey (#D3D3D3), Red (#E20000), Blue (#1D1DBB), Lime Green (#32CD32), Green (#008000), Orange (#FF5414)

WARRANTY

AXLE WARRANTY:
5 Year Dexter Axle Warranty

OPTIONS

HEAVY-DUTY POWER TILT

SYSTEM:
Full-Power Hydraulic Tilt System
FUNCTION:
Smooth, reliable power-up and power-down operation for effortless loading of equipment or containers.

VERSATILE TOOLBOX

LOCATION:
Rugged, lockable side-mount toolbox (Front-mount configuration also available).

DURABLE FINISH

PROCESS:
Steel grit blasting before tough powdercoat finish for maximum adhesion and longevity.
COLORS:
12 vibrant color options available.

MASSIVE WINCH POWER

CAPACITY:
18,000 lb winch with wireless remote.
MOUNT:
Front of deck for ultimate pulling power to load machinery or secure containers.

RELIABLE RUNNING GEAR

AXLES:
Dual 12k Dexter Oil Bath Axles for constant lubrication, cooler running, and less maintenance.

ENGINEERED FRAME STRENGTH

FRAME:
12" I-Beam main frame with 3" channel crossmembers on 16" centers for a solid, dependable platform.
