At a Glance
Product Features
Heavy-Duty 4" Channel Frame Construction

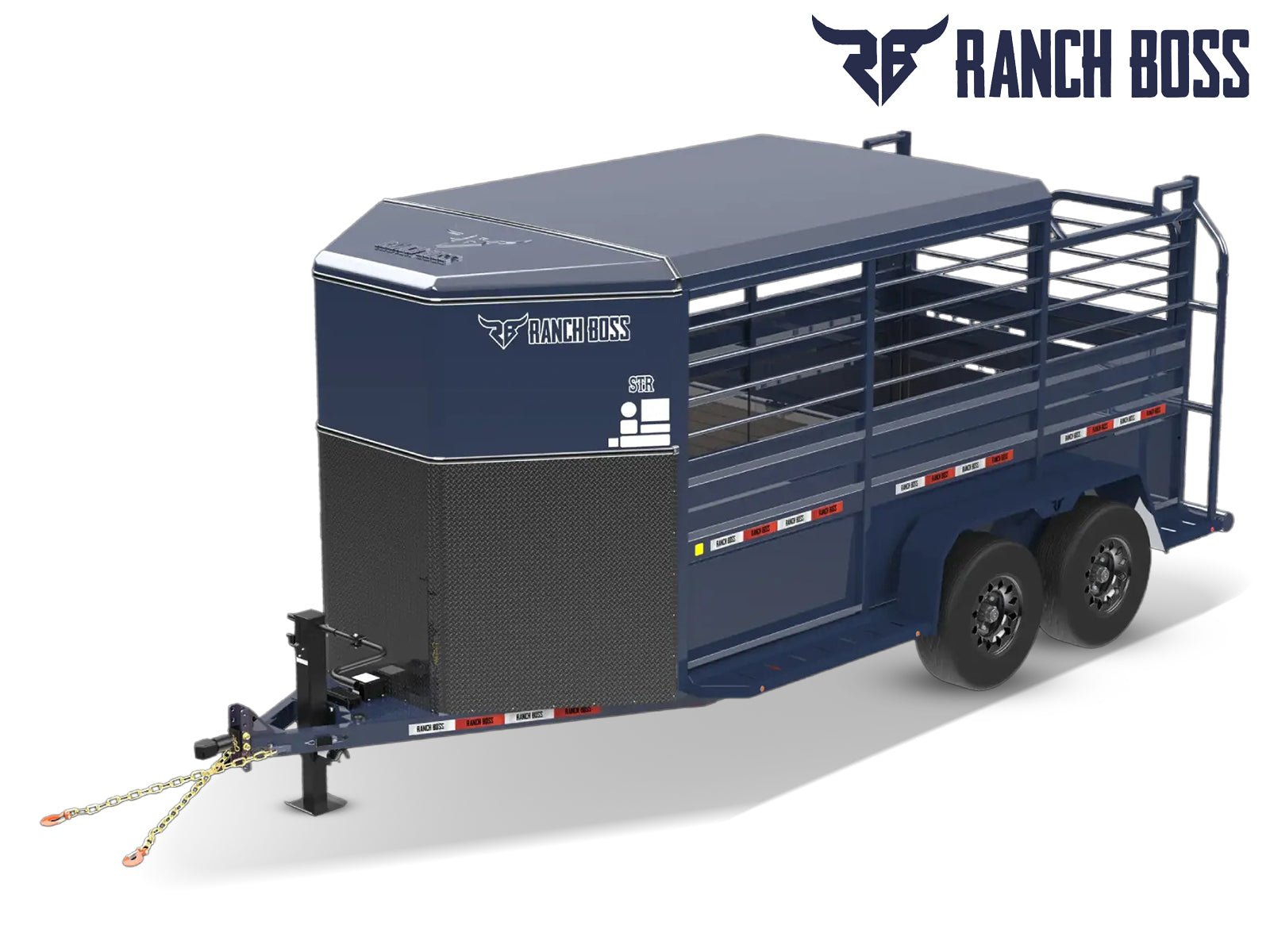

Construction on Ranch Boss's bumper pull livestock trailers starts strong with a 4" Channel (5.40 lbs/ft) main frame. Reinforced with 2" x 4" x 3/16" rectangular tubing and HD fabricated 3/16" plate beams spaced every 4', offering total support for safe livestock hauling.
Limitless Customization Options

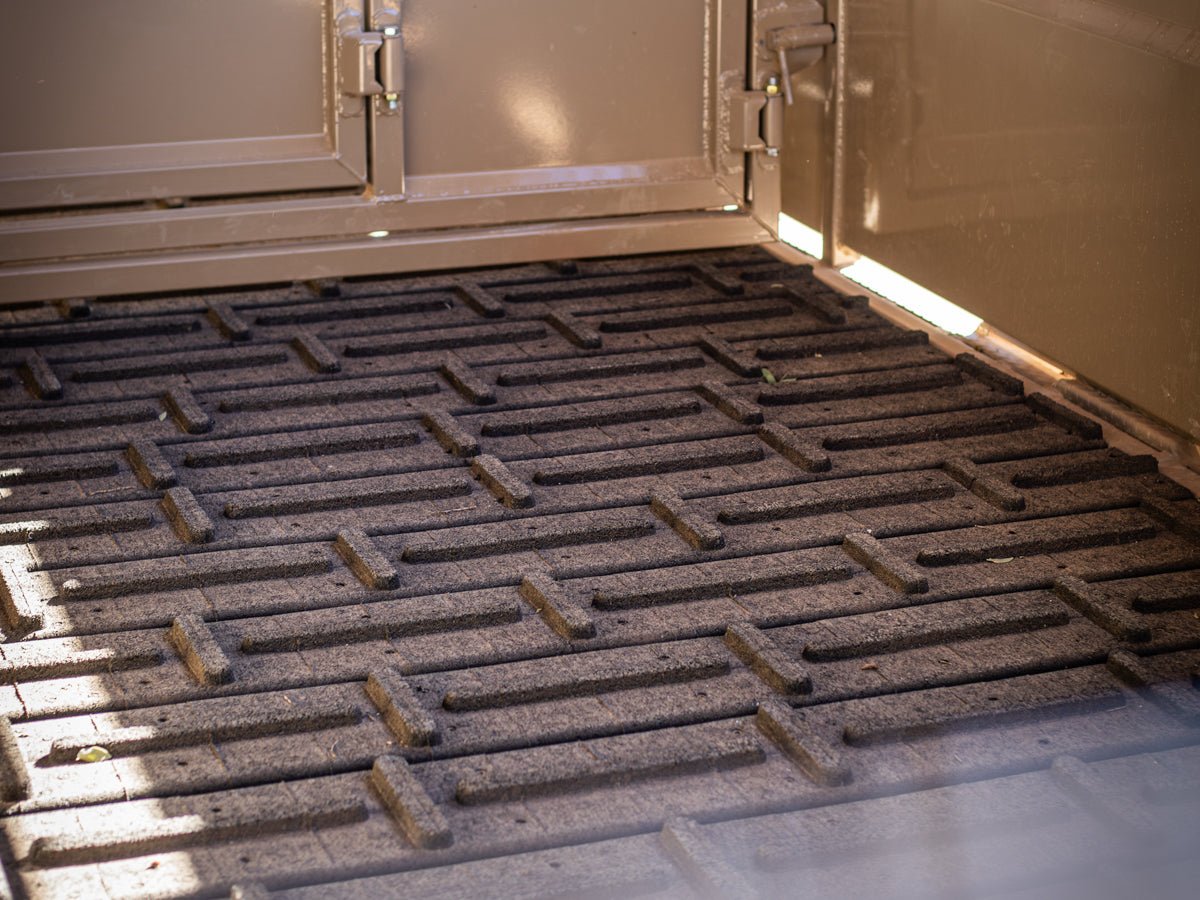

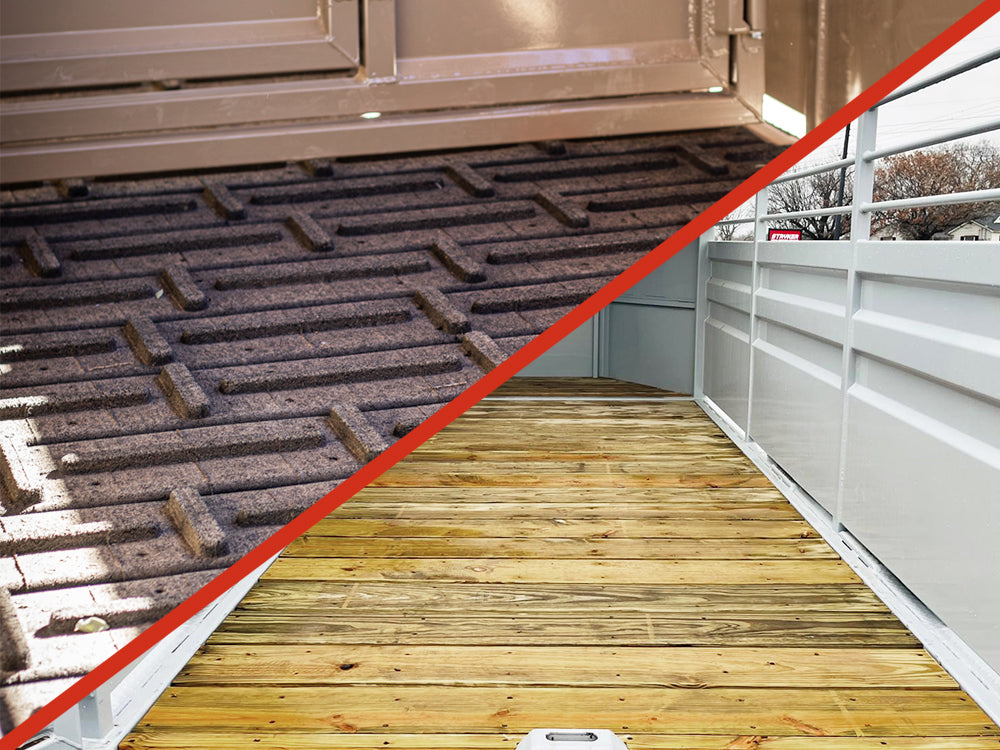

Ranch Boss provides a ton of standard features and countless upgrades. From an optional top-mounted hay rack with ladder to different front, center, and rear gate configurations and escape doors. Custom flooring options from wood to cleated rubber—you'll find this trailer can be built to your exact specifications.

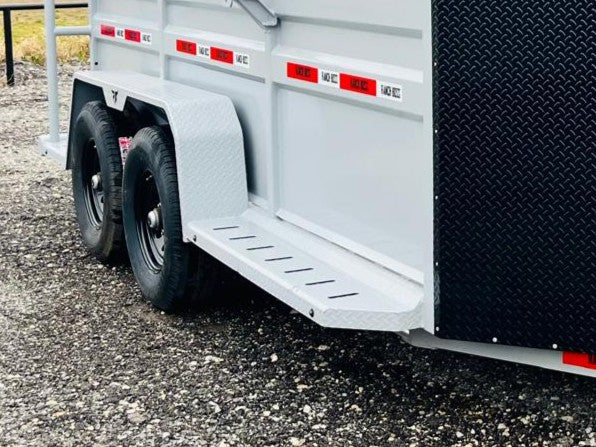

7k Dexter Oil Bath Axles with 10-Year Warranty
Equipped with reliable 7k Dexter auto-adjust oil bath axles as standard. These axles are backed by an exceptional 10-year Dexter warranty and paired with a torsion suspension for a smooth, stable ride.
Hauling Versatility with Width Options
Maximize your hauling potential with multiple size configurations. Ranging from the standard 6' 8" wide for maneuverability all the way to a high-capacity 8' wide design, you can maximize your hauling and profit potential.

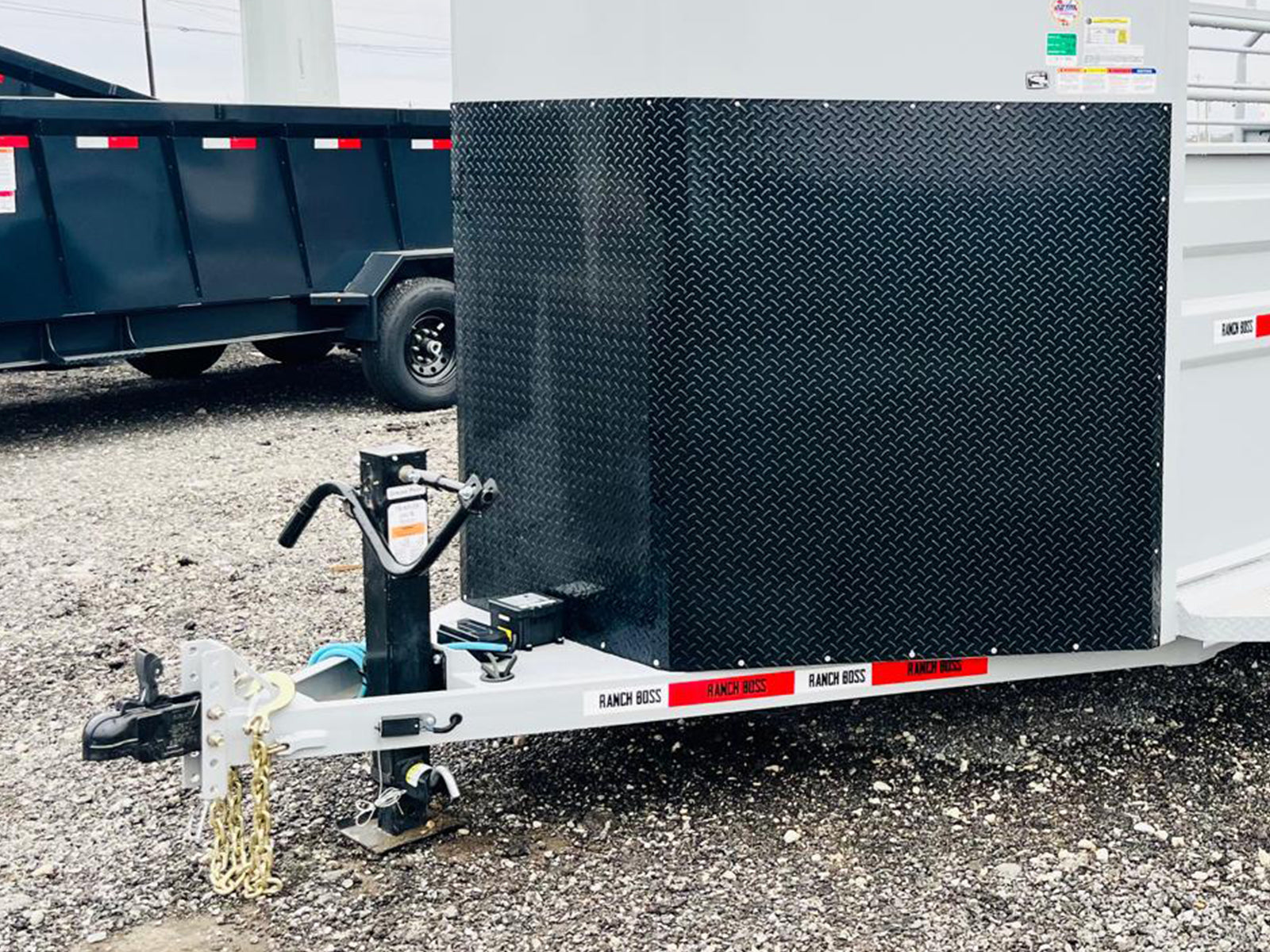

Standard 48" Black Diamond Plate Gravel Guard
All Ranch Boss bumper pull livestock trailers come standard equipped with a 48" black diamond plate gravel guard. The gravel guard works well with any color you've selected for your new trailer and will offer enhanced front protection while hauling.

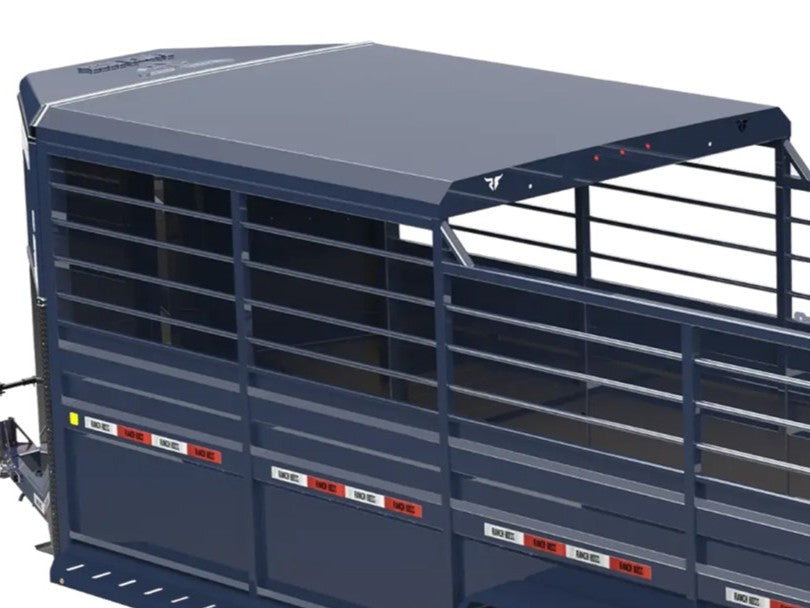

16 Gauge Formed Steel 3/4 Top
Features a durable 16-gauge formed steel 3/4 top for superior weather protection. This robust roof construction provides lasting durability and keeps your livestock sheltered from the elements during transport.
Product Details
DIMENSIONS
- LENGTH:
- 16' or 20'
- WIDTH:
- 6' 8" - 8'
- INTERIOR HEIGHT:
- 6' 6"
- TRAILER TYPE:
- Livestock
WEIGHT RATINGS
- GVWR:
- 15.2k
- AXLE OPTIONS:
- 7k
RUNNING GEAR

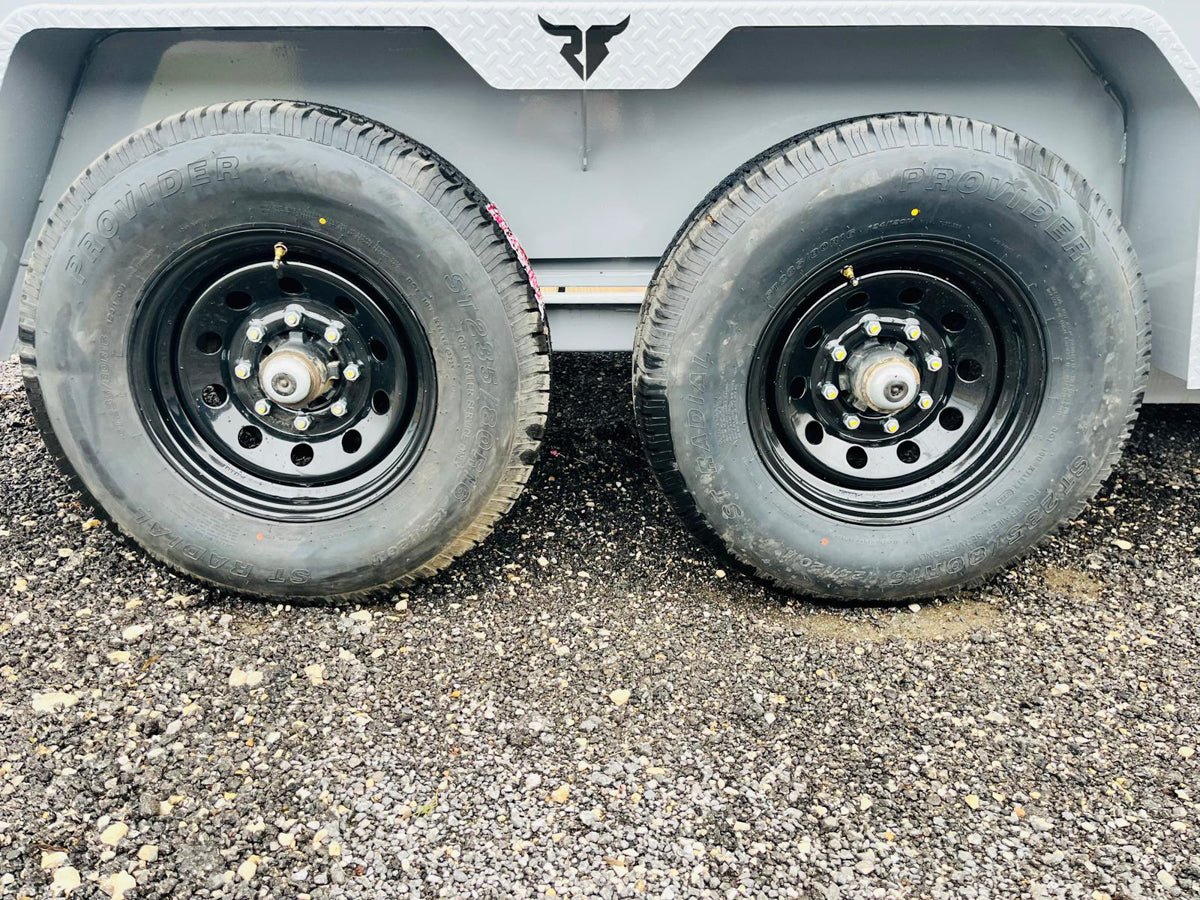

- TIRES:
- ST235/80R16 Radial Tires
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter Auto Adjust Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Torsion Axles
- SPARE TIRE:
- Spare Tire Mount
BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 4" Channel Bumper Pull
- LENGTH:
- 85"
- COUPLER:
- Adjustable 2 5/16" Coupler (17,000 lbs)
- JACK:
- 12k Drop-Leg Jack
FRAME & CONSTRUCTION
- MAIN FRAME:
- 4" Channel
- WALLS:
- 10 Ga. Formed Steel Sidewalls
- CROSSMEMBERS:
- HD Fabricated 3/16" Plate Beams (4' Spacing)

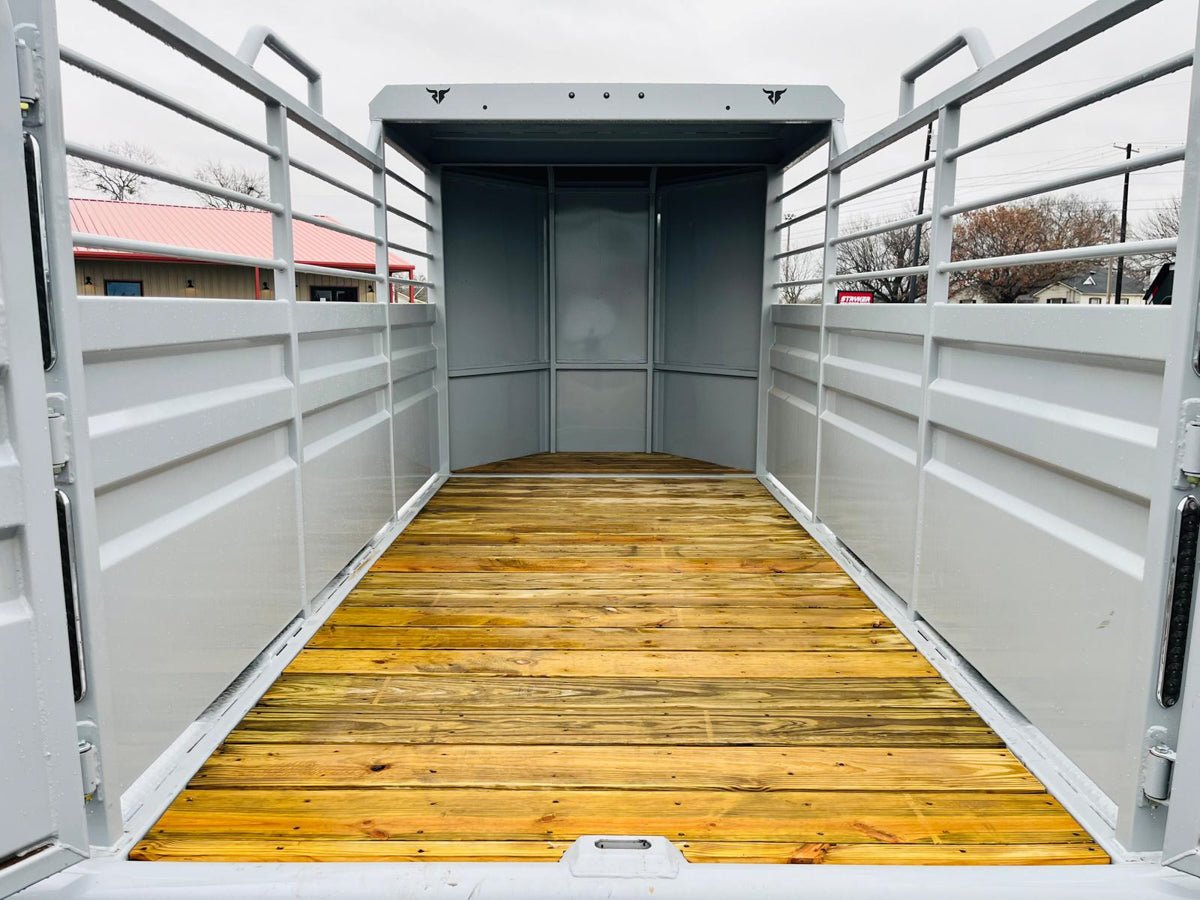

- FLOOR:
- Treated Wood Floor
- ROOF:
- 16 Ga. Formed Steel 3/4 Top
- FRONT PROFILE:
- Angled
- EXTERIOR FINISH:
- Powdercoat Finish

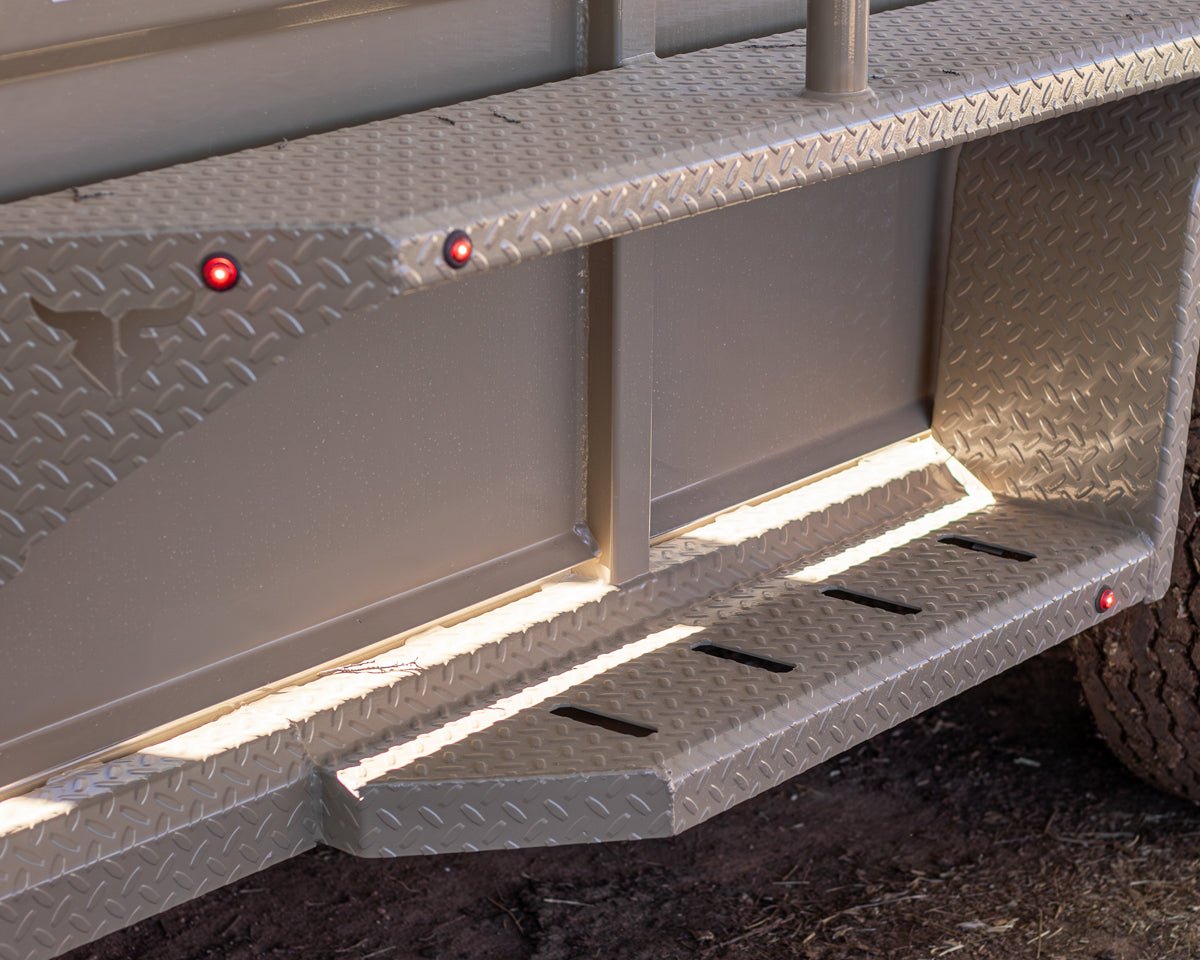

- FENDERS:
- 12 Ga. Diamond Plate Steel Fenders

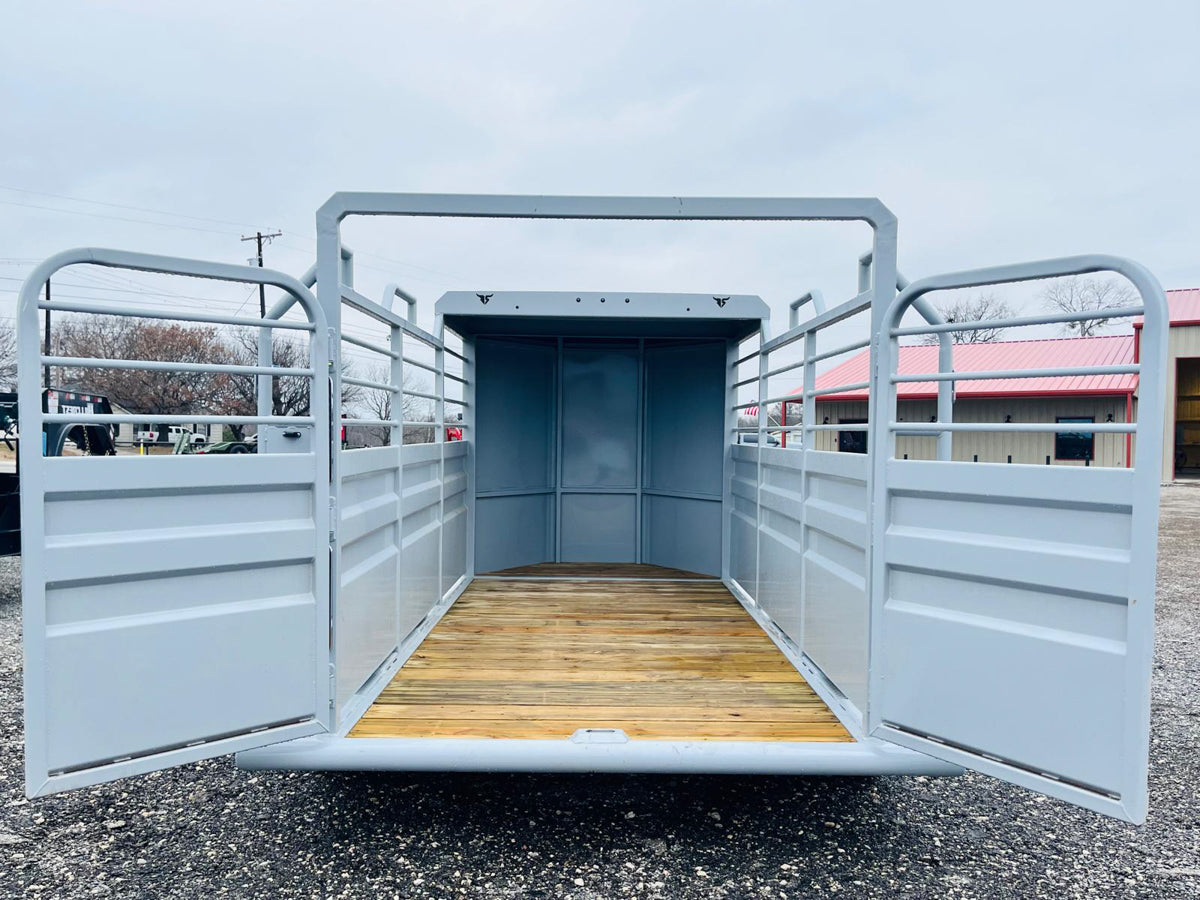

- GATES:
- Rear Butterfly Gate
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness
Double Insulated Wiring Harness
- REAR LIGHTS:
- Rear DOT Approved LED Lighting
- CLEARANCE LIGHTS:
- DOT Approved TecNiq LED Lights Spaced 48"
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit

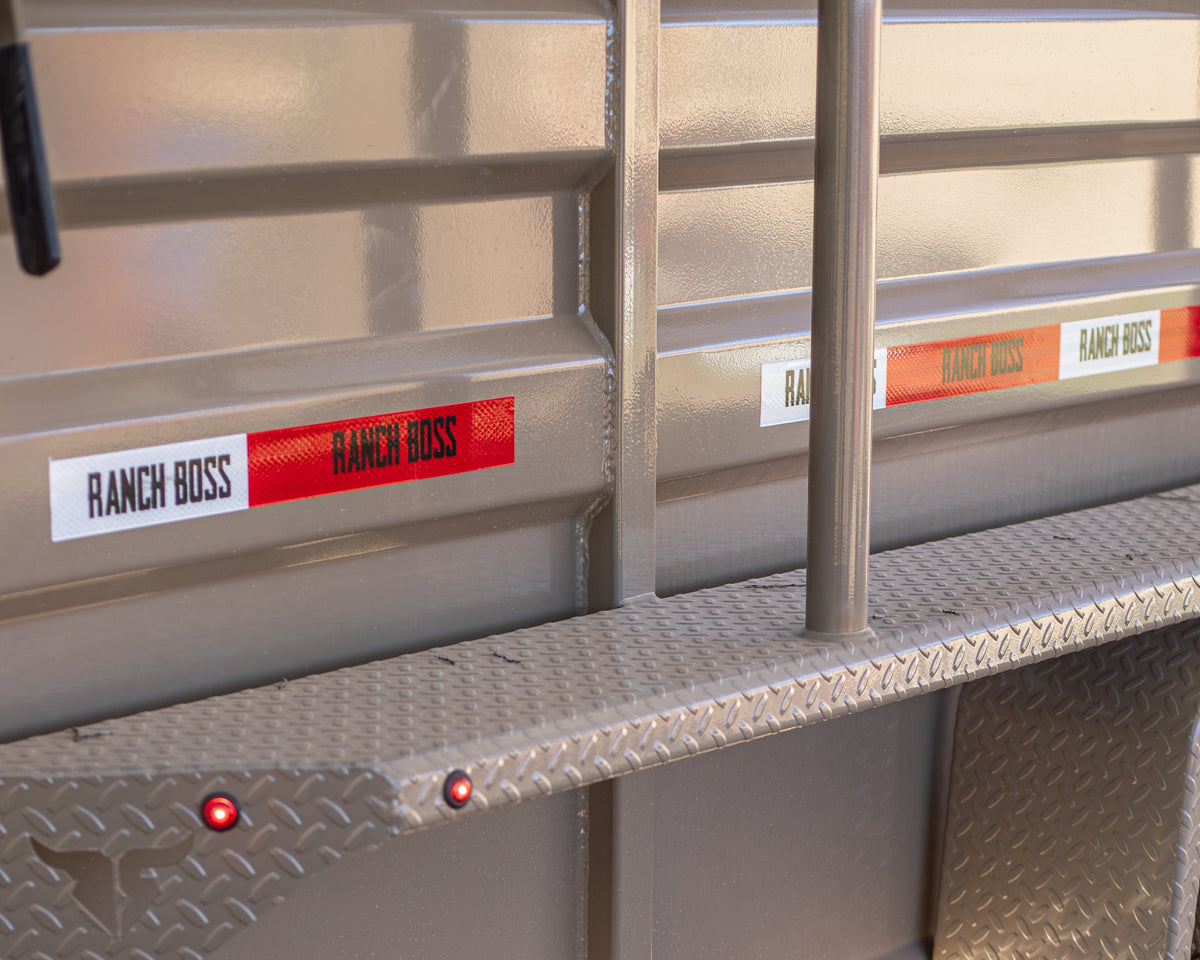

- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 10 Year Dexter Axle Warranty
OPTIONS
