At a Glance
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Featured Video
Product Features

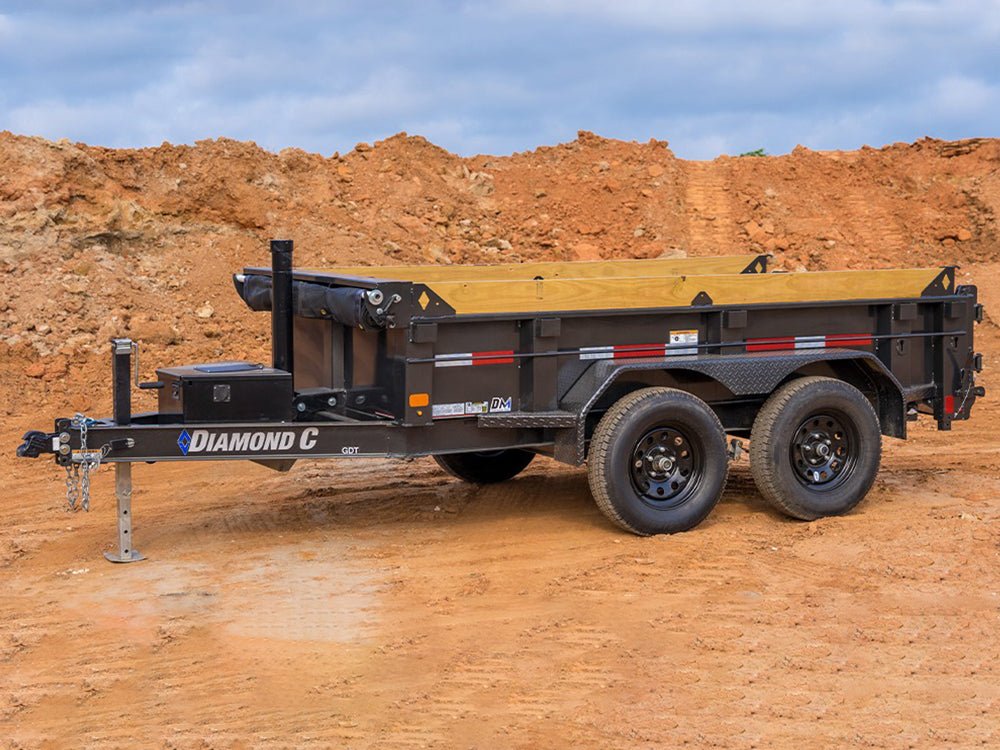

19-Inch Ultra-Low Load Height
The dump bed sits just 19 inches from the ground. This extremely low height makes loading materials like soil, debris, or aggregate much easier and reduces physical strain.

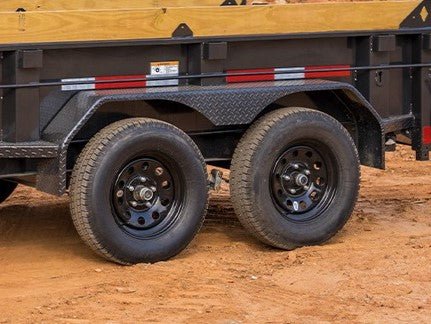

7,000 lb GVWR with Tandem Axles
Rated for a 7,000 lb GVWR and built with tandem 3.5k axles. This provides a stable, balanced towing experience for full-capacity loads that exceed single-axle trailer limits.

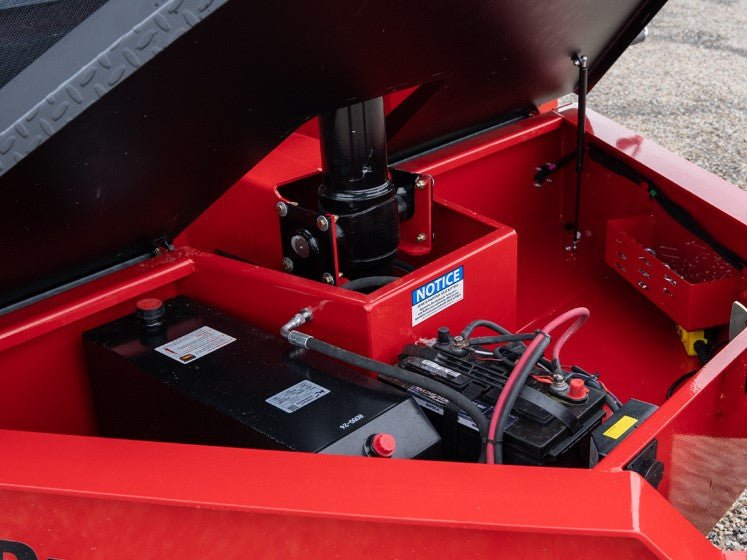

Front-Mounted Lockable Toolbox
Features a lockable toolbox integrated into the front of the trailer. This convenient storage keeps the battery, controller, and small tools secure and protected from the elements.

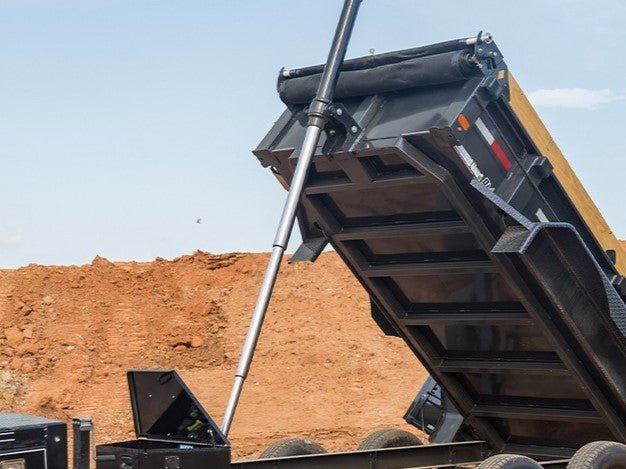

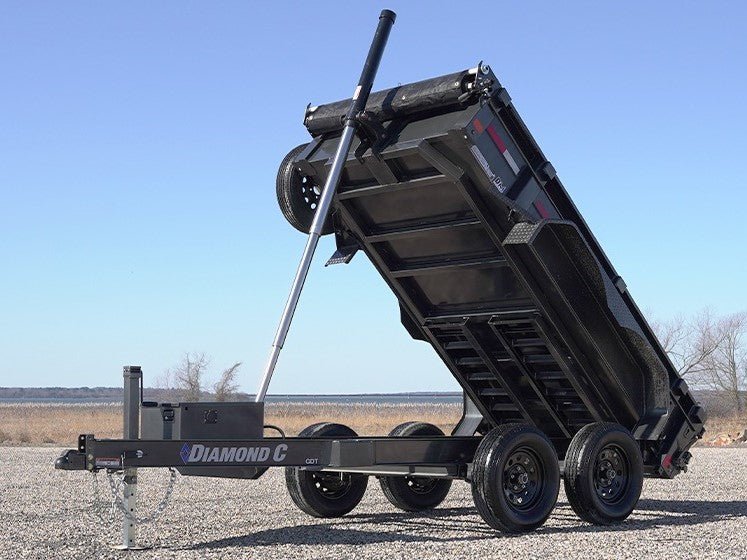

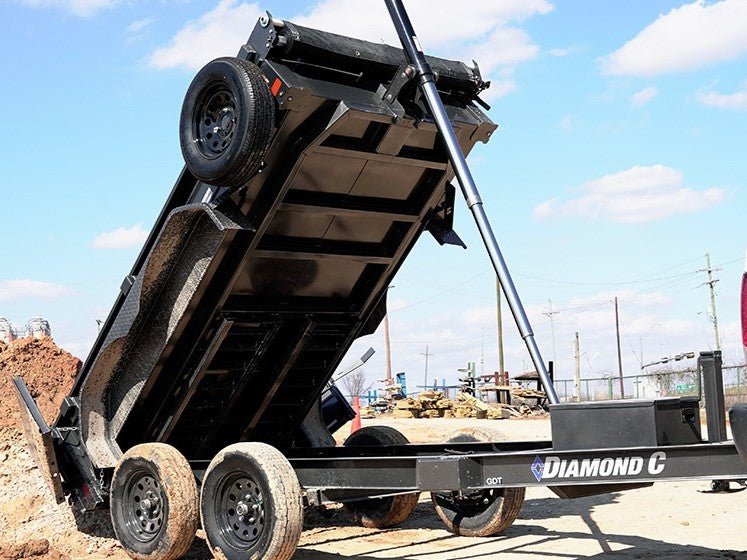

3-Stage Telescopic Lift Cylinder
Equipped with a 3-stage telescopic hydraulic cylinder. This powerful, compact system provides excellent dump height and reliable lifting performance for a trailer of this size.
12-Gauge Steel Bed Floor
Built with a 12-gauge steel bed floor. This provides a durable, impact-resistant surface capable of handling heavy loads of rock, debris, and construction materials.
Expandable Side Height Options
Side heights range from 18 to 44 inches. Optional 24-inch expanded metal extensions can be added to maximize capacity for lightweight, bulky materials like leaves or insulation.
Product Details
DIMENSIONS
- LENGTH:
- 10'
- BED WIDTH:
- 60" - 77"
- SIDE HEIGHT:
- 24" - 44"
- DECK HEIGHT:
- 19"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 15.5k - 23k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

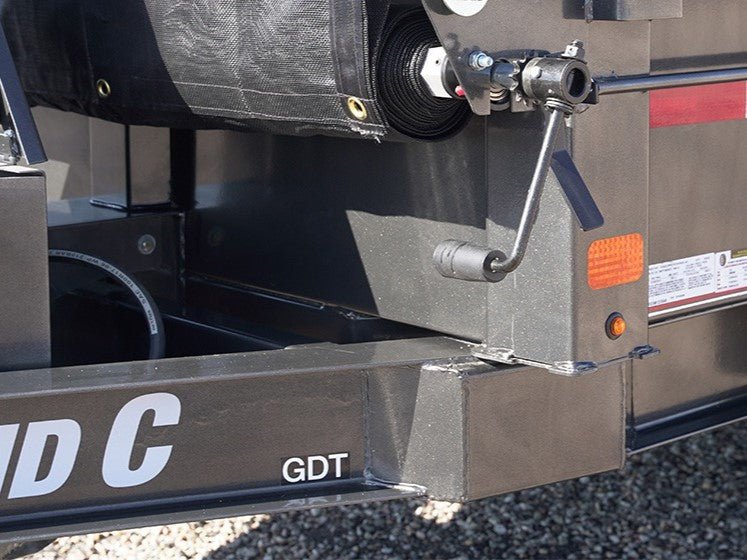

- TARP:
- Crank Style Roll-Up Tarp
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- LENGTH:
- 70 1/2"
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (21,000 lbs)
- FRONT JACK BP:
- Single 15k 2 Speed Drop-Leg Jack
- TOOLBOX BP:
- HD V-Tongue Toolbox
CARGO AREA
- FLOORING:
- 10ga. Steel Bed
- GATE:
- 3 Way Spreader Gate
- D-RINGS:
- 4 D-Rings

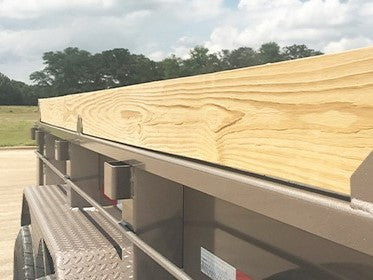

- STAKE POCKETS:
- On Each Upright
- RAMPS:
- 78" Slide In Ramps
- FENDERS:
- 14 Ga. Diamond Plate
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- 3-Stage Telescopic Cylinder
- CONTROLLER:
- Wired
- DUMP ANGLE:
- 45 Degrees
RUNNING GEAR
- TIRES:
- 235/80R16
- TIRE PLY:
- 14 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Lippert Super Lube Axles
2 - 8k Lippert Oil-Bath Axles
2 - 10k SS Lippert Oil-Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Slipper Roller (Torsion on 10k SS)
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
OPTIONS
