At a Glance
TRAILER SPECS:
Finish
- Colors:
-
BlackGrayWhteLight GreyRedBlueLime GreenGreenOrange
Get a Custom Quote
Product Features

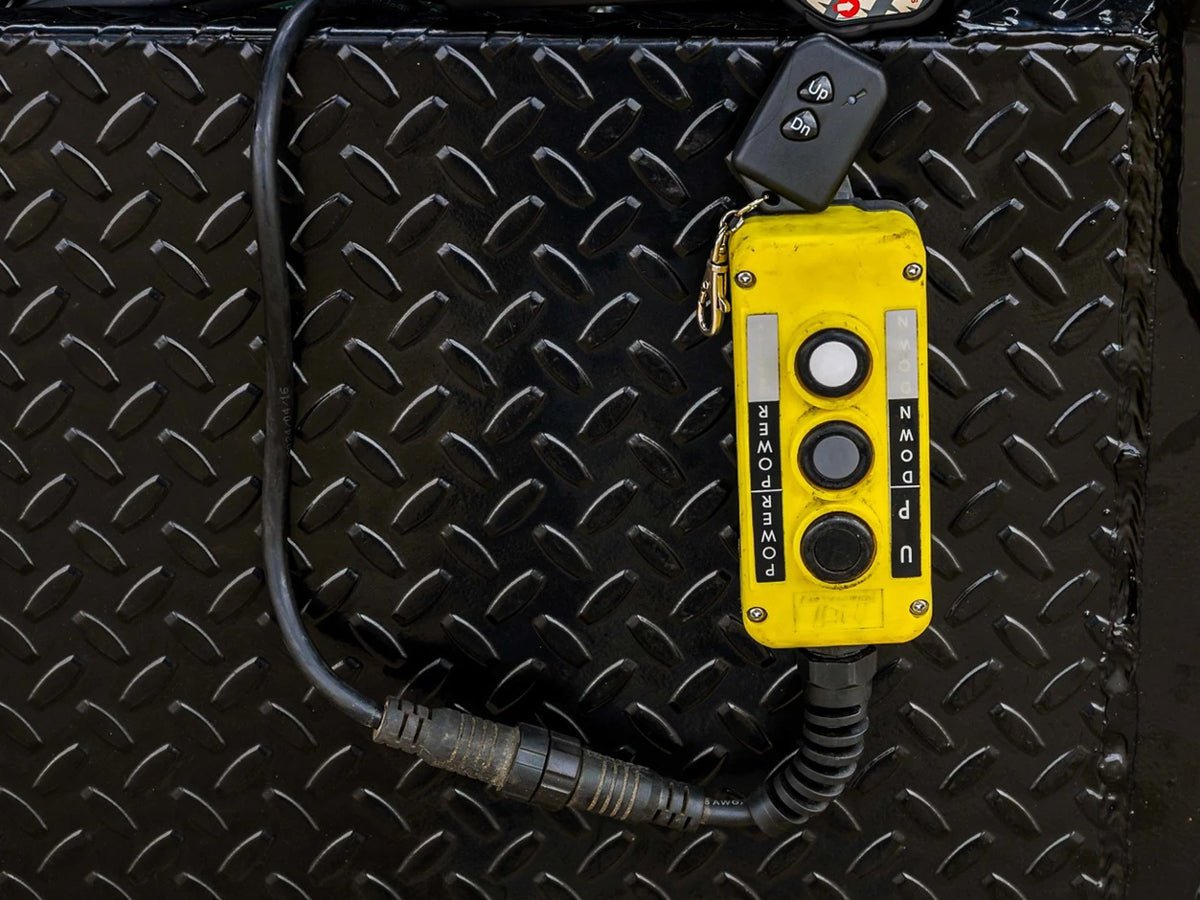

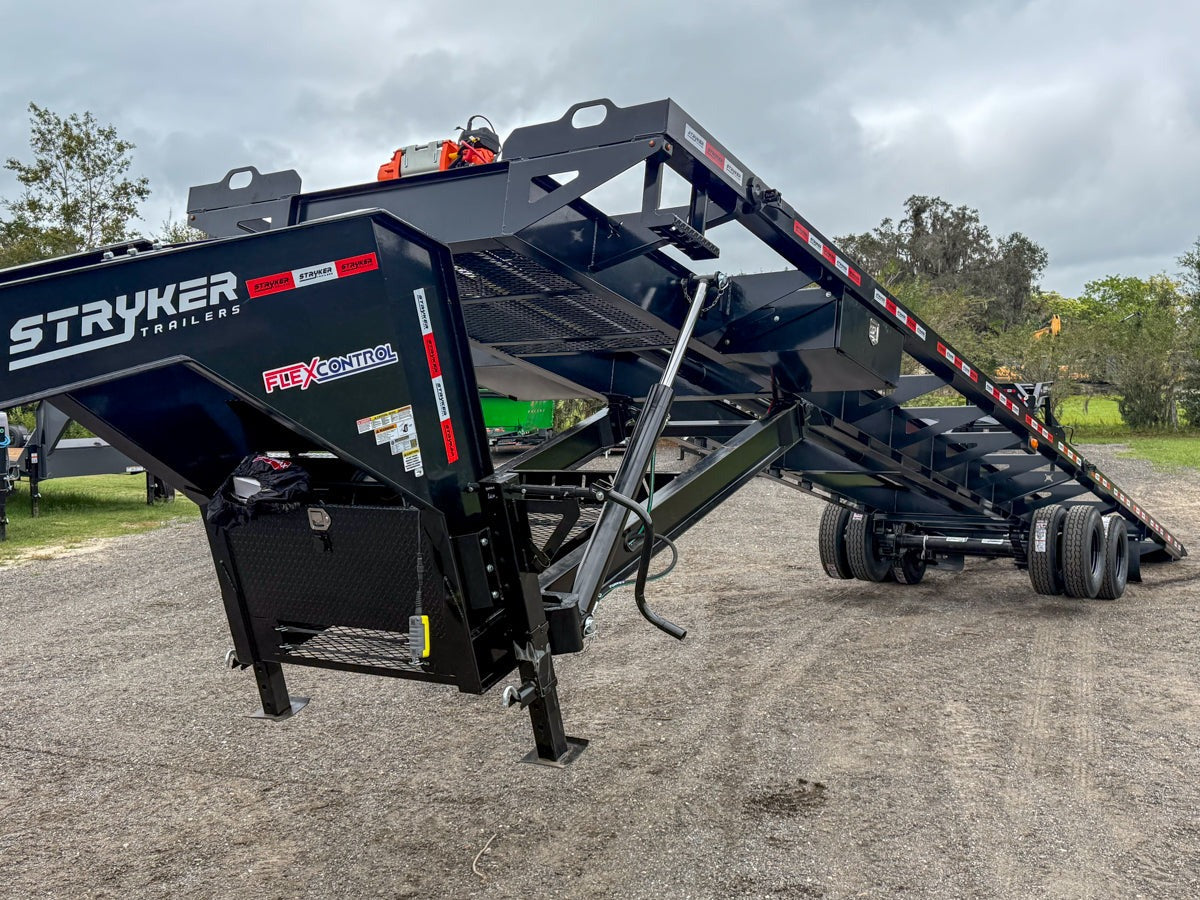

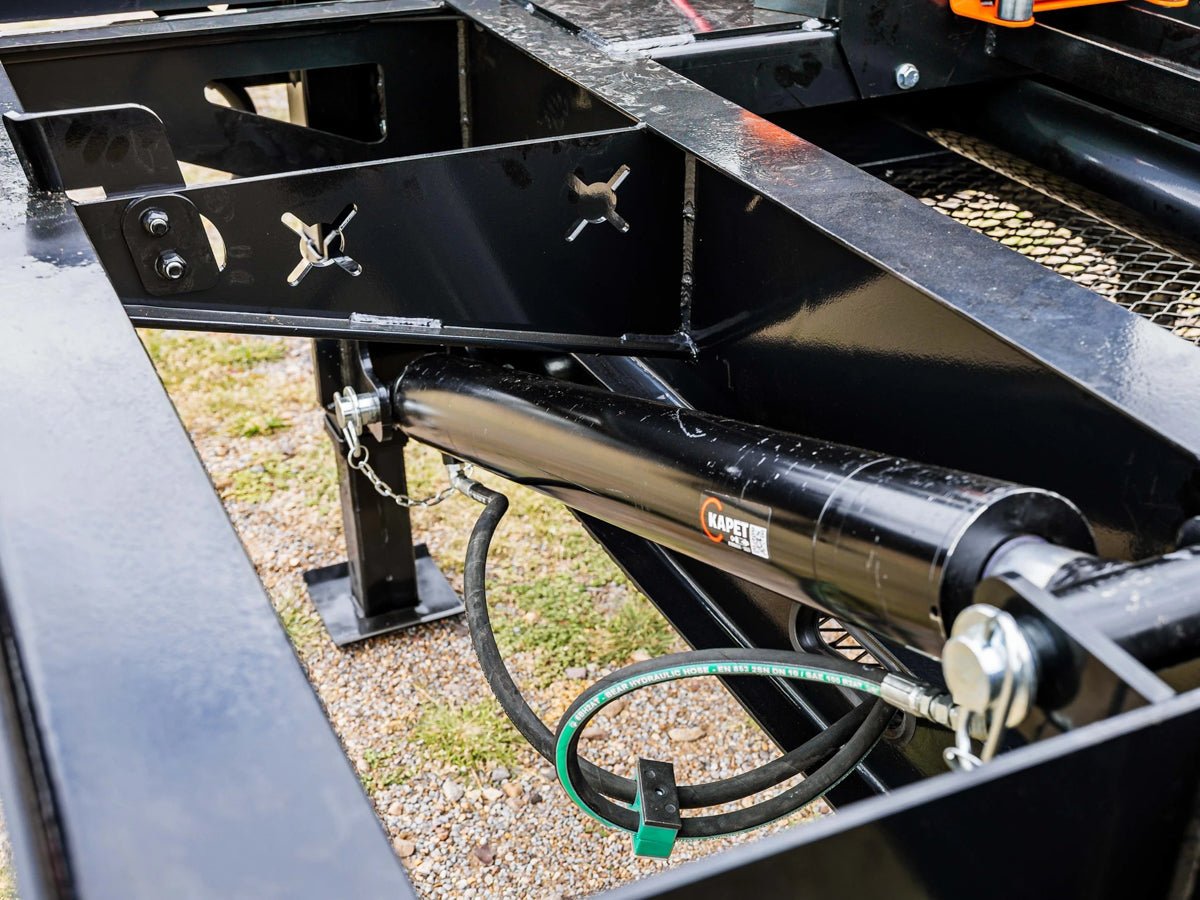

Powerful Hydraulic Tilt System
Experience effortless loading with a full-power hydraulic tilt system. The 12V hydraulic pump and dual cylinders provide smooth, reliable power-up and power-down operation, giving you complete control to easily create a loading ramp for any equipment or container.

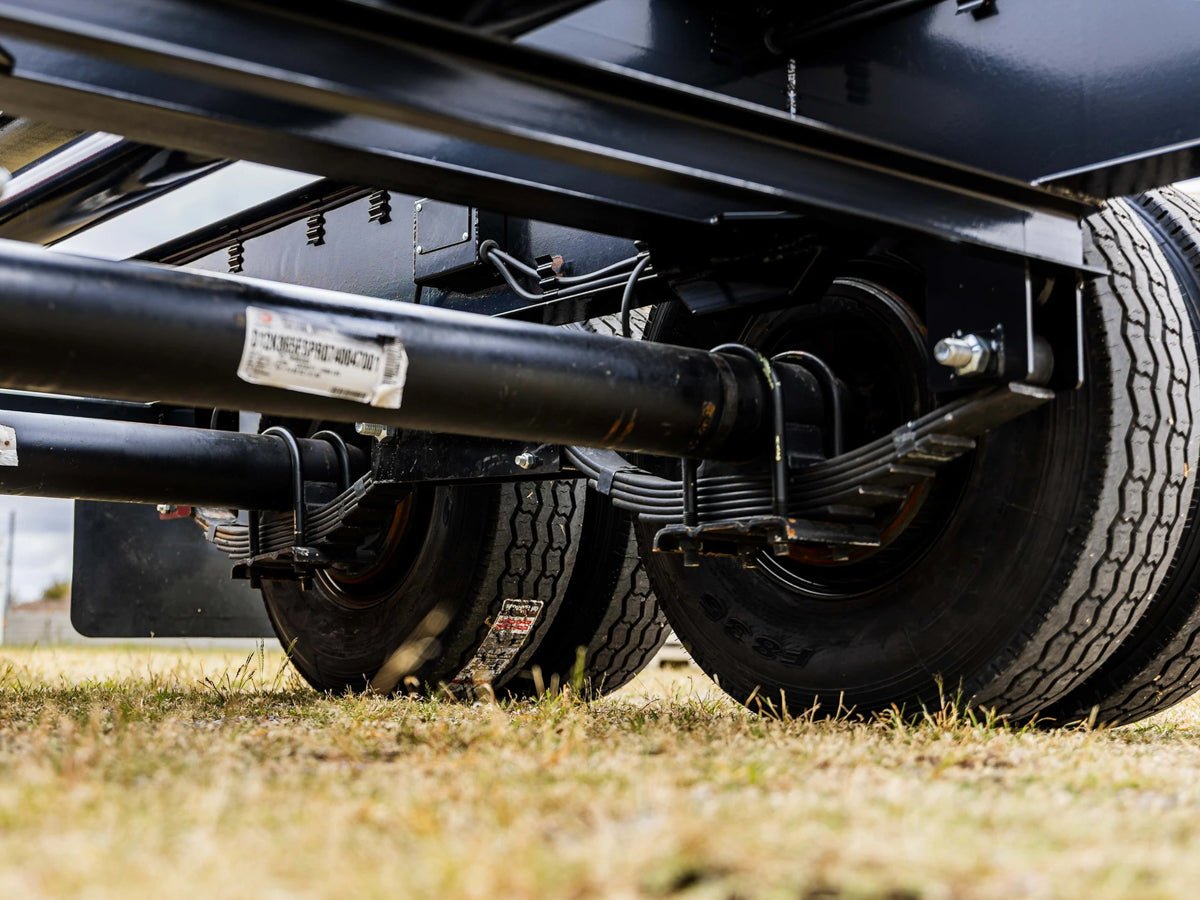

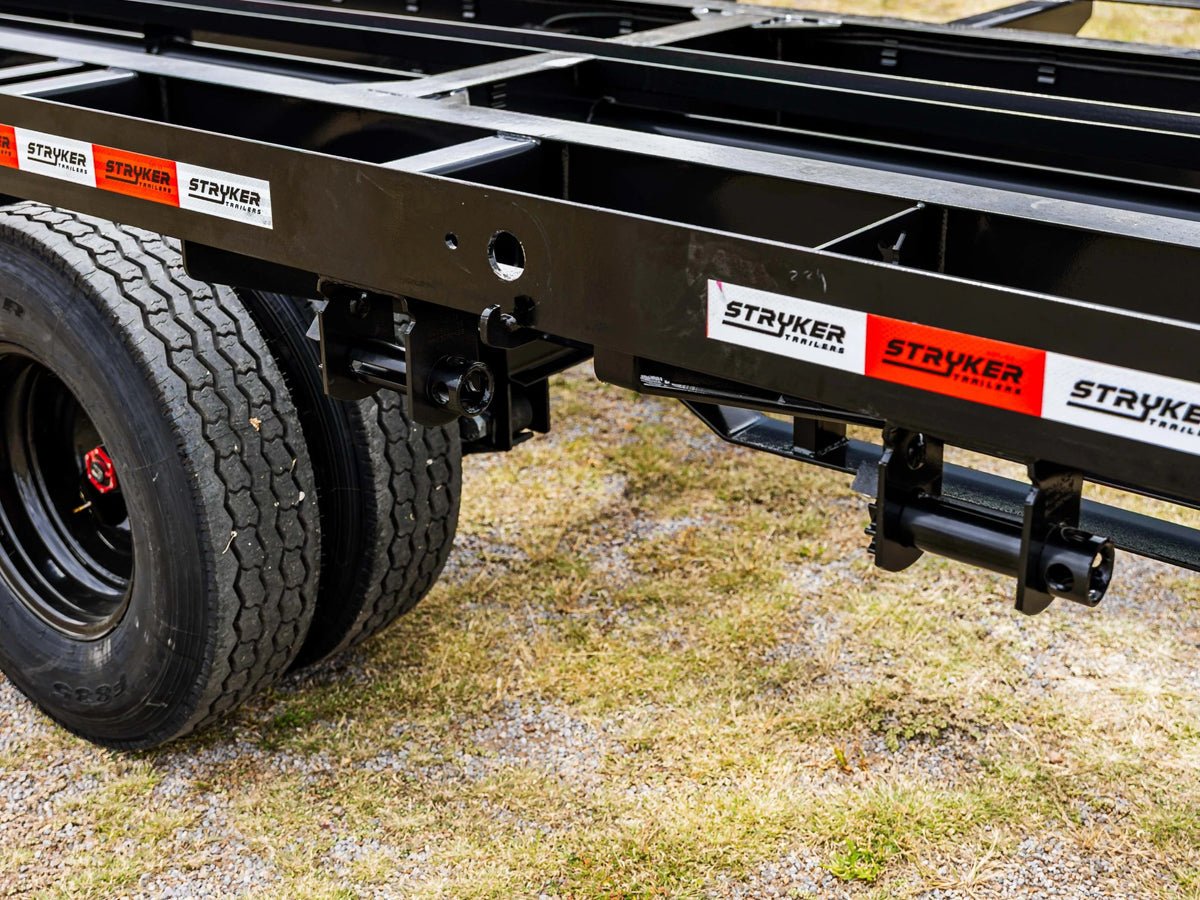

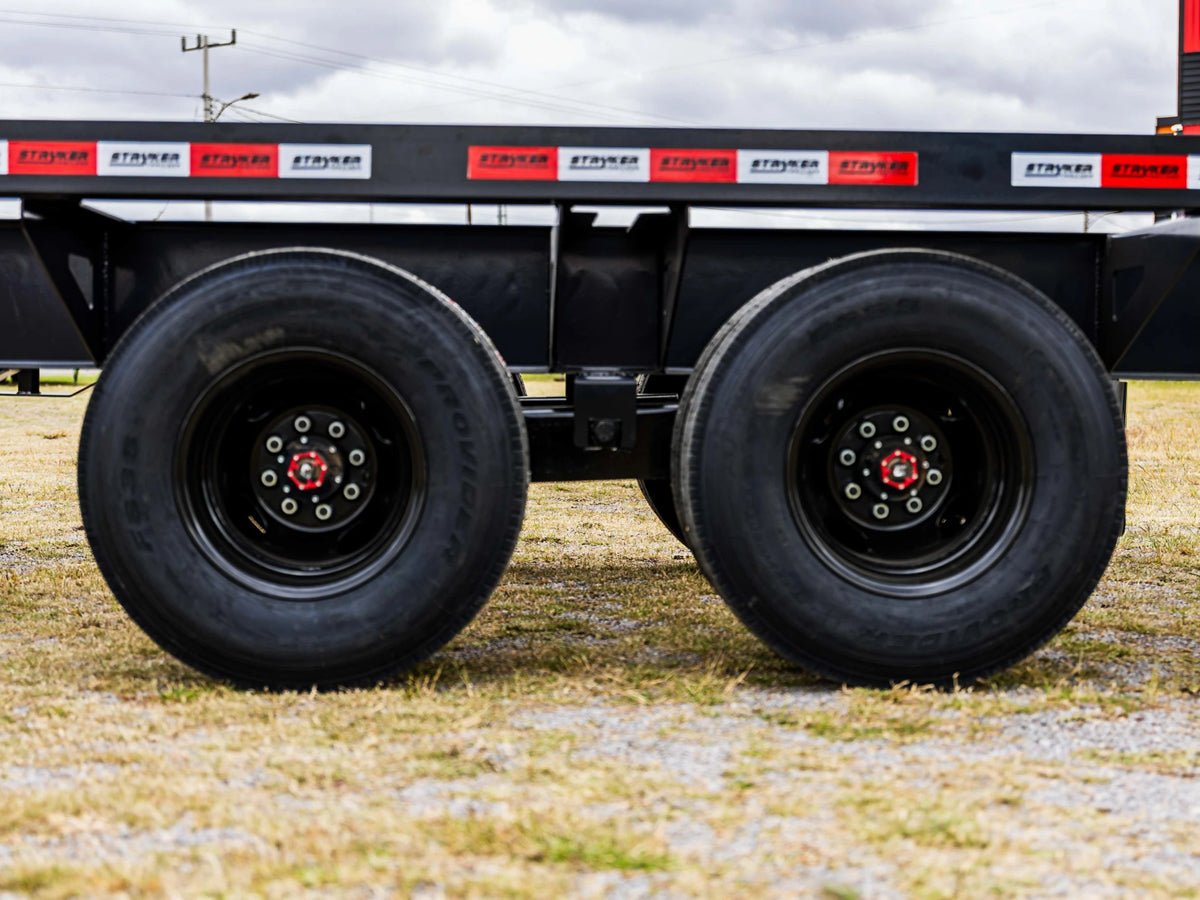

Heavy-Duty Oil Bath Axles
Built for reliability and smooth performance, this trailer features dual 12k Dexter Oil Bath Axles. The sealed oil bath system ensures constant lubrication for the hubs, running cooler and lasting longer than traditional grease-packed systems, which means less maintenance and more dependable hauling.

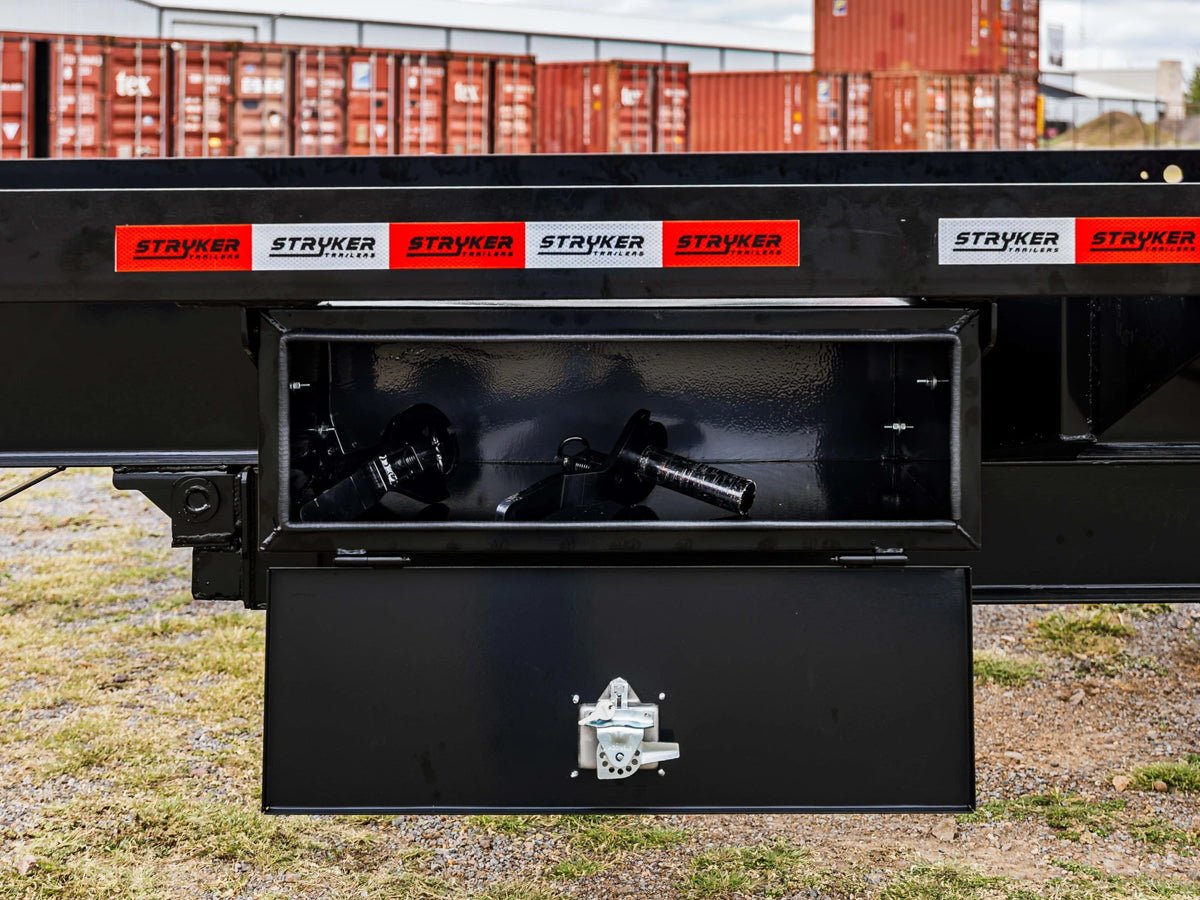

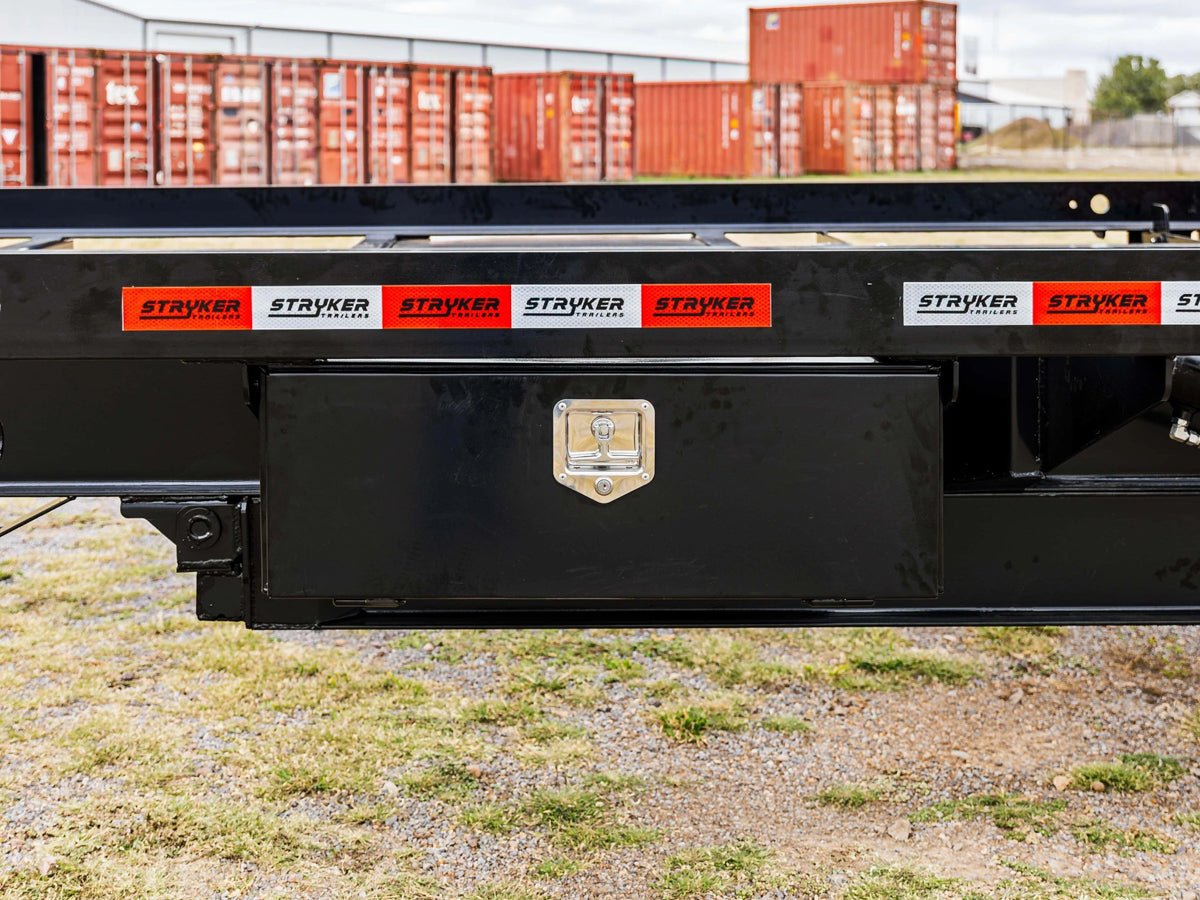

Versatile Side-Mount Toolbox
Keep your gear secure and within easy reach. This rugged, lockable side-mount toolbox provides convenient access for your essential items. A front-mount configuration is also available to best suit your workflow.
Rugged Powdercoat Defense
We prepare the surface with steel grit blasting before applying a tough powdercoat finish, ensuring maximum adhesion and longevity. This superior process, combined with a wide selection of 12 vibrant colors, provides a durable shield against rust, scratches, and the elements.

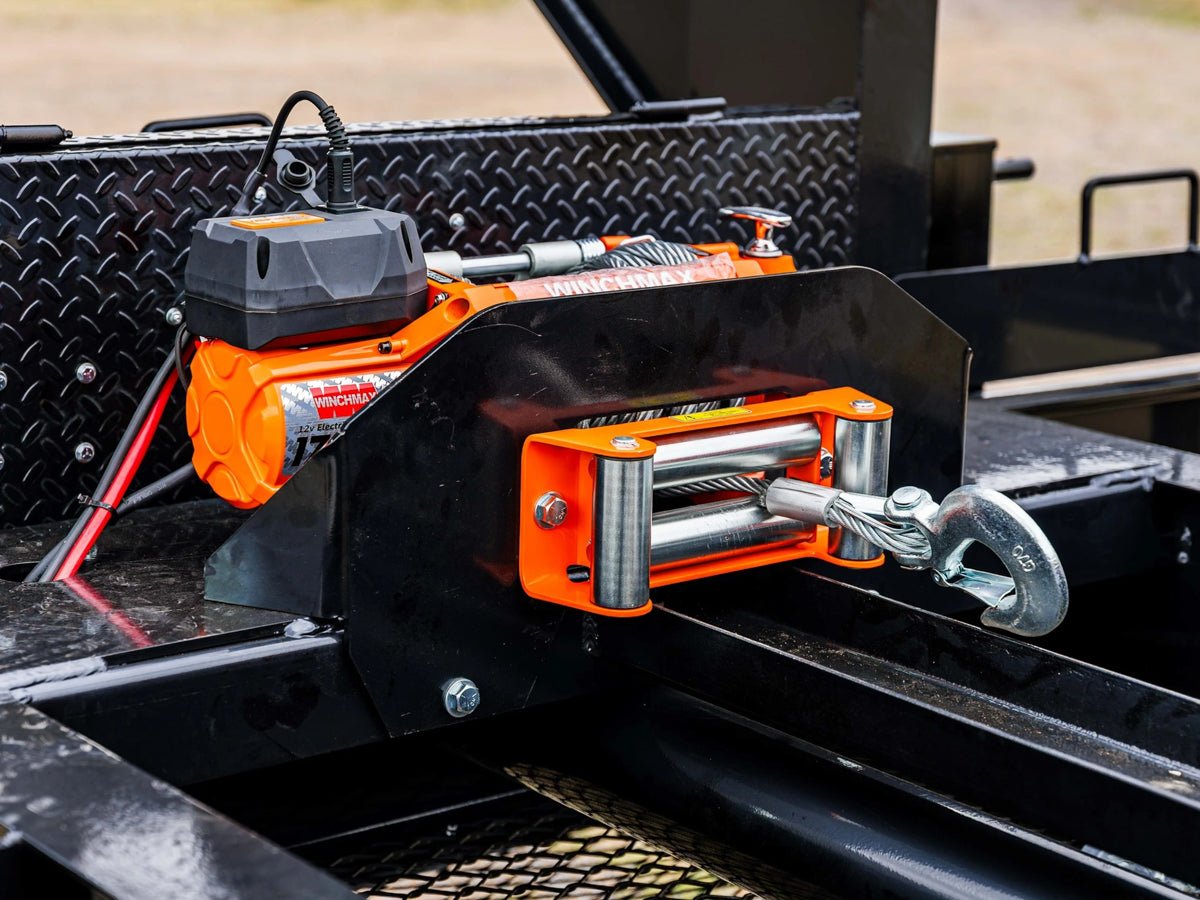

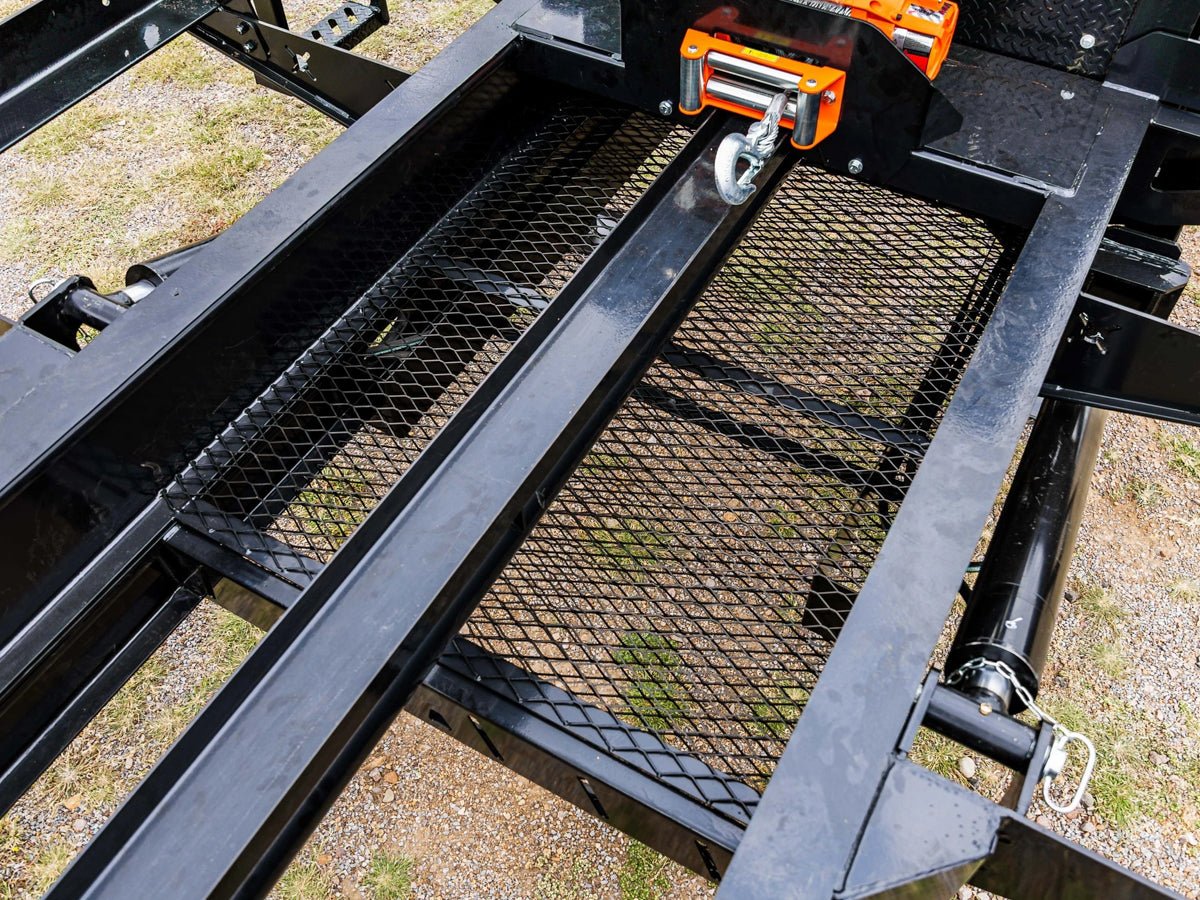

18,000 lb Wireless Winch
Dominate any loading situation with the massive 18,000 lb winch and convenient wireless remote. Mounted at the front of the deck, it provides the ultimate pulling power to effortlessly load heavy machinery or secure containers directly to the trailer.
Engineered I-Beam Strength
The backbone of this trailer is its rugged 12" I-Beam main frame, providing the optimal balance of strength and weight for a smooth tilt function. Combined with 3" channel crossmembers on 16" centers, it delivers a solid, dependable platform for heavy containers and equipment.
Product Details
DIMENSIONS
- LENGTH:
- 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 38"
WEIGHT RATINGS
- GAWR:
- 12k
- GVWR:
- 25k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable

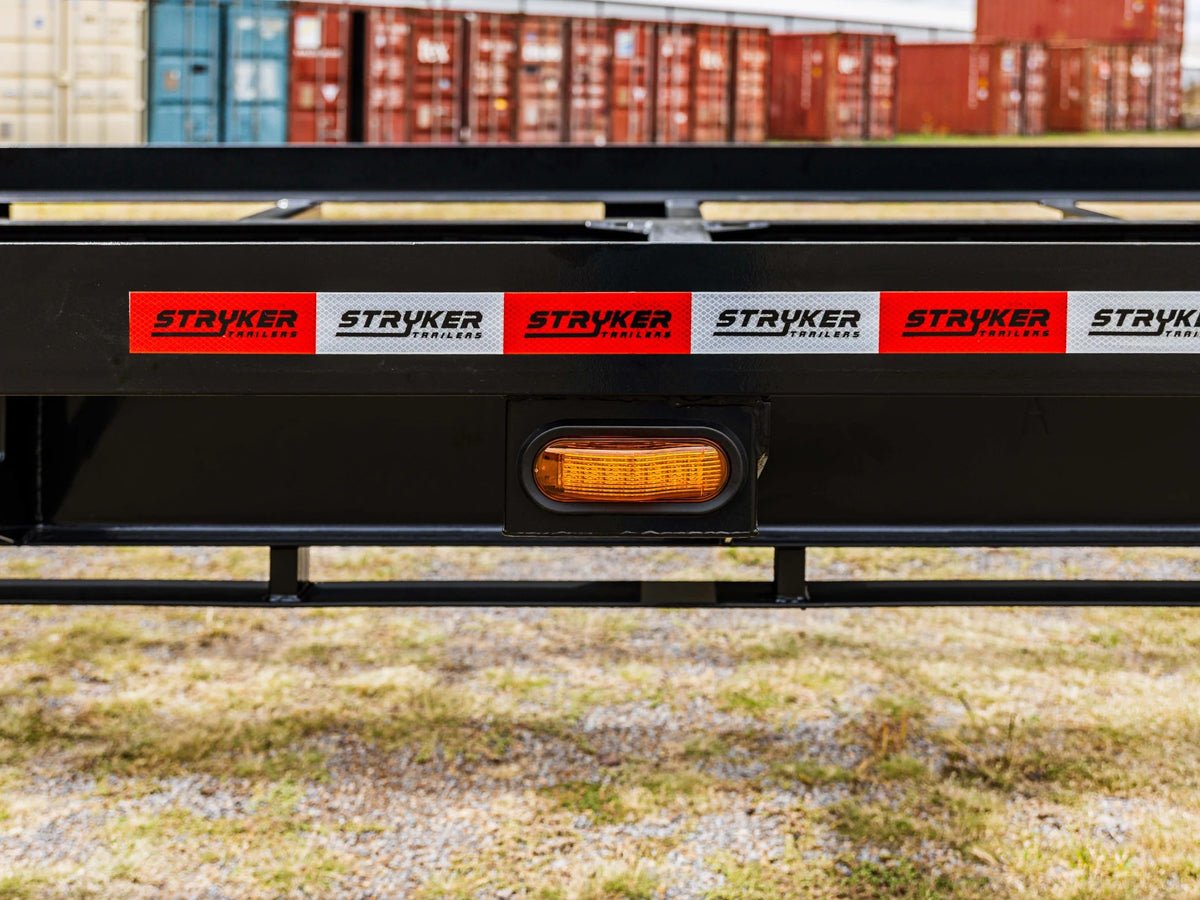

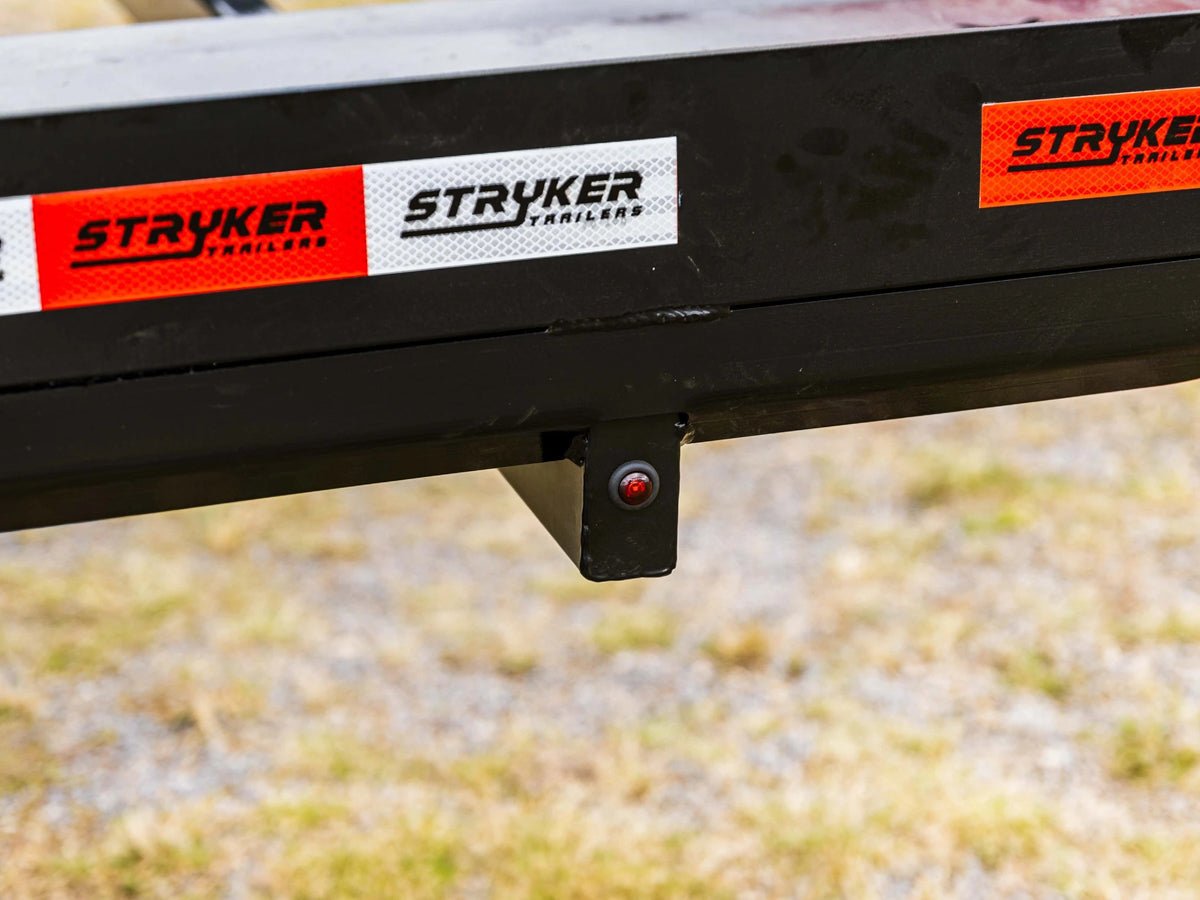

- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Fabricated I-Beam
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS:
- 2 - 12k Drop-Leg Jacks
- TOOLBOX GN:
- Front Toolbox w/ Gas Shock Assisted Lid
DECK & LOADING
- DECK TYPE:
- Metal Mesh Deck
- TILT METHOD:
- Power Up & Power Down

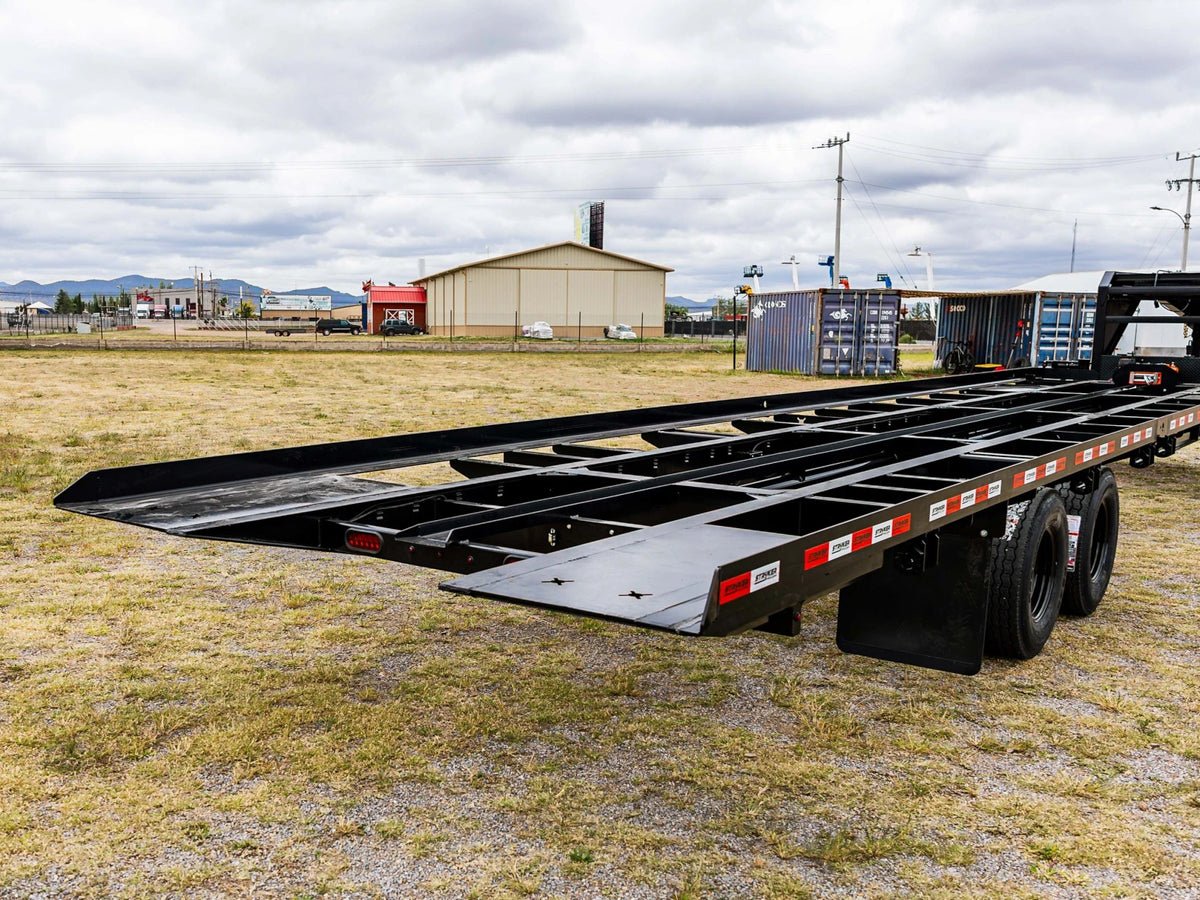

- TILT DECK:
- Full Tilt
- WINCH:
- 18,000 lb Winch w/ Wireless Remote
- WINCH PLATE:
- Front of Deck
ELECTRICAL & LIGHTING
- BATTERY:
- Group 27 Series Battery
- CHARGING SYSTEM:
- Solar Panel For Battery Charging
- WIRING HARNESS:
- Weather Resistant Wiring Harness

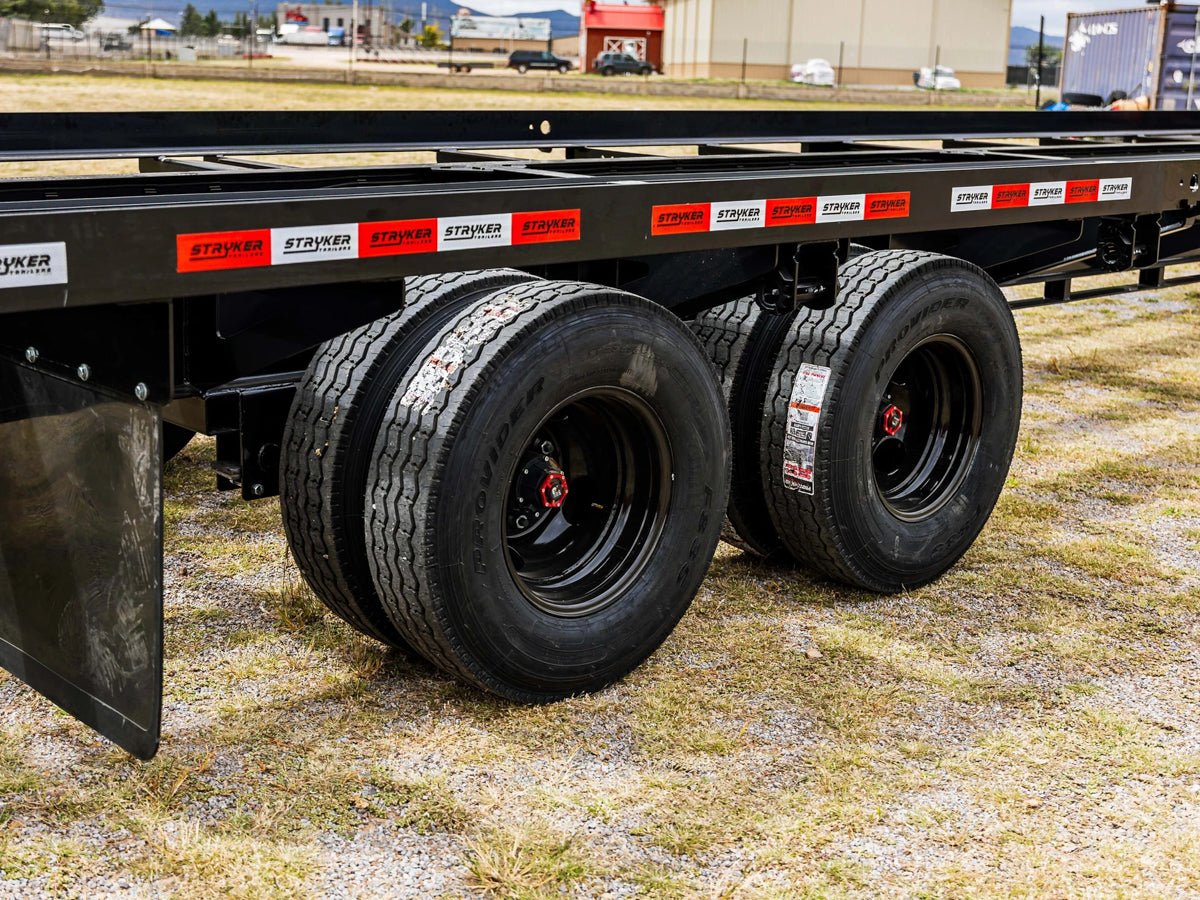

RUNNING GEAR
- TIRES:
- Radial Tires, ST235/80R16, 10 Ply
- RIMS:
- 16" Black Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 12k Dual Dexter Oil Bath Axles
- AXLE COUNT:
- 2
HYDRAULIC SYSTEM
- PUMP:
- 12 V Hydraulic Pump
- LIFT CYLINDER:
- 2 Hydraulic Cylinders
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
OPTIONS
