At a Glance
TRAILER SPECS:
Specifications
- Brand:
RawMaxx
- Pull Type:
Gooseneck
Dimensions
Inquire About This Trailer
Product Features

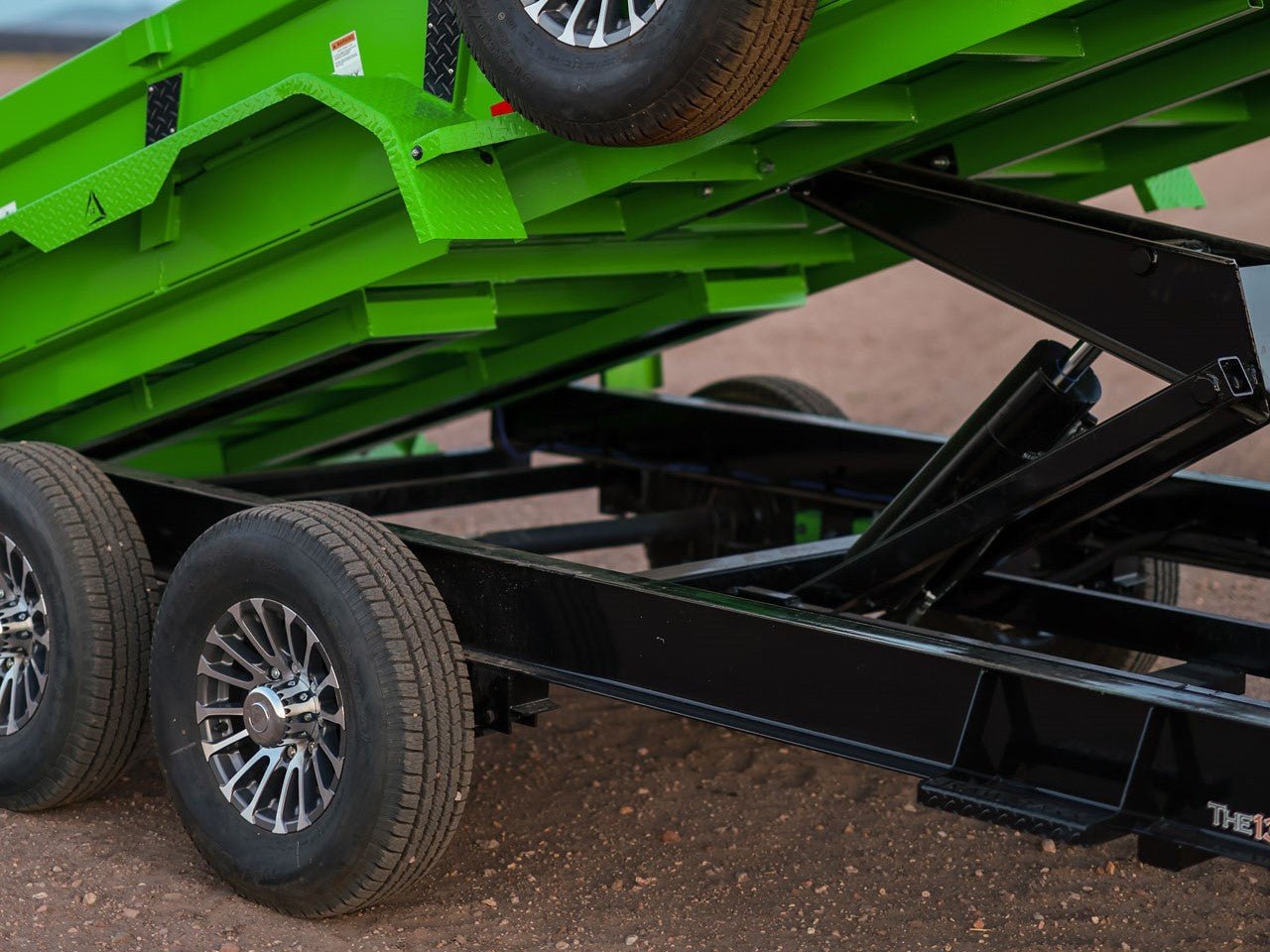

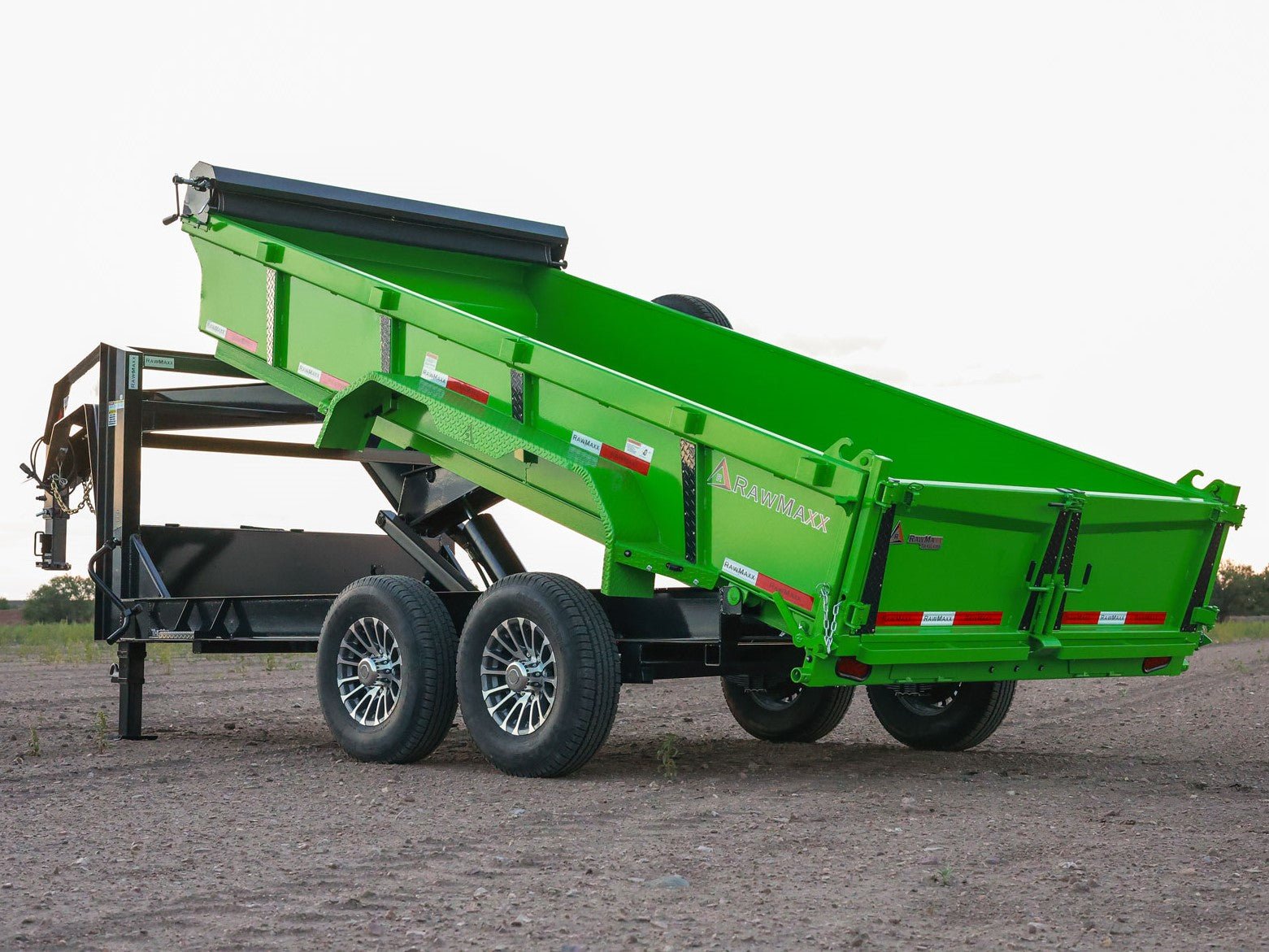

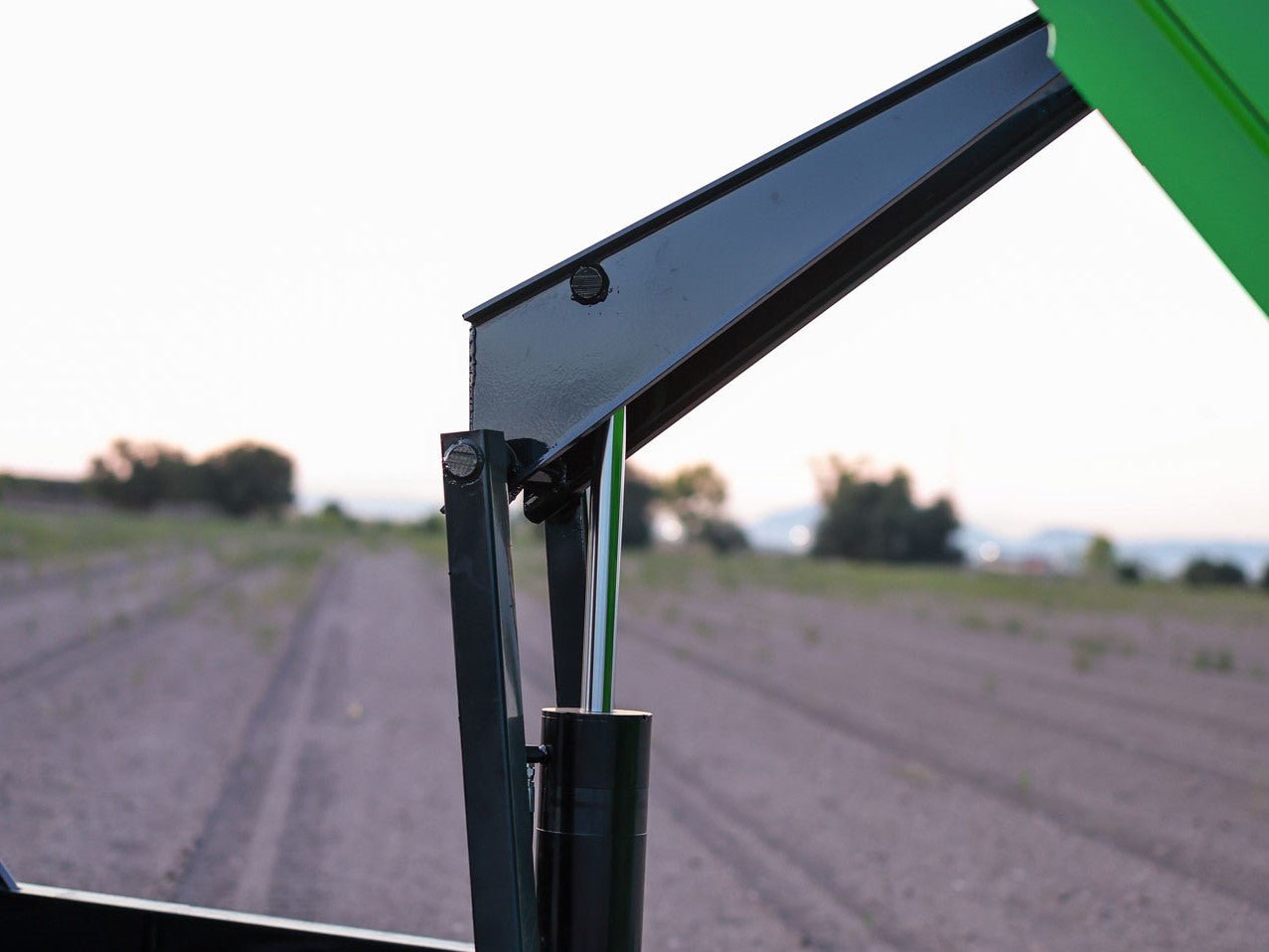

Effortless Hydraulic Lift System

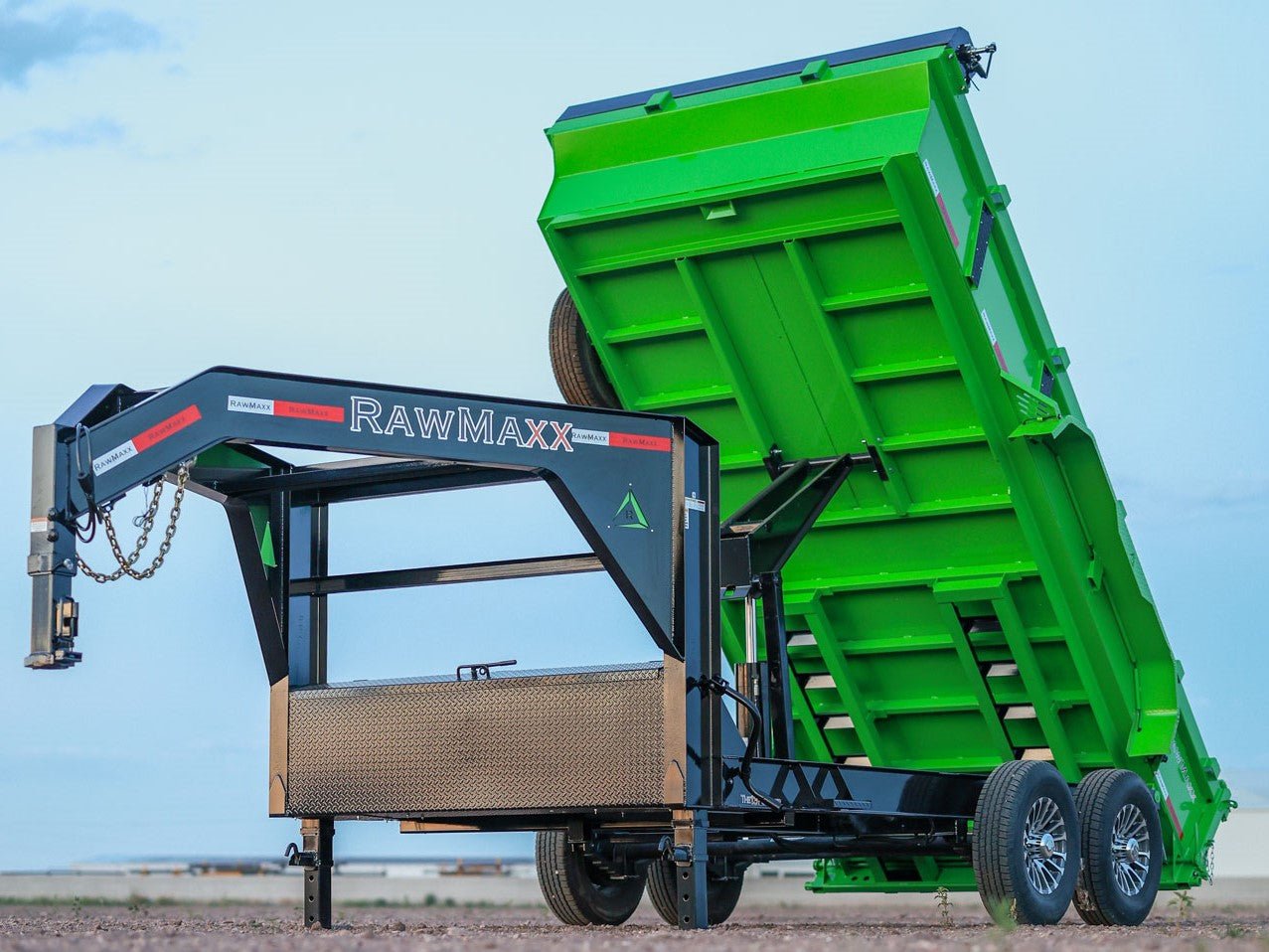

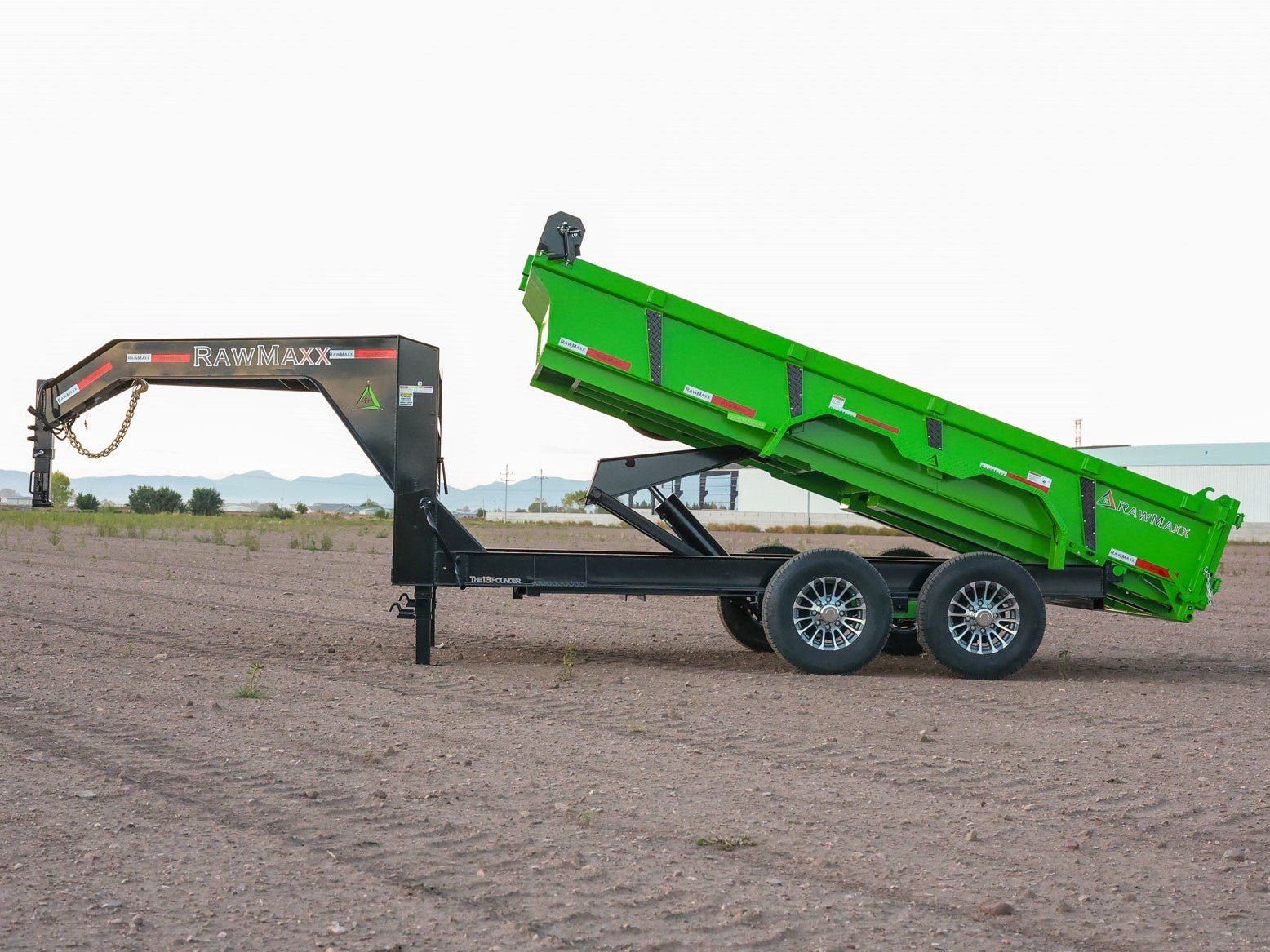

Powered by a KTI 12V hydraulic pump, the LPX dump trailer features a hydraulic power-up and power-down scissor lift system. This system enables easy raising and lowering of the dump bed for efficient loading and unloading tasks, enhancing productivity across all dimensions.

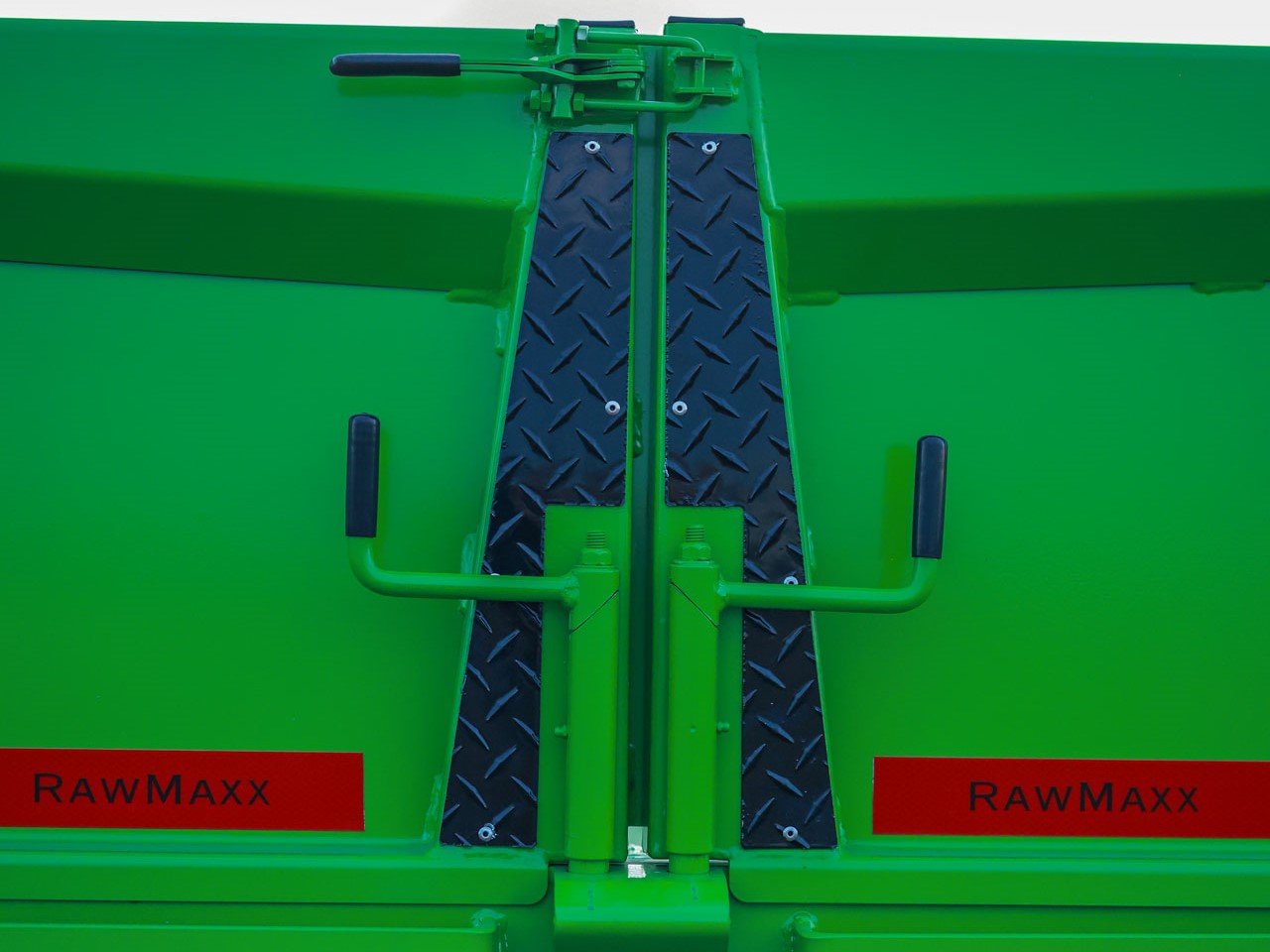

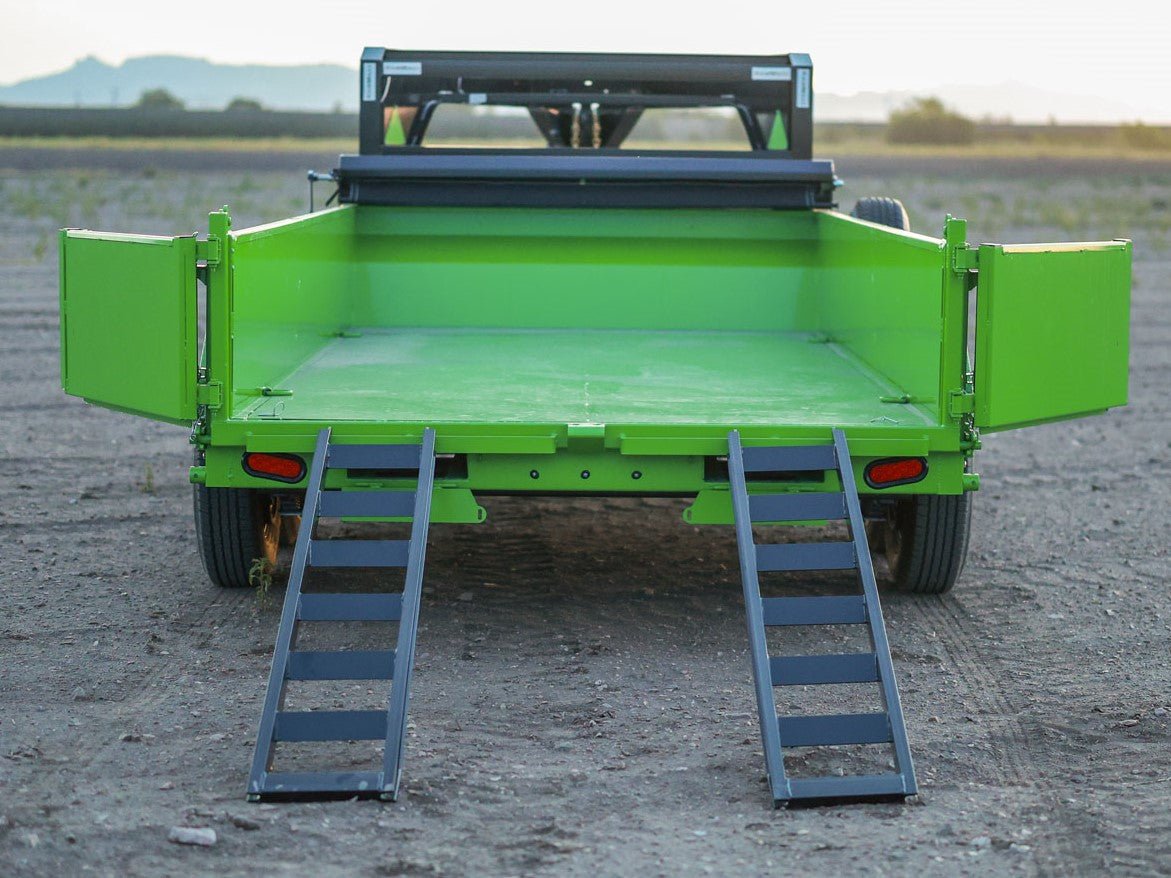

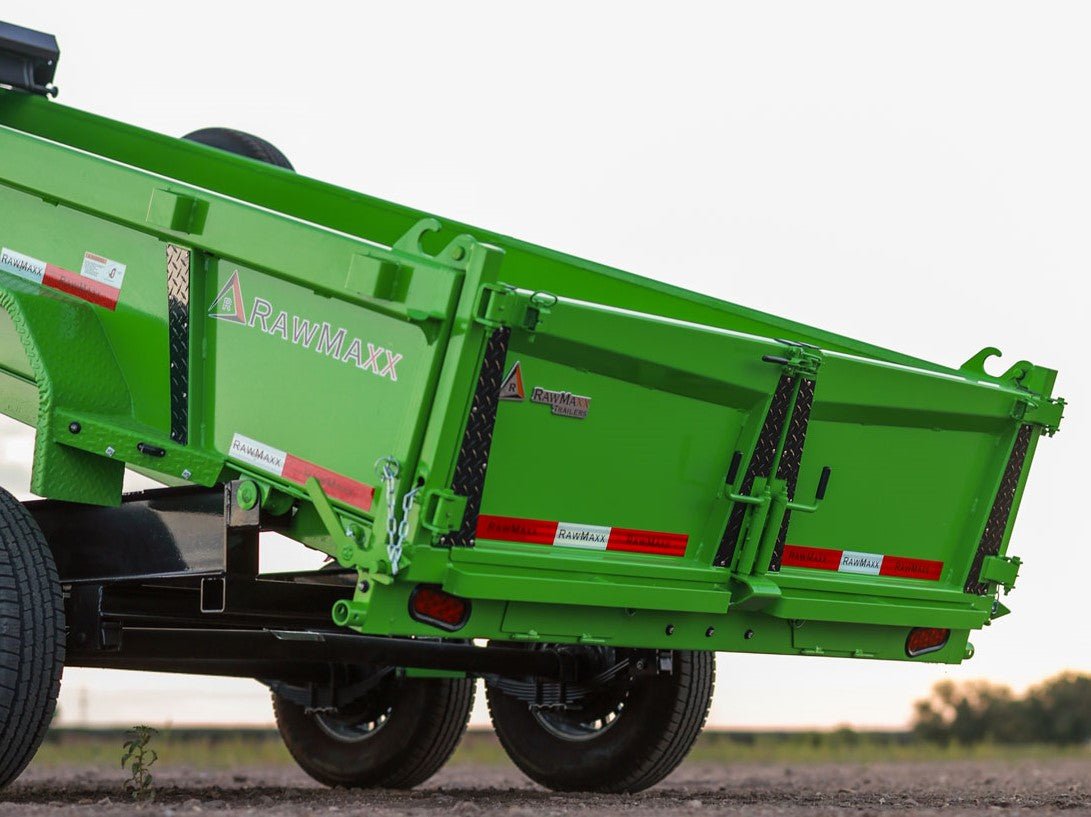

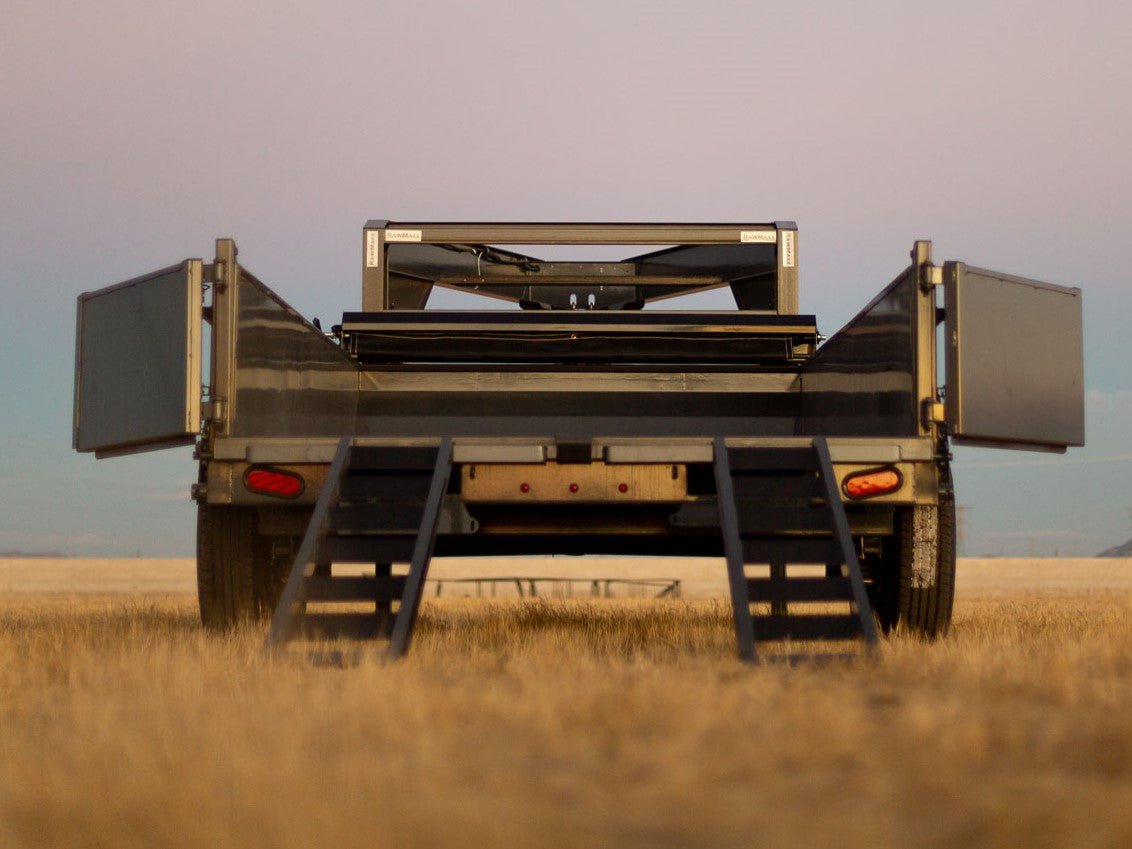

Versatile Rear Gate Design
Equipped with a three-way rear gate and EZ slam door latches, the LPX dump trailer offers versatile loading and unloading configurations for all sizes. This flexibility allows for easy customization based on specific hauling requirements, improving efficiency and adaptability on the job site.
Durable Flooring and Side Walls
With a 7G one-piece floor and 10G formed side walls, the LPX dump trailer ensures rugged durability across all dimensions. This construction provides reliable protection for transported materials and equipment, maintaining structural integrity and performance over time.

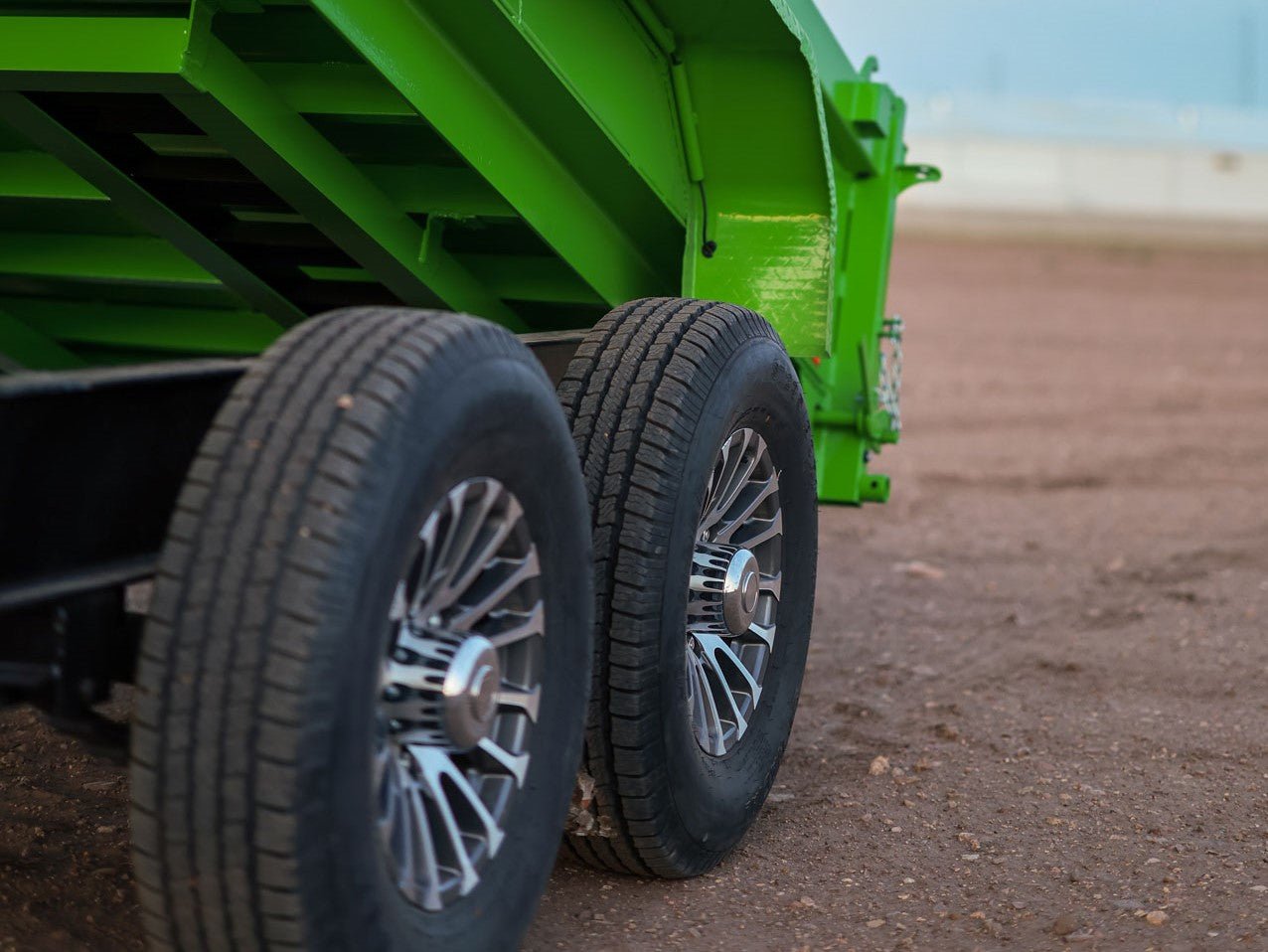

Reliable Running Gear
The LPX dump trailer is equipped with high-quality radial tires and spring axles across all sizes. With ST235/80R16 radial tires rated for 10 ply and 16” black mod wheels, coupled with a spring axle suspension system, this trailer ensures smooth and stable towing, enhancing safety and reliability on the road.
Rugged Frame Construction
The LPX dump trailer boasts a solid foundation with its 8" x 13 lb. I-beam main frame and 4" x 6" x 3/16" tubing cross-members. This sturdy construction ensures durability across all sizes, capable of withstanding tough job site conditions and heavy loads without compromising performance.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.Product Details
DIMENSIONS & CAPACITY
- LENGTHS:
- 12', 14', 16'
- WIDTH:
- 83"
- DECK HEIGHT:
- 28"
- GVWR:
- 14,000 lbs
- GAWR:
- 7,000 lbs
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" x 13 lb. I-Beam Frame
- CROSS MEMBERS:
- 4" x 6" x 3/16" Tubing

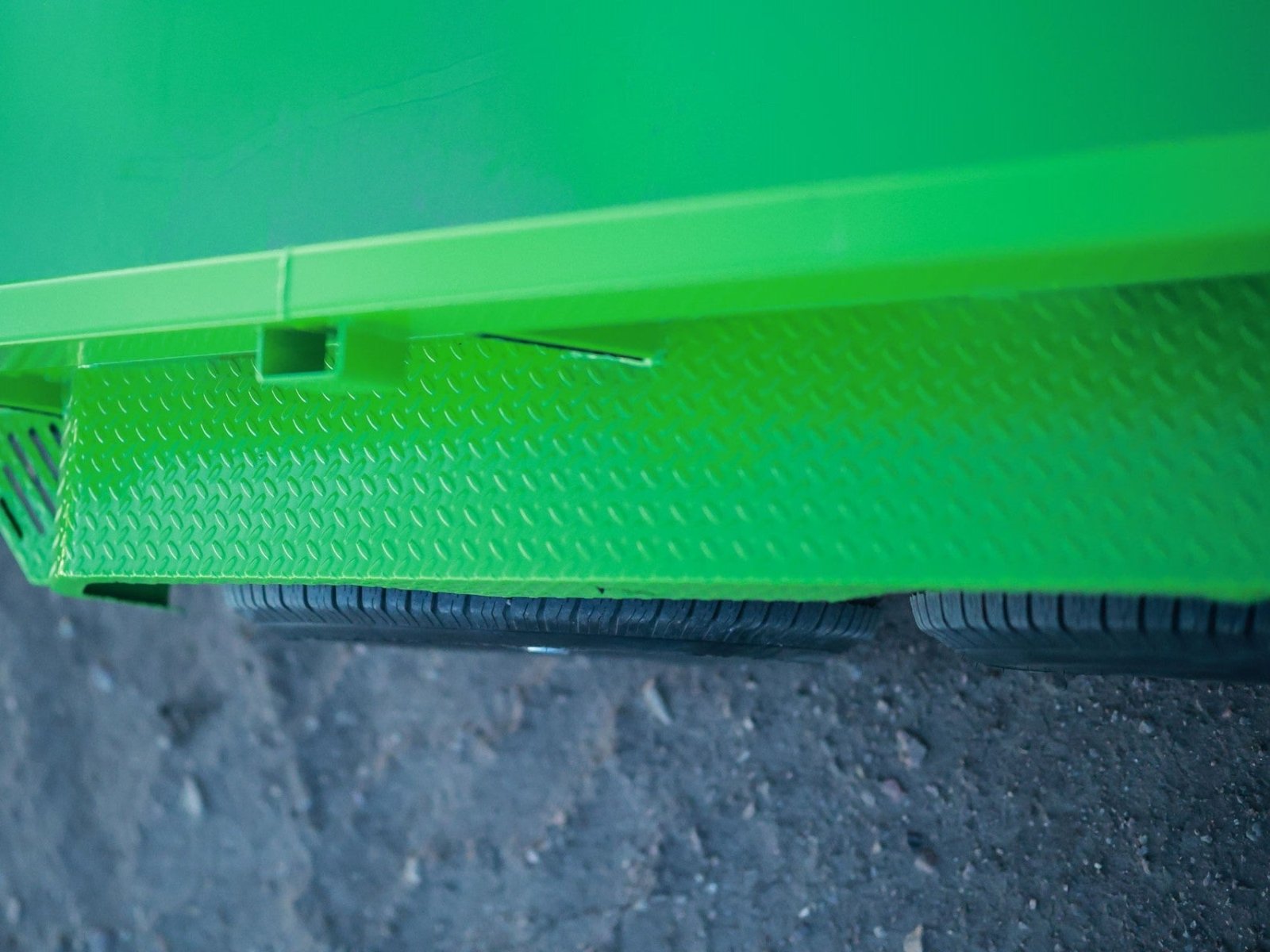

- SIDE STEP:
- G10 Sides / G12 Diamond Plate Step

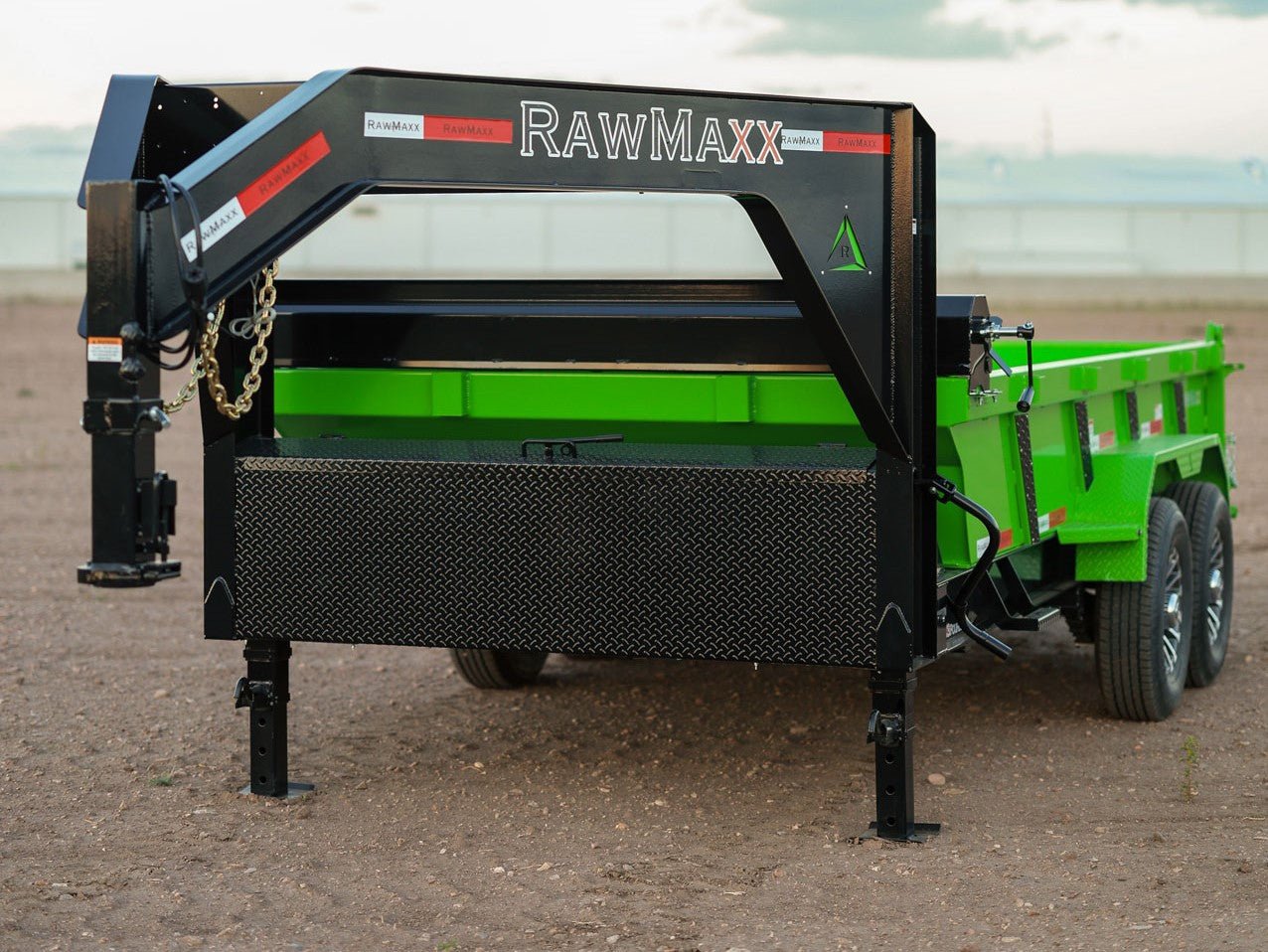

GOOSENECK
- COUPLER:
- 2-5/16” Adjustable Ball Coupler

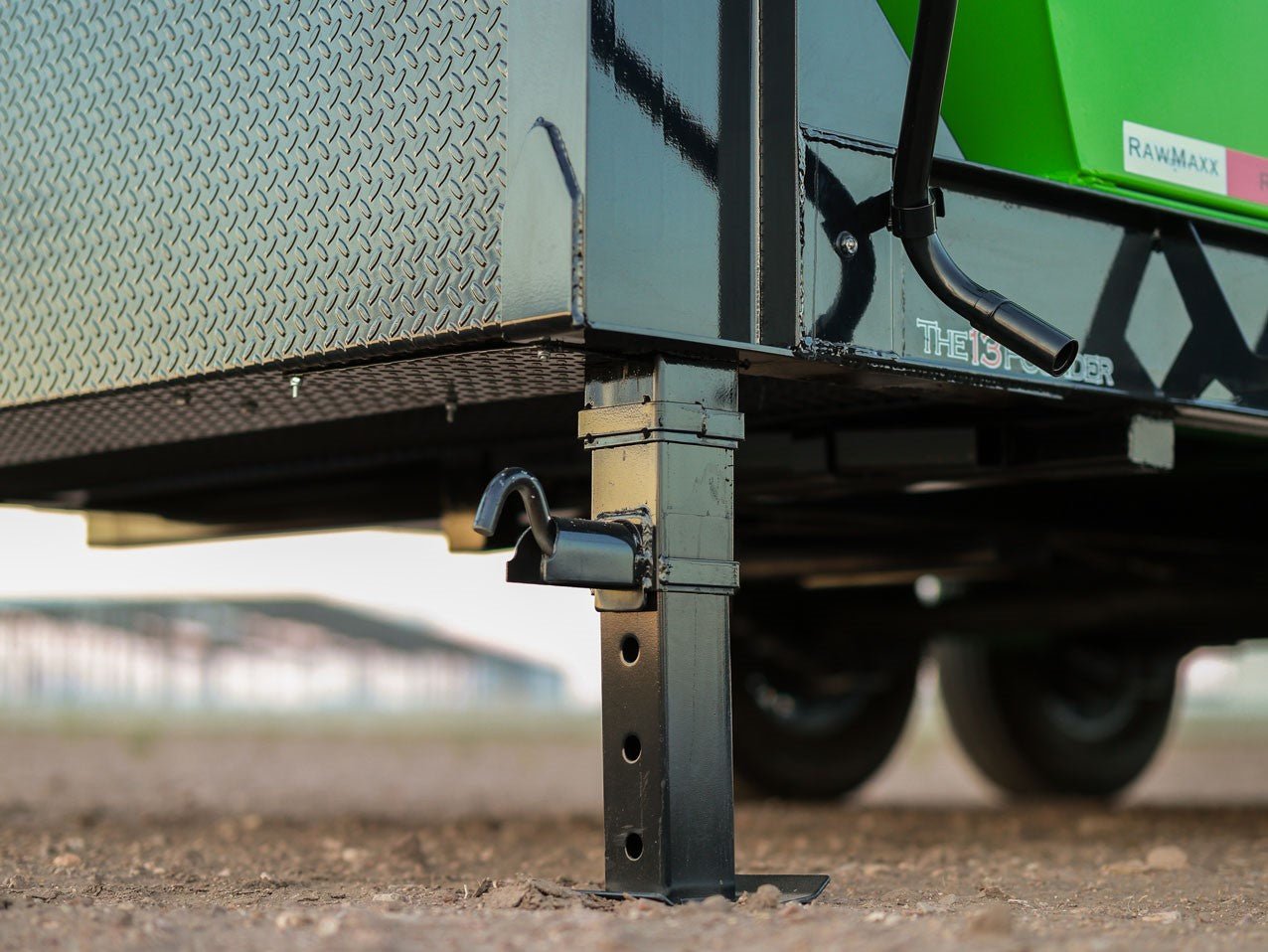

- JACKS:
- (2) 10,000 lb. Side Wind Drop Legs

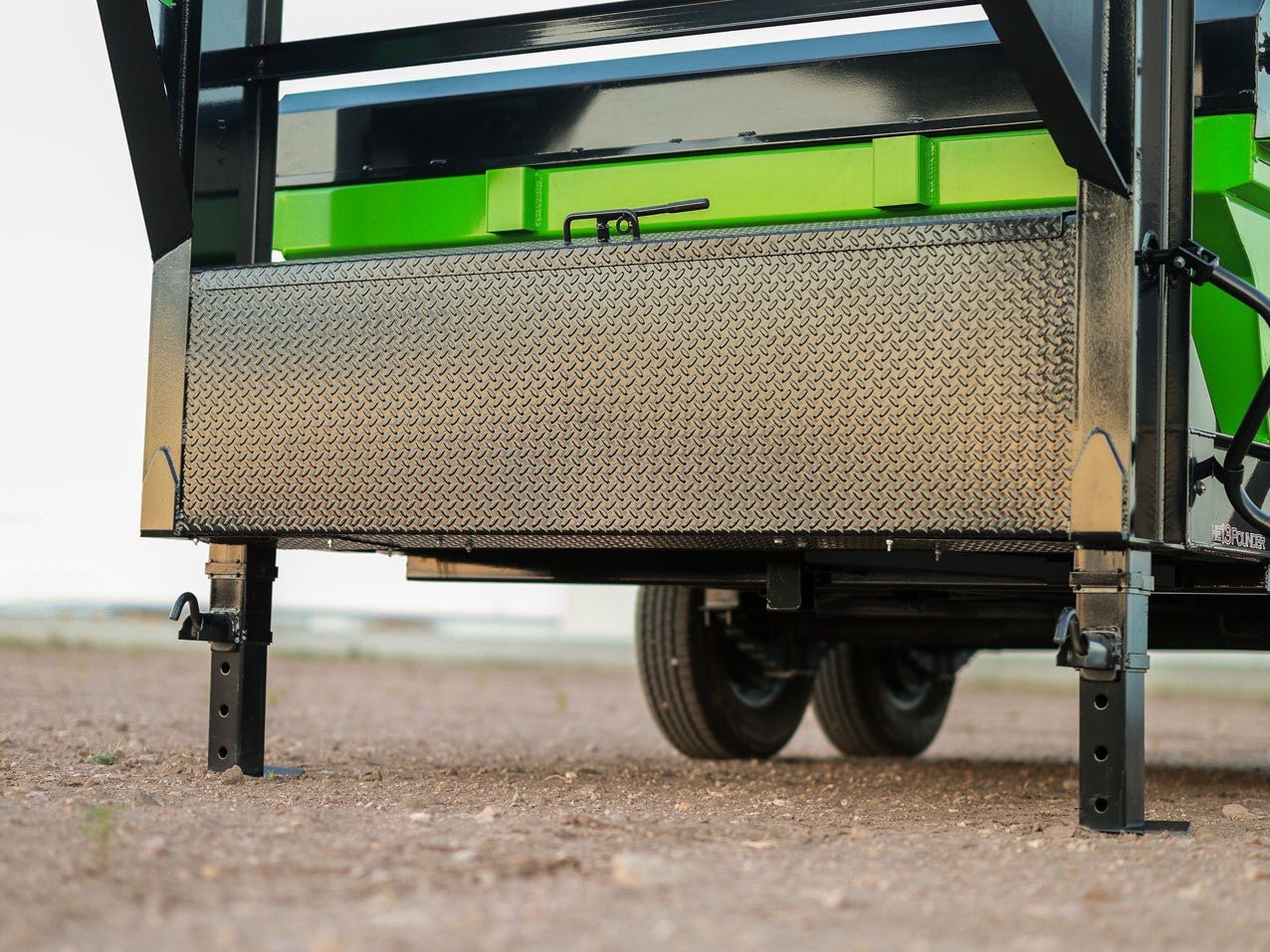

- TOOL BOX:
- Between Risers for Pump, Battery & Charger
- NECK:
- 8" x 13 lb. I-Beam
- NECK LENGTH:
- 90"
DUMP BED
- TILT FRAME:
- 5" x 5" x 3/8" Angle
- CROSS MEMBERS:
- 3" Channel / 16" on Center
- INSIDE WIDTH:
- 83"
- SIDE HEIGHT:
- 22"
- SIDE WALLS:
- 10G Formed Plate
- SIDE RAIL:
- 10G Formed Plate
- FLOORING:
- 7G Floor

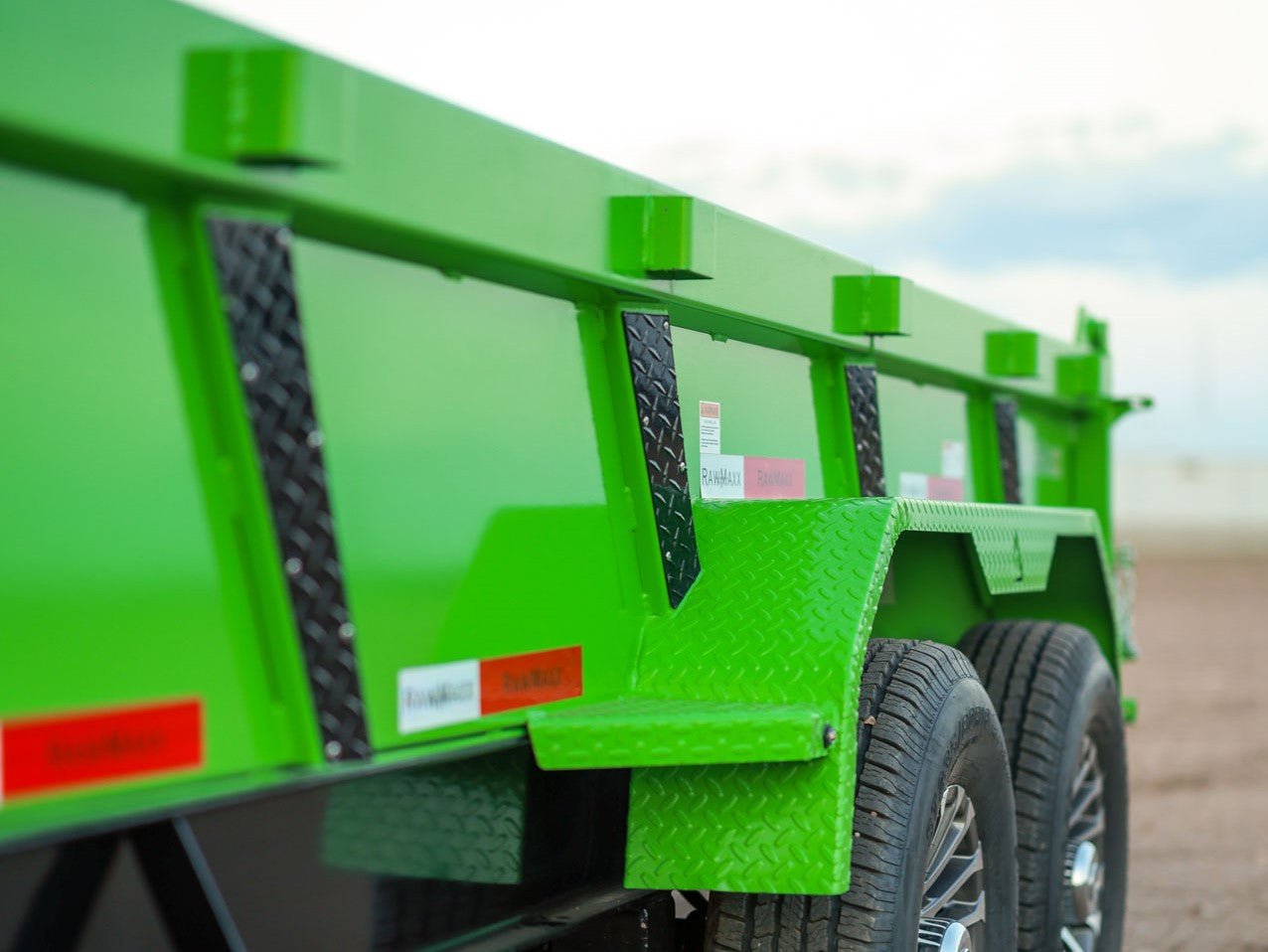

- FENDERS:
- 12G Tread Plate Steel

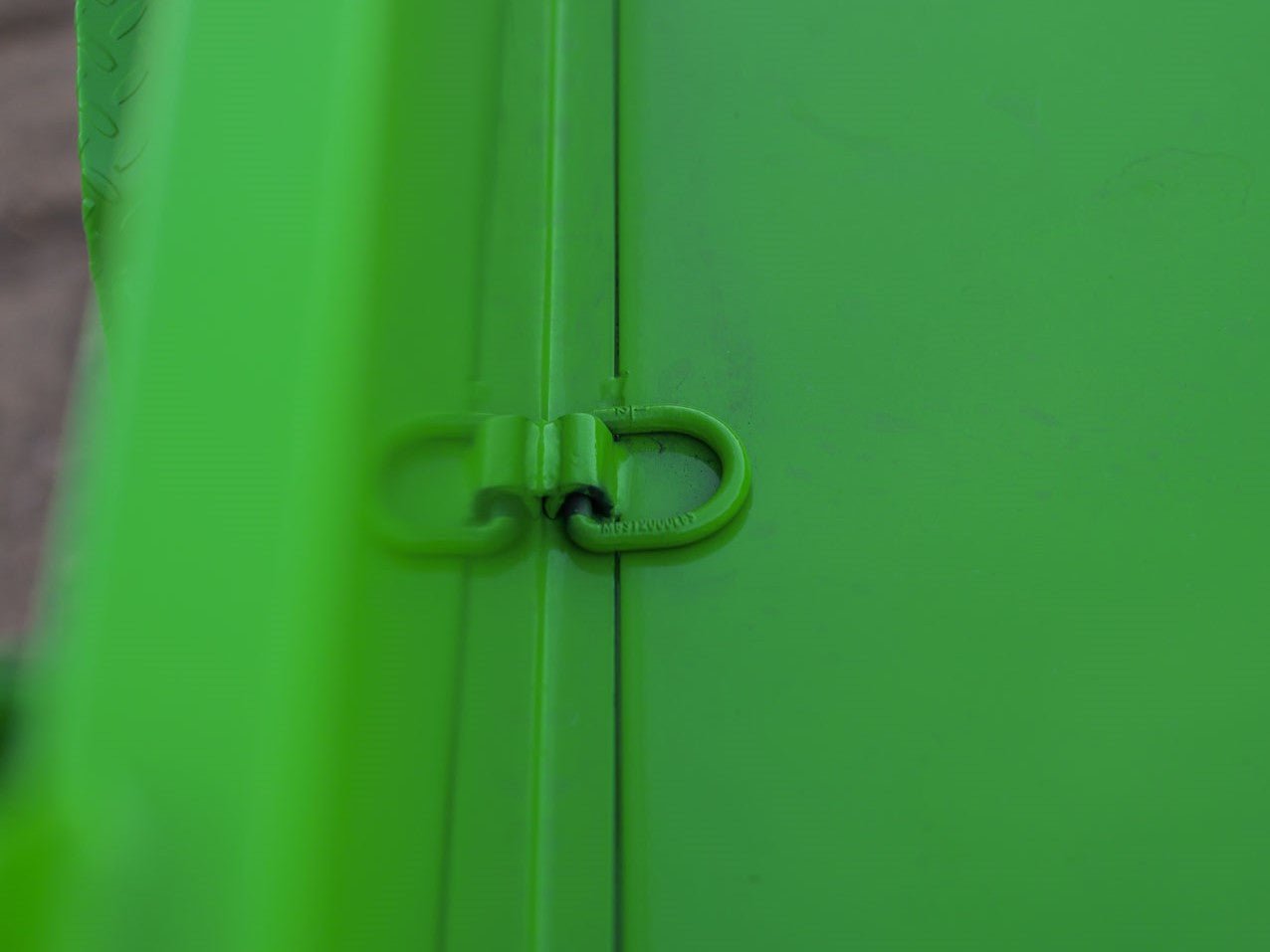

- D-RINGS:
- 4 Welded Inside Corners
- STAKE POCKETS:
- 3-7/8" x 1-13/16" (ID)
- SIDE POSTS:
- 10G Formed Plate
- CARGO CAPACITY:
- 5.89 Cubic Yards
SPARE MOUNT
- SPARE TIRE MOUNT:
- 3" Tubing / 3/16" Plate
TARP
- KIT:
- Manual Tarp Kit
RUNNING GEAR
- TIRES:
- Radial, ST235/80R16, 10 Ply, 3,520 lb. Rating
- RIMS:
- 16" Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5"

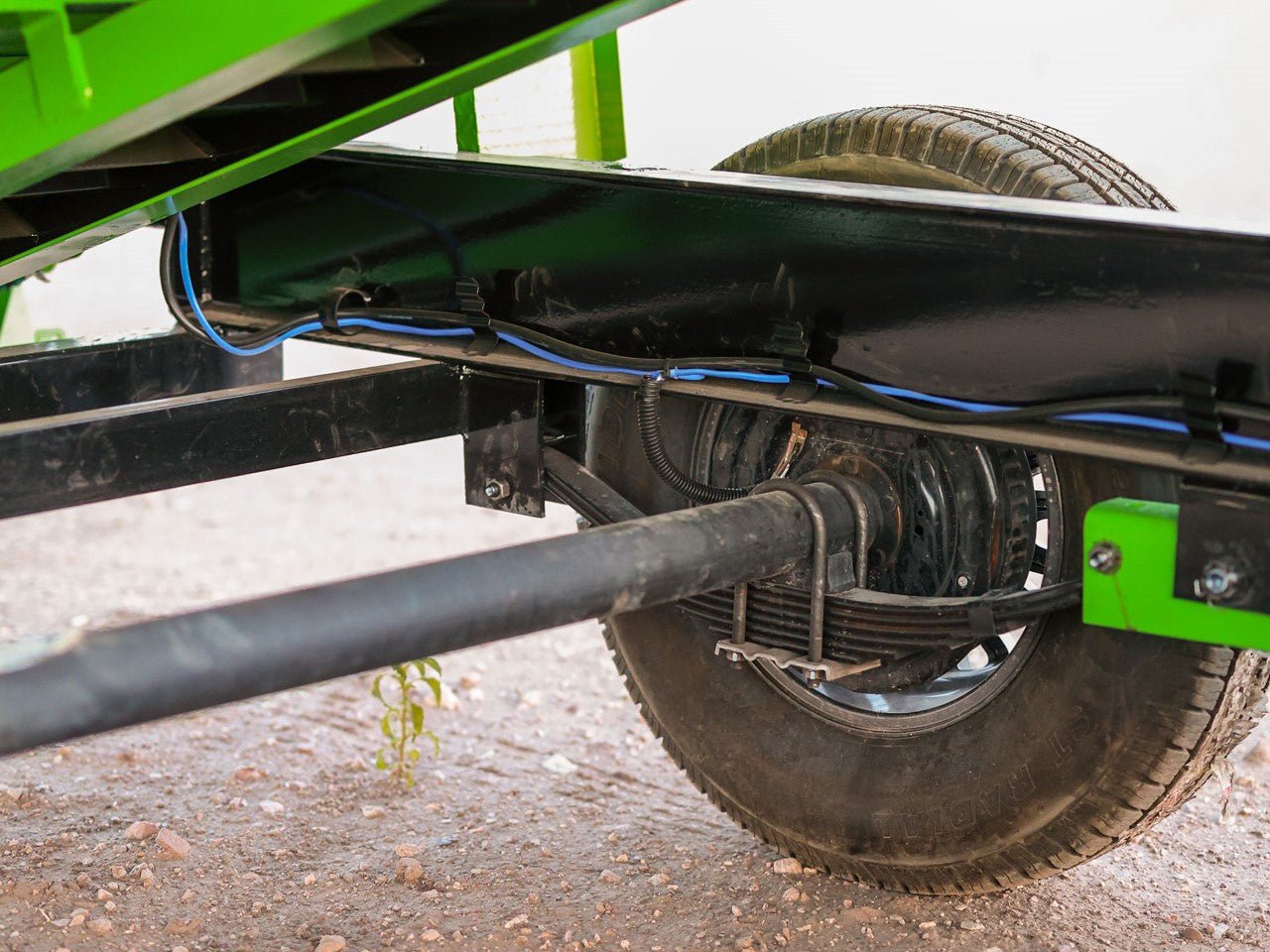

- SUSPENSION TYPE:
- 6-Leaf Slipper Spring Suspension
- AXLE TYPE:
- Spring
- AXLES:
- (2) 7,000 lb.
- BRAKES:
- Electric
SAFETY FEATURES

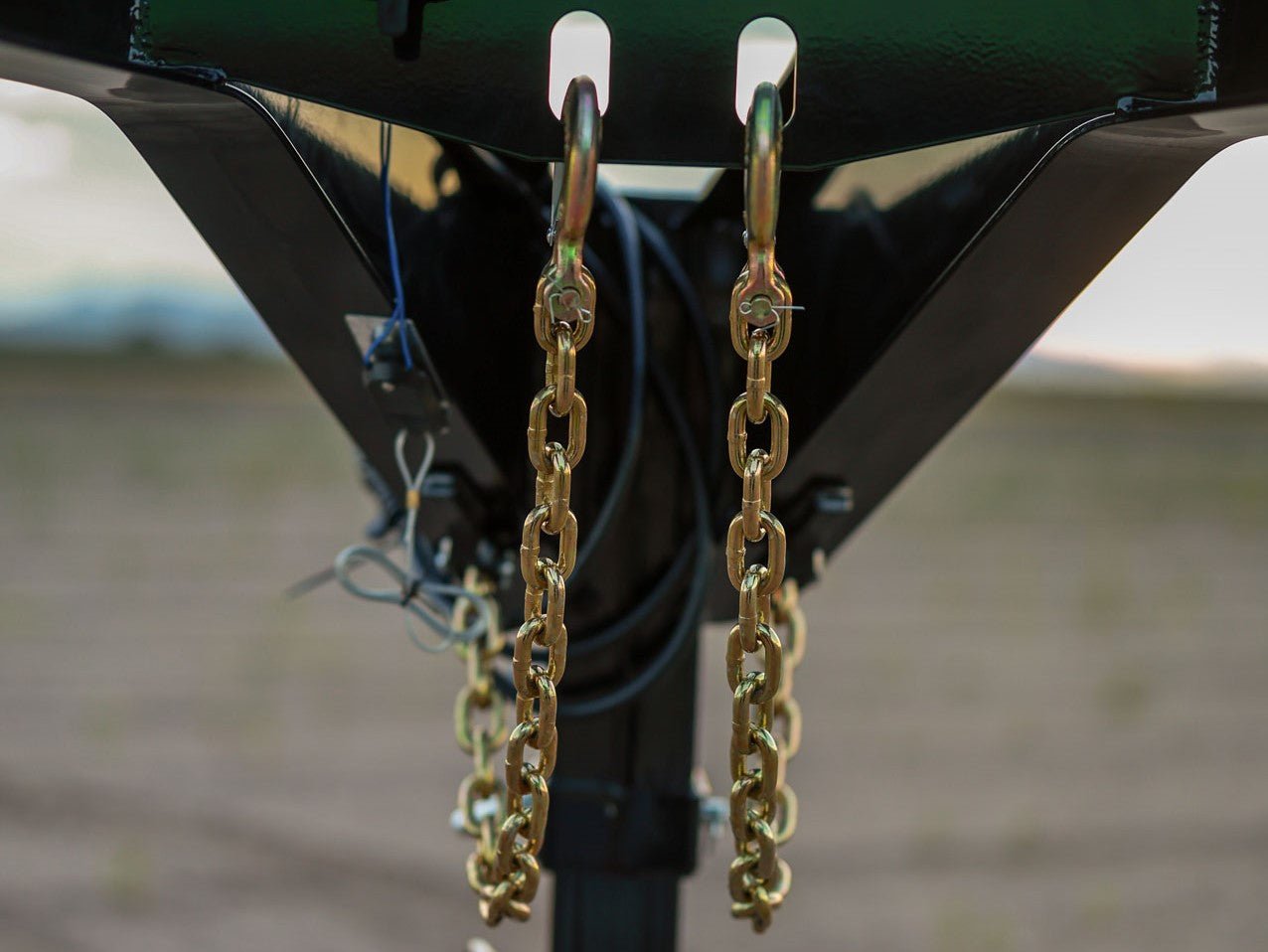

- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
ELECTRICAL & LIGHTING
- FRONT PLUG:
- 7-Way Plug
- FRAME WIRING:
- All Weather Wiring Harness
- SIDE MARKERS:
- 3/4" LED Bullet Lights
- REAR LIGHTS:
- DOT Approved LED Lights
BATTERY & CHARGING
- BATTERY:
- 27M Deep Cycle Marine Battery
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
FINISH
- TYPE:
- Powder Coat
- PREP:
- Grit Blast
- STANDARD COLOR:
- Jet Black
WARRANTY
- AXLE:
- 5-Year Dexter
- TRAILER:
- 3-Year Structural / 1-Year Paint
