Product Features

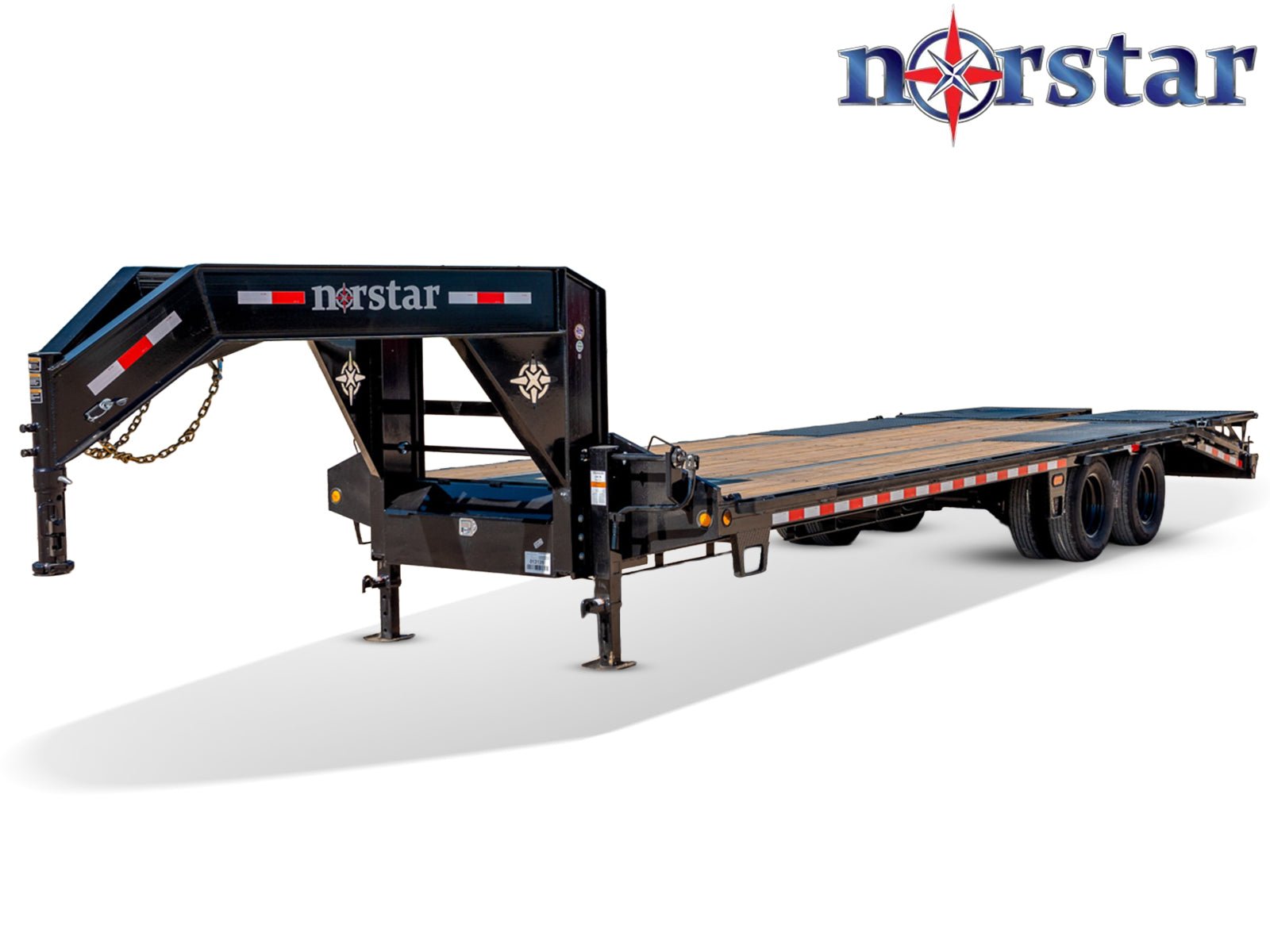

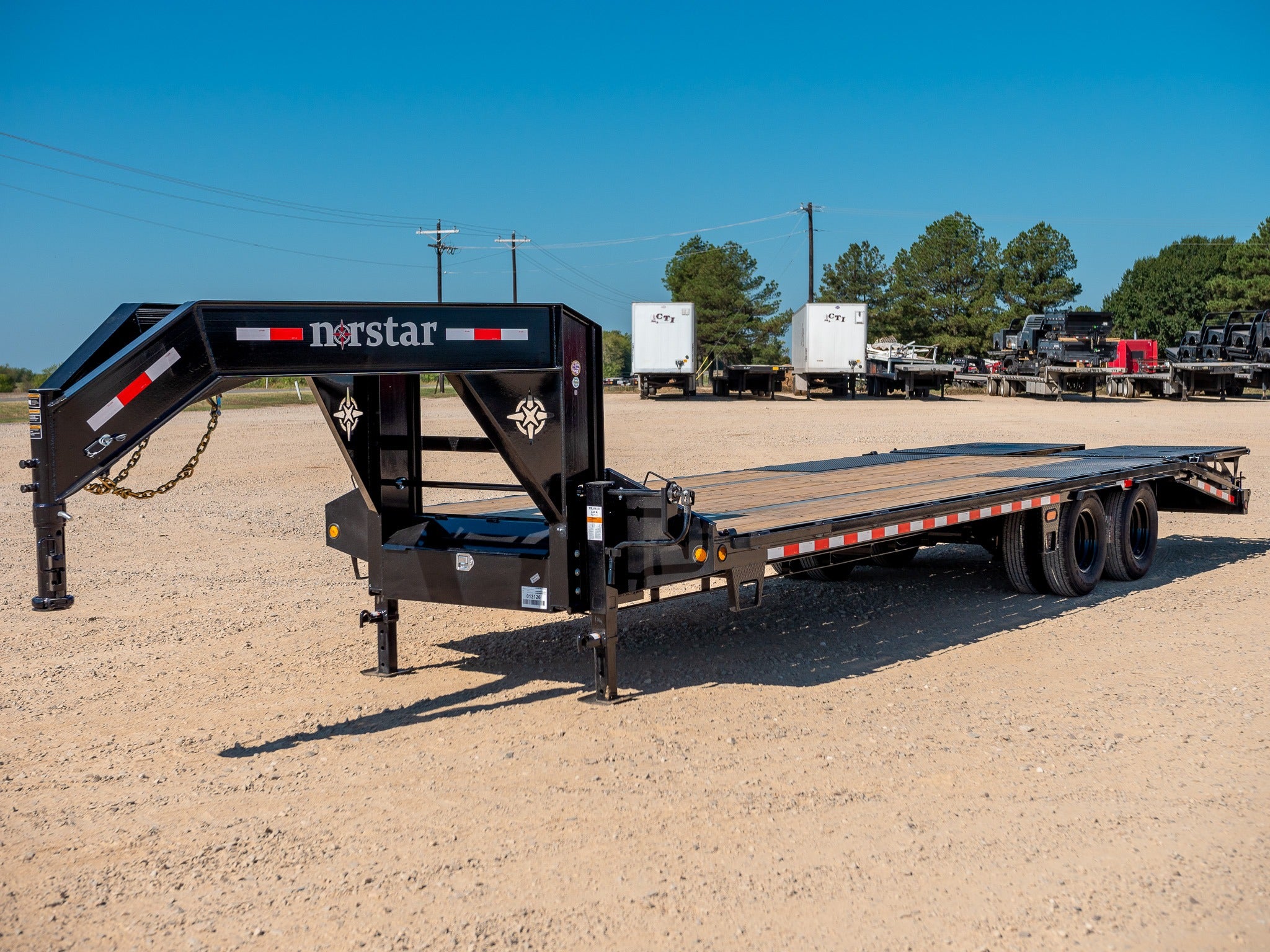

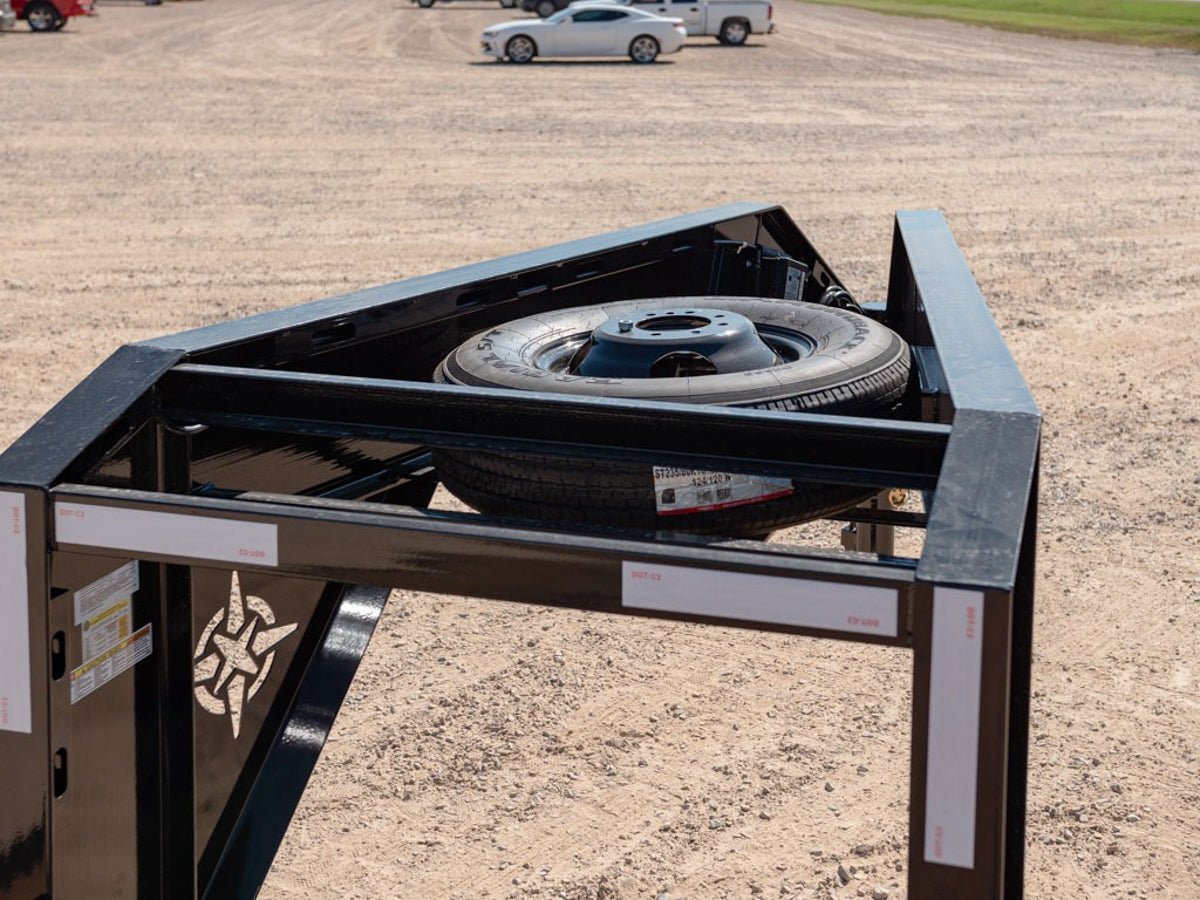

Heavy-Duty 12" I-Beam Frame & Neck

Constructed with a heavy-duty 12" I-Beam (19 lbs/ft) main frame and neck. The structure is reinforced with 3" channel crossmembers spaced 16" on center and includes a 5.5" torque tube with an underframe bridge for maximum rigidity.

Standard Cargo & Tie-Down Features

Comes standard with a full cargo management system. This includes a 6" channel side rail, four 3" x 5/8" weld-on D-rings, full-length rub rails with stake pockets, and integrated pipe spools for versatile load securement.

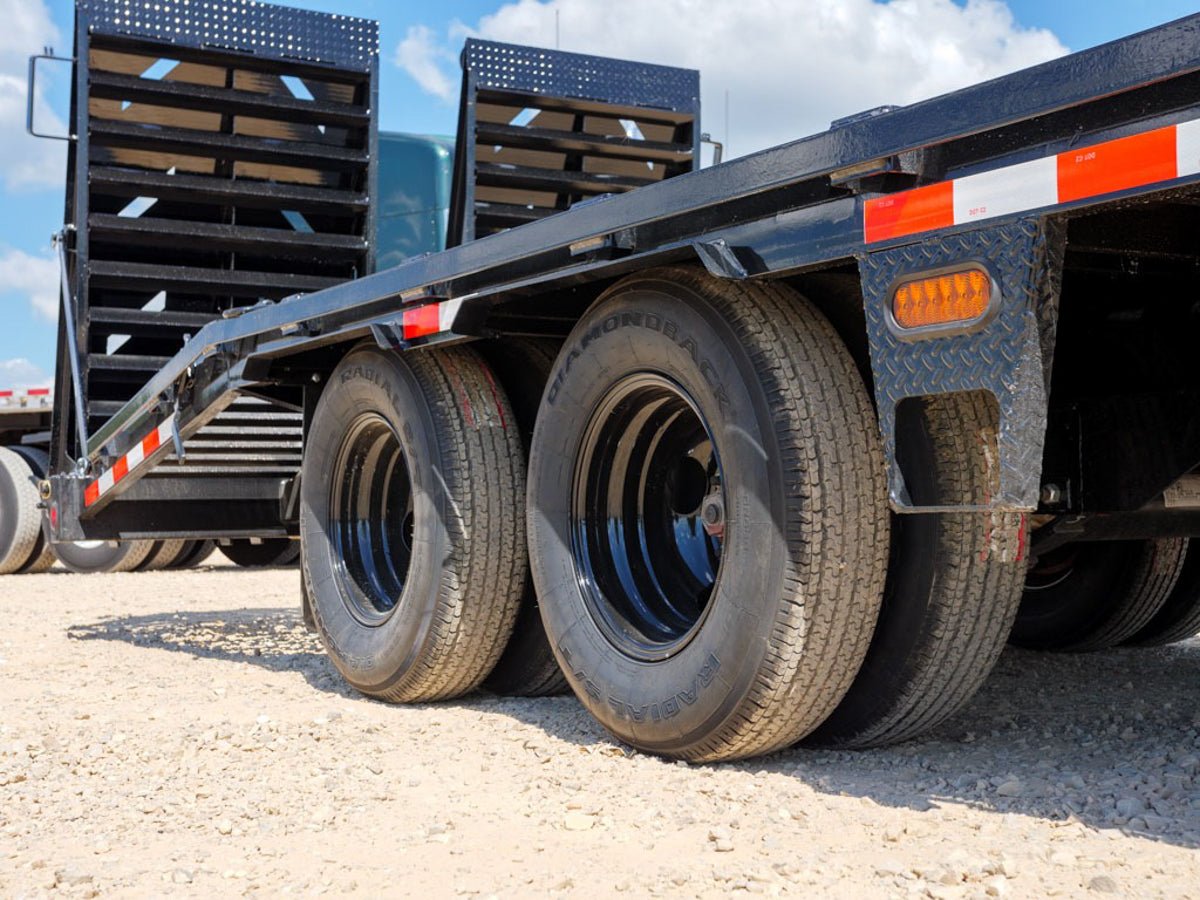

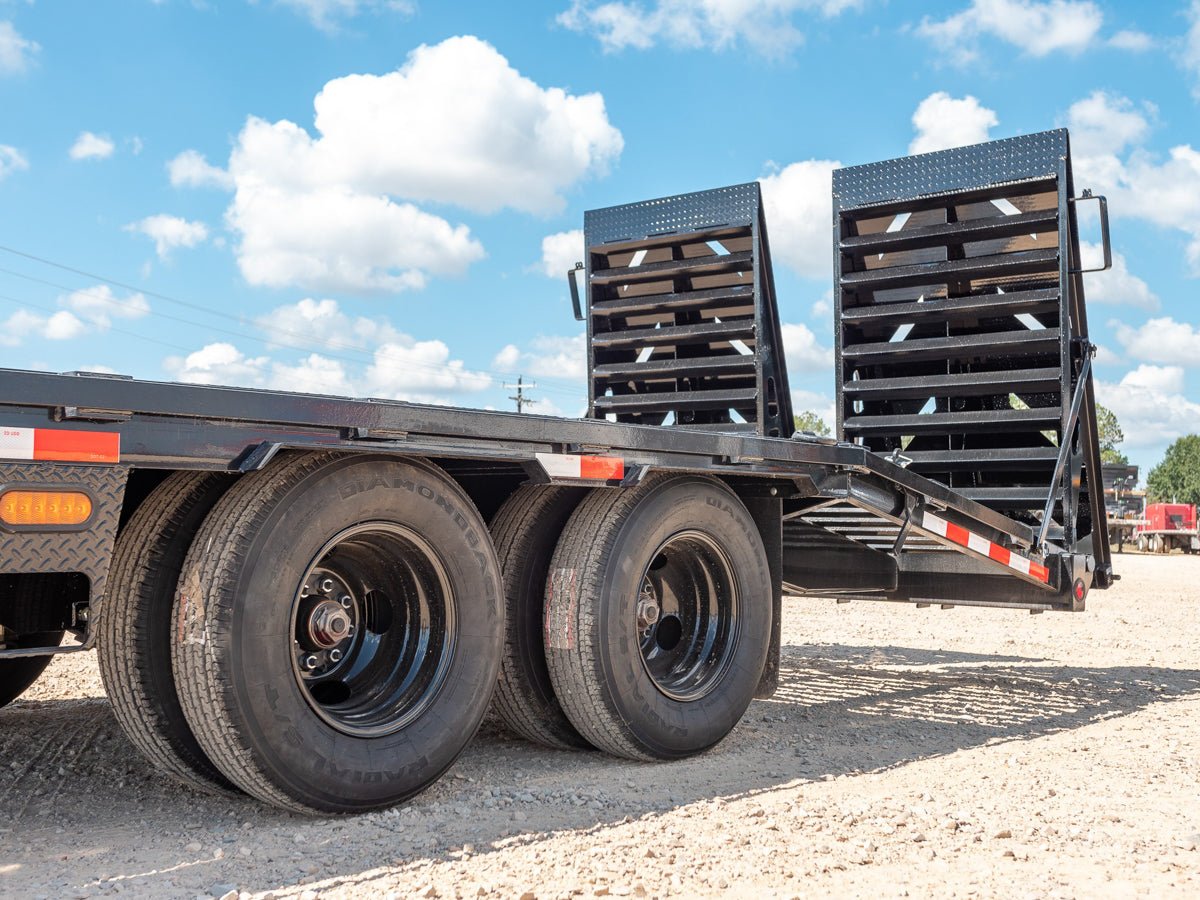

10k Lippert Axles & Multi-Leaf Suspension

Equipped with reliable 2 x 10k Lippert electric brake axles. They are paired with a multi-leaf slipper spring suspension and 10-ply radial tires, providing a stable, balanced ride for the 22,000 lb GVWR.

Durable Primer & Powdercoat Finish

Built to last with a durable finish process. The frame is treated with a primer coat before receiving a tough, long-lasting black powdercoat to resist rust, corrosion, and the elements.

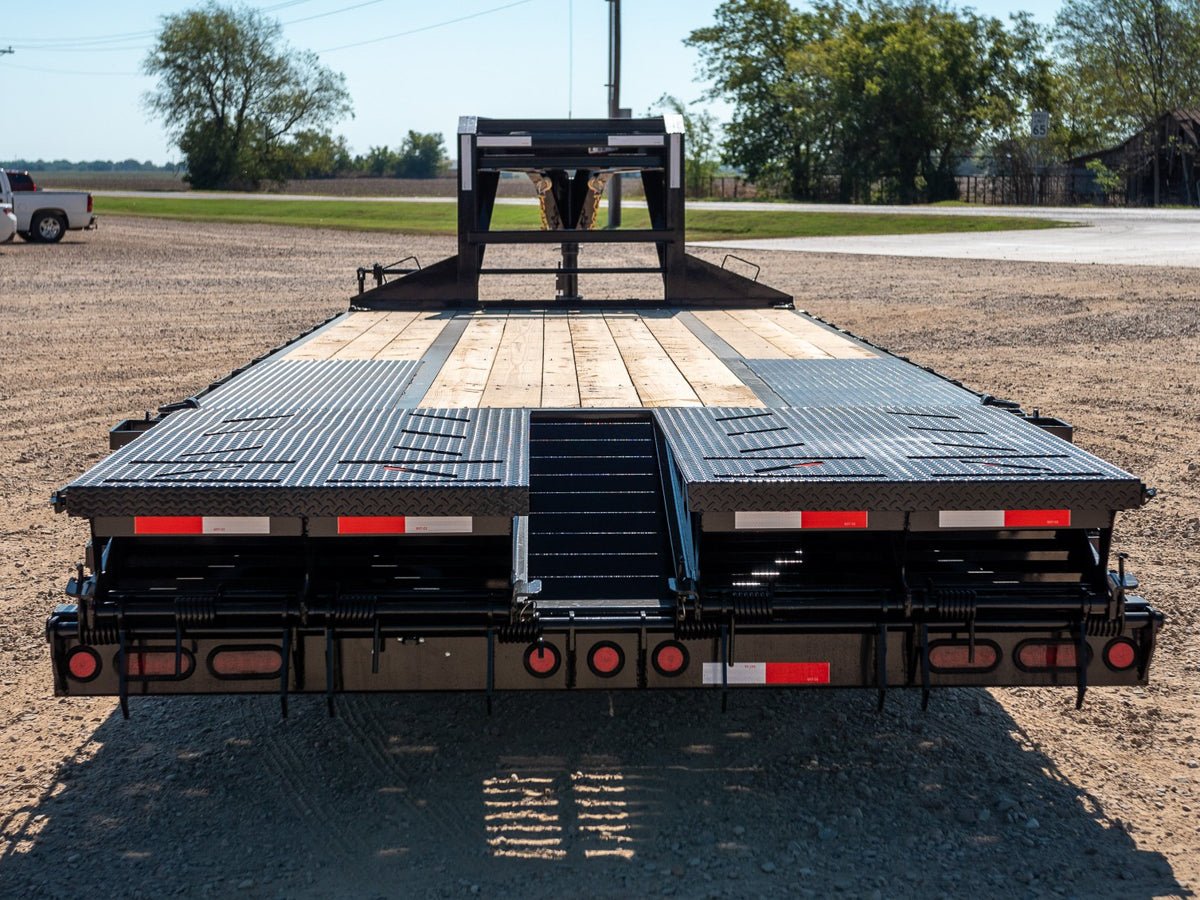

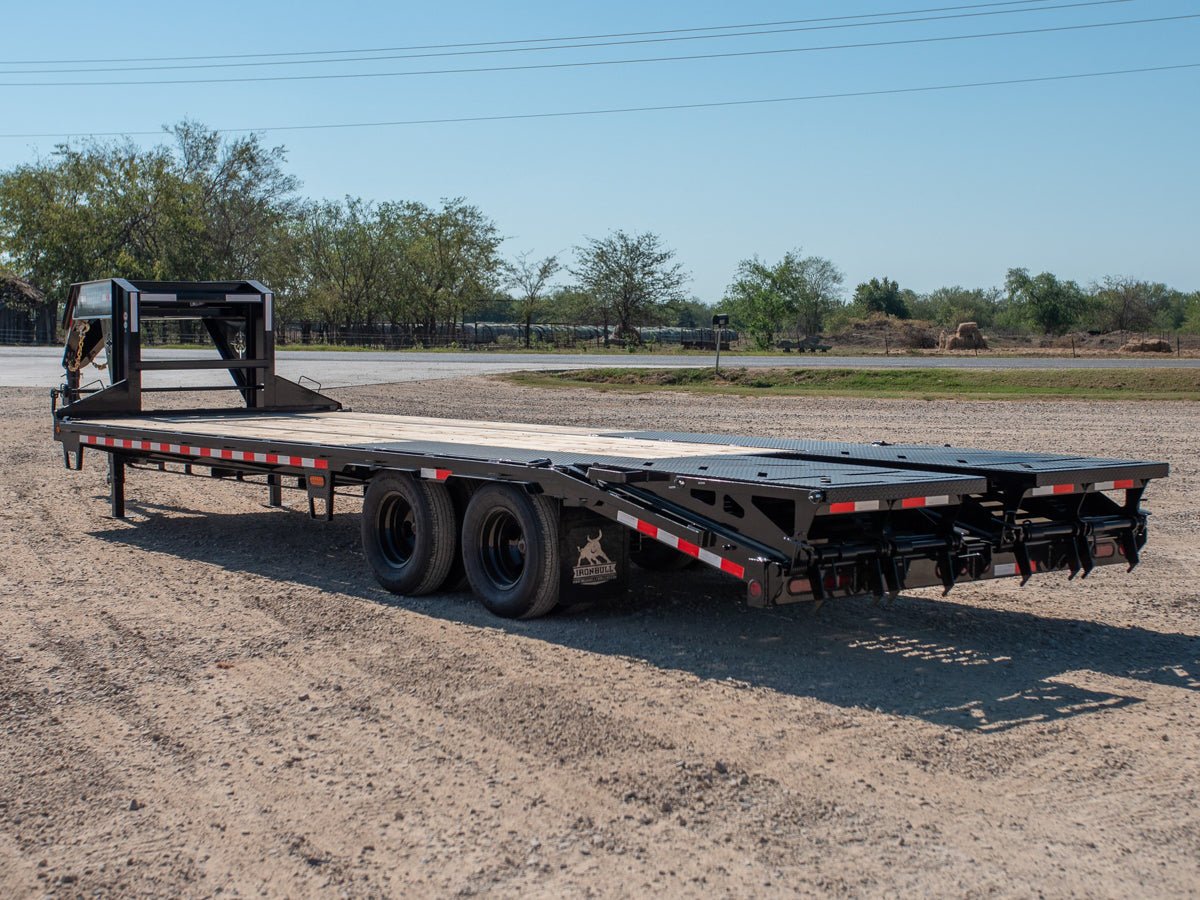

True Low-Profile 32" Deck Height

Designed as a true low-profile deckover with a deck height of just 32". This is significantly lower than standard 36"-38" deckovers, offering better loading angles, improved stability, and easier equipment access.

Standard LED Lighting & Safety Features

Comes standard with full DOT-approved LED lighting for superior visibility and reliability. Safety features include a breakaway system, reflective tape, and two safety chains for compliant and secure towing.

Product Details

DIMENSIONS

LENGTH:

25' - 40'

WIDTH:

102"

DECK HEIGHT:

32" (Low Profile)

DOETAIL:

5' Dovetail

WEIGHT RATINGS

GVWR:

22,000 lbs

AXLE OPTIONS:

2 - 10k Lippert Axles

RUNNING GEAR

TIRES:

235/80R16 Radial Tires

TIRE PLY:

10 Ply

RIMS:

16" Black Mod Wheels

AXLE TYPE:

2 - 10k Lippert Electric Brake Axles

AXLE COUNT:

2

BRAKES:

Electric Brake

SUSPENSION:

Multi-Leaf Slipper Spring Suspension

GOOSENECK

PULL TYPE:

Gooseneck

TONGUE:

12" I-Beam Neck

COUPLER:

2 5/16" 25k Gooseneck Coupler

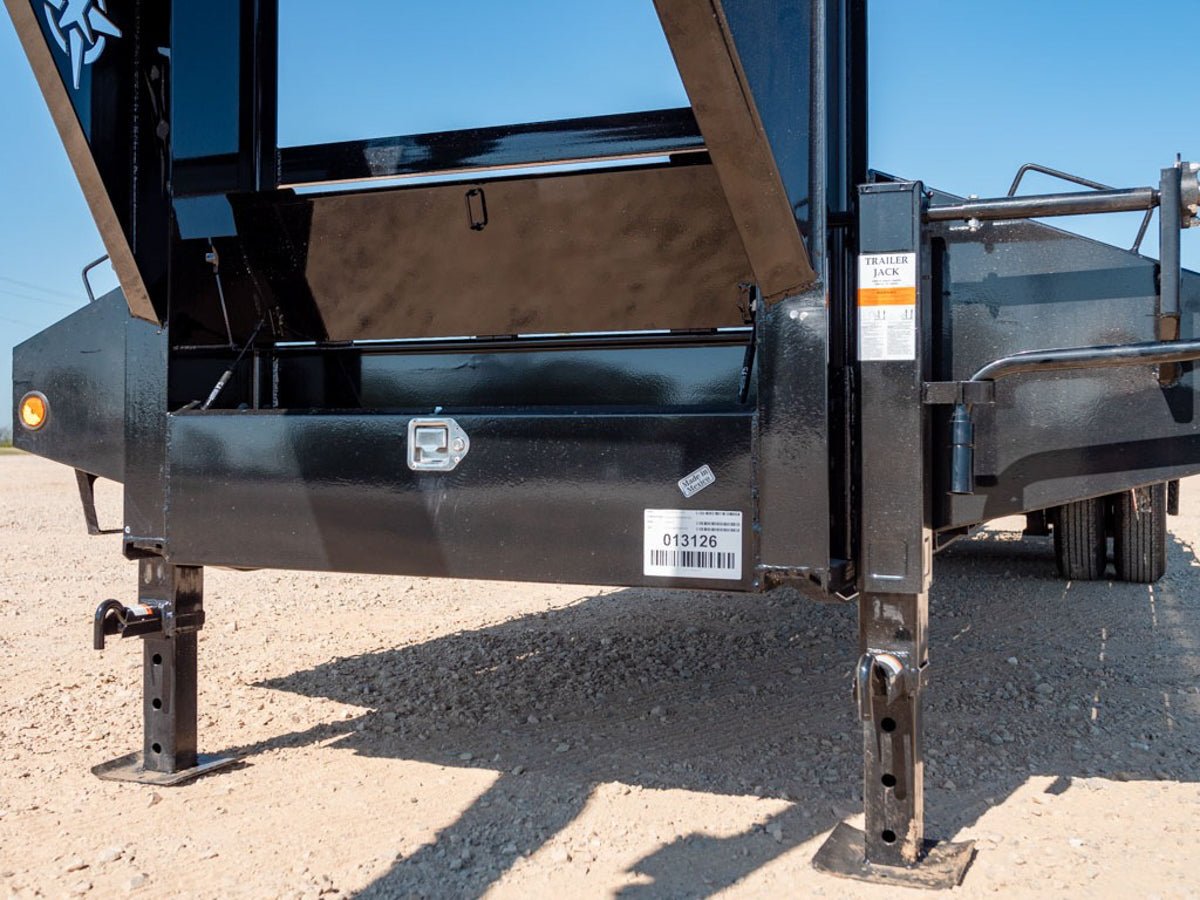

JACKS:

2 - 10k Spring Loaded Drop-Leg Jacks

TOOLBOX GN:

Lockable Full Neck Width Toolbox

FRAME & CONSTRUCTION

MAIN FRAME:

12" I-Beam (19lbs/ft), Low-Profile Pierced Beam Frame

CROSSMEMBERS:

3" Channel, 16" Spaced Crossmembers

DECK:

Wood

TORQUE TUBE:

Standard 5 1/2" Torque Tube & Underframe Bridge

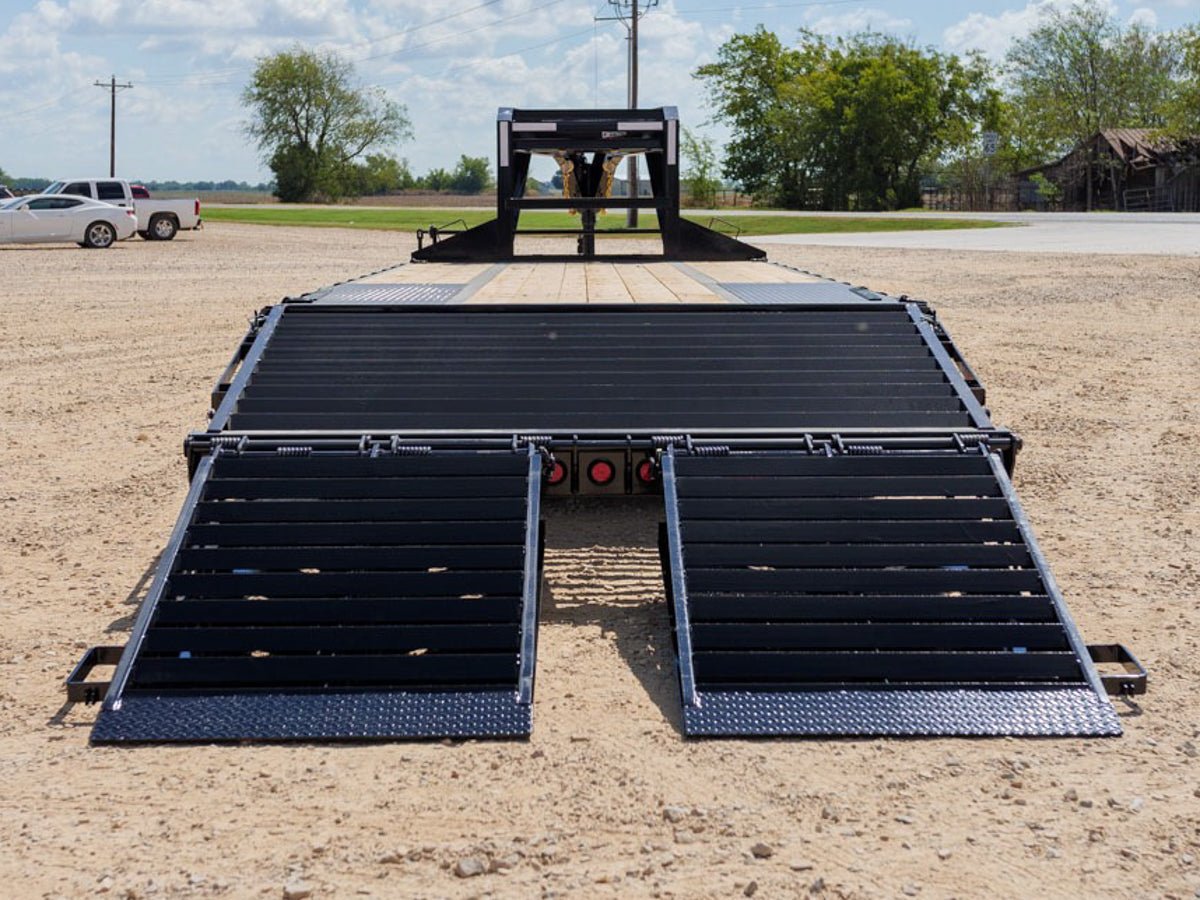

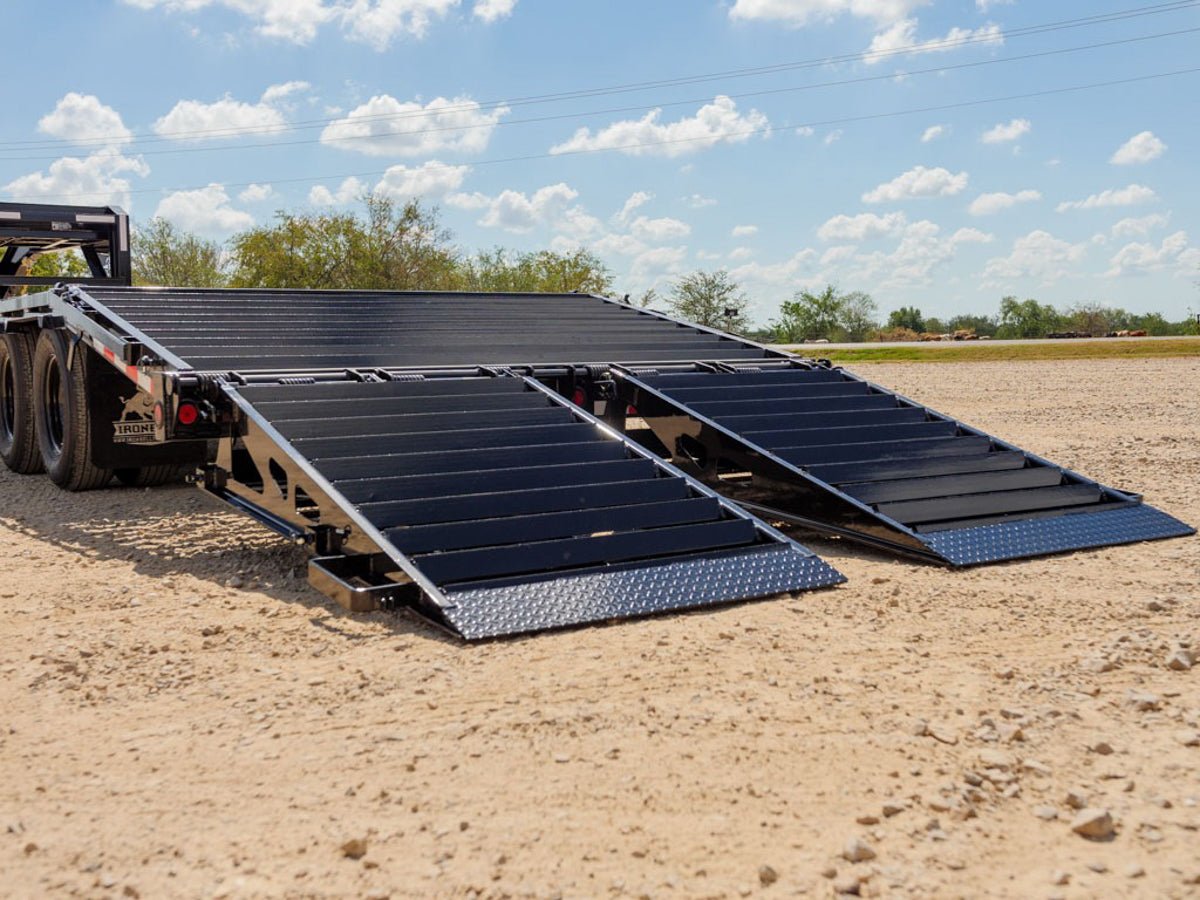

RAMPS:

5' Dovetail w/ Rampage Ramps

CARGO AREA

SIDE RAIL:

6" Channel Side Rail

D-RINGS:

4 Standard 3" x 5/8" Weld-On D-Rings

RAIL SYSTEM:

Rub Rails w/ Stake Pockets & Pipe Spools

ELECTRICAL & LIGHTING

WIRING HARNESS:

Standard Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

SAFETY SYSTEM

BREAKAWAY SYSTEM:

Safety Breakaway System w/ Cable

REFLECTIVE TAPE:

DOT Approved Safety Tape

SAFETY CHAINS:

2 Safety Chains

FINISH & WARRANTY

PAINT TYPE:

Powdercoat

PREP:

Primer

COLOR:

Black

TRAILER WARRANTY:

1 Year Warranty
