Build Summary

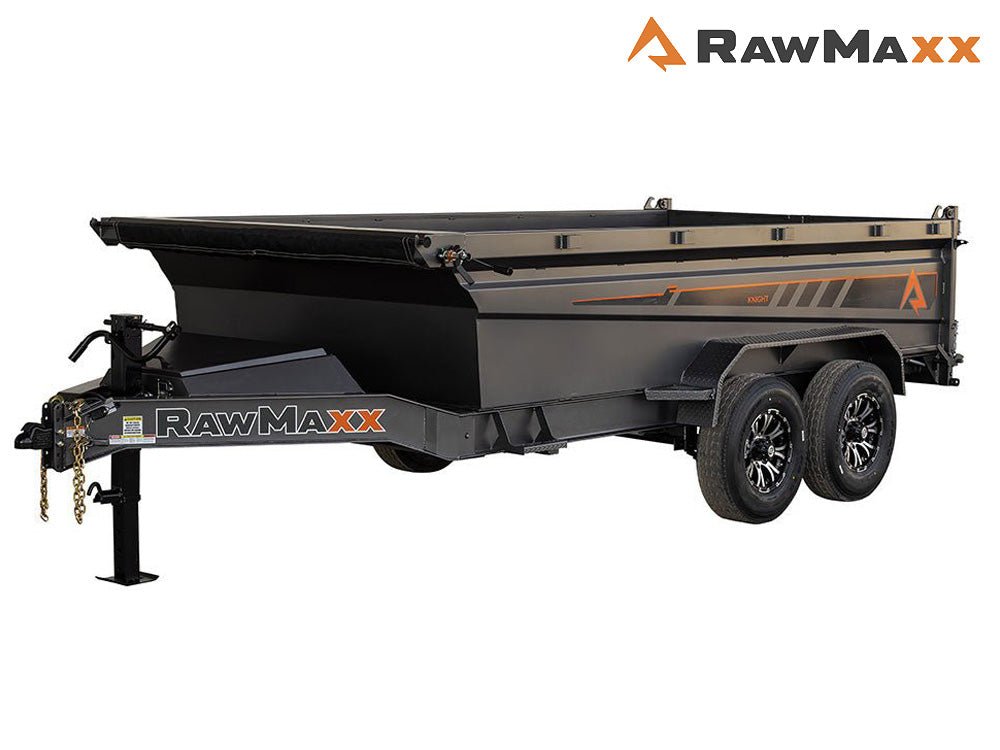

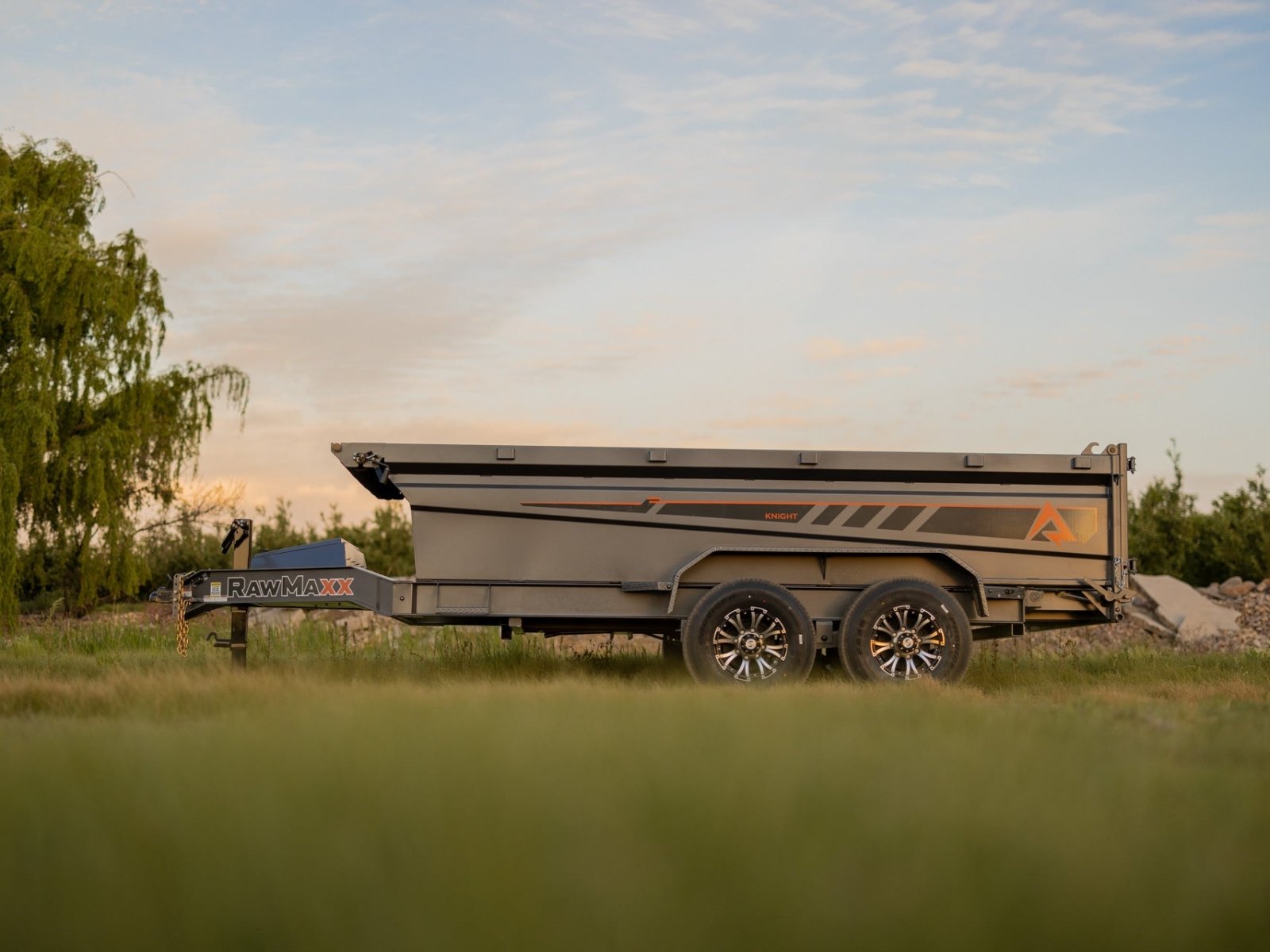

RawMaxx GDX Dump Trailer
Build Summary
RawMaxx GDX Dump Trailer
At a glance ValuesPRODUCT DETAILS
Product Features
Durable Powder Coat Finish
Featuring a powder coat finish prepared using a grit blast method, the trailer is coated in a sleek jet black color. This durable finish provides a robust protective layer, preventing rust and corrosion while giving the trailer a professional appearance.
Reliable Running Gear
Equipped with radial tires sized ST235/80R16 and a 10-ply rating, the trailer rides on 16” black mod wheels with an 8 on 6.5” bolt pattern. The suspension system features two spring axles rated at 7,000 lbs. each, with electric brakes, ensuring a smooth ride and reliable stopping power.
Ample Dimensions for Versatile Loads
The trailer offers generous dimensions with a length of 14 feet, a width of 83 inches, and a deck height of 28 inches. These measurements ensure the trailer can accommodate a variety of loads while maintaining a manageable height for easy loading and unloading.
Efficient Hydraulic Dump System

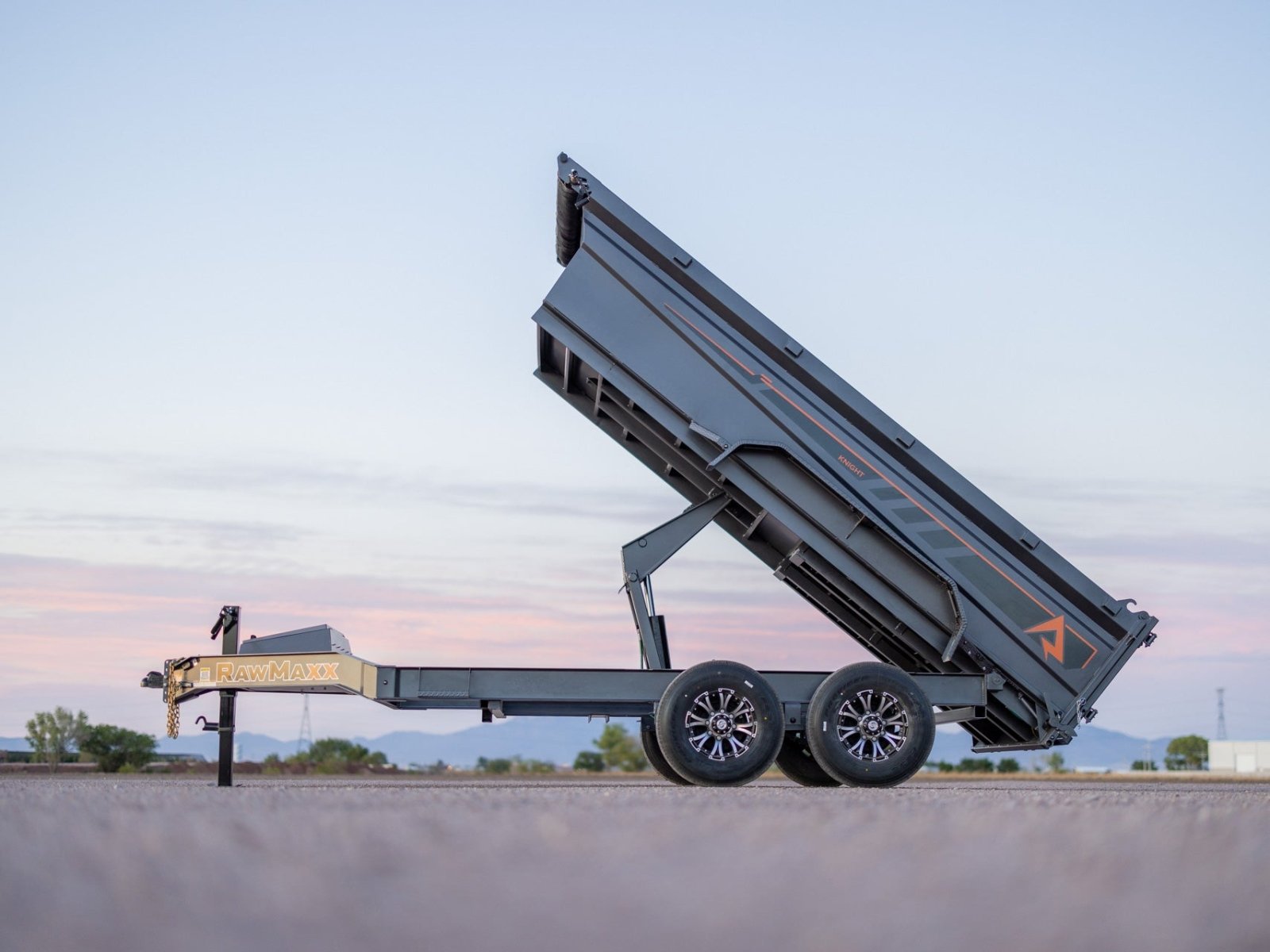

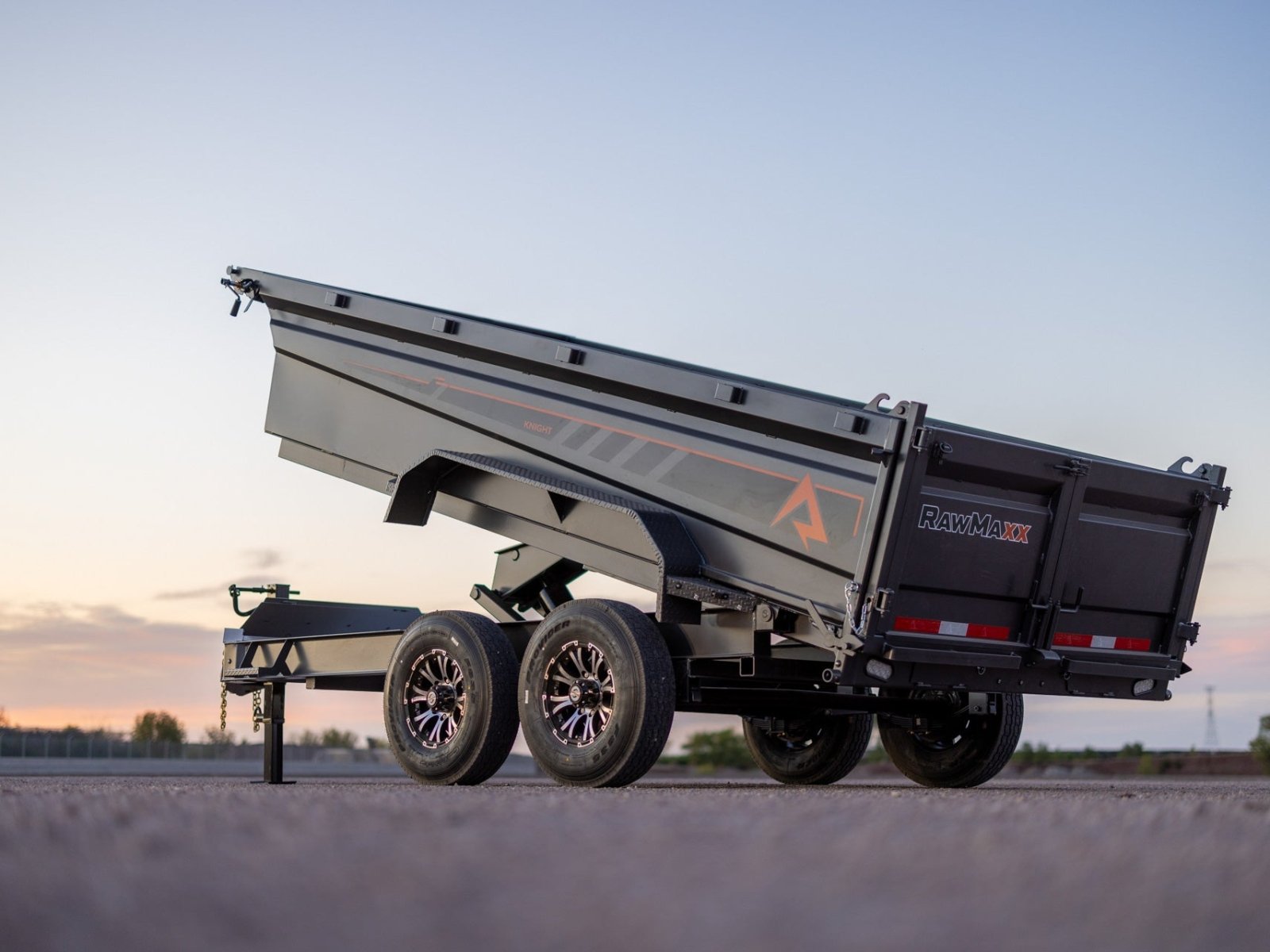

The trailer's hydraulic dump system features a KTI 12V hydraulic pump and a 14' remote control. Its heavy-duty scissor lift and 5" x 16" cylinder provide a 41° tilt angle, ensuring quick and smooth dumping operations.

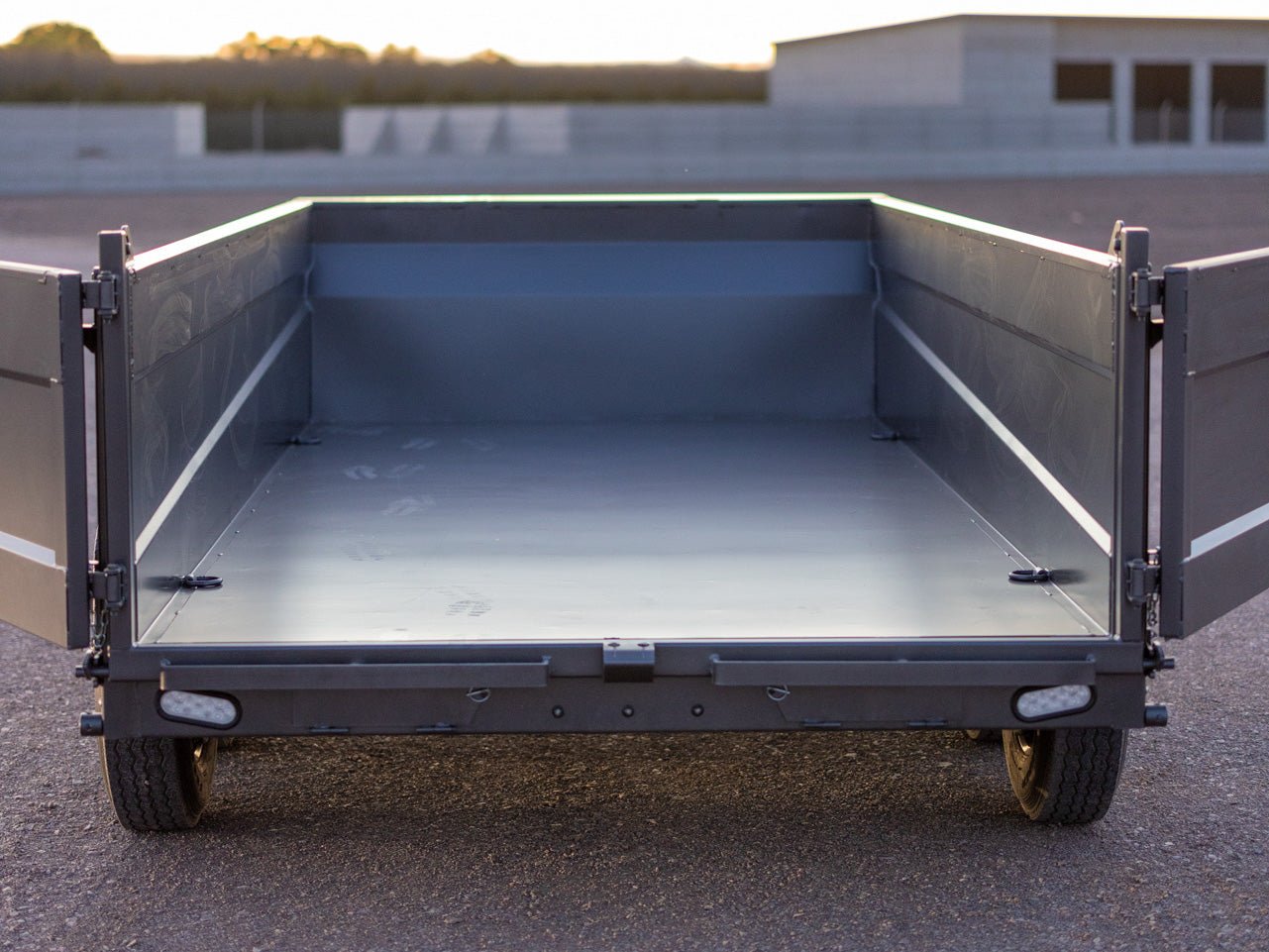

Spacious Dump Bin
The dump bin offers ample space with an inside width of 83" and 32" high side walls. Constructed with durable 12G formed walls and a 9G floor, it provides plenty of room for large loads and ensures easy loading and unloading.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.Description
Trailer Specs
Dimensions
Length: 14'
Width: 83"
Deck Height: 28"
Weight Rating
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,810 lbs.
Load Capacity: 10,569 lbs.
Finish
Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black
Warranty
Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

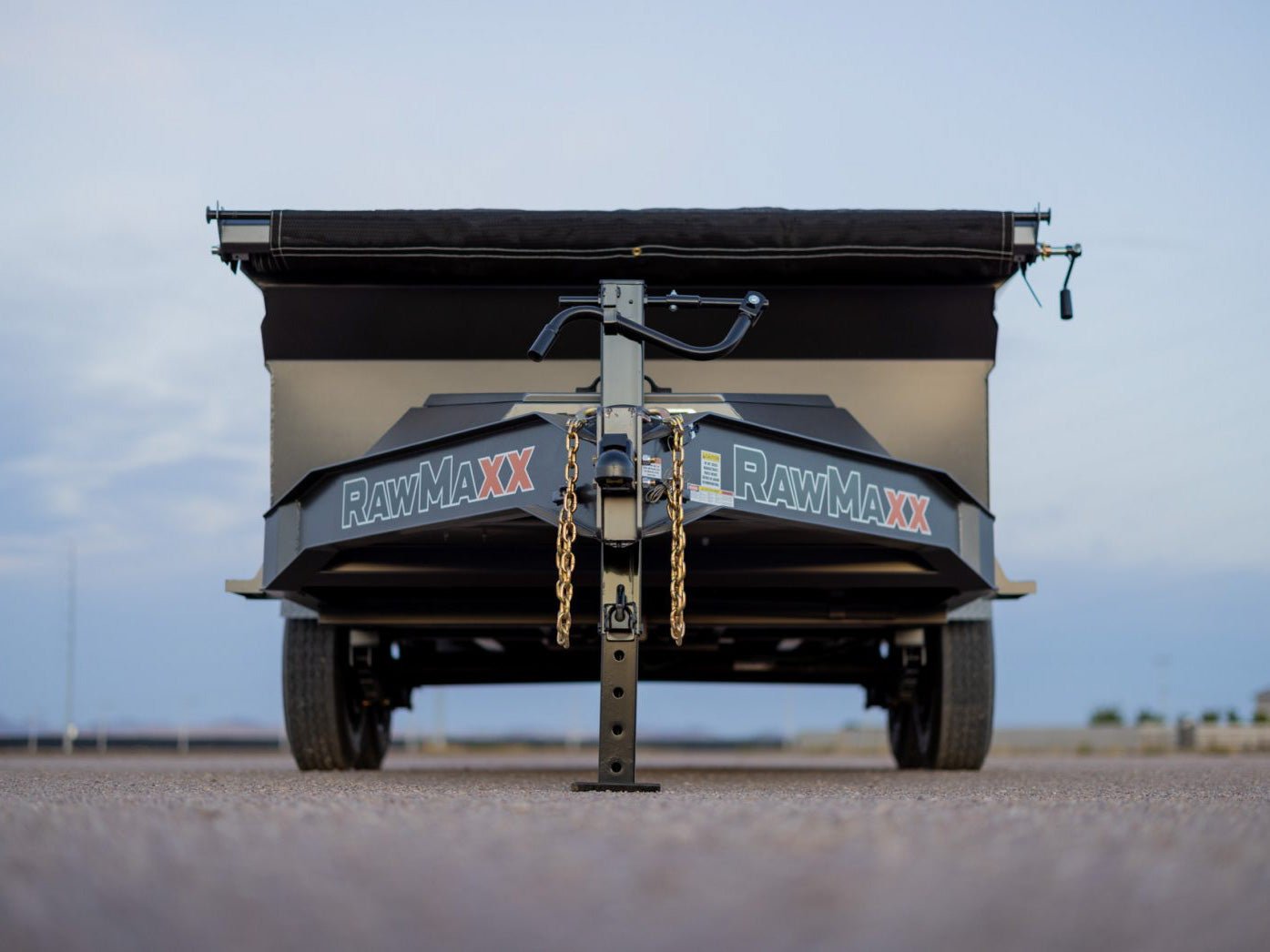

Tongue

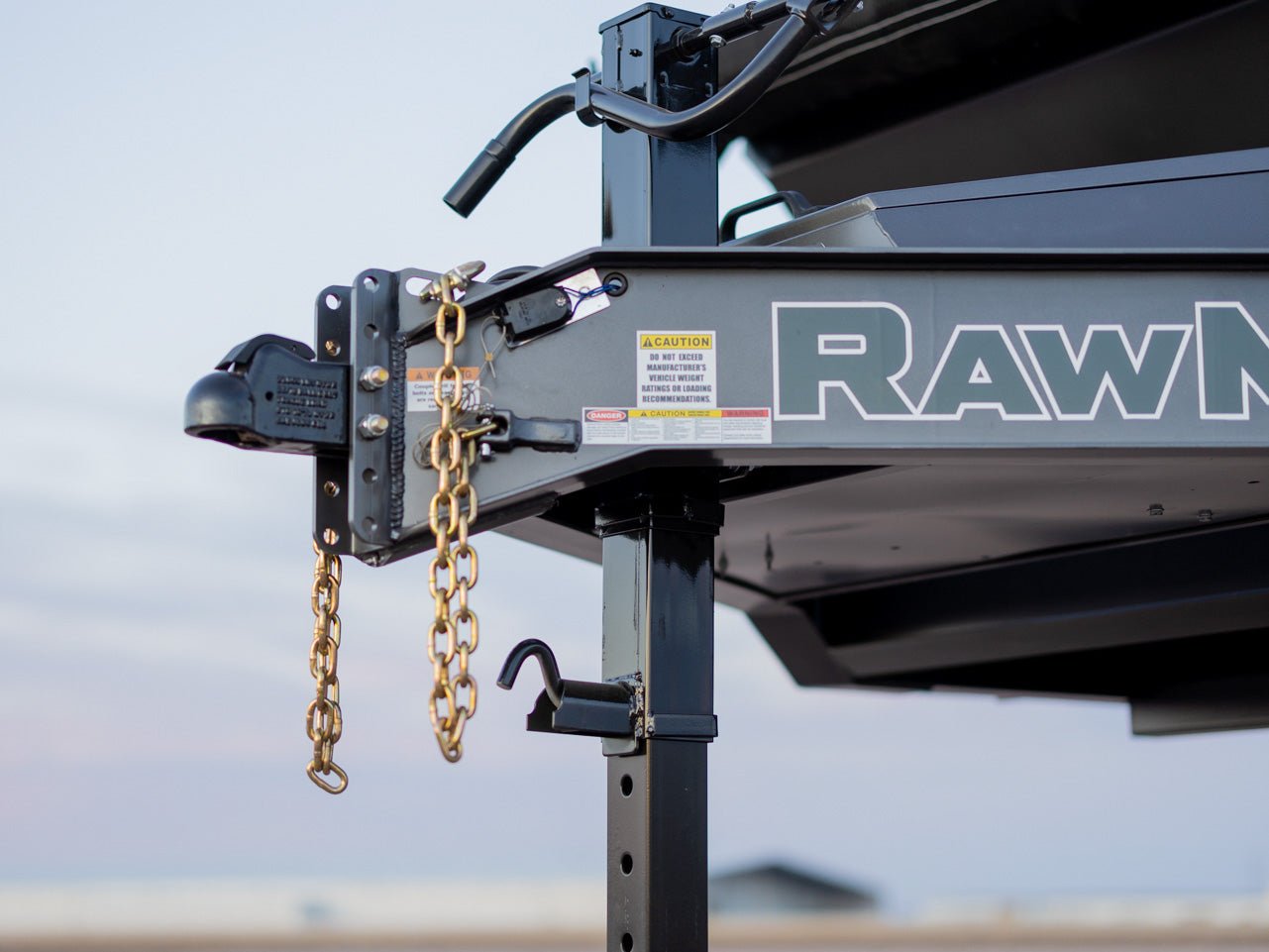

- Coupler: 2-5/16” Adjustable Ball Coupler
- Jack: 1 Side Wind Drop Leg. - 10,000 lbs.

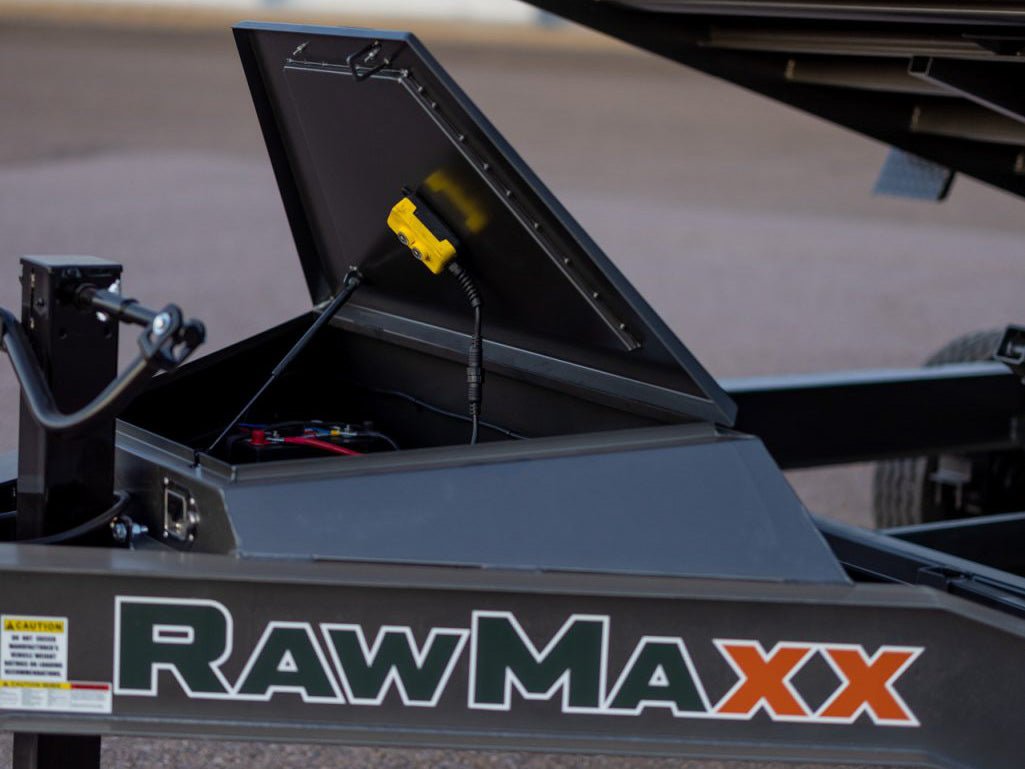

- Tool Box: Tool Box for Pump, Battery & Charger
- Tongue Structure: 8" x 13 lb. I-beam, 65" Length
- Safety System: 3/8" G70 Safety Chains, Electric Breakaway Kit, 3M DOT Compliant Reflective Tape
Chassis
- Main Frame: 8" x 13 lb. I-beam Frame
- Cross-Member: 4" x 3" x 3/16" Tubing
Dump Bed
- Tilt Frame: 5' x 5" x 3/8" Angle with 3" Channel / 16" Spacings
- Dimensions: Inside Width: 83", Side Height: 32", Side Walls: 12G Formed Walls, Flooring: 9G Floor, Fenders: 12G Diamond Plate Steel
- D-Rings: 4 D-Rings (Welded Inside Corners)

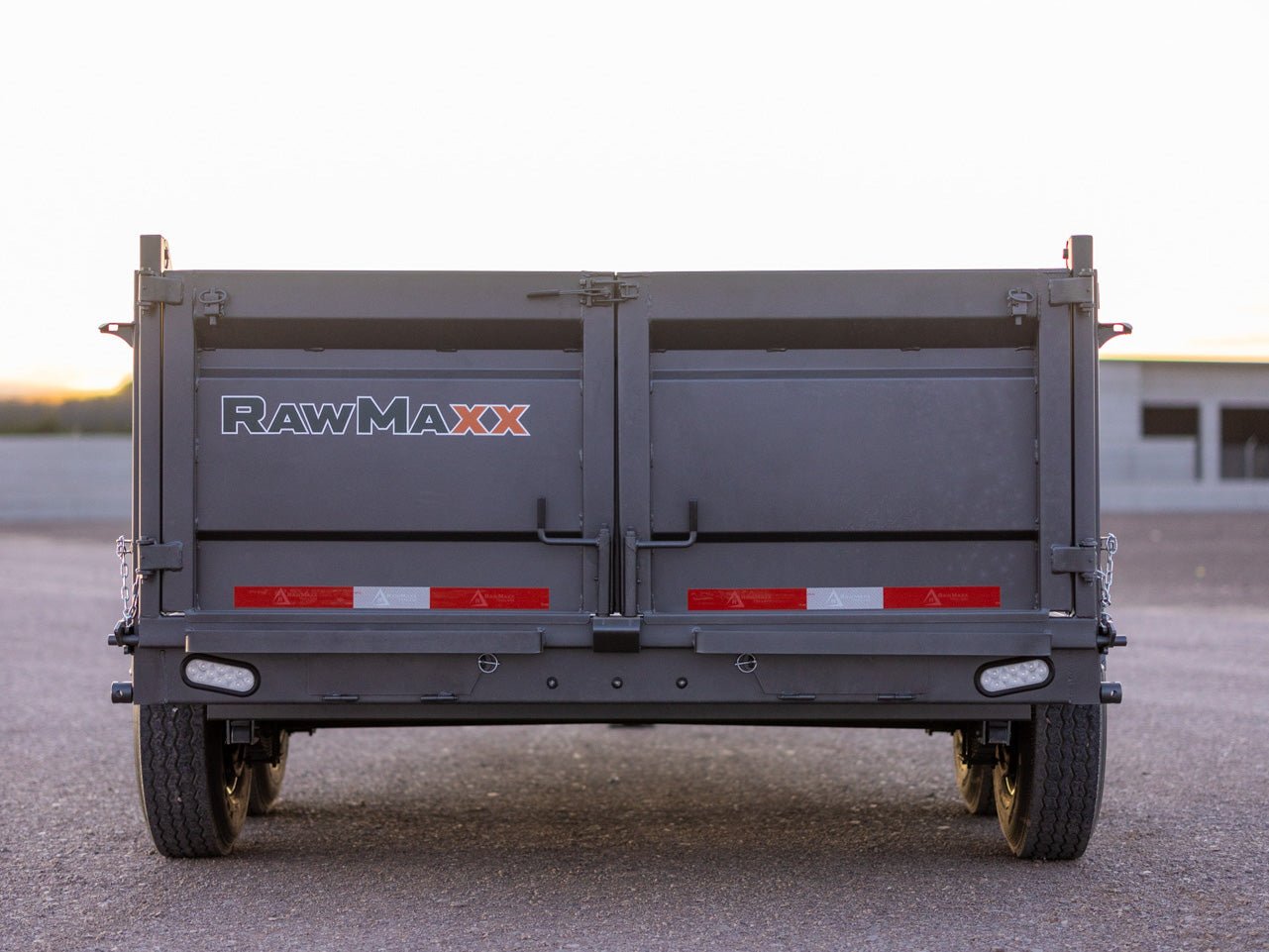

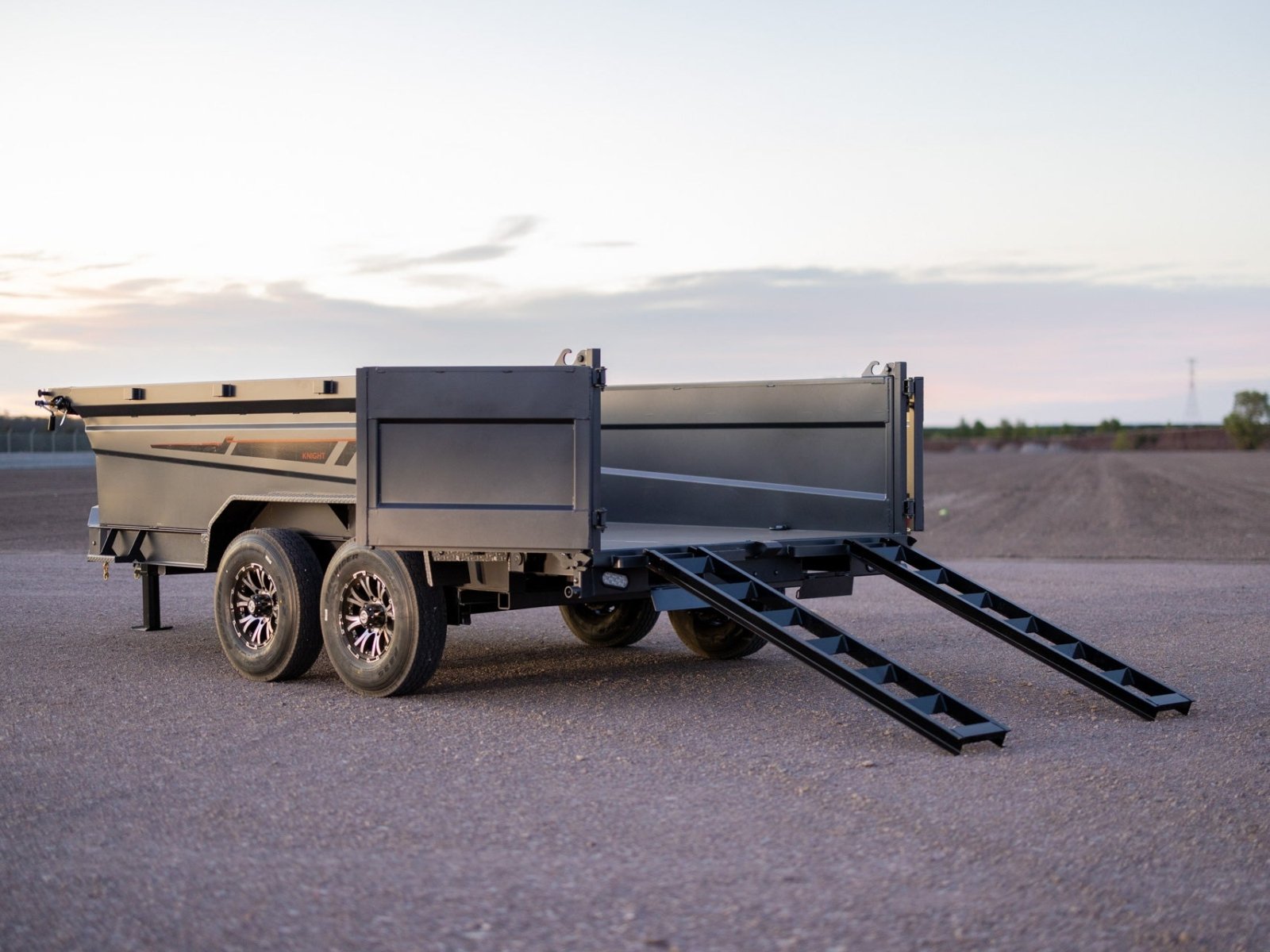

- Rear Gate: 3 Way Doors, EZ Slam Door Latches, 6' Slide-In Channel Ramps

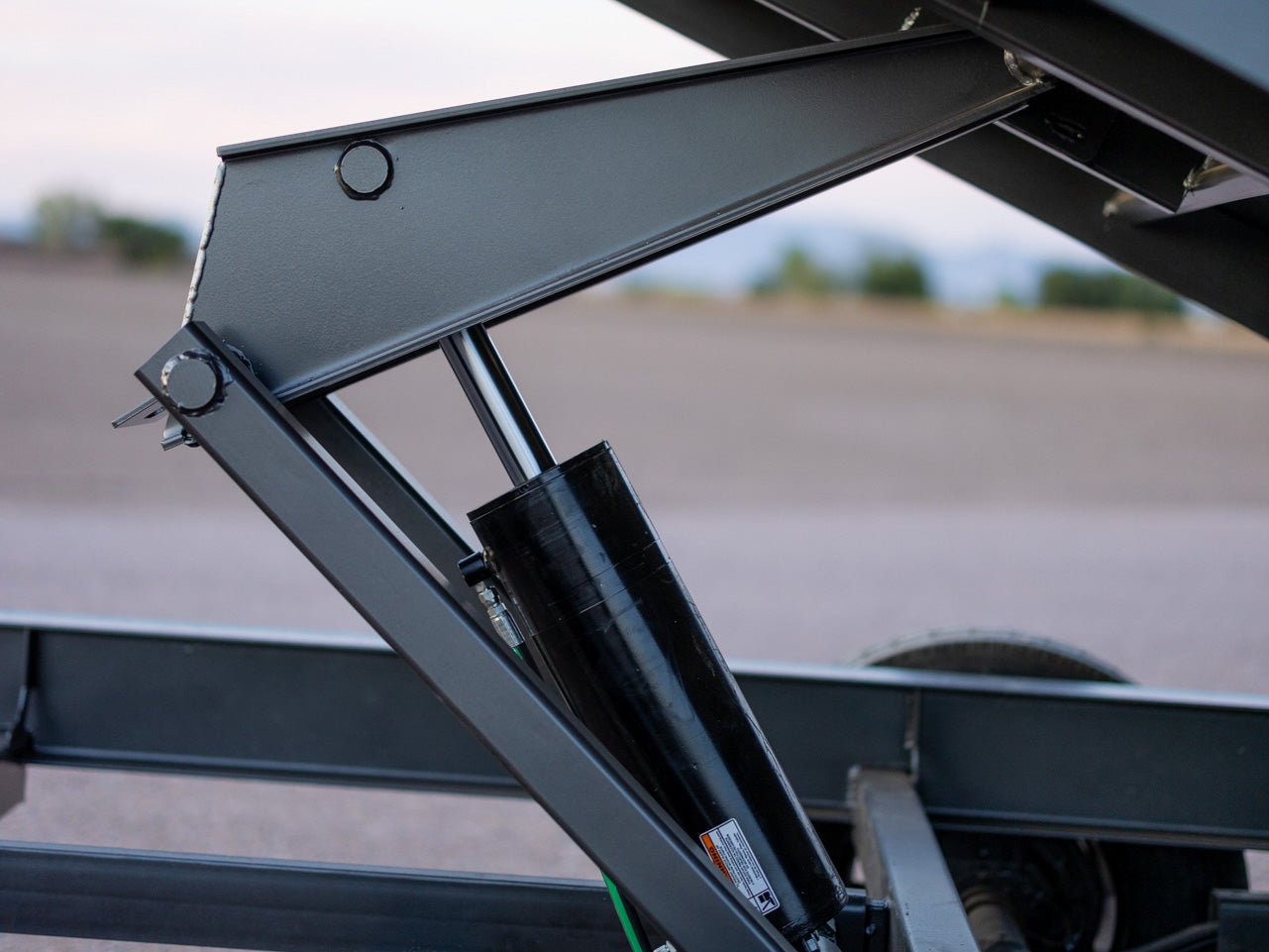

- Lift System: Hydraulic - Powder Up - Down, KTI 12V Hydraulic Pump, 14' Cable with Control, Heavy Duty Scissor Lift, 5" x 16" Cylinder, Tilt Angle: 41°
- Tarp: Manual Tarp Kit
Running Gear

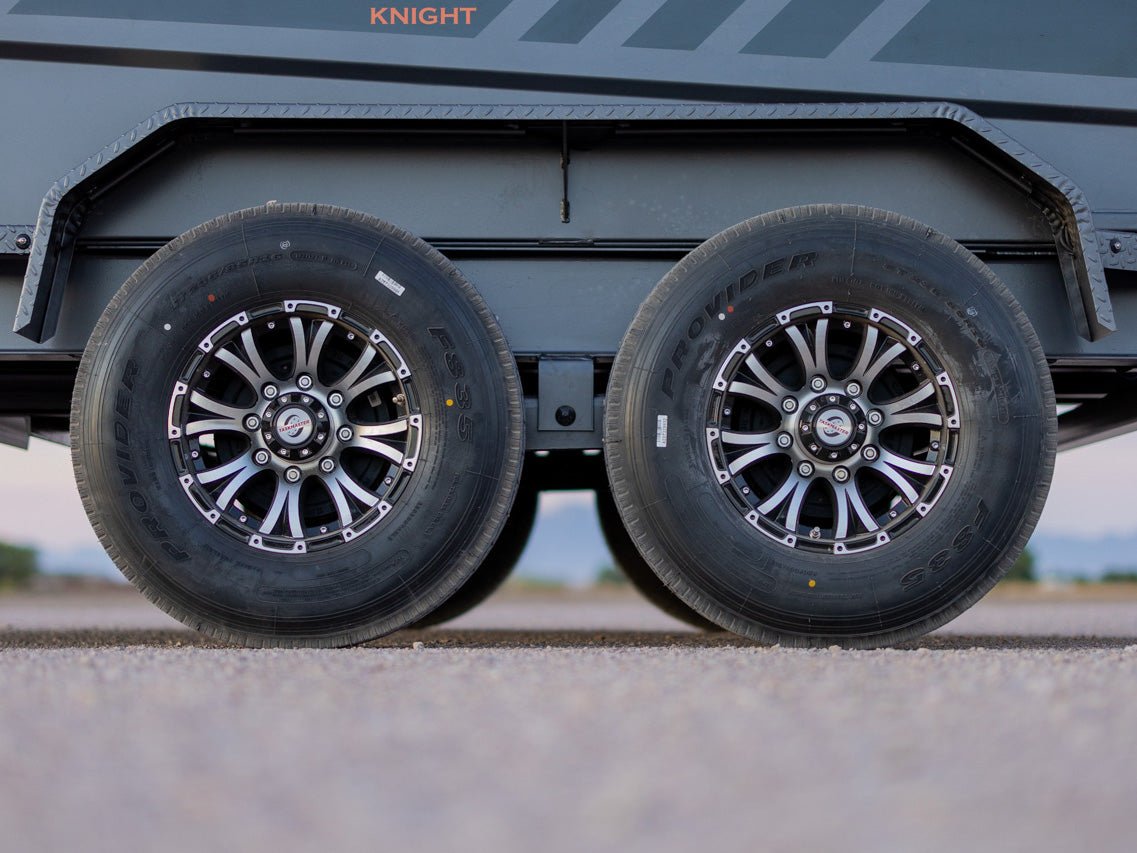

- Tires: Radial Tires, ST235/80R16, 10 Ply, Rating: 3,520 lbs.
- Rims: 16” Black Mod Wheels, Bolt Pattern: 8 on 6.5”

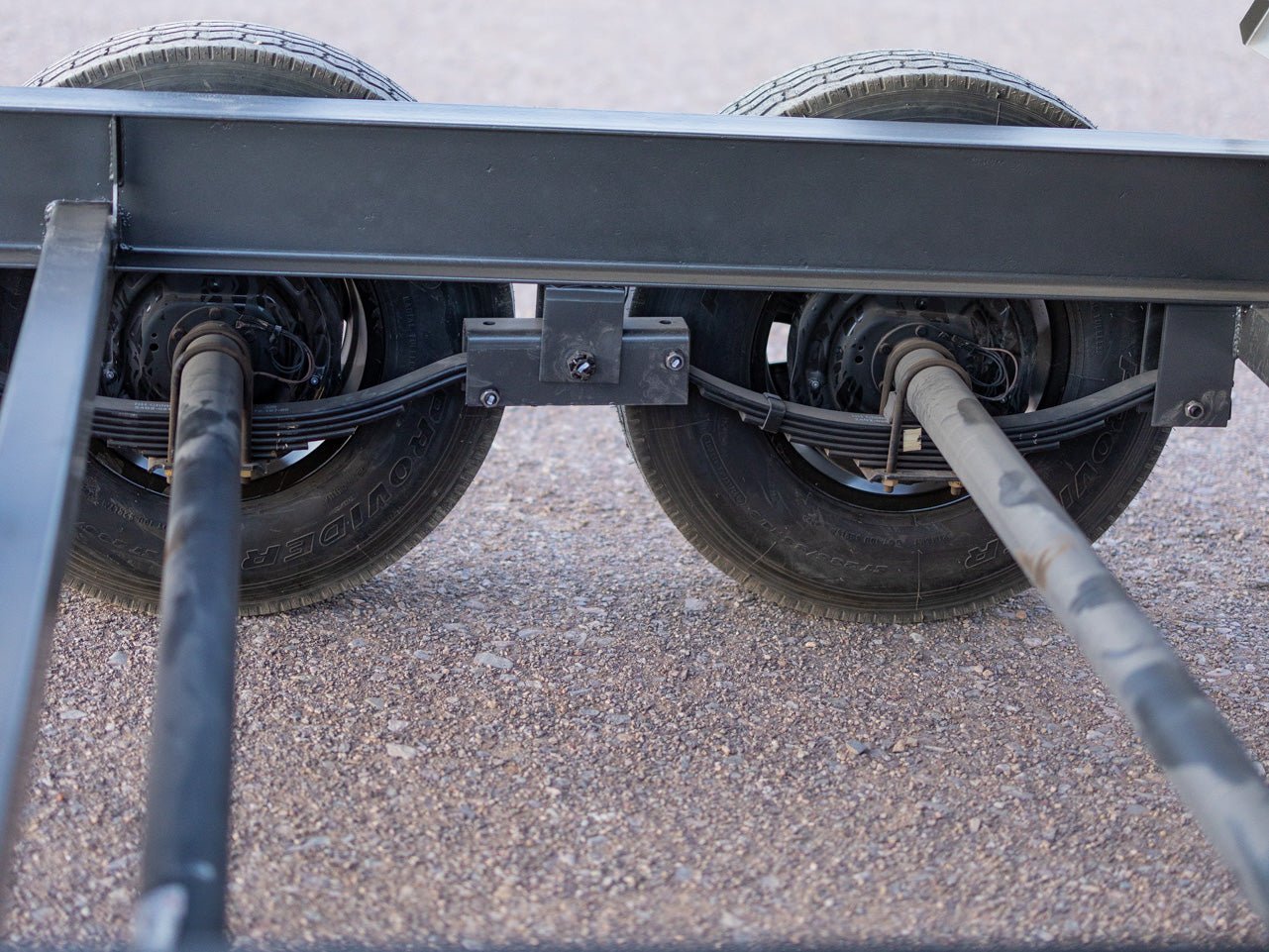

- Suspension: Spring Axles, 2 Axles, Rating: 7,000 lbs., Electric Brakes
Electrical & Lighting
- Wiring: Front Plug 7 - Way RV, All Weather Wiring Harness
- Lighting: 3/4" LED Bullet Lights, 2" x 6" Amber Side Turn Lights, DOT Approved LED Rear Lights
- Battery & Charging: 27M Deep Cycle Marine Battery, 110V Integrated Trickle Charger
