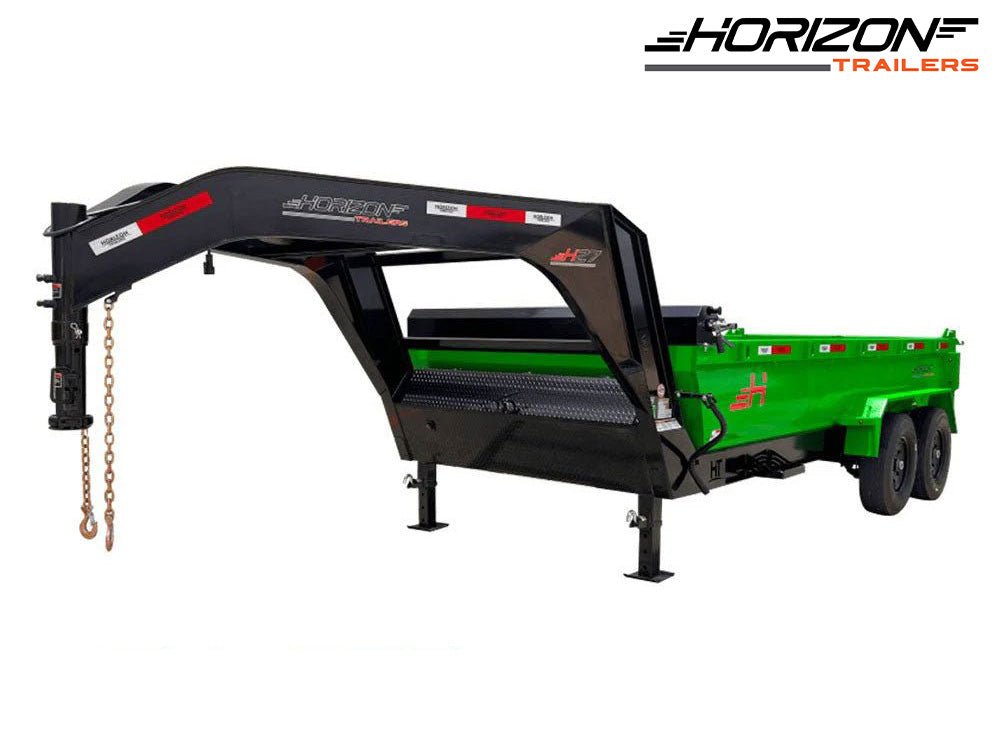

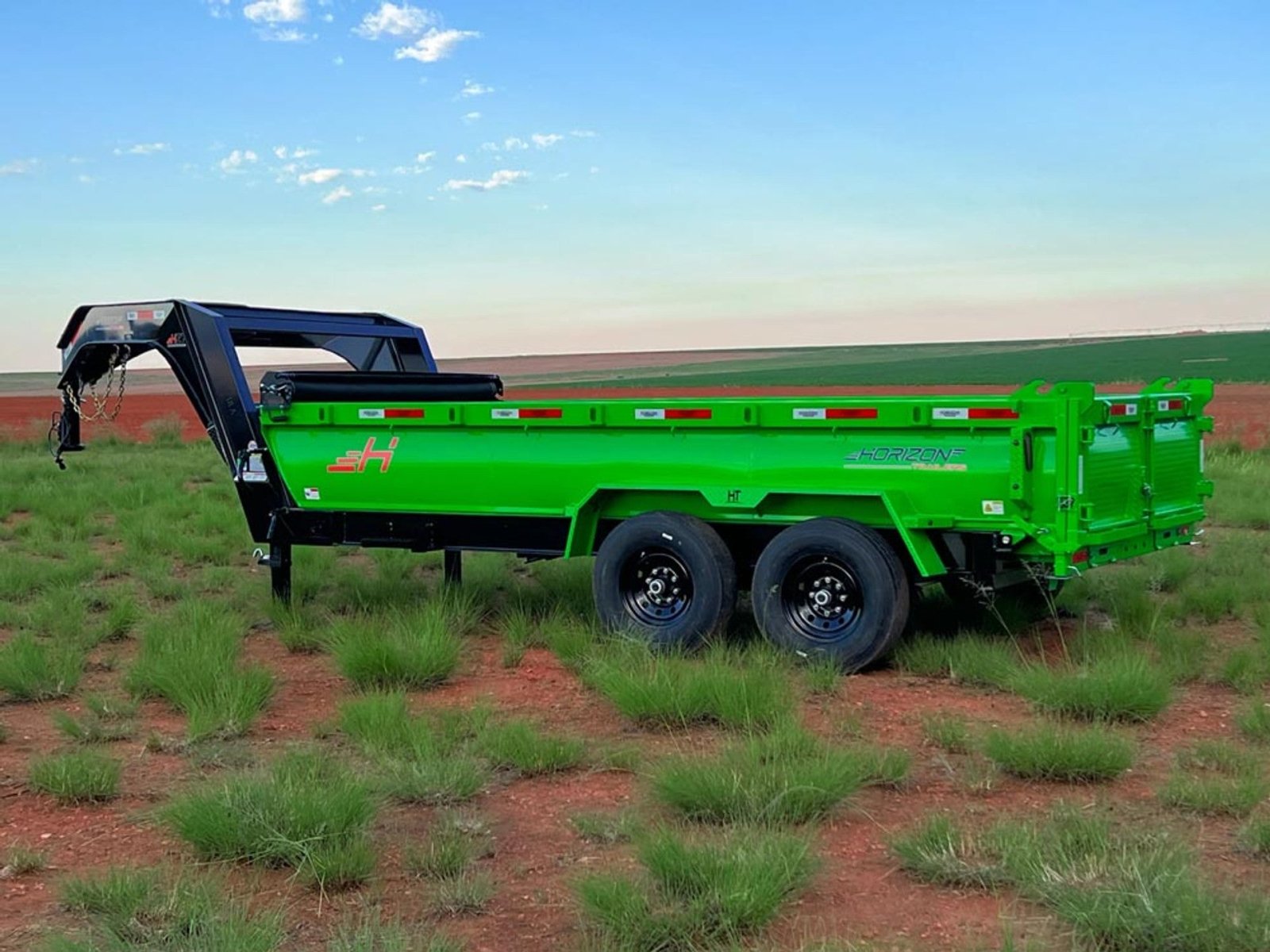

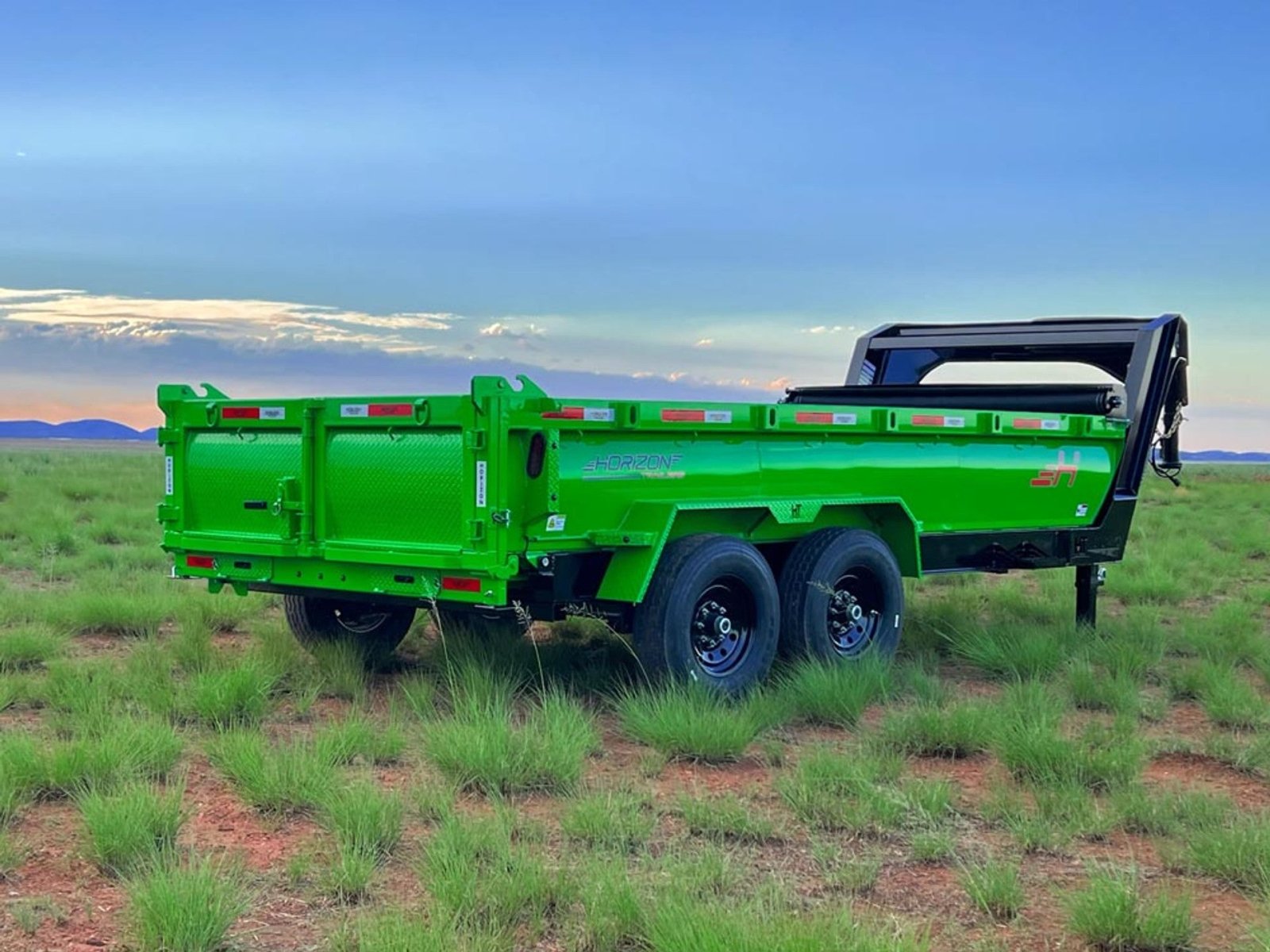

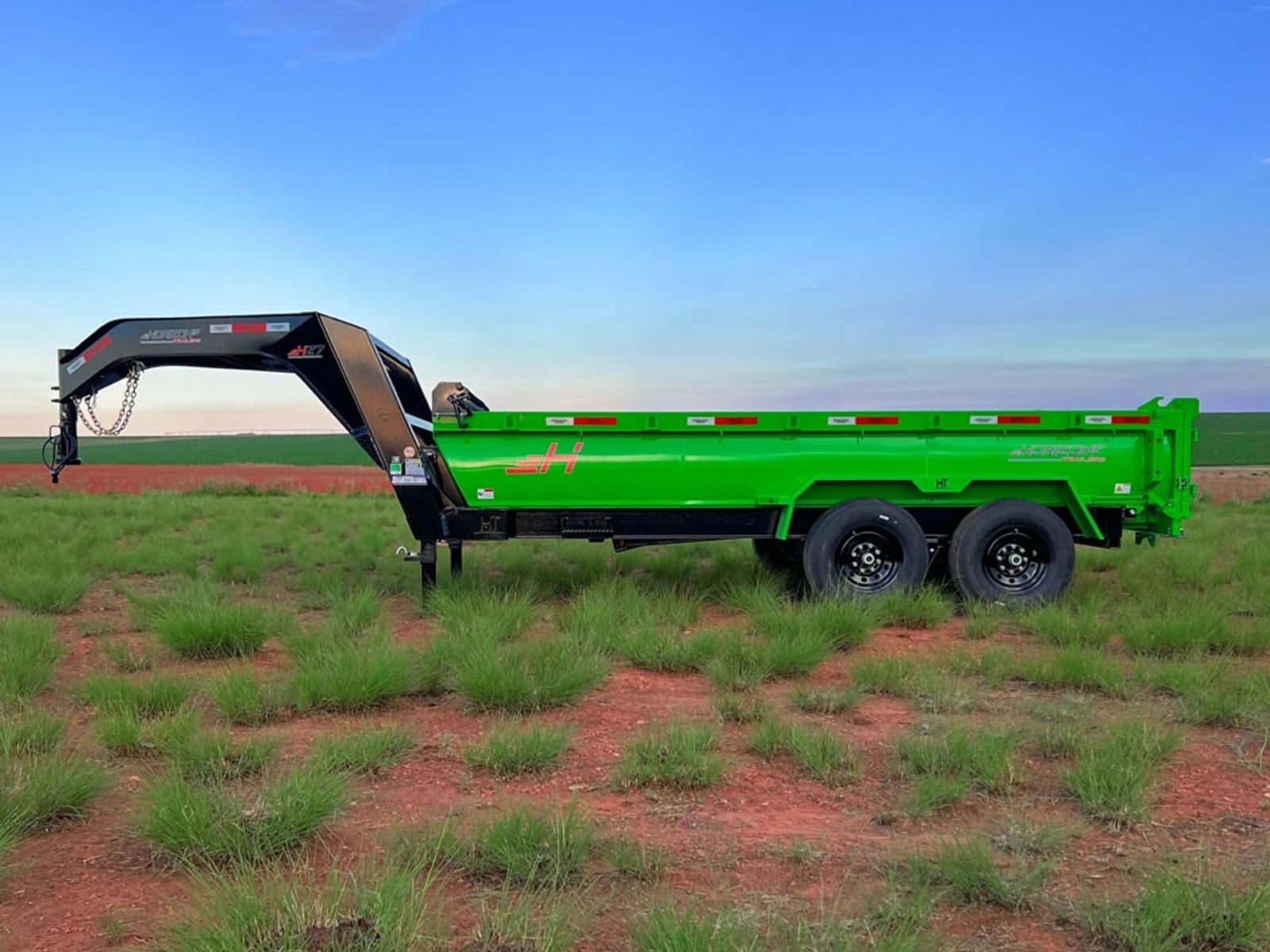

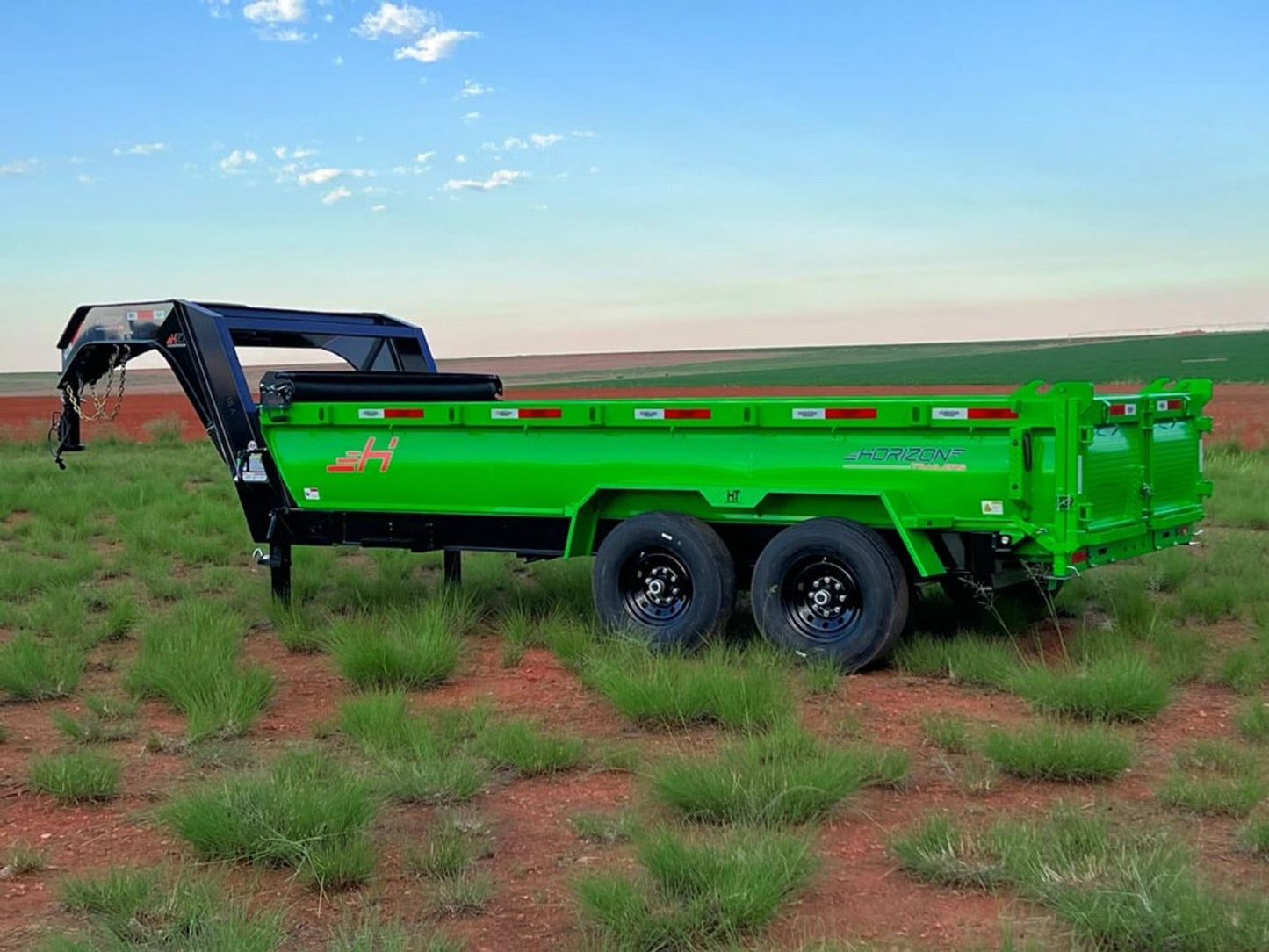

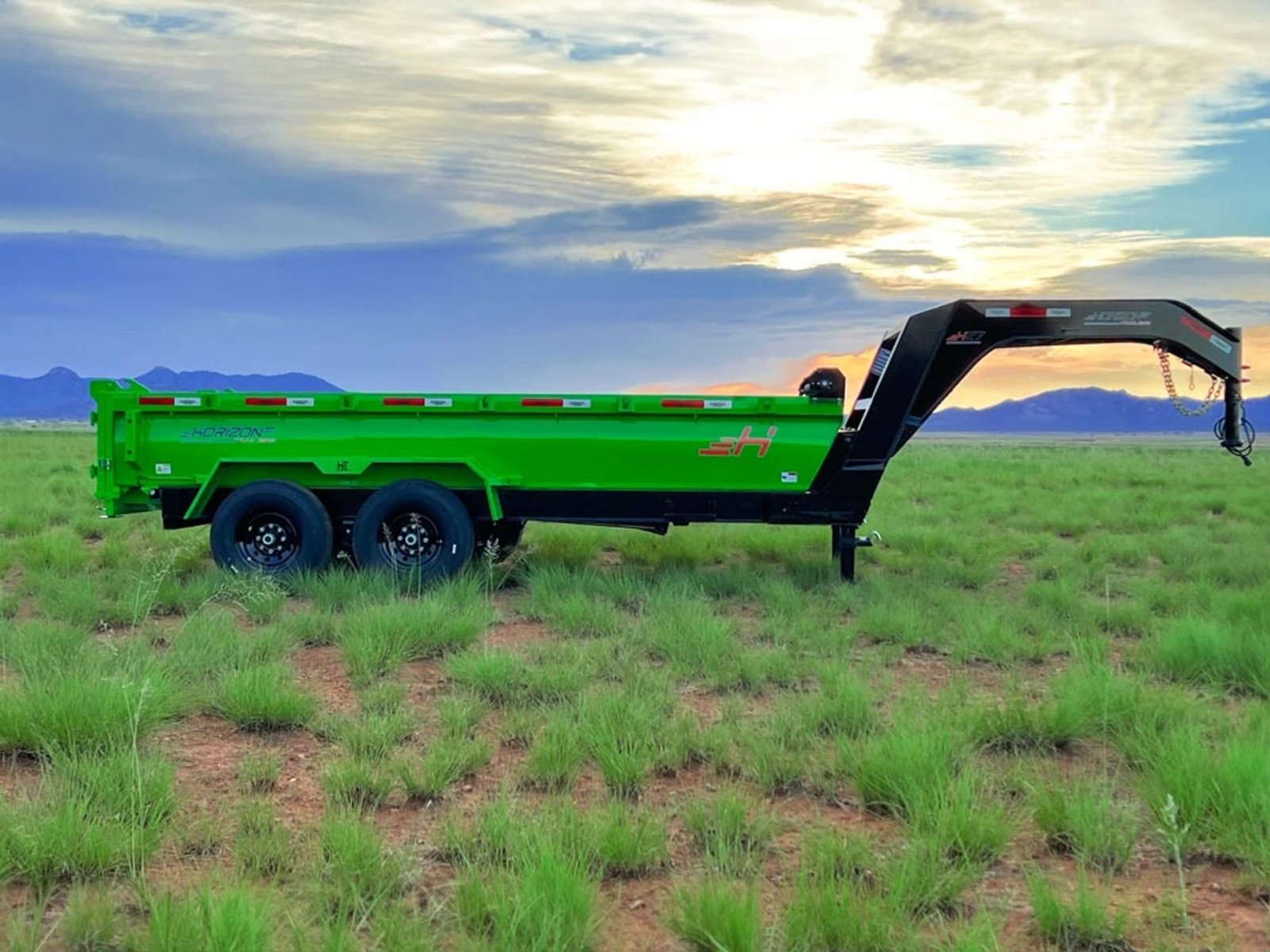

Horizon HZ7 Gooseneck Dump Trailer
Horizon HZ7 Gooseneck Dump Trailer
At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
12'-16'
Featured Video
Product Features

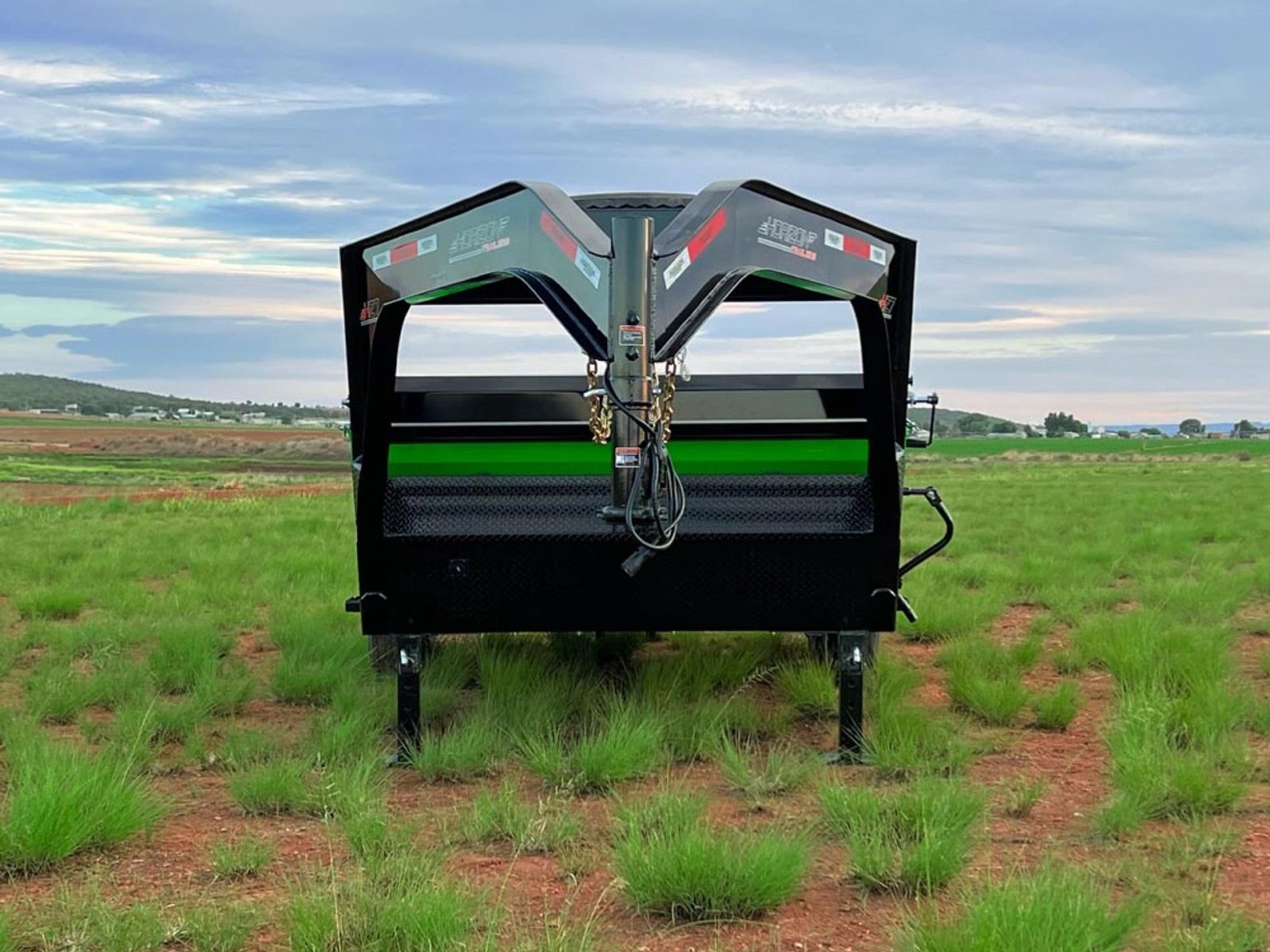

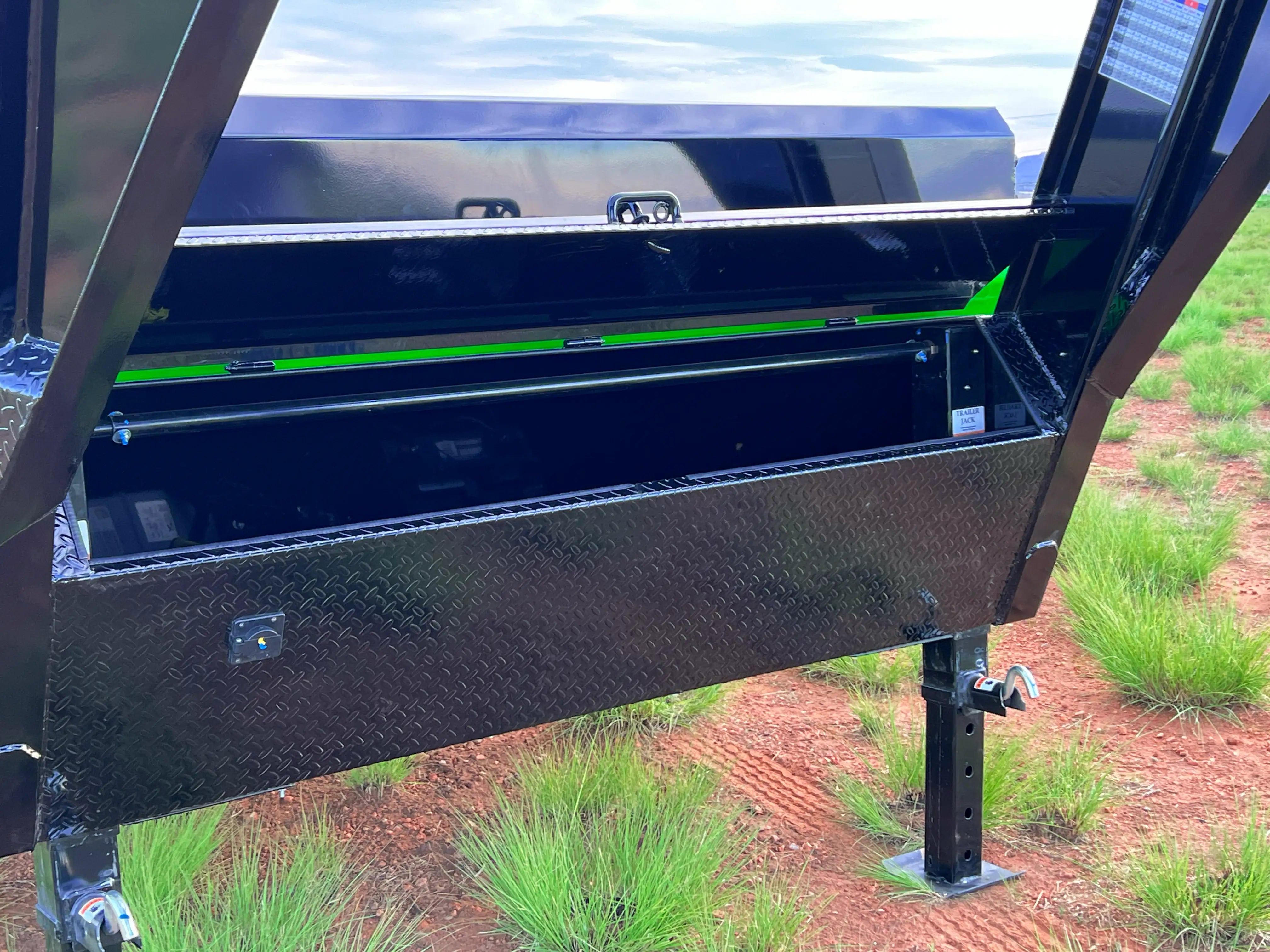

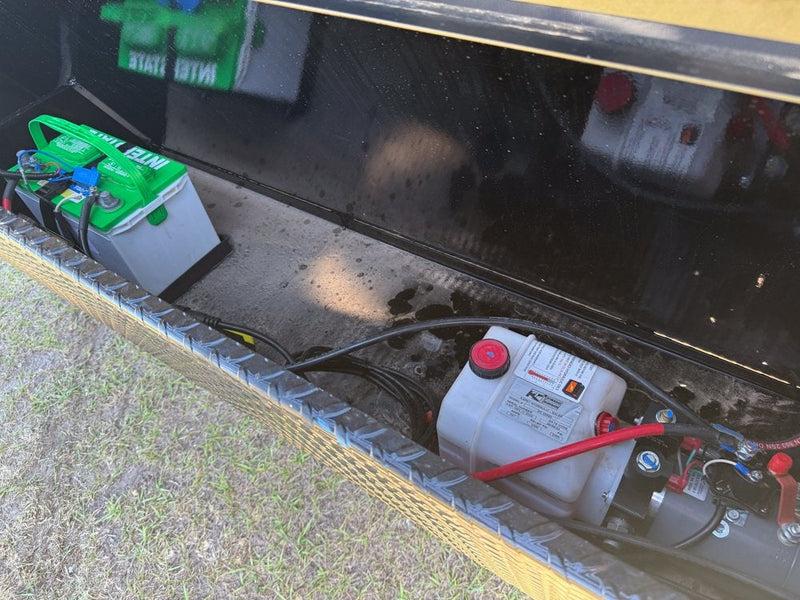

Tongue
The trailer’s tongue includes a lockable toolbox and pump box, offering secure storage for tools and equipment. This convenient feature ensures peace of mind and easy access, making it ideal for hauling both construction materials and recreational gear.
Chassis Frame
The robust 8" I-Beam (10 lbs/ft) chassis frame forms the backbone of this trailer. Built for heavy-duty use, it can handle substantial loads without compromising stability. Whether you’re transporting gravel, firewood, or other heavy items, the chassis frame ensures durability and reliability.

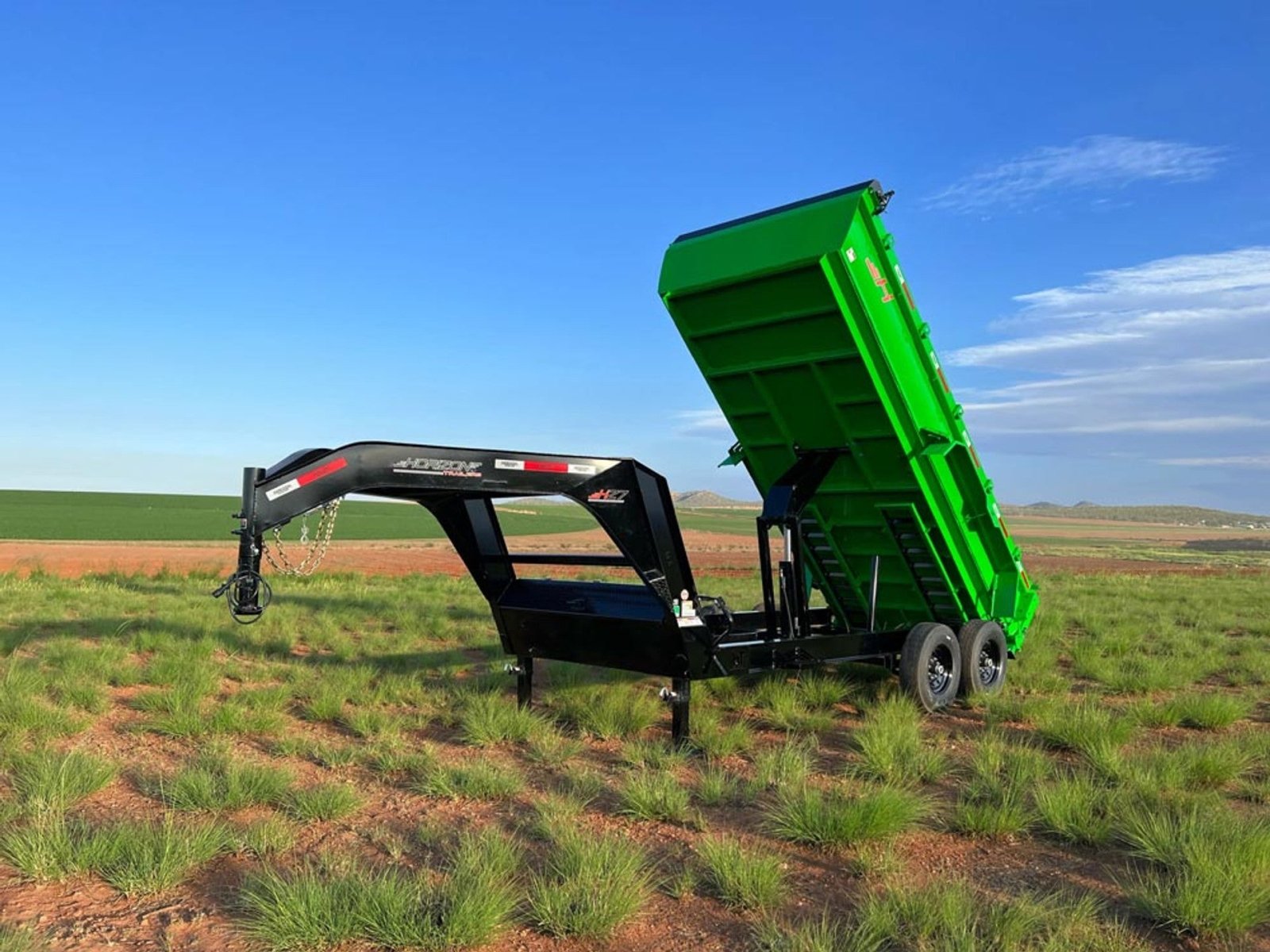

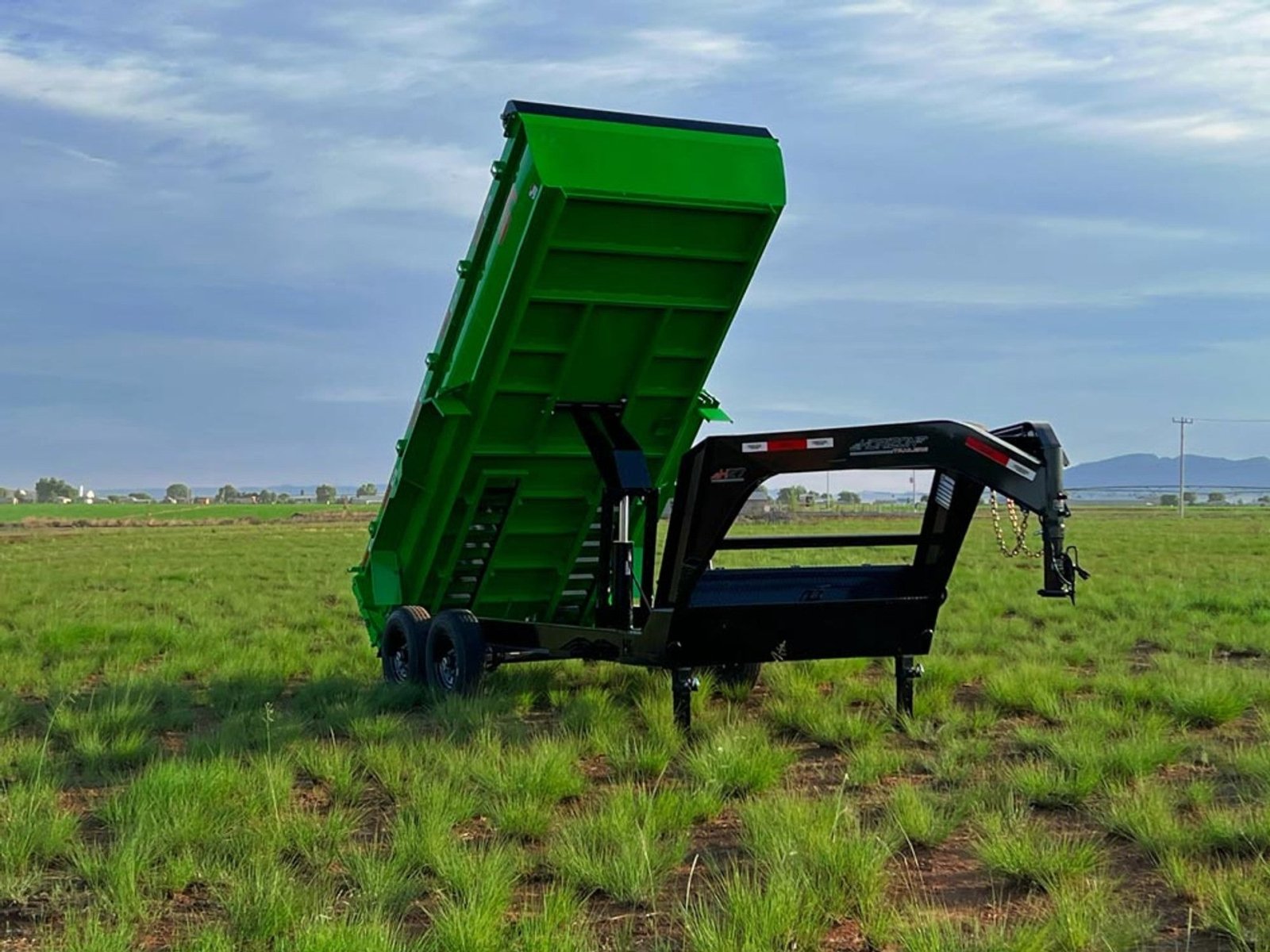

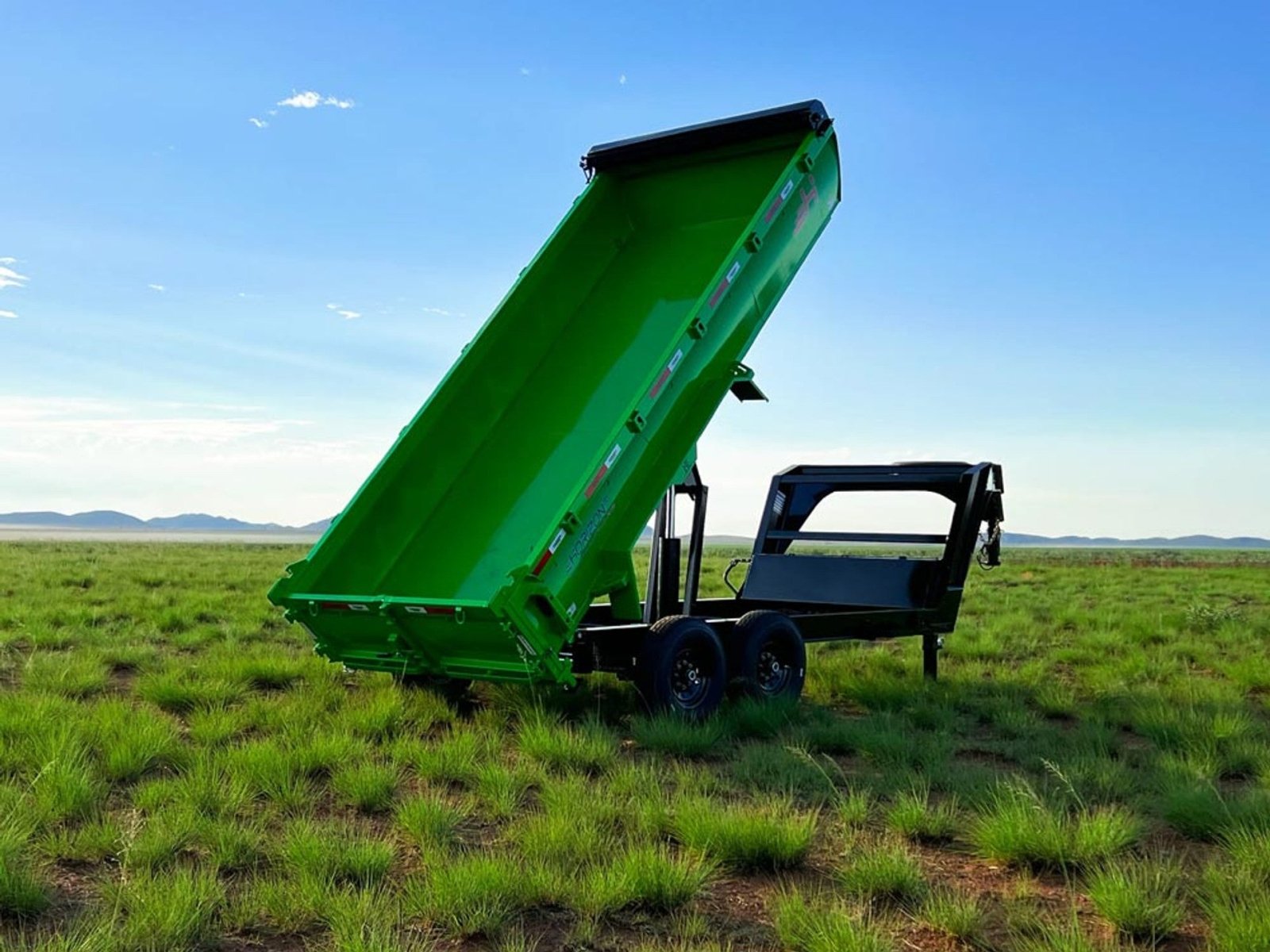

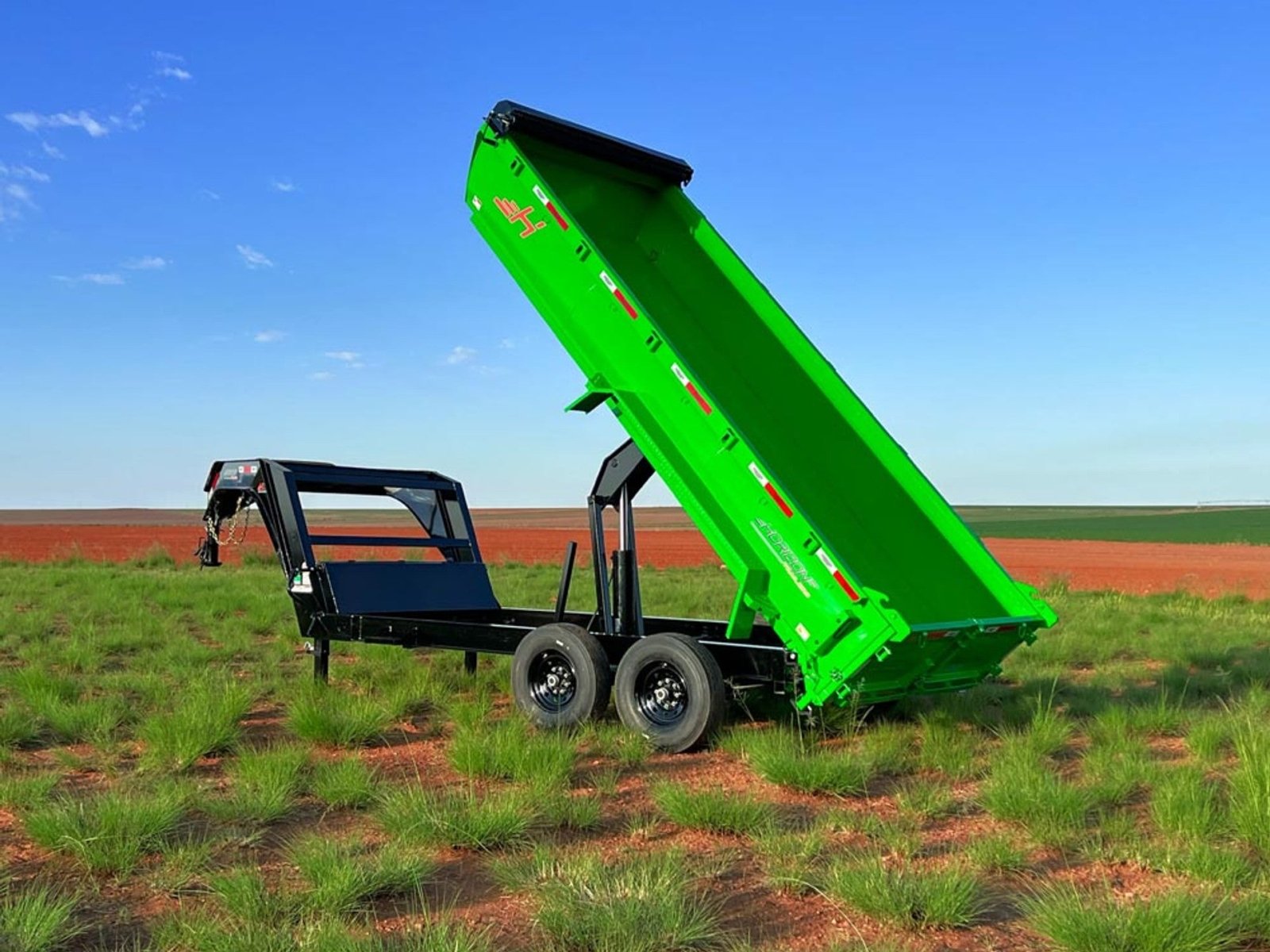

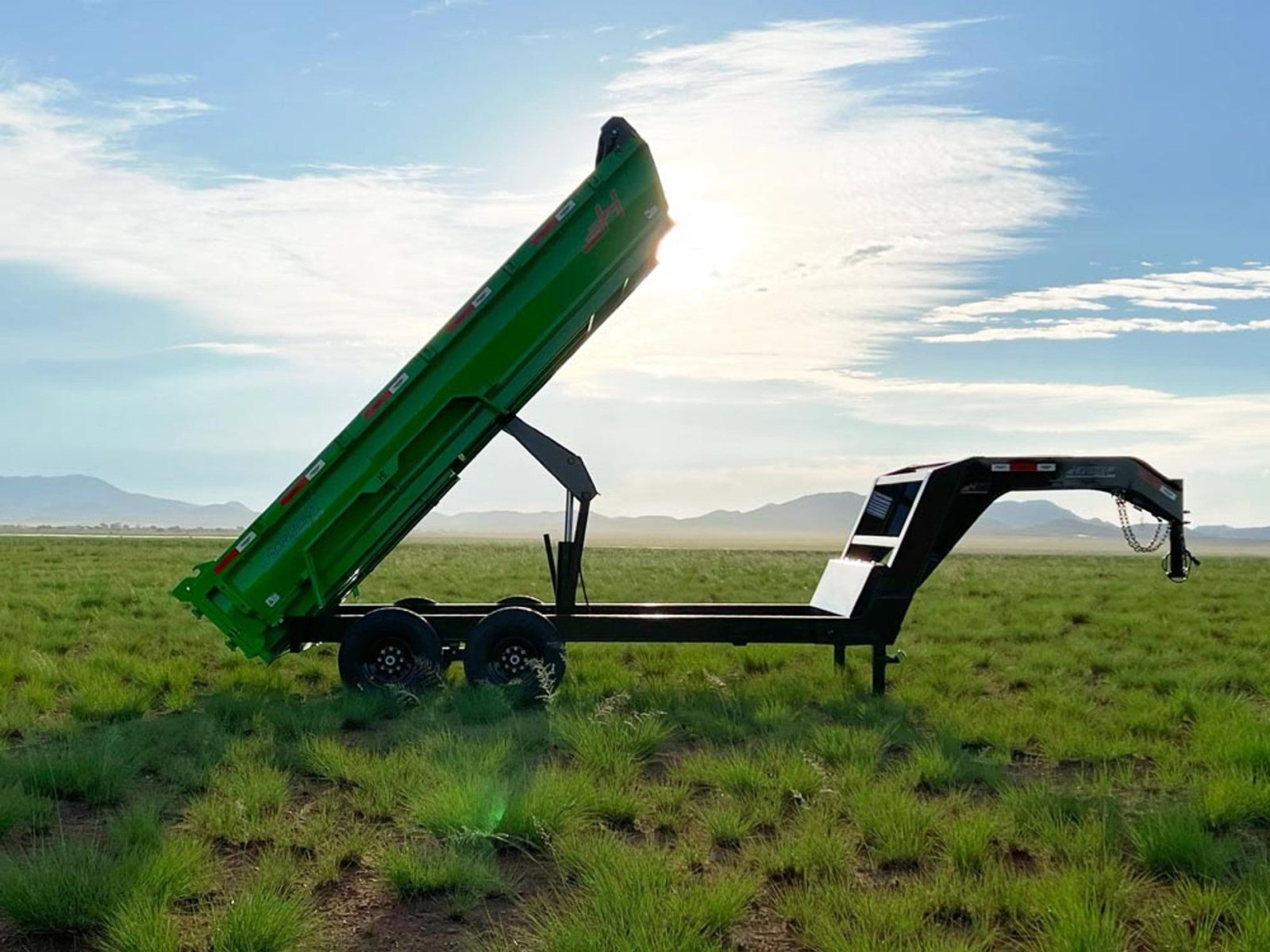

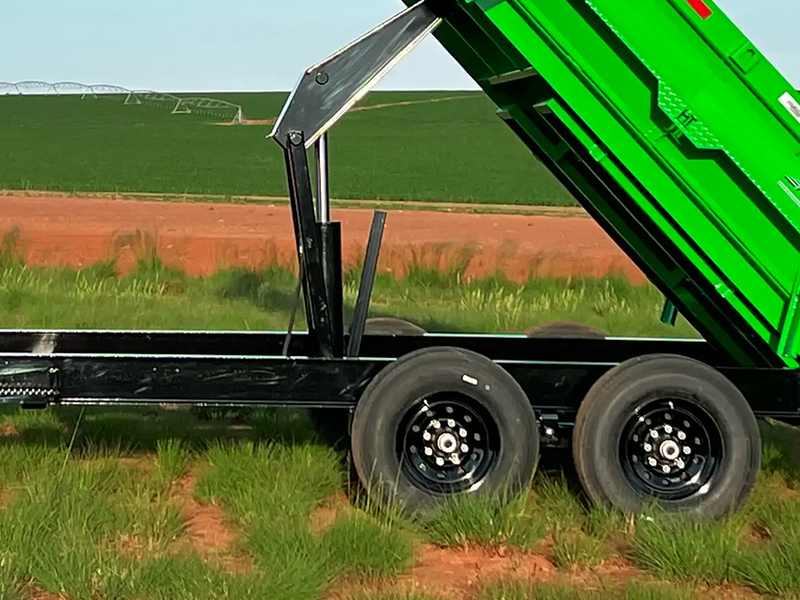

Dump
The HZ7 trailer features a Hydraulic Power Up/Gravity Down system with a KTI 12V hydraulic pump and 14' control cable. The 12' platform uses a 5" x 15" single push cylinder with a 15,000 lb hoist capacity. The 14' and 16' platforms utilize a 6" x 21" single push cylinder, offering a 20,000 lb capacity, ensuring efficient and reliable dumping.

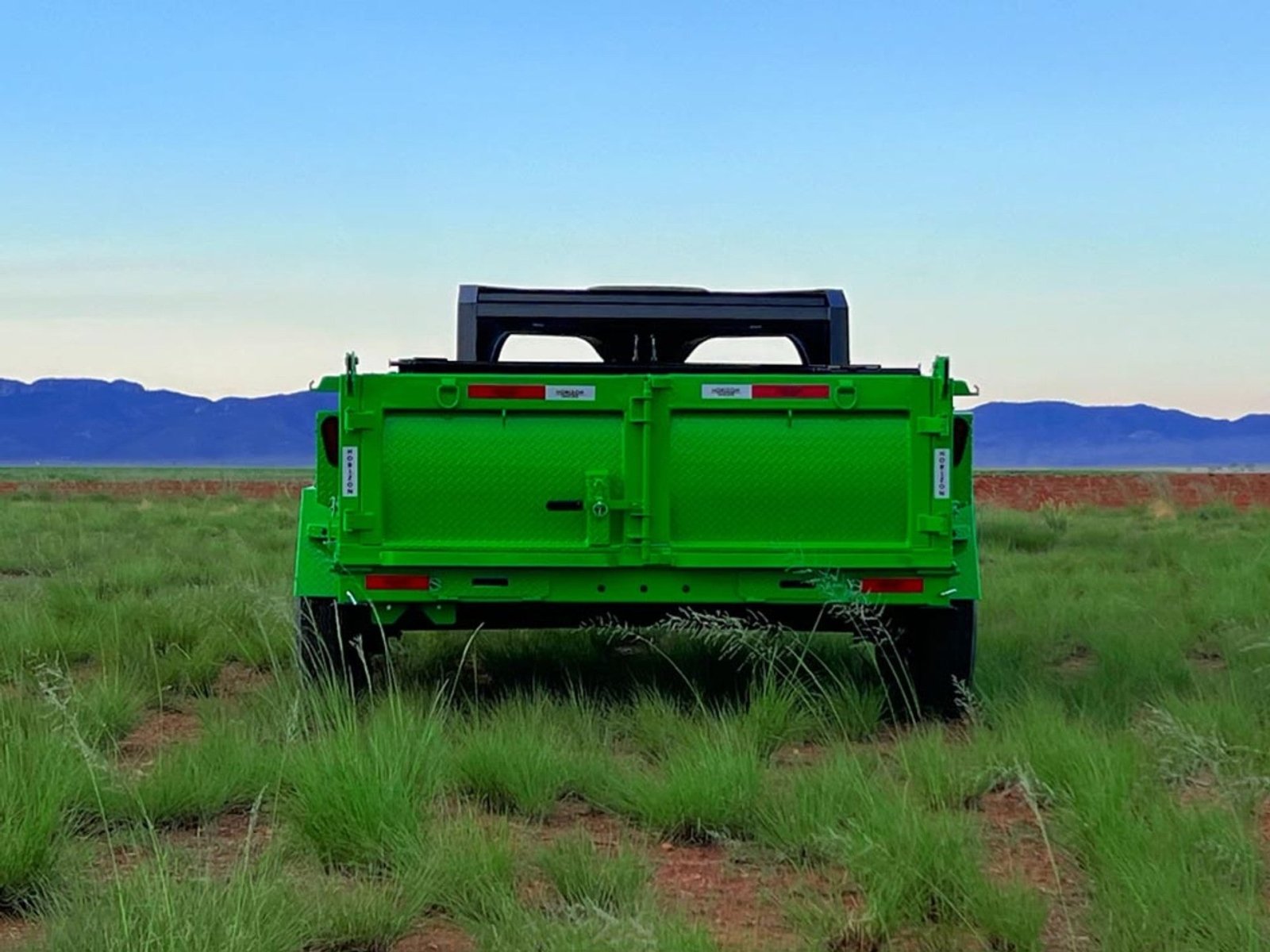

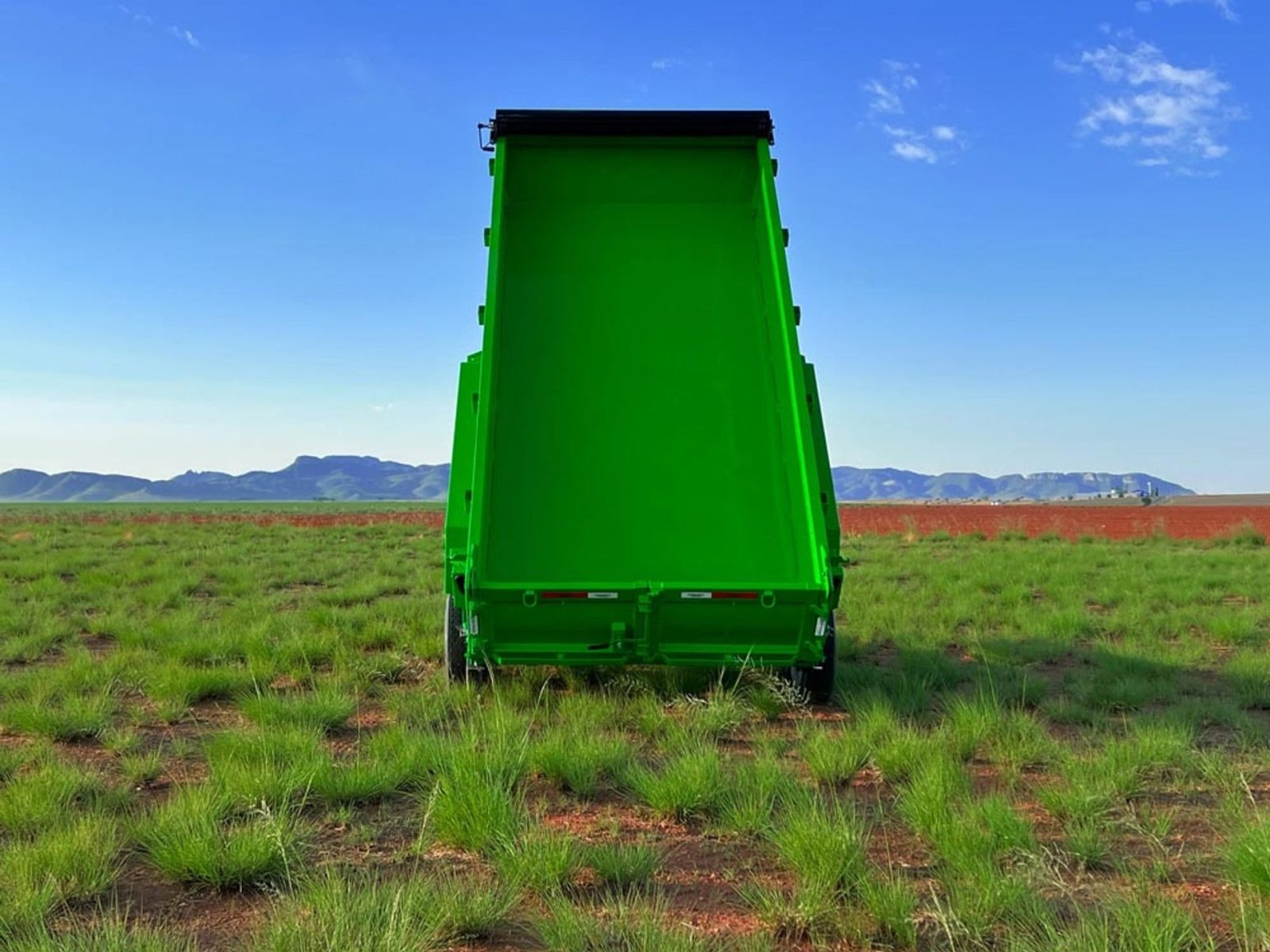

HZ7 Door
This model features a versatile 2-way door for both swinging and spreader-style unloading. It efficiently discharges various materials, accommodating different job requirements with ease. Whether handling soil, debris, or landscaping supplies, the 2-way door enhances the trailer's functionality and efficiency.
DURABLE POWDER COAT FINISH
Finished with a powder coat for superior durability and corrosion resistance, the HZ7 dump trailer is built to withstand the elements. Its rugged construction and premium finish ensure long-lasting performance, even in the harshest environments, making it a reliable asset for years to come.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Dimensions
- Length: 12', 14', 16'
- Side Height: 2', 3', 4'
- Bed Width: 80"
- Bed Height: 28"
Tongue Bumper Pull
- Type: 8" I-Beam (13 lbs/ft)
- Length: 60"

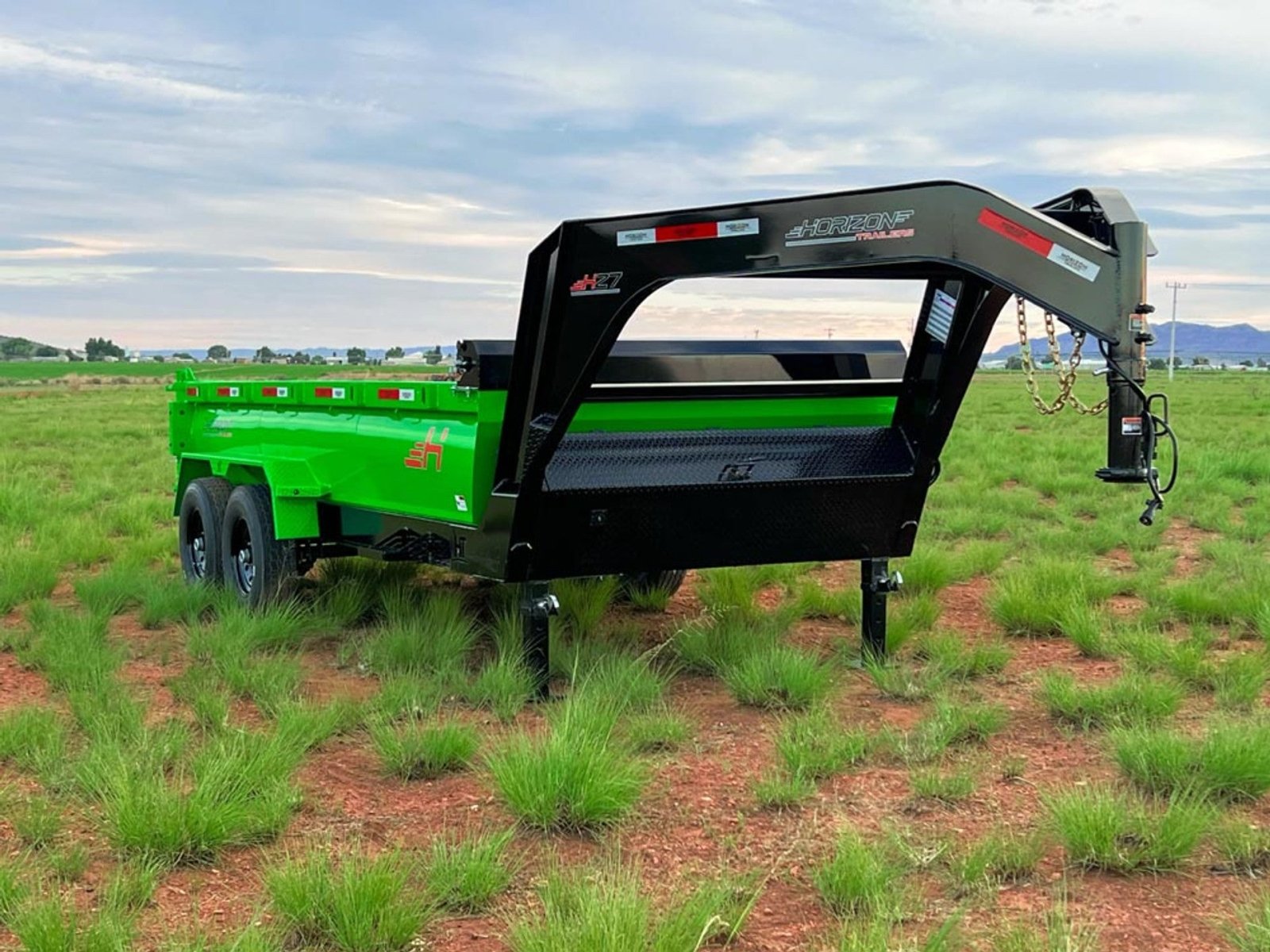

Tongue Gooseneck
- Type: Fabricated I-Beam
- Length: 94" (From Behind Riser)
- Height: 70" (From Underneath Neck)
Safety System
- Breakaway System: 2382 Brightway Group Electric Breakaway Kit
- Reflective Tape: 3M DOT Compliant Reflective Tape
- Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
Weight Ratings
- GAWR: 7,000 lbs - 8,000 lbs
- GVWR: 15,260 lbs - 17,920 lbs
- Estimate Dry Weight: 4,685 lbs - 6,565 lbs
- Estimate Payload: 9,115 lbs - 12,755 lbs
- Estimate Tongue Weight: 900 lbs - 1,000 lbs
Finish
- Paint Type: Powdercoat
- Prep: Steel Grit Blasted
- Colors: View Bottom Of Page For Colors
- Style: 2 Tone Colors Available, Chassis / Dump
Warranty
- Axle Warranty: 6 Year Lippert Spring Axle Warranty
- Trailer Warranty: Three (3) Year Frame, One (1) Year Parts Warranty
Electrical & Lighting
- Battery: Interstate 27 Deep Cycle Battery
- Charging System: 110V Integrated Trickle Charger
- Wiring Harness: All-Weather Wiring Harness (7-Way RV)
- Frame Wiring: Double Insulated Wiring Harness

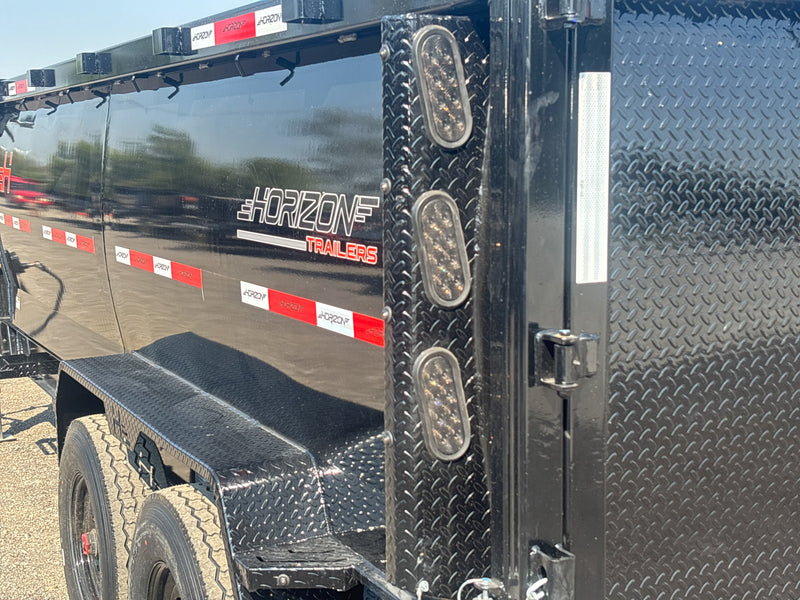

- Lighting: DOT Approved Tecniq LED Lights
Tongue
- Coupler: Adjustable Demco EZ Latch 2-5/16" Coupler (21,000 lbs) / Adjustable 2-5/16" Coupler (30,000 lbs)
- Jacks: 1 Side Wind Drop Jack Leg (12,000 lbs) / 2 Side Wind Drop Jack Legs (12,000 lbs)
- Toolbox: Lockable Toolbox (Houses Battery and Pump)
Frame
- Main Frame: 8" I-Beam (13 lbs/ft)
Dump
- Bed Width: 80"
- Bed Height: 28"

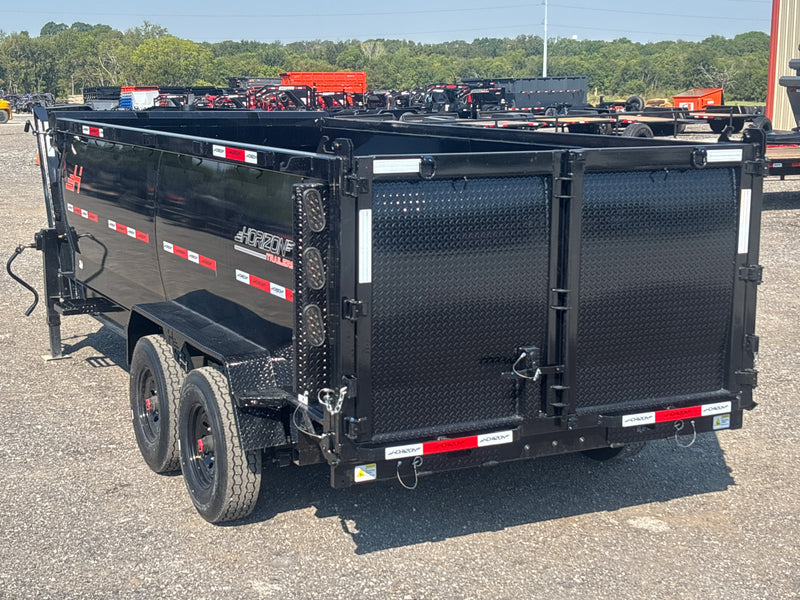

- Flooring: 7ga. Steel Bed
- Frame: 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)
- Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
- D-Rings: 4 D-Rings Welded Inside Box
- Dump Angle: 46°
Rear
- Gate: 2 Way Door
- Safety: Crank Style Roll-Up Tarp
Sides
- Height: 2', 3', 4'
- Thickness: 10ga.
- Type: Rounded Steel
- Stake Pockets: 1-5/8" x 3-5/8" (ID) Stake Pockets
- Hooks: 3/8" Round "L" Hooks
- Fenders: 12ga. Diamond Plate Steel Fenders
Hydraulics
- System: Hydraulic - Power Up / Gravity Down
- Pump: KTI 12V Hydraulic Pump
- Controller: 14' Control Cable

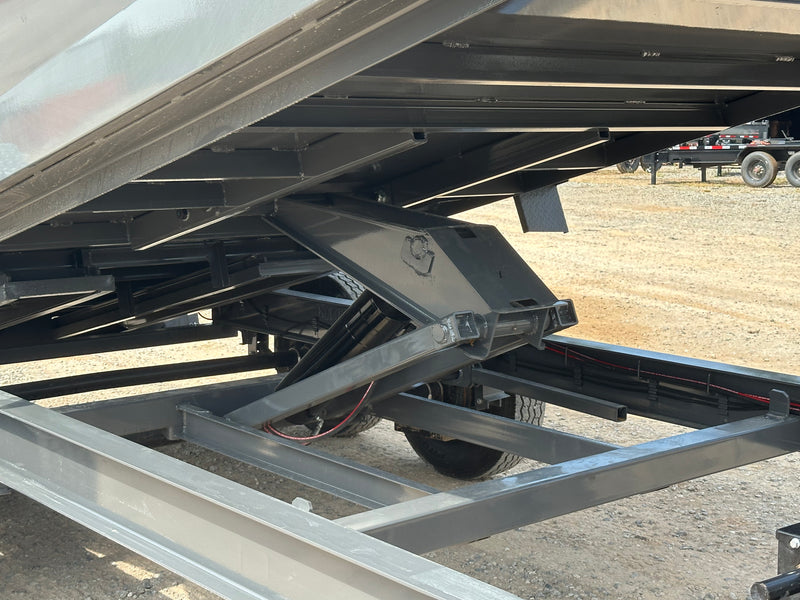

Lift Platform
- 12' Cylinder: 5" X 15" Single Push Cylinder, Hoist Capacity 15,000 lbs
- 14', 16' Cylinder: 6" x 21" Single Push Cylinder, Hoist Capacity 20,000 lbs
Tires
- Type: Radial Tires
- Size: ST235/80R16
- Ply: 10
- Rating: 3,520 lbs
- Rims: 16" Black Mod Wheels

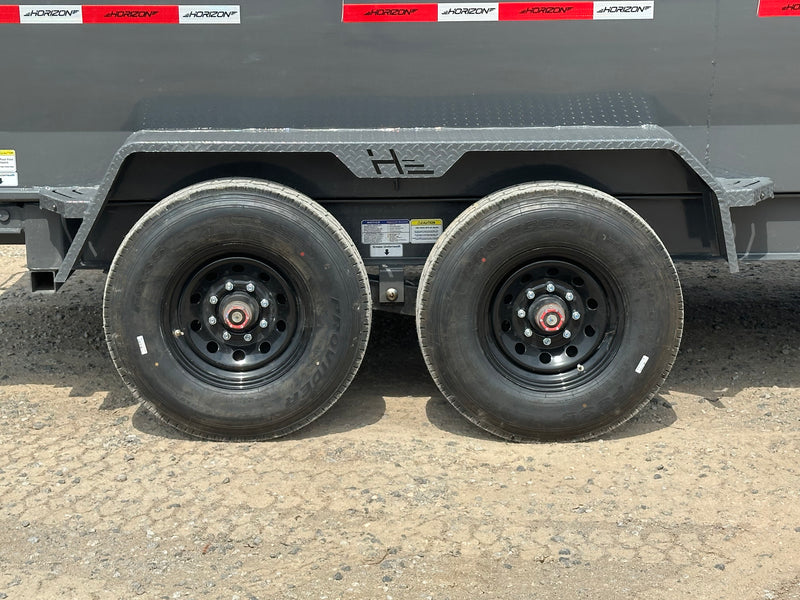

Suspension
- Axle Type: 2 - 7k Lippert Electric Brake EZ Lube Spring Axles
- Bolt Pattern: 8 On 6.5"
- Axle Count: 2
- Suspension Type: 6 Leaf Slipper Spring (4,000 lbs)
- Axle Warranty: 6 Year Lippert Spring Axle Warranty
