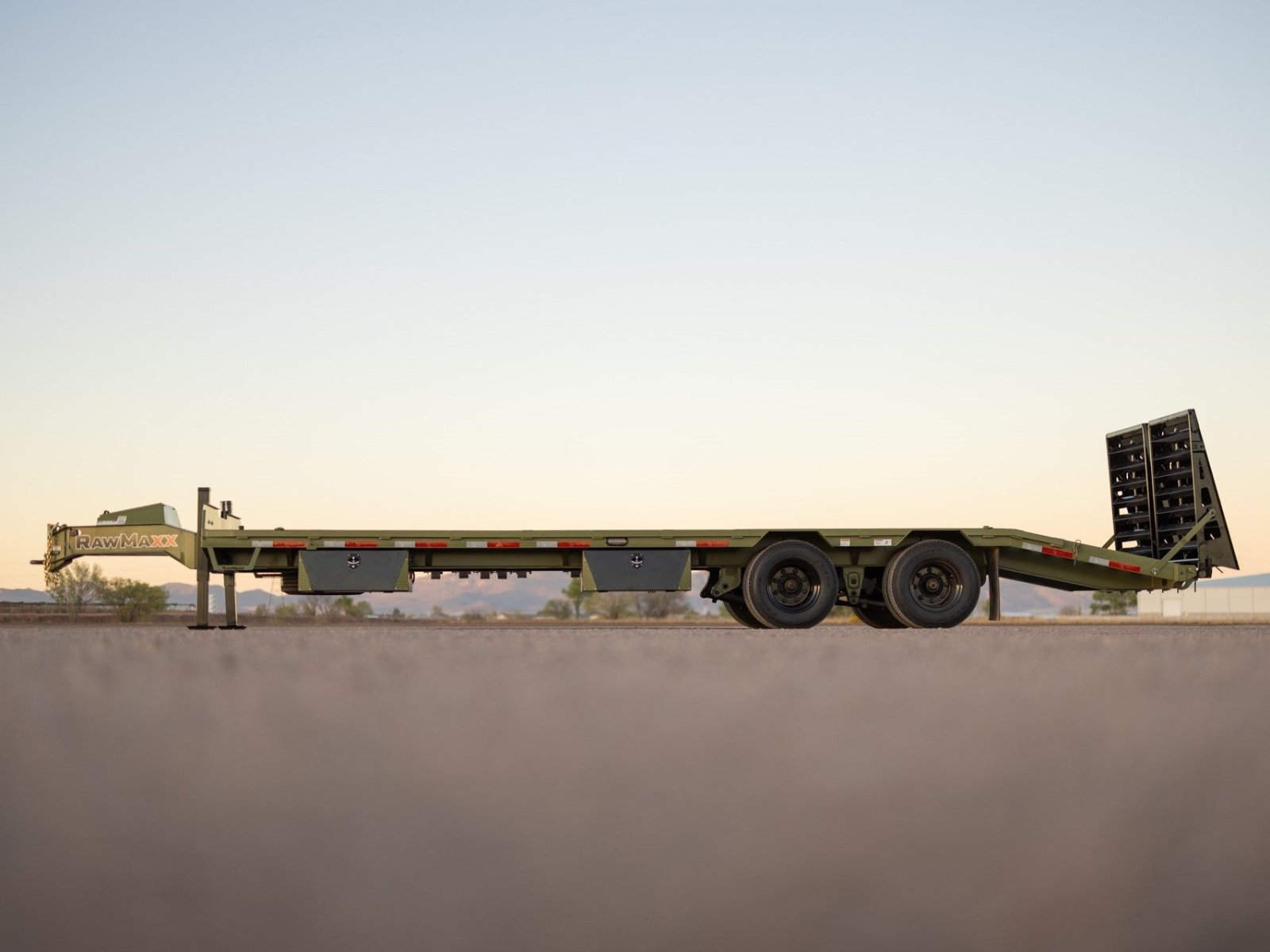

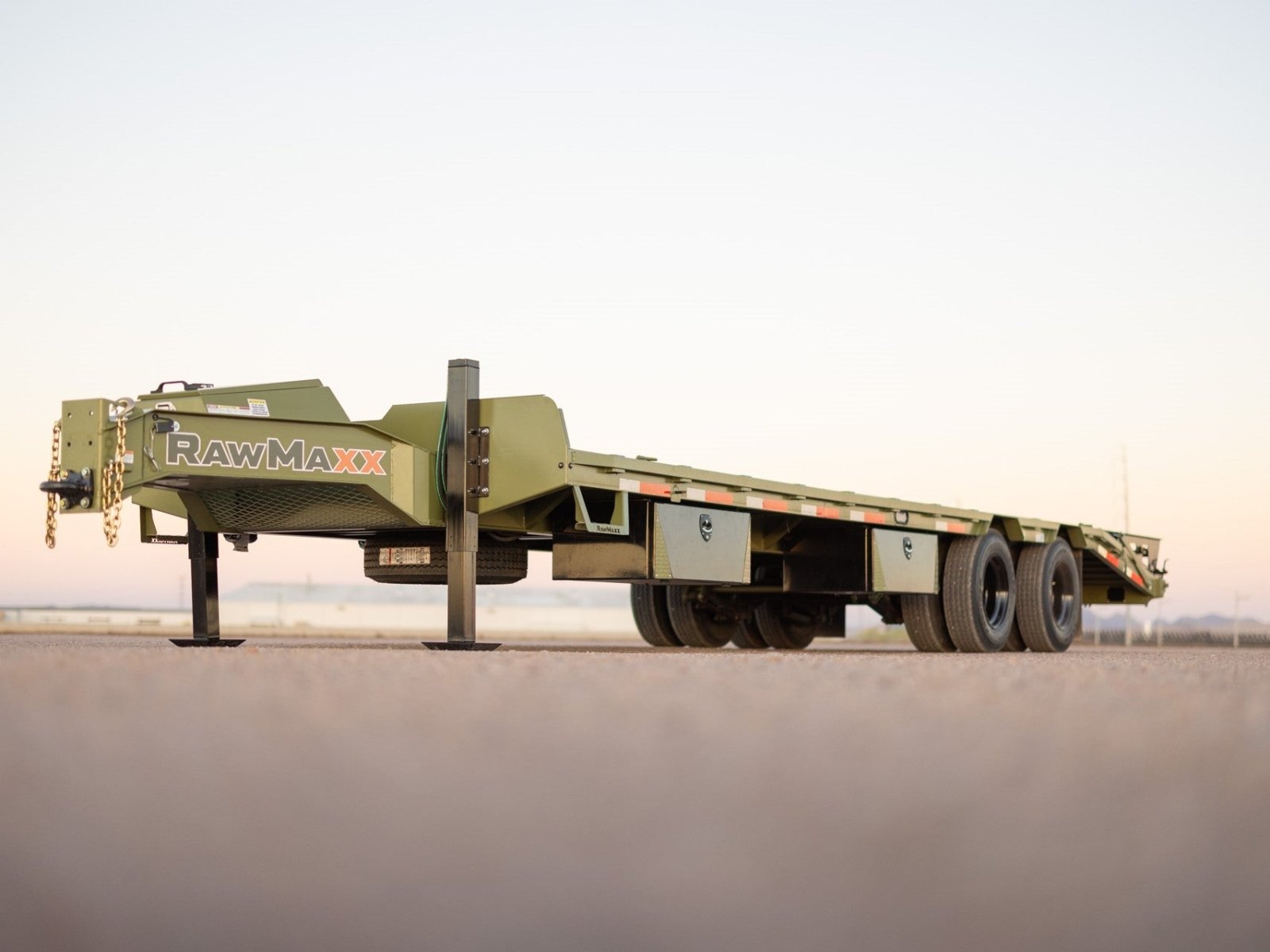

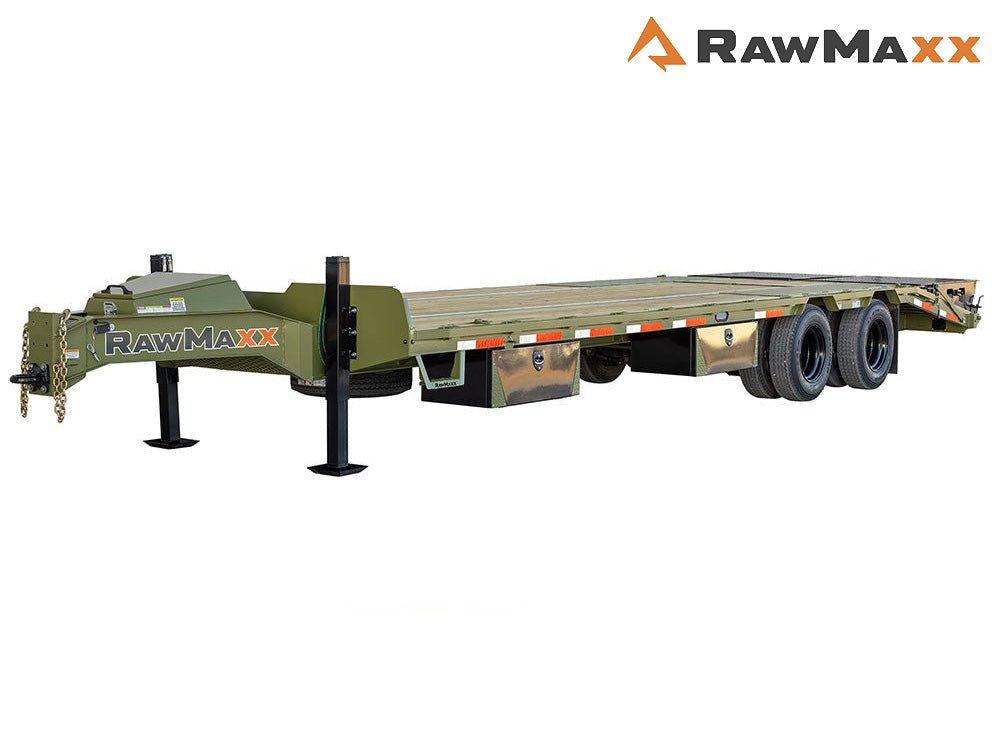

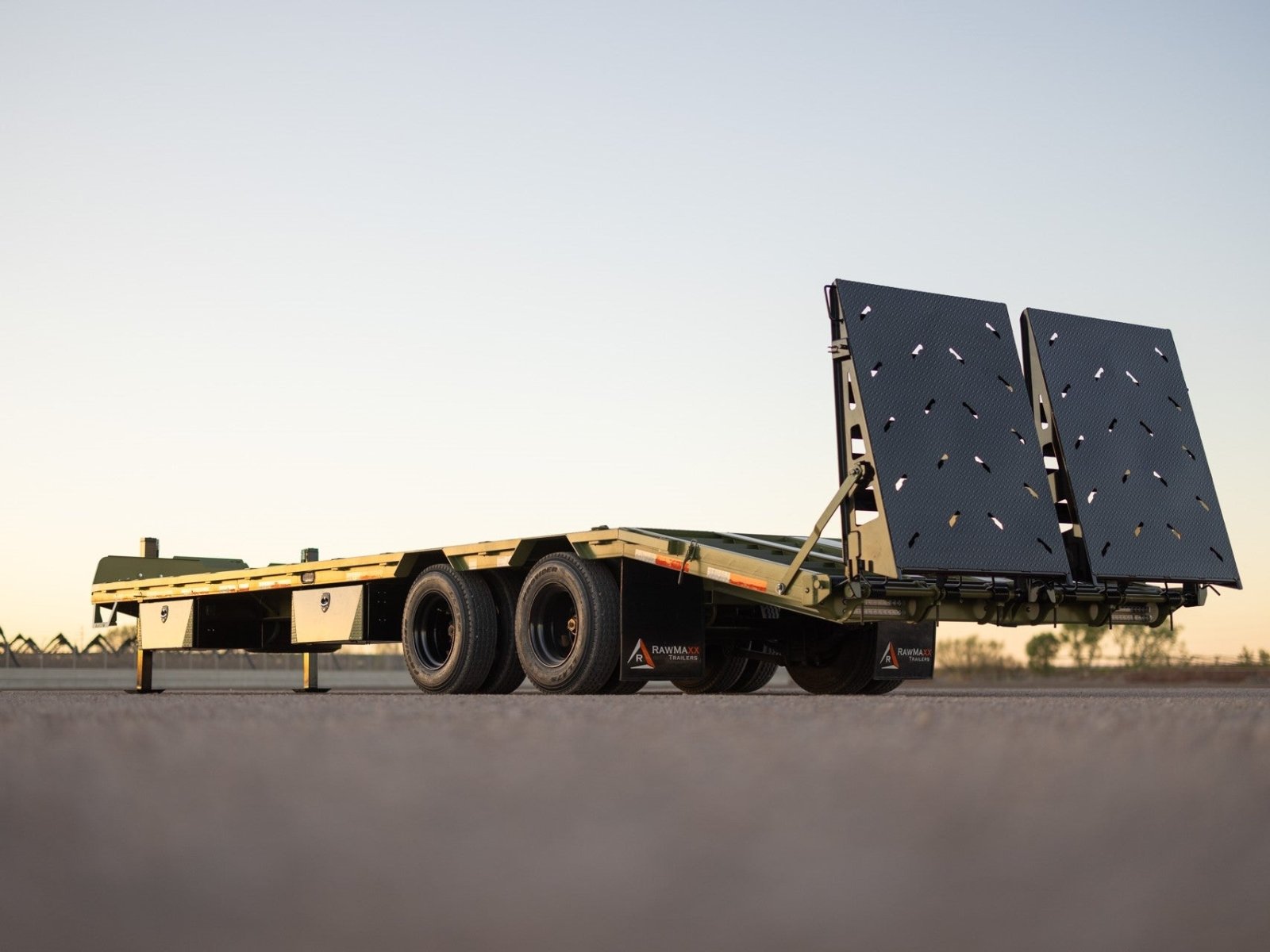

RawMaxx FDX Dual Pintle

Product Details

DIMENSIONS & CAPACITY

TRAILER:

LENGTH:

20', 22', 24', 25', 26', 28', 30', 32'

WIDTH:

102"

DECK HEIGHT:

35"

GVWR:

20,000 lbs.

GAWR:

10,000 lbs.

FRAME & STRUCTURE

STRUCTURE:

MAIN FRAME:

12" x 19 lbs. I-Beam Main Frame

TILT FRAME:

6" Channel

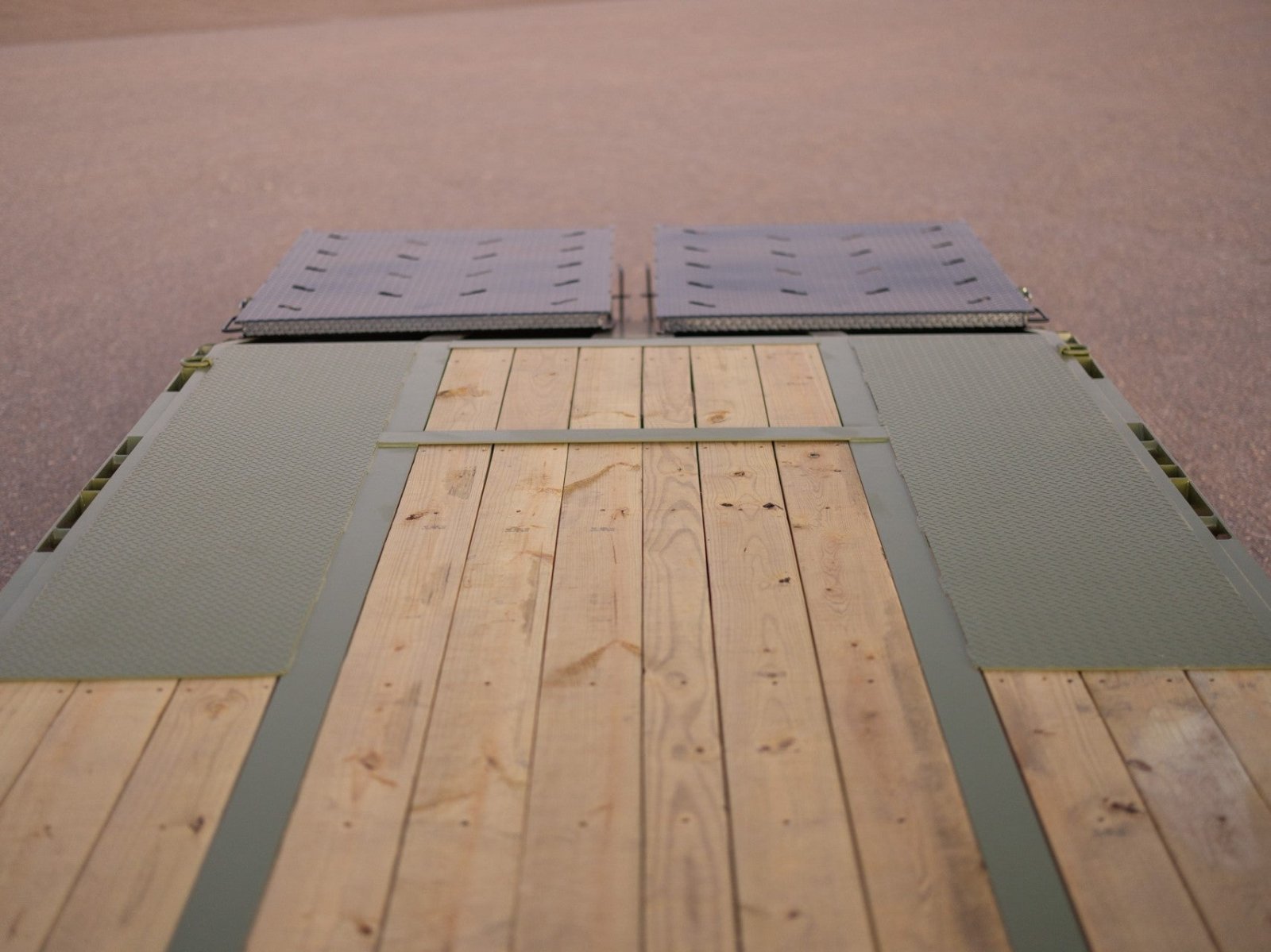

FLOORING:

2” Treated Lumber Deck

CROSS-MEMBERS:

3" Channel / 16" Spacings

SIDE PERIMETER:

5" Channel Outer Deck Frame

RUB RAIL:

2" x 3/8" Flat Bar

STAKE POCKETS:

3-7/8" x 1-13/16" (ID) Stake Pockets

CHAIN SPOOL:

1 5/8" OD

FENDERS:

3/16” Thread Plate

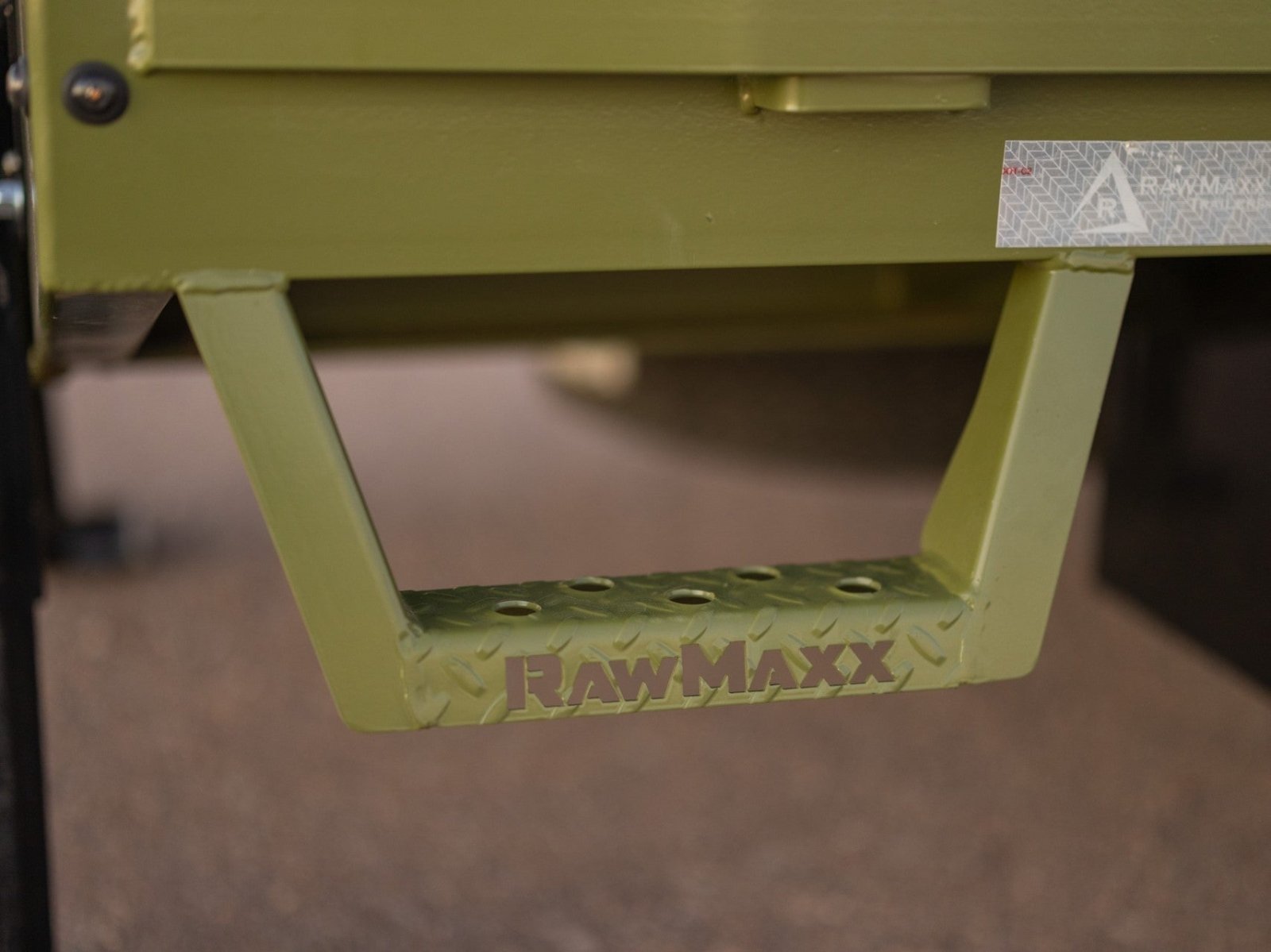

SIDE STEP & HANDLE:

G10 Sides / G12 Diamond Plate Step

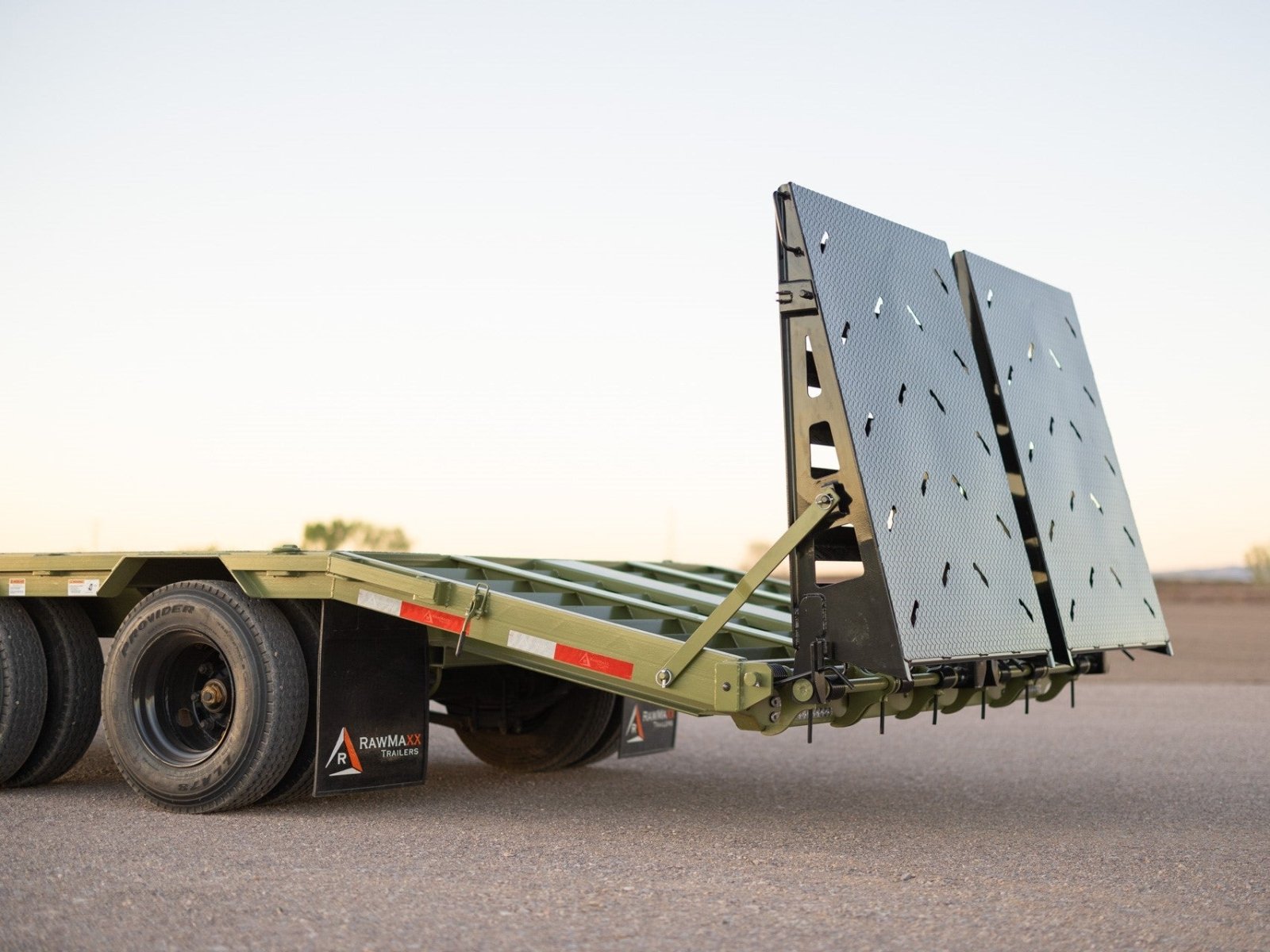

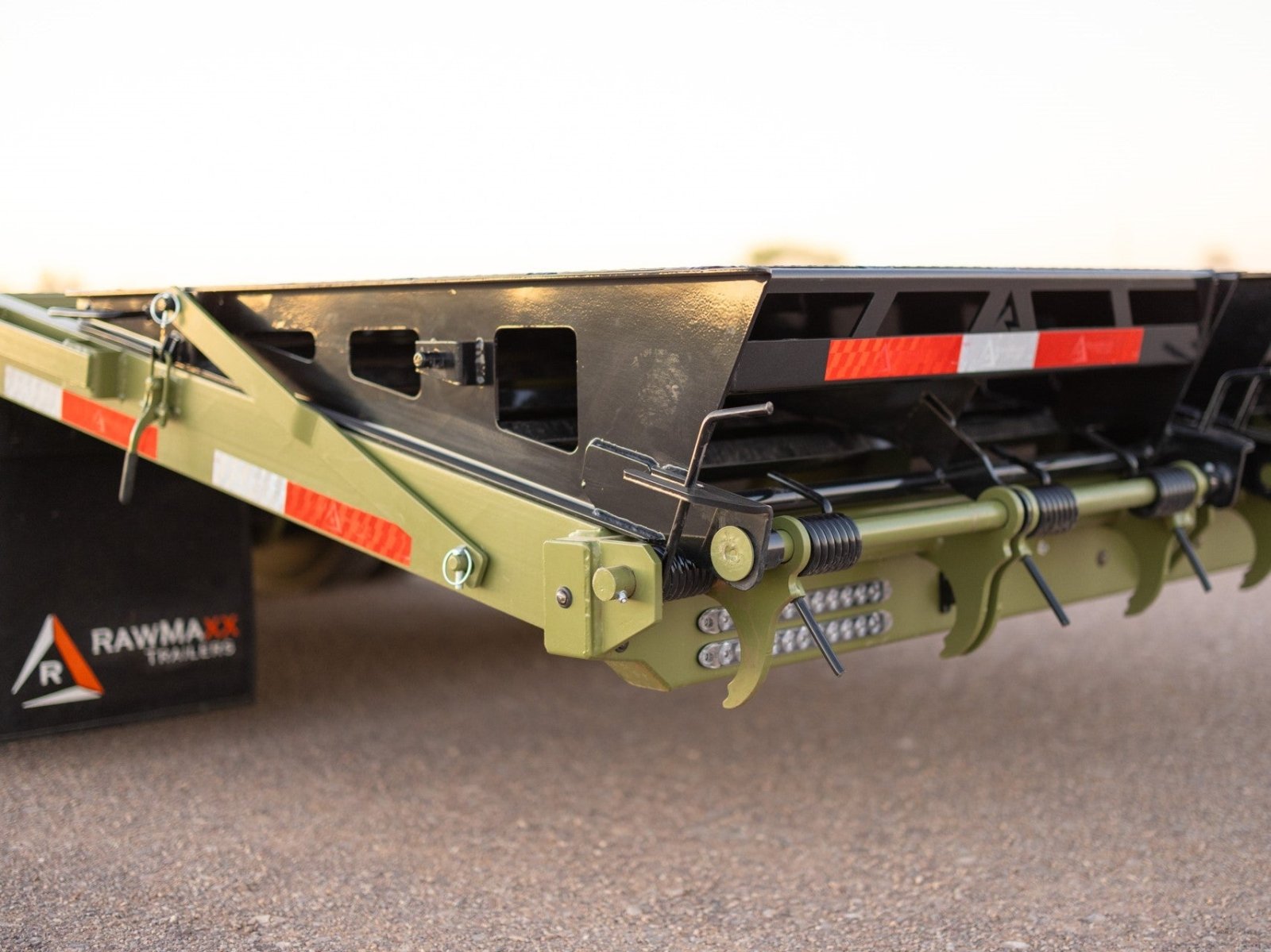

REAR TAIL:

Knife Edge

FEATURE DETAILS

FEATURES:

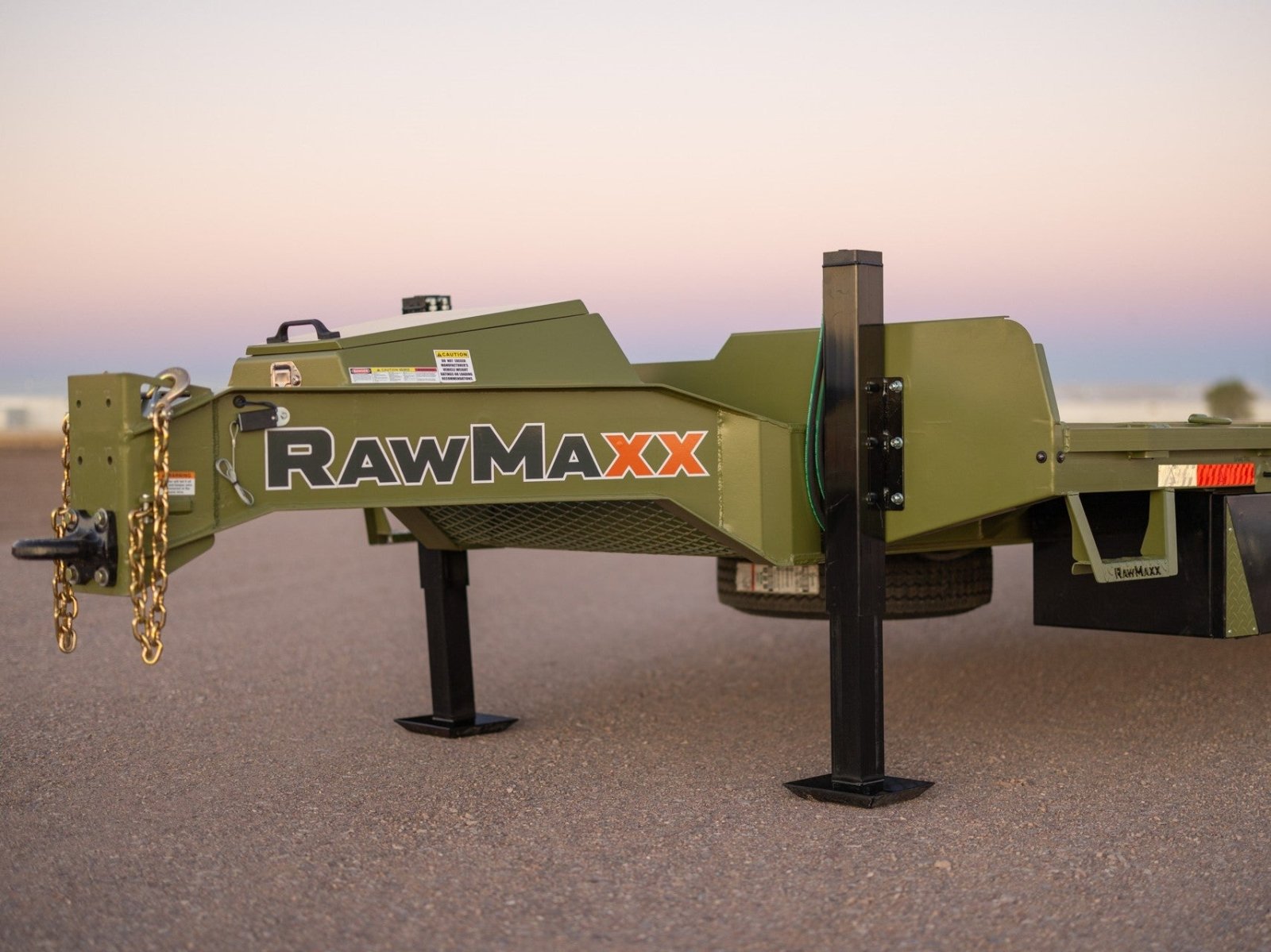

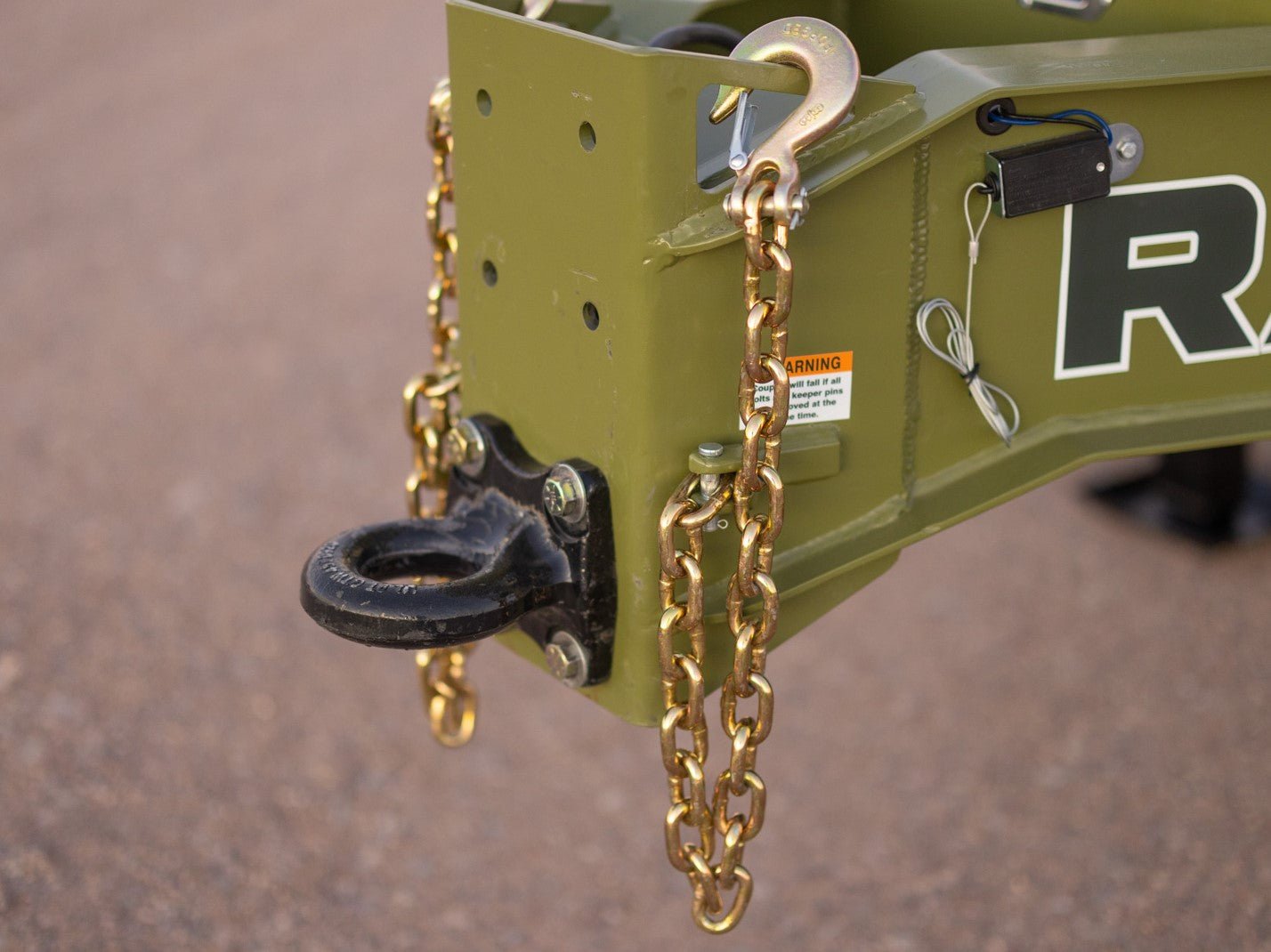

COUPLER:

3" Pintle Coupler

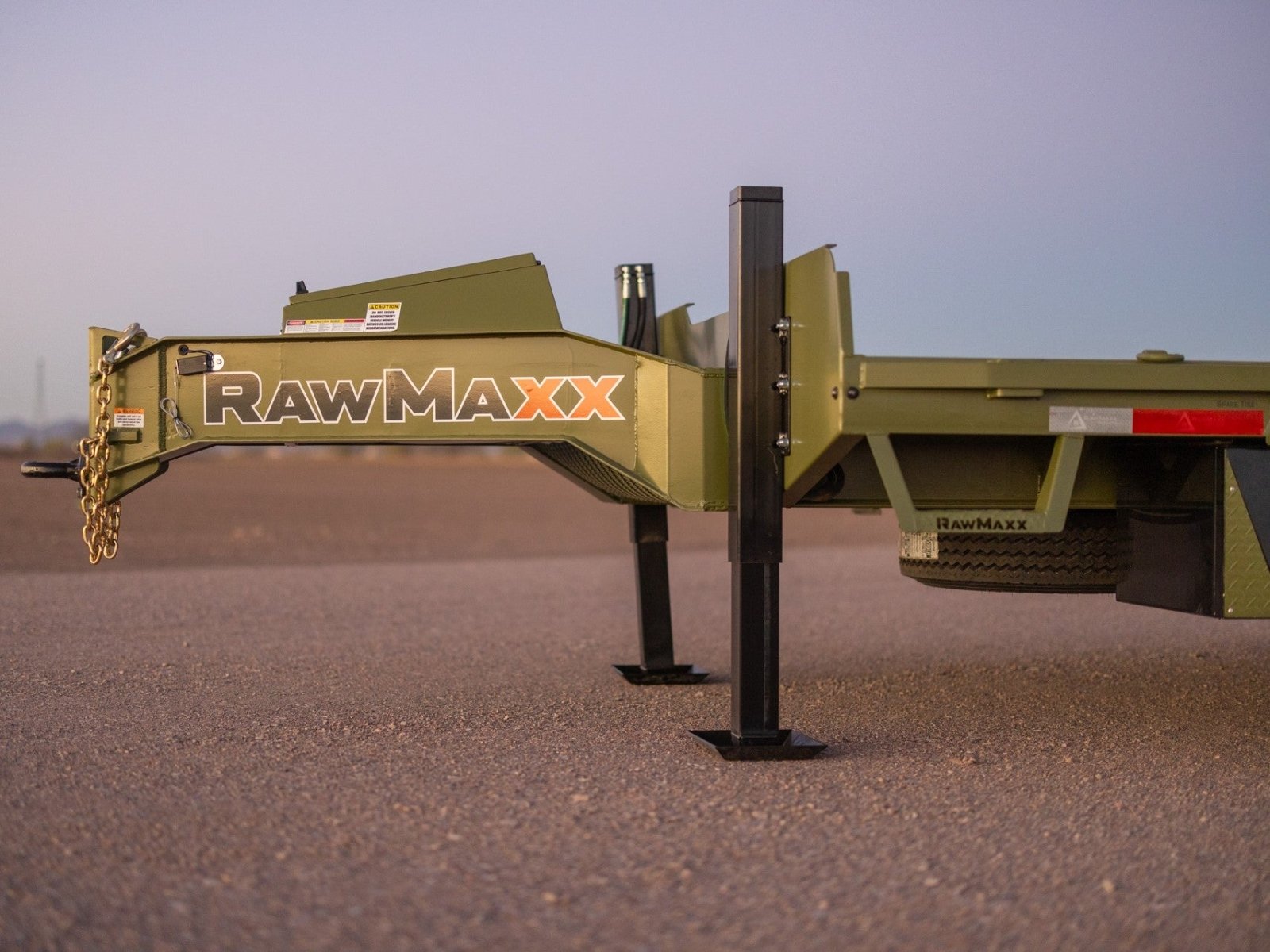

FRONT JACKS:

(2) Side Wind Drop Legs (10,000 lbs.)

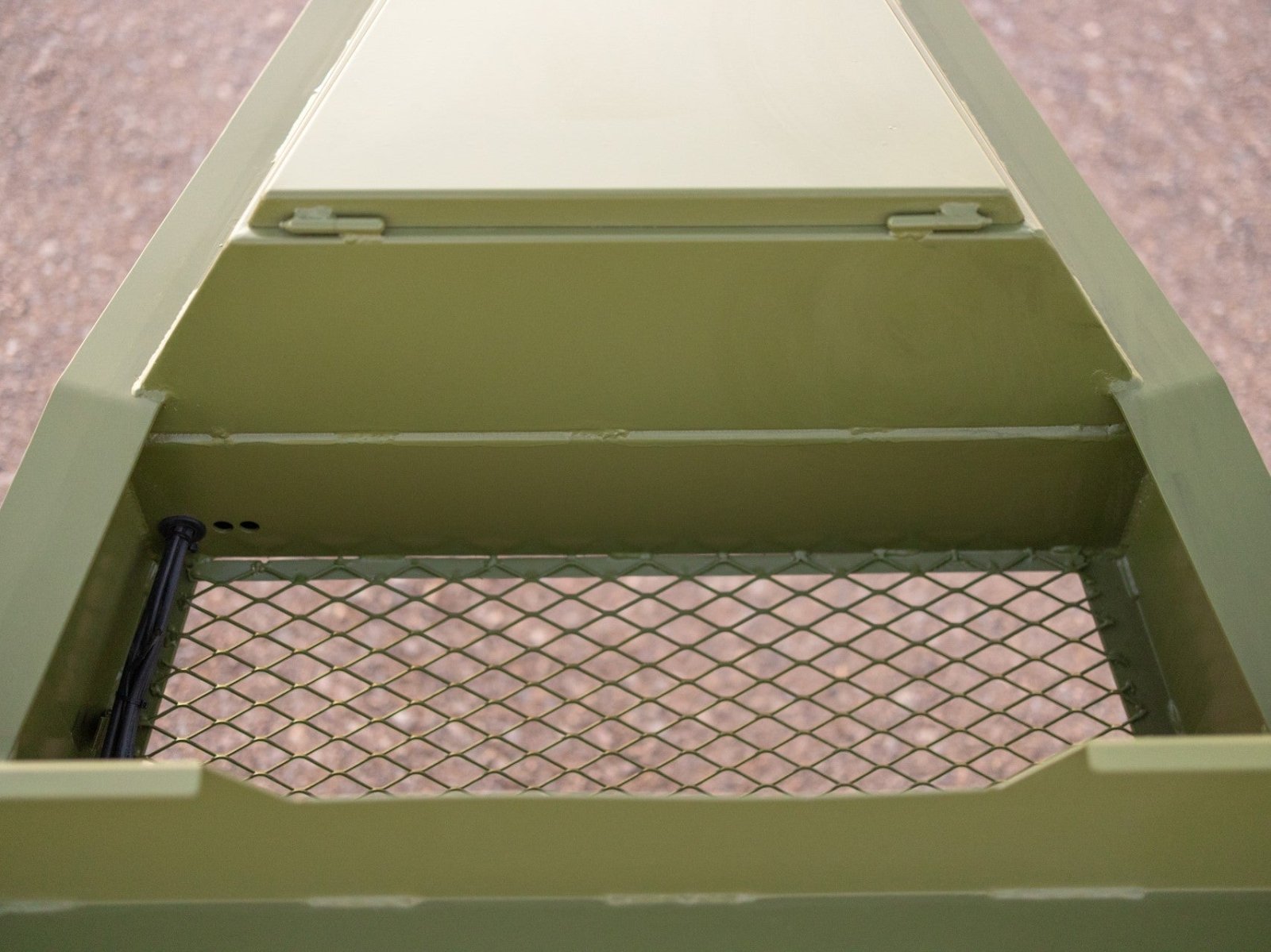

FRONT TOOL TRAY:

Expanded Metal Tray

TONGUE LENGTH:

65"

FINISH

FINISH:

TYPE:

Powder Coat

PREP:

Grit Blast

STANDARD COLOR:

Jet Black

WARRANTY

WARRANTY:

AXLE:

5 Year Dexter

TRAILER:

3 Year Structural / 1 Year Paint

SPARE MOUNT

SPARE MOUNT:

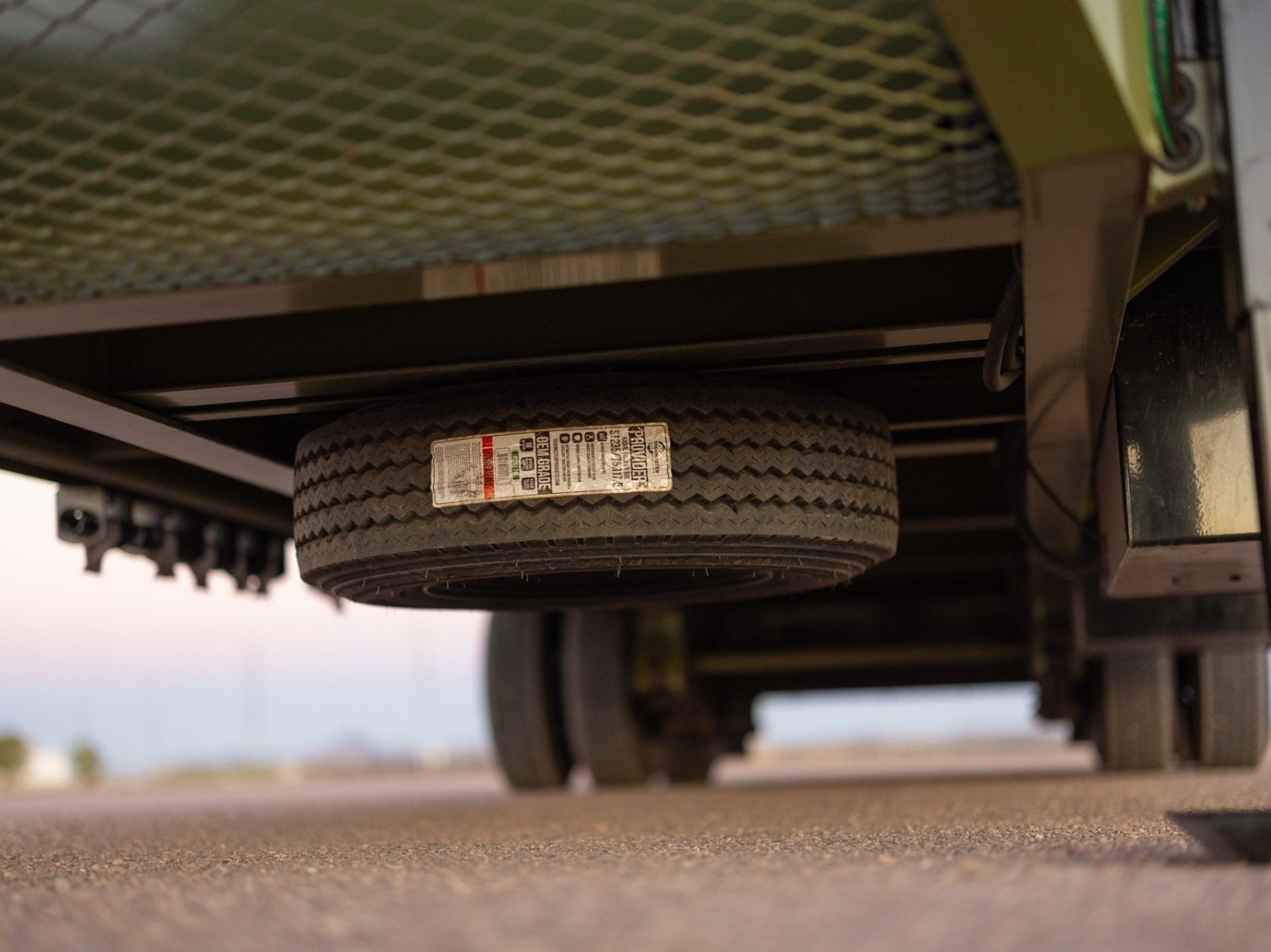

SPARE TIRE MOUNT:

3" Tubing / 3/16" Plate

LIFT SYSTEM

LIFT:

POWER:

Hydraulic - Powder Up - Down

PUMP:

KTI 12V Hydraulic Pump

CONTROLLER:

14' Cable with Control

SCISSOR:

Heavy Duty Scissor Lift

CYLINDER:

6" x 20" Cylinder

TILT ANGLE:

13°

CHARGING SYSTEM

CHARGING:

CHARGER:

8 Amp 110 Volt Charger

SOLAR PANEL:

12 Watt Solar Charging System (Included)

RUNNING GEAR & SAFETY

RUNNING GEAR:

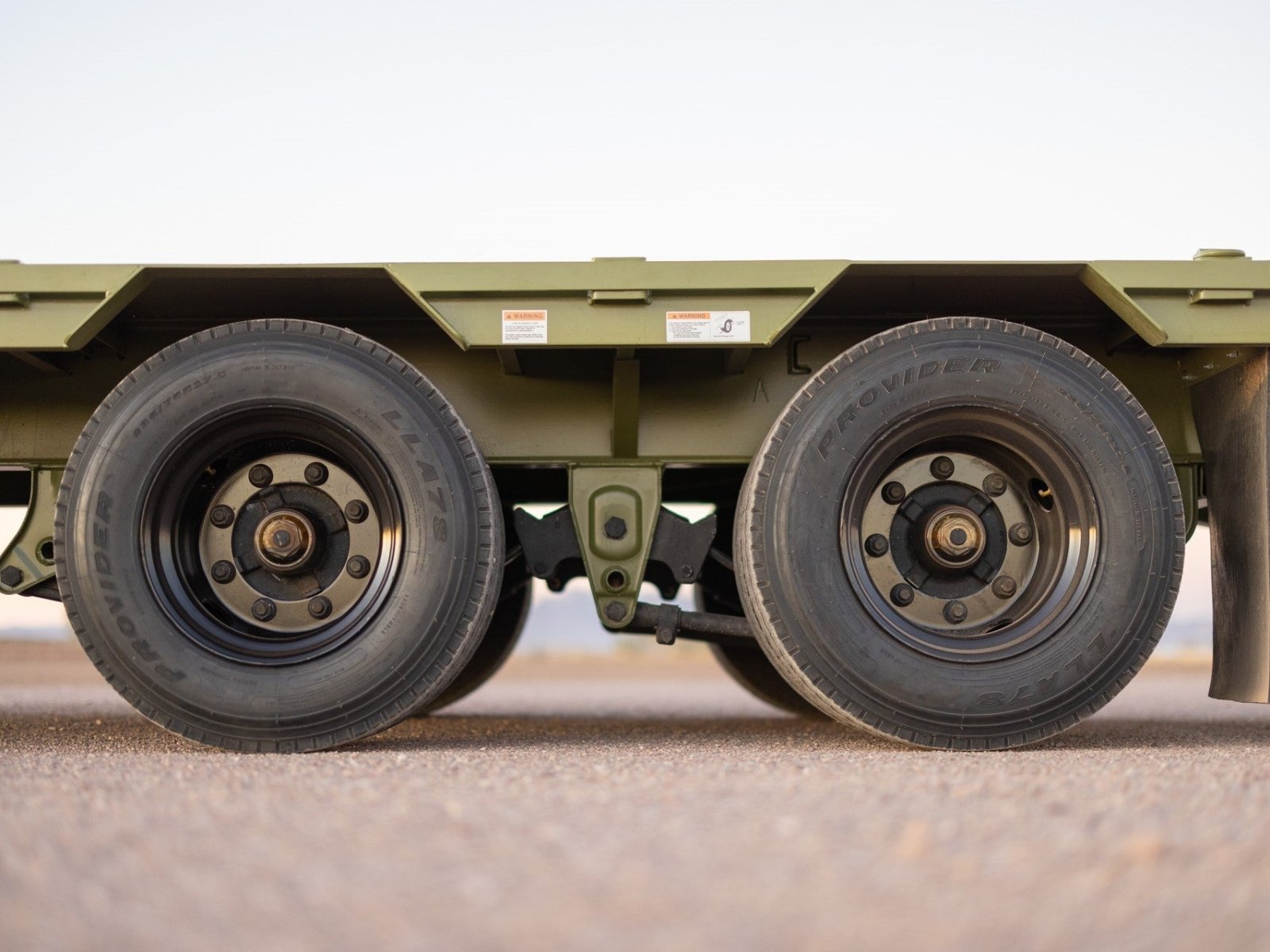

TIRES:

Radial Tires, ST235/80R16, 10 Ply, 3,520 lbs.

RIMS:

16” Dual Black Mod Wheels, 8 on 6.5” Bolt Pattern

AXLES:

2, 10,000 lbs., Spring Type

BRAKES:

Electric

SUSPENSION:

6-Leaf Slipper Spring Suspension

SAFETY:

SAFETY CHAINS:

3/8" G70 Safety Chains

BREAKAWAY SYSTEM:

Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

ELECTRICAL & LIGHTING

ELECTRICAL:

FRONT PLUG:

7 - Way RV

FRAME WIRING:

All Weather Wiring Harness

SIDE MARKERS:

3/4" LED Bullet Lights

TURN FLASHERS:

2" x 6" Amber Side Turn Lights

REAR LIGHTS:

DOT Approved LED Lights
