At a Glance

Brand Lamar
Pull type Bumper Pull
GVWR 14,000-21,000 lbs
Length 25-40'

TRAILER SPECS:

Specifications

Brand:

Lamar

Pull Type:

Bumper Pull

Weight Ratings

GVWR:
14,000-21,000 lbs

Dimensions

LENGTH:

25-40'

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery
View full details

Featured Video

Product Features

High-Strength Steel Construction

The Lamar FS trailer is constructed with high-strength steel and reinforced components, capable of handling heavy loads of up to 14-21,000 lbs GVWR. Its rugged build ensures longevity and reliability, making it an ideal choice for demanding hauling tasks in construction, agriculture, and equipment transport.

Expansive Deck Dimensions

Featuring a generously sized deck area, the Lamar FS trailer offers widths of 82 inches and lengths ranging from 20 to 40 feet. Whether hauling construction equipment, machinery, or bulk materials, its spacious deck provides versatility and convenience for a wide range of hauling needs.

Robust Tandem Axle System

Equipped with tandem 7,000 lbs axles as standard, the Lamar FS trailer offers enhanced stability and load-bearing capacity. With the option to upgrade to 10,000 lbs axles, it ensures optimal performance and reliability, even when transporting heavy loads over long distances.

User-Friendly Loading and Unloading

Designed for ease of use, the Lamar FS trailer features a low-profile 34-inch deck height and integrated 5-foot long ramps for convenient loading and unloading of equipment and cargo. Its efficient design streamlines operations, reducing downtime and increasing productivity on the job site.

Weather-Resistant Finish

Finished with a high-quality powder coat, the Lamar FS trailer is resistant to corrosion and the elements, ensuring long-lasting performance and durability. Its rugged construction and weather-resistant finish maintain the trailer's appearance and structural integrity, even in harsh environments.

Comprehensive Safety Features

Safety is a top priority, and the Lamar FS trailer is equipped with a range of features to ensure a secure hauling experience. From integrated safety chains and sturdy fenders to reflective markers and LED lighting, every detail is carefully designed to promote safe operation on the road. The FS wire harnesses are sealed and the front hook up is rated for -65°F
Lamar FS Deckover Gooseneck Trailer Spec Sheet

Product Details

DIMENSIONS & CAPACITY

TRAILER:

MODEL:
Lamar FS Deckover Gooseneck Trailer
14K SIZES:
102” x 25’, 102” x 30’, 102” x 36’, 102” x 40’
14K WEIGHT:
5,020 lbs (25’), 5,480 lbs (30’), 6,500 lbs (36’), 7,800 lbs (40’)
14K PAYLOAD:
8,980 lbs (25’), 8,520 lbs (30’), 7,500 lbs (36’), 6,200 lbs (40’)
16K SIZES:
102” x 18’, 102” x 20’, 102” x 22’, 102” x 25’, 102” x 30’, 102” x 36’, 102” x 40’
16K WEIGHT:
4,975 lbs (18’), 5,090 lbs (20’), 5,200 lbs (22’), 5,170 lbs (25’), 5,630 lbs (30’), 7,150 lbs (36’), 8,020 lbs (40’)
16K PAYLOAD:
11,025 lbs (18’), 10,910 lbs (20’), 10,800 lbs (22’), 10,830 lbs (25’), 10,370 lbs (30’), 8,850 lbs (36’), 7,980 lbs (40’)
21K SIZES:
102” x 25’, 102” x 30’, 102” x 36’, 102” x 40’
21K WEIGHT:
5,590 lbs (25’), 6,370 lbs (30’), 7,070 lbs (36’), 8,370 lbs (40’)
21K PAYLOAD:
15,410 lbs (25’), 14,630 lbs (30’), 13,930 lbs (36’), 12,630 lbs (40’)
AXLES:
7K easy lube electric brake spring axles (varies by GVWR)
AXLE CONFIGURATION:
Tandem axle configuration (14K - 16K GVWR)
AXLE CONFIGURATION:
Triple axle configuration (21K GVWR)

RUNNING GEAR OPTIONS:

AXLES:
7K electric brake oil bath spring axles
AXLES:
7K easy lube electric brake 22.5° down torsion axles
AXLES:
8K electric brake oil bath spring axles
AXLES:
8K electric brake oil bath 22.5° down torsion axles

FRAME & CONSTRUCTION

FRAME:

FRAME:
12” 14 lb I-beam frame (standard on 25’-30’)
FRAME:
12” 19 lb I-beam frame (standard on 32’+)
CROSSMEMBERS:
16” spaced crossmembers
FLOOR:
Treated yellow pine floor
TORQUE TUBE:
Standard on 36’+
UNDER-FRAME BRIDGE:
Standard on 30’+
DECK:
Straight deck
COLOR:
Lamar charcoal gray powder coat

FRAME OPTIONS:

DECK:
5’ dove tail
FRAME:
Low-profile pierced-beam
DECK ON NECK:
8’ deck over neck
CROSSMEMBERS:
12” spaced crossmembers
FLOOR:
11 gauge diamond plate floor
FLOOR:
Oak floor
COLOR:
None available

RUNNING GEAR & SAFETY

RUNNING GEAR:

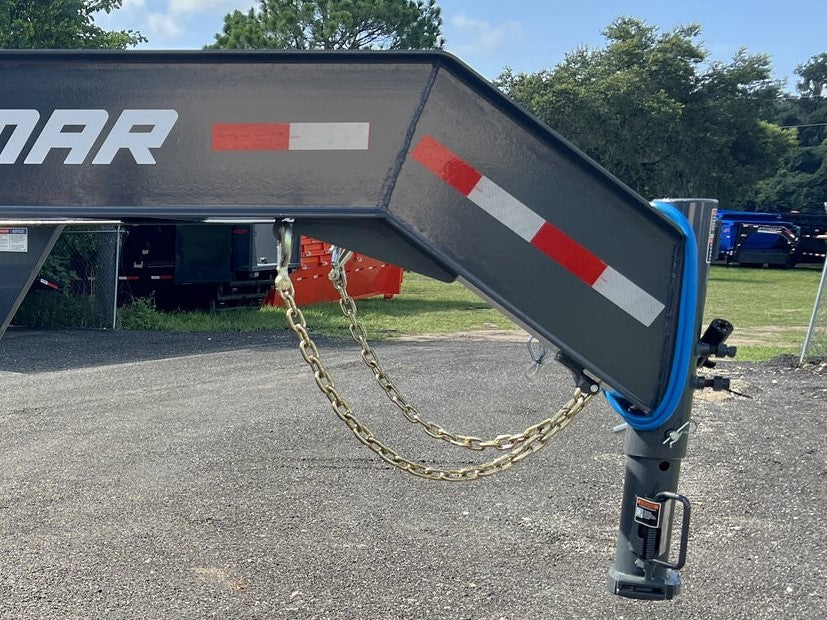

COUPLER:
2-5/16” 25K gooseneck coupler
COUPLER HEIGHT:
Ground to coupler height 25” - 33”

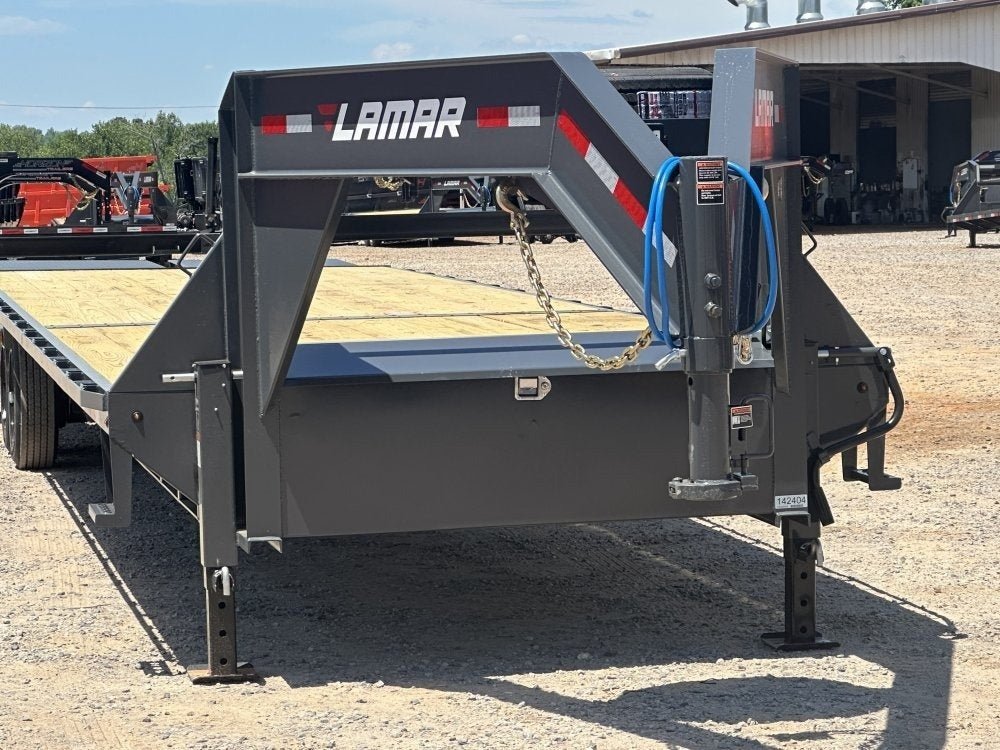

JACKS:
Dual 10K drop-leg jacks

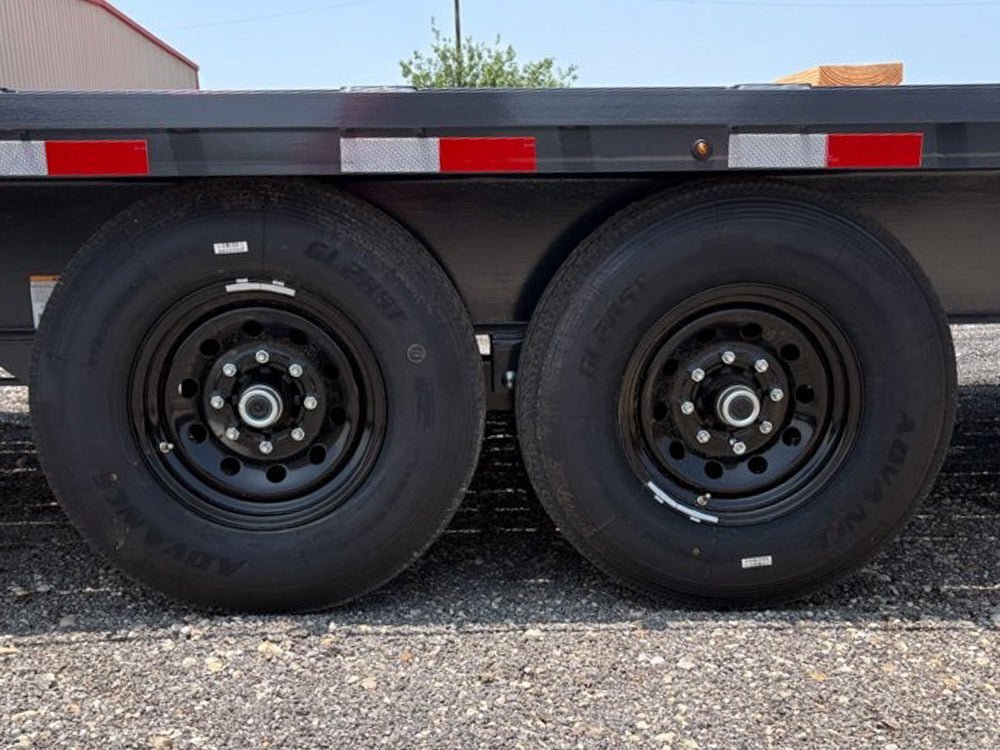

TIRES:
235/80 R16 (E) 10 ply tire (varies by GVWR)
SPARE:
Spare tire mount

RUNNING GEAR OPTIONS:

COUPLER:
2-5/16” 25K Wallace adjustable 4-bolt plate coupler
COUPLER:
2-5/16” 30K gooseneck adjustable topwind square coupler
NECK & COUPLER:
6” raised neck & coupler (ideal for lifted trucks)
NECK & COUPLER:
12” raised neck & coupler (ideal for lifted trucks)
JACKS:
Dual 10K 2-speed jacks
JACKS:
Dual 10K hydraulic jacks
JACKS:
Dual 25K 2-speed Jost jacks
TIRES:
215/75 R17.5 (H) 16 ply SS tire black wheel
TIRES:
235/85 R16 (G) 14 ply tire with black wheel
SPARE:
Spare tire

SAFETY:

LIGHTING:
LED lights
SIDE TURN FLASHERS:
Pair of side turn flashers (standard on 30’+)
WIRING:
Weather resistant harness (-65°F)

ELECTRICAL OPTIONS:

SOLAR CHARGER:
Available

CARGO MANAGEMENT

CARGO:

TOOLBOX:
Front toolbox
RUB RAIL:
Included
STAKE POCKETS:
Standard stake pockets

LOADING:

LOADING ANGLE:
Straight deck with 96” slide-in ramps - 21°
RAMPS:
Pair of slide-in ramps

CARGO MANAGEMENT OPTIONS:

TOOLBOX:
4’ side mount toolbox
D-RINGS:
Weld-on D-rings
D-RINGS:
Flush mount D-rings
D-RINGS:
Flush mount swivel D-rings
WINCHES:
Weld-on strap winches
WINCHES:
Sliding strap track & winches
CHAIN RACK:
Lockable chain rack
WINCH PLATE:
Available
WINCH:
12,500lb Warrior winch
RECEIVER HITCH:
Receiver hitch & plug

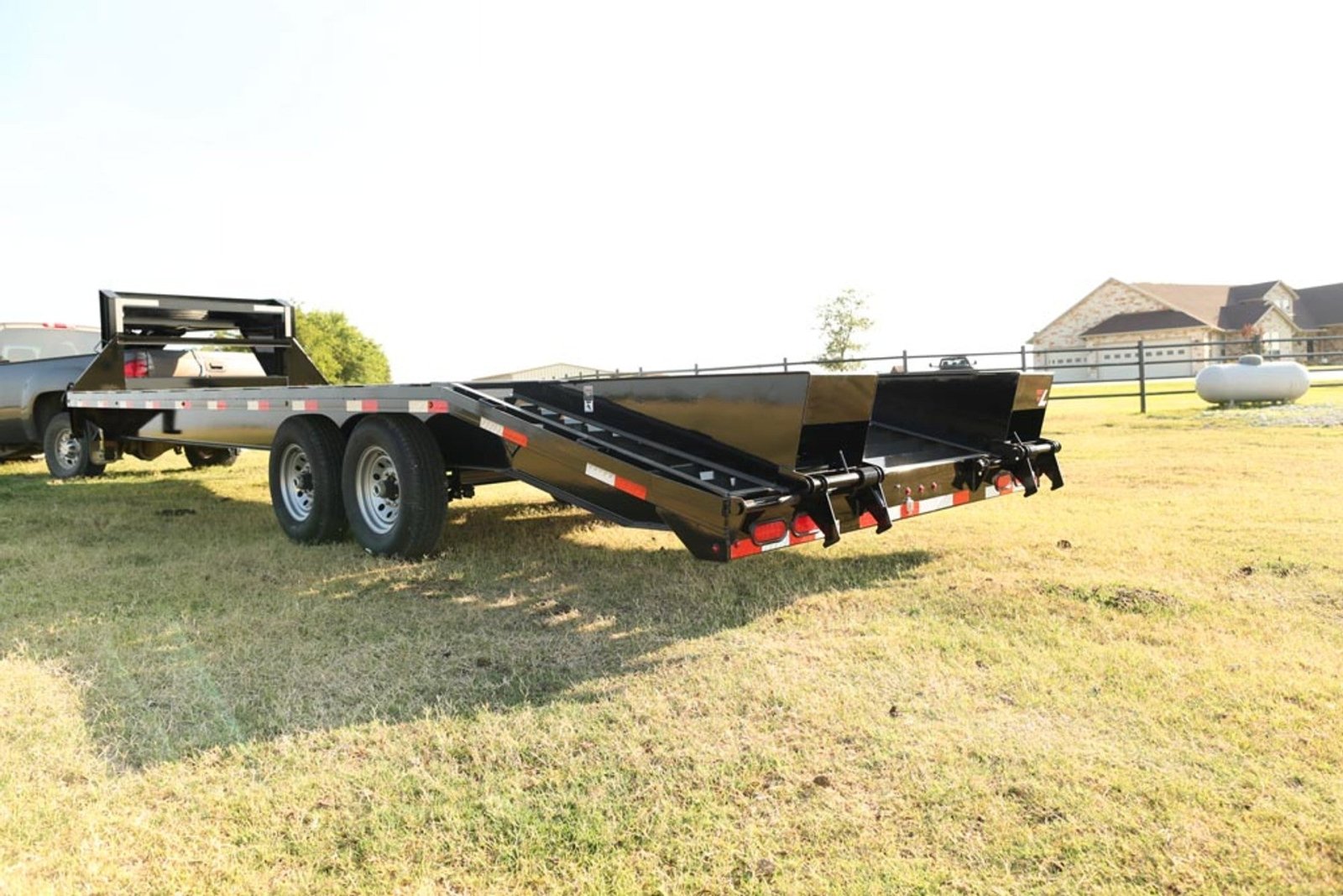

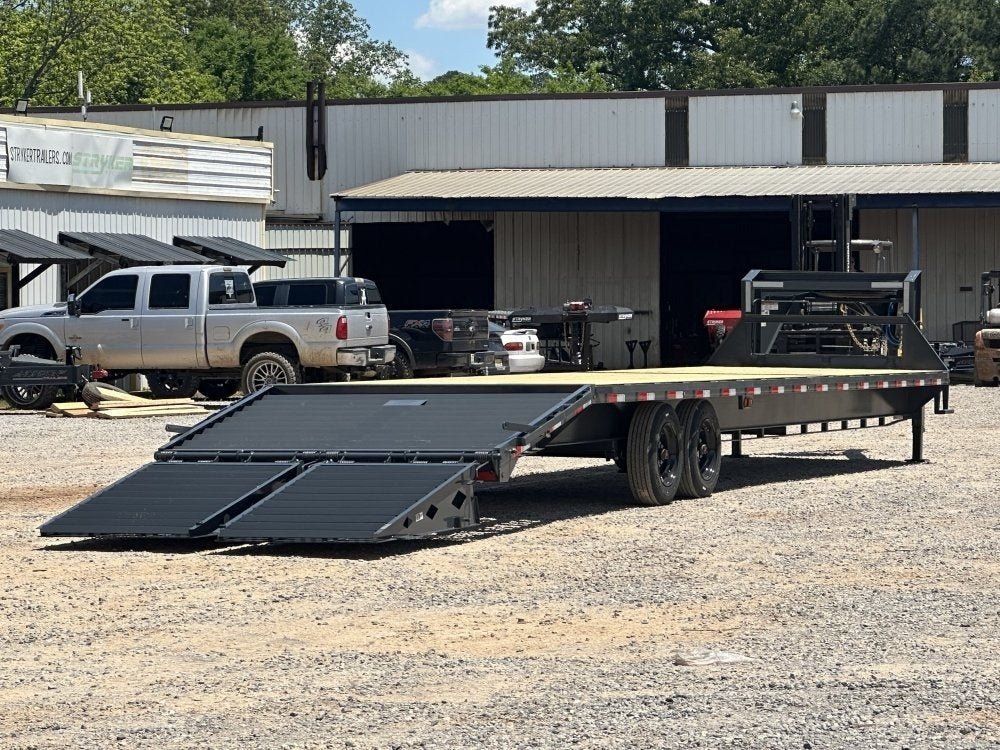

LOADING ANGLE:
5’ dove with Rhino ramps - 17°
RAMPS:
Pair of flip-over ramps
RAMPS:
Pair of Rhino ramps
