At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
14' - 16'
Interested in this Trailer?
Featured Video
Product Features
Powder Coated Bins
Personalize your Horizon EDZ bin with an extensive range of powder-coated color choices, ensuring a long-lasting, eye-catching finish that not only boosts durability but also elevates the visual appeal for any job site or application.

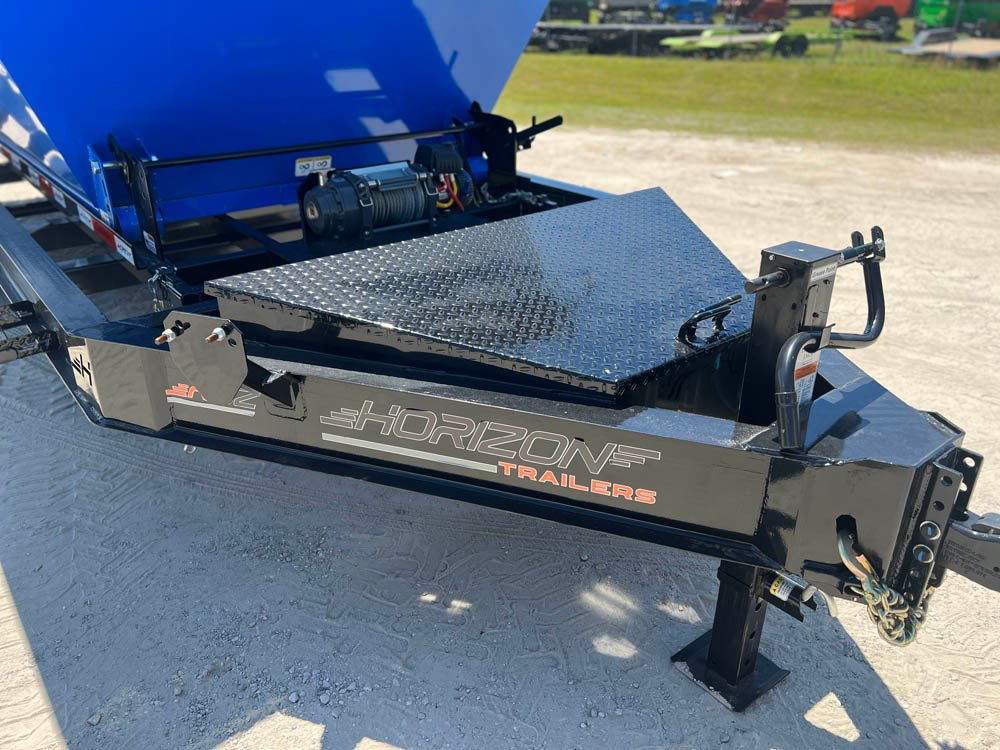

Wireless Winch Controller
Horizon's Bluetooth winch controller revolutionizes roll-off trailer operation, offering unparalleled convenience, safety, and efficiency. This cutting-edge technology enables remote management of the winch system through a Bluetooth-enabled device, enhancing control and ease of use for operators.
17,500 lbs Warrior winch
Explore Horizon trailer's 17,500 lbs Warrior winch. With wireless control, a 7.2 hp electric motor, and dual marine batteries, it's a reliable asset for any task. Plus, with an on-board trickle charger, it's always prepared for action.
Hydraulic Scissor Lift Hoist
Efficiently manage your loads with the RDZ Roll Off Trailer. Its robust frame and hydraulic system effortlessly lift roll off dumpster beds or decks up to 40 degrees. Control options include a 14' wired controller or an optional wireless one, ensuring precision and ease of operation.DURABLE POWDER COAT FINISH
Finished with a powder coat for superior durability and corrosion resistance, this trailer is built to withstand the elements. Its rugged construction and premium finish ensure long-lasting performance, even in the harshest environments, making it a reliable asset for years to come.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
PACKAGE OVERVIEW
PACKAGE:
- MODEL:
- Horizon RDZ EDZ Roll Off Package
- COMPONENTS:
- 1 RDZ Trailer, 3 EDZ Bins
DIMENSIONS & CAPACITY

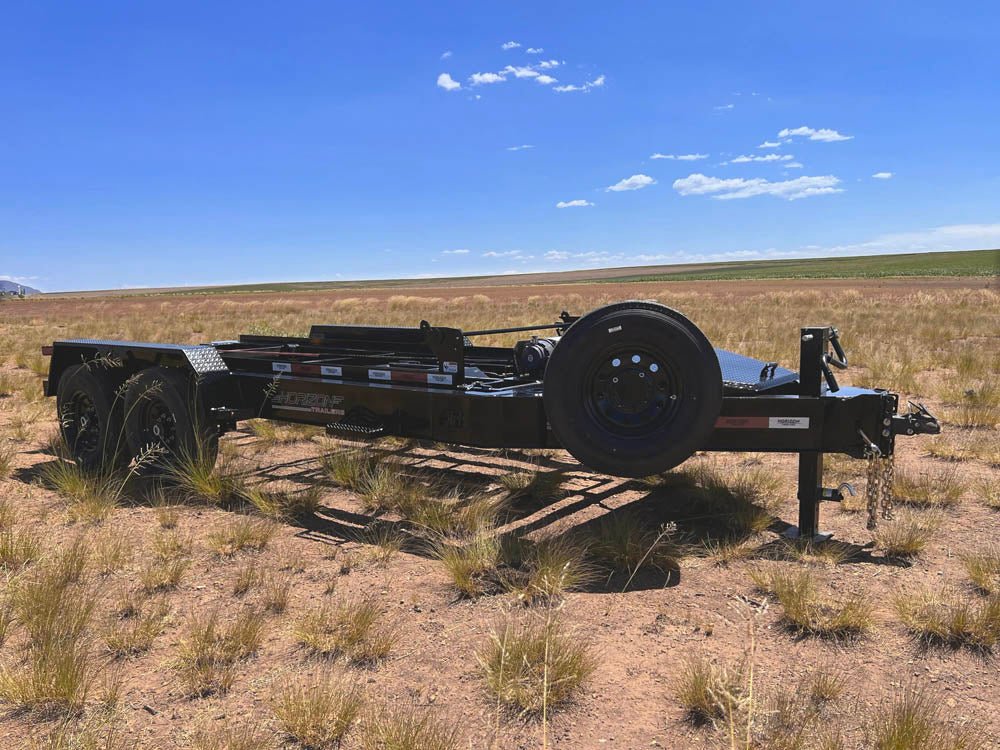

TRAILER:
- MODEL:
- Roll Off Dump Trailer Horizon (RDZ)
- LENGTH:
- 14’, 16’
- GVWR:
- 15,200 lbs - 17,900 lbs
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 10” I-Beam (12 lbs/ft)
- BED FRAME:
- 2” x 3” x 7 ga. Tubing Bed Frame
- CROSSMEMBERS:
- 2” x 3” x 7 ga. Crossmembers
- STEPS:
- Side Step On Both Sides
- SIDES:
- 3” x 4” x 1/4” Angle Iron
- FENDERS:
- 14ga. Diamond Plate Steel Fenders
TONGUE & STORAGE
TONGUE:
- TYPE:
- 10” I-Beam (12 lbs/ft)
- LENGTH:
- 60”
- COUPLER:
- Adjustable Demco EZ Latch 2-5/16” BP Coupler
- COUPLER RATING:
- 21,000 lbs
- JACK:
- 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
STORAGE:

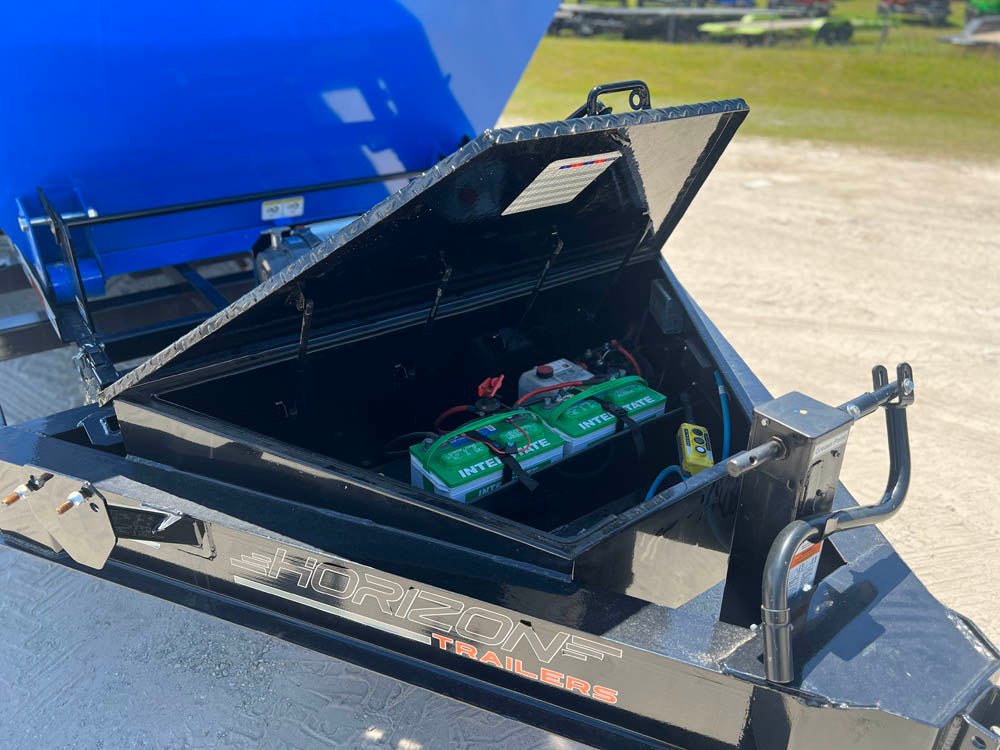

- TOOL BOX:
- Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- SPARE TIRE MOUNT:
- Weld On Spare Tire Mount
RUNNING GEAR

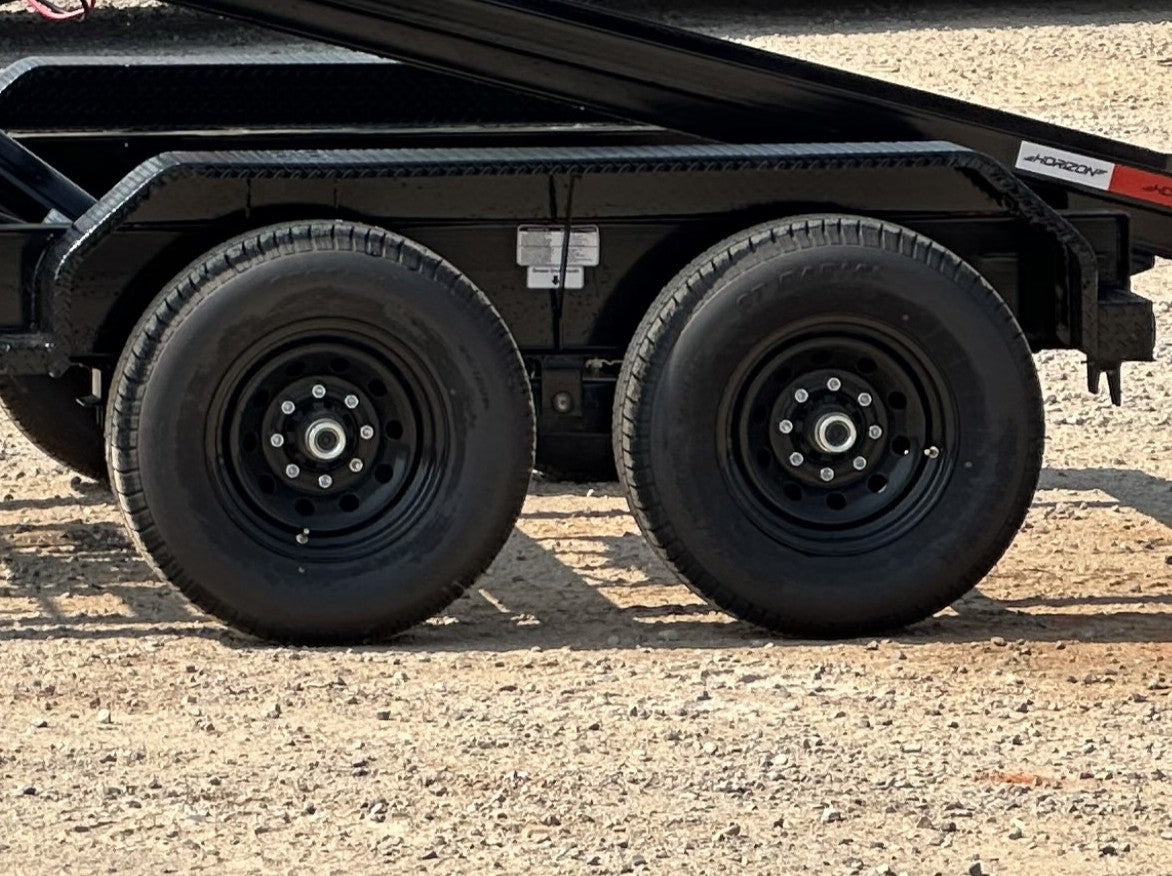

AXLES:
- TYPE:
- 2 - 7k Lippert Electric Brake EZ Lube Spring Axles
- BOLT PATTERN:
- 8 on 6.5”
- QUANTITY:
- 2
- SUSPENSION:
- Spring
- TIRES:
- Radial Tires, ST235/80R16, 10 Ply
- TIRE RATING:
- 3,520 lbs
- WHEELS:
- 16” Black Mod Wheels
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
SAFETY
SAFETY:
- SAFETY CHAINS:
- 3/8” Grade 70 Safety Chain w/Clevis Hook (2 each)
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric
- REFLECTIVE TAPE:
- 3M Dot Compliant Reflective Tape
LOADING & ELECTRICAL
LOADING:
- LOADING ANGLE:
- 58°
- HYDRAULICS:
- 3 Button Hydraulic - Power Up / Power & Gravity Down
- PUMP:
- 1212 Hydraulic Pump
- CONTROLLER:
- 14” Control Cable
- DECK LIFT CYLINDER:
- 6” x 21” Single Push Cylinder
- HOIST CAPACITY:
- 20,000 lbs
- WINCH:
- 17.5K Steel Cable Warrior Winch
- WINCH CONTROLLER:
- 12’ Control Cable and Wireless
ELECTRICAL:

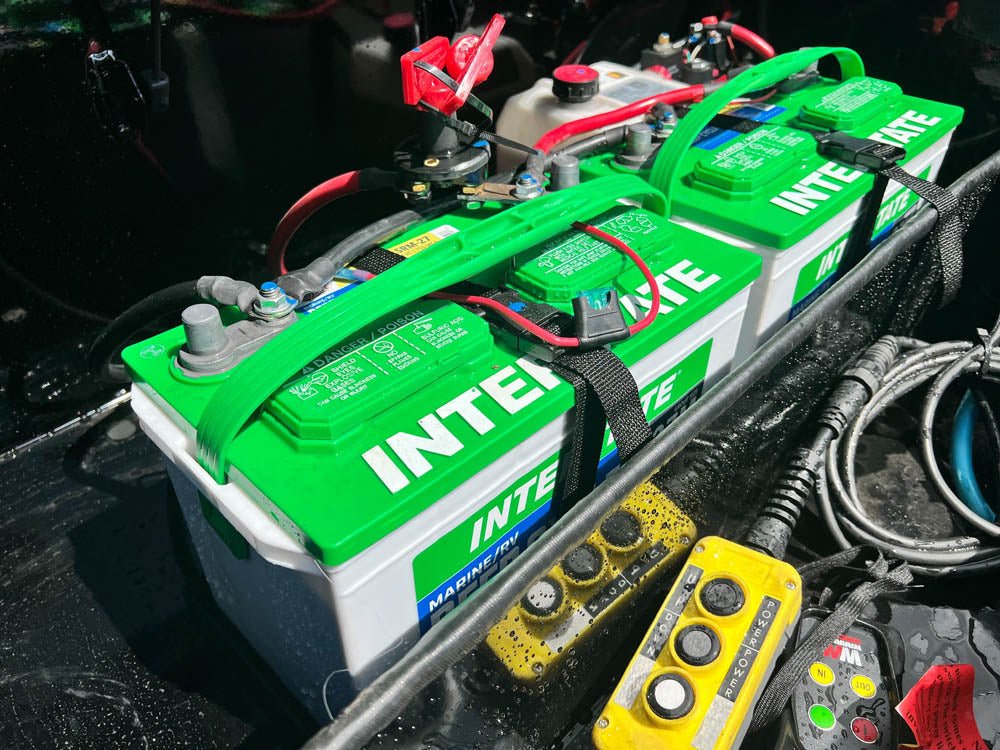

- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- LIGHTS:
- DOT Approved Tecnig LED Lights
BED
BED:
- BOTTOM RAIL DECK WIDTH:
- 61”
- DECK HEIGHT:
- 30”
WARRANTY
WARRANTY:
- FRAME WARRANTY:
- Three Year Frame Warranty
- PARTS WARRANTY:
- One Year Parts Warranty

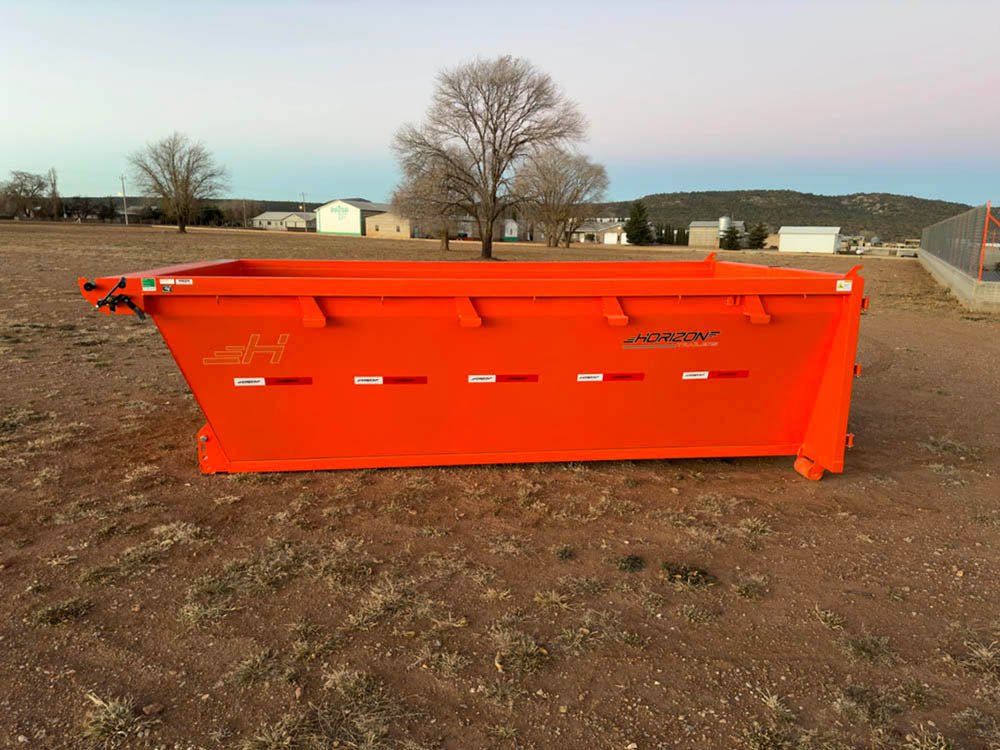

BIN (x3) - DIMENSIONS & CONSTRUCTION
BIN:
- MODEL:
- Economic Dumpster Horizon (EDZ)
- QUANTITY:
- 3
- LENGTH:
- 14’, 16’
- HEIGHT:
- 4’
- BOTTOM RAIL BED WIDTH:
- 60”
- OVERALL WIDTH:
- 60”
- TOP RAIL INTERNAL WIDTH:
- 83”
- TOP RAIL EXTERNAL WIDTH:
- 89”
- TYPE:
- Reinforced Steel
- THICKNESS:
- 10ga.
- FLOORING:
- 10ga. Steel Bed
- MAIN FRAME:
- 1-1/2” x 3” x 11ga. Tubing Bed Frame
- CROSSMEMBERS:
- 3” Channel (3.50 lbs/ft), 16” Spacing
- TOP RAIL:
- 3” x 4” x 11ga. Tubing
- HOOKS:
- 3/8” Round “J” Hooks
- D-RINGS:
- 4 D Rings Welded Inside Box
- FRONT:
- Greasable Rollers / Heavy Duty D-Ring for Winch Attachment
- REAR:
- Greasable Rollers
- GATE:
- 1 Heavy Duty Rear Door
BIN (x3) - FINISH & SAFETY
FINISH:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange
SAFETY:
- REFLECTIVE TAPE:
- 3M Dot Compliant Reflective Tape
