At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
Dimensions
- LENGTH:
14'-20'
Inquire About This Trailer
Product Features
Powder Coated with Grit Blast Prep
Each bin is steel grit blasted before receiving a high-performance powder coat finish for maximum adhesion and corrosion resistance. Choose from 12 bold color options like Military Green, Desert Tan, Flame Orange, and Cloud Grey.

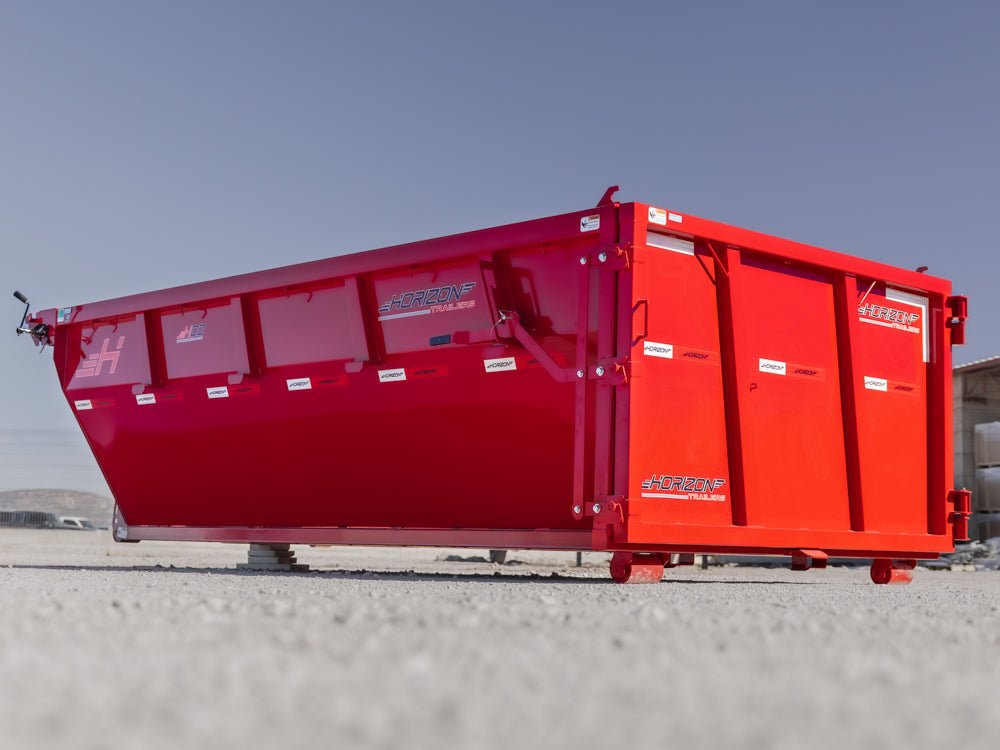

Heavy Duty Rear Gate
The rear of the bin features a single heavy-duty steel door for fast unloading and durable performance. Reinforced hinges and locking mechanisms are designed to withstand high-use environments and rough handling.
Rugged Steel Construction

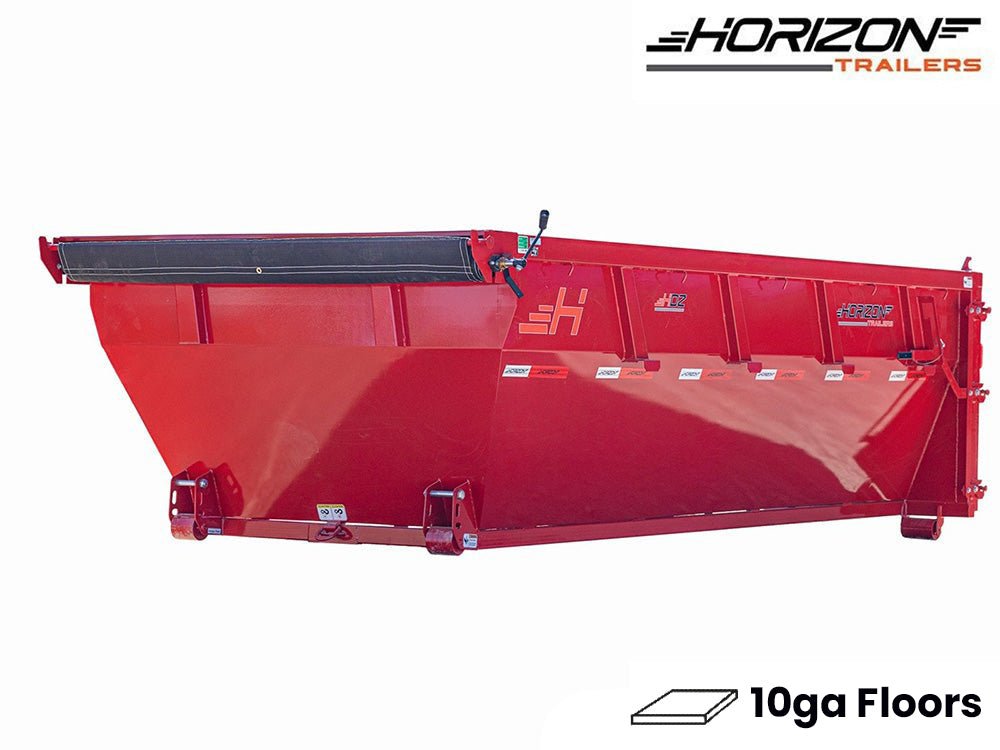

Built from reinforced 10-gauge steel with a fully welded 10ga. floor, this bin is made to withstand repeated heavy use. The robust build ensures long-term durability in tough jobsite conditions, whether hauling debris, scrap, or material.

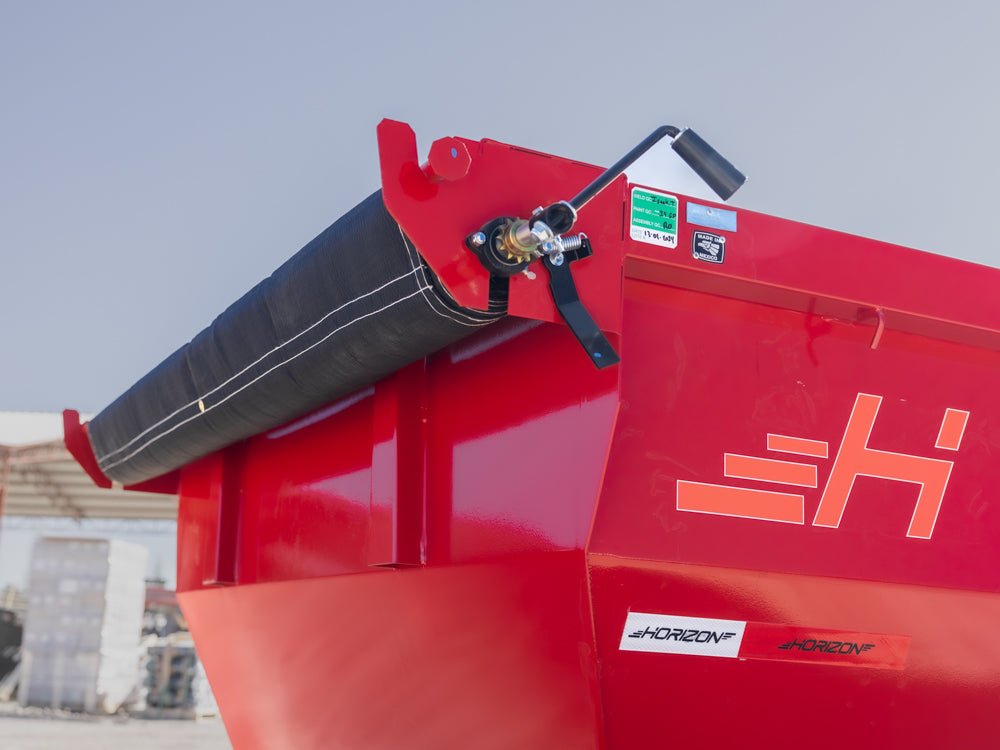

Crank-Style Rollable Tarp System
The integrated crank-style tarp system makes it easy to cover and secure loads in seconds. Designed for durability and convenience, it helps contain debris, protect contents from weather, and stay compliant with DOT load containment regulations.

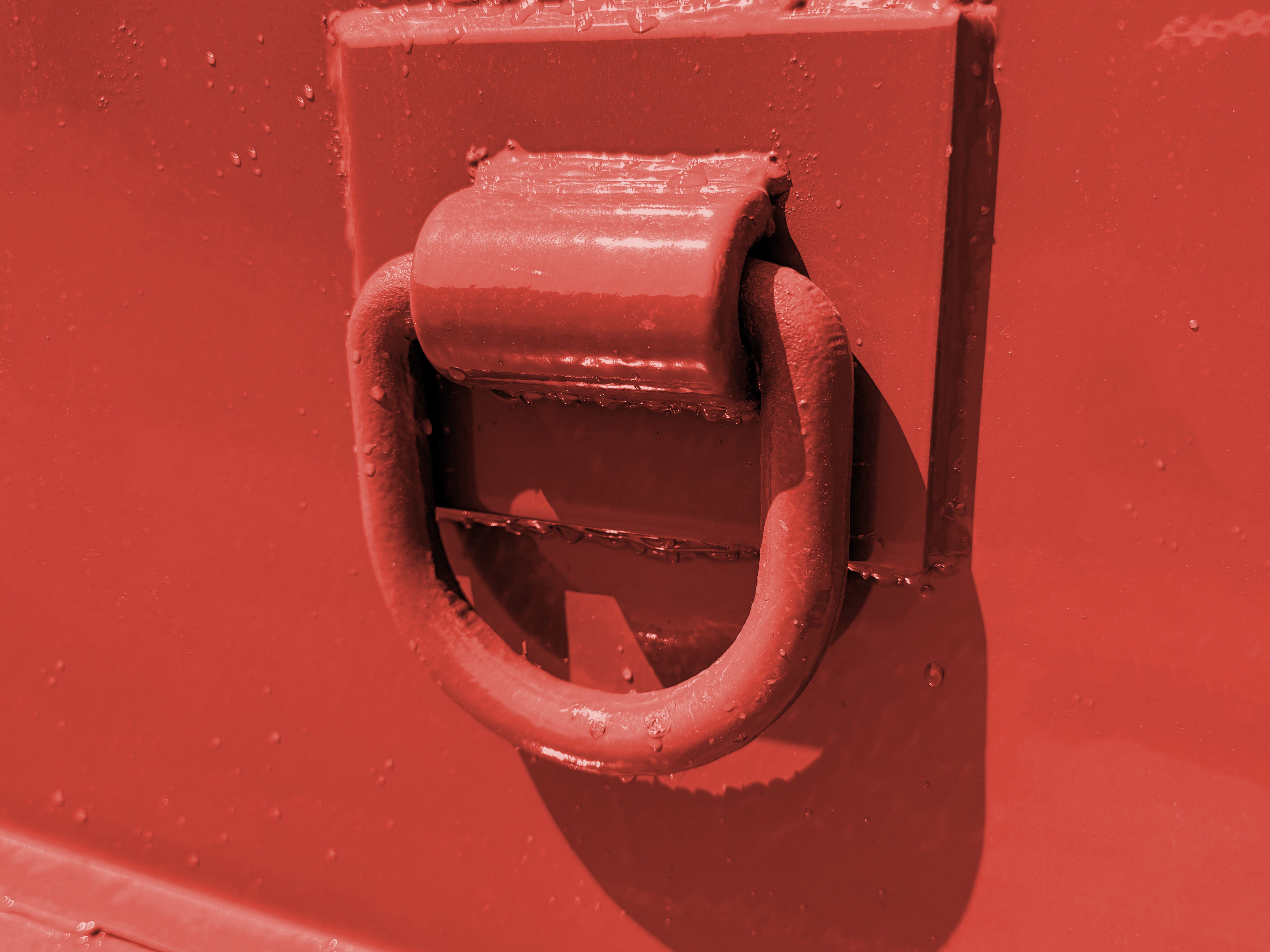

Secure Tie-Down & Winch Points
Outfitted with four welded D-rings and (3) 3/8” round “J” hooks, the bin offers flexible options for securing loads. A front-mounted HD D-ring provides a solid winch point, while greasable rollers at both ends make loading smooth and easy.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
DIMENSIONS & CAPACITY
- MODEL:
- HDZ Heavy Duty Roll-Off Dumpster
- AVAILABLE LENGTHS:
- 14', 16', 20'
- SIDE HEIGHT OPTIONS:
- 4', 6'
- CARGO CAPACITY:
- 13 – 28 Cubic Yards
- BOTTOM RAIL BED WIDTH:
- 60"
- OVERALL WIDTH:
- 60"
- TOP RAIL INTERNAL WIDTH:
- 83"
- TOP RAIL EXTERNAL WIDTH:
- 89"
DRY WEIGHT:
- 14' x 4':
- 2,263 lbs
- 16' x 4':
- 2,433 lbs
- 20' x 4':
- 3,049 lbs
- 14' x 6':
- 2,890 lbs
- 16' x 6':
- 3,146 lbs
- 20' x 6':
- 3,875 lbs
FRAME & STRUCTURE
- MAIN FRAME:
- 1-1/2" × 3" × 11ga. Tubing Bed Frame
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) – 16" Spacing
- FRONT:
- Greasable Rollers, Heavy Duty D-Ring for Winch Attachment
- REAR:
- Greasable Rollers
- FLOORING:
- 10ga. Steel Bed
- D-RINGS:
- 4 Welded Inside Box
- GATE:
- 1 Heavy Duty Rear Door
SIDES & BODY
- HEIGHT OPTIONS:
- 4', 6'
- TYPE:
- Reinforced Steel
- THICKNESS:
- 10ga.
- TOP RAIL:
- 3" × 4" × 11ga. Tubing
- HOOKS:
- 3/8" Round "J" Hooks
SAFETY
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- COMPATIBILITY:
- Compatible with most recognized roll-off brands on the market
FINISH & APPEARANCE
- PREP:
- Steel Grit Blasted
- PAINT:
- Powdercoat
- COLOR OPTIONS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
WARRANTY
- FRAME WARRANTY:
- 3-Year Frame Warranty
- PARTS WARRANTY:
- 1-Year Parts Warranty
