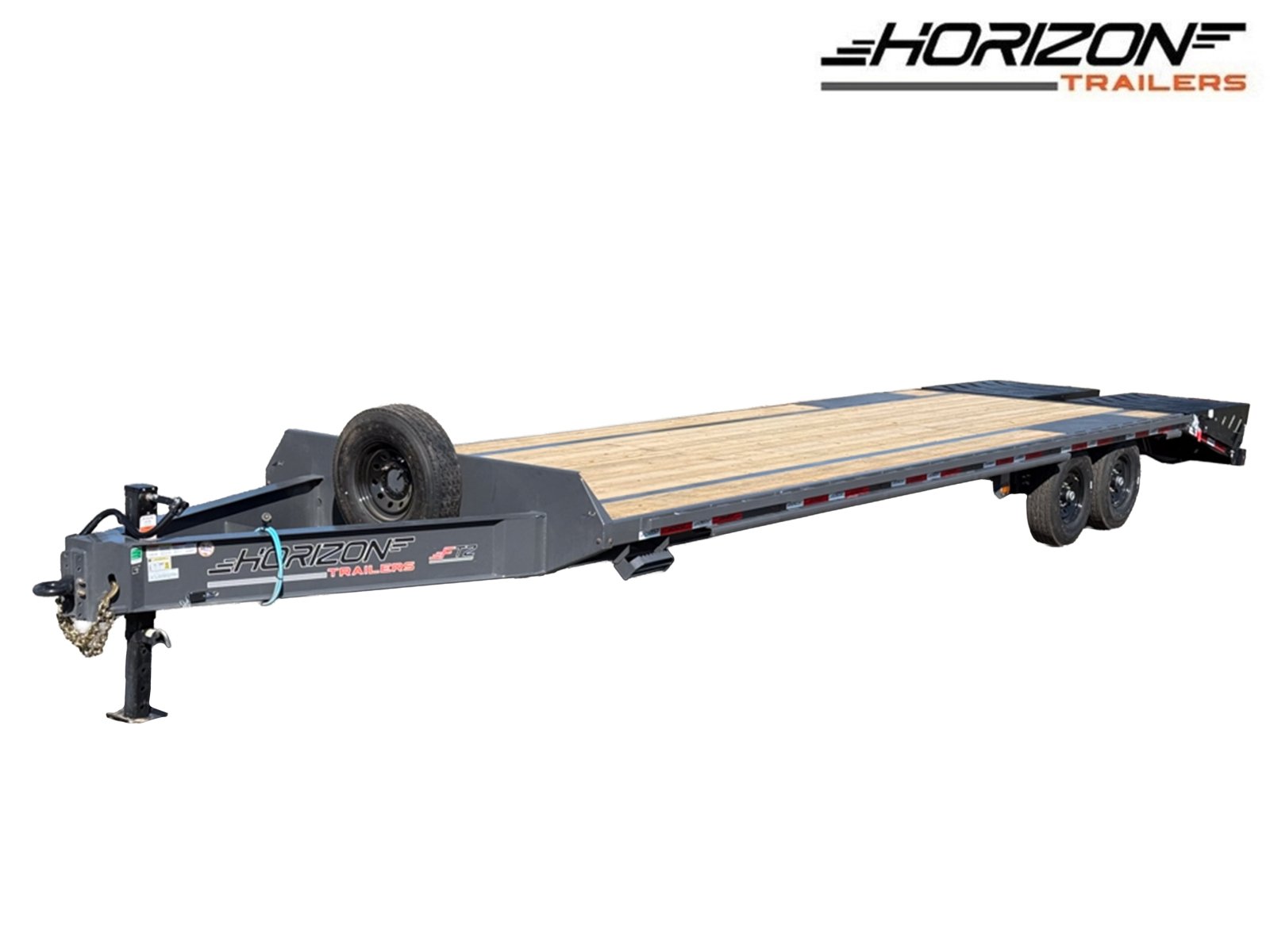

At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 32'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k SS
- GVWR:
- 15.2k - 31k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

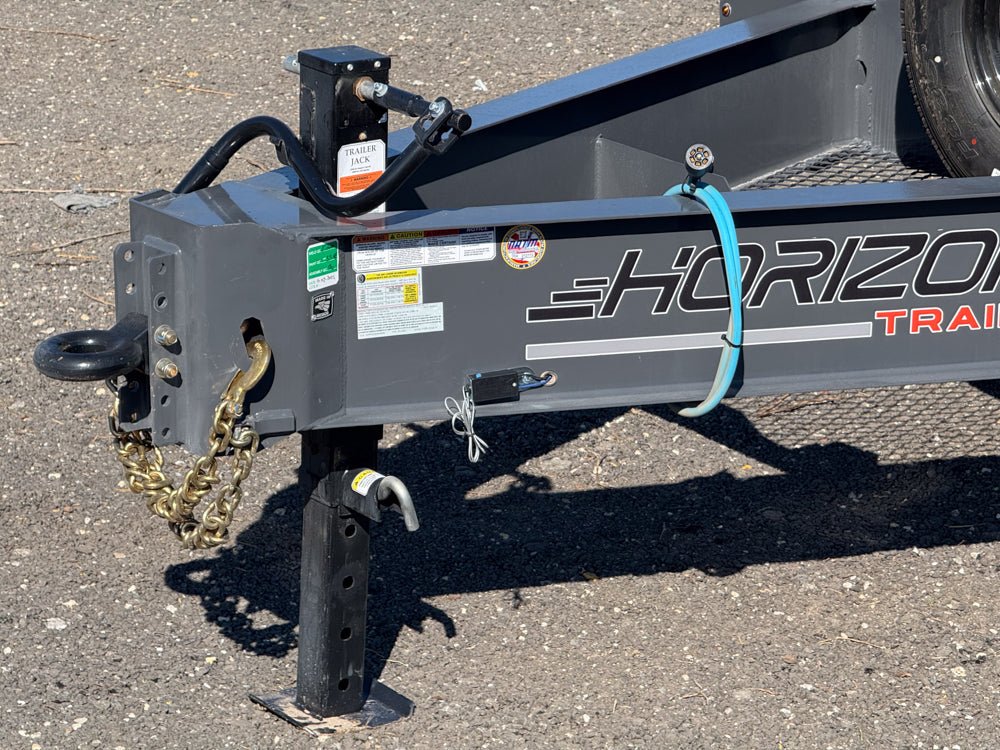

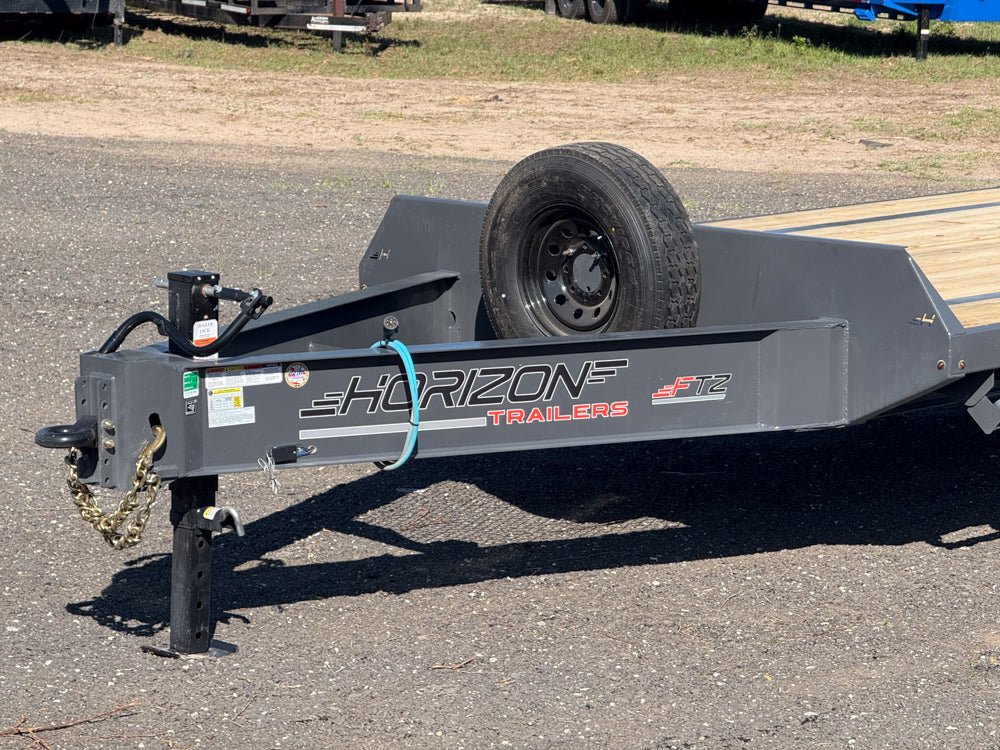

TONGUE
- PULL TYPE:
- Bumper Pull
- LENGTH:
- 83" Long
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (17,000 lbs)
- FRONT JACK BP:
- 2 - Side Wind Spring Loaded 12k Drop-Leg Jacks
- TOOLBOX BP:
- Diamond Mesh Wire Floor Storage

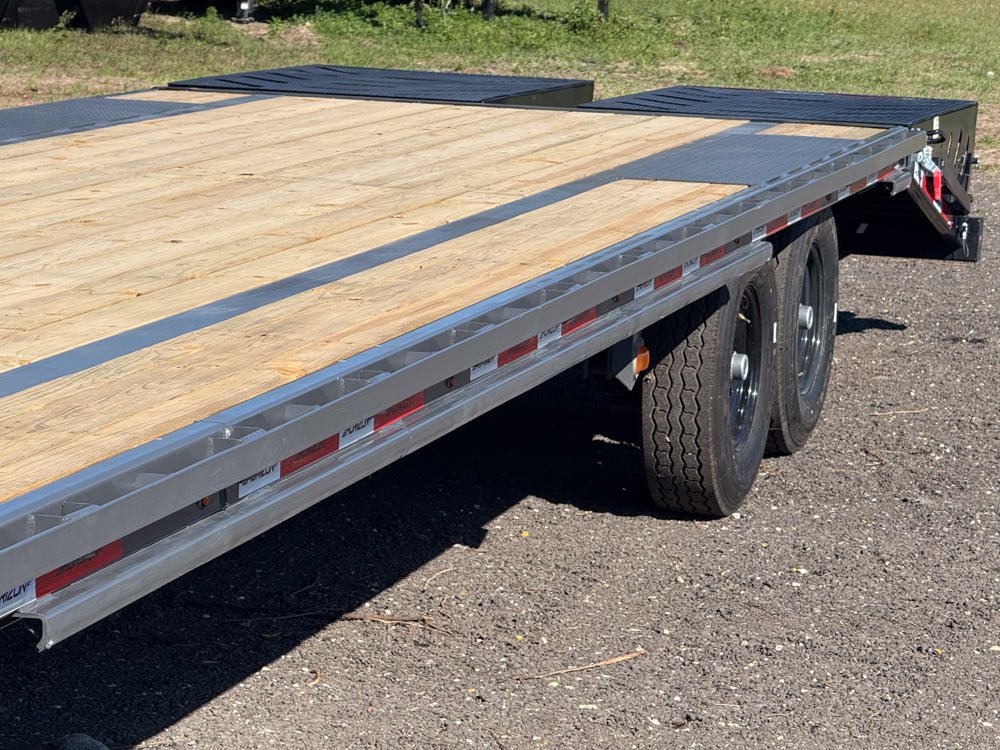

DECK & LOADING

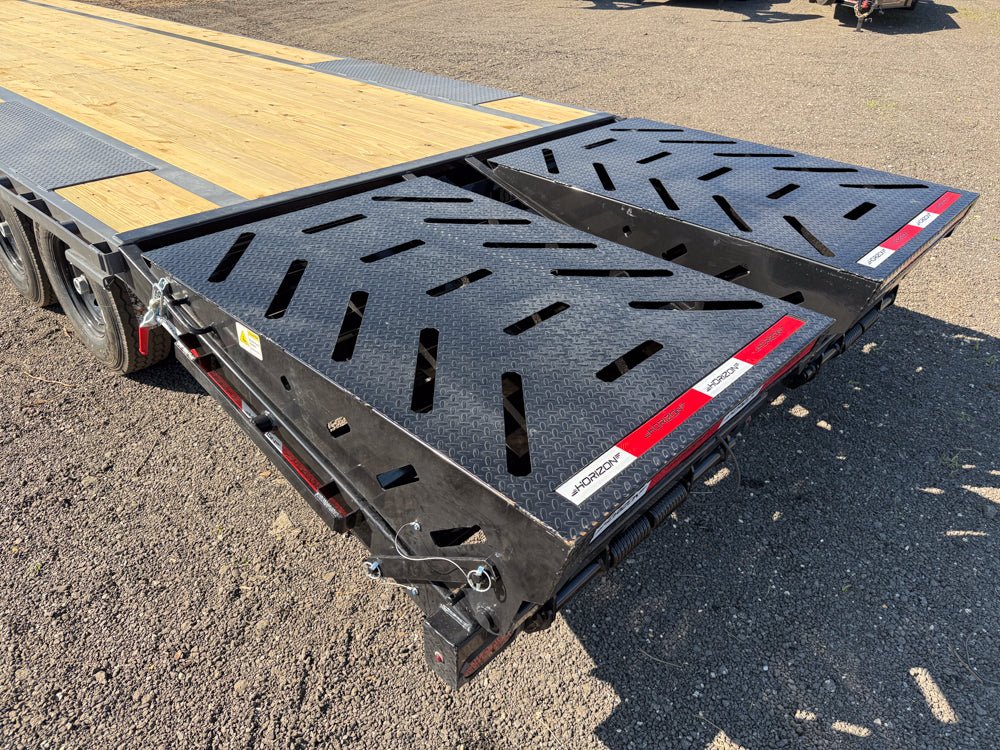

- RAMPS:
- 8' Slide In Ramps

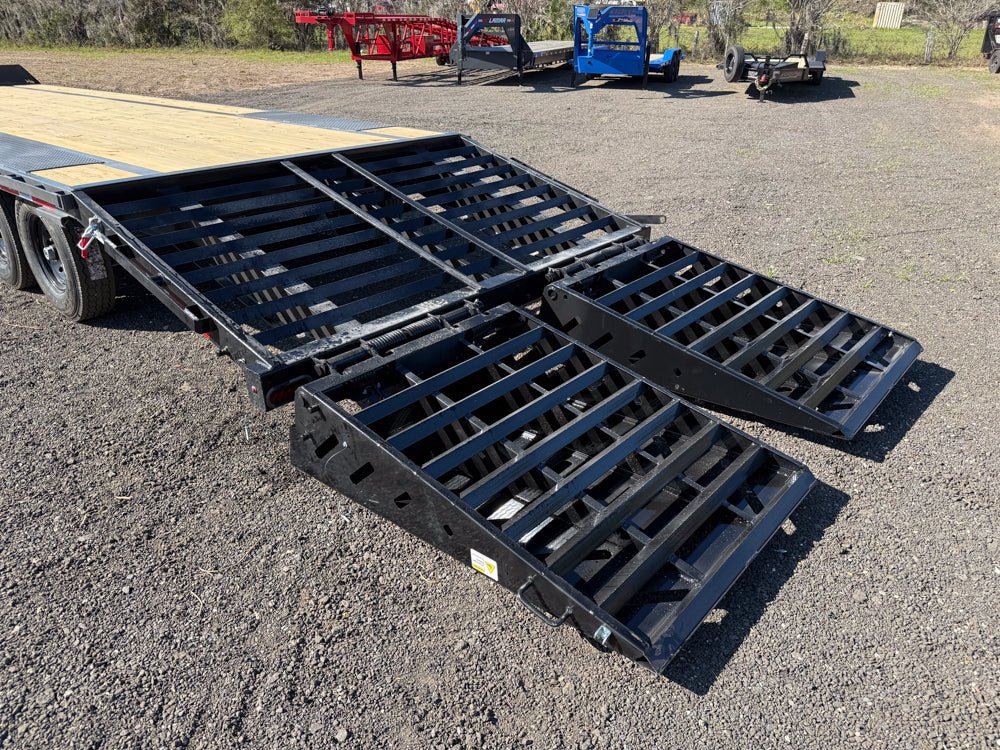

- RAMP TYPE:
- 5' Dovetail w/ 2 Mega Ramps
- DECK TYPE:
- Wood
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (14-19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- TORQUE TUBE:
- 4 1/2" Tube (30'+)

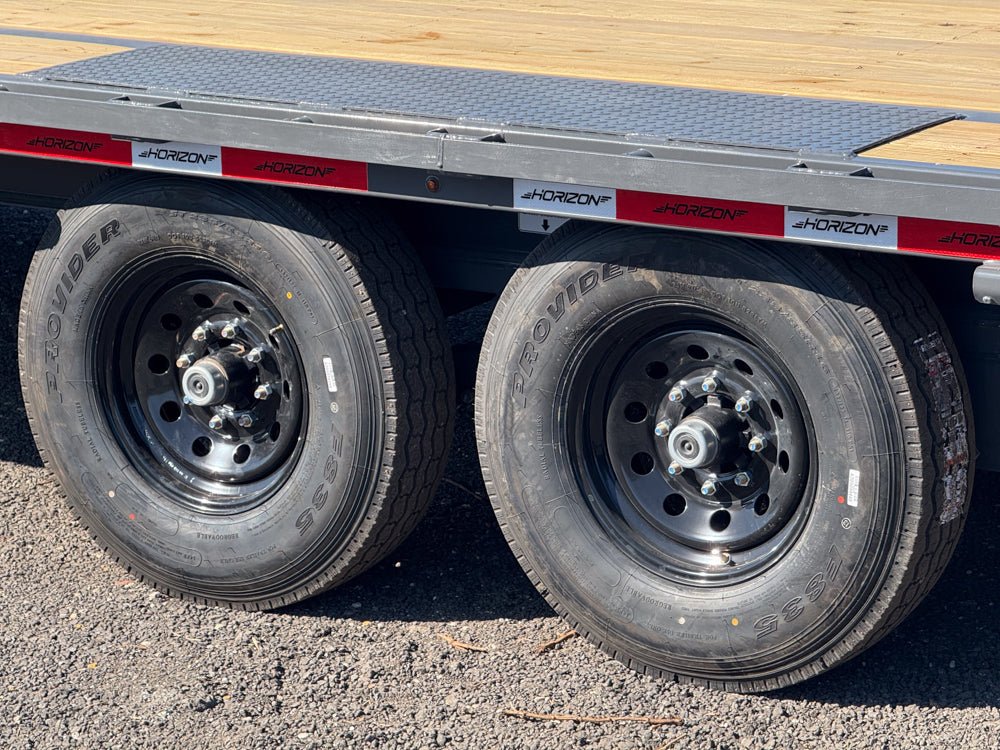

RUNNING GEAR

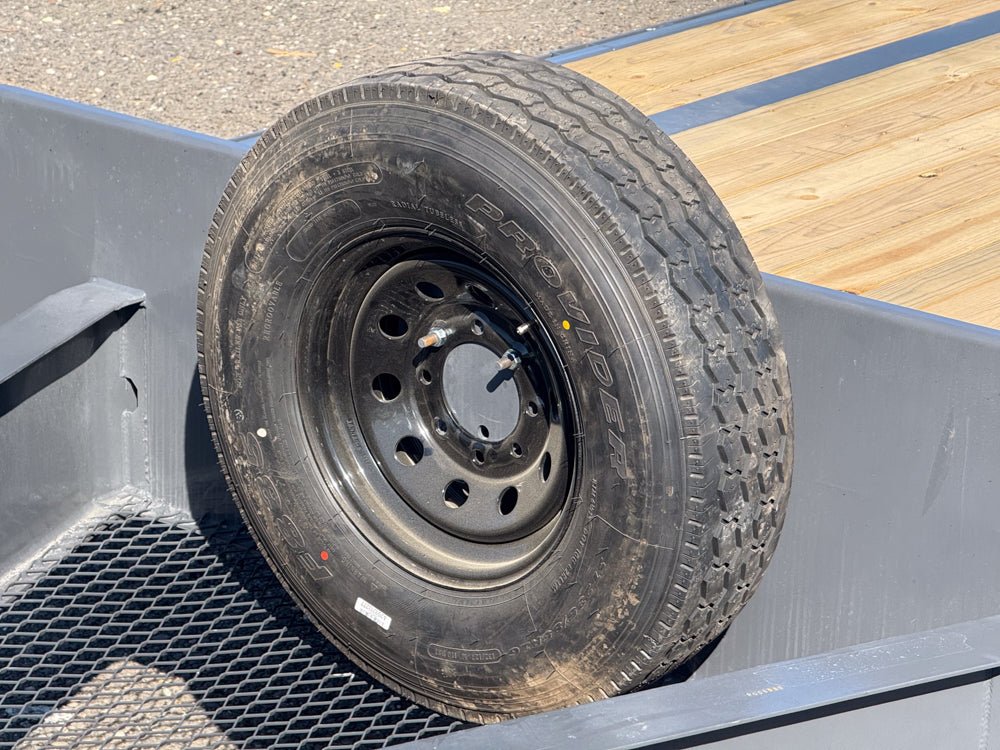

- TIRES:
- ST235/80R16 (7k), ST235/85R16 (8k), ST235/75R17.5 (10k)
- PLY:
- 10 Ply (7k), 14 Ply (8k), 18 Ply (10k SS)
- RIMS:
- 16" Black Mod Wheels (17.5" Black Mod Wheels on 10k)
- BRAKES:
- Electric Brake
- AXLE TYPE:
- 2 - 7k EZ Lube Axles
2 - 8k EZ Lube Axles
2 - 10k Oil Bath Super Single Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
