At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

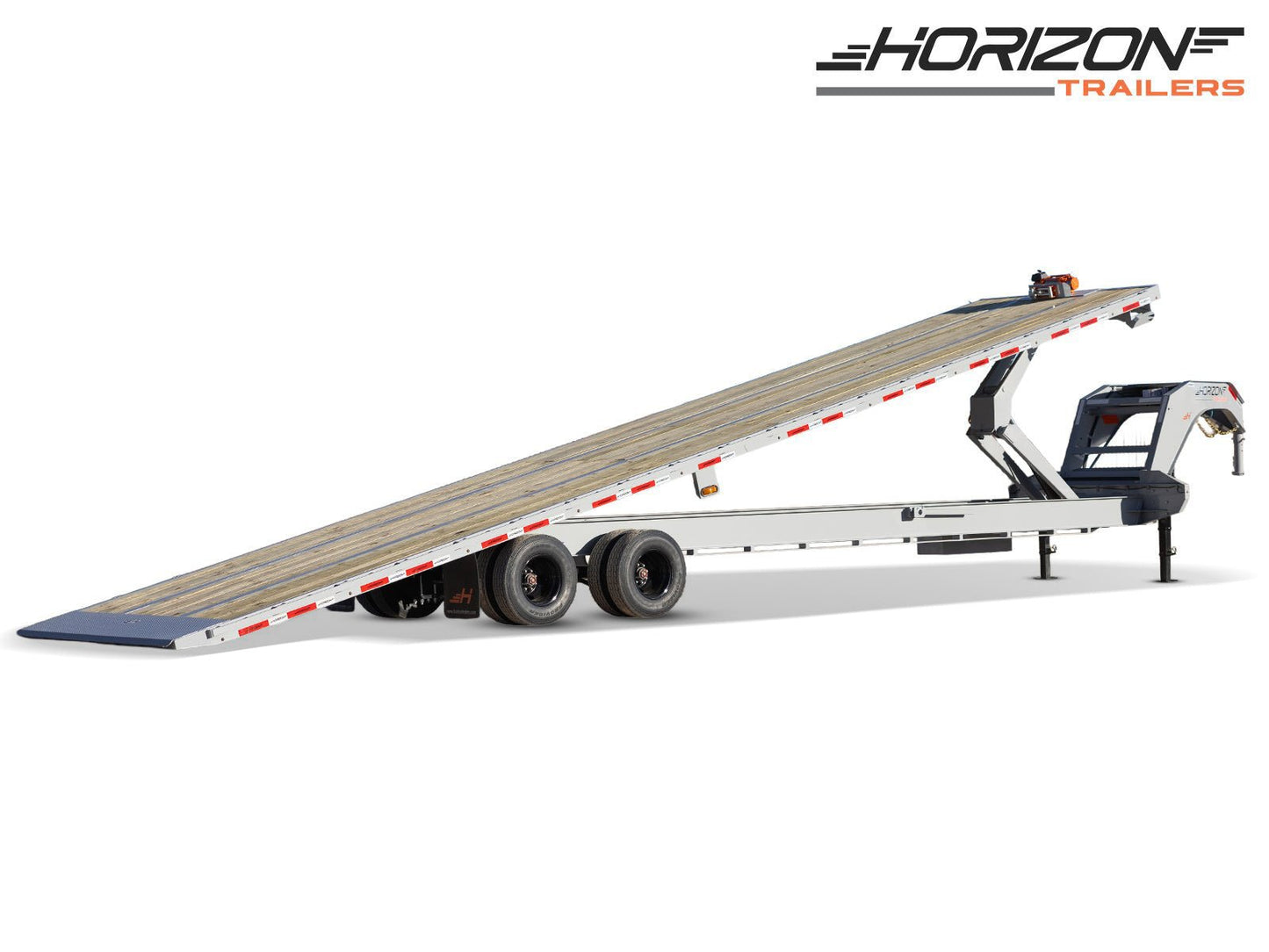

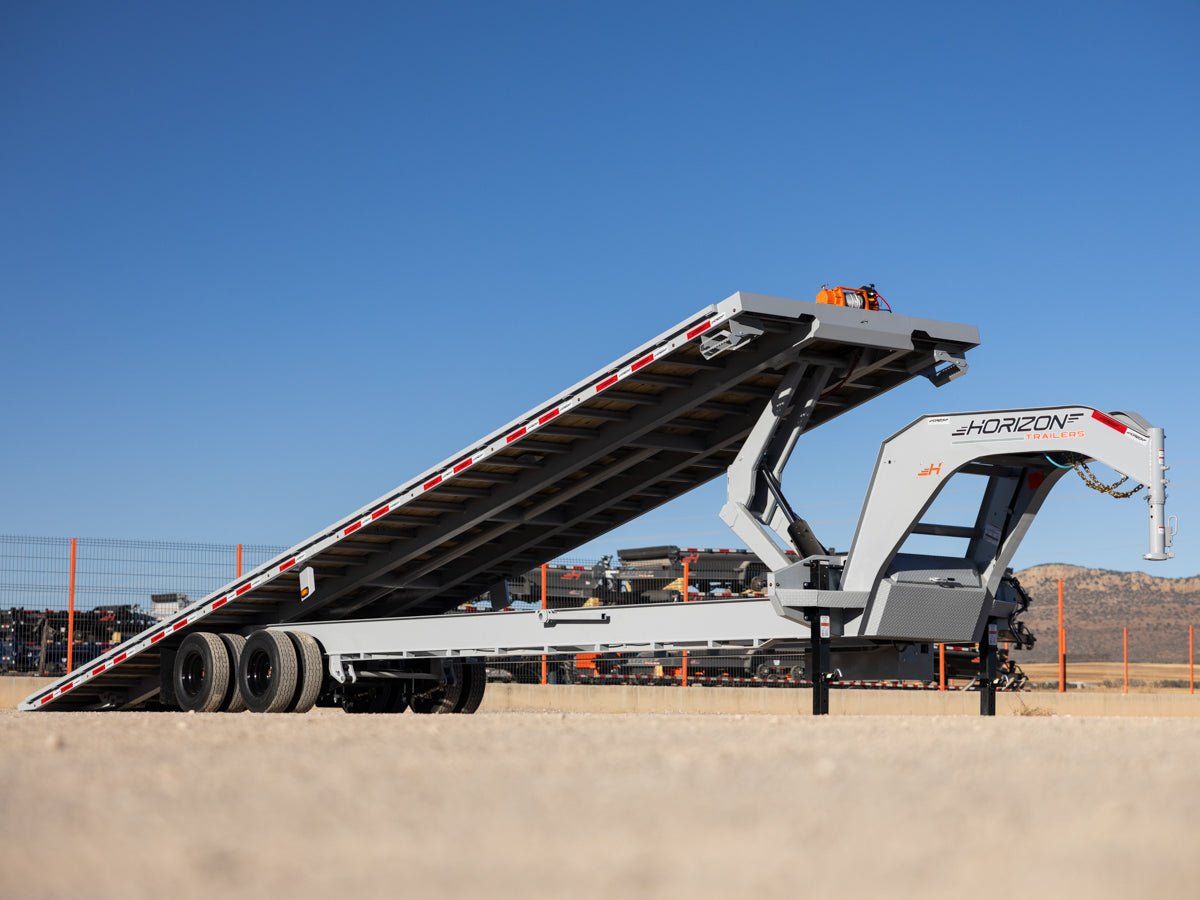

Heavy-Duty Hydraulic Tilt System
Experience effortless loading with a robust 20,000 lb capacity hydraulic tilt system. Choose between 6"x21" or extended 6"x30" cylinders to match your trailer length, powered by a reliable KTI 12V pump for smooth power-up and power-down operation.

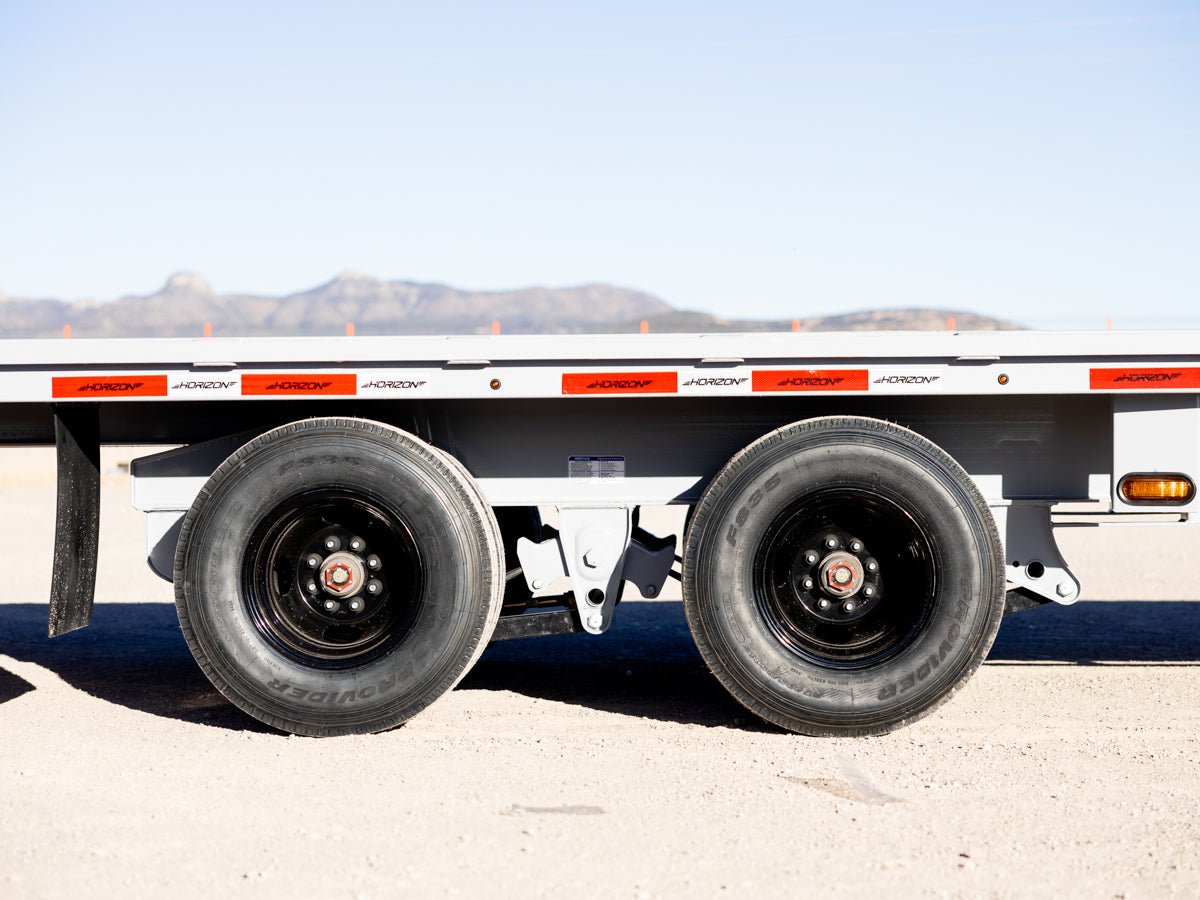

Heavy-Duty Axle & Tire System
Built to carry extreme loads, this trailer is equipped with 10k, 12k, or 16k dual oil bath axles and supported by 18-ply radial tires. Each tire boasts a 6,005 lb capacity, creating a robust foundation with exceptional puncture resistance and reliable performance for the most demanding jobs.

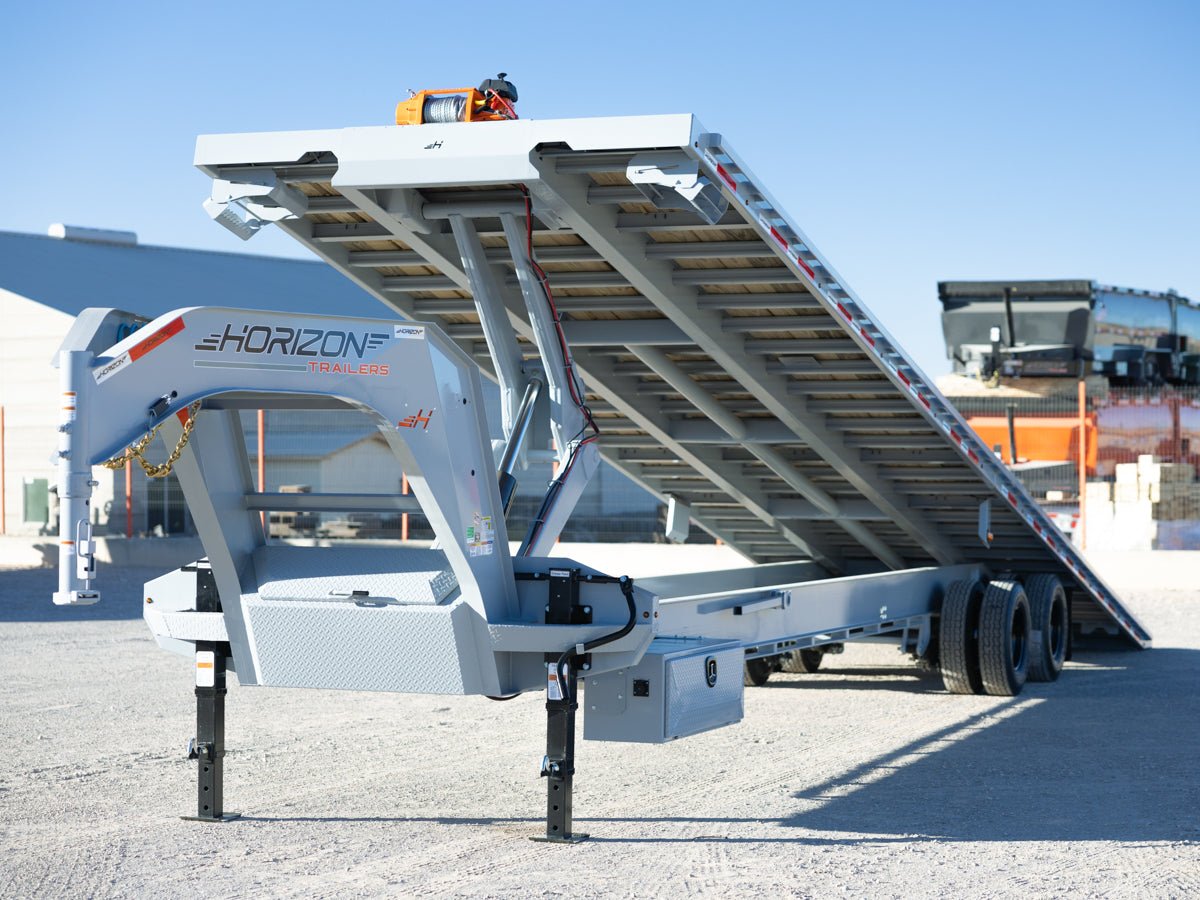

Unmatched Frame Strength
The deck is supported by a high-density grid of 3" channel crossmembers on 16" centers. This incredibly tight spacing creates an ultra-rigid platform that eliminates flex, providing a solid, stable foundation for your heaviest and most concentrated loads.
Advanced Torque Tube Stability
Models 30' and longer feature a 4½" torque tube for enhanced towing stability. This heavy-duty addition reduces frame flex and provides superior control when hauling maximum loads.

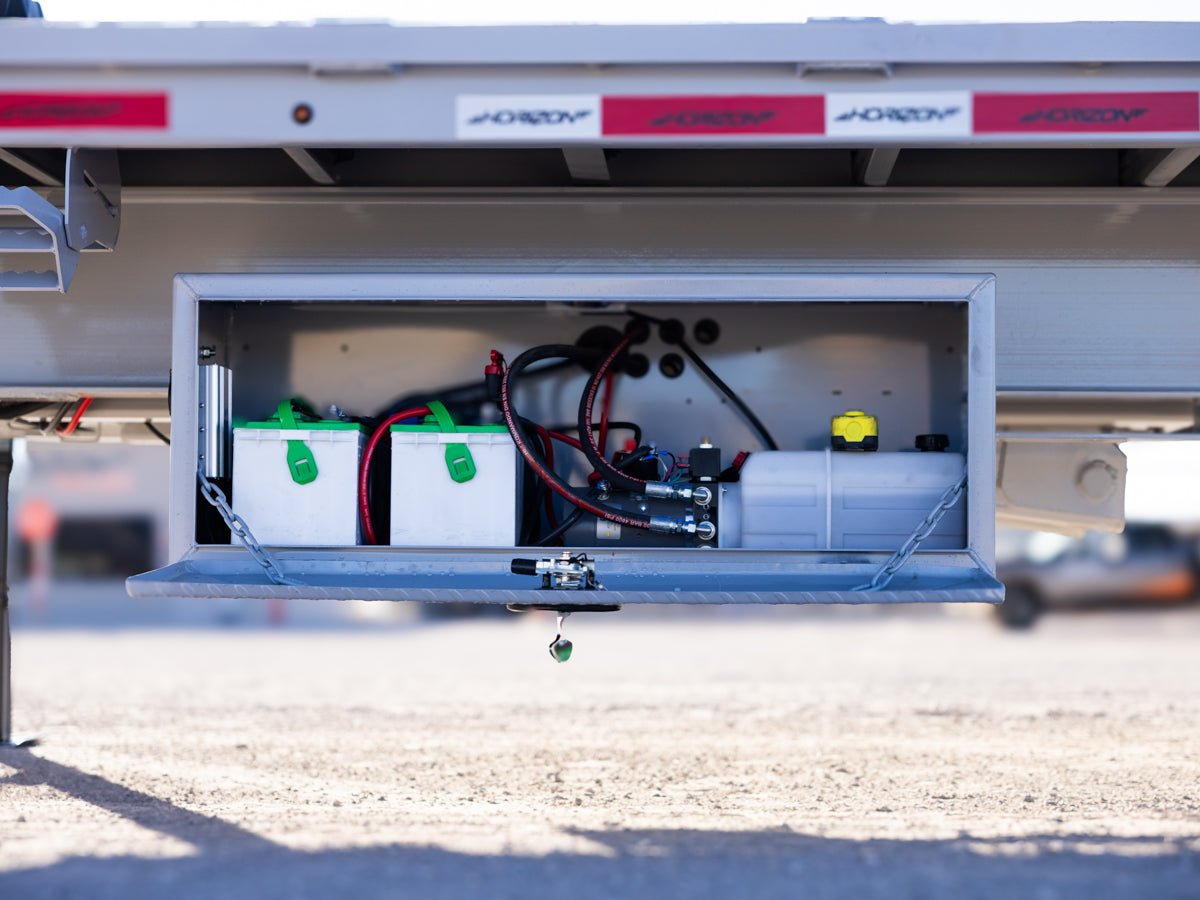

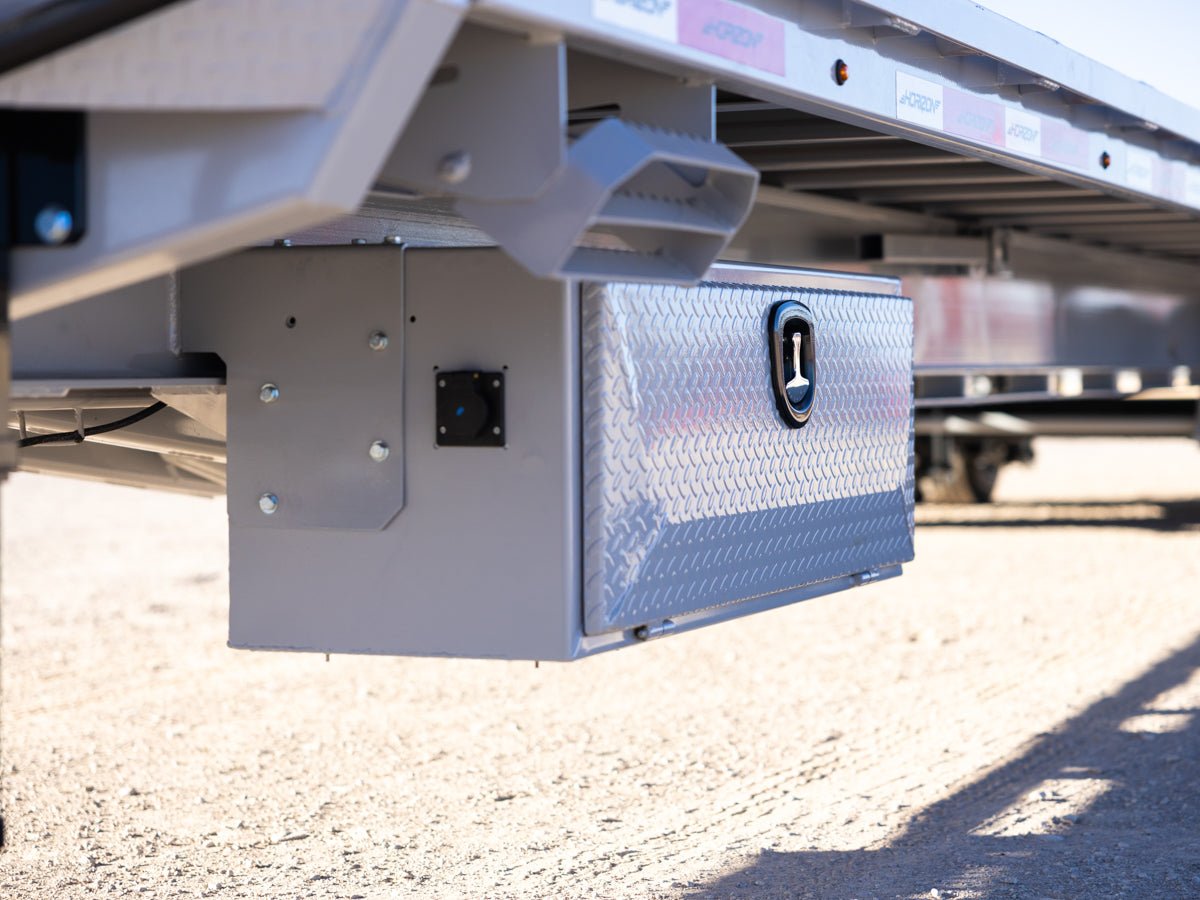

Self-Contained Hydraulic Power Unit
The side locker houses the complete hydraulic system, including the 12V pump, dual Interstate batteries, and control components. This integrated setup protects all critical electronics from weather and road debris while keeping your tools secure in one accessible location.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 28'
- WIDTH:
- 102"
- DECK HEIGHT:
- 36"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k
- GVWR:
- 15.7k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

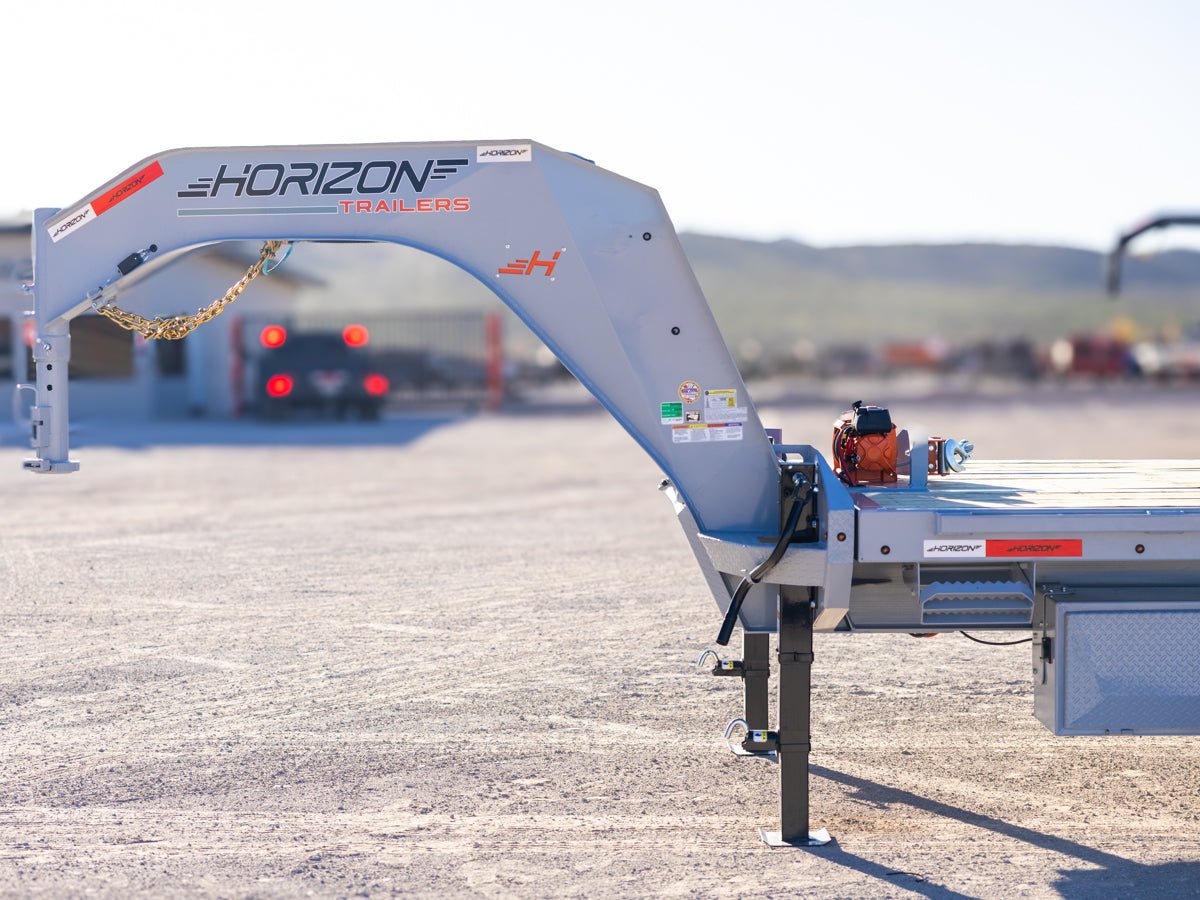

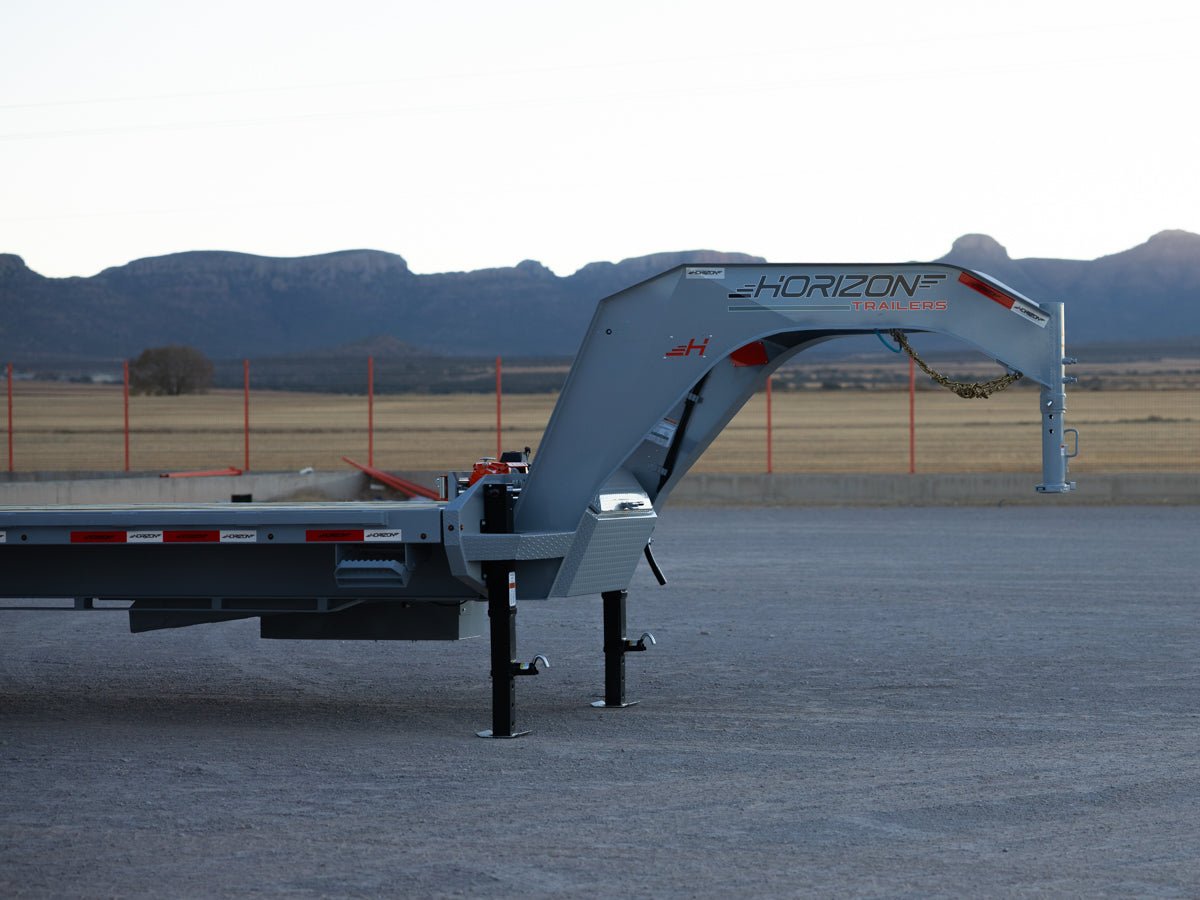

GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 83" Long
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)

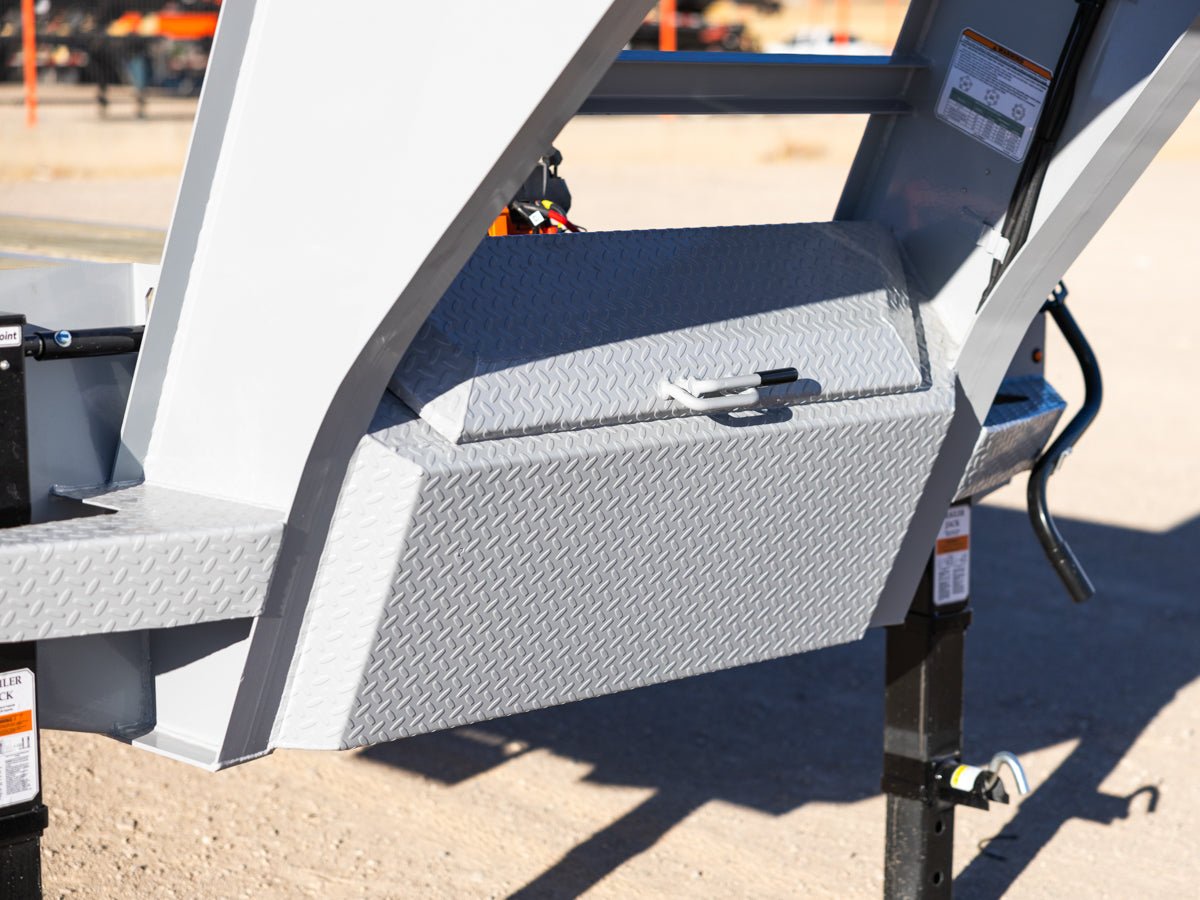

- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood
- TILT METHOD:
- Power Up & Power Down
- TILT DECK:
- 24' Tilt Deck
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness

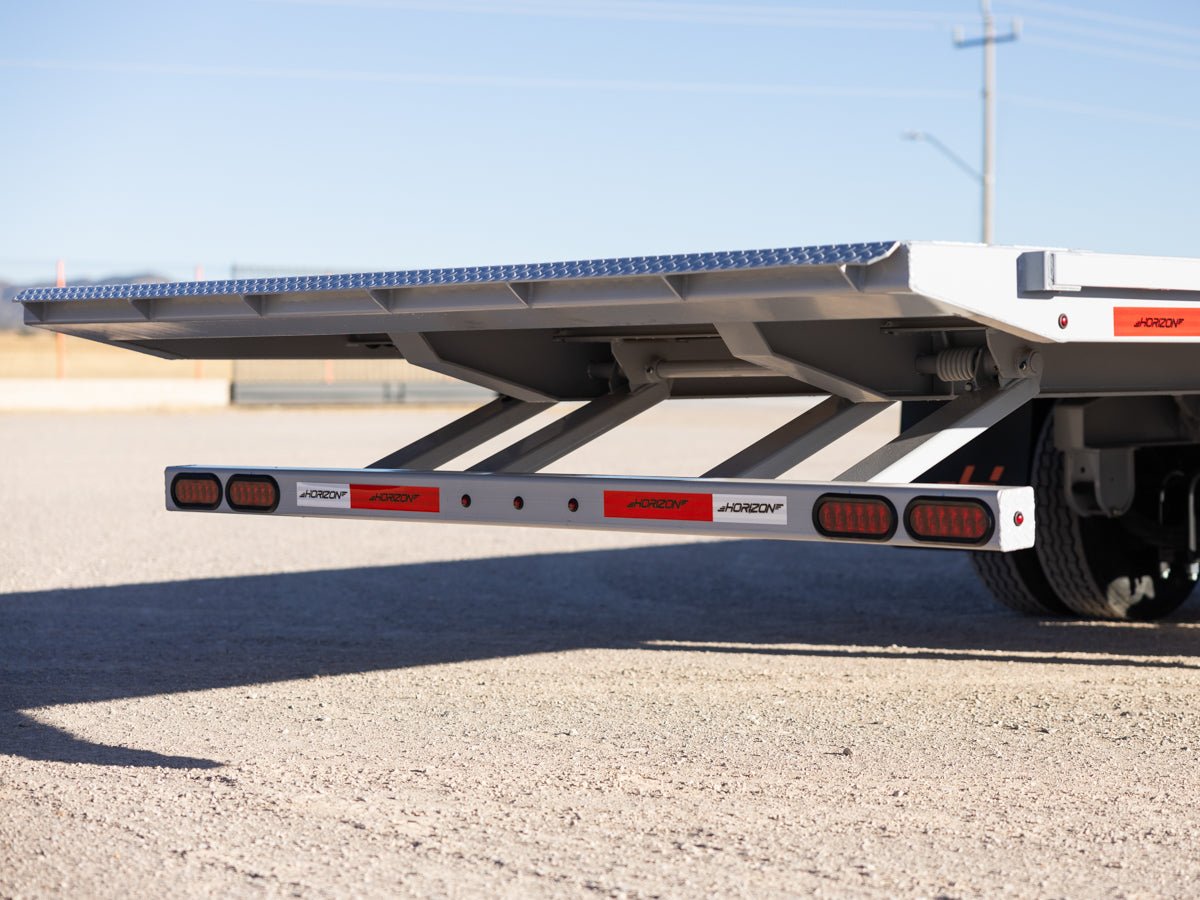

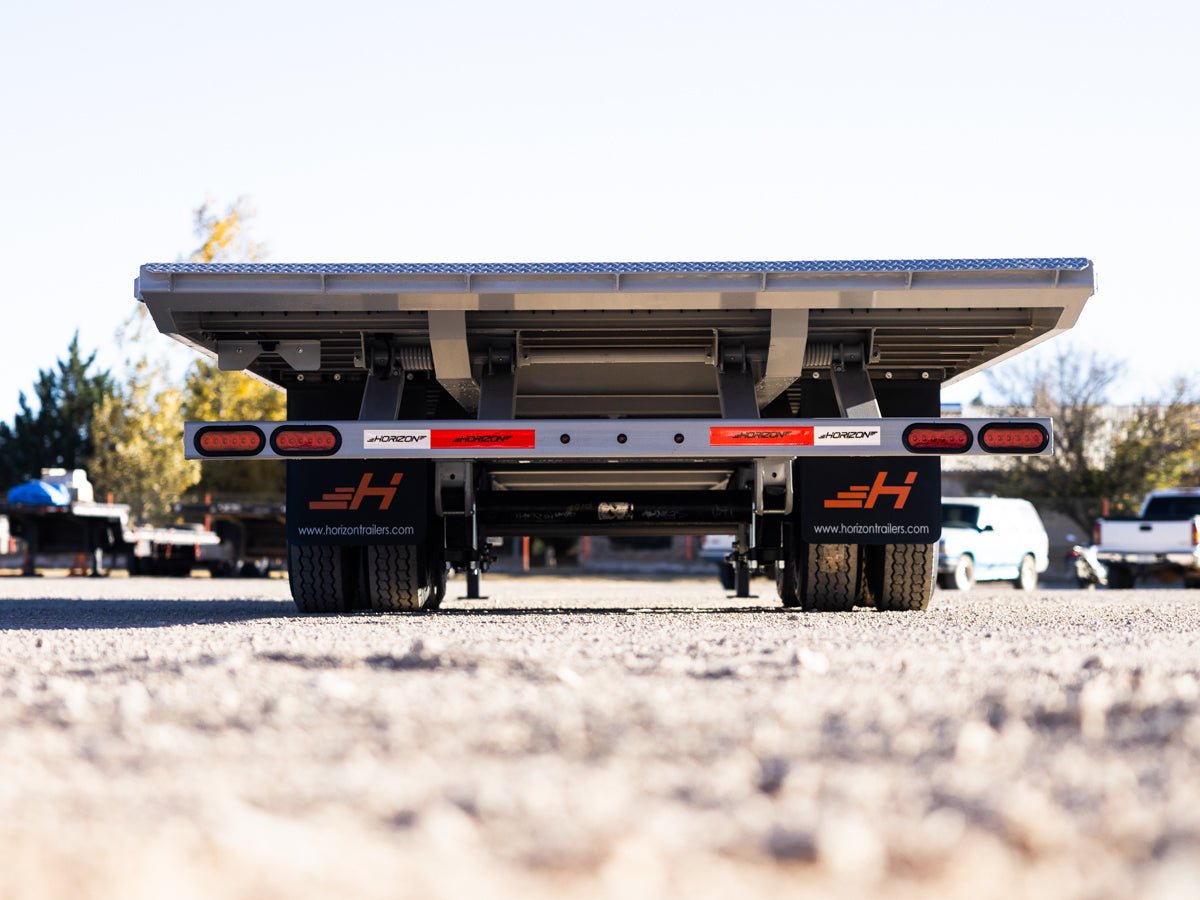

- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 7k Electric Brake EZ Lube Axles
2 - 8k Oil Bath Spring Axles
2 - 10k Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump
- LIFT CYLINDER:
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
