At a Glance
- Colors:
-
Postal BlueVirginia BlueRedCat YellowBlackCharcoalMilitary GreenDesert TanWhite
Featured Video
Product Features

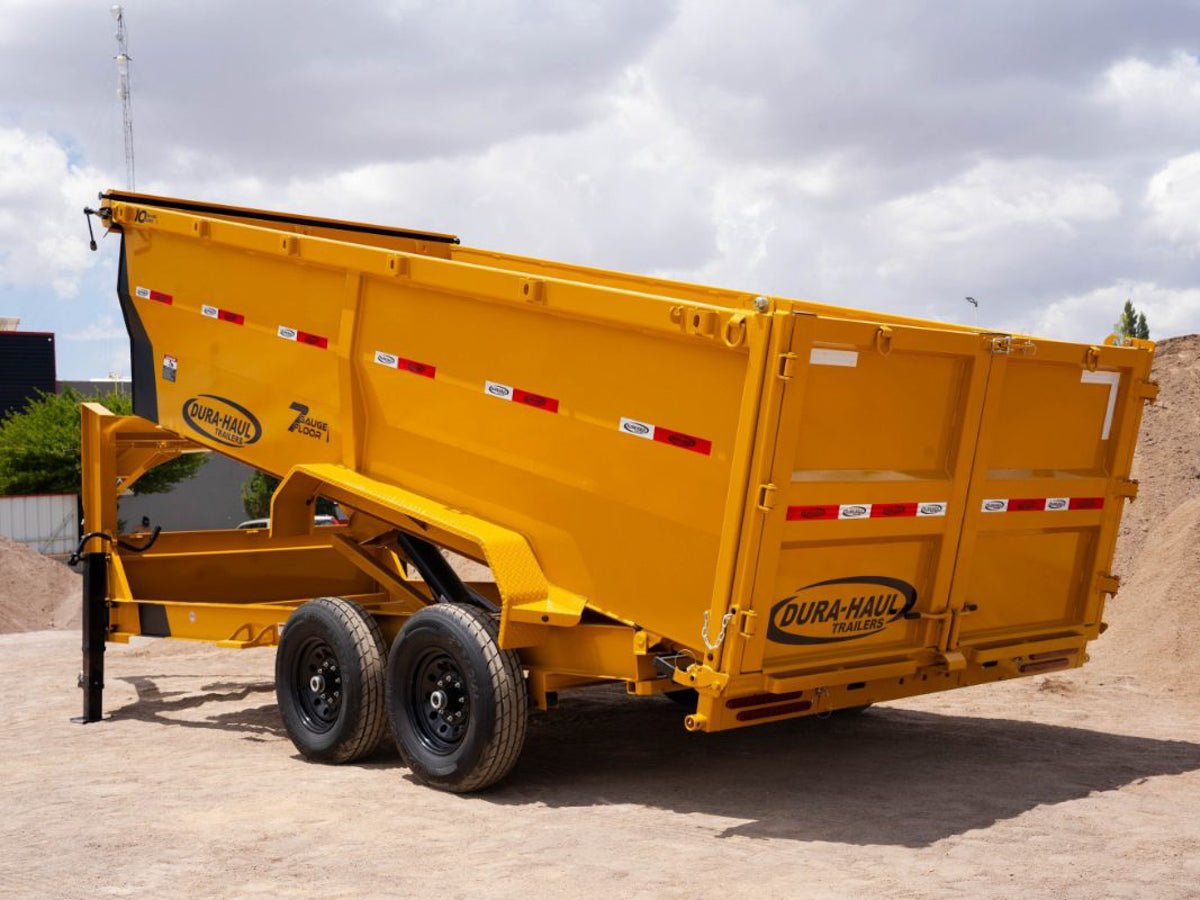

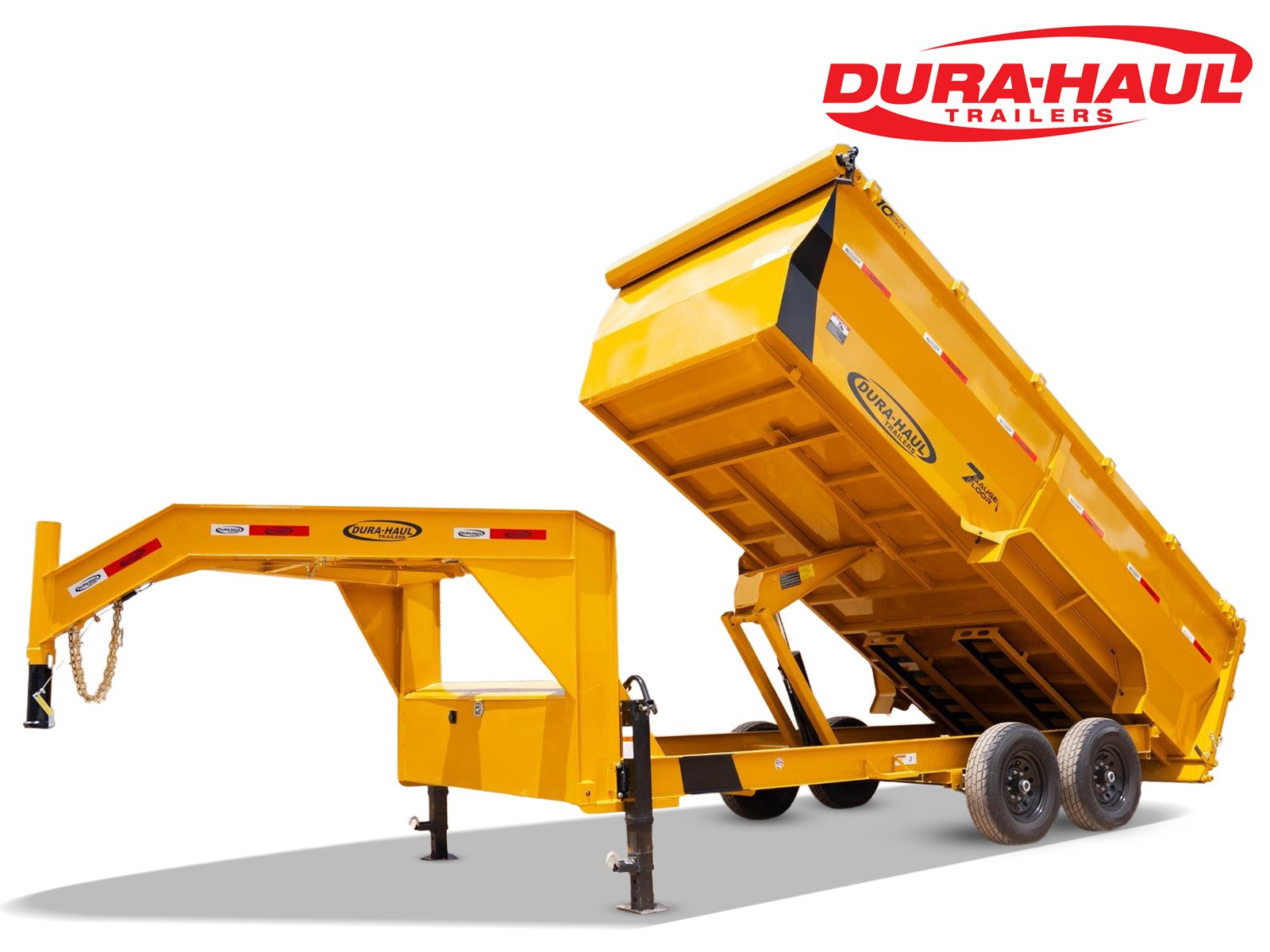

84-Inch Wide Gooseneck Dump Bed
Features an 84-inch wide dump bed on a gooseneck chassis. The width provides high-volume capacity, while the gooseneck connection offers superior towing stability and control for the 16,000 lb GVWR.

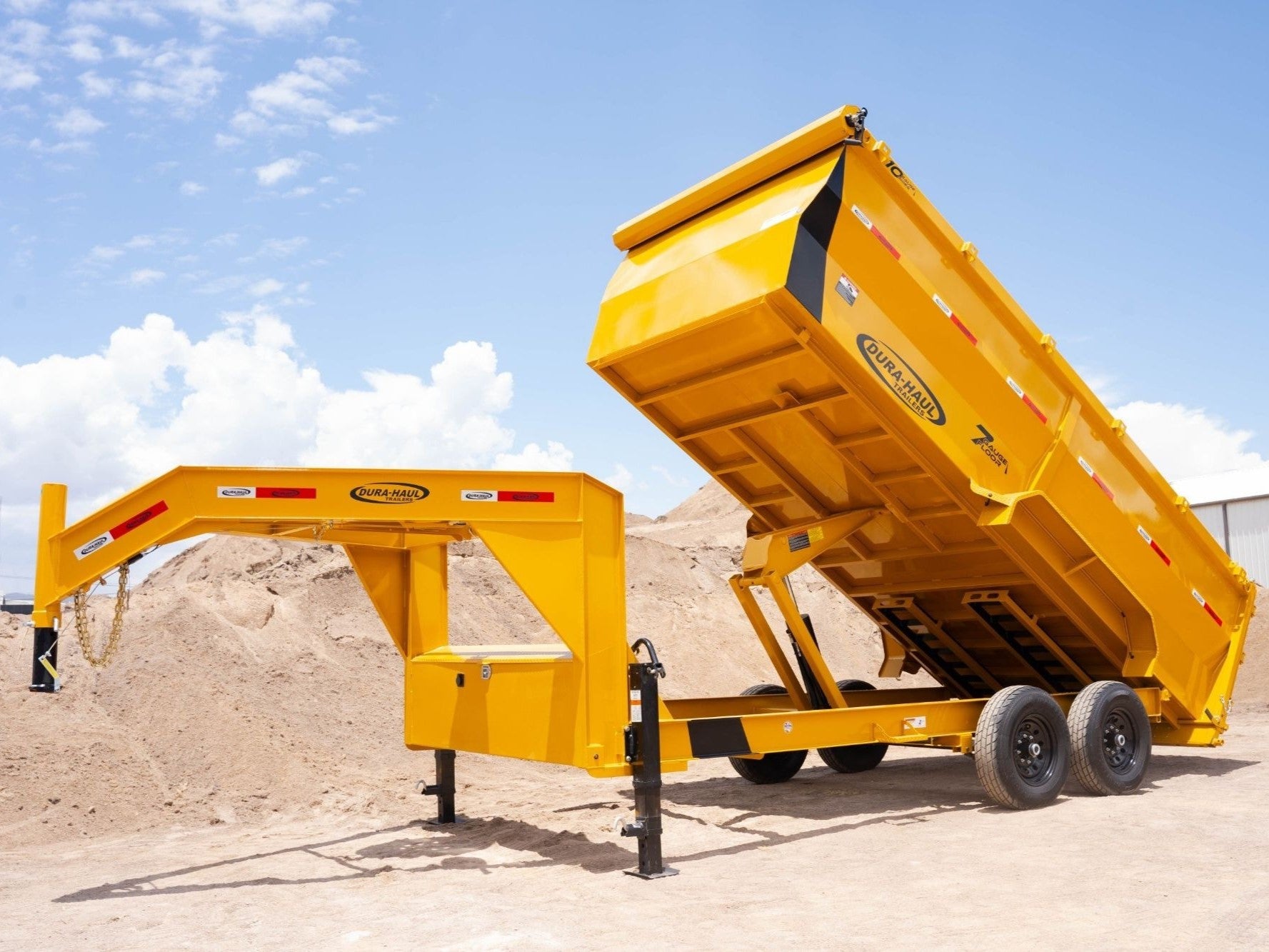

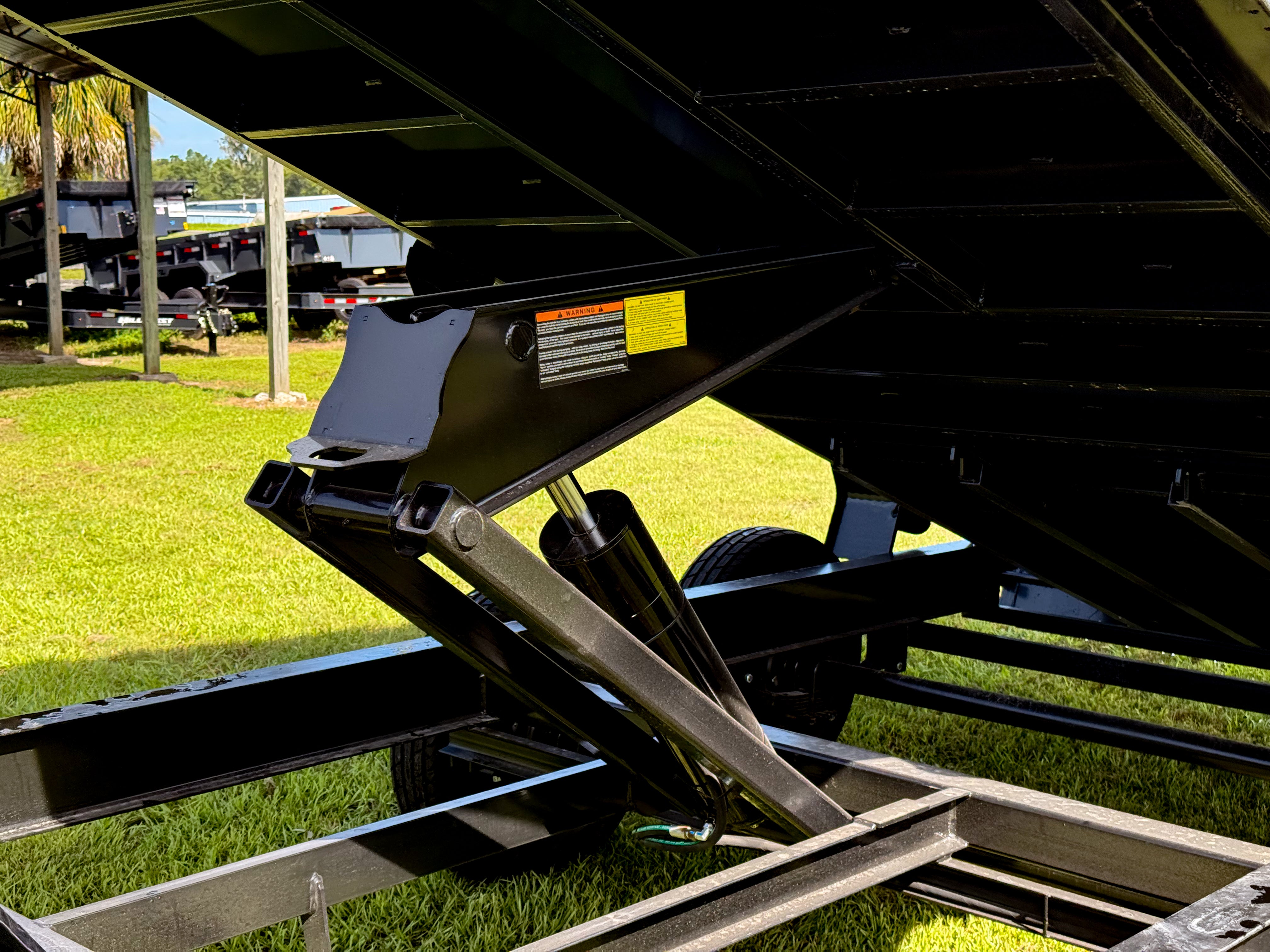

Scissor Lift Hoist System
Equipped with a rugged scissor lift hoist system. This design provides powerful, reliable lifting performance, making it well-suited for the trailer's professional-duty capacity.

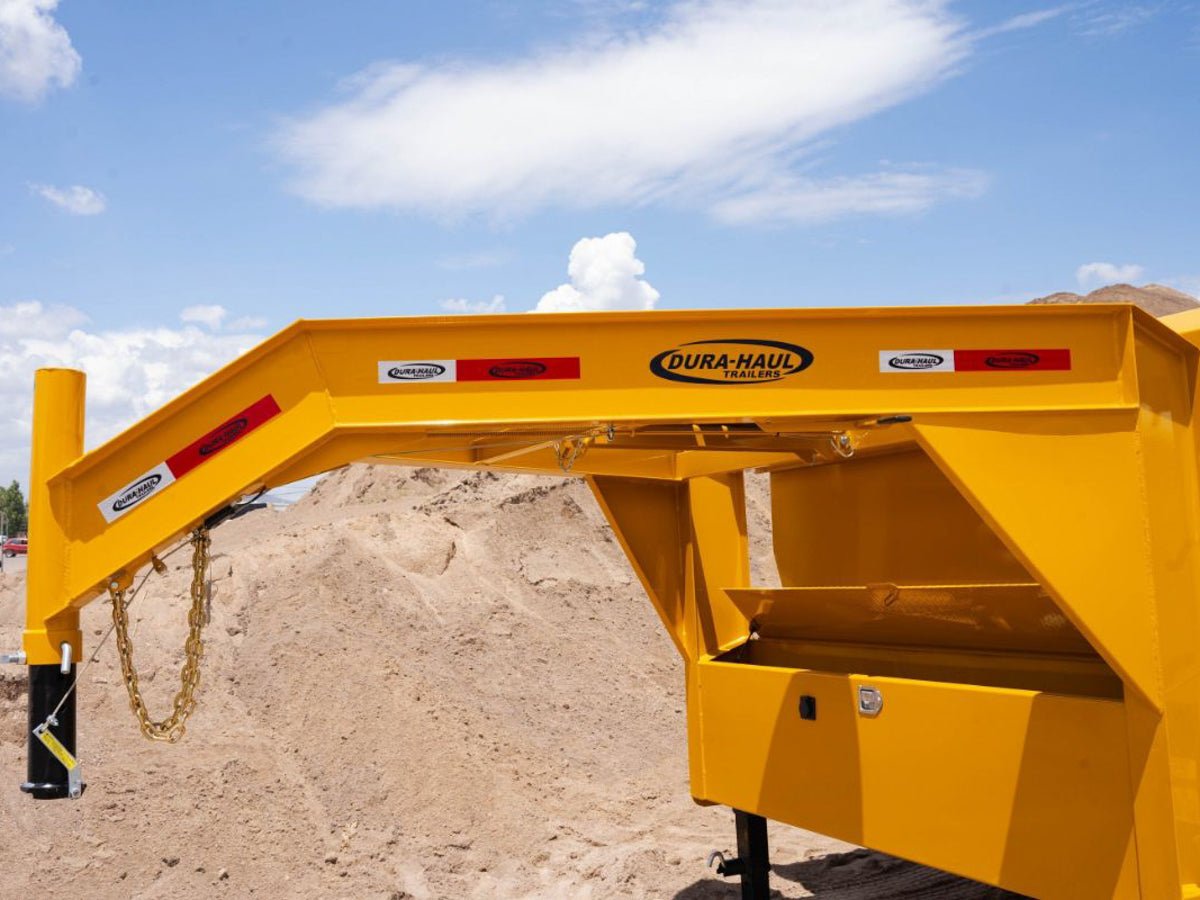

12-Inch Engineered Gooseneck
Built with a heavy 12-inch engineered I-beam gooseneck. This robust connection point provides the strength and stability required for precise control when towing a fully loaded dump trailer.
7k or 8k Quick Lube Axle Options
Configure with tandem 7k or 8k quick-lube axles. The 8k axle option includes 14-ply tires, providing increased load capacity and durability to fully support the 16,000 lb GVWR.

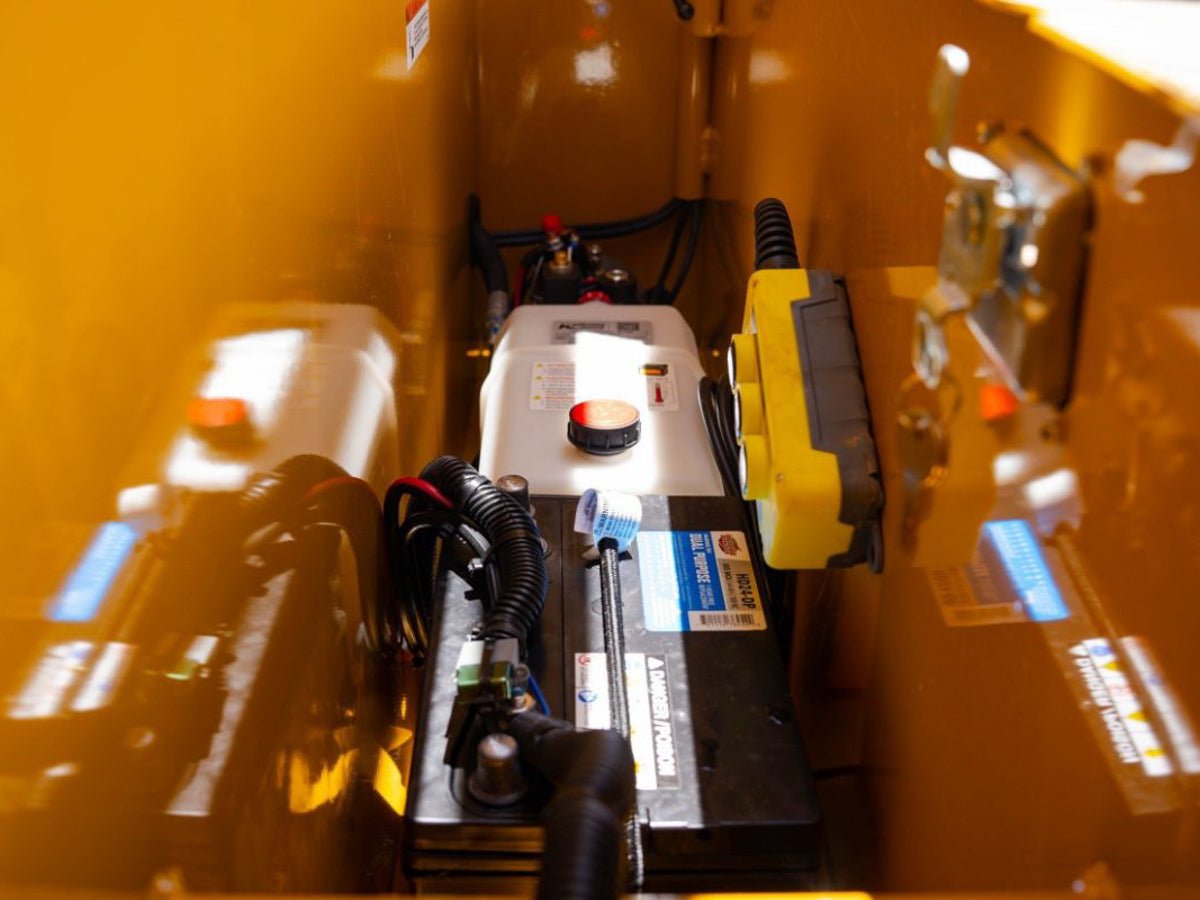

Lockable Gooseneck Toolbox
Includes a large, lockable toolbox integrated into the gooseneck structure. It provides ample, secure storage for the hydraulic battery, controller, straps, chains, and other tools, keeping them organized and protected from the elements.
Powdercoat Finish
Finished with a durable powdercoat available in eight color options, including Postal Blue, Cat Yellow, and Military Green. The finish provides corrosion resistance for long-term professional use.
Product Details
DIMENSIONS
- LENGTH:
- 14' - 16'
- BED WIDTH:
- 84"
- SIDE HEIGHT:
- 2' or 4'
- DECK HEIGHT:
- 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 14k - 16k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply (7k) / 14 Ply (8k)
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Quick Lube Axles
2 - 8k Quick Lube Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 12" Engineered Neck
- JACKS:
- Dual 12k Spring Loaded Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16"
- TOOLBOX:
- Large Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 7ga. Steel Bed
- SIDES:
- 10 Ga. Formed Steel

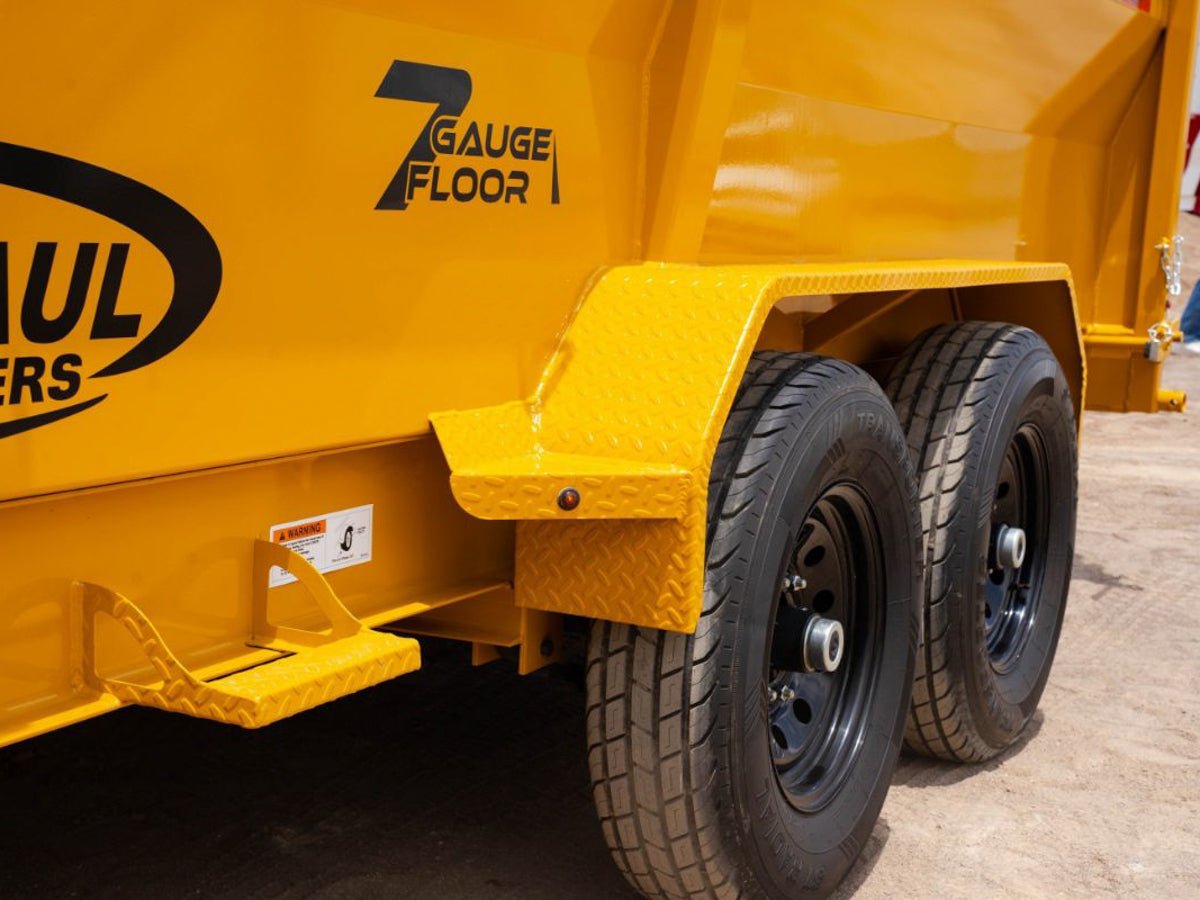

- FENDERS:
- Diamond Plate Fenders

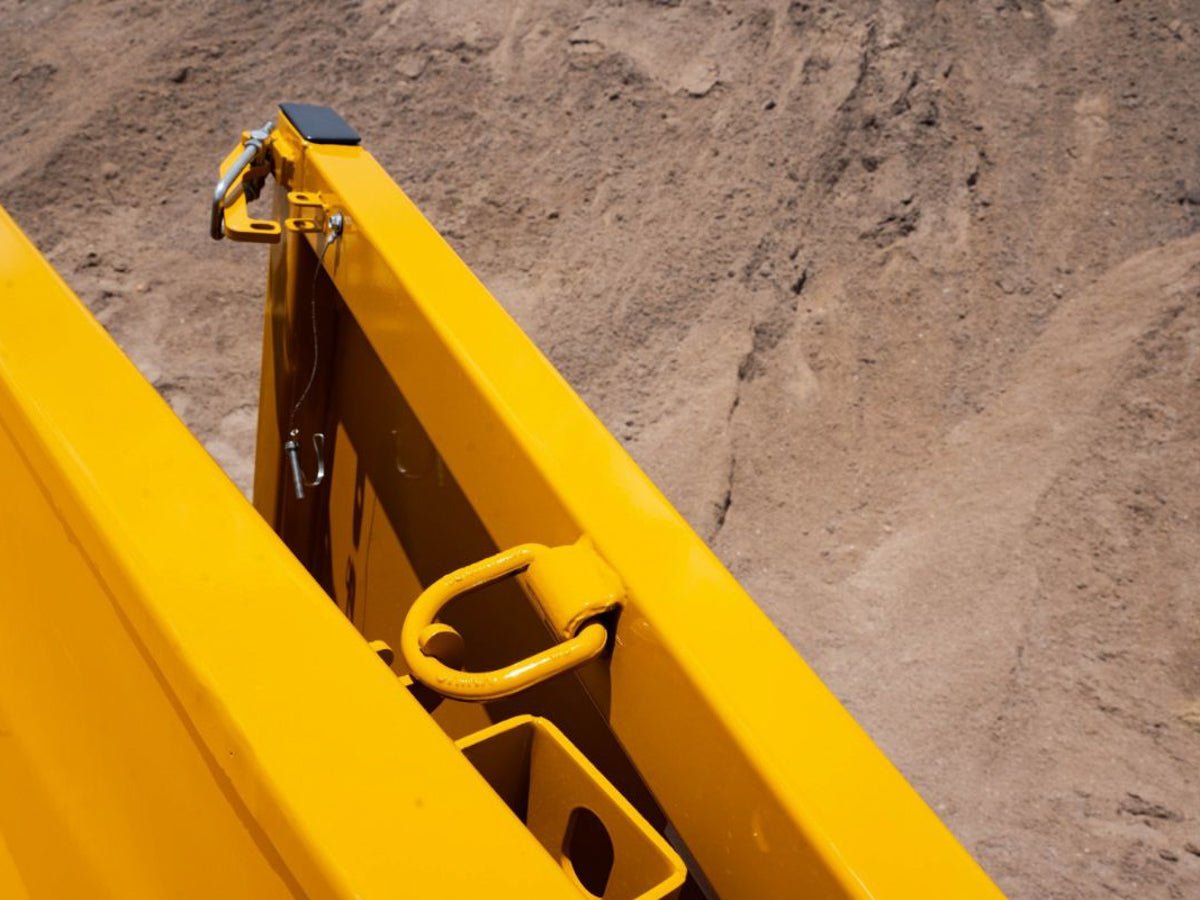

- D-RINGS:
- 4 D-Rings
- HOOKS:
- Rear Rod Hooks
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER:
- Scissor Lift
CARGO & BODY

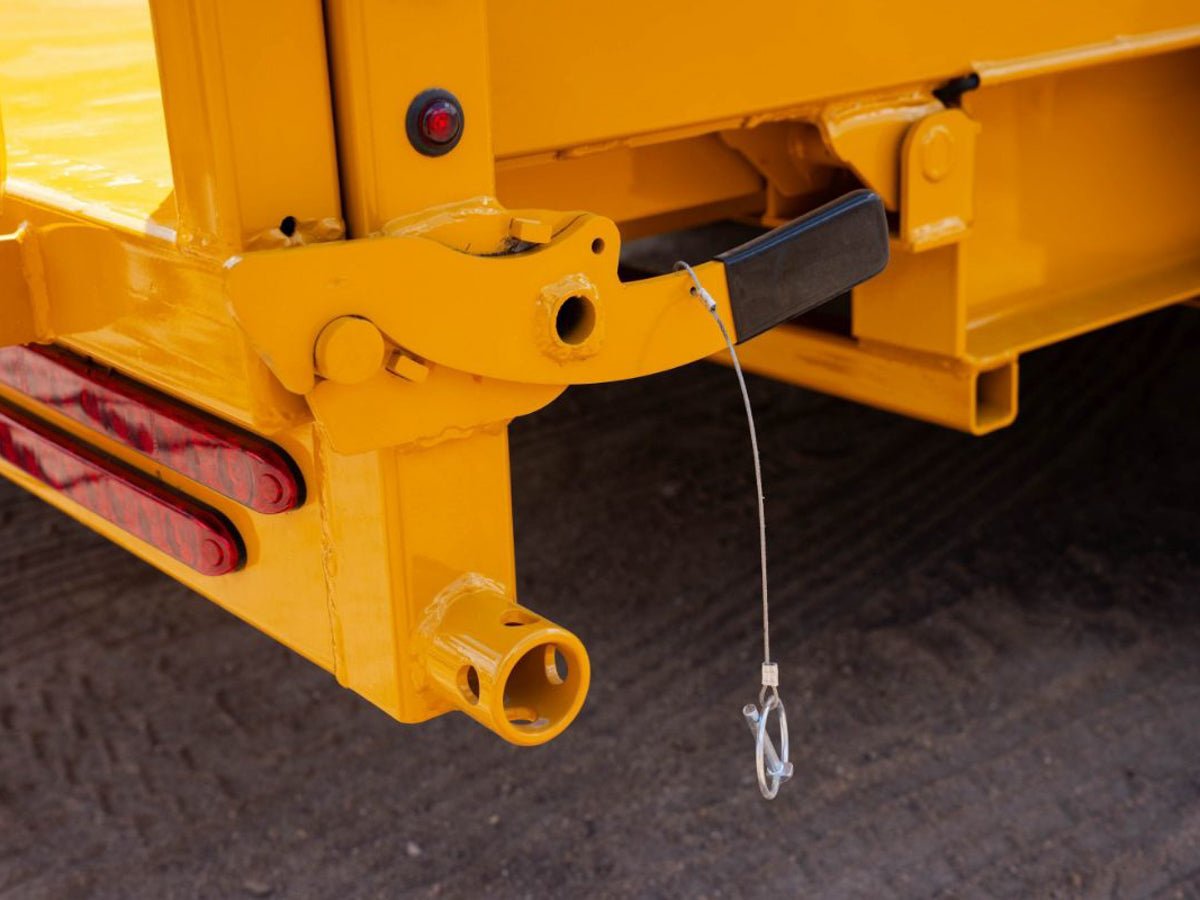

- GATE:
- 2 Way Spreader Gate
- RAMPS:
- 6' HD Slide In Ramps
- TARP:
- Crank Style Roll-Up
ELECTRICAL & LIGHTING

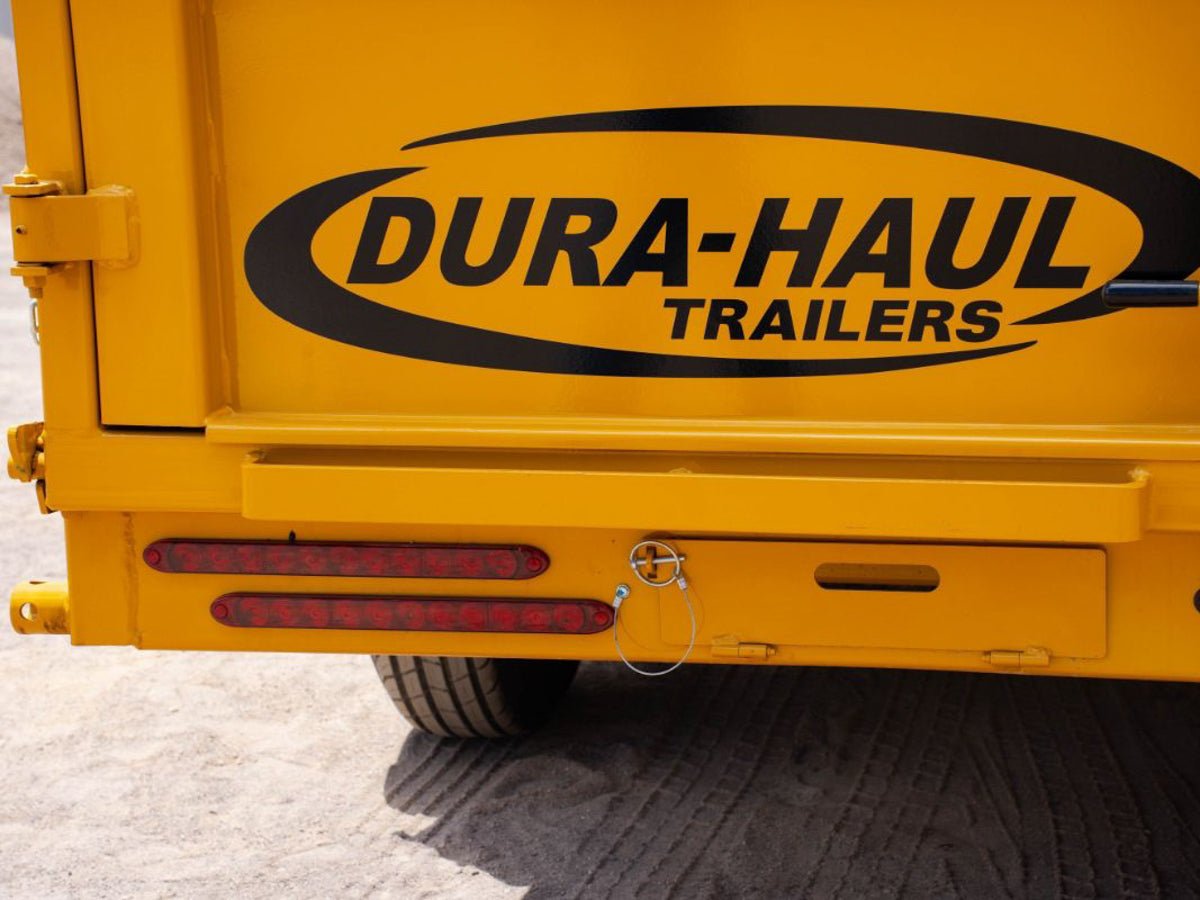

- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- Trickle Charger
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Postal Blue, Virginia Blue, Red, Cat Yellow, Black, Charcoal, Military Green, Desert Tan
