At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Get a Custom Quote
Product Features

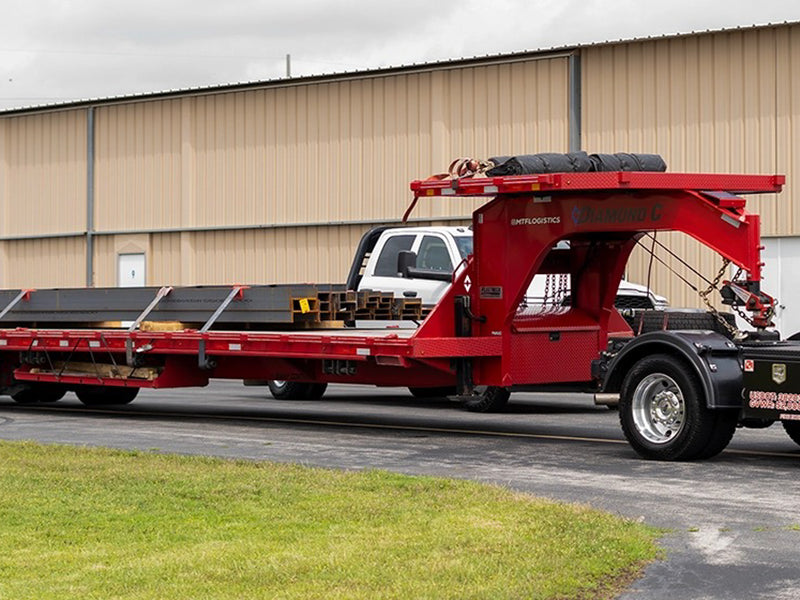

A Finish as Tough as the Trailer
Diamond C defends against the elements with a premium Powdercoat finish applied through a meticulous 5-step process. This durable shield, available in eight modern colors, fights off rust, corrosion, and UV damage to maintain a professional look for years of hard use.

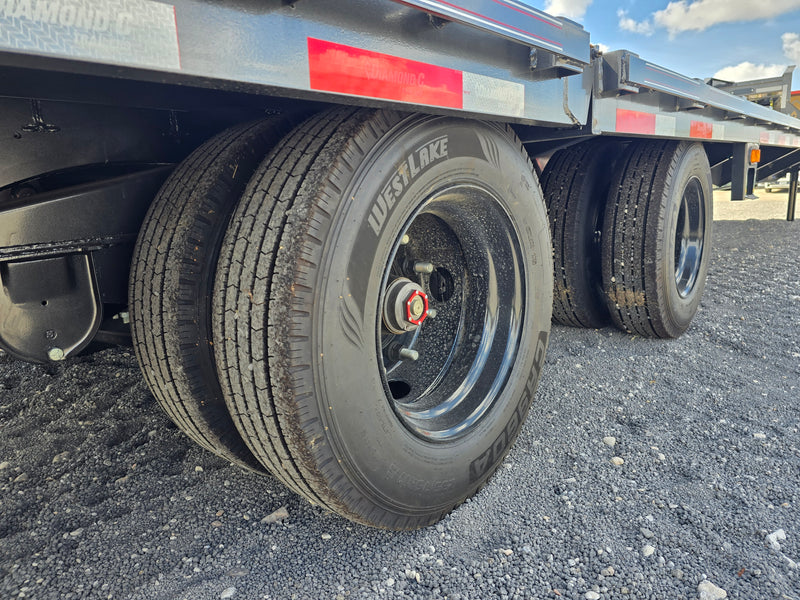

Unrivaled Tandem Axle Performance
Built around two massive 16k Lippert HD Oil Bath Axles, this trailer is engineered for extreme loads. Paired with an 18-ply tire rating and a robust Hutch suspension, this running gear delivers unmatched durability, stability, and peace of mind on every journey.

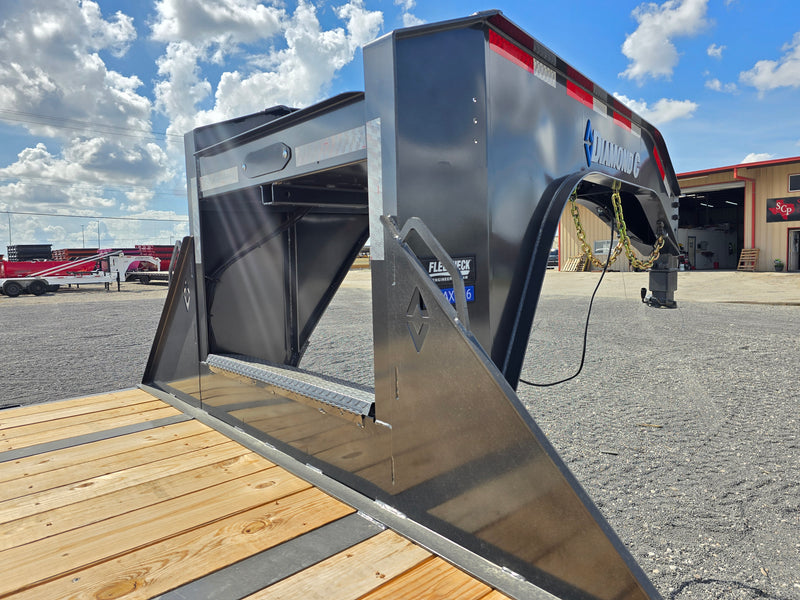

The Ultimate Gooseneck Connection
Experience a superior connection with a heavy-duty curved gooseneck and your choice of coupler. From the standard 30k cushioned model to the massive 40,000 lb Adjustable Telescoupler, we provide the industry's strongest and most reliable link to your truck.

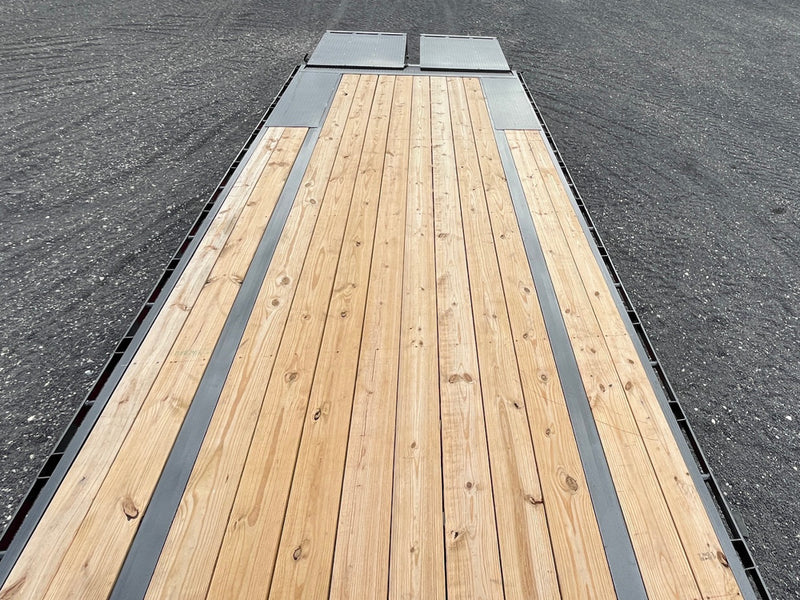

An Ultra-Rigid, High-Strength Deck
Built on a dense grid of 3" I-Beams spaced just 16" apart, our deck is engineered to eliminate flex and handle extreme point loads. This creates a rock-solid, stable platform that stands up to the heaviest and most concentrated equipment.

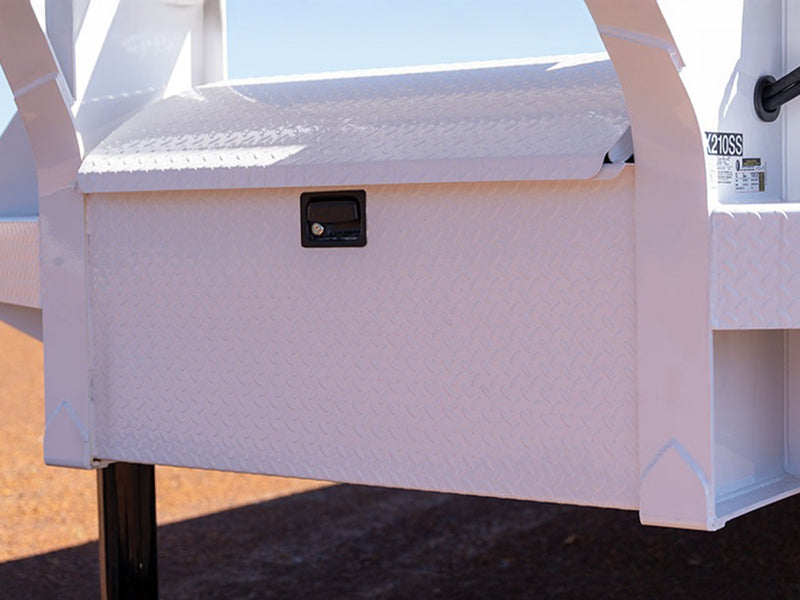

Smart, Secure Storage Built-In
Your essential gear has a dedicated, heavy-duty home. Our neck-mounted diamond plate toolbox, with its easy-lift gas-shock lid, provides immediate access to chains, binders, and tools, ensuring they are organized, secure, and ready for work at a moment’s notice.

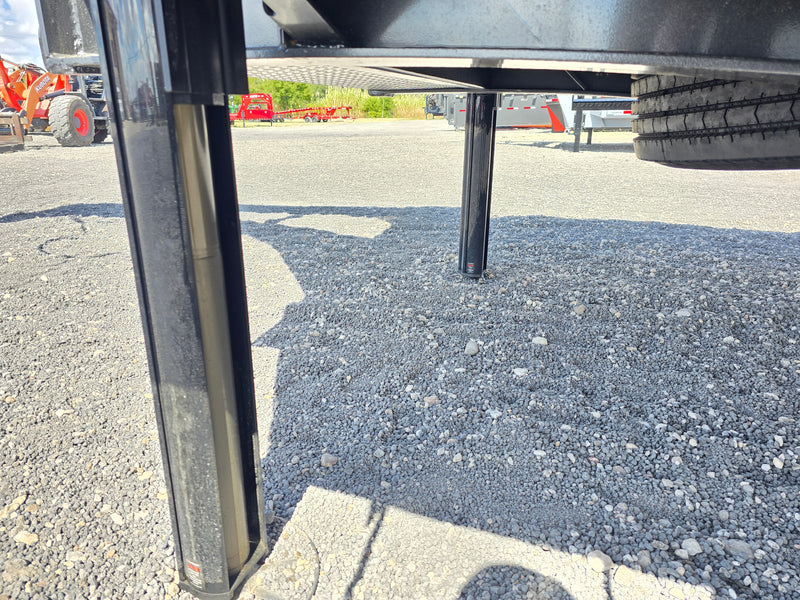

Heavy-Duty 12,000 lb Drop-Leg Jacks
Gain absolute confidence on uneven ground with two standard 12,000 lb drop-leg jacks. This robust system provides a solid, secure foundation for disconnecting your loaded gooseneck. For ultimate power and speed, upgrade to the 20,000 lb hydraulic jack system for effortless operation at the push of a button.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 35"
WEIGHT RATINGS
- GAWR:
- 16,000 lbs
- GVWR:
- 30,000 - 40,000 lbs
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
SAFETY
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Curved Engineered Gooseneck, 109" Long
- COUPLER:
- Curt Cushion Coupler (30,000 lbs)
- 40K GVWR COUPLER:
- 3" Ball - 40,000 lbs Adjustable Telescoupler
- JACKS:
- 2 - 12,000 lb Drop-Leg Jacks
STORAGE
- TOOLBOX:
- Diamond Plate Neck Box w/ Gas Shock Assisted Lid
DECK & LOADING
- DECK TYPE:
- Wood
- RAMPS:
- Max Ramps
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, 215/75R17.5, 18 Ply
- RIMS:
- 17.5" Black Wheels
- AXLES:
- 2 - 16k Lippert HD Oil Bath Axles
- BRAKES:
- Electric-Over-Hydraulic Disc Brakes
- SUSPENSION TYPE:
- HD Hutch Suspension
FRAME & CONSTRUCTION
- MAIN FRAME:
- 16" - 18" Low Profile Engineered Beam
- CROSSMEMBERS:
- 3" I-Beam, 16" Centers w/ Formed Gussets
- FEATURE:
- Sway Control (Standard on 30'+)
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
OPTIONS
