Behnke 40-50K Tag-Style Air Tilt Deckover Tilt

Behnke 40-50K Tag-Style Air Tilt Deckover Tilt

At a Glance

Brand Behnke
Model FB8X31ATPT-40L / FB8X31ATPT-50L
Pull type Tag/Pintle
GVWR 40k - 50k lbs
Trailer Type Deckover Tilt
Length 31'
Axle Capacity 22.5k lbs
Axles 2
Shop Inventory
View full details

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery

Product Details

DIMENSIONS

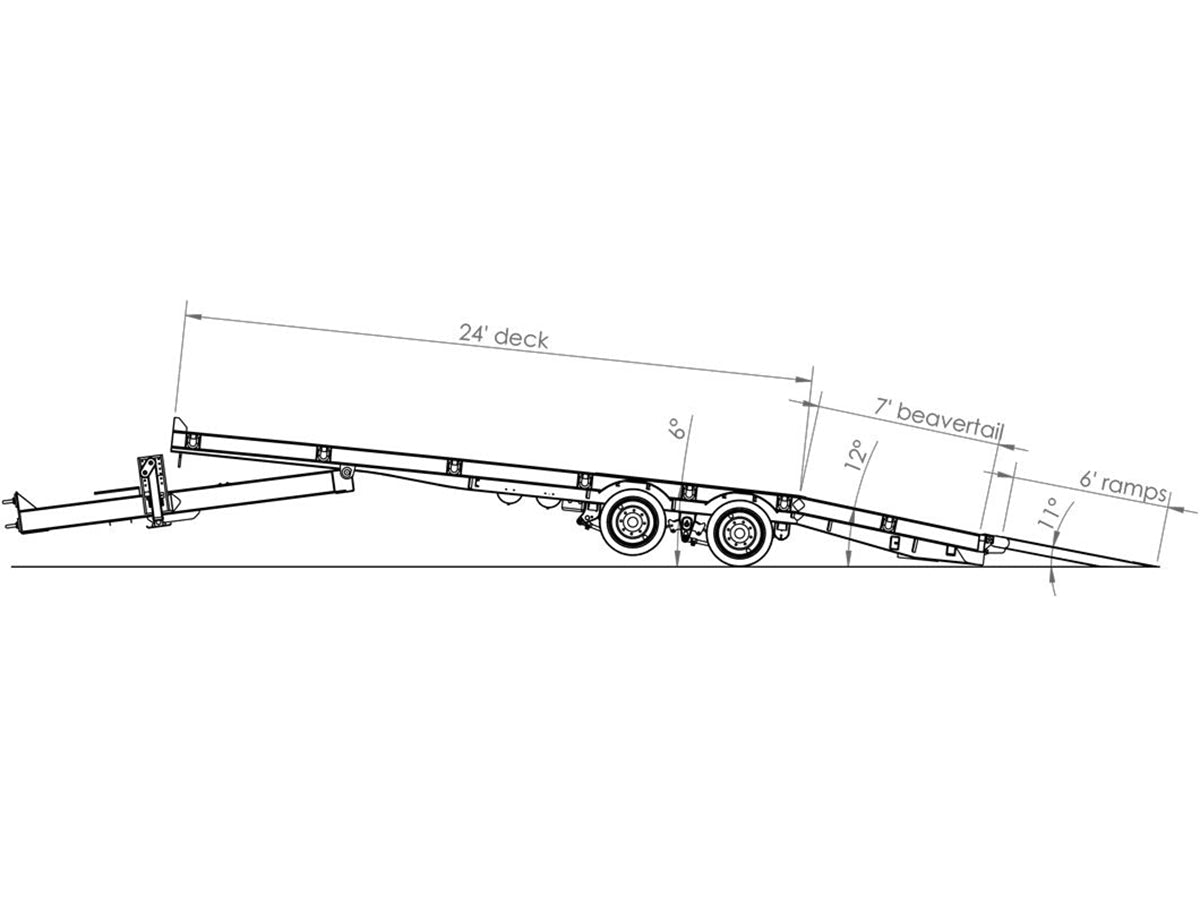

LENGTH:
24' bed + 7' beavertail
WIDTH:
102"
OVERALL HEIGHT:
34" (unloaded deck height)
TRAILER TYPE:
Air Tilt Flatbed
PULL TYPE:
Tag / Pintle Hitch

WEIGHT RATINGS

GVWR:
40,000 or 50,000 lbs
GAWR:
22,500 lbs (per axle)
ESTIMATE DRY WEIGHT:
11,880 or 13,400 lbs
AXLE COUNT:
2

FINISH

PAINT TYPE:
Powder Coated
PREP:
Bead Blasted, Acid Washed, Zinc Rich Primed
UNDERCOAT:
Zinc Rich Primer

PINTLE HITCH

TYPE:
3" Pintle Eye — 90,000 lb Rated

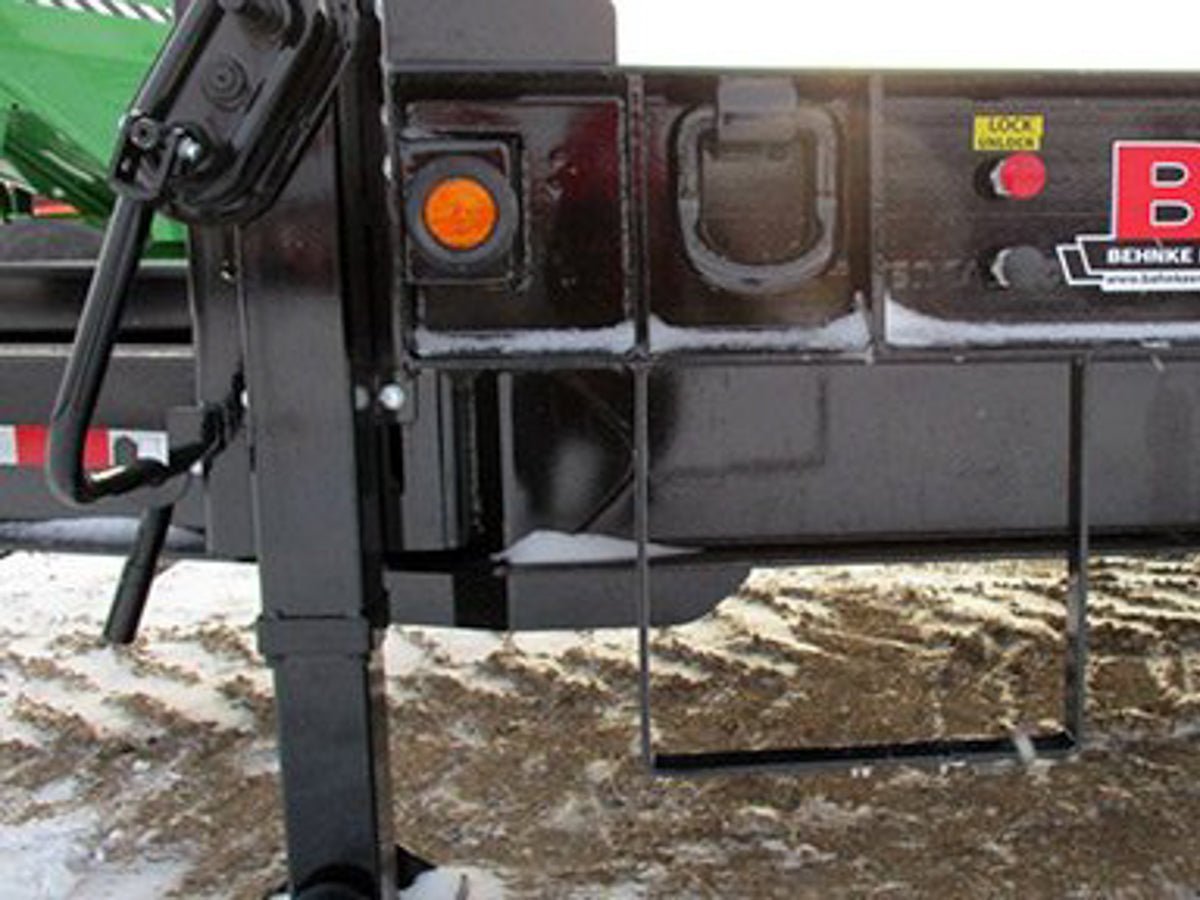

LANDING GEAR:
(2) Dual Speed Semi-Style Landing Gear — 50,000 lb Capacity
SAFETY CHAINS:
(2) 1/2" Gr. 70 Safety Chains
TOOLBOX:
V-Style Toolbox in Tongue

FRAME & CONSTRUCTION

FRAME:
1-Piece Fabricated I-Beam (80 KSI)
CROSSMEMBERS:
4" Jr. I-Beams on 16" Centers
KNEE BRACES:
Formed 3/16" Gr. 50 Knee Braces Throughout Frame
FLOORING:
1-1/2" Rough Oak
SIDE RAILS:
8" Channel
FENDERS:
1/4" Sheet

RUNNING GEAR

AXLE TYPE:
22,500 lb. Dexter Air Brake
SUSPENSION:
Dexter HDSS / Hutch H9700
ABS SYSTEM:
Bendix ABS

TIRES & WHEELS

TIRE TYPE:
Dual
TIRE SIZE:
235/75R-17.5
RIMS:
8-Bolt 17.5 x 6.75 Rim

ELECTRICAL & LIGHTING

7-WAY RECEPTACLE:
Semi Plug
LIGHTING:
LED Flush Mount

CARGO & TIE-DOWN

D-RINGS:
1" Bent D-Rings
GATE OPERATION:
Dual Air Bag System (Air-Locking)

OPTIONS

DECK & RAMPS

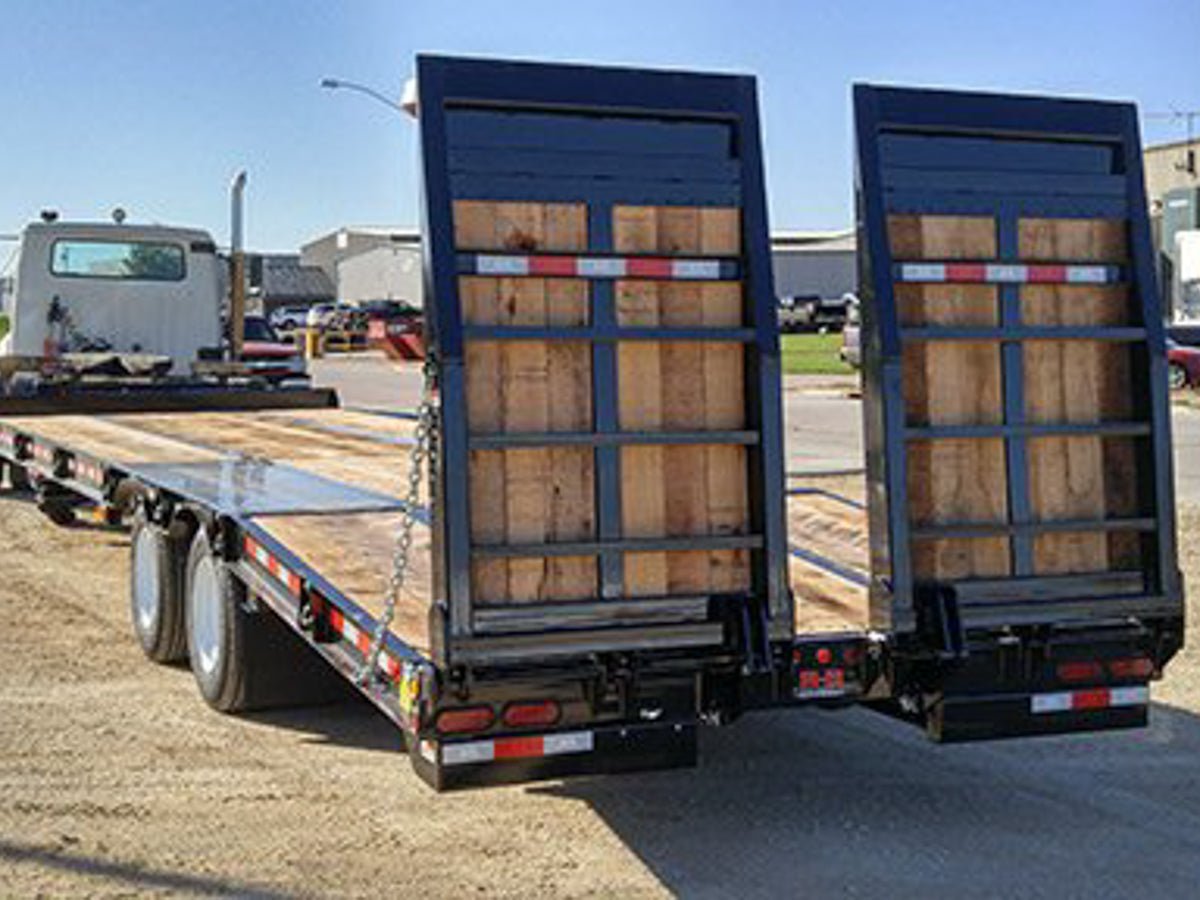

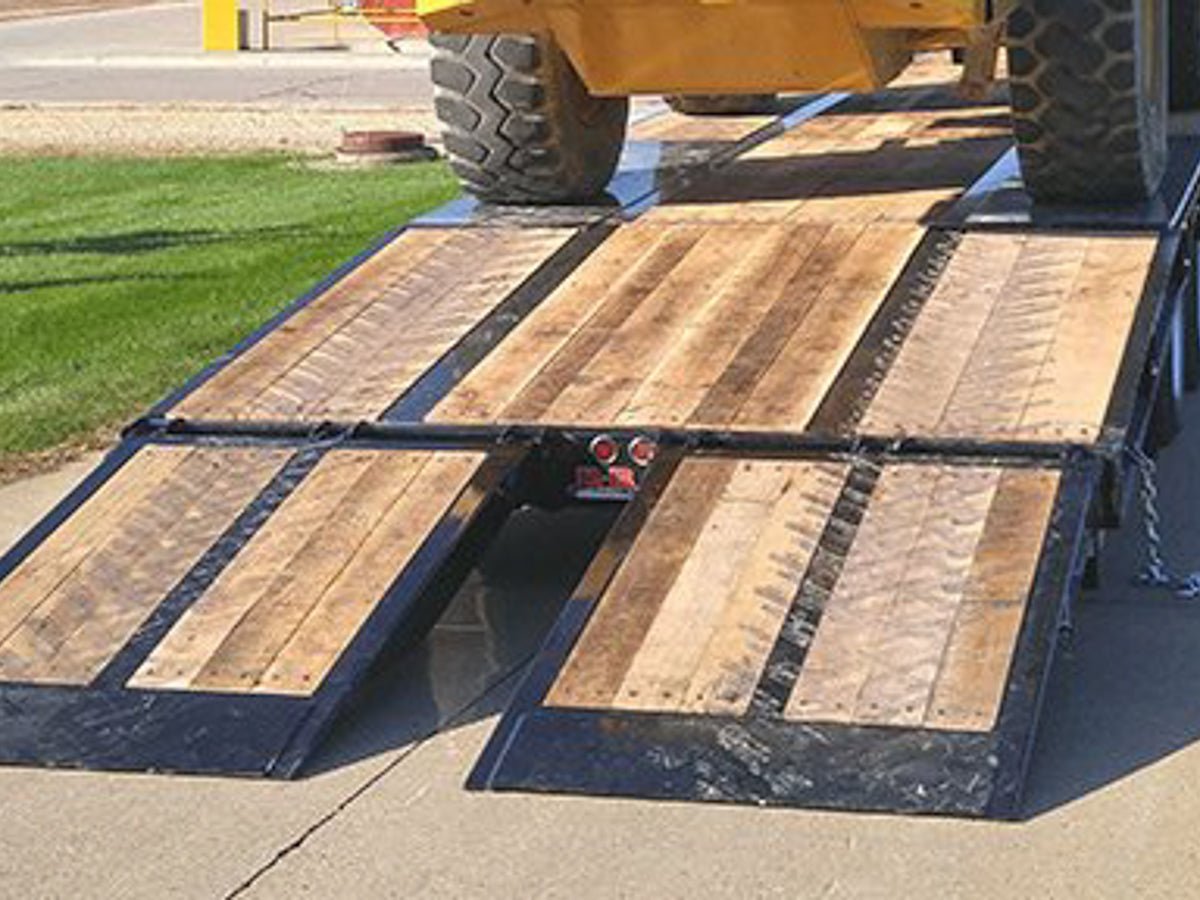

AIR RAMPS:
6' Air Ramps Available (Optional)
BEAVERTAIL:
Optional — Available Without Beavertail

AXLE CONFIGURATIONS

AXLE UPGRADE:

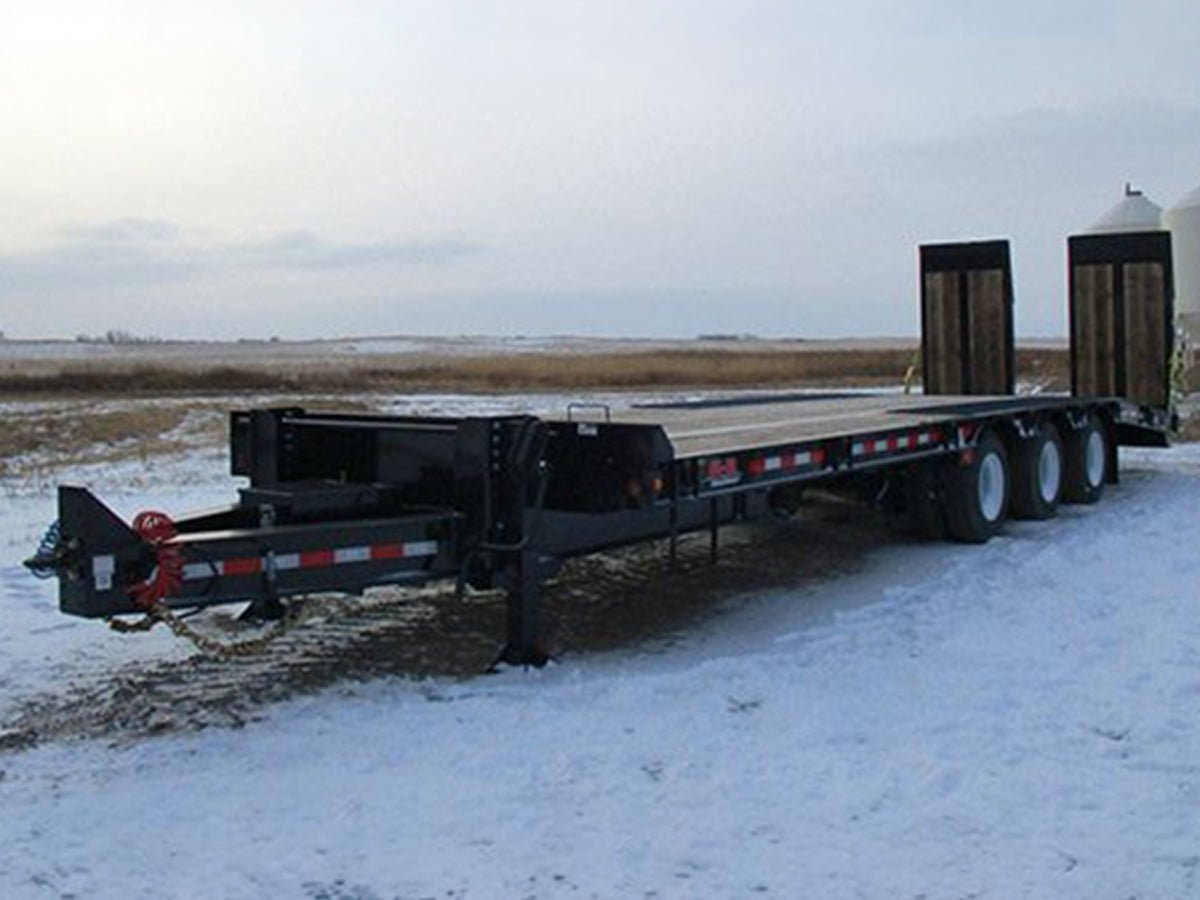

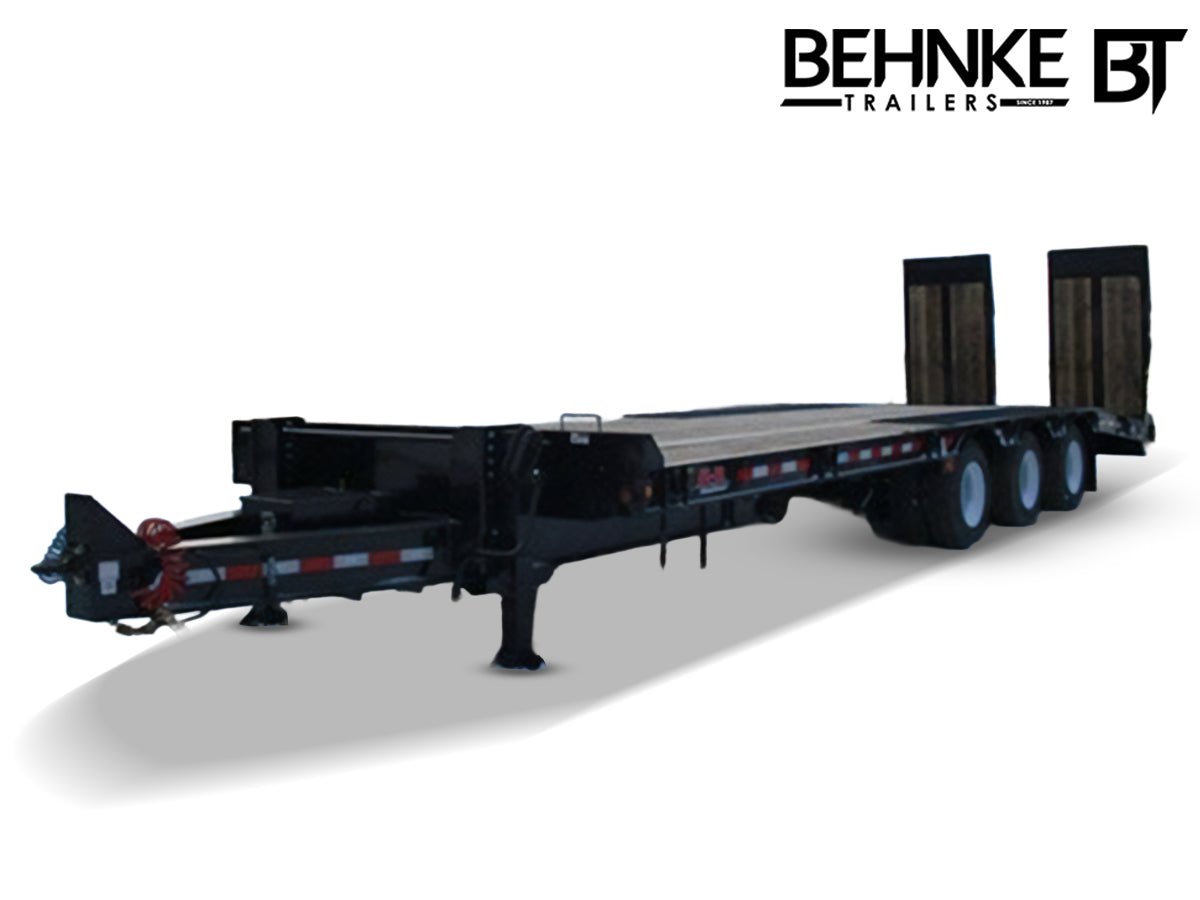

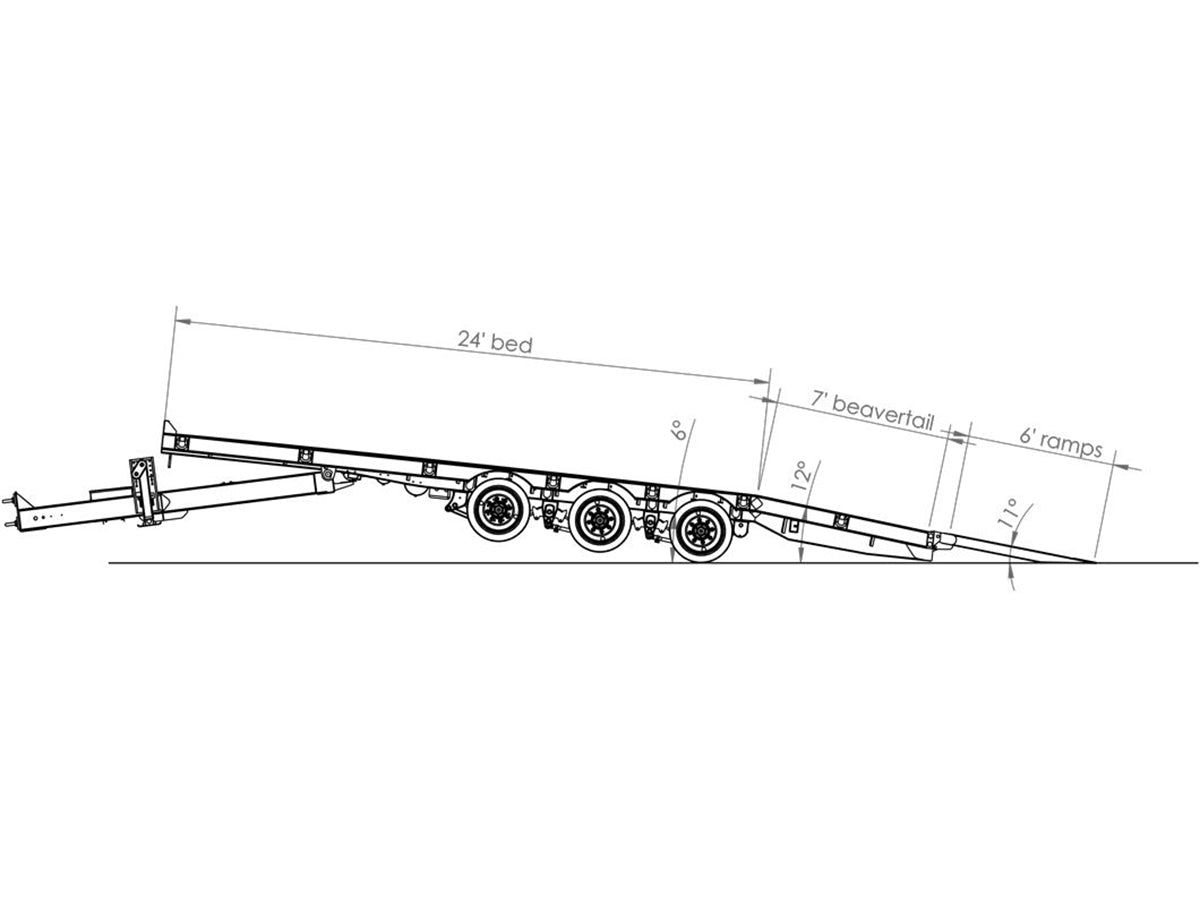

Triple Axle Available

TILT SYSTEM

POWER:

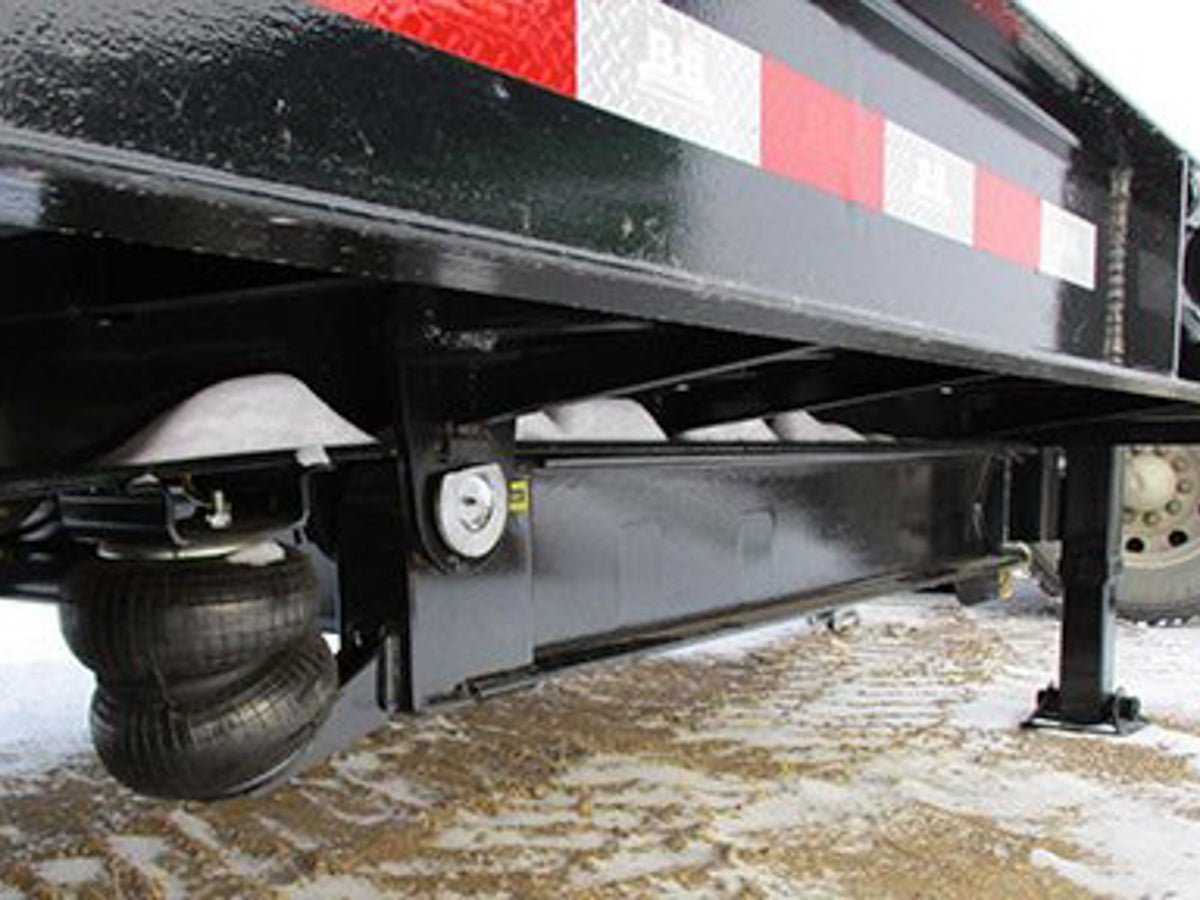

Dual Air Bag System
LOCKING:
Air-Locking Bed System
