Product Features

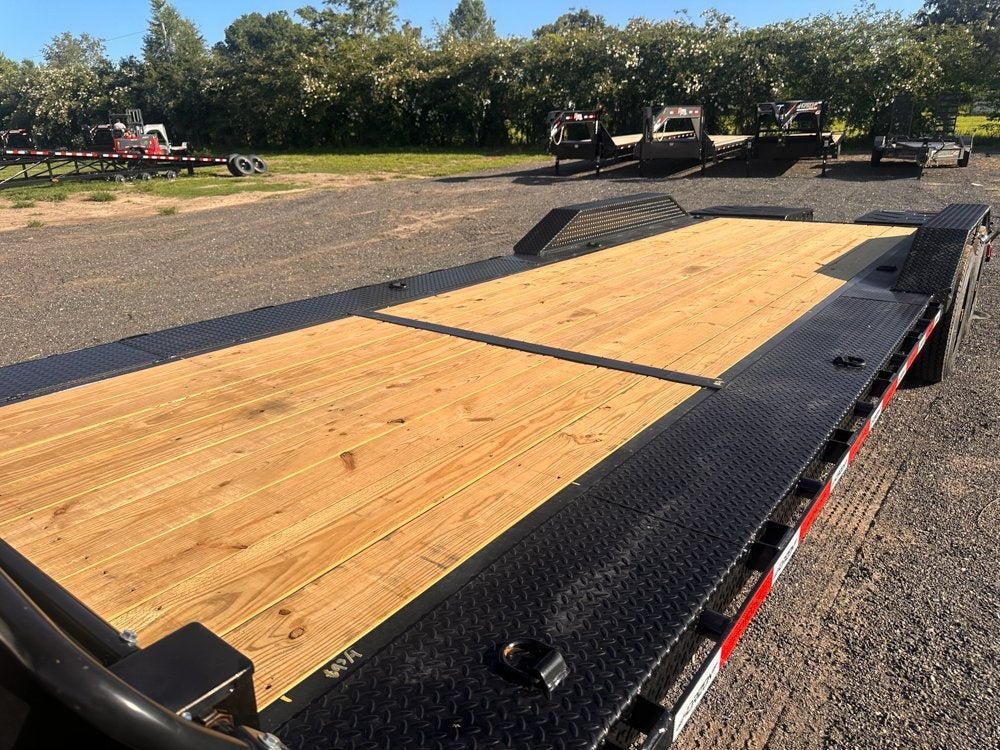

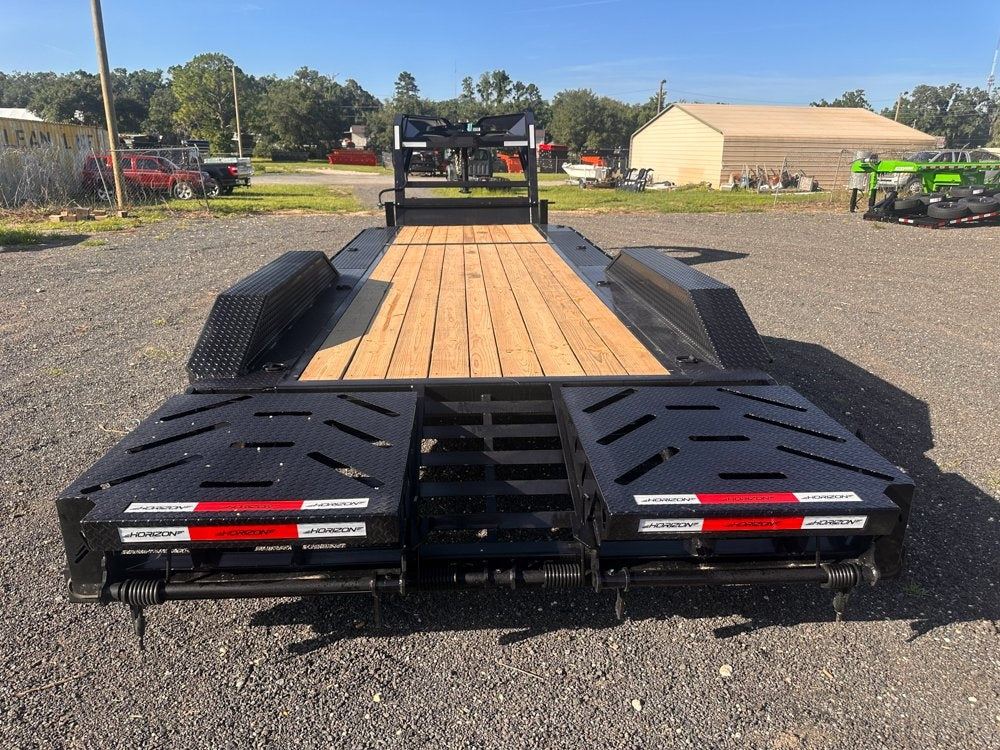

1/4" Diamond Plate Deck-Over Fenders
Includes heavy-duty 1/4-inch thick diamond plate steel deck-over fenders (DOF). This provides a superior load surface over the wheel wells compared to standard gauge materials.

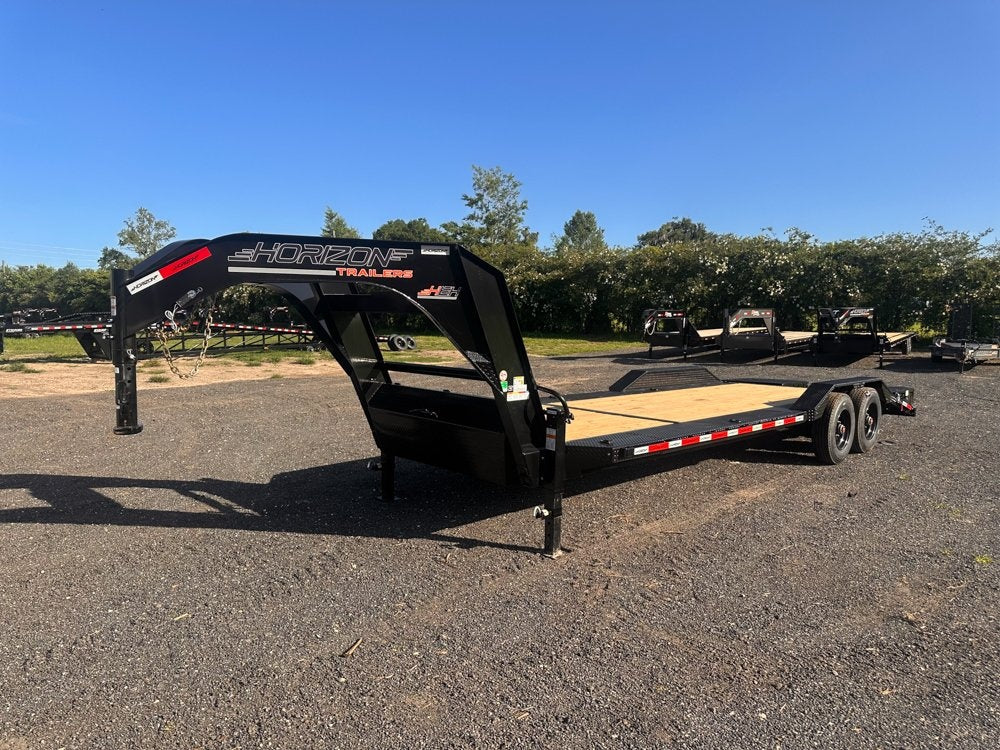

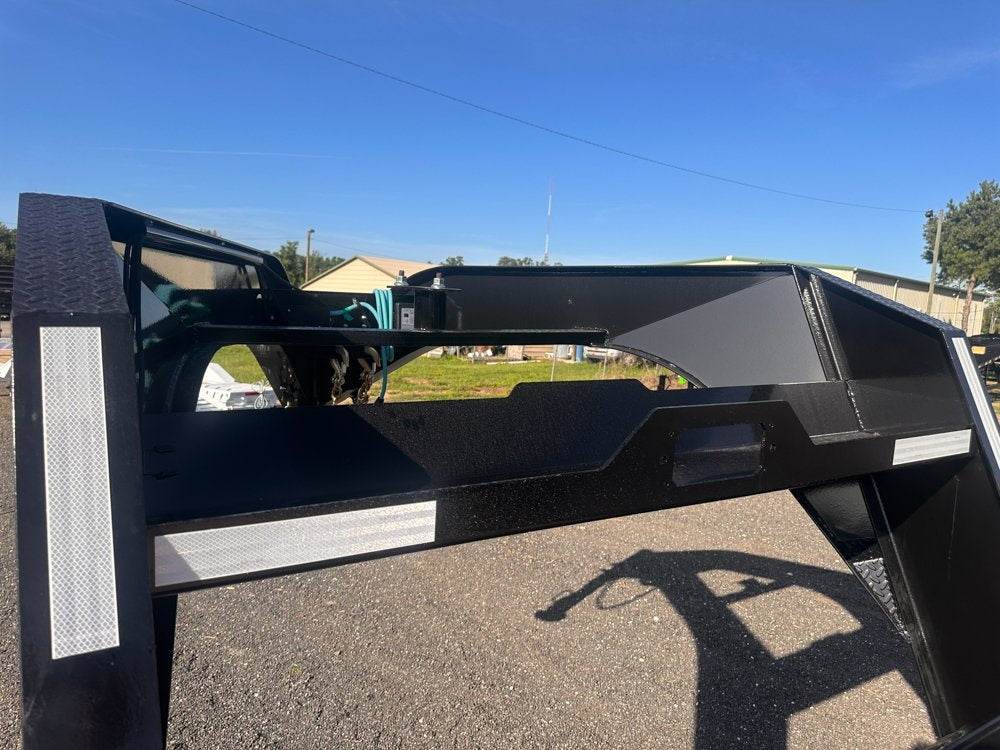

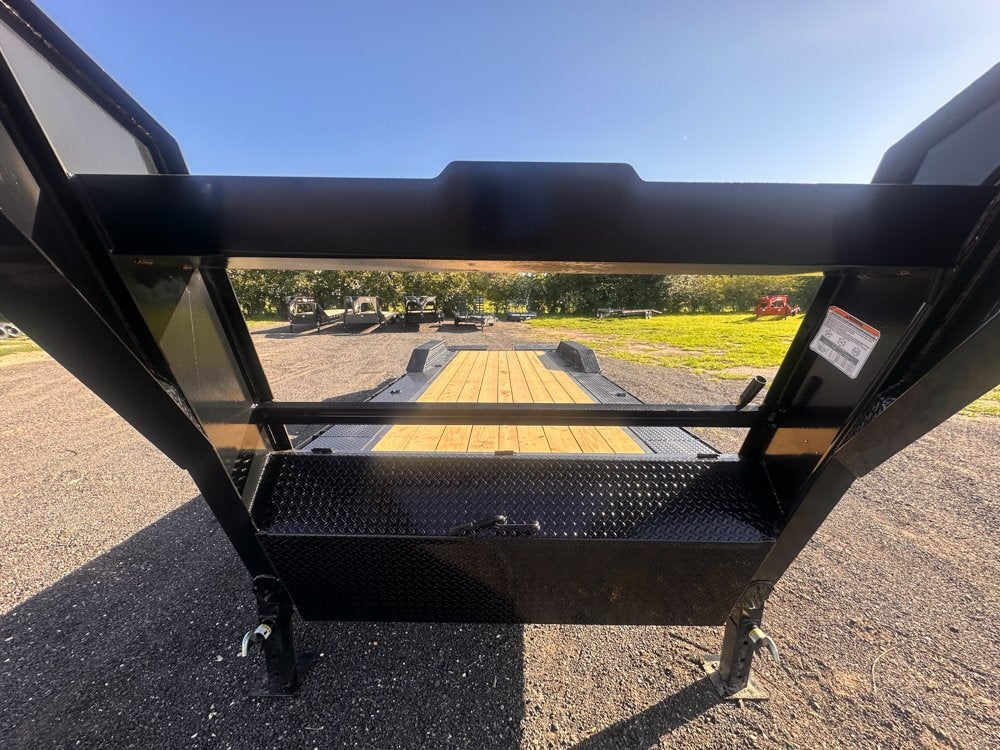

98" Engineered Gooseneck & Mega Toolbox
Features a long 98-inch engineered 10-inch I-beam gooseneck neck for improved approach angles. The neck is topped with a large, lockable mega toolbox for significant secure storage.

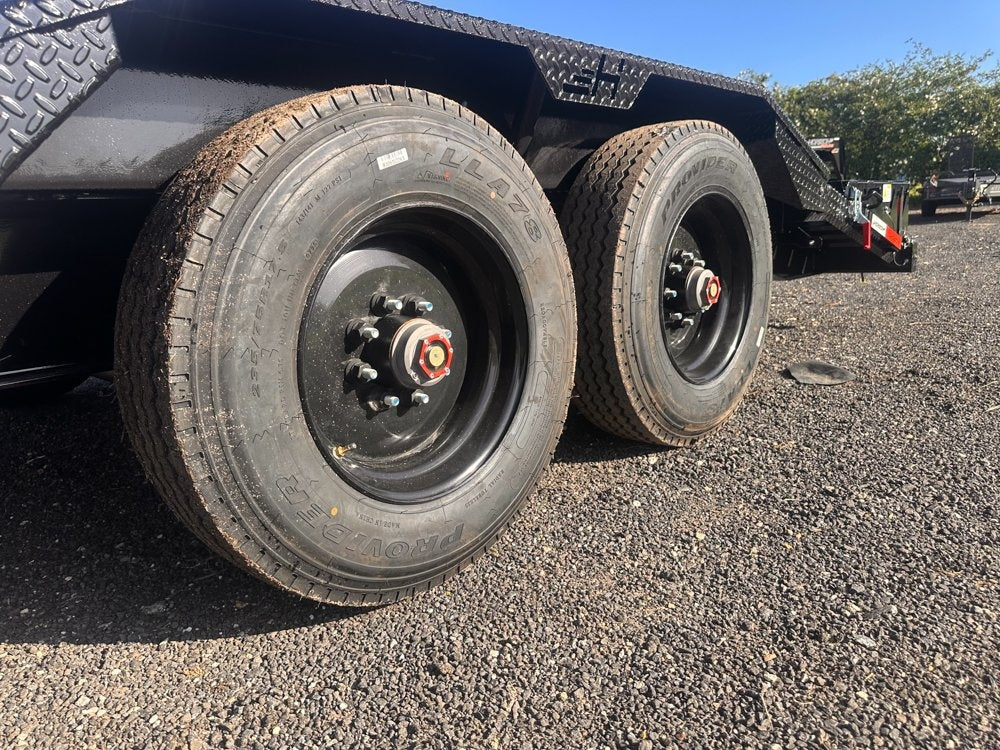

10k Dexter Oil Bath Axles & 17.5" Tires
Equipped with two 10,000 lb Dexter oil bath axles with electric brakes. The running gear uses high-capacity ST235/75R17.5 (18-ply) radial tires mounted on 17.5" black mod wheels.
25" Low Profile Deck Height
Features a low 25-inch deck height for optimal loading ease. The low profile design allows for easier, safer drive-on loading of equipment compared to standard-height trailers.
10" Heavy-Duty I-Beam Main Frame
Built with a heavy-duty 10-inch (17 lbs/ft) I-beam main frame. This robust frame provides the foundational strength required for the trailer's 22,400 lb GVWR capacity.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 26'
- WIDTH:
- 82" - 102"
- DECK HEIGHT:
- 25"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 22.4k
RUNNING GEAR
- TIRES:
- ST235/75R17.5
- TIRE PLY:
- 18 Ply
- TIRE RATING:
- 6005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 98" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" (17lbs/ft) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
1/4" Diamond Plate DOF

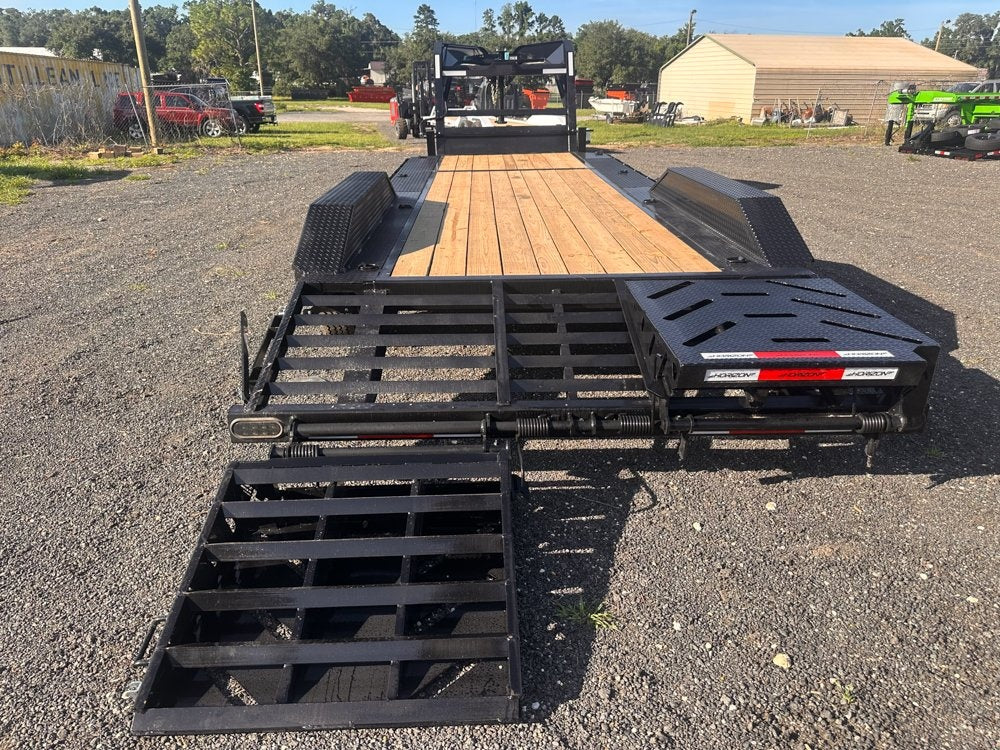

- RAMPS:
- 5'6" HD Slide In Ramps
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

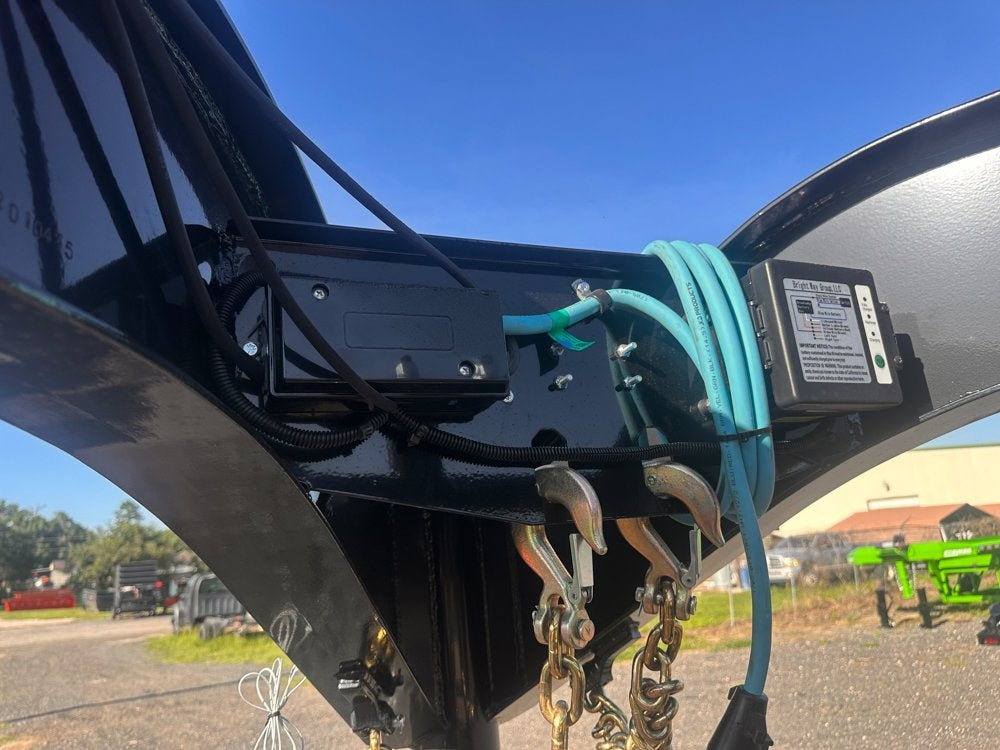

ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets
- TOOLBOX:
- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
