Product Features
Multi-Capacity Axle Options
Available with 7k Super Lube, 8k Oil-Bath, or 10k Super Single axles. The higher capacity axles feature a torsion suspension for a smoother ride, while all options provide a reliable foundation for the trailer's 23,000 lb GVWR capacity.

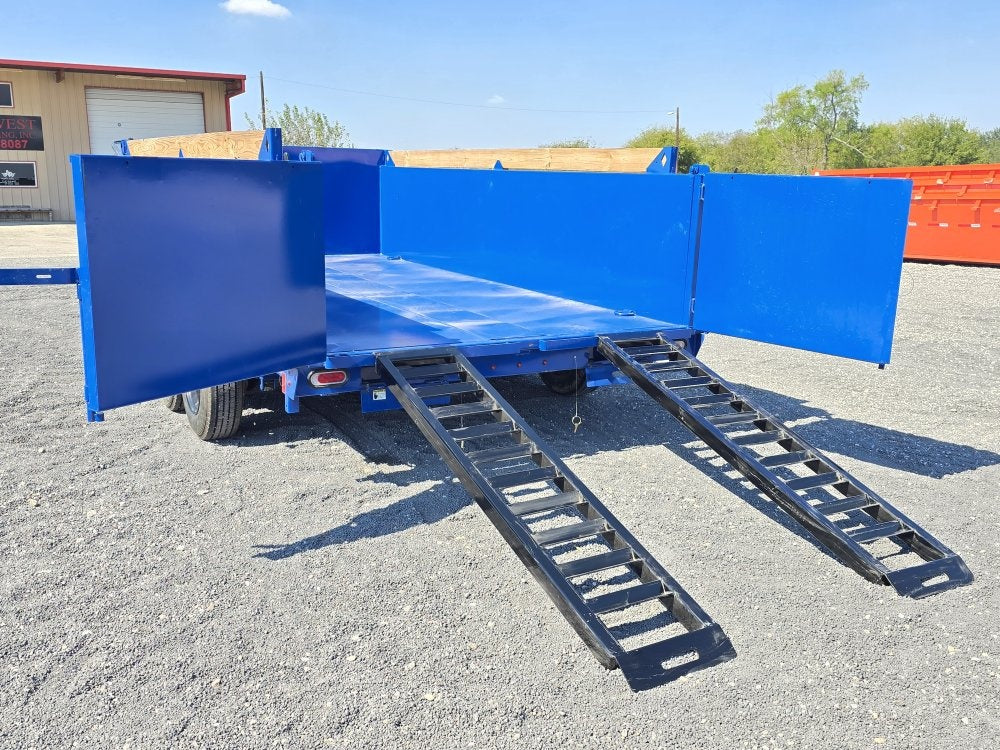

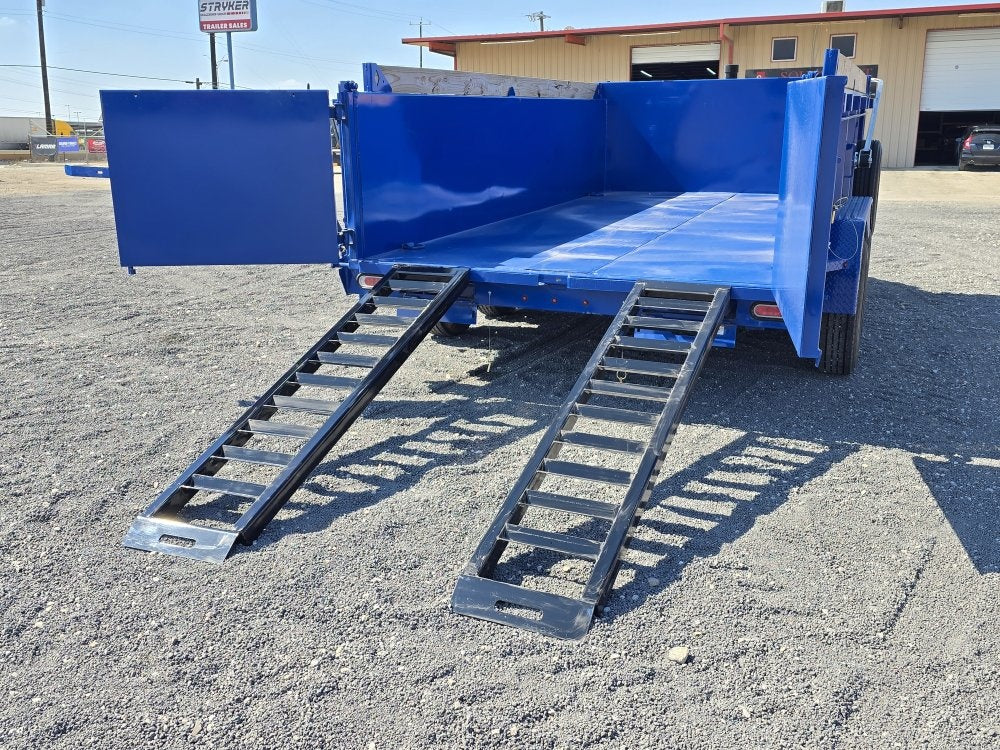

6.5-Foot Slide-In Ramps
Utilizes 78-inch slide-in ramps, providing a longer, more gradual loading surface than standard 5-foot ramps. This extra length is crucial for safely loading equipment like skid steers.
8-Inch I-Beam Frame
Constructed with a heavy 8-inch I-beam main frame weighing 15 lbs/ft and 3-inch I-beam crossmembers on 16-inch centers. This provides a rigid platform for the 23,000 lb GVWR capacity.

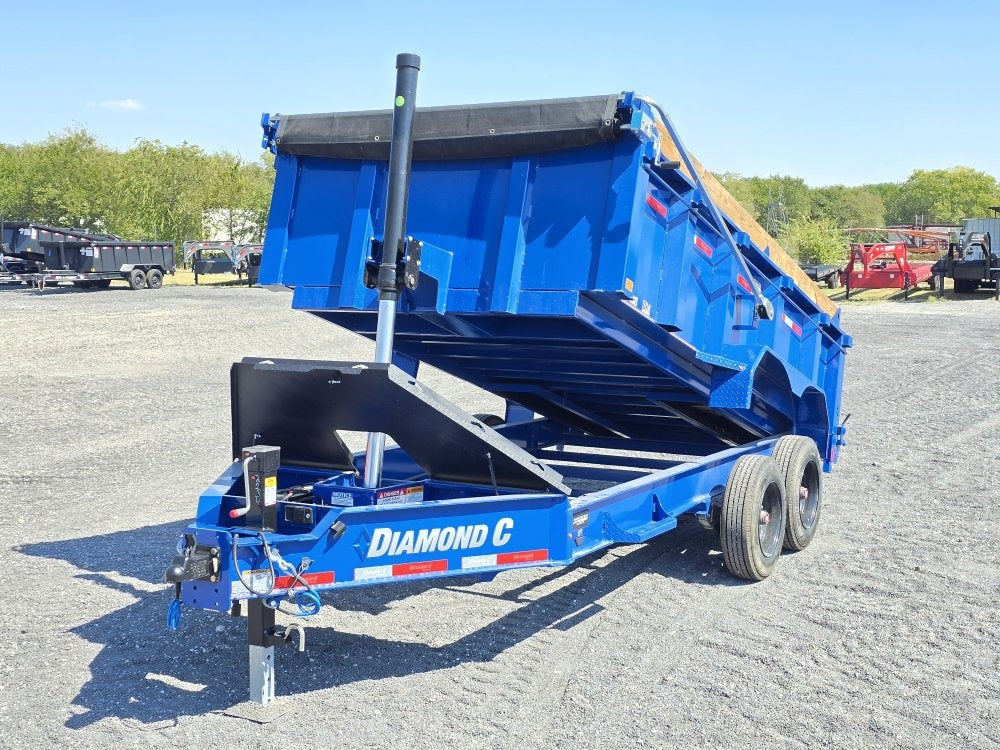

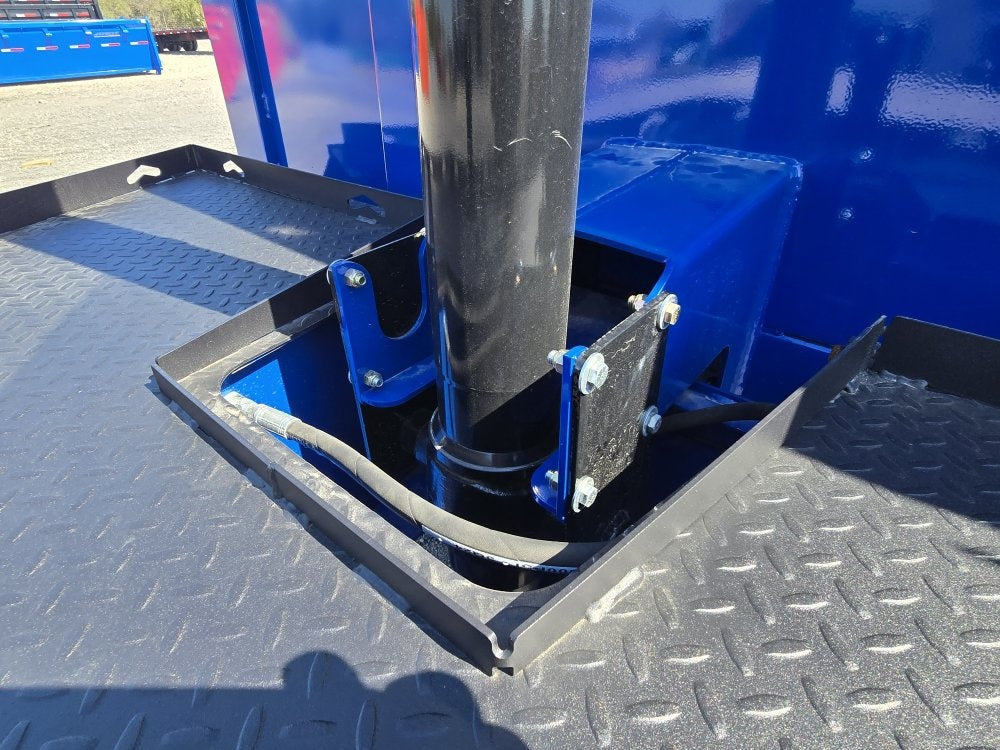

3-Stage Telescopic Lift Cylinder
Equipped with a heavy-duty 3-stage telescopic cylinder. This system provides the maximum possible dump height and lifting power from a compact starting position, ensuring complete material clearance.

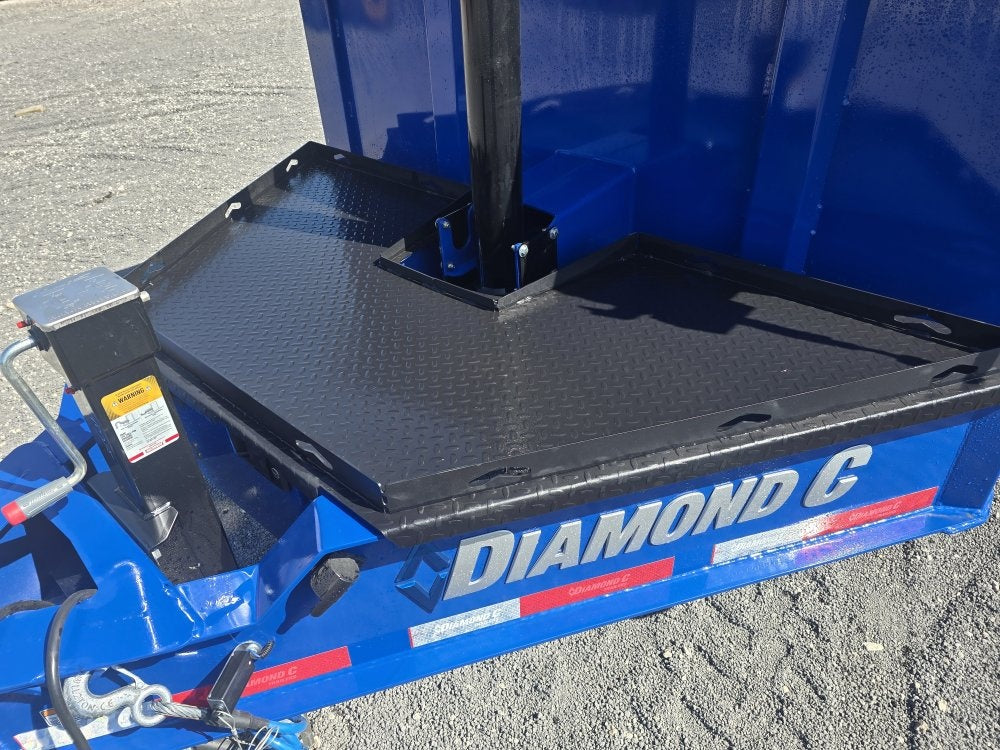

HD V-Tongue Toolbox
Includes a heavy-duty diamond plate V-tongue toolbox. This integrated design provides secure, lockable storage for tools and chains while maximizing the structural integrity of the trailer's front end.
Premium Powdercoat Finish
The trailer is finished with a durable powdercoat applied through a 5-step preparation process. Available in eight colors, this high-quality finish provides superior protection against rust, scratches, and UV damage for long-term durability.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 81" - 82"
- SIDE HEIGHT:
- 24" - 44"
- DECK HEIGHT:
- 22" - 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 15.5k - 23k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
- TARP:

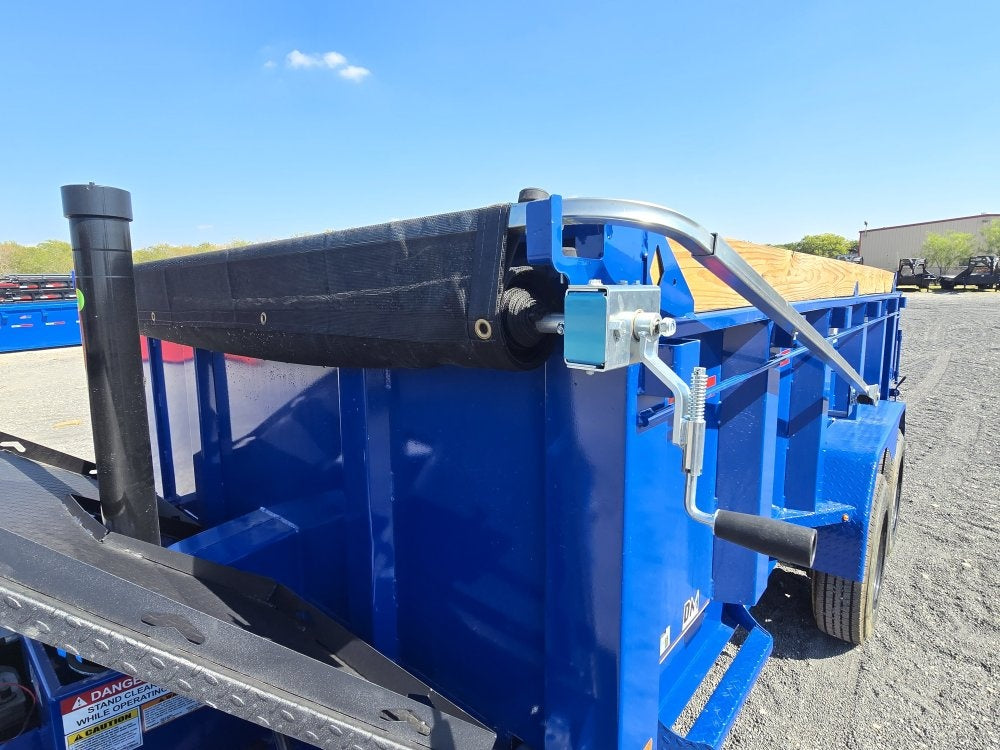

- Crank Style Roll-Up Tarp
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- LENGTH:
- 70 1/2"

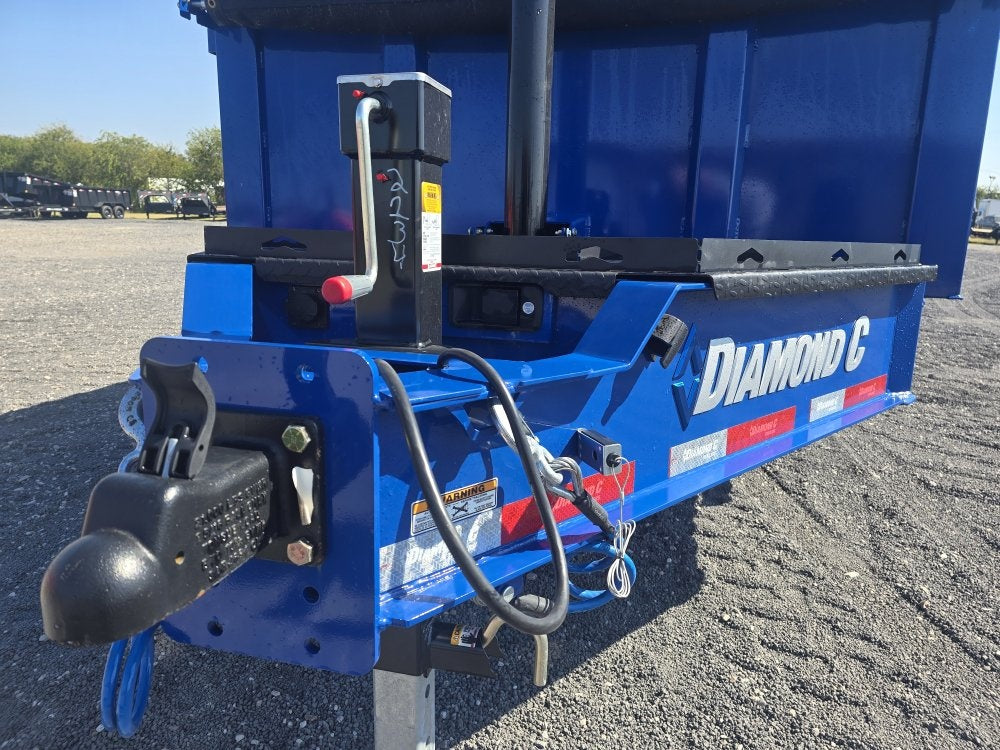

- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (21,000 lbs)
- FRONT JACK BP:
- Single 15k 2 Speed Drop-Leg Jack
- TOOLBOX BP:
- HD V-Tongue Toolbox
CARGO AREA
- FLOORING:
- 10ga. Steel Bed
- GATE:

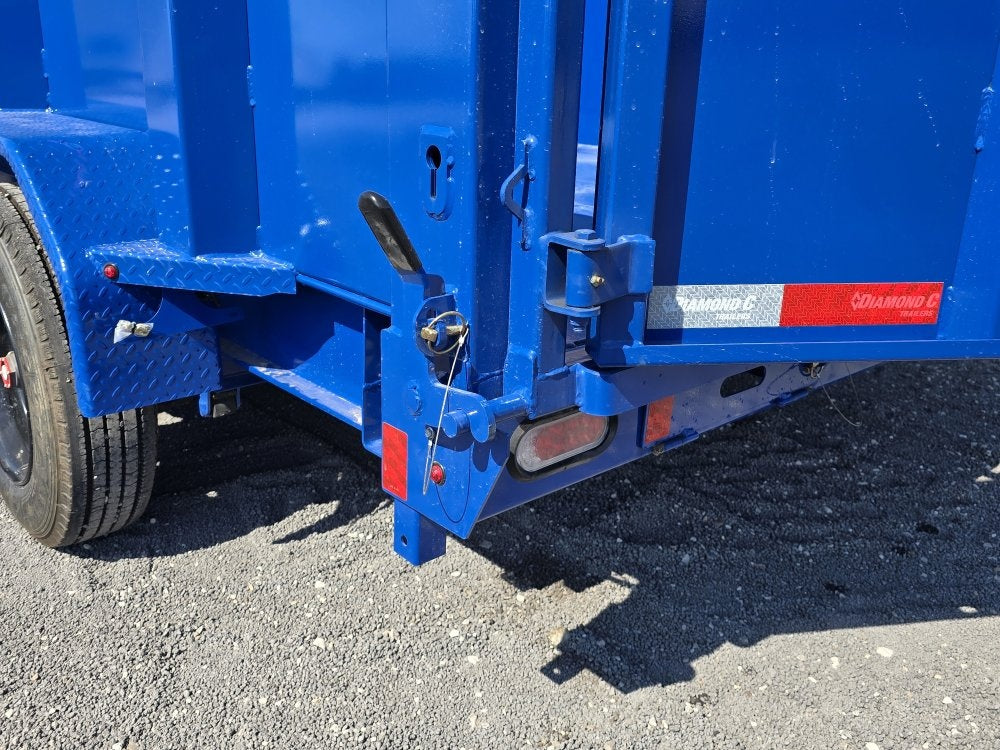

- 3 Way Spreader Gate

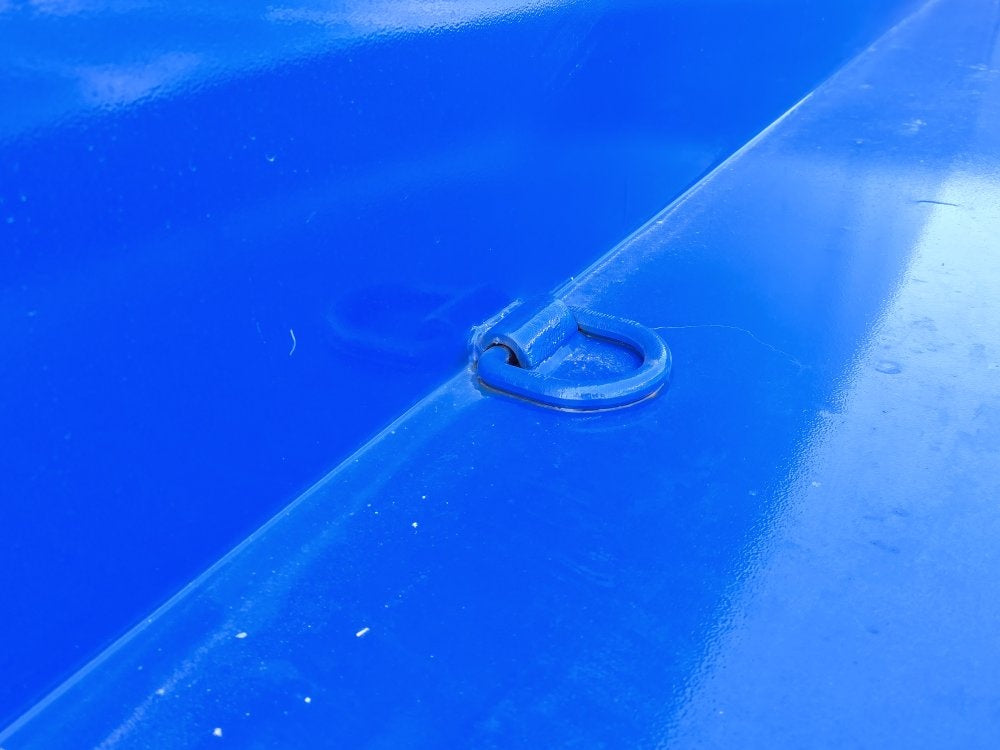

- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- On Each Upright
- RAMPS:
- 78" Slide In Ramps
- FENDERS:
- 14 Ga. Diamond Plate
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- 3-Stage Telescopic Cylinder
- CONTROLLER:
- Wired
- DUMP ANGLE:
- 45 Degrees
RUNNING GEAR

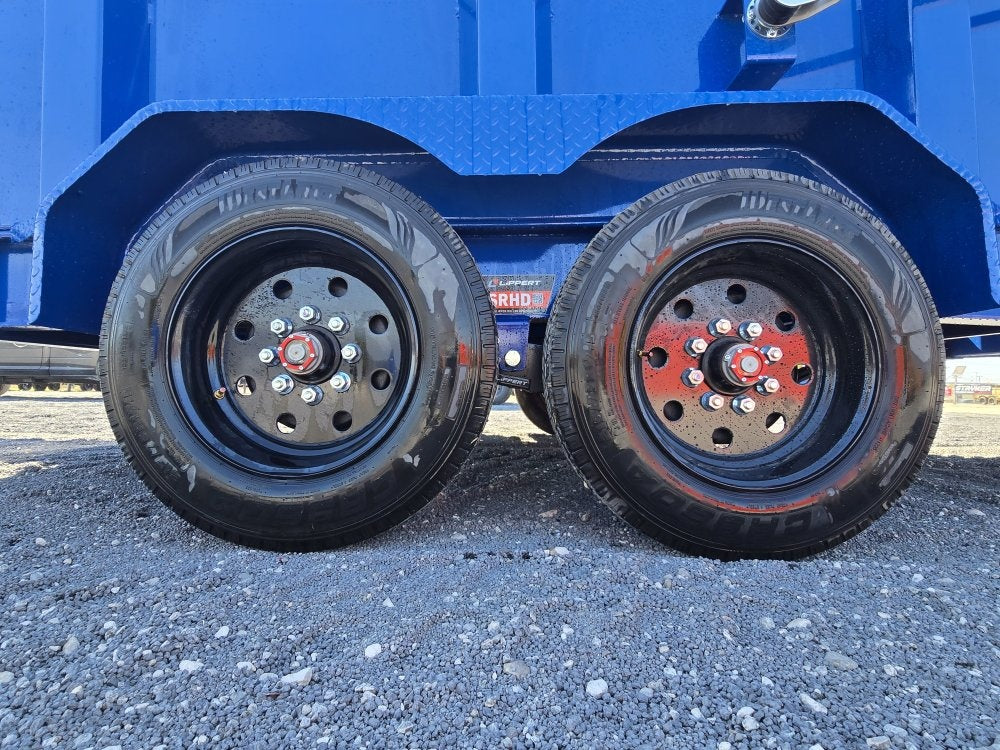

- TIRES:
- 235/80R16
- TIRE PLY:
- 14 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Lippert Super Lube Axles
2 - 8k Lippert Oil-Bath Axles
2 - 10k SS Lippert Oil-Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Slipper Roller (Torsion on 10k SS)
ELECTRICAL & LIGHTING

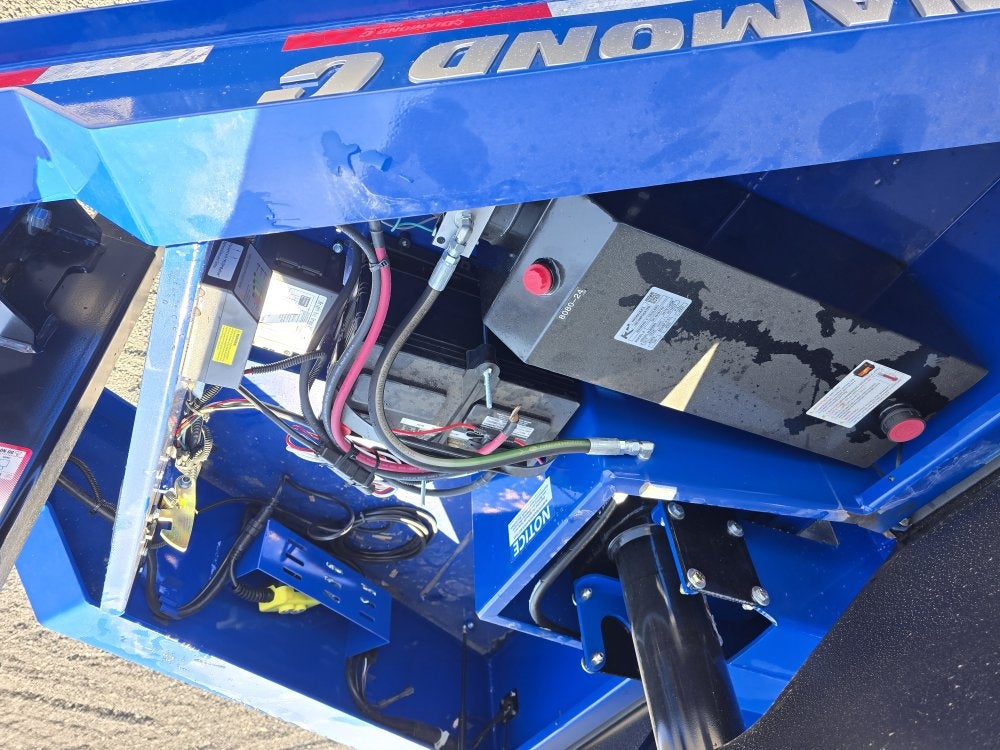

- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
