Product Details

DIMENSIONS

LENGTH:

40'

DECK WIDTH:

96"

OVERALL HEIGHT:

8'11"

TRAILER TYPE:

Belly Dump

PULL TYPE:

King Pin (Semi Trailer)

MODEL:

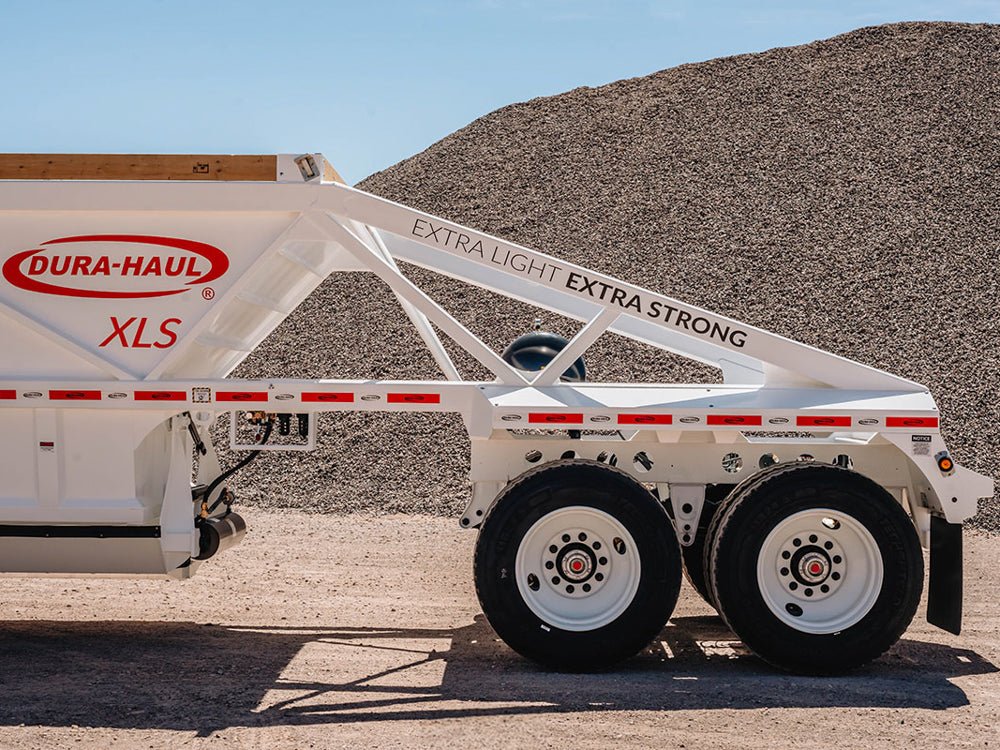

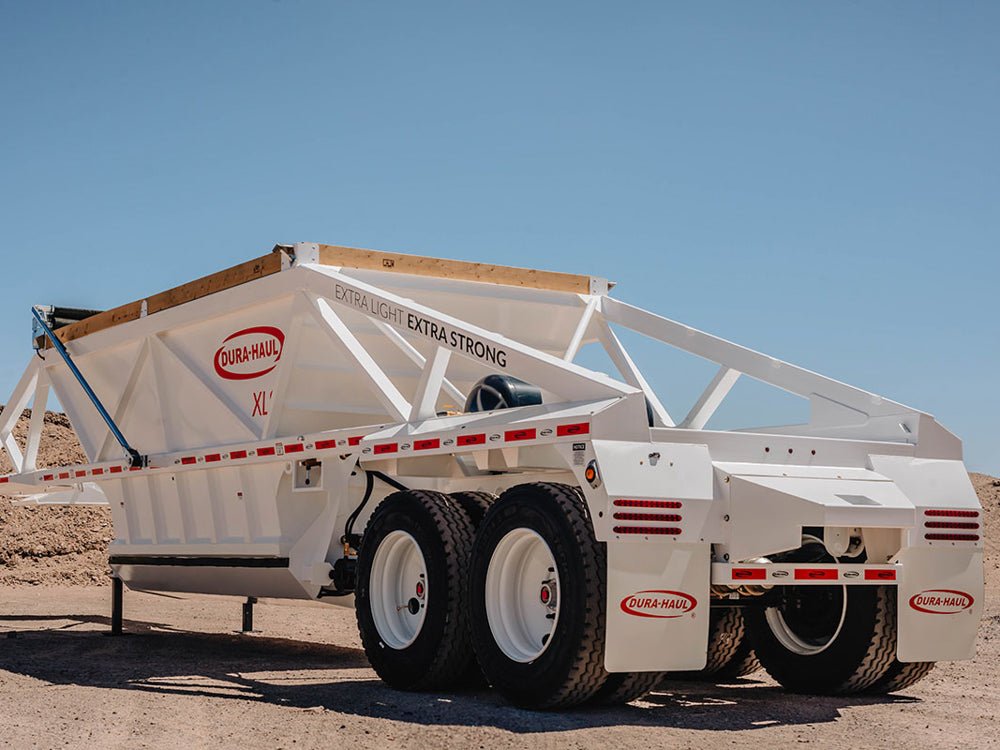

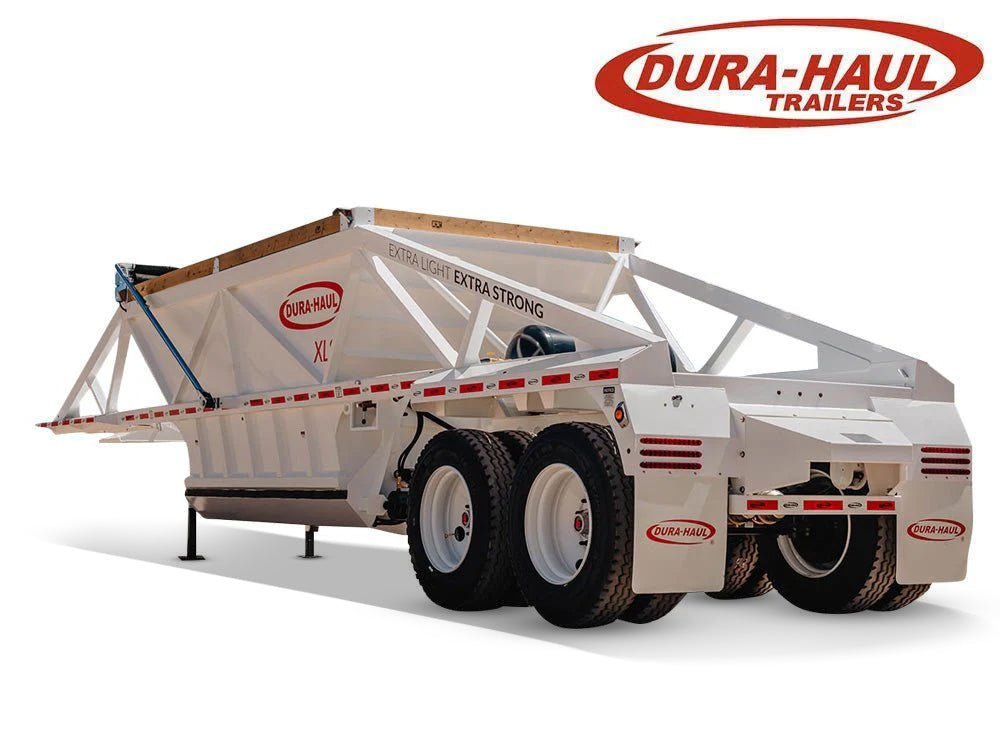

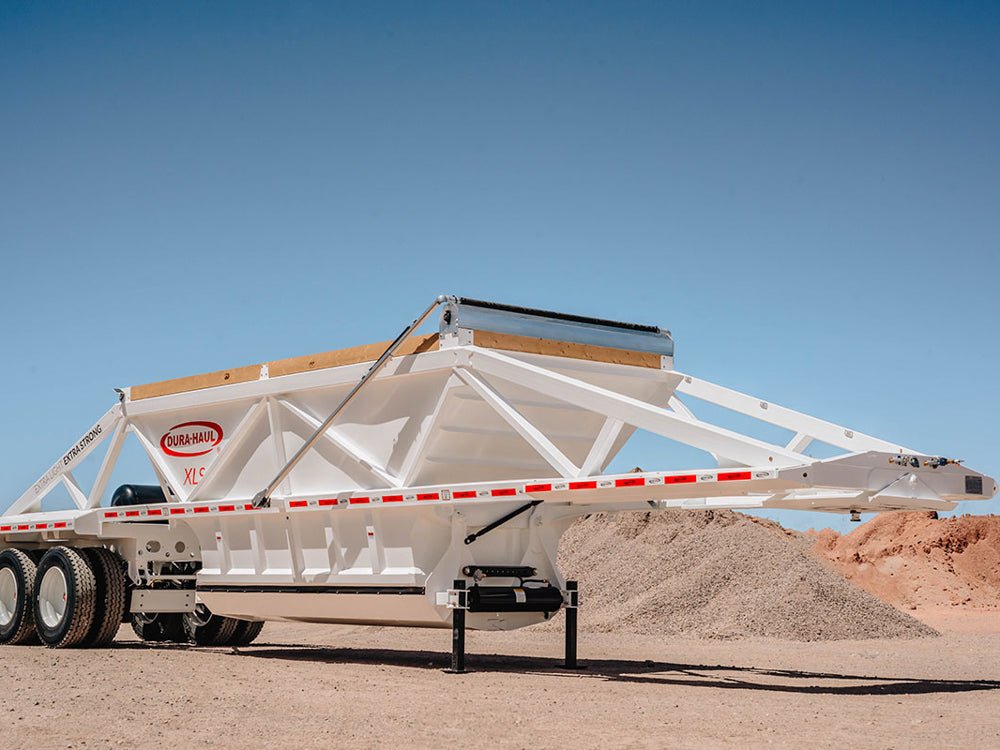

Dura-Haul XLS Belly Dump (Skeleton)

WEIGHT RATINGS

GAWR:

25k

ESTIMATE DRY WEIGHT:

12.9k lbs

AXLE COUNT:

2

HOPPER SPECS

HOPPER CAPACITY:

23.5 Cu. Yards (w/ 6" Bang Boards)

UPPER HOPPER:

10ga. Steel Plate

LOWER HOPPER:

3/16" Steel Plate

SIDES:

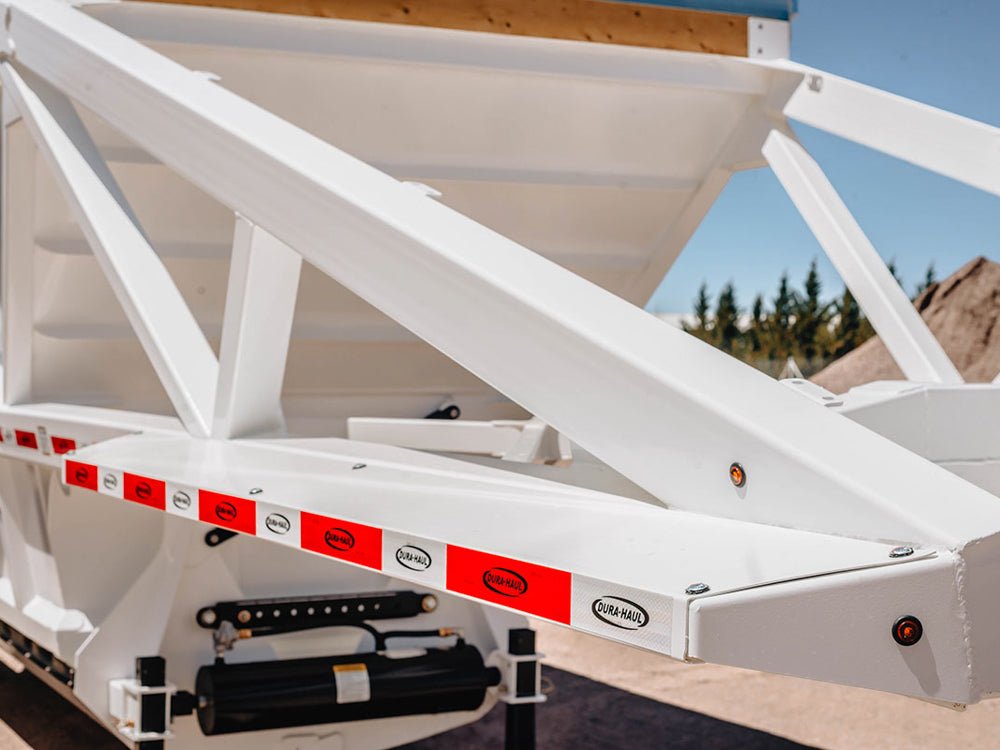

Skeleton Sides

FINISH

PAINT TYPE:

Powder Coat

PREP:

Steel Grit Blasting / Acid Wash / Phosphate Treatment / Heated Silicone Treatment

COLORS:

White (DH-G01)
Gray (DH-G02)
Dark Gray (DH-G03)
Dark Blue (DH-G04)
Black (DH-G04)
Yellow (DH-Y01)
Blue (DH-B01)
Navy (DH-B02)
Red (DH-R01)

GOOSENECK

FIFTH WHEEL:

Oscillating Fifth Wheel Plate

LANDING GEAR:

Drop Down Adjustable Landing Legs

FRAME & CONSTRUCTION

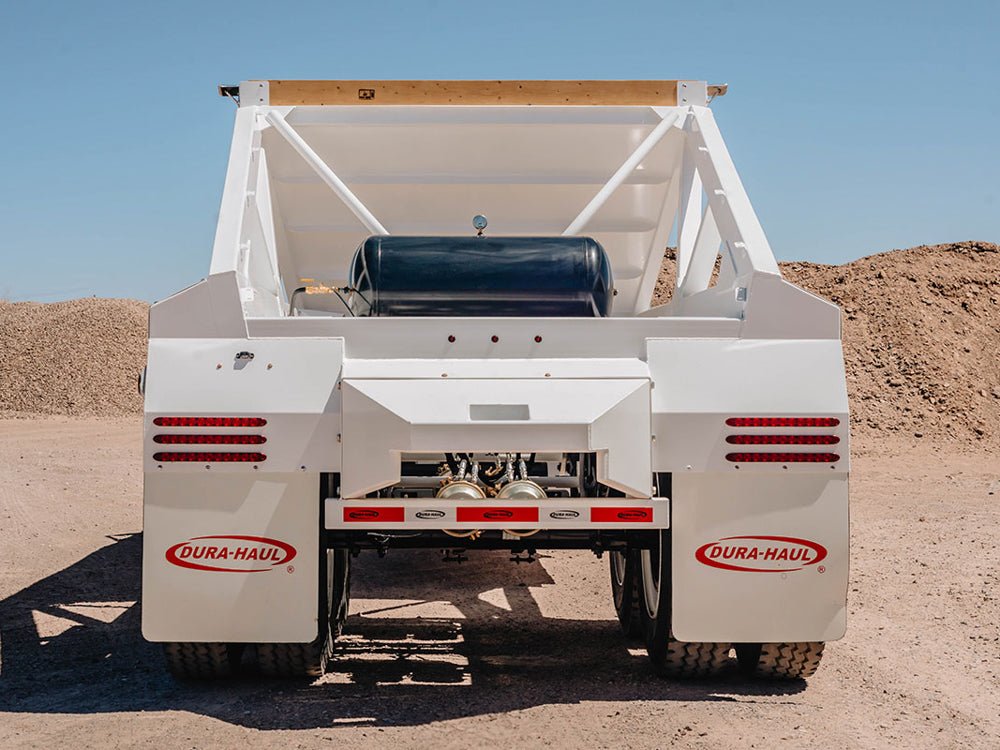

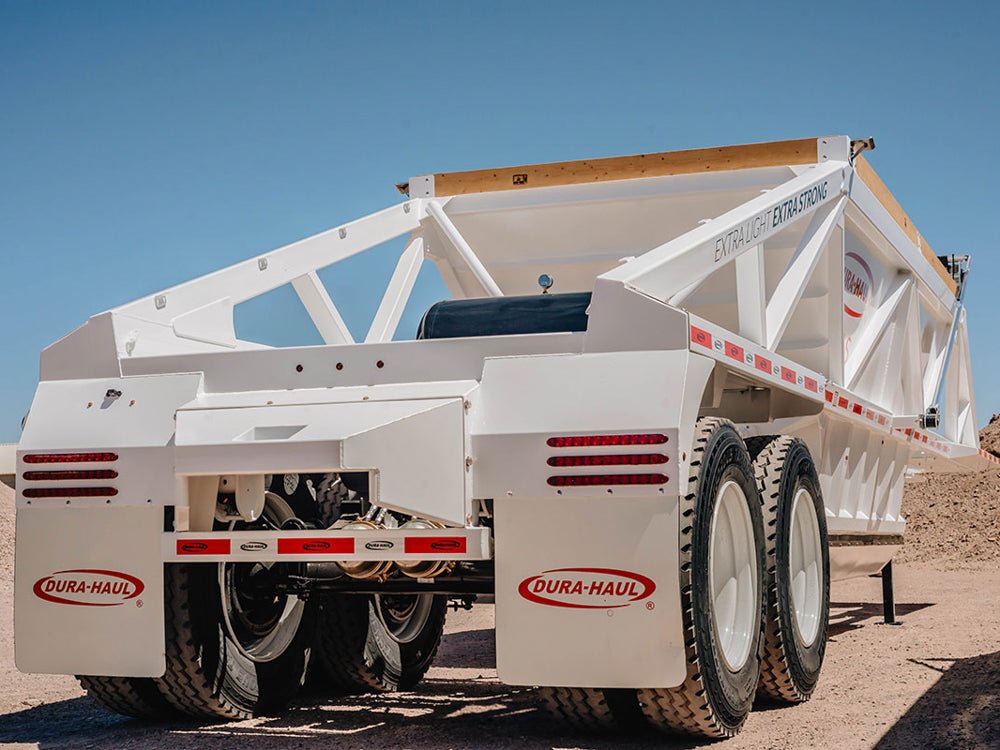

REAR BUMPER:

Push Block w/ DOT Approved Under Ride Bumper

GATE SPECS

GATES:

3/16" Steel Gates w/ Bar Stops

GATE OPERATION:

Manual Air Control & Electric Cab Control

GATE STOP:

Bar Stops

GATE CYLINDERS:

2 - 8" OEM Bore Cylinders

TARP:

Numerous Tarp Options Available

ELECTRICAL & LIGHTING

LIGHTING:

Full DOT Approved LED Sealed w/ Junction Box

ABS SYSTEM:

ABS Sensors on Rear Axle

AIR PLUMBING

AIR TANKS:

60 Gal. Reservoir

OIL/WATER FILTERS:

Included

RUNNING GEAR

AXLE TYPE:

2 - 25k lbs Capacity

TRACK WIDTH:

71.5" (77.5" Available)

SUSPENSION TYPE:

Hutch H-9700 4-Spring 3-Leaf

TIRES & WHEELS

TIRE SIZE:

11R x 24.5

OUTER WHEELS:

8 - 8.25 x 24.5 Steel Wheels

WHEEL WIDTH:

8.25"

BRAKES

ABS SYSTEM:

ABS Sensors on Rear Axle

OPTIONS

AXLE & SUSPENSION

LIFT AXLE OPTIONS:

Lift Axles Available

SUSPENSION UPGRADE:

Air Ride Suspension Available
Hutch H-900 3-Spring Single Point Available

TRACK WIDTH:

77.5" Available

HOPPER & TARP

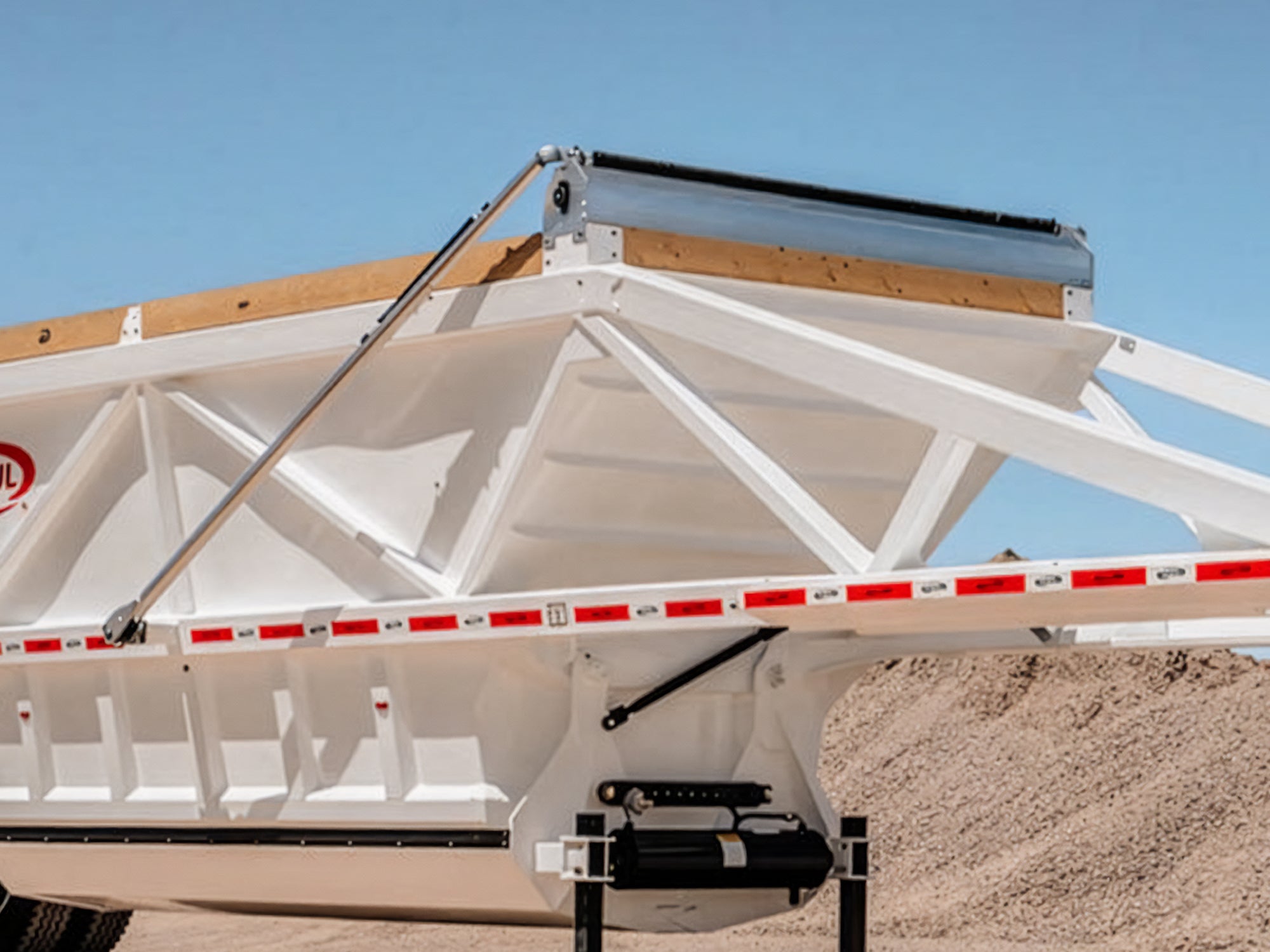

TARP OPTIONS:

Numerous Tarp Options Available

SHED PLATE:

Front & Rear Shed Plate Available

TIRES & HITCH

TIRE UPGRADE:

Wheels & Tire Options Available

WHEEL UPGRADE:

Wheels & Tire Options Available

AIR PINTLE HITCH:

Air Pintle Hitch Available
