At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
14' - 20'
Inquire About This Trailer
Product Features
Wireless Winch Controller
Horizon's Bluetooth winch controller revolutionizes roll-off trailer operation, offering unparalleled convenience, safety, and efficiency. This cutting-edge technology enables remote management of the winch system through a Bluetooth-enabled device, enhancing control and ease of use for operators.
Toolbox
Explore our Lockable Toolbox designed for Gooseneck trailers, crafted to securely hold your battery and pump for easy access on your travels. It accommodates a 7.2 hp electric motor, two marine batteries, and an onboard trickle charger for enhanced functionality.
Spacious Dumpster
The HDZ Dumpster showcases a durable tarp system for secure load coverage, a 3" x 4" x 11ga. Tubing top rail design for enhanced structural integrity, front greasable rollers for effortless operation, and a heavy-duty D-ring, providing a reliable anchoring point for winch attachments.
Efficient & Durable
The HDZ Dumpster features a barn style rear door, ensuring secure and efficient containment of loads. Its rear greasable rollers facilitate smooth and easy handling, while the 10-gauge steel sides and flooring offer exceptional strength and durability, capable of withstanding the rigors of various use.DURABLE POWDER COAT FINISH
The HDZ HRD Roll-Off Package Trailer boasts a premium powder coat finish, providing superior durability and protection against corrosion, chipping, and fading. This high-quality coating ensures long-lasting performance and maintains the trailer's structural integrity and visual appeal in challenging environments.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

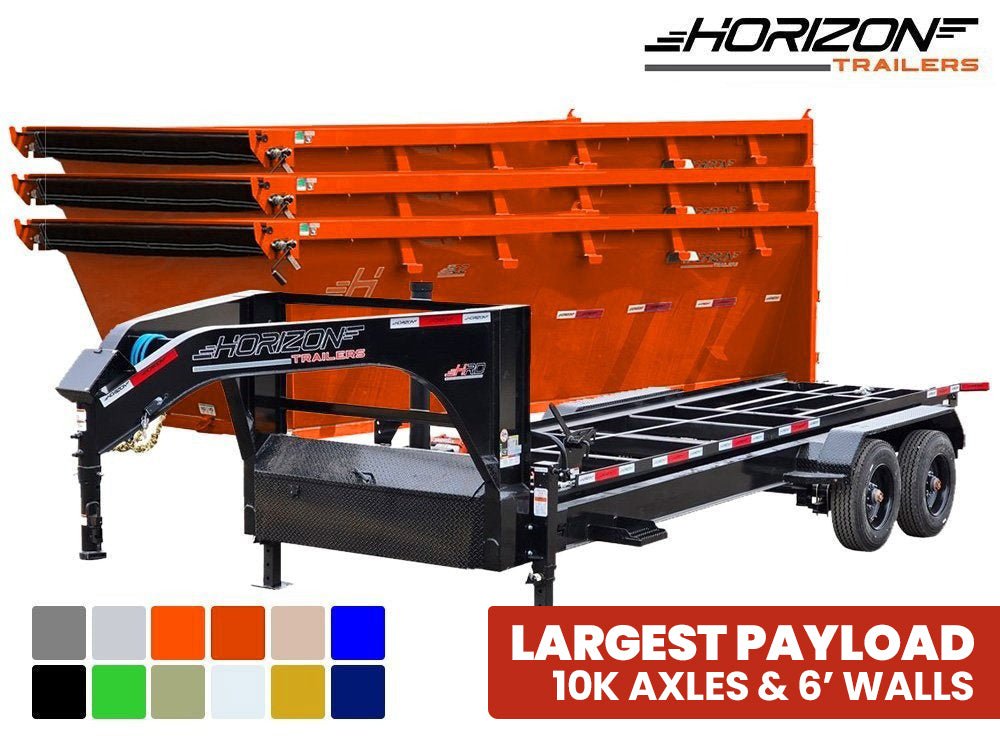

- Horizon HRD Gooseneck Roll Off Trailer
- LENGTH:
- 14’, 16’, 20’
- GVWR:
- 24,000 lbs - 25,000 lbs
HDZ ROLL-OFF DUMPSTER (3 INCLUDED):
- MODEL:
- HDZ Heavy Duty Roll-Off Dumpster
- AVAILABLE LENGTHS:
- 14', 16', 20'
- SIDE HEIGHT OPTIONS:
- 4', 6'
- CARGO CAPACITY:
- 13 – 28 Cubic Yards
- BOTTOM RAIL BED WIDTH:
- 60"
- OVERALL WIDTH:
- 60"
- TOP RAIL INTERNAL WIDTH:
- 83"
- TOP RAIL EXTERNAL WIDTH:
- 89"
FRAME & STRUCTURE
TRAILER FRAME:
- MAIN FRAME:
- 10” I-Beam (17 lbs/ft)
- BED FRAME:
- 2” x 5” x 7 ga. Tubing Bed Frame
- CROSSMEMBERS:
- 2” x 5” x 7 ga. Crossmembers
- STEPS:
- Side Step On Both Sides
HDZ DUMPSTER FRAME:
- MAIN FRAME:
- 1-1/2" × 3" × 11ga. Tubing Bed Frame
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) – 16" Spacing
- FRONT:
- Greasable Rollers, Heavy Duty D-Ring for Winch Attachment
- REAR:
- Greasable Rollers
- FLOORING:
- 10ga. Steel Bed
TONGUE & STORAGE
TONGUE:
- TYPE:
- 10” Engineered Steel I-Beam
- LENGTH:
- 98” (From Behind Riser)
- HEIGHT:
- 70” (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16” GN Coupler
- COUPLER RATING:
- 30,000 lbs
- JACK:
- 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
STORAGE:
- TOOL BOX:
- Lockable Toolbox (Houses Batteries and Pump)
- SPARE TIRE MOUNT:
- Weld On Spare Tire Mount
- SPARE TIRE:
- ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
SIDES & BODY (HDZ DUMPSTER)
SIDES:
- HEIGHT OPTIONS:
- 4', 6'
- TYPE:
- Reinforced Steel
- THICKNESS:
- 10ga.
- TOP RAIL:
- 3" × 4" × 11ga. Tubing
- HOOKS:
- 3/8" Round "J" Hooks
- D-RINGS:
- 4 Welded Inside Box
- GATE:
- 1 Heavy Duty Rear Door
RUNNING GEAR
RUNNING GEAR:
- AXLES:
- 2 - 10k Lippert Electric Brake Super Single Oil Bath Spring Axles
- BOLT PATTERN:
- 8 On 6.5”
- SUSPENSION:
- Spring
- TIRES:
- ST235/75R17.5, Super Single, 18 Ply
- TIRE RATING:
- 6,005 lbs
- WHEELS:
- 17.5” Black Mod Wheels
SAFETY
TRAILER SAFETY:
- SAFETY CHAINS:
- 3/8” Grade 70 Safety Chain
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
HDZ DUMPSTER SAFETY:
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
LOADING & ELECTRICAL
LOADING:
- LOADING ANGLE:
- 60°
- LIFT SYSTEM:
- Telescopic Cylinder
- CYLINDER CAPACITY:
- 12 Ton
- CYLINDER:
- 14’ Lift: 6” x 21” Single Push Cylinder (20k)
- 16’ Lift: 6” x 30” Single Push Cylinder (20k)
- 20’ Lift: Telescopic Cylinder (12 Ton)
- WINCH:
- 20k Steel Cable Warrior Winch
- WINCH CONTROLLER:
- 12' Control Cable and Wireless Controller
ELECTRICAL:
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
BED
BED:
- DECK WIDTH:
- 61”
- DECK HEIGHT:
- 30”
FINISH & APPEARANCE
FINISH:
- PREP:
- Steel Grit Blasted
- PAINT:
- Powdercoat
- COLOR OPTIONS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
WARRANTY
TRAILER WARRANTY:
- AXLE:
- 6 Year Lippert Spring Axle Warranty
- TRAILER:
- Three (3) Year Frame / One (1) Year Parts Warranty
HDZ DUMPSTER WARRANTY:
- FRAME:
- 3-Year Frame Warranty
- PARTS:
- 1-Year Parts Warranty
COMPATIBILITY
HDZ DUMPSTER:
- COMPATIBILITY:
- Compatible with most recognized roll-off brands on the market
