Product Features
Heavy-Duty 10" I-Beam & Neck Construction
Built on a solid 10" I-beam main frame with a reinforced NeckBoss 10" engineered I-beam gooseneck. This heavy-duty construction forms the rigid backbone for the trailer's high 17,000 lb GVWR capacity and stable roll-off operation.
Premium Running Gear
The Horizon RDZ comes standard with two 7k Dexter EZ lube electric brake axles, or is upgradable to 8k Dexter oil bath axles with electric brakes. The 7k axles support a 15,260 lb GVWR, and the 8k axles support a 17,920 lb GVWR. Both include a 5-year Dexter warranty.

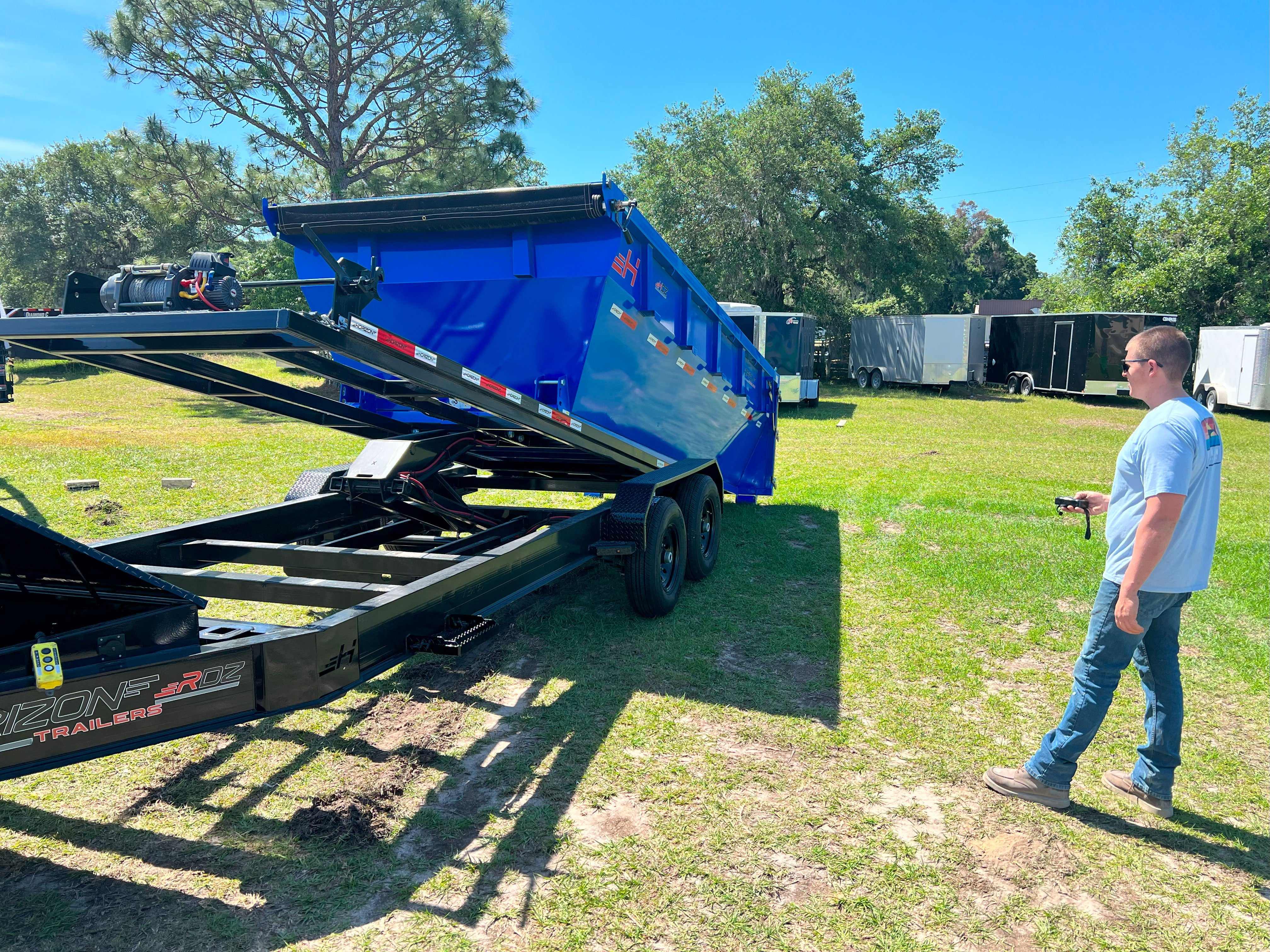

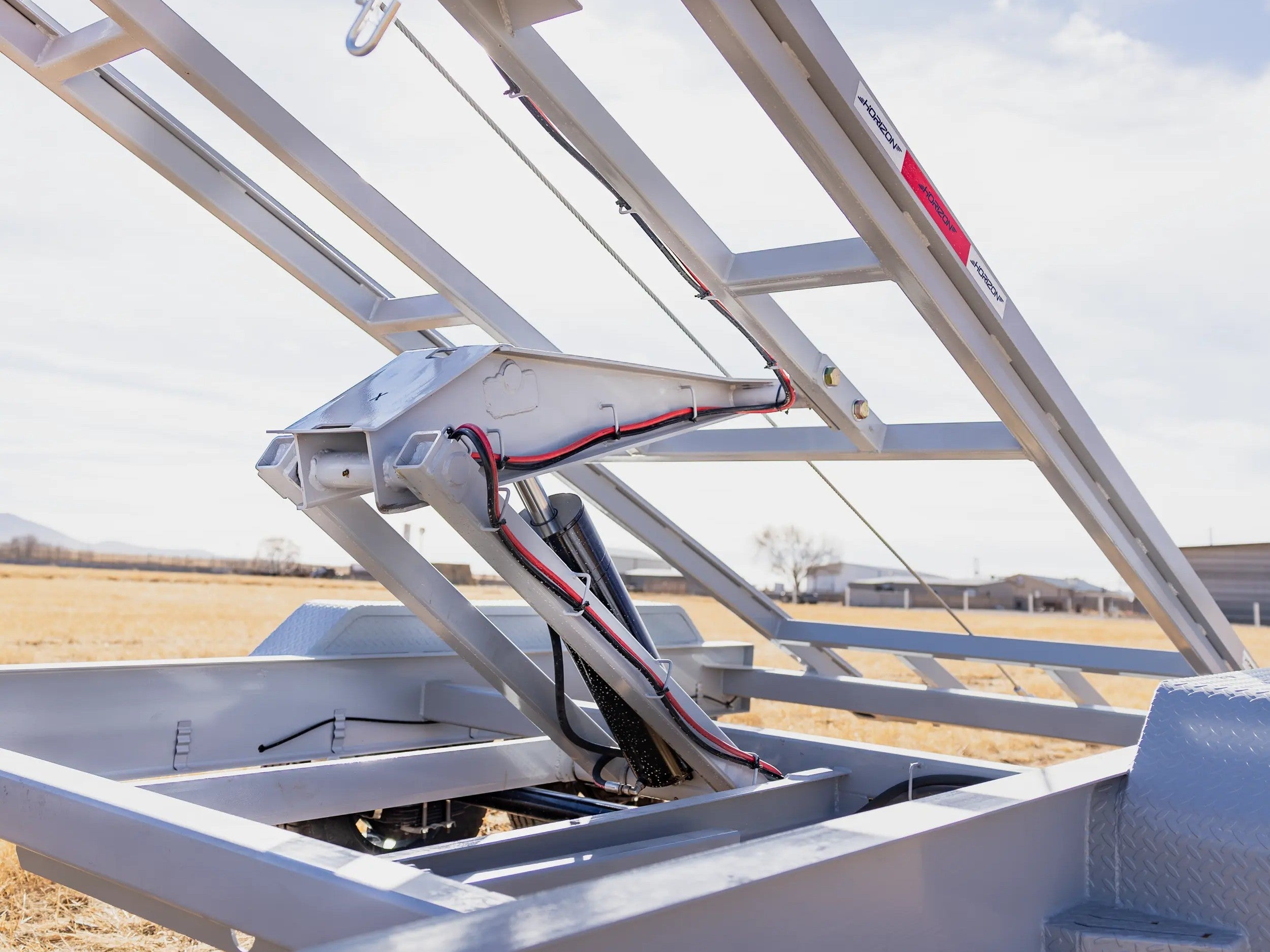

Hydraulic Scissor Lift Hoist
Efficiently manage your loads with the RDZ Roll Off Trailer. Its robust frame and hydraulic system effortlessly lift roll off dumpster beds or decks up to 40 degrees. Control options include a 14' wired controller or an optional wireless one, ensuring precision and ease of operation.
17,500 lbs Winchmax Winch
Equipped with a robust 17,500 lb Winchmax winch. This system includes a wireless remote, is powered by dual marine batteries with an onboard trickle charger, and is built for reliable, powerful performance on any job site.

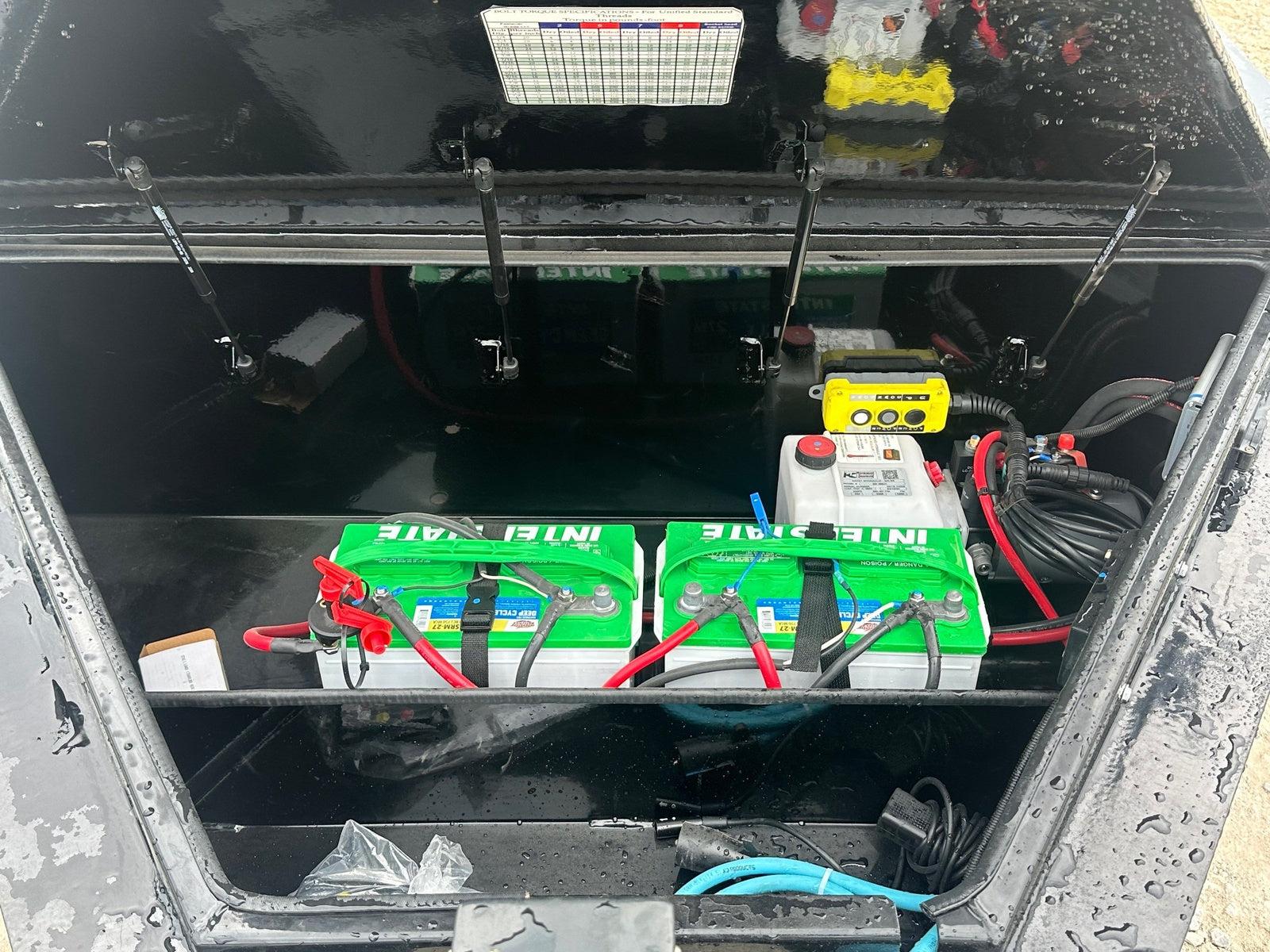

Oversized Mega Lockable Toolbox
Features a large, oversized mega toolbox mounted on the tongue. This lockable compartment houses the dual deep-cycle batteries, hydraulic pump, and all controls, keeping critical components secure, organized, and protected from the weather.

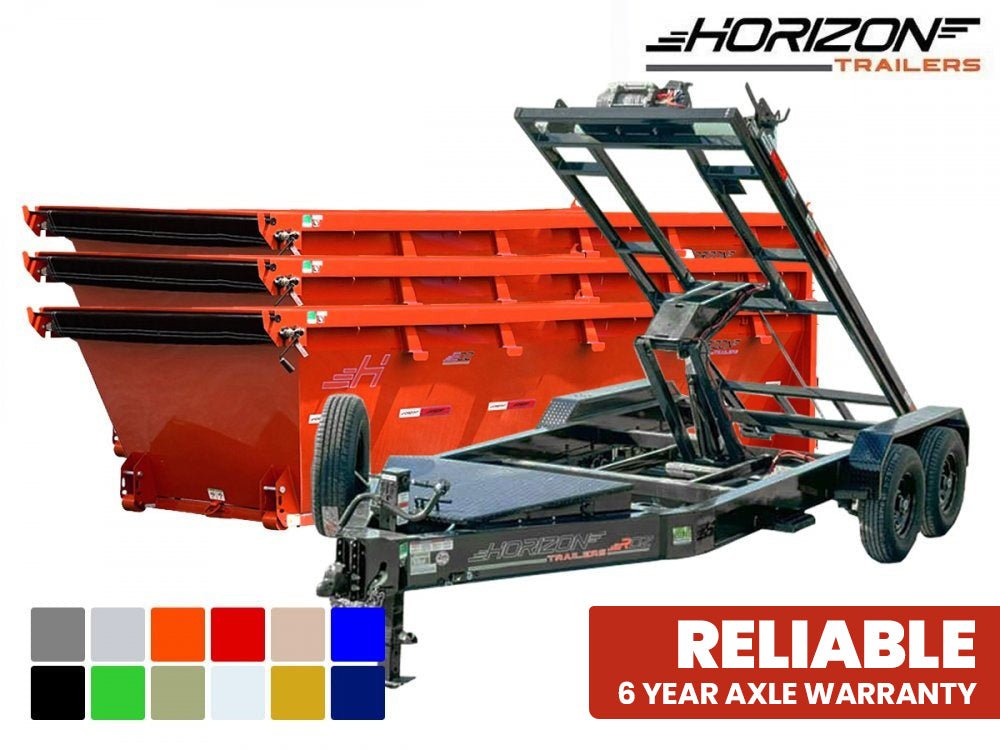

Multiple Size & Color Options
Choose your size with 14' or 16' lengths and 4' or 6' side wall heights. Then, personalize it from an extensive range of color options, applied through a durable 5-stage powdercoat/paint process. This premium finish provides lasting durability and a professional look that stands out on any job site.
Product Details
DIMENSIONS
- AVAILABLE LENGTHS:
- 14', 16'
- DECK WIDTH:
- 6'
- DECK HEIGHT:
- 30"
- LOADING ANGLE:
- 58°
- DUMP ANGLE:
- 51°
- BOTTOM RAIL DECK WIDTH:
- 6'
- BIN SIDE HEIGHT:
- 4'
- BIN CARGO CAPACITY:
- 12.5 - 16.5 Cubic Yards
WEIGHT RATINGS
- GVWR:
- 15,200 lbs - 17,000 lbs
- GAWR:
- 7,000 lbs, 8,000 lbs
- AXLE COUNT:
- 2
- AXLE RATING:
- 7k, 8k
FRAME CONSTRUCTION
- MAIN FRAME:
- 10" I-Beam (12 lbs/ft)
- BED FRAME:
- 2" x 3" x 7ga. Tubing
- CROSSMEMBERS:
- 2" x 3" x 7ga. Crossmembers
- SIDES:
- 3" x 4" x 1/4" Angle Iron
- FENDERS:
- 14ga. Diamond Plate Steel Fenders
BIN CONSTRUCTION
- BIN FRAME:
- 1-1/2" x 3" x 7ga. Tube Frame
- BIN FLOORING:
- 14ga. Steel Floor
- BIN SIDES:
- Reinforced Steel (14ga.)
- TOP RAIL:
- 3" x 4" x 7ga. Tubing
- D-RINGS:
- 4 D-Rings Welded Inside Box
- REAR DOOR:
- 1 Heavy Duty Rear Door
RUNNING GEAR
- AXLE TYPE (7K):
- 7k Dexter Electric Brake Auto Adjust EZ Lube Spring Axles (8 on 6.5")
- AXLE TYPE (8K):
- 8k Dexter Electric Brake Auto Adjust Oil Bath Spring Axles (8 on 6.5")
- AXLE WARRANTY:
- 5 Year Dexter Spring Axle Warranty
- TIRES (7K):
- ST235/80R16, 10 Ply 3,500 lbs
- TIRES (8K):
- ST235/80R16, 14 Ply 4,400 lbs
- RIMS:
- 16" Black Mod Wheels
- SUSPENSION:
- Spring
HYDRAULIC SYSTEM
- HOIST SYSTEM:
- 2 Button Hydraulic - Power Up / Power Down
- TELESCOPIC SYSTEM:
- 2 Button Hydraulic - Power Up / Gravity Down
- PUMP:
- KTI TX Hydraulic Pump
- CONTROLLER:
- 14' Control Cable
OPTIONS
