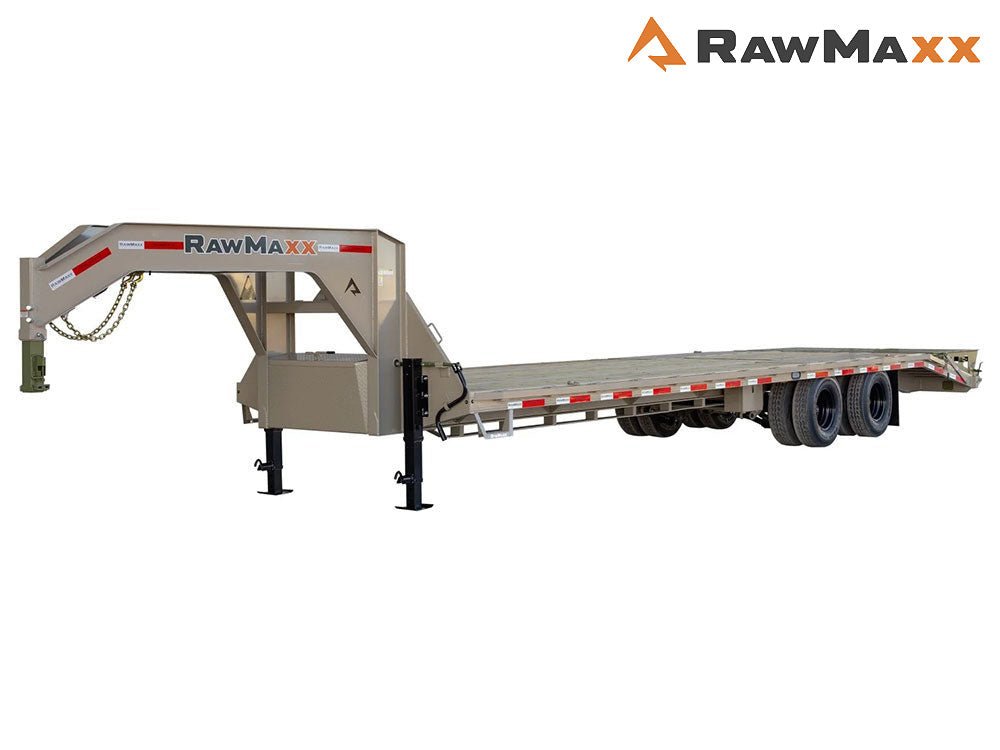

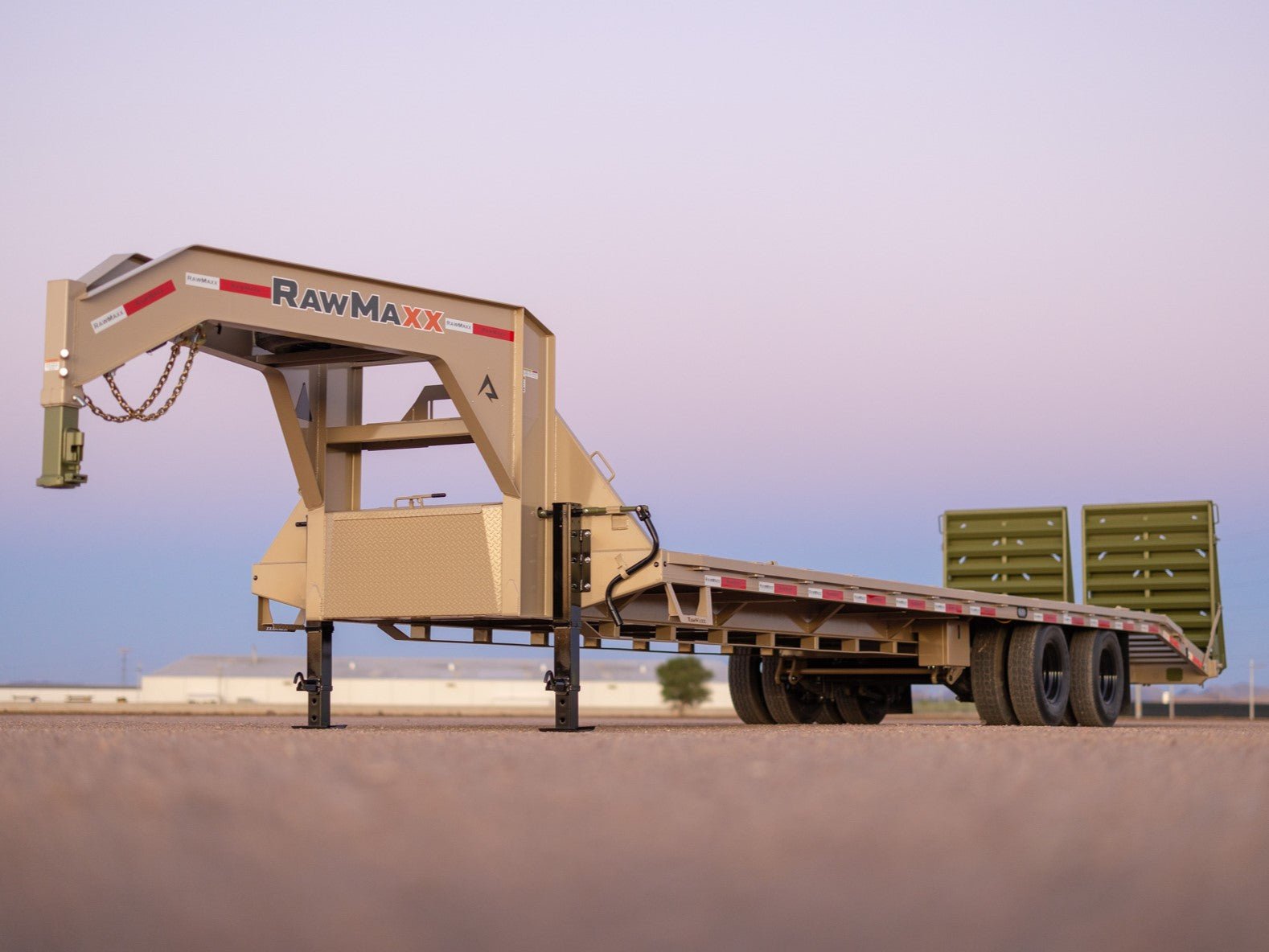

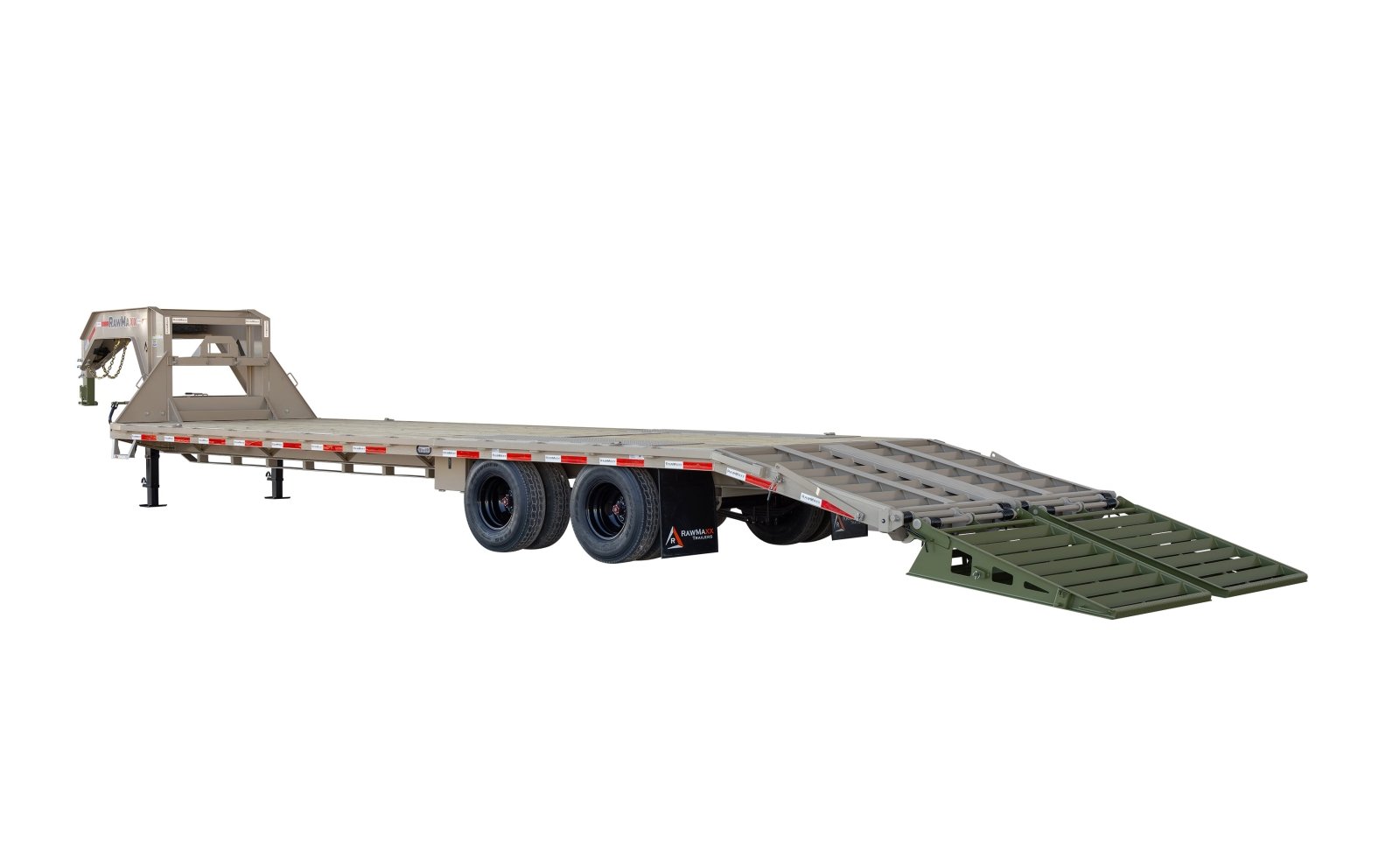

RawMaxx FDX Dual Wheel Deckover Trailer

Product Details

DIMENSIONS & CAPACITY

TRAILER:

LENGTH:

20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 44'

WIDTH:

102"

DECK HEIGHT:

33"

GVWR:

14,000 lbs.

GAWR:

7,000 lbs.

FRAME & STRUCTURE

FRAME:

MAIN FRAME:

12" x 14 lbs. I-Beam Main Frame

CROSS-MEMBERS:

3" Channel / 16" Spacings

BRIDGE FRAME:

2" x 4" Square Tube / 4 x 3/8" Flat Bar

DECK

DECK:

FLOORING:

2” Treated Lumber Deck

D-RINGS:

4 D-Rings Welded Outside Corners

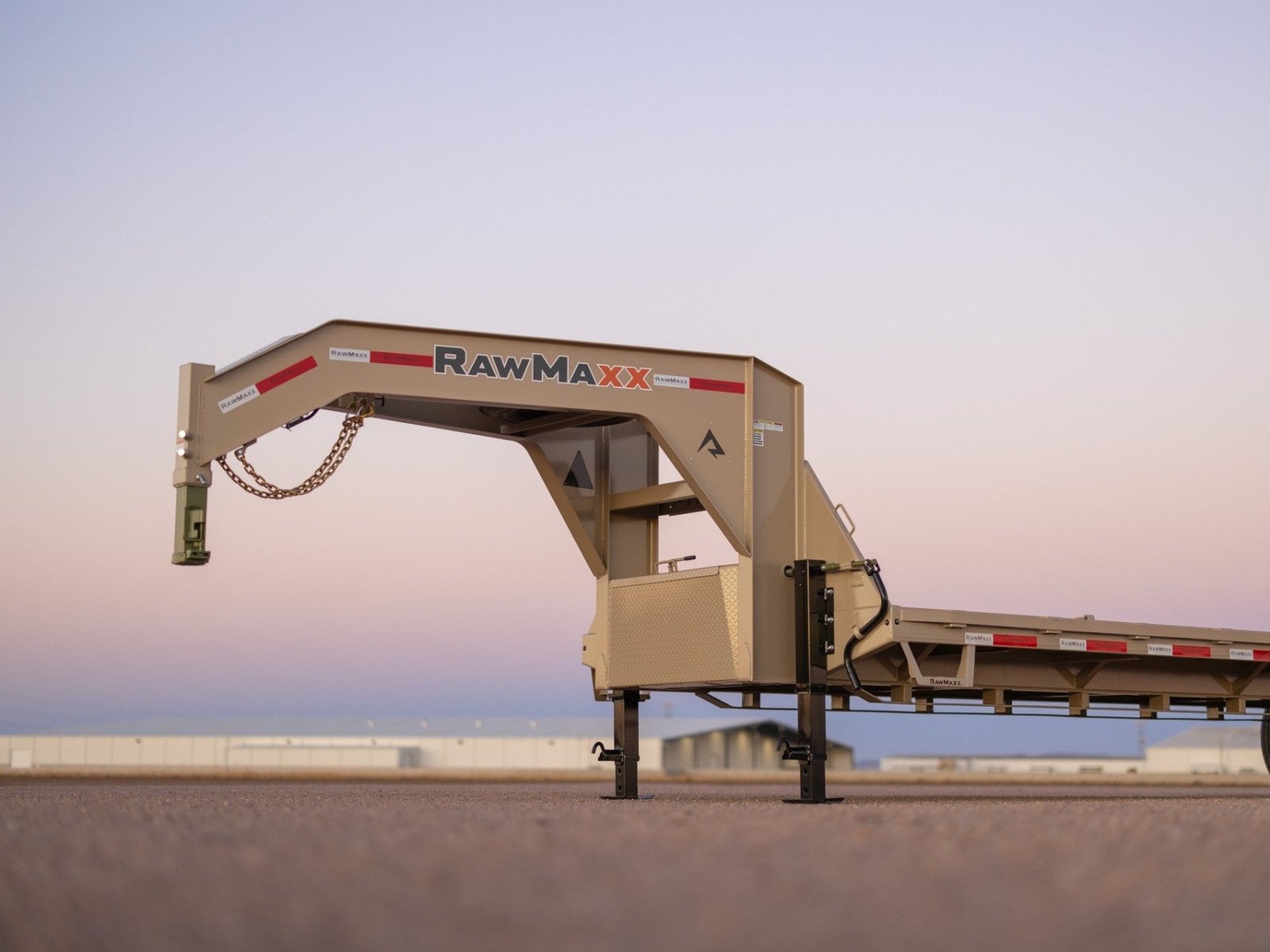

GOOSENECK

GOOSENECK:

COUPLER:

2-5/16” Ball Coupler

FRONT JACKS:

2 Side Wind Drop Legs - 10,000 lbs.

FRONT TOOL BOX:

Between Risers / Lockable Latch

NECK LENGTH:

93"

SIDE

SIDE:

SIDE PERIMETER:

6" Channel Outer Deck Frame

RUB RAIL:

2" x 3/8" Flat Bar

STAKE POCKETS:

3-7/8" x 1-13/16" (ID) Stake Pockets

CHAIN SPOOL:

1 5/8" OD

FENDERS:

3/16” Thread Plate

SIDE STEP & HANDLE

SIDE STEP:

SIDE STEP:

G10 Sides / G12 Diamond Plate Step

HANDLE:

1/2" Round Rod

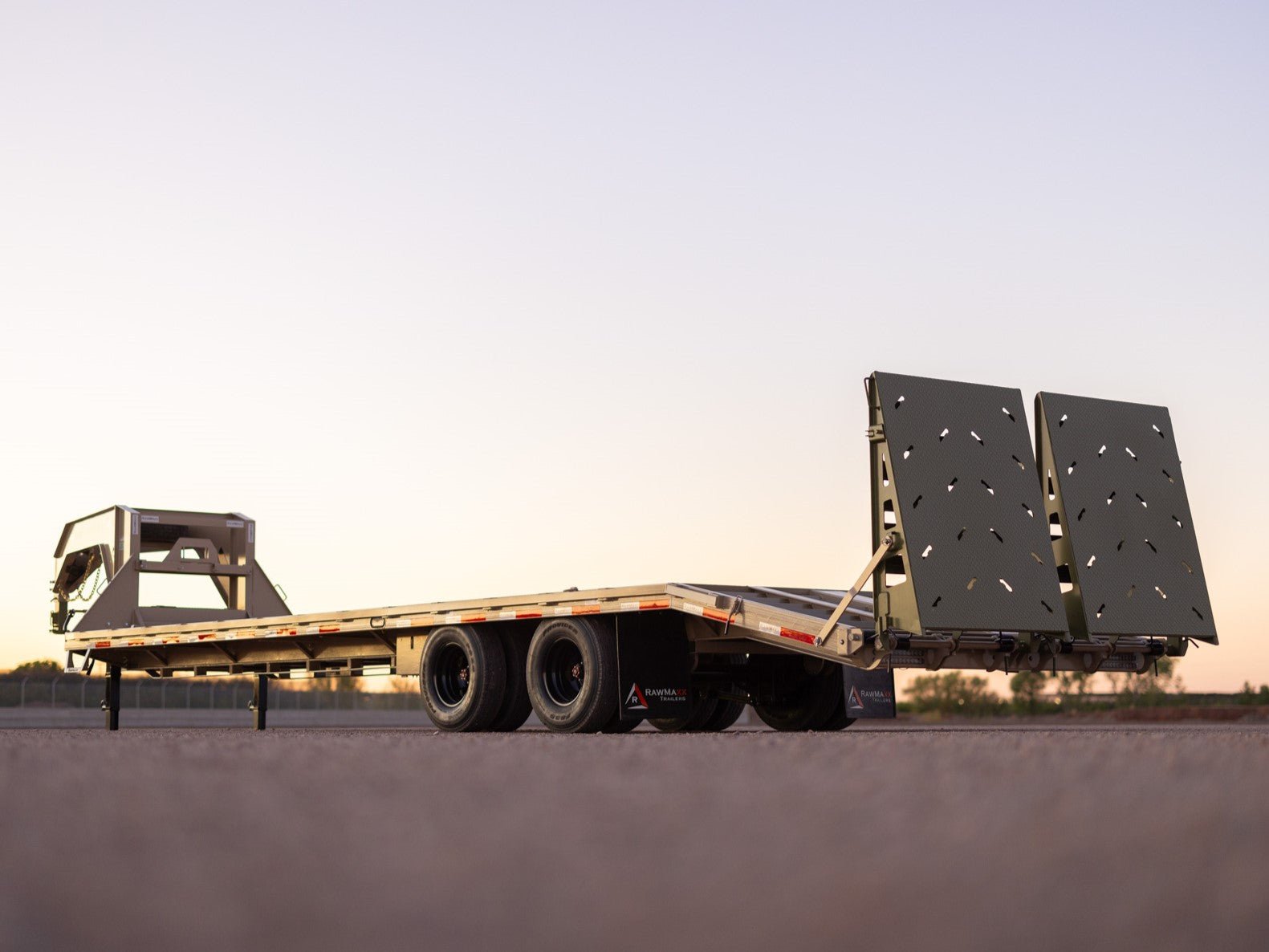

REAR TAIL

REAR TAIL:

STRAIGHT DECK:

8' Slide-In Channel Ramps

FINISH

FINISH:

TYPE:

Powder Coat

PREP:

Grit Blast

STANDARD COLOR:

Jet Black

WARRANTY

WARRANTY:

AXLE:

5 Year Dexter

TRAILER:

3 Year Structural / 1 Year Paint

SPARE MOUNT

SPARE MOUNT:

SPARE TIRE MOUNT:

3" Tubing / 3/16" Plate

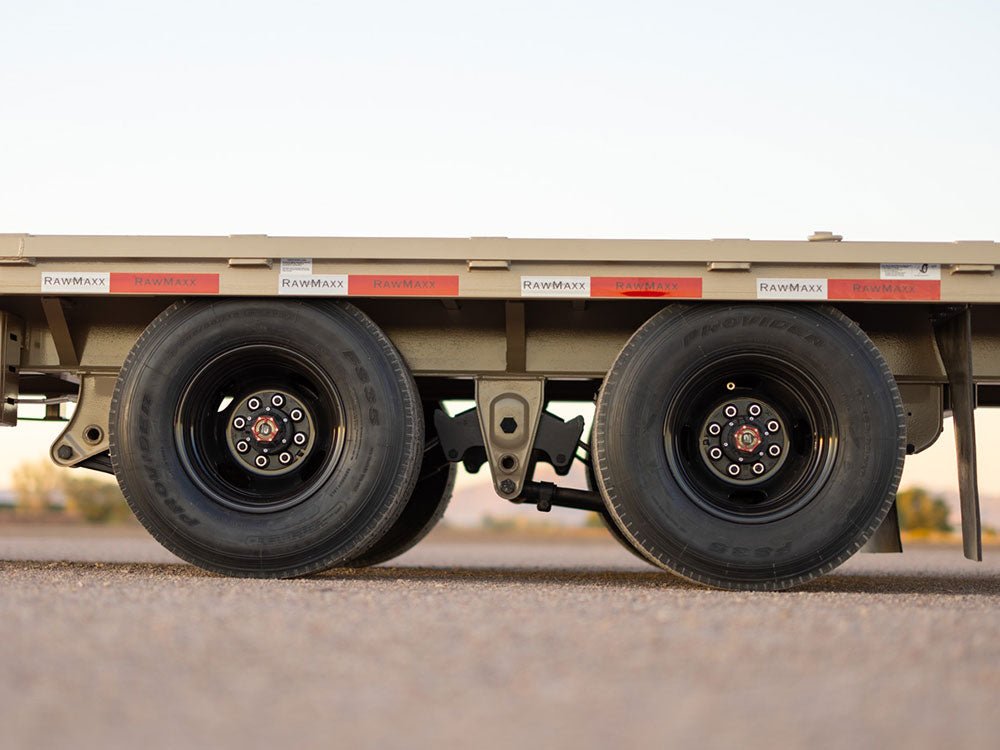

RUNNING GEAR & SAFETY

RUNNING GEAR:

AXLE TYPE:

Spring

AXLES:

2

RATING:

7,000 lbs.

BRAKES:

Electric

TIRES:

TYPE:

Radial Tires

SIZE:

ST235/80R16

PLY:

10 Ply

RATING:

3,520 lbs.

RIMS:

16” Black Mod Wheels

BOLT PATTERN:

8 on 6.5”

SAFETY:

SAFETY CHAINS:

3/8" G70 Safety Chains

BREAKAWAY SYSTEM:

Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

ELECTRICAL & LIGHTING

ELECTRICAL:

FRONT PLUG:

7-Way Plug

FRAME WIRING:

All-Weather Wiring Harness

SIDE MARKERS:

3/4" LED Bullet Lights

TURN FLASHERS:

2" x 6" Amber Side Turn Lights

REAR LIGHTS:

DOT Approved LED Lights
