At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Featured Video
Product Features

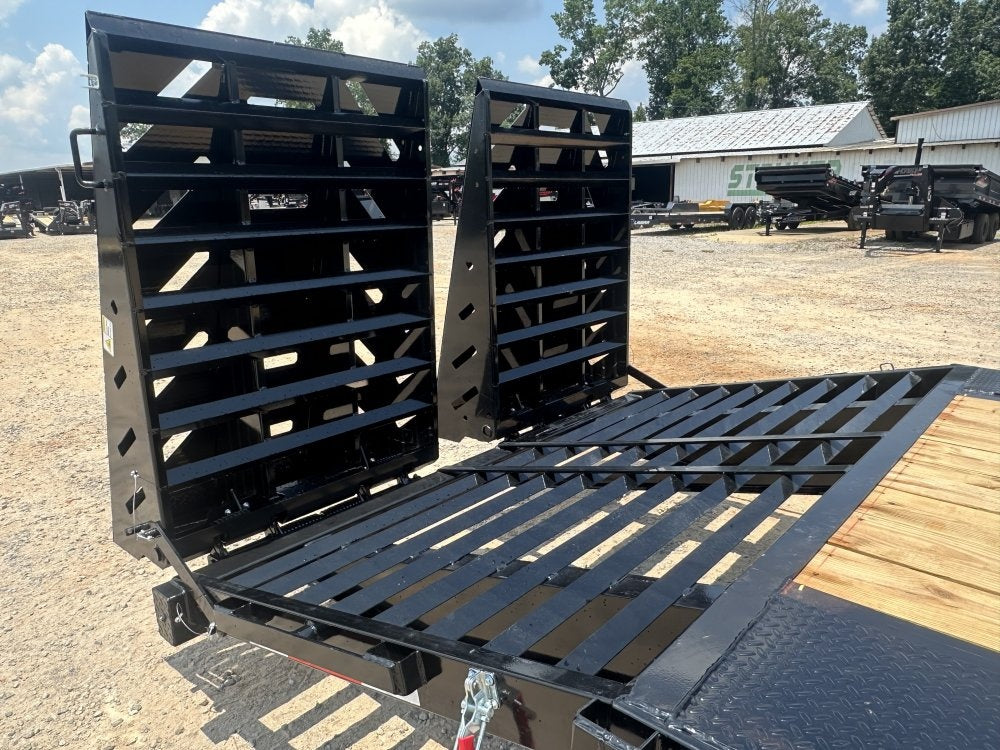

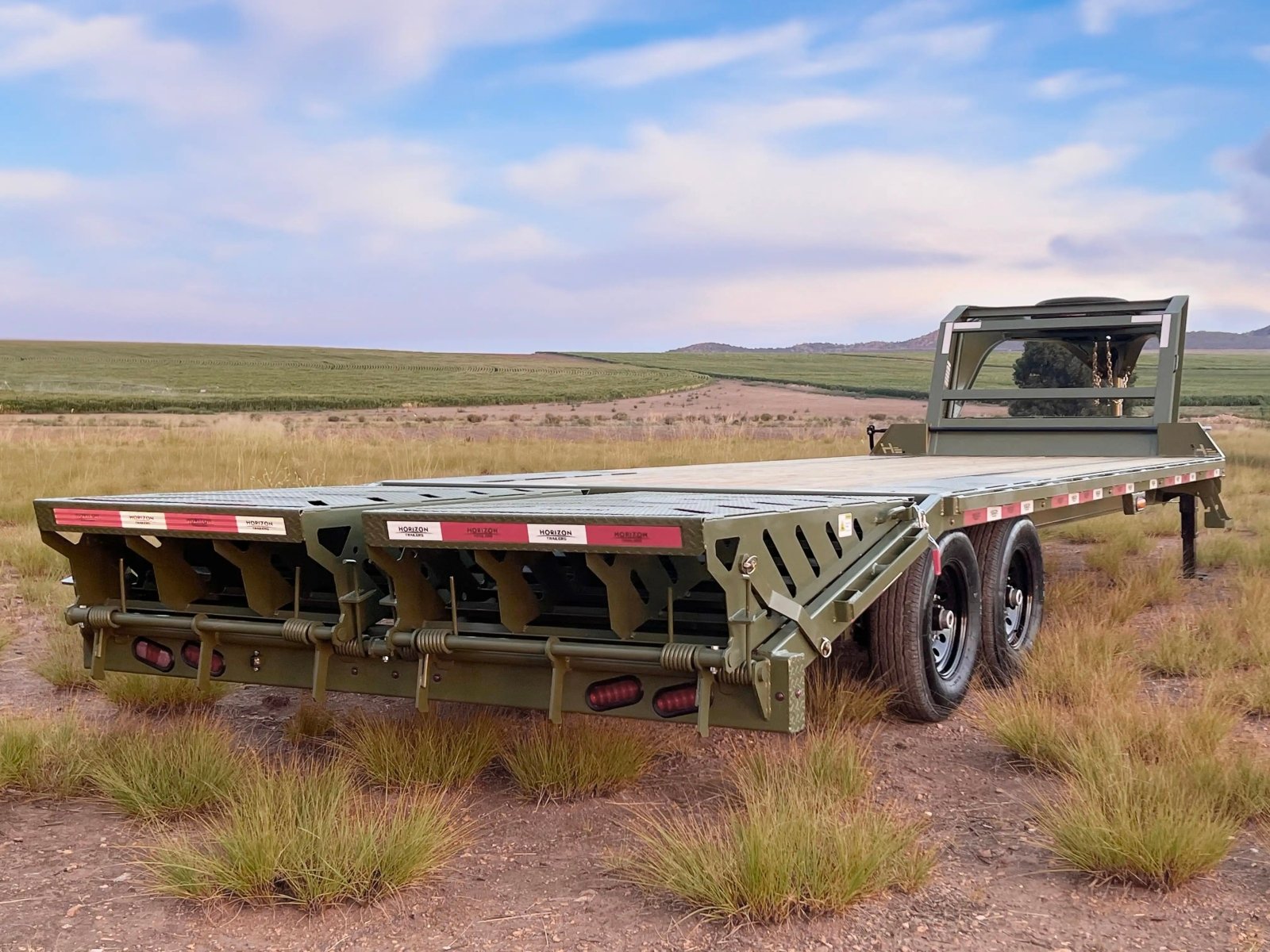

Ramp Options
Standard 8' aluminum slide-in ramps make equipment loading safe and efficient, spring-assisted for smooth deployment and folding during transport. Optional 5' dovetail with 2 Mega Ramps provides added strength and easier loading of heavier machinery.

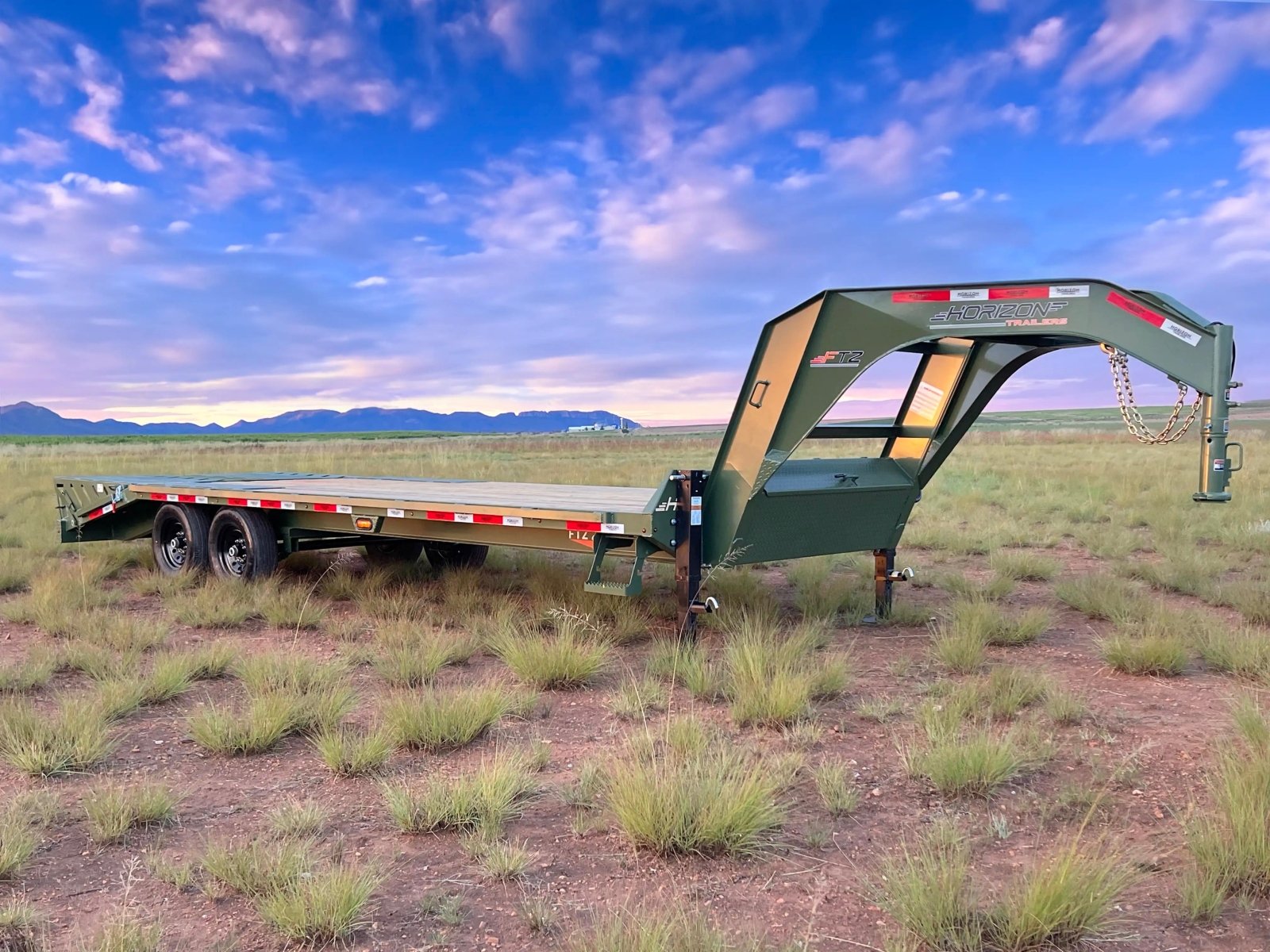

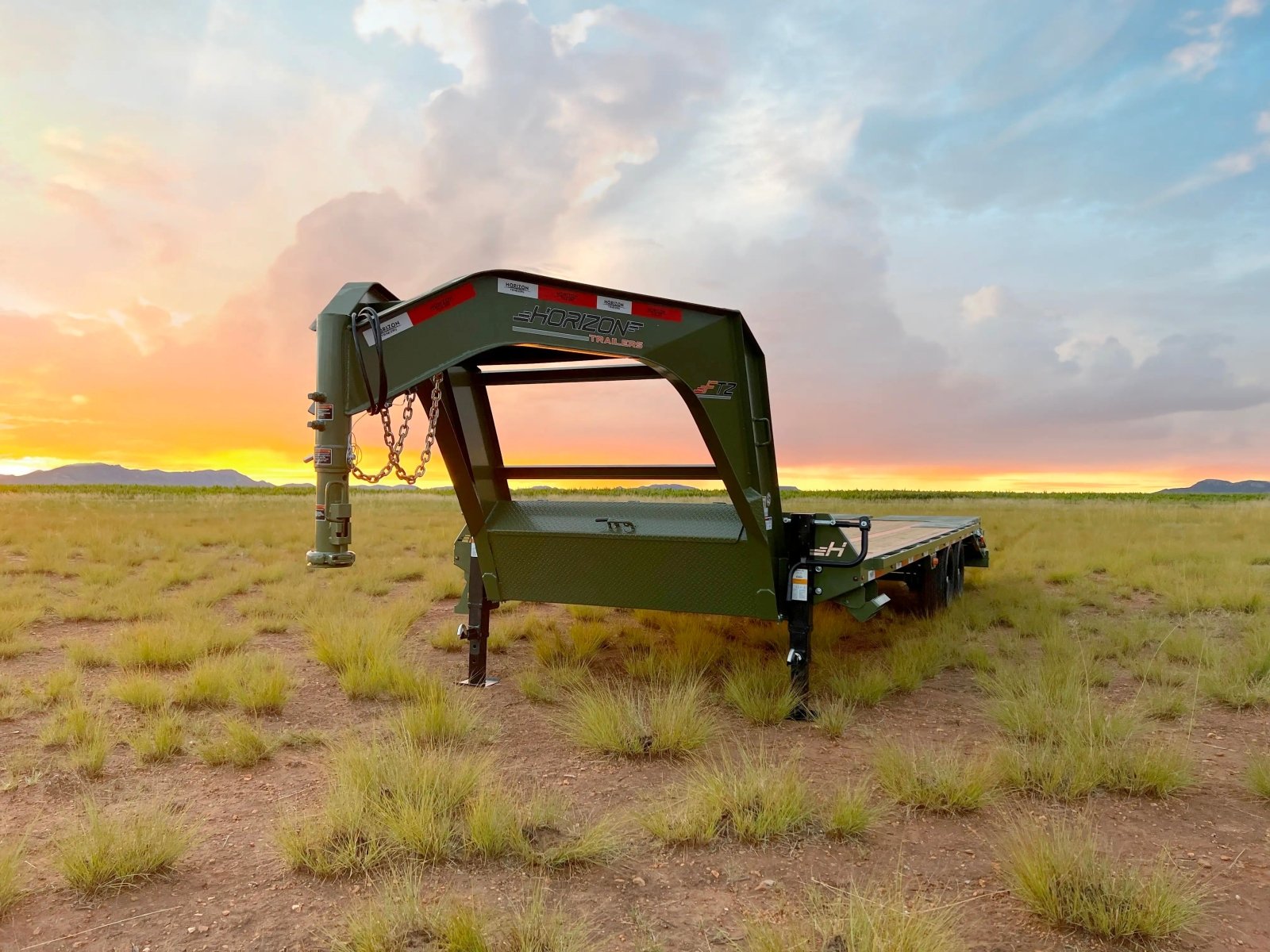

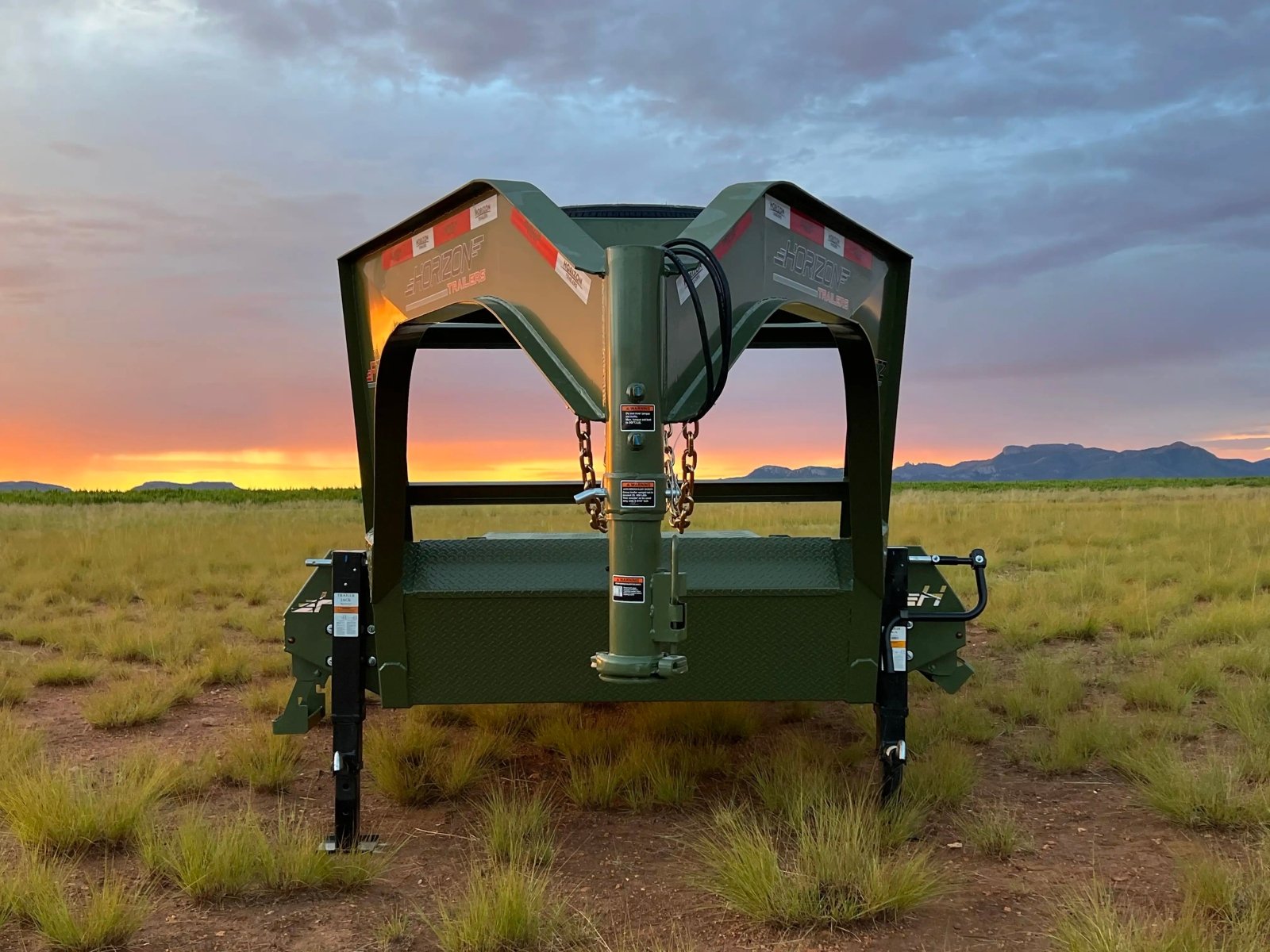

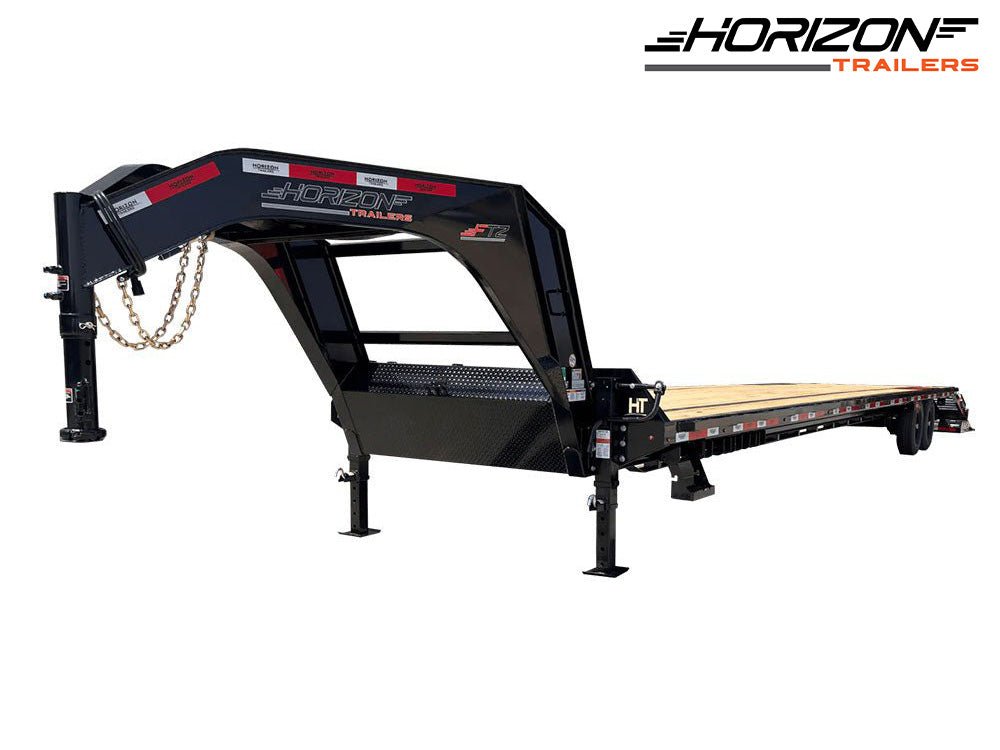

Engineered Gooseneck Design
The 98" engineered I-beam gooseneck provides superior strength and towing stability for GVWRs up to 22,000 lbs. Adjustable 2-5/16" coupler and dual 12,000 lb side wind drop jacks ensure safe, balanced operation. Optional Shocker Hitch Coupler enhances towing precision for heavy loads.
Frame & Construction
Built with a 12" I-beam main frame (14 lbs/ft) and 3" channel crossmembers at 16" spacing, this trailer offers exceptional rigidity and long-term durability. Zinc primer undercoat and powder-coated finish protect against corrosion and wear.
DURABLE POWDER COAT FINISH
Available in a variety of vibrant colors, the FTZ flatdeck trailer is finished with a durable powder coating. This not only enhances its aesthetic appeal but also provides robust protection against corrosion, extending the trailer's lifespan and maintaining its appearance even under tough environmental conditions.

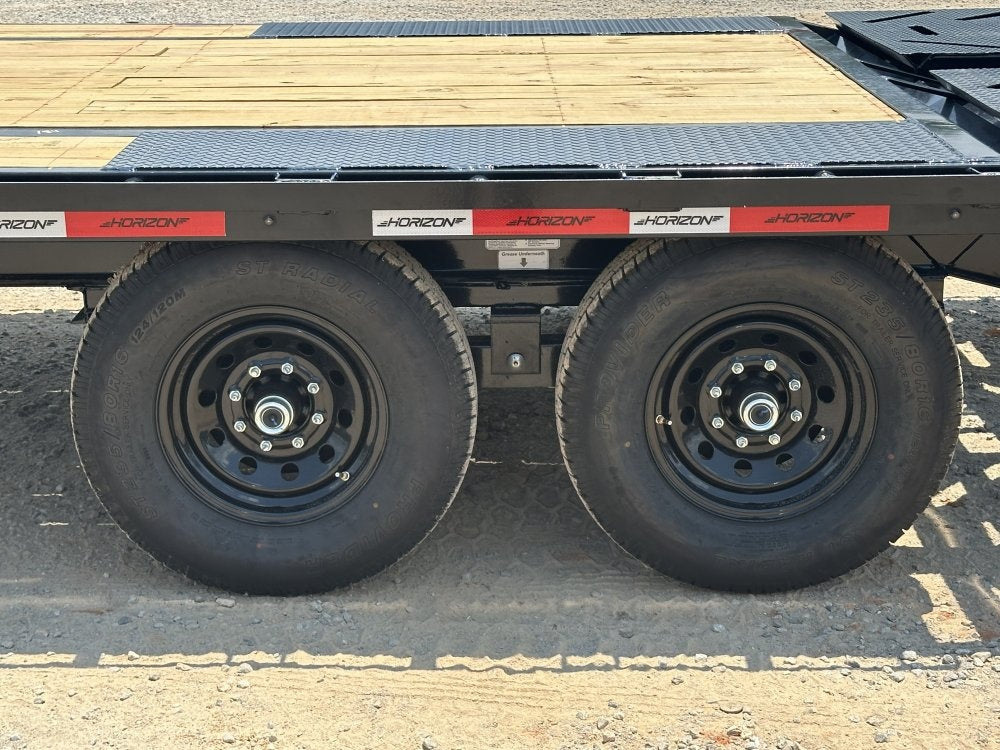

Dexter Axles & Suspension
Standard dual 7k electric brake Dexter axles with spring suspension deliver smooth towing and reliable load support. Optional axle upgrades are available in 8k or 10k ratings, and tires can be upgraded to 14-ply for enhanced load capacity.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k SS
- GVWR:
- 15,000 - 22,000 lbs
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 98" Long
- HEIGHT:
- 70" (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
STORAGE
- TOOLBOX:
- Mega Lockable Toolbox

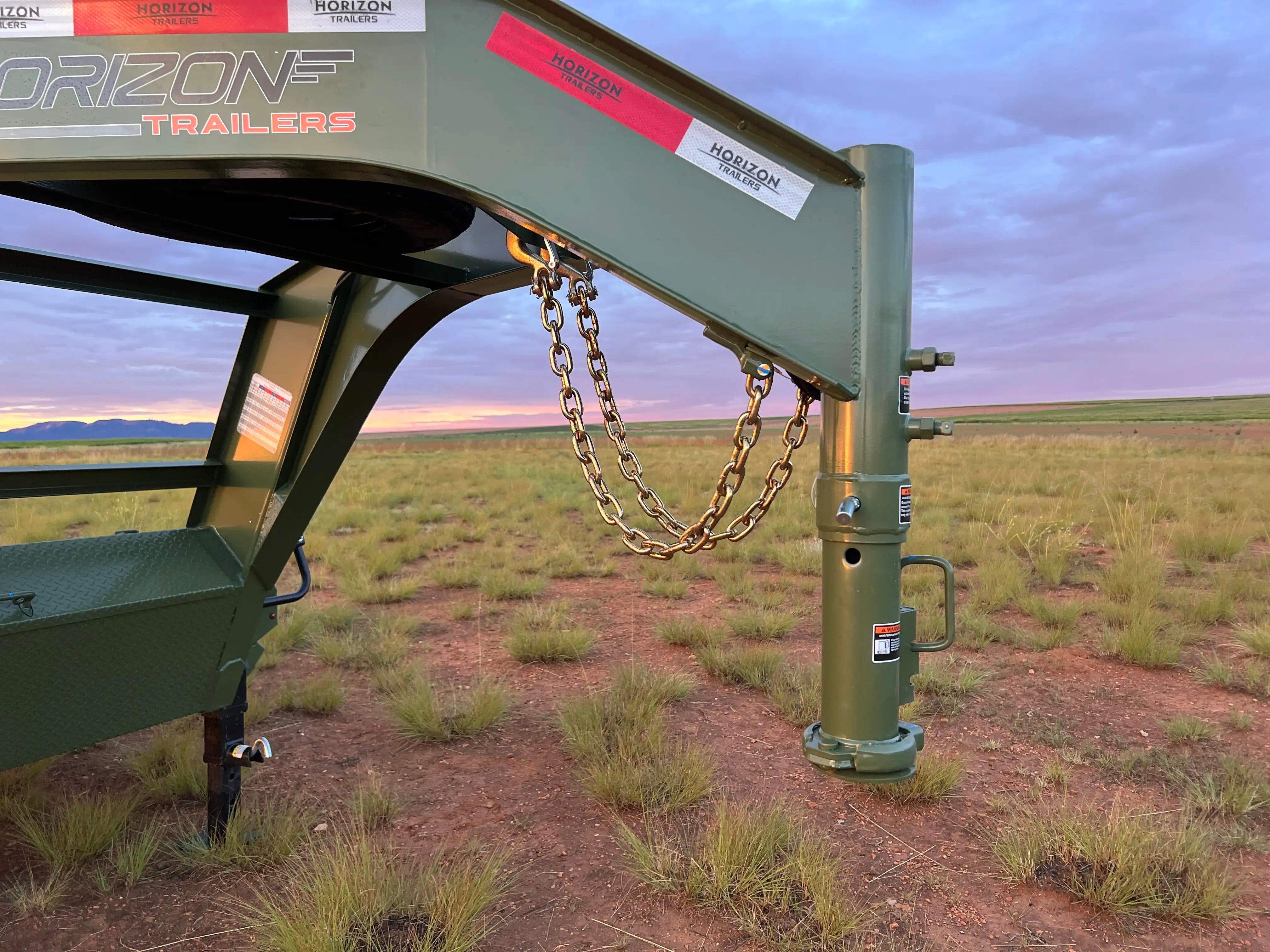

SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

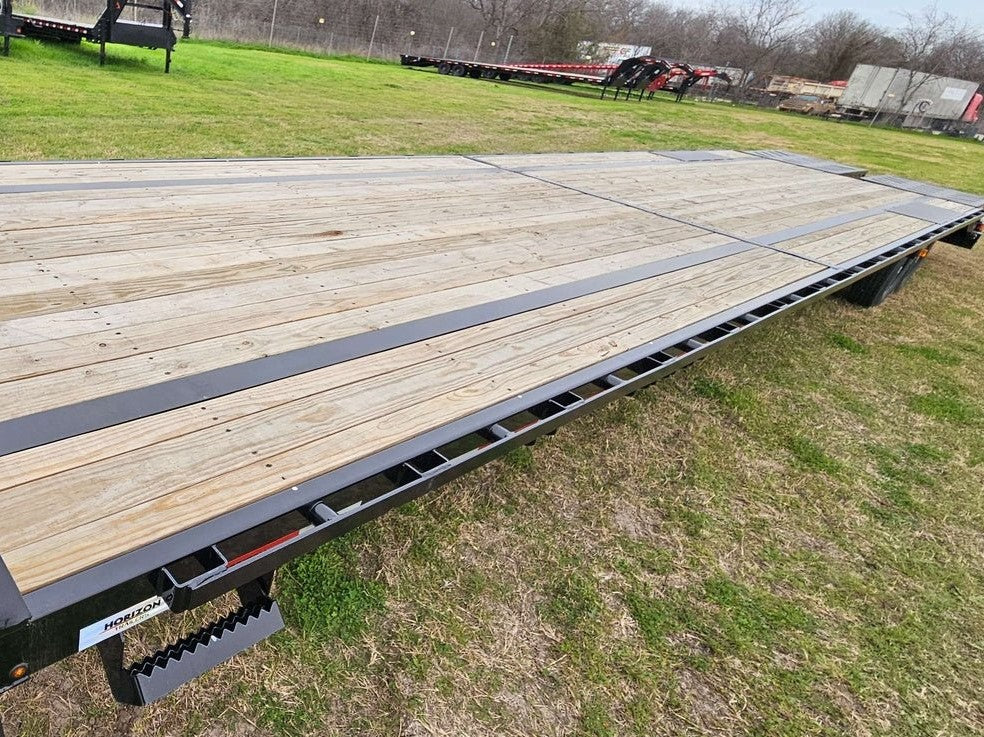

DECK & LOADING
- DECK TYPE:
- Wood
- RAMPS:
- 8' Slide In Ramps
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, ST235/80R16, 10 Ply, 3,520 lbs Rating
- RIMS:
- 16" Black Mod Wheels
- AXLES:
- 2 - 7k Electric Brake Dexter Axles
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (14 lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
OPTIONS
- JACK UPGRADE:
- 12k Hydraulic Jacks
- TOOLBOX UPGRADE:
- Locker Style Toolbox
- COUPLER UPGRADE:
- Shocker Hitch Coupler
- SOLAR OPTION:
- 10 Watt Solar Panel
- LIGHTING OPTION:
- Cargo Lights on Riser
- TOOLBOX MOUNT:
- Side Mount Toolbox
- TIRE UPGRADE:
- 14 Ply Tires
- SPARE TIRE:
- Spare Tire
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- WELD ON RATCHETS:
- 6, 8, 10, 12 Weld On Ratchets
- SLIDE RATCHETS:
- 6, 8, 10, 12 Sliding Ratchets
- D-RINGS:
- 4, 6, 8, Additional D-Rings
- UNDERCOAT:
- Zinc Primer Undercoat
- RAMP UPGRADE:
- 5' Dovetail w/ 2 Mega Ramps
