At a Glance
- Colors:
-
Postal BlueVirginia BlueRedCat YellowBlackCharcoalMilitary GreenDesert Tan
Featured Video
Product Features

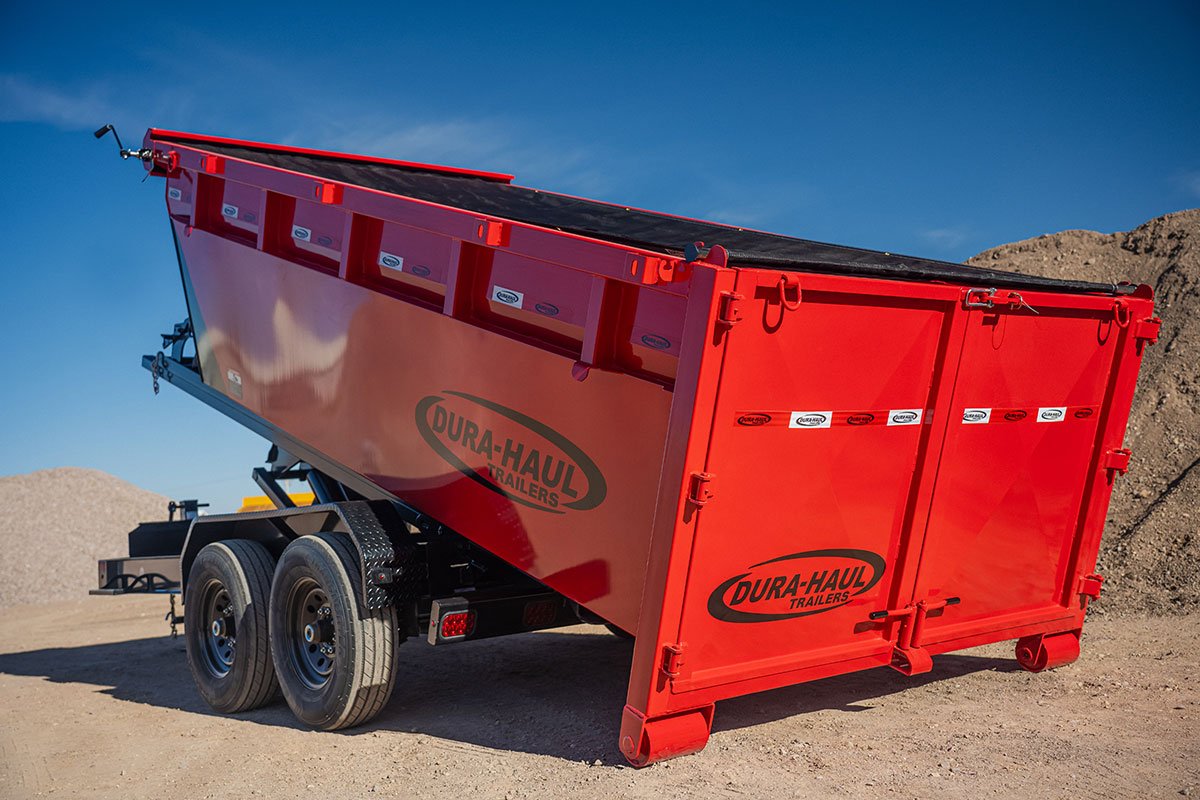

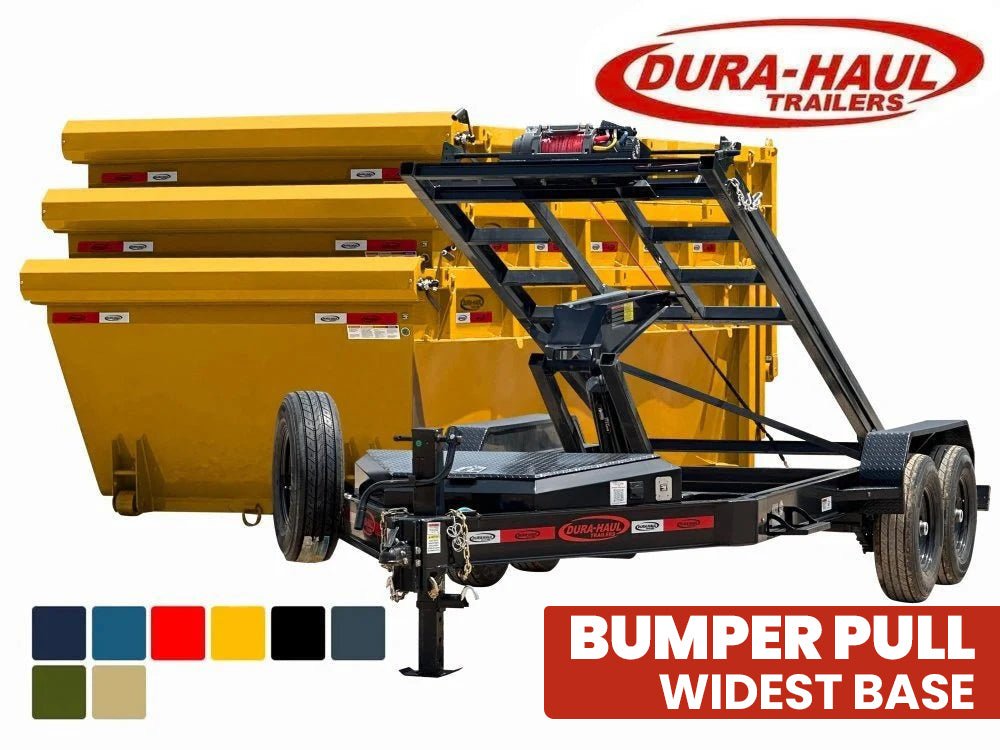

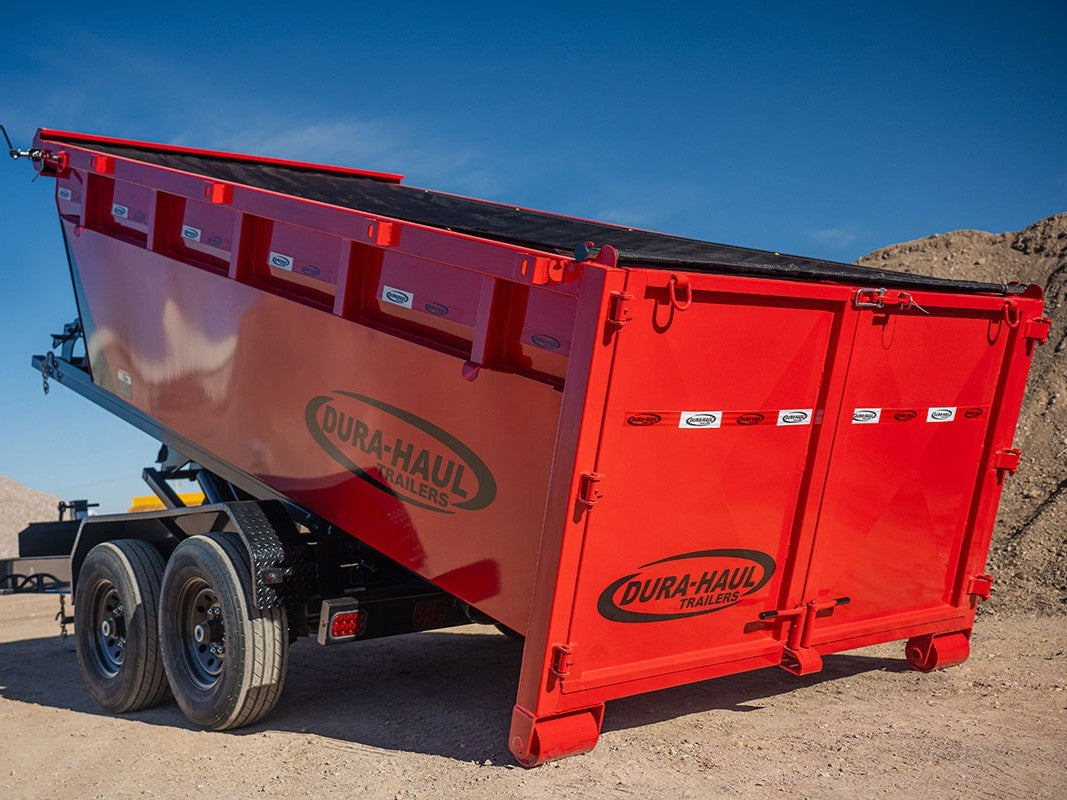

Ultra-Wide 83.75" Top Width Bin
Dura-Haul's bin features the widest base in its class. The design provides a full 83.75" of top width and a 72" bottom, maximizing stability and usable volume for more efficient material hauling.
7 Gauge Smooth Plate Flooring
Built tough with 7 gauge smooth plate flooring, supported by a 3” channel bed with 16” on-center cross members.

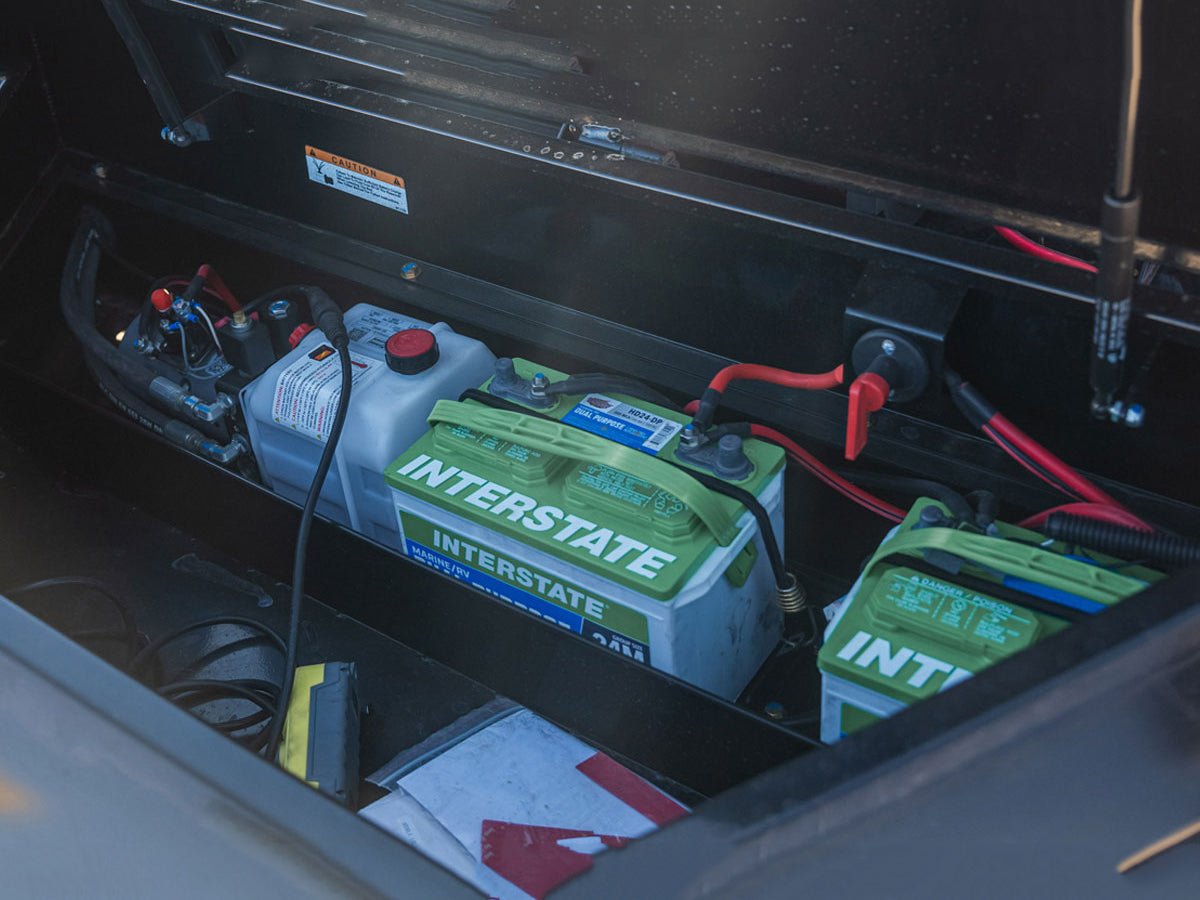

Lockable All-In-One Toolbox
The trailer features a lockable 2.85 cu ft toolbox. This secure compartment houses the hydraulic pump, dual batteries, trickle charger, and wireless remote, keeping all critical components organized and protected from the elements.

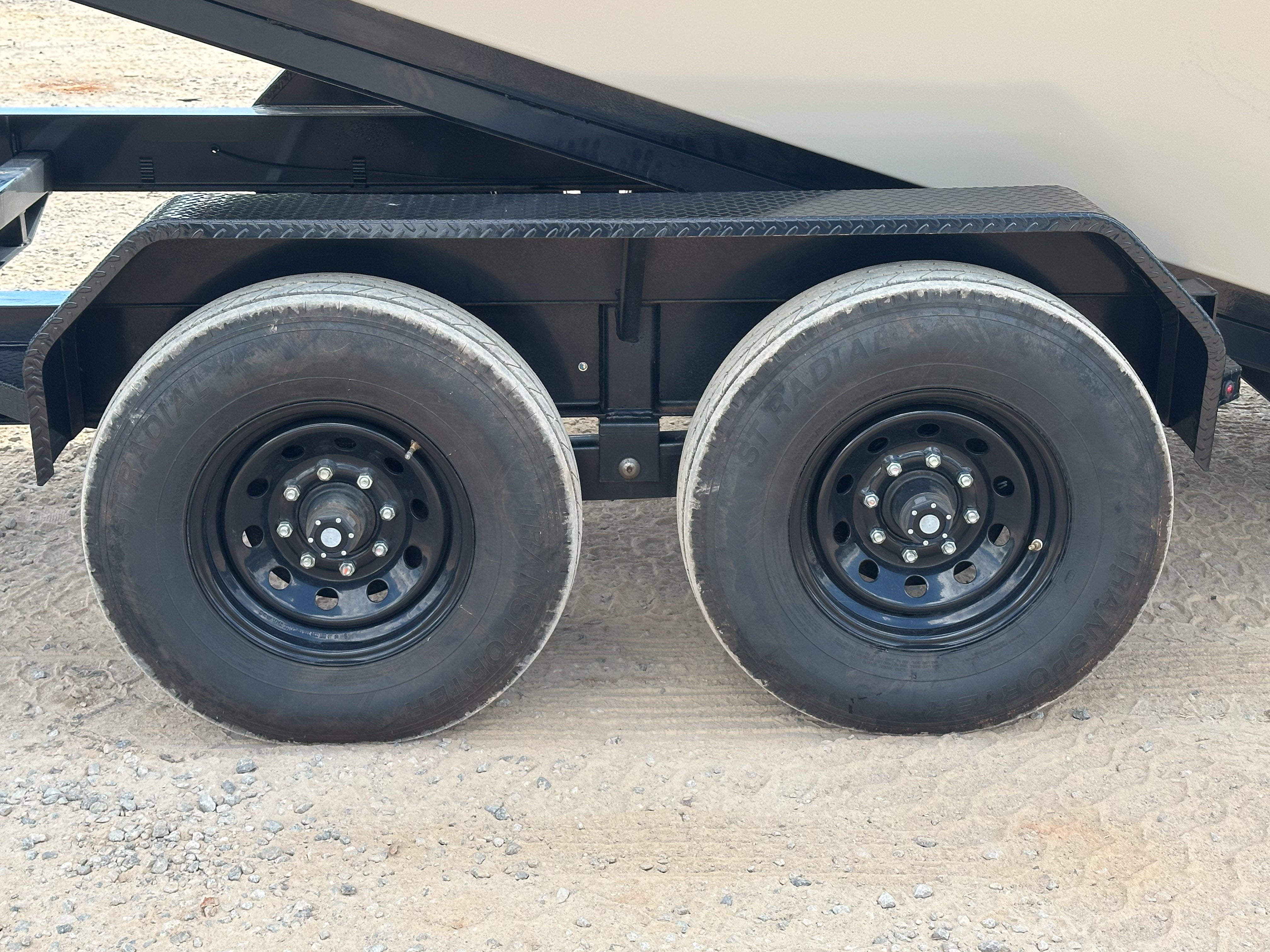

7k or 8k Tandem Axles
Configure with robust 7k or 8k tandem axles with electric brakes. The multi-leaf spring suspension with an equalizer ensures balanced load distribution and a stable ride, whether you're prioritizing capacity or value.

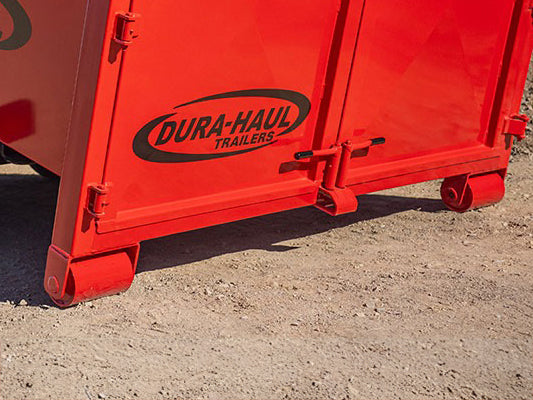

Greasable Rollers & HD Locks
Features greasable rollers with zerks for easy maintenance and smooth operation. The bin is secured by a heavy-duty clamp lock system and includes safety door locks for secure transport.

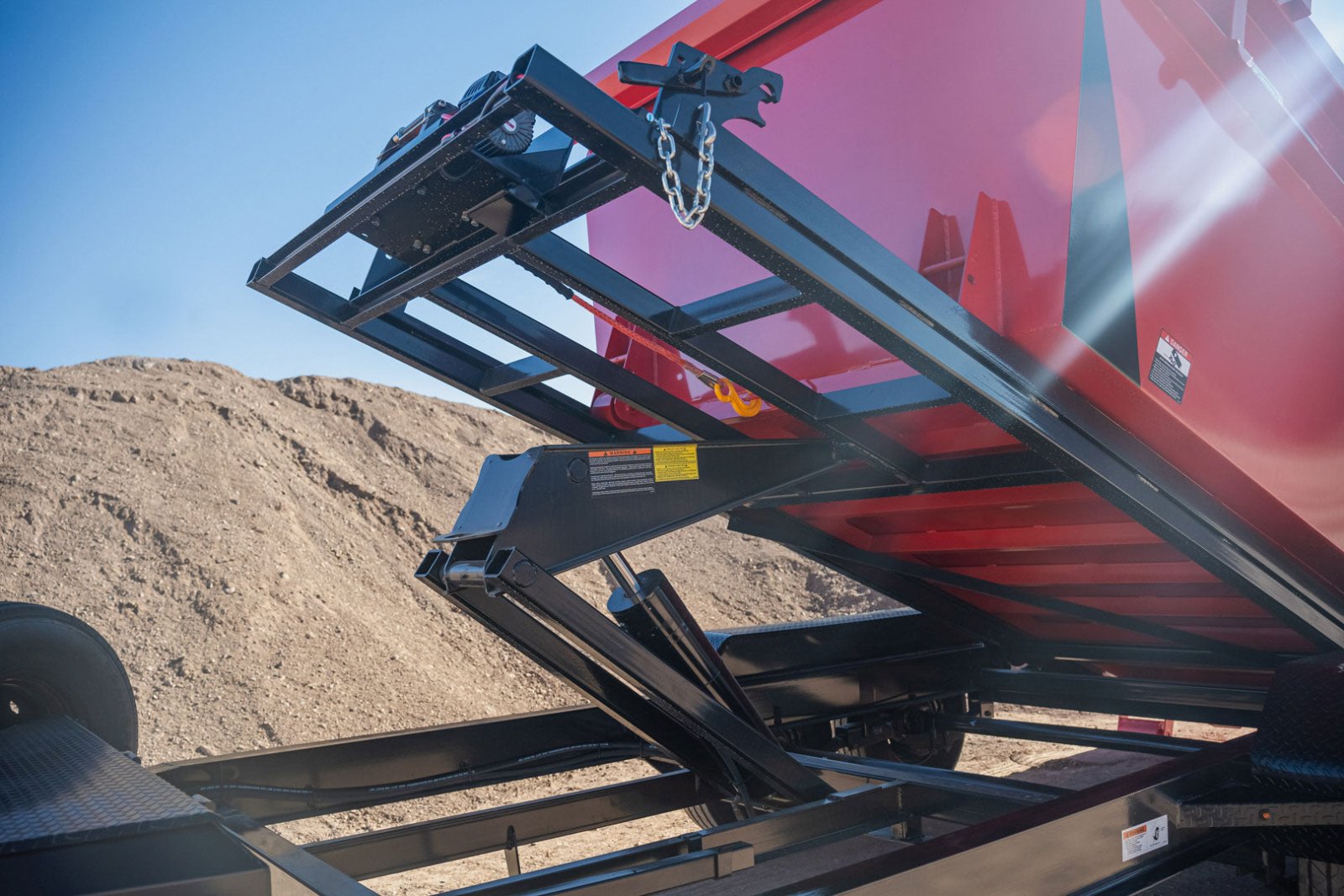

Hydraulic Scissor Lift
The heart of the system is a heavy-duty hydraulic scissor lift. This design provides a powerful, low-profile lifting mechanism with a stable, wide base of support to smoothly raise and lower the loaded bin.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Dura-Haul Base BP Roll Off Trailer
- LENGTH:
- 14’, 16’
- GVWR:
- 16,800 lbs (7K axles), 19,200 lbs (8K axles)
- GAWR:
- 7,000 lbs (7K axles), 8,000 lbs (8K axles)
WEIGHT RATING OPTIONS:
- WEIGHT:
- 3,440 lbs (14’), 3,840 lbs (16’)
BIN:
- MODEL:
- Roll Off Bin
- BOX WIDTH:
- 83.75” at the top, 72” at the bottom
- TARP WIDTH:
- 90”
- TOP BOX WIDTH:
- 84”
- HEIGHT:
- 48” (sides)
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 8” or 10” ultra strong I-beam
- FENDERS:
- Diamond plate fenders
- LIFT SYSTEM:
- Heavy duty hydraulic scissor lift
- FLOOR:
- 7 gauge smooth plate flooring
- FRAME STRUCTURE:
- 3” channel bed with 16” on-center cross members
- ROLLERS:
- Greasable rollers with grease zerk
WALLS & SIDES:
- SIDE WALLS:
- 48” high fully formed sides
- TOP RAIL:
- 10 gauge top rail, 2.75” x 4.25”
- TOP BOX:
- Extra large capacity 84” wide top box
FINISH:
- TYPE:
- Powder coat finish
- PAINTING PROCESS STEP 1:
- Steel grit blasting
- PAINTING PROCESS STEP 2:
- Acid wash
- PAINTING PROCESS STEP 3:
- Phosphate treatment
- PAINTING PROCESS STEP 4:
- Heated silicone treatment
- PAINTING PROCESS STEP 5:
- Powder coat finish
TONGUE & STORAGE

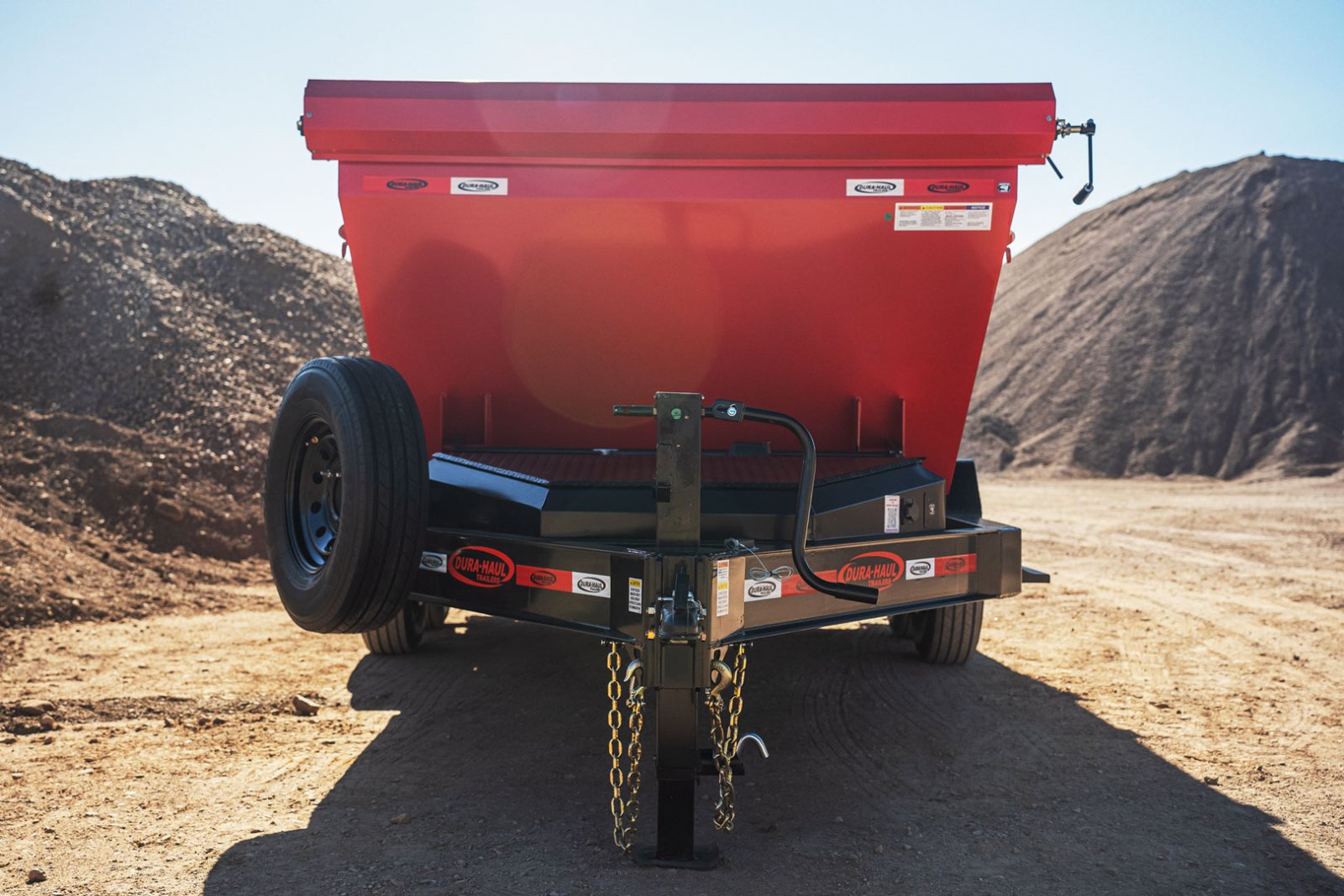

TONGUE:
- COUPLER:
- Adjustable pop-up 2-5/16” coupler with EZ latch for quick release outside truck bed
- JACK:
- 2 x 12,000 lbs spring-loaded adjustable leg crank jacks
STORAGE:
- TOOL BOX:
- Lockable 2.85 cu ft toolbox with charger, pump, dual batteries, and remote control
RUNNING GEAR & SAFETY
RUNNING GEAR:
- AXLES:
- 7K or 8K tandem axles with electric brakes
- RATING:
- 7,000 lbs (7K axles), 8,000 lbs (8K axles)
- BRAKES:
- Electric
- TIRES:
- ST235/80 R16 LRE
- TIRE SIZE:
- ST235/80 R16
- RIMS:
- 16” 8-hole wheels
- SUSPENSION:
- Multi-leaf spring suspension with equalizer
- HUBS:
- Quick lube hubs with dust caps
RUNNING GEAR OPTIONS:
- AXLE OPTIONS:
- Choice of 7K or 8K axles
SAFETY:
- SAFETY CHAINS:
- 2 safety chains
- BREAKAWAY SYSTEM:
- Safe breakaway system with cable
SAFETY & ACCESSIBILITY:
- DOOR LOCKS:
- Open door safety locks
- CLAMP LOCK:
- HD clamp lock system
- TWIX LOCK:
- Twix door locking system
- LIGHTING:
- Fender side rear LED markers, DOT approved
LOADING & ELECTRICAL
LOADING:
- DECK:
- Optional deck
- FLATBED ATTACHMENT:
- Available
- BOX HEIGHT:
- 4’ or 6’ options
ELECTRICAL & LIGHTING:
- FRAME WIRING:
- All-weather wiring harness
CARGO MANAGEMENT & OPTIONS
CARGO:

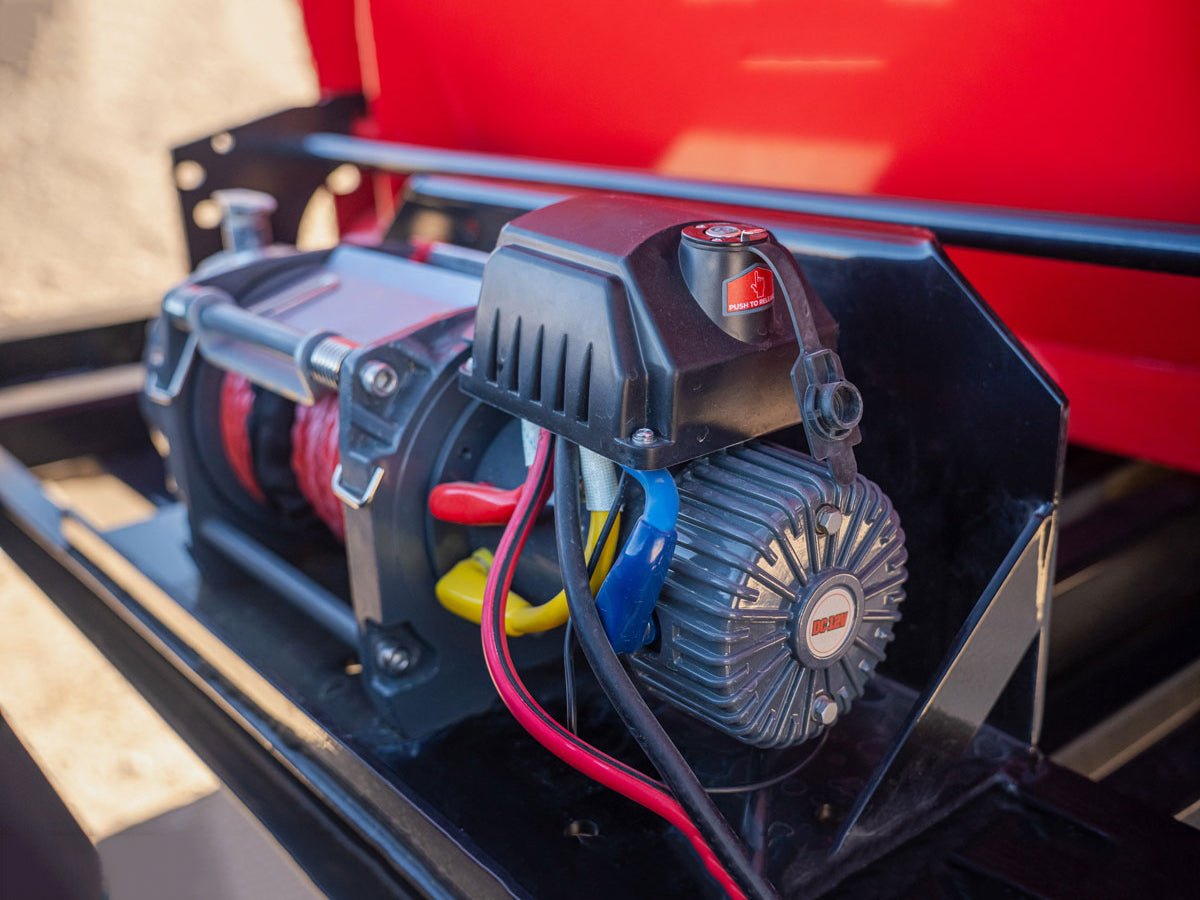

- WINCH:
- 17.5K Warrior wireless winch
- TARP:
- 90” wide tarp with crank roller style
- TARP COVER:
- Included

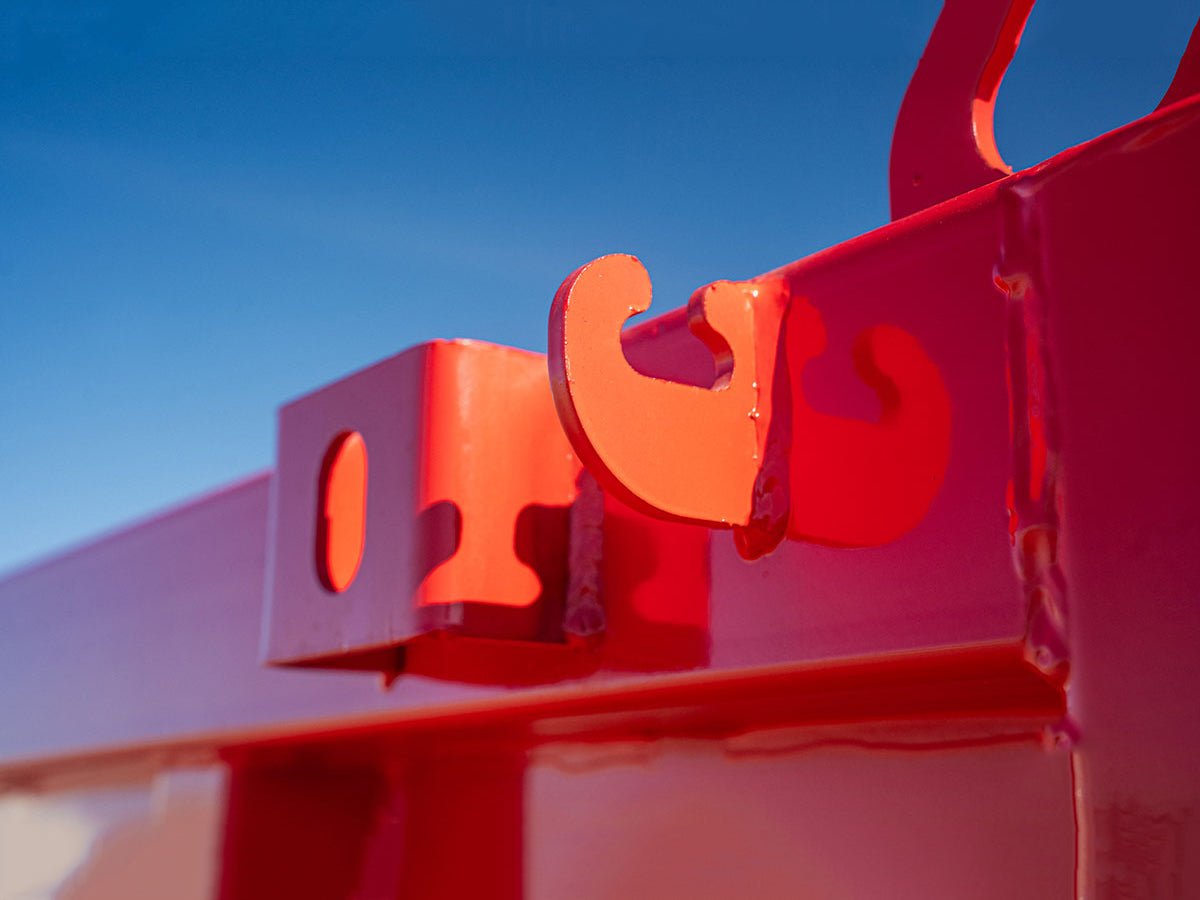

- TARP HOOKS:
- Rear rod tarp hooks
- D-RINGS:
- (4) 1/2” D-rings inside of bed
- EXTENSION POCKETS:
- 12 extension pockets
- STACK UP POCKETS:
- Included
POPULAR OPTIONS:
- COLOR:
- Custom color options
- TARP:
- Manual or electrical tarp
- SPARE TIRE:
- Available
