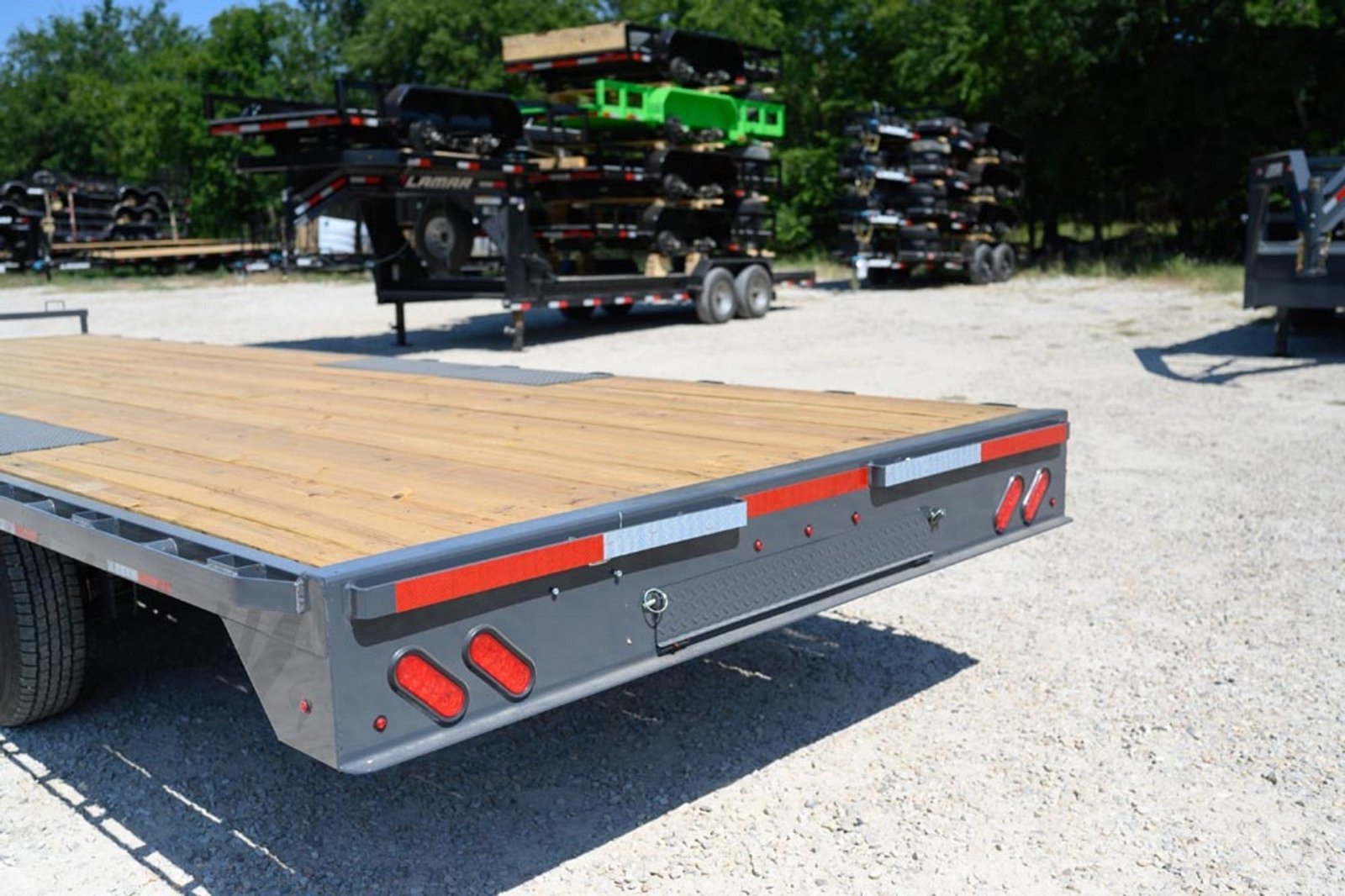

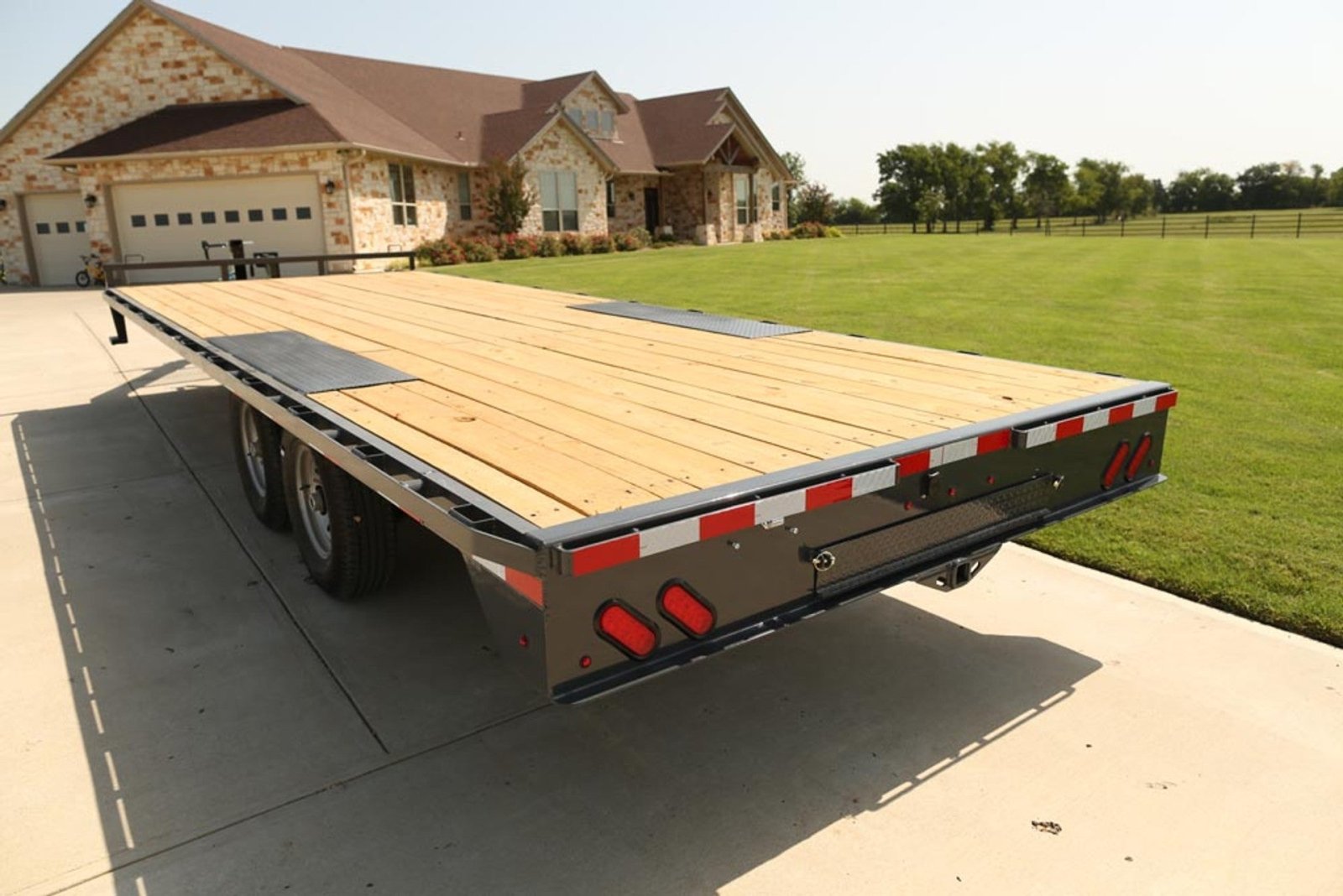

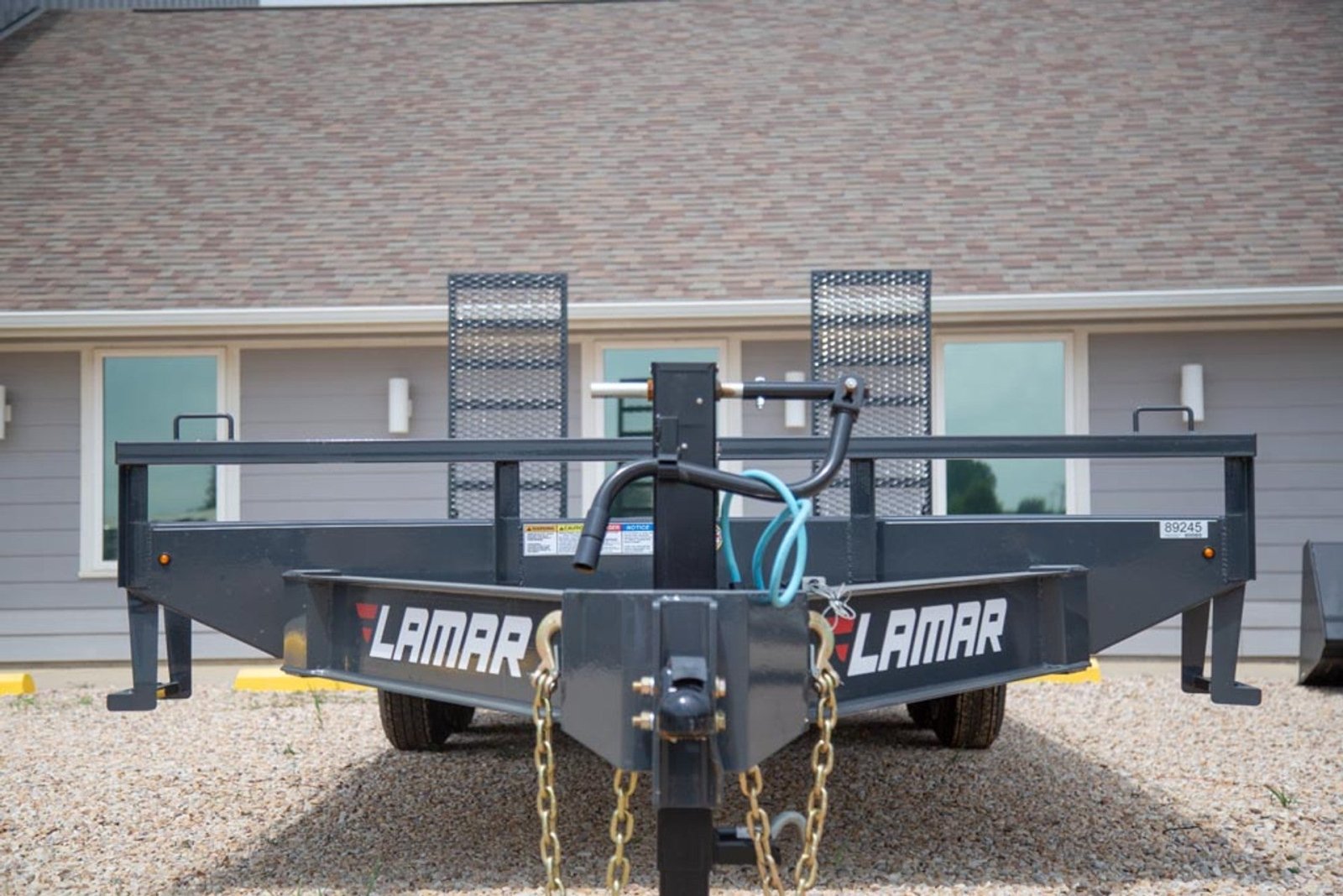

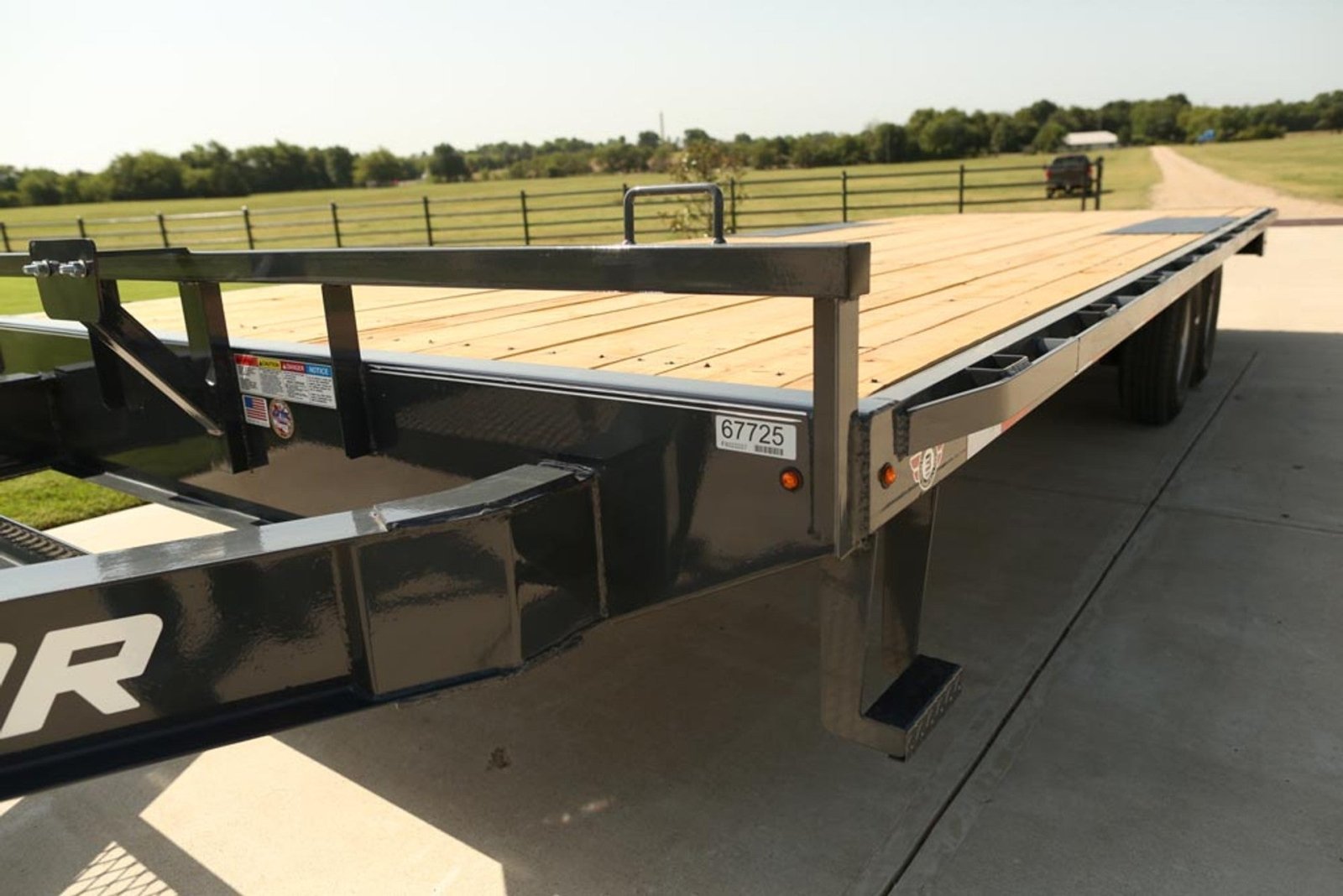

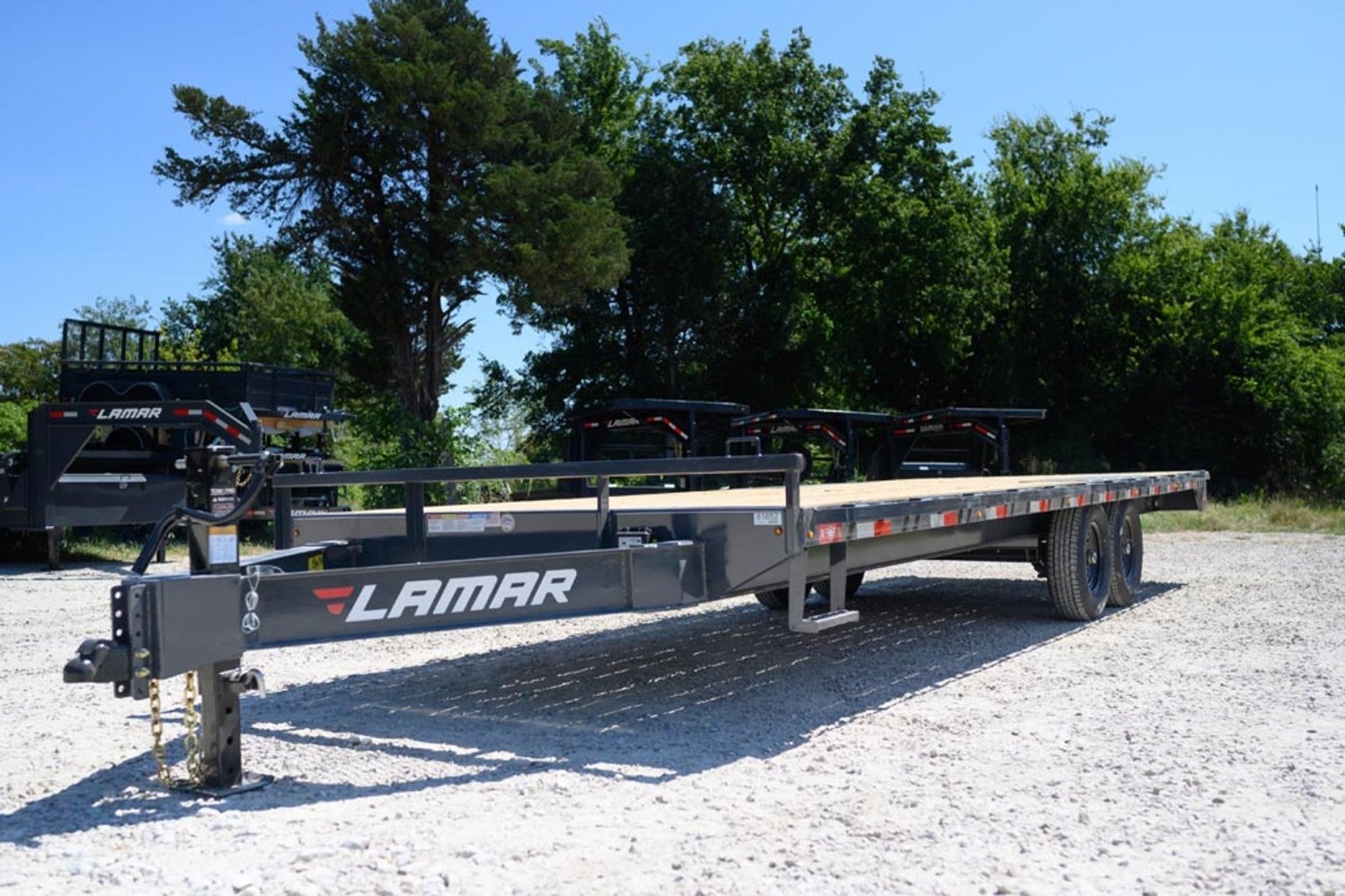

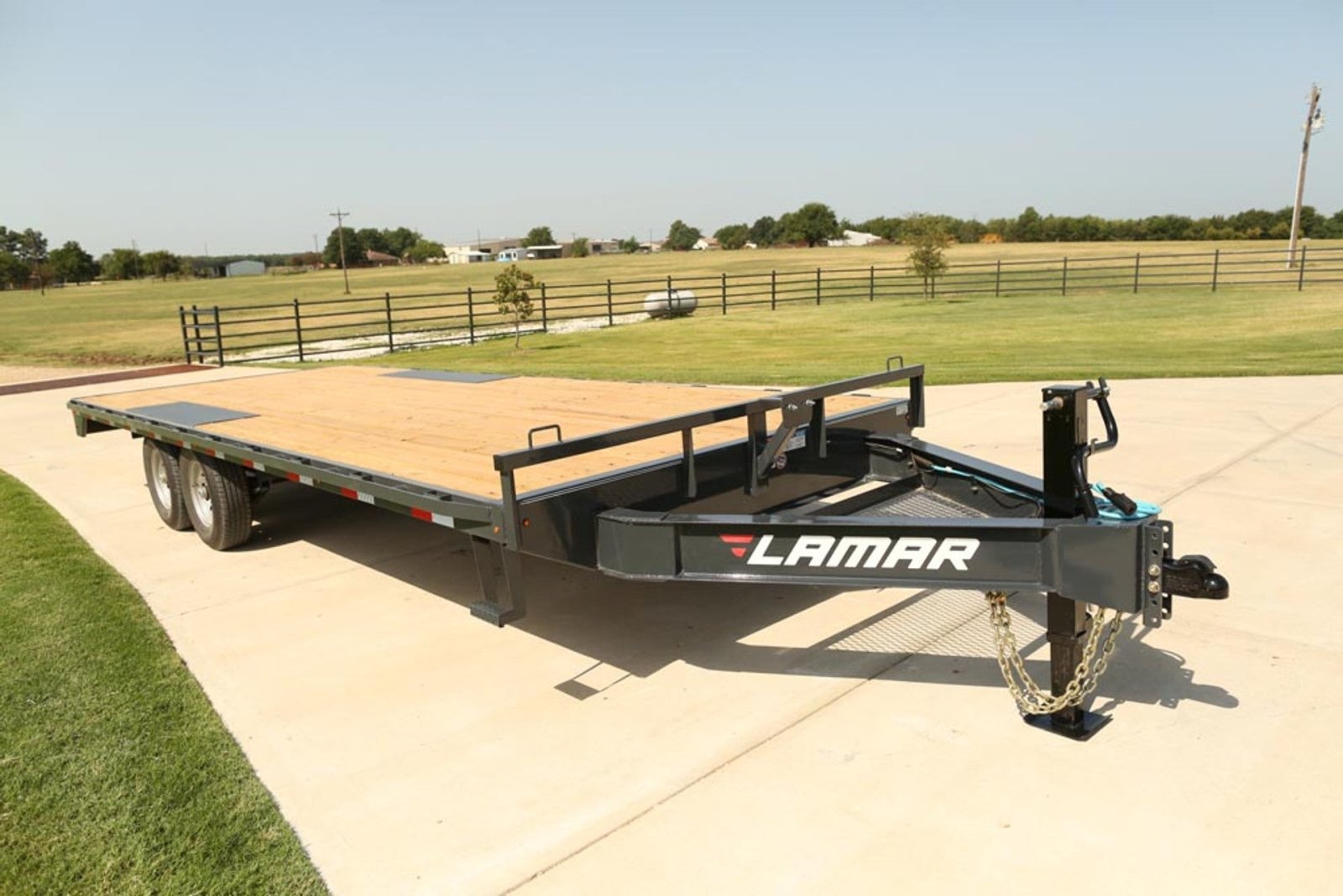

Lamar F8 Deckover Trailer
Lamar F8 Deckover Trailer
At a Glance
TRAILER SPECS:
Specifications
- Brand:
Lamar
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
16-24'
Product Features
Tire and Wheel Options
The F8 features 235/85 R16 tires and black wheels, ensuring a sturdy foundation for hauling needs. Upgrades include 215/75 R17.5 (H) 16-ply SS tires or 235/85 R16 (G) 14-ply tires for added strength with heavier loads. Options like a spare tire mount and spare tires are available for convenience and preparedness.

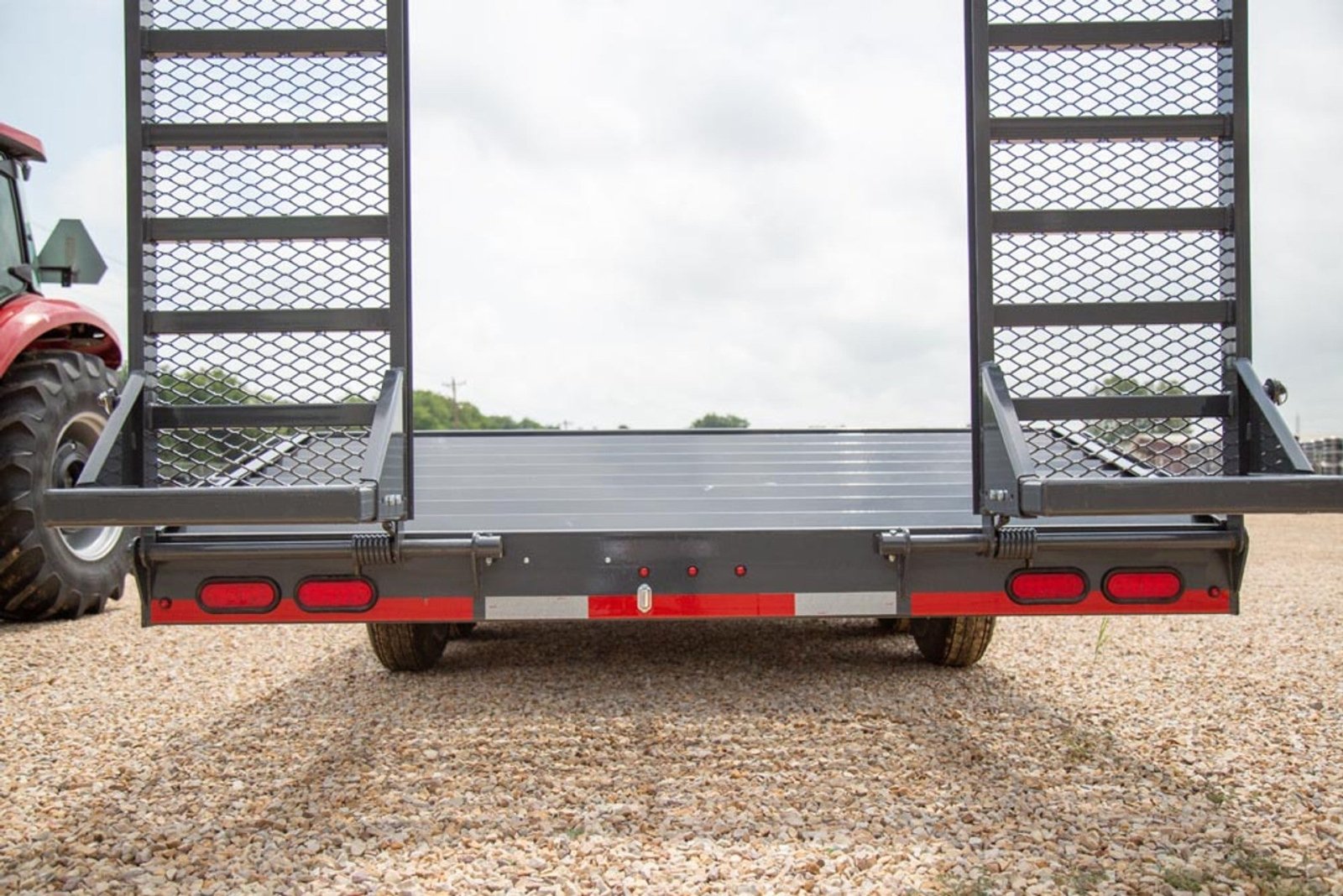

Customizable Loading Angles
The straight deck comes with 96" slide-in ramps set at a 20° angle, facilitating smooth loading. Alternative configurations include a 4' dovetail with 24" stand-up ramps at an 18° angle or Rhino ramps at a 19° angle, tailored to specific loading needs.
Heavy-Duty Running Gear
Available with multiple axle options, such as 7K electric brake oil bath spring axles or 8K electric brake oil bath axles. These configurations ensure that the trailer can handle heavy loads with ease and provide reliable braking performance.
Robust Frame Construction
Built with an 8" 10 lb I-beam frame and 16" spaced crossmembers, the trailer ensures durability and strength. The treated yellow pine floor adds resilience against wear and weather. Optional upgrades include a 4' or 5' dovetail for easier loading and an 11-gauge diamond plate floor for enhanced durability.
Powder Coat Finish
With a durable powder coat finish, the Lamar F8 trailer resists rust and corrosion, ensuring longevity and sleek appearance. Applied after meticulous grit blast preparation, it withstands harsh weather and heavy use, reflecting Lamar's commitment to quality.
Warranty
This Lamar trailer offers a 3-year structural warranty and a 1-year paint warranty, protecting against manufacturing defects and maintaining appearance. This comprehensive coverage reflects Lamar's commitment to quality and customer satisfaction, ensuring peace of mind for owners.Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Lamar F8 Deckover Trailer
- 14K SIZES:
- 102” x 16’, 102” x 18’, 102” x 20’, 102” x 22’, 102” x 24’
- 14K WEIGHT:
- 3,325 lbs (16’), 3,435 lbs (18’), 3,675 lbs (20’), 3,970 lbs (22’), 4,231 lbs (24’)
- 14K PAYLOAD:
- 10,675 lbs (16’), 10,565 lbs (18’), 10,325 lbs (20’), 10,030 lbs (22’), 9,769 lbs (24’)
- AXLES:
- 7K easy lube electric brake spring axles (varies by GVWR)
RUNNING GEAR OPTIONS:
- AXLES:
- 7K electric brake oil bath spring axles
- AXLES:
- 7K easy lube electric brake 22.5° down torsion axles
- AXLES:
- 8K electric brake oil bath spring axles
- AXLES:
- 8K electric brake oil bath 22.5° down torsion axles
FRAME & CONSTRUCTION
FRAME:
- FRAME:
- 8” 10 lb I-beam frame
- CROSSMEMBERS:
- 16” spaced crossmembers
- FLOOR:
- Treated yellow pine floor
- DECK:
- Straight deck
- COLOR:
- Lamar charcoal gray powder coat
FRAME OPTIONS:
- DECK:
- 4’ dove tail
- DECK:
- 5’ dove tail
- DECK ON NECK:
- 8’ deck over neck
- CROSSMEMBERS:
- 12” spaced crossmembers
- FLOOR:
- 11 gauge diamond plate floor
- FLOOR:
- Oak floor
- COLOR:
- None available
RUNNING GEAR & SAFETY
RUNNING GEAR:

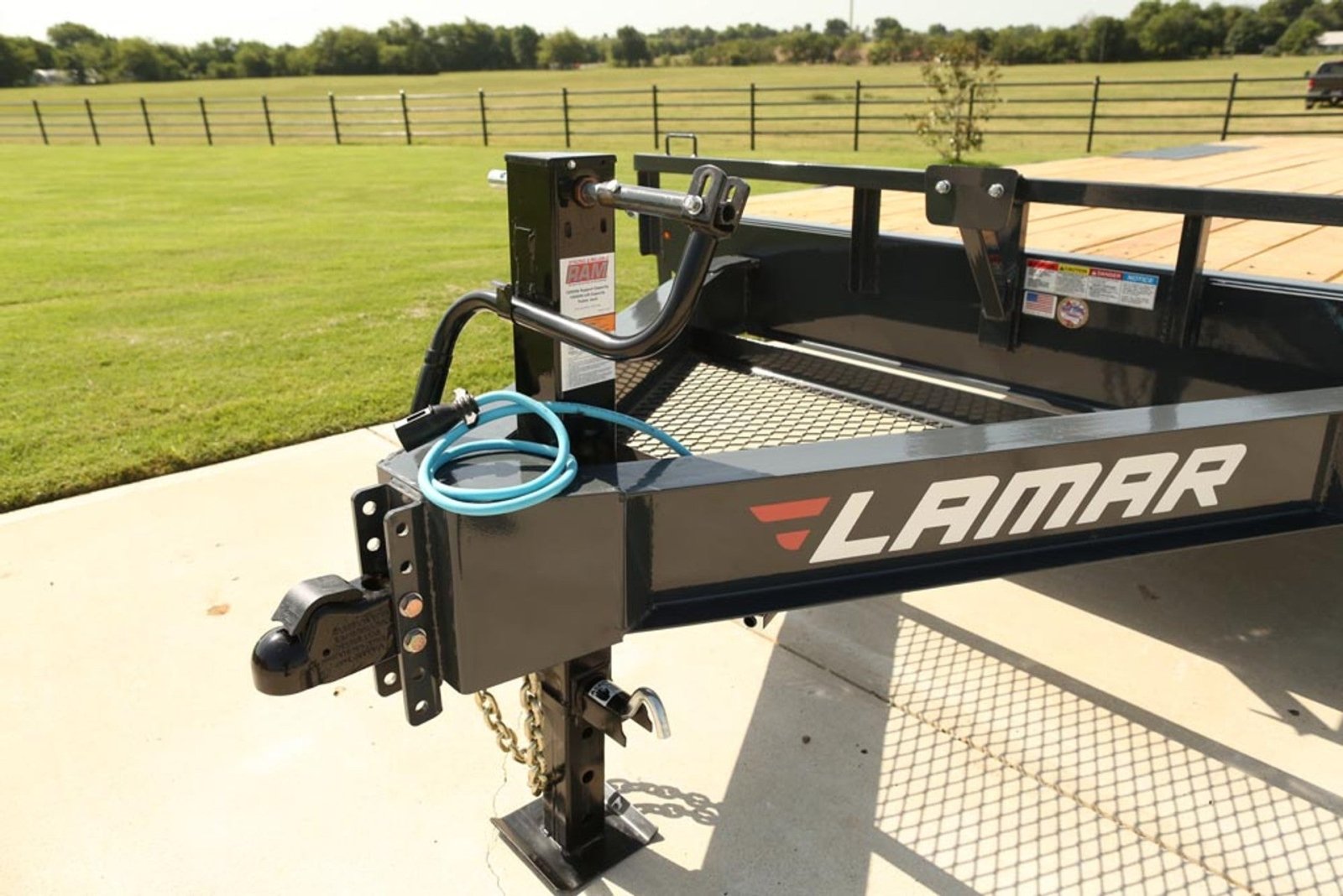

- COUPLER:
- 2-5/16” 21K Demco adjustable cast iron coupler
- COUPLER HEIGHT:
- Ground to coupler height 25” - 33”
- JACKS:
- Single 10K drop-leg jack
- TIRES:
- 235/80 R16 (E) 10 ply tire (varies by GVWR)
- SPARE:
- Spare tire mount
RUNNING GEAR OPTIONS:
- COUPLER:
- 3” 25K adjustable pintle eye coupler
- COUPLER:
- 2-5/16” 25K gooseneck coupler
- COUPLER:
- 2-5/16” 30K gooseneck adjustable topwind square coupler
- NECK & COUPLER:
- 6” raised neck & coupler (ideal for lifted trucks)
- NECK & COUPLER:
- 12” raised neck & coupler (ideal for lifted trucks)
- JACKS:
- Dual 10K drop-leg jacks
- JACKS:
- Single 10K 2-speed jack
- JACKS:
- Dual 10K 2-speed jacks
- JACKS:
- Dual 10K hydraulic jacks
- TIRES:
- 215/75 R17.5 (H) 16 ply SS tire black wheel
- TIRES:
- 235/85 R16 (G) 14 ply tire with black wheel
- SPARE:
- Spare tire
SAFETY:
- LIGHTING:
- LED lights
- WIRING:
- Weather resistant harness (-65°F)
ELECTRICAL OPTIONS:
- SOLAR CHARGER:
- Available
CARGO MANAGEMENT
CARGO:
- TOOLBOX:
- Expanded metal tool tray
- RUB RAIL:
- Included
- STAKE POCKETS:
- Standard stake pockets
LOADING:
- LOADING ANGLE:
- Straight deck with 96” slide-in ramps - 20°
- RAMPS:
- Pair of slide-in ramps
CARGO MANAGEMENT OPTIONS:
- TOOLBOX:
- Front toolbox
- TOOLBOX:
- 4’ side mount toolbox
- GATE:
- 5’ spring assisted heavy duty gate with ramp legs
- D-RINGS:
- Weld-on D-rings
- D-RINGS:
- Flush mount D-rings
- D-RINGS:
- Flush mount swivel D-rings
- WINCHES:
- Weld-on strap winches
- WINCHES:
- Sliding strap track & winches
- CHAIN RACK:
- Lockable chain rack
- WINCH PLATE:
- Available
- WINCH:
- 12,500lb Warrior winch
- RECEIVER HITCH:
- Receiver hitch & plug
- LOADING ANGLE:
- 4’ dove with 24” stand up ramps - 18°
- LOADING ANGLE:
- 4’ dove with Rhino ramps - 19°
- LOADING ANGLE:
- 5’ dove with Rhino ramps - 16°
- RAMPS:
- Pair of flip-over ramps
- RAMPS:
- Pair of Rhino ramps
- RAMPS:
- Pair of 24” wide heavy duty stand-up ramps
