Stryker SDT Bumper Pull Dump Trailer

Stryker SDT Bumper Pull Dump Trailer

Stryker SDT Bumper Pull Dump Trailer

Stryker SDT Bumper Pull Dump Trailer

At a Glance

Brand Stryker
Pull type Bumper Pull
GVWR 14k-16,000 lbs
Trailer Type DT1 Light Duty
Length 12-16'
Weight 4,500-5,480 lbs
Axle Capacity 7-8,000 lbs
Height 2-4'
Axles 2

TRAILER SPECS:

Finish

Colors:
White
Light Grey
Grey
Black
Desert Tan
Orange
Red
Lime Green
Green
Blue

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery

Get a Custom Quote

View full details

Product Features

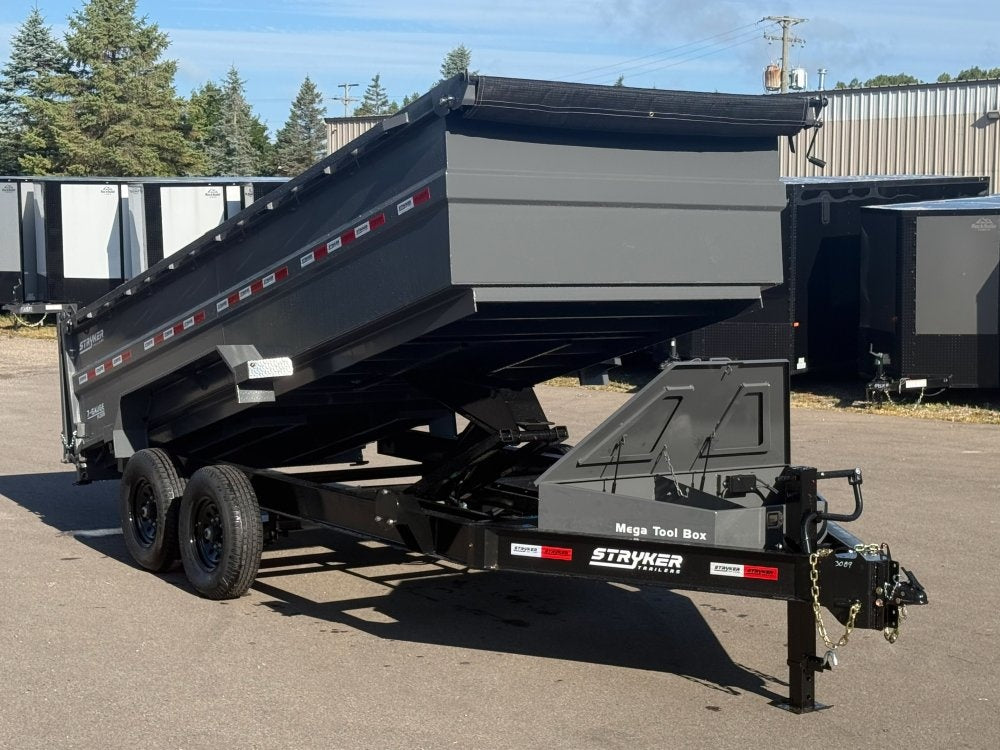

Heavy-Duty Scissor Lift Power

A 5x21 or 6x21 scissor lift delivers up to 20,000 lbs of lifting capacity, ensuring fast and stable dumping for even the heaviest loads. The reliable hydraulic system with wired controller provides smooth, controlled operation every time.

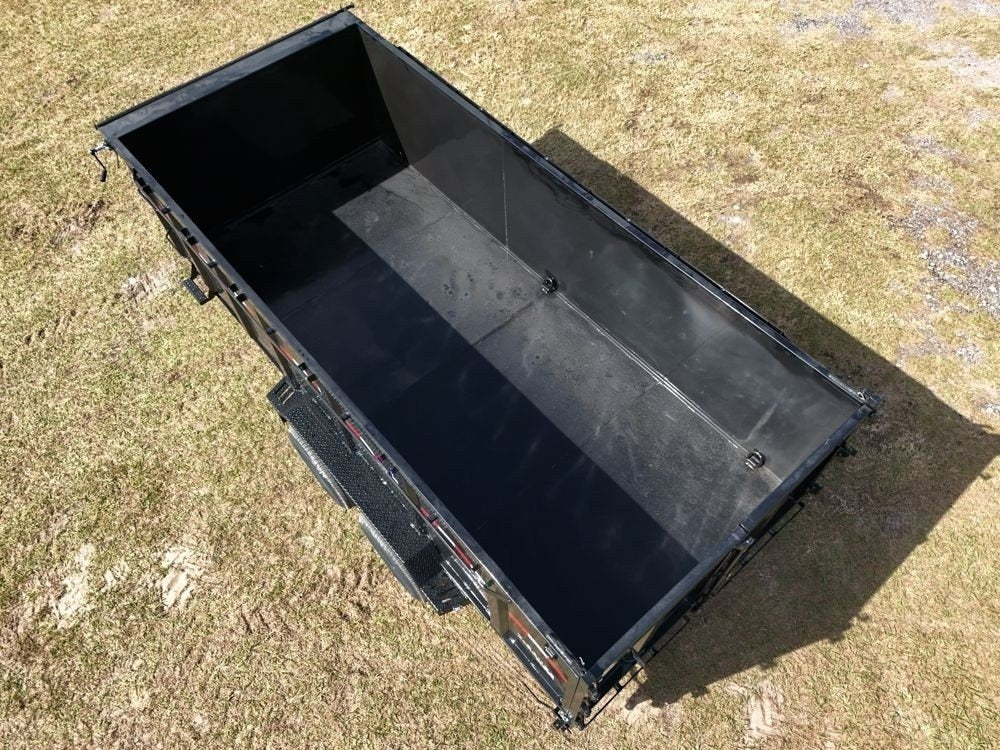

Rugged 7-Gauge Steel Bed

Built from 7-gauge steel, the dump bed is designed to take daily abuse from rock, dirt, and debris. The 10-gauge steel sides and 3-way spreader gate make this trailer ready for demanding job sites.

Industrial-Strength Frame

An 8” I-beam main frame forms the backbone of the Stryker SDT, offering superior strength and durability under full payloads. It’s engineered for longevity and stability in heavy-duty applications.

High-Capacity Payload Performance

With up to 10,520 lbs of payload capacity and GVWR ratings up to 16,000 lbs, this trailer handles the toughest loads with ease—ideal for construction, landscaping, and equipment transport.

Professional-Grade Finish

A durable powder-coated finish protects against corrosion and wear. Choose from a wide range of colors including Black, Grey, Desert Tan, and more to match your brand or fleet.

Road-Ready Running Gear

Dual Dexter 7k–8k axles, 14-ply radial tires, and 16" black mod wheels combine for smooth, dependable towing performance and long-lasting durability on any terrain.

Product Details

DIMENSIONS

LENGTH:
12', 14', 16'
SIDE HEIGHT:
2', 3', 4'
BED WIDTH:
83"

WEIGHT RATINGS

GAWR:
7,000 - 8,000 lbs
GVWR:
14,000 - 16,000 lbs
ESTIMATED DRY WEIGHT:
4,500 - 5,500 lbs
ESTIMATED PAYLOAD:
9,210 - 10,520 lbs

FINISH

PAINT TYPE:
Powdercoat
COLORS:
White, Light Grey, Grey, Black, Desert Tan, Orange, Red, Lime Green, Green, Purple, Blue

BUMPER PULL

TONGUE:
8" I-Beam (13 lbs/ft)
JACK:
1 10,000lb Jack

STORAGE

TOOLBOX:
Lockable Toolbox (Houses Battery & Pump)

CARGO AREA

BED WIDTH:
83"
FLOORING:
7ga. Steel Bed
SIDE HEIGHT:
2', 3', 4'
SIDE THICKNESS:
10ga.
GATE:
3 Way Spreader Gate
TARP:
Crank Style Roll-Up Tarp

LIFT SYSTEM

SYSTEM:
Hydraulic
CONTROLLER:
Wired
12' LIFT PLATFORM:
5x21 Scissor Lift (15,000 lbs Capacity)
14', 16' LIFT PLATFORM:
6x21 Scissor Lift (20,000 lbs Capacity)

RUNNING GEAR

TIRES:
Radial Tires, 235/80R16, 14 Ply, 3,520 lbs Rating
RIMS:
16" Black Mod Wheels
AXLES:
2 - Dexter 7k-8k Axles
BOLT PATTERN:
8 on 6.5"

FRAME & CONSTRUCTION

MAIN FRAME:
8" I-Beam (13 lbs/ft)

OPTIONS

STABILIZERS:
Rear Stabilizer Stands
LIFT TYPE:
Telescopic Lift
