At a Glance
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Featured Video
Product Features
Low 24-Inch Deck Height
This HDT's low deck makes loading equipment safer and easier. The reduced ramp angle provides a stable, gradual incline for driving equipment on and off, minimizing the risk of scraping or losing control.
Durable Oil Bath Torsion Axles
This trailer is available with your choice of 7k, 8k, or 10k axles. The 7k axles use a Super Lube system, while the 8k and 10k axles are oil bath.
Rigid I-Beam Frame Construction
The 8-inch I-beam main frame and 3-inch crossmembers on 16-inch centers create an exceptionally strong platform. This construction minimizes flex during loading and towing, providing a stable foundation for heavy, concentrated loads.

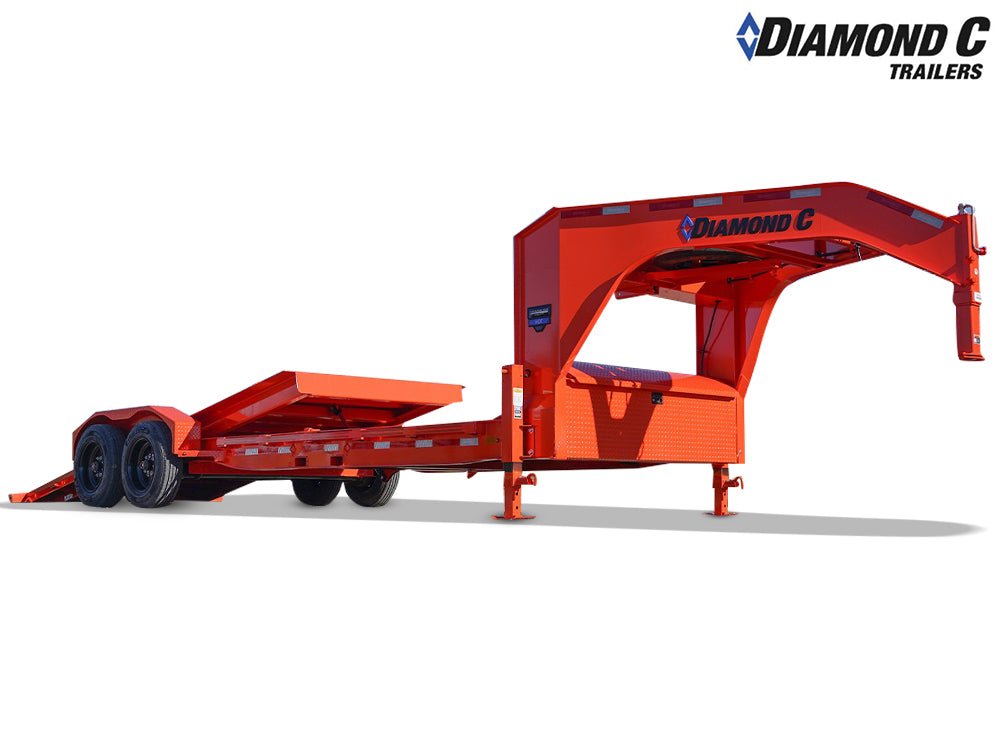

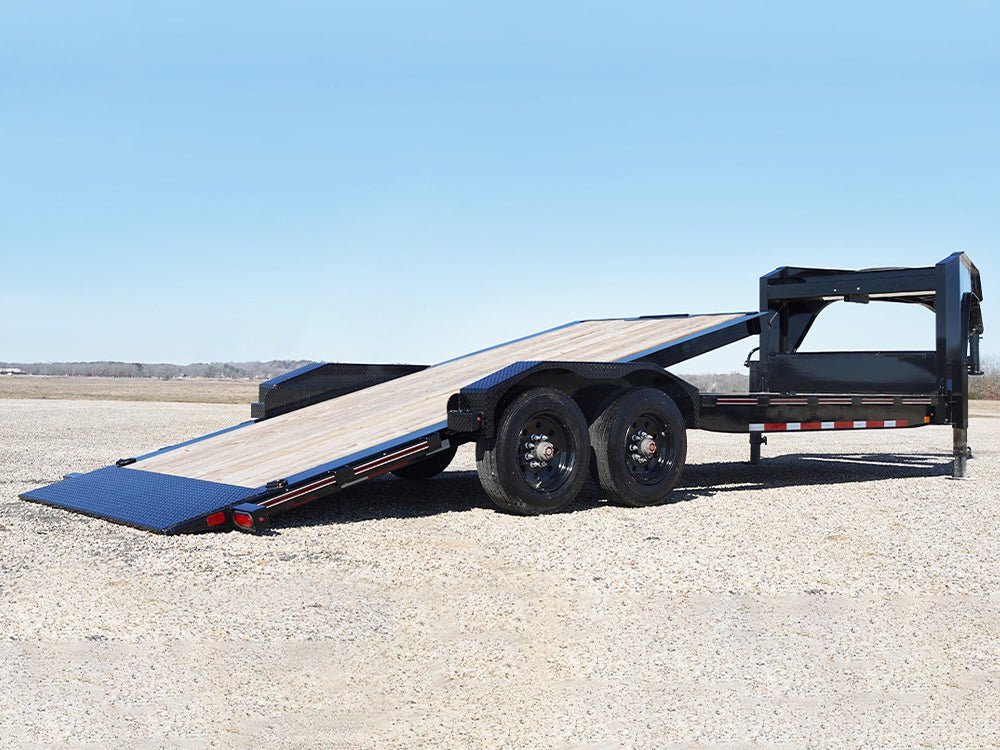

Tilt Deck Configurations
This trailer is available with two tilt deck options: a full-length tilt or a split deck on models over 18 feet. The split deck allows the front section to tilt independently of the rear.
Integrated V-Tongue Toolbox
The heavy-duty diamond plate toolbox is built directly into the tongue. This design provides secure storage for straps and tools without sacrificing deck space or compromising the trailer's clean profile.
Powdercoat Finish
The trailer is finished with a powdercoat, applied after a 5-step painting process. It is available in eight colors including Onyx Black, Scarlet Red, and Arctic White.
Product Details
DIMENSIONS
- LENGTH:
- 16' - 28'
- WIDTH:
- 80" - 82"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 14.9k - 20k

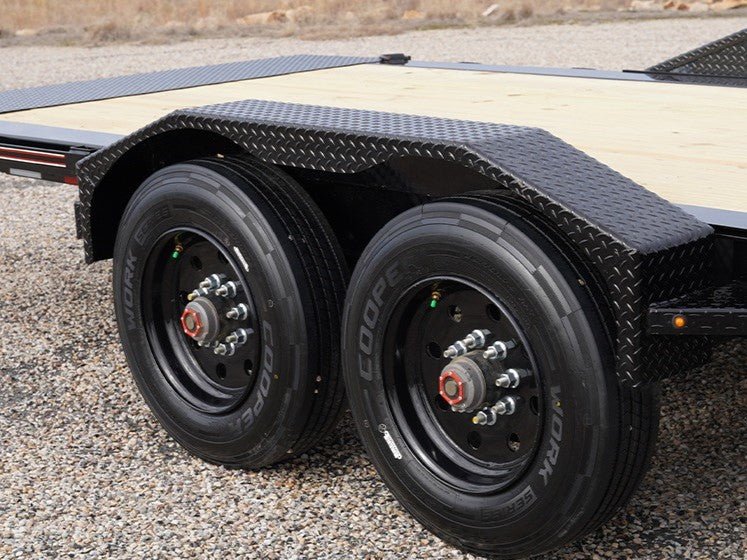

RUNNING GEAR
- TIRES:
- 235/80R16 / 215/75R17.5 (On 8k & 10k's)
- TIRE PLY:
- 14 Ply / 18 Ply (On 8k & 10k's)
- RIMS:
- 16" Black Wheels
16" Aluminum Two Tone Wheels
- AXLE TYPE:
- 2 - 7k Lippert Super Lube Torsion Axles
2 - 8k Lippert Oil Bath Torsion Axles
2 - 10k Lippert Oil Bath Torsion Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric Drum / Electric Over Hydraulic (10k Dual Option)
- SUSPENSION:
- Slipper Roller

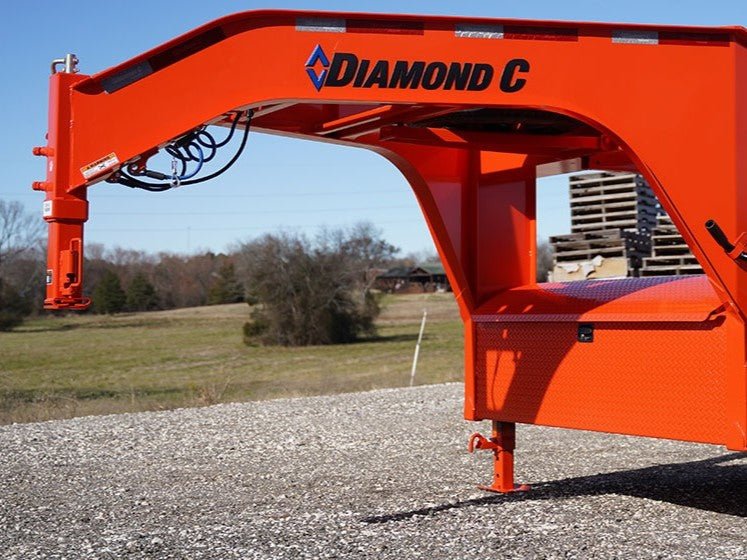

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 12" Engineered Gooseneck
- LENGTH:
- 103" Long

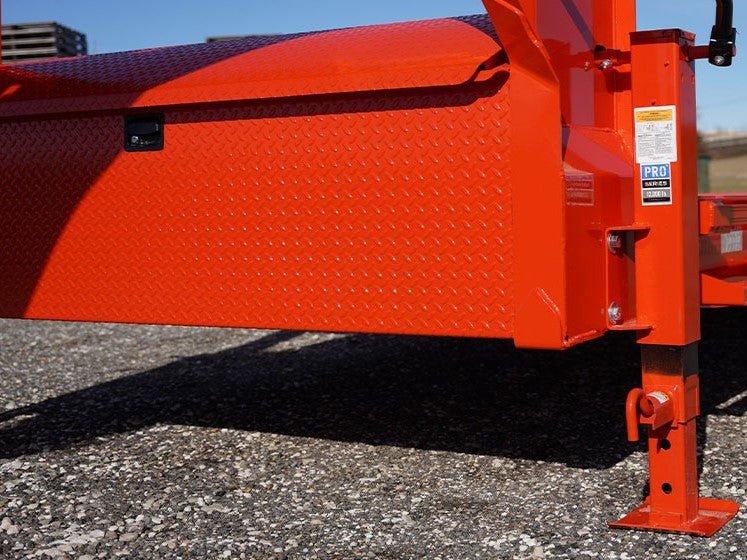

- JACKS:
- 2 - 12,000 lb Drop-Leg Jacks
- COUPLER:
- Curt Cushion Coupler (30,000 lbs)
- TOOLBOX:
- Diamond Plate Neck Box w/ Gas Shock Assisted Lid
- WINCH PLATE:
- Winch Mounting Plate
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" (10lb - 15lbs/ft On 8k & 10k Option) I-Beam Frame
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 14 Ga. Bolt-On Fenders
14 Ga. Weld-On Fenders

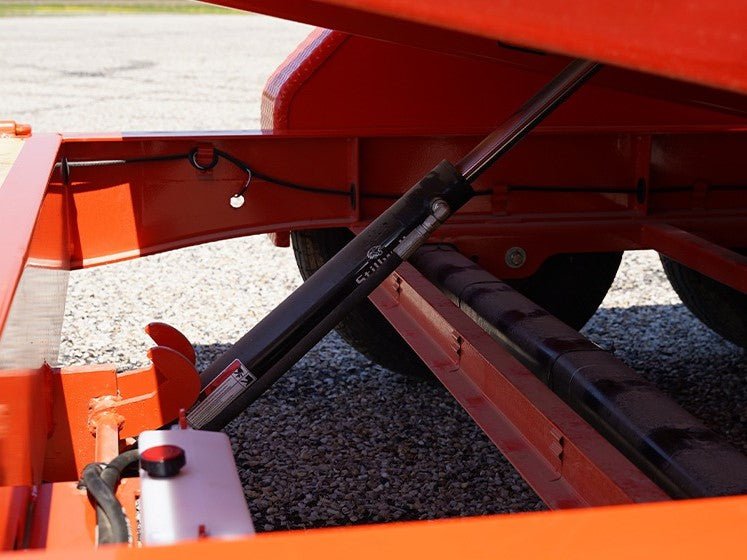

- TILT METHOD:
- Gravity Tilt System
- TILT DECK:
- Full Length
Split Deck (18'+)
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable

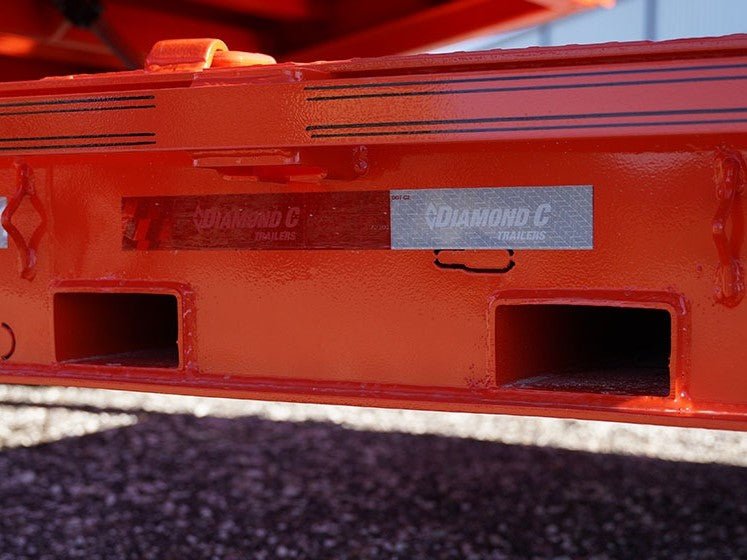

- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
ELECTRICAL & LIGHTING

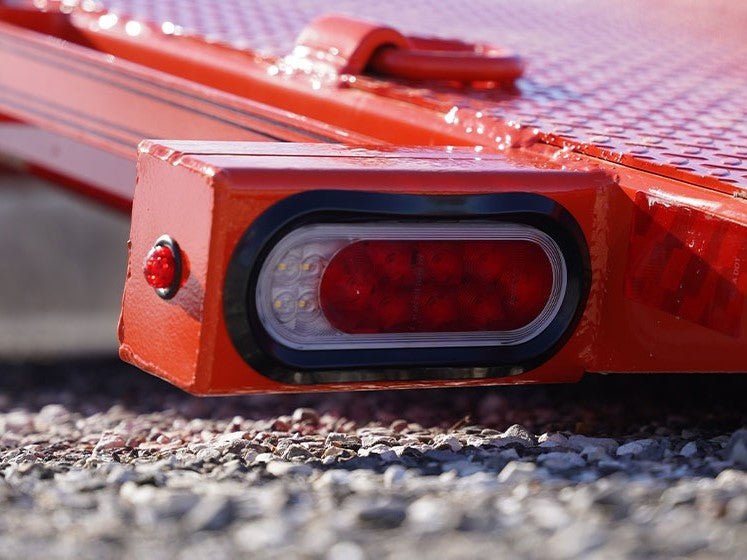

- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- Sealed Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Track, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black (#0F0F0F), Mocha Metallic (#A78767), Carbon Metallic Gray (#75787D), Dynamic Blue Metallic (#234FB0), Platinum Silver Metallic (#D3D3D3), Scarlet Red (#C8102E), Arctic White (#F8F8FF), Cement Gray (#8E9290)
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
