At a Glance
TRAILER SPECS:
Specifications
- Brand:
Dura-Haul
- Trailer Model:
BLT
- Pull Type:
Fifth Wheel
Dimensions
- LENGTH:
48' - 53'
- SIDE HEIGHT:
62"
Finish
- Colors:
-
Postal BlueVirginia BlueRedCat YellowBlackCharcoalMilitary GreenDesert TanWhite
Inquire About This Trailer
Featured Video
Product Features

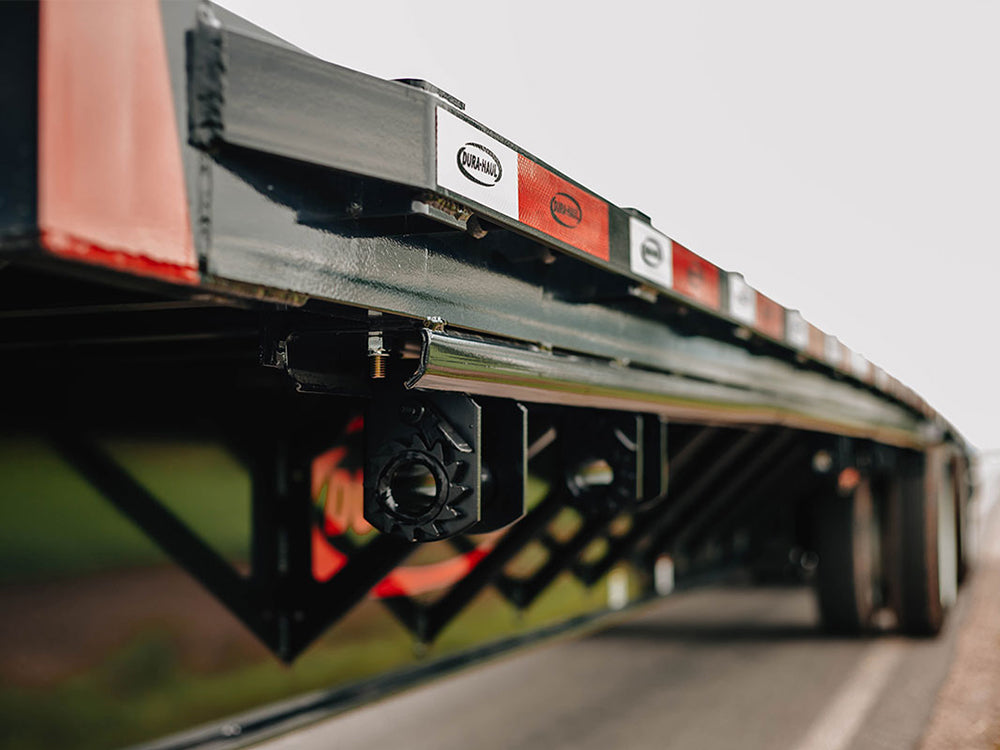

Load Securement

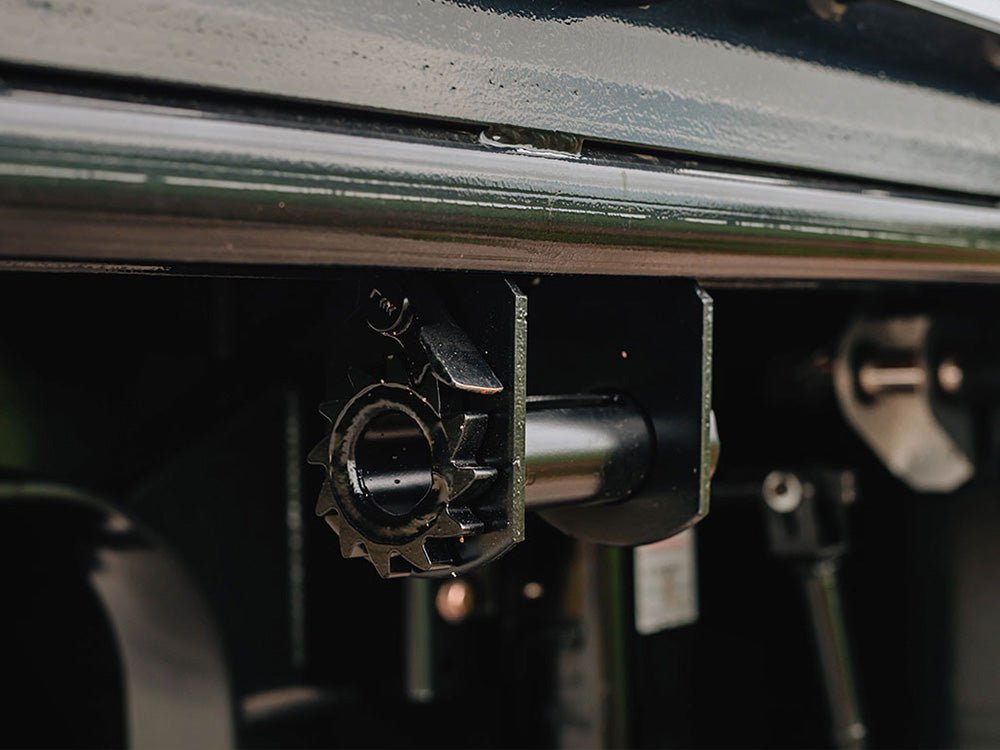

The Dura-Haul BLT Beaver Tail Trailer ensures secure load management with a sliding winch C-track, featuring a steel slide winch track on the driver side, equipped with 12 winches for the 48' model and 14 for the 53' model, providing precise and flexible tie-down options for various cargo types.

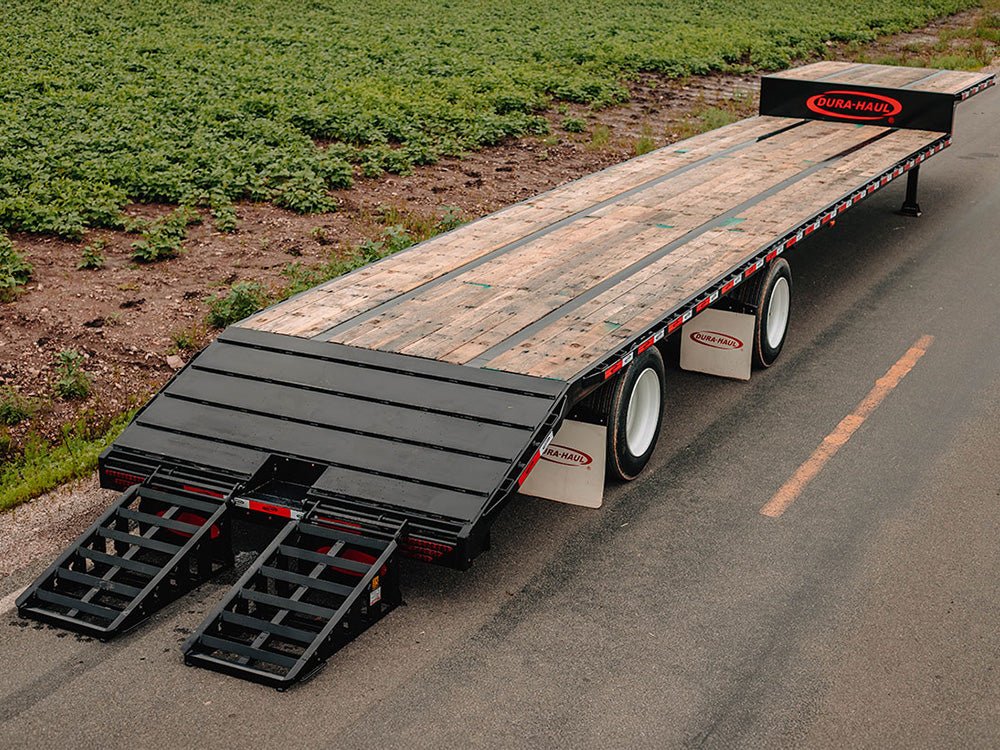

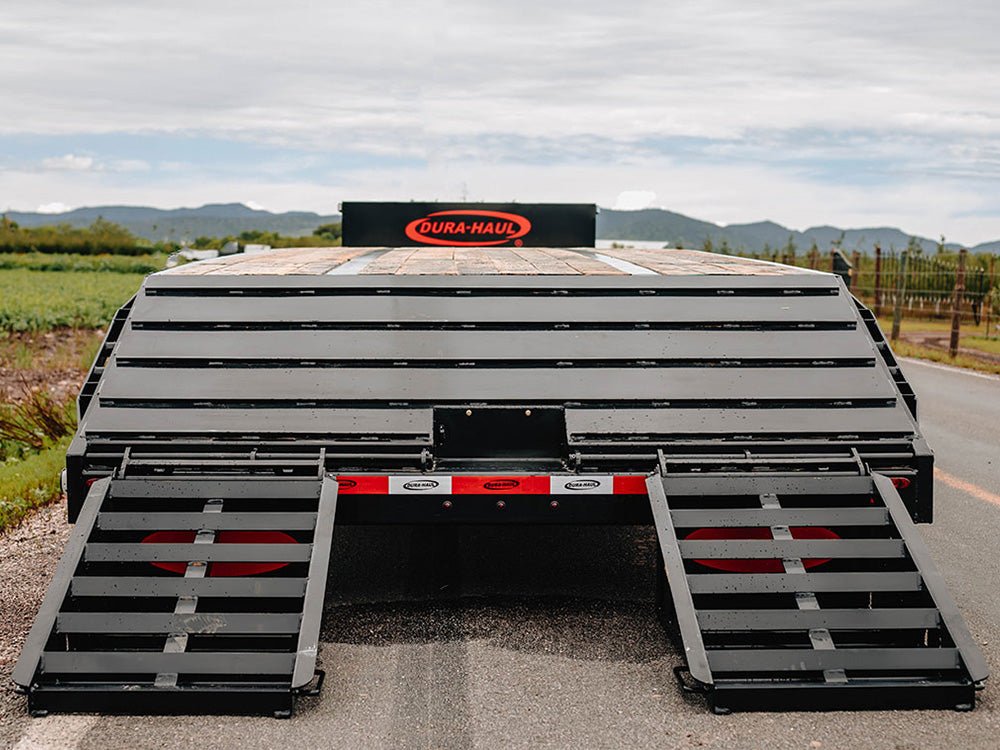

Heavy Duty Spring-Assisted Ramps
Loading and unloading are effortless with the trailer’s heavy-duty spring-assisted DuraRamps, which include an optional third ramp, making every haul smooth and efficient.
Robust Main Beam Construction
The trailer’s 27" high tensile steel main beam, combined with a Grade 80 high tensile steel web and 4" steel I-beam cross members on 12" centers, delivers exceptional structural integrity, ensuring reliable performance under heavy loads.
Advanced Air Ride Suspension

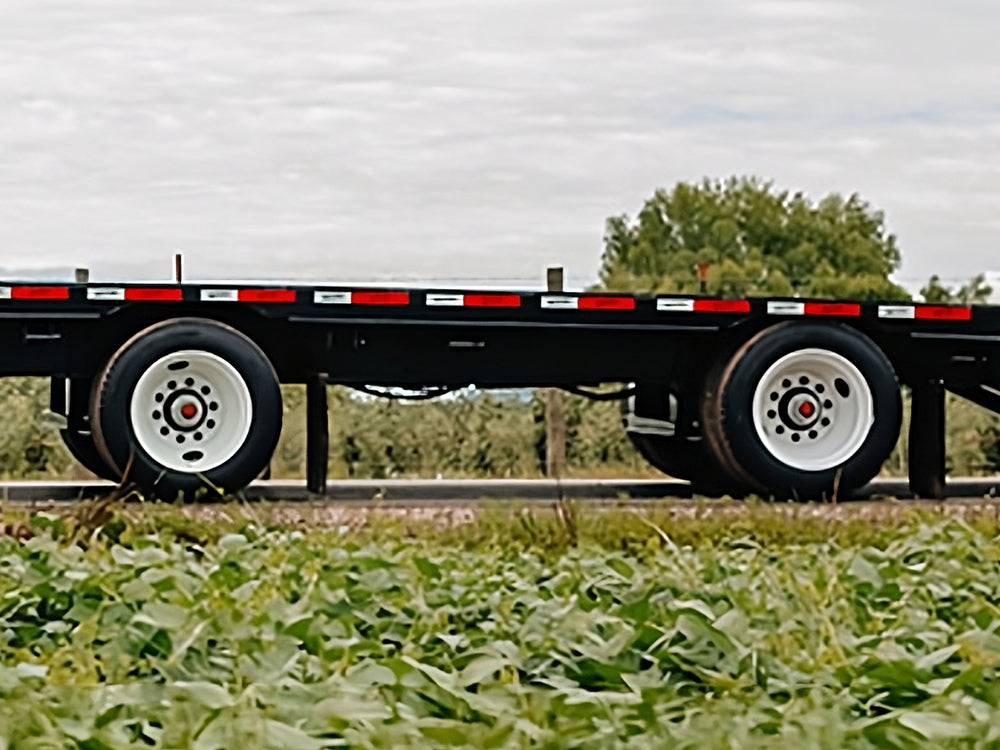

A heavy-duty air ride suspension with a 25,000 lbs capacity, paired with equally robust axles, provides a smoother ride and better load protection, minimizing cargo vibration and enhancing handling on varied terrains.
Durable Apitong Hardwood Floor
Spanning the 102" wide deck, the trailer’s 1-1/8" Apitong hardwood floor offers a durable, non-slip surface designed for longevity, capable of handling heavy equipment with frequent use.
Superior Powder Coat Finish
A meticulous 5-step painting process, including steel grit blasting, acid wash, phosphate treatment, heated silicone treatment, and powder coat finish, ensures a corrosion-resistant exterior, protecting the trailer against rust and environmental damage to extend its lifespan.
Product Details
DIMENSIONS & CAPACITY
- MODEL:
- Dura-Haul BLT Beaver Tail Trailer
- LENGTHS:
- 48', 53'
- UPPER DECK LENGTH:
- 10' 6"
- LOWER DECK LENGTH:
- 33'1" (48'), 38'1" (53')
- WIDTH:
- 102"
- LOWER DECK HEIGHT:
- 41"
- UPPER DECK HEIGHT:
- 62"
- COUPLER HEIGHT:
- 48"
- GVWR:
- 80,000 lbs
- EMPTY WEIGHT:
- 13,330 lbs (48'), 13,920 lbs (53') ±3%
AXLES & BRAKES
- AXLES:
- Included with all-wheel parking brakes
- BRAKES:
- 16 1/2" x 7" Quick Change
- ABS:
- Wabco, 251M
- HUBS:
- Standard Cast, Oil Lubricated, 10-Stud Unimount, Hub Piloted
- DRUMS:
- Standard Cast, Outboard Mount
FRAME & STRUCTURE
- MAIN BEAM:
- 27" High Tensile Steel Web, Grade 80
- FRONT SKIRT:
- Formed Steel with Tapered Corners
- REAR SKIRT:
- Formed Steel with Integral Stake Pockets
- CROSS MEMBERS:
- 4" Steel I-Beam on 12" Centers
- SIDE RAIL:
- 6" Steel Channel
- FLOORING:
- 1-1/8" Apitong Hardwood
- STAKE POCKETS:
- External Mount, 24" on Center with Double Pipe Spools
- RUBRAIL:
- 3/8" x 2-1/2" Steel
WHEELS & LIGHTING
- WHEELS:
- Hub Piloted Steel
- LIGHTING:
- DOT Approved Sealed LED System
COUPLER & ACCESSORIES
- COUPLER:
- 2" Holland King Pin, Setting 24" or 18"
- PLATE:
- 1/4"
- LOAD SECUREMENT:
- Sliding Winch C-Track
- WINCHES:
- 12 (48'), 14 (53')
- WINCH TRACK:
- Steel Slide Driver Side
- RAMPS:
- DuraRamps, Spring Assisted, Third Ramp Optional
- MUD FLAPS:
- Heavy Duty, White
- FINISH:
- 5-Step Process: Grit Blast, Acid Wash, Phosphate, Heated Silicone, Powder Coat
RUNNING GEAR & SUSPENSION
- SUSPENSION:
- Heavy Duty Air Ride, 25,000 lbs Capacity

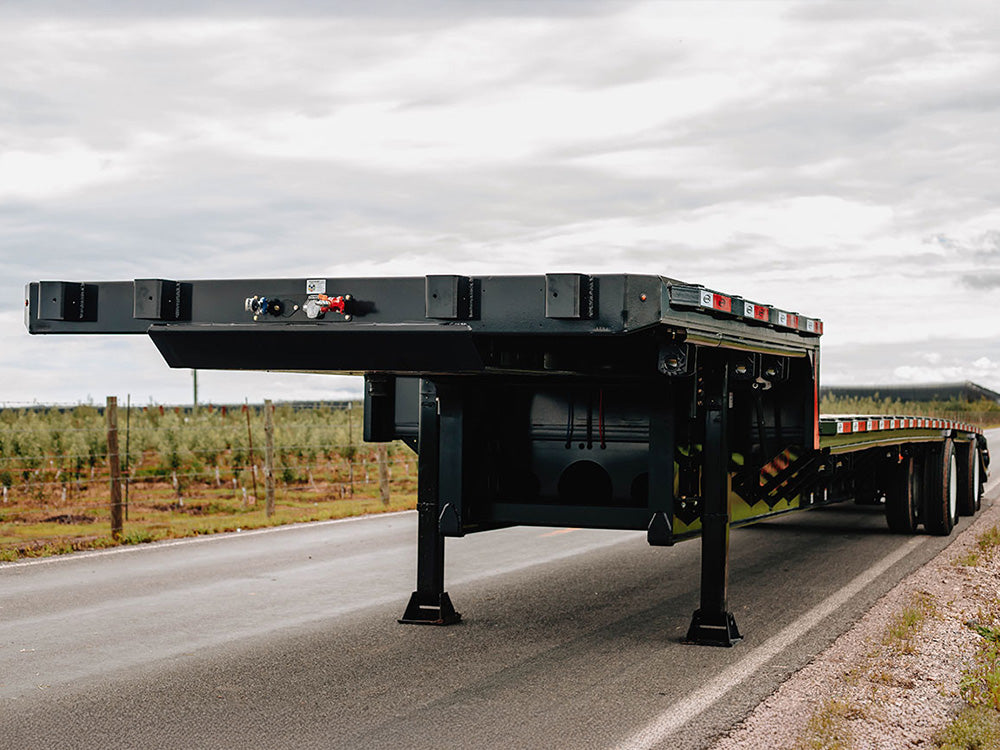

- LANDING GEAR:
- Jost – 2-Speed Gear Drive, 160,000 lbs Static Load
