TRAILER:

MODEL:

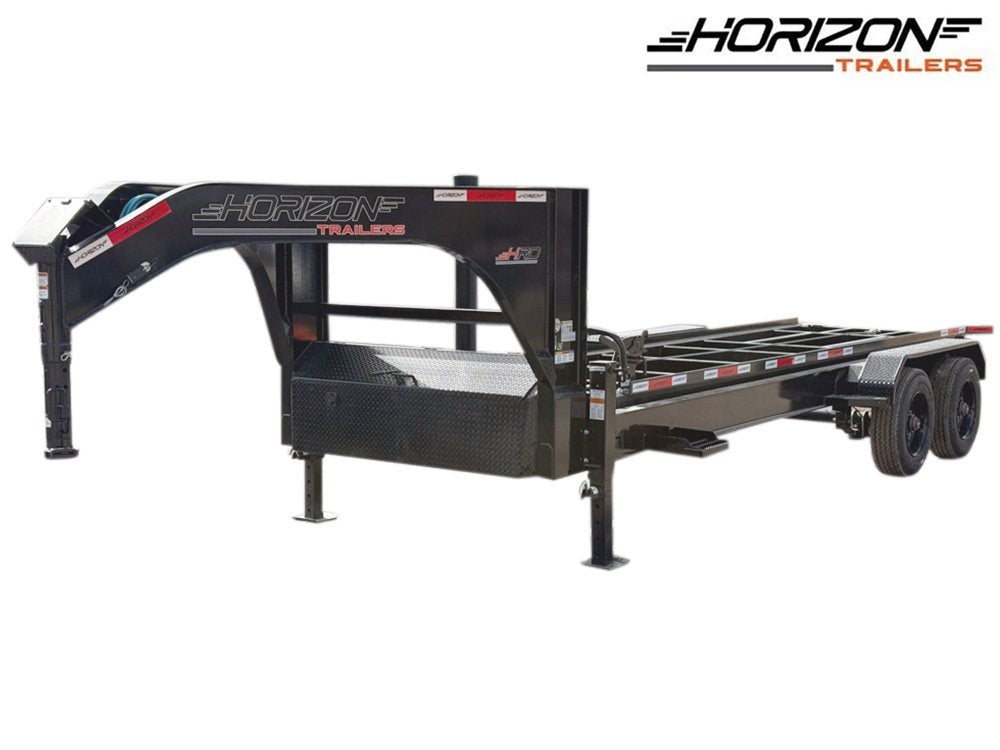

Horizon HRD Gooseneck Roll Off Trailer

LENGTH:

14’, 16’, 20’

GVWR:

24,000 lbs - 25,000 lbs

HDZ ROLL-OFF DUMPSTER (3 INCLUDED):

MODEL:

HDZ Heavy Duty Roll-Off Dumpster

AVAILABLE LENGTHS:

14', 16', 20'

SIDE HEIGHT OPTIONS:

4', 6'

CARGO CAPACITY:

13 – 28 Cubic Yards

BOTTOM RAIL BED WIDTH:

60"

OVERALL WIDTH:

60"

TOP RAIL INTERNAL WIDTH:

83"

TOP RAIL EXTERNAL WIDTH:

89"

TRAILER FRAME:

MAIN FRAME:

10” I-Beam (17 lbs/ft)

BED FRAME:

2” x 5” x 7 ga. Tubing Bed Frame

CROSSMEMBERS:

2” x 5” x 7 ga. Crossmembers

STEPS:

Side Step On Both Sides

HDZ DUMPSTER FRAME:

MAIN FRAME:

1-1/2" × 3" × 11ga. Tubing Bed Frame

CROSSMEMBERS:

3" Channel (3.50 lbs/ft) – 16" Spacing

FRONT:

Greasable Rollers, Heavy Duty D-Ring for Winch Attachment

REAR:

Greasable Rollers

FLOORING:

10ga. Steel Bed

TONGUE:

TYPE:

10” Engineered Steel I-Beam

LENGTH:

98” (From Behind Riser)

HEIGHT:

70” (From Underneath Neck)

COUPLER:

Adjustable 2-5/16” GN Coupler

COUPLER RATING:

30,000 lbs

JACK:

2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)

STORAGE:

TOOL BOX:

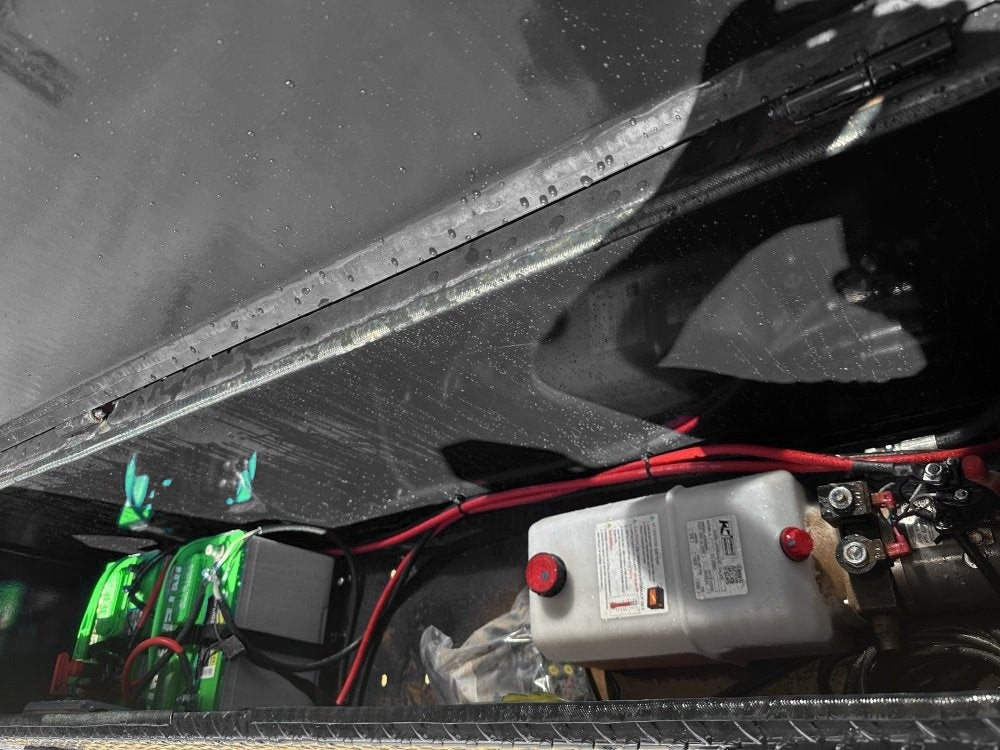

Lockable Toolbox (Houses Batteries and Pump)

SPARE TIRE MOUNT:

Weld On Spare Tire Mount

SPARE TIRE:

ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)

SIDES:

HEIGHT OPTIONS:

4', 6'

TYPE:

Reinforced Steel

THICKNESS:

10ga.

TOP RAIL:

3" × 4" × 11ga. Tubing

HOOKS:

3/8" Round "J" Hooks

D-RINGS:

4 Welded Inside Box

GATE:

1 Heavy Duty Rear Door

RUNNING GEAR:

AXLES:

2 - 10k Lippert Electric Brake Super Single Oil Bath Spring Axles

BOLT PATTERN:

8 On 6.5”

SUSPENSION:

Spring

TIRES:

ST235/75R17.5, Super Single, 18 Ply

TIRE RATING:

6,005 lbs

WHEELS:

17.5” Black Mod Wheels

TRAILER SAFETY:

SAFETY CHAINS:

3/8” Grade 70 Safety Chain

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

HDZ DUMPSTER SAFETY:

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

LOADING:

LOADING ANGLE:

60°

LIFT SYSTEM:

Telescopic Cylinder

CYLINDER CAPACITY:

12 Ton

CYLINDER:

14’ Lift: 6” x 21” Single Push Cylinder (20k)

16’ Lift: 6” x 30” Single Push Cylinder (20k)

20’ Lift: Telescopic Cylinder (12 Ton)

WINCH:

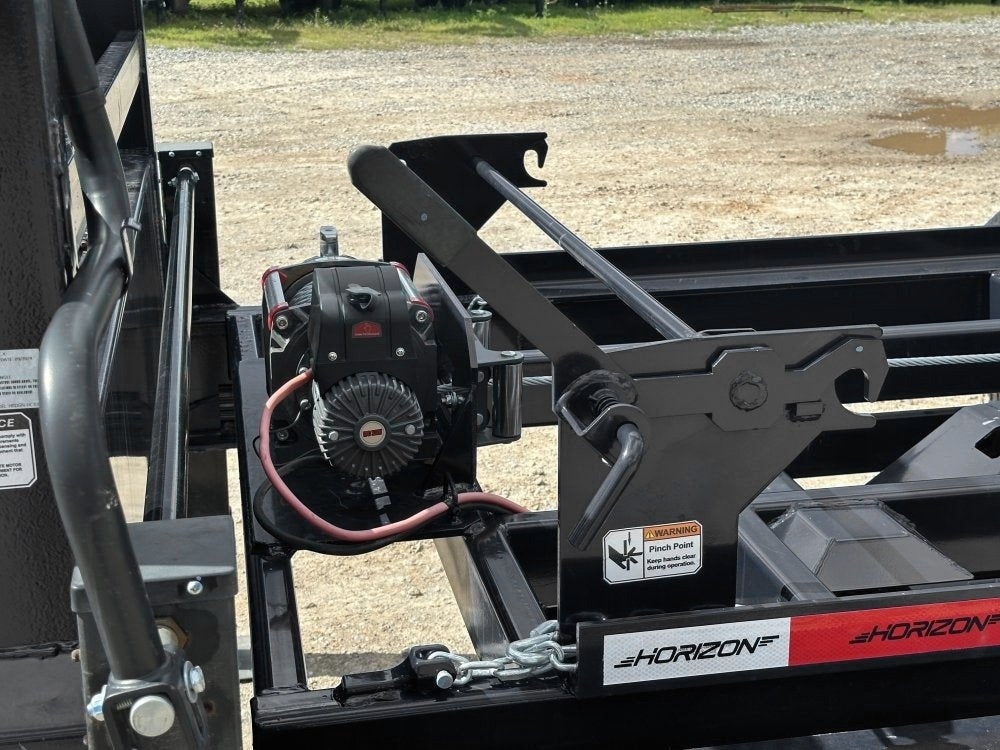

20k Steel Cable Warrior Winch

WINCH CONTROLLER:

12' Control Cable and Wireless Controller

ELECTRICAL:

BATTERY:

2 - Interstate 27 Deep Cycle Batteries

CHARGING SYSTEM:

110V Integrated Trickle Charger

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

BED:

DECK WIDTH:

61”

DECK HEIGHT:

30”

FINISH:

PREP:

Steel Grit Blasted

PAINT:

Powdercoat

COLOR OPTIONS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange

TRAILER WARRANTY:

AXLE:

6 Year Lippert Spring Axle Warranty

TRAILER:

Three (3) Year Frame / One (1) Year Parts Warranty

HDZ DUMPSTER WARRANTY:

FRAME:

3-Year Frame Warranty

PARTS:

1-Year Parts Warranty

HDZ DUMPSTER:

COMPATIBILITY:

Compatible with most recognized roll-off brands on the market
