At a Glance
TRAILER SPECS:
Specifications
- Brand:
Dura-Haul
- Pull Type:
Gooseneck
Dimensions
- Interior Height:
4'
- LENGTH:
14'-16'
Finish
- Colors:
-
Postal BlueVirginia BlueRedCat YellowBlackCharcoalMilitary GreenDesert Tan
Inquire About This Trailer
Featured Video
Product Features
48” High Fully Formed Sides
Contain heavy loads with 48” high, fully formed sides topped with a 10 gauge, 2.75” x 4.25” rail.
7 Gauge Smooth Plate Flooring
Built tough with 7 gauge smooth plate flooring, supported by a 3” channel bed with 16” on-center cross members.
Triple Locking Door System
Ensure safety with open door safety locks, an HD clamp lock system, and a Twix door locking system.
Lockable Toolbox with Dual Batteries & Charger
Stay organized and powered up with a 2.85 cu ft lockable toolbox, housing dual batteries, a hydraulic pump, and a 110V charger. The wireless remote control adds convenience, allowing you to operate the winch and lift system from a distance.
Choice of 7K or 8K Tandem Axles
Customize your trailer’s capacity with 7K or 8K tandem axles, featuring electric brakes for reliable stopping power. The multi-leaf spring suspension with equalizers ensures a balanced ride, while quick-lube hubs simplify maintenance.

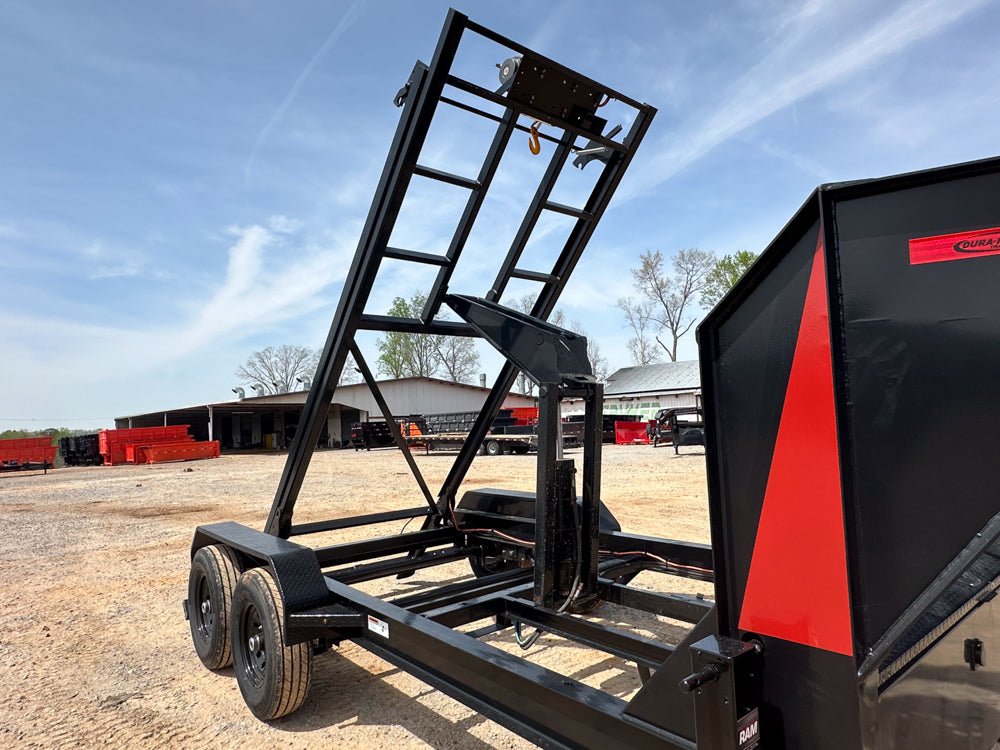

Heavy-Duty Hydraulic Scissor Lift System
Efficient loading is guaranteed with the hydraulic scissor lift, designed for smooth and powerful operation. Paired with an optional 17.5K Warrior wireless winch, this system makes securing and lifting heavy loads effortless, whether you're hauling equipment, debris, or construction materials.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Dura-Haul Base Roll Off Trailer
- LENGTH:
- 14’, 16’
- GVWR:
- 16,800 lbs (7K axles), 19,200 lbs (8K axles)
- GAWR:
- 7,000 lbs (7K axles), 8,000 lbs (8K axles)
WEIGHT RATING OPTIONS:
- WEIGHT:
- 3,440 lbs (14’), 3,840 lbs (16’)
BIN:
- MODEL:
- Roll Off Bin
- BOX WIDTH:
- 83.75” at the top, 72” at the bottom
- TARP WIDTH:
- 90”
- TOP BOX WIDTH:
- 84”
- HEIGHT:
- 48” (sides)
FRAME & CONSTRUCTION
FRAME:
- GOOSENECK FRAME:
- 10” beam gooseneck frame
- MAIN FRAME:
- 8” or 10” ultra strong I-beam
- FENDERS:
- Diamond plate fenders
- LIFT SYSTEM:
- Heavy duty hydraulic scissor lift
- FLOOR:
- 7 gauge smooth plate flooring
- FRAME STRUCTURE:
- 3” channel bed with 16” on-center cross members
- ROLLERS:
- Greasable rollers with grease zerk
WALLS & SIDES:
- SIDE WALLS:
- 48” high fully formed sides
- TOP RAIL:
- 10 gauge top rail, 2.75” x 4.25”
- TOP BOX:
- Extra large capacity 84” wide top box
FINISH:
- TYPE:
- Powder coat finish
- PAINTING PROCESS STEP 1:
- Steel grit blasting
- PAINTING PROCESS STEP 2:
- Acid wash
- PAINTING PROCESS STEP 3:
- Phosphate treatment
- PAINTING PROCESS STEP 4:
- Heated silicone treatment
- PAINTING PROCESS STEP 5:
- Powder coat finish
TONGUE & STORAGE
TONGUE:
- COUPLER:
- Adjustable pop-up 2-5/16” coupler with EZ latch for quick release outside truck bed
- JACK:
- 2 x 12,000 lbs spring-loaded adjustable leg crank jacks
STORAGE:

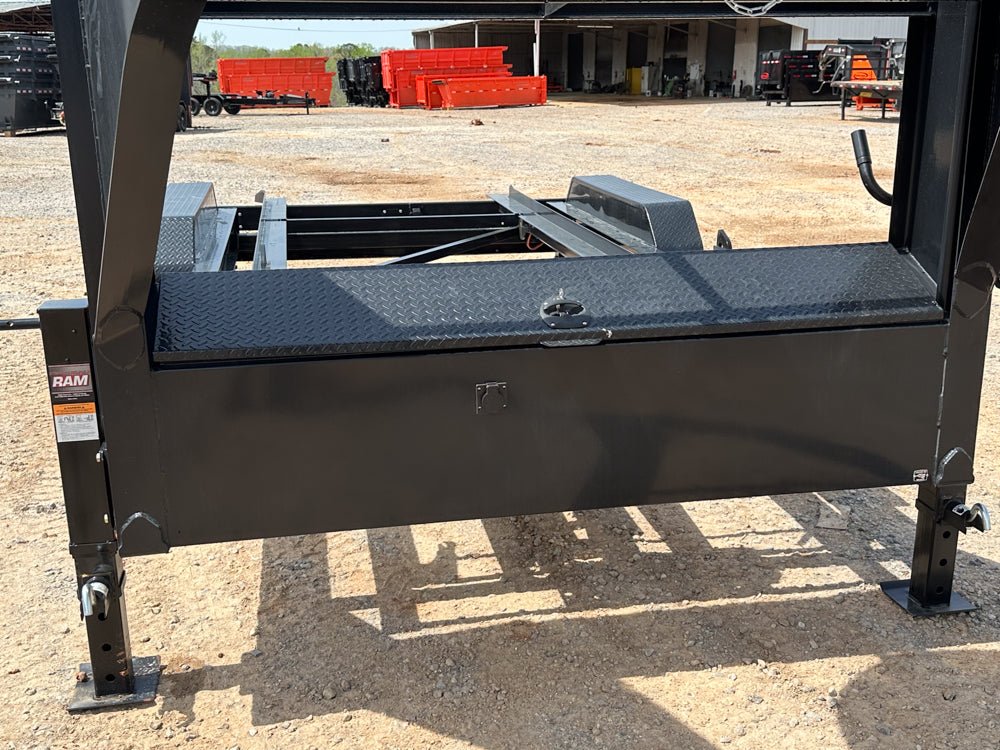

- TOOL BOX:
- Lockable 2.85 cu ft toolbox with charger, pump, dual batteries, and remote control
RUNNING GEAR & SAFETY
RUNNING GEAR:

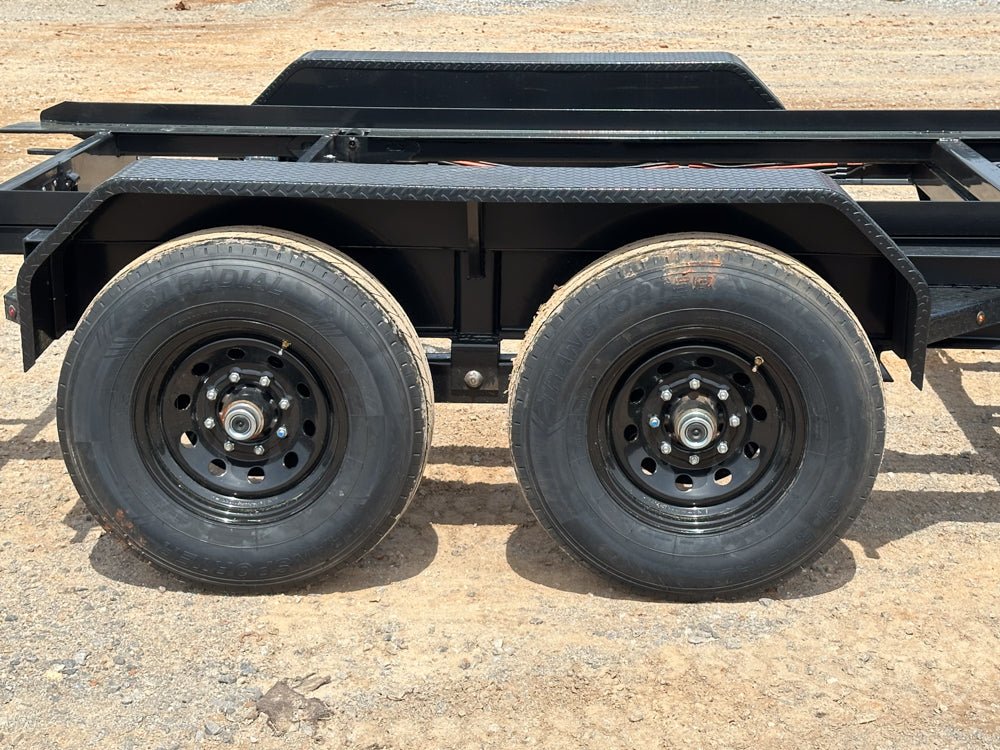

- AXLES:
- 7K or 8K tandem axles with electric brakes
- RATING:
- 7,000 lbs (7K axles), 8,000 lbs (8K axles)
- BRAKES:
- Electric
- TIRES:
- ST235/80 R16 LRE
- TIRE SIZE:
- ST235/80 R16
- RIMS:
- 16” 8-hole wheels
- SUSPENSION:
- Multi-leaf spring suspension with equalizer
- HUBS:
- Quick lube hubs with dust caps
RUNNING GEAR OPTIONS:
- AXLE OPTIONS:
- Choice of 7K or 8K axles
SAFETY:
- SAFETY CHAINS:
- 2 safety chains
- BREAKAWAY SYSTEM:
- Safe breakaway system with cable
SAFETY & ACCESSIBILITY:
- DOOR LOCKS:
- Open door safety locks
- CLAMP LOCK:
- HD clamp lock system
- TWIX LOCK:
- Twix door locking system
- LIGHTING:
- Fender side rear LED markers, DOT approved
LOADING & ELECTRICAL
LOADING:
- DECK:
- Optional deck
- DECK ON NECK:
- Available
- FLATBED ATTACHMENT:
- Available
- BOX HEIGHT:
- 4’ or 6’ options
ELECTRICAL & LIGHTING:
- FRAME WIRING:
- All-weather wiring harness
CARGO MANAGEMENT & OPTIONS
CARGO:
- WINCH:
- 17.5K Warrior wireless winch
- TARP:
- 90” wide tarp with crank roller style
- TARP COVER:
- Included
- TARP HOOKS:
- Rear rod tarp hooks
- D-RINGS:
- (4) 1/2” D-rings inside of bed
- EXTENSION POCKETS:
- 12 extension pockets
- STACK UP POCKETS:
- Included
POPULAR OPTIONS:
- COLOR:
- Custom color options
- TARP:
- Manual or electrical tarp
- SPARE TIRE:
- Available
