Product Features

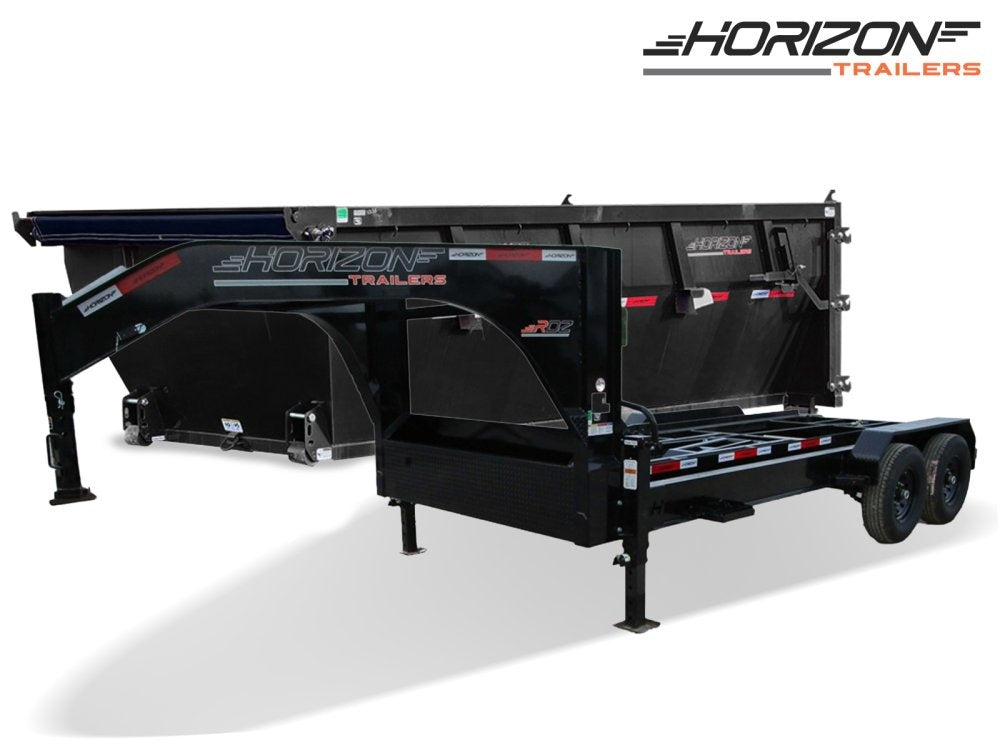

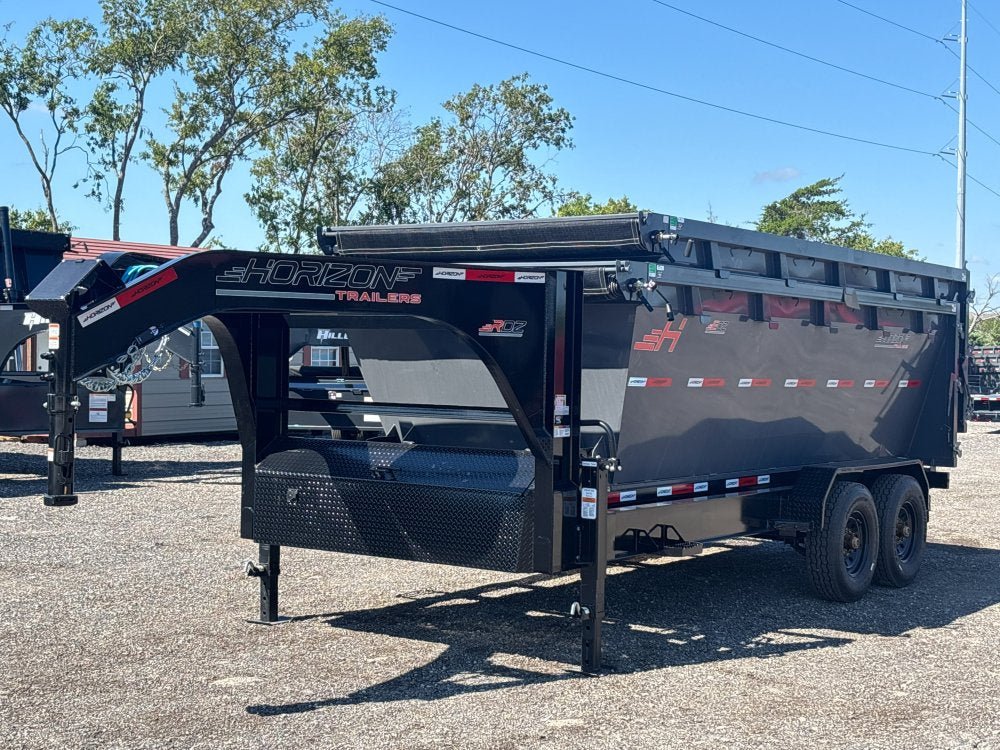

Heavy-Duty 10" I-Beam & Neck Construction
Built on a solid 10" I-beam main frame with a reinforced NeckBoss 10" engineered I-beam gooseneck. This heavy-duty construction forms the rigid backbone for the trailer's high 17,000 lb GVWR capacity and stable roll-off operation.

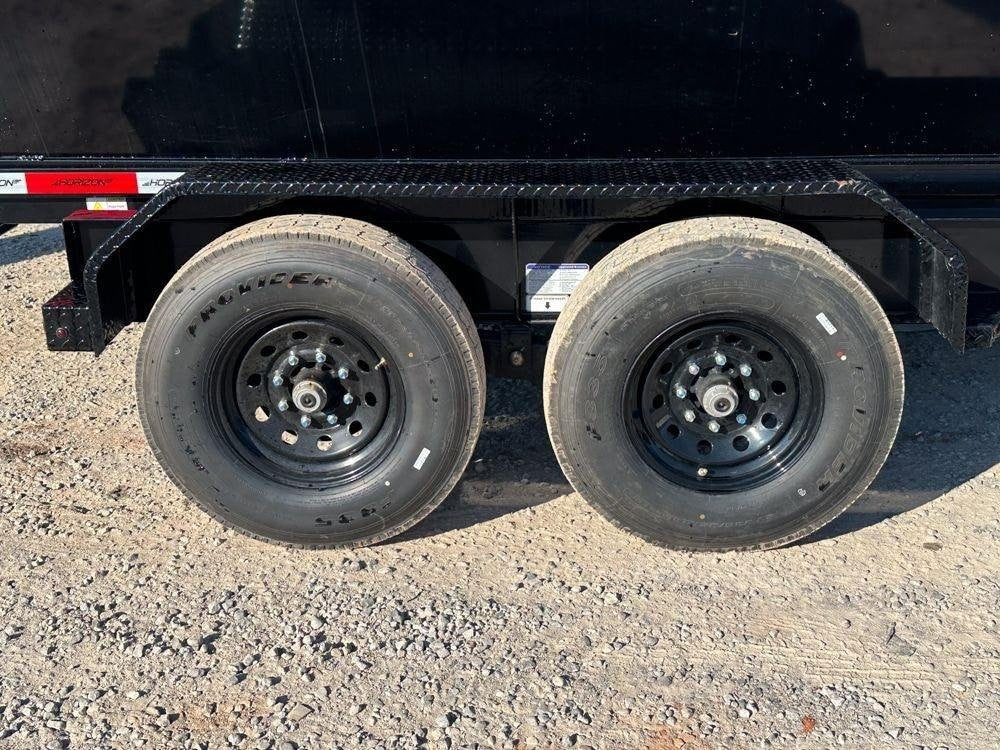

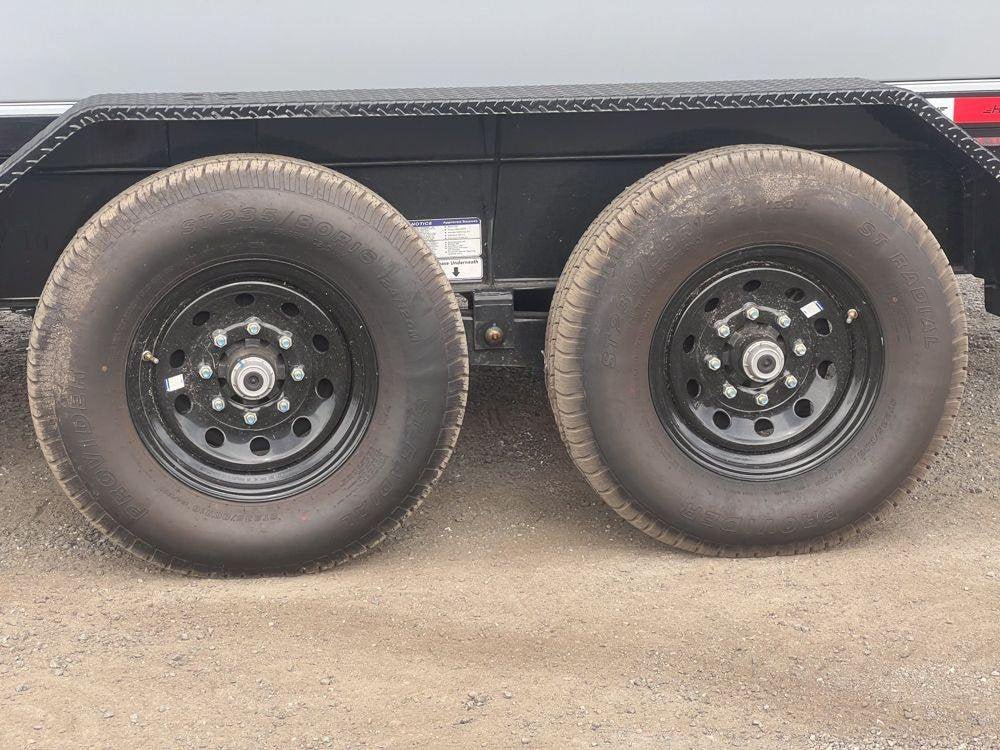

7k Dexter Axles, or is Upgradable to 8k Oil Bath
The Horizon RDZ comes standard with two 7k Dexter EZ lube electric brake axles, or is upgradable to 8k Dexter oil bath axles with electric brakes. The 7k axles support a 15.7k lb GVWR, and the 8k axles support a 17.9k lb GVWR. Both include a 5-year Dexter warranty.
Powerful Lift System with Telescopic Upgrade
Efficiently manage your loads with a hydraulic system that lifts roll-off beds up to 40 degrees. Standard operation uses a 14' wired controller. The system can be upgraded to a telescopic cylinder, which provides a longer stroke from a more compact retracted height, ideal for maximizing dump angle on trailers.

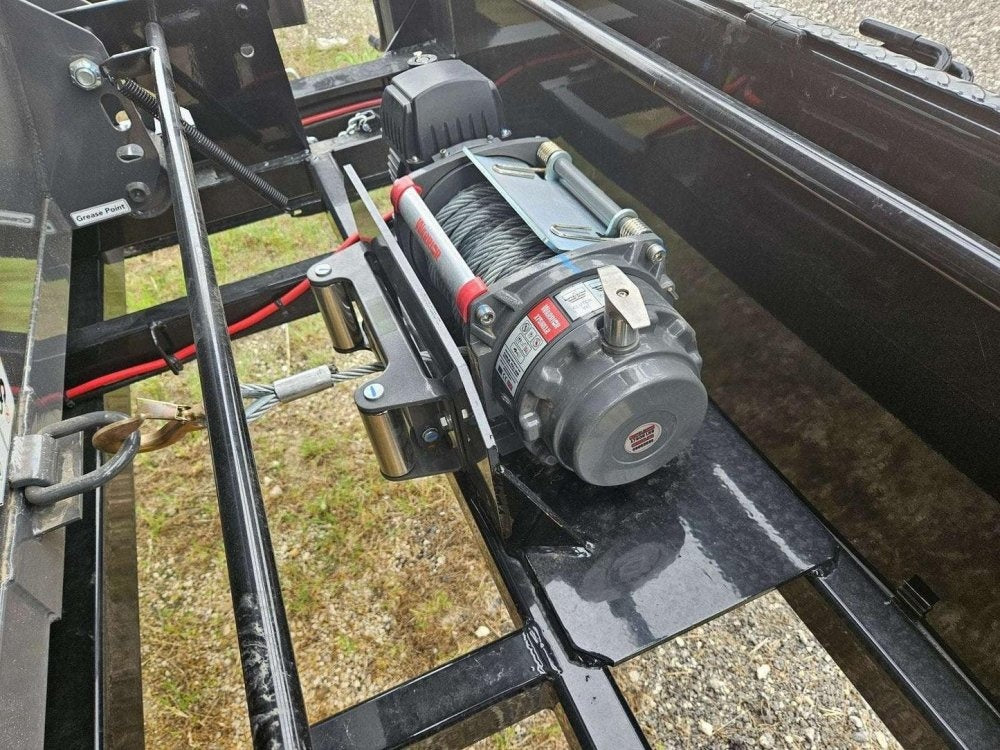

17,500 lbs Winchmax Winch
Equipped with a robust 17,500 lb Winchmax winch. This system includes a wireless remote, is powered by dual marine batteries with an onboard trickle charger, and is built for reliable, powerful performance on any job site.

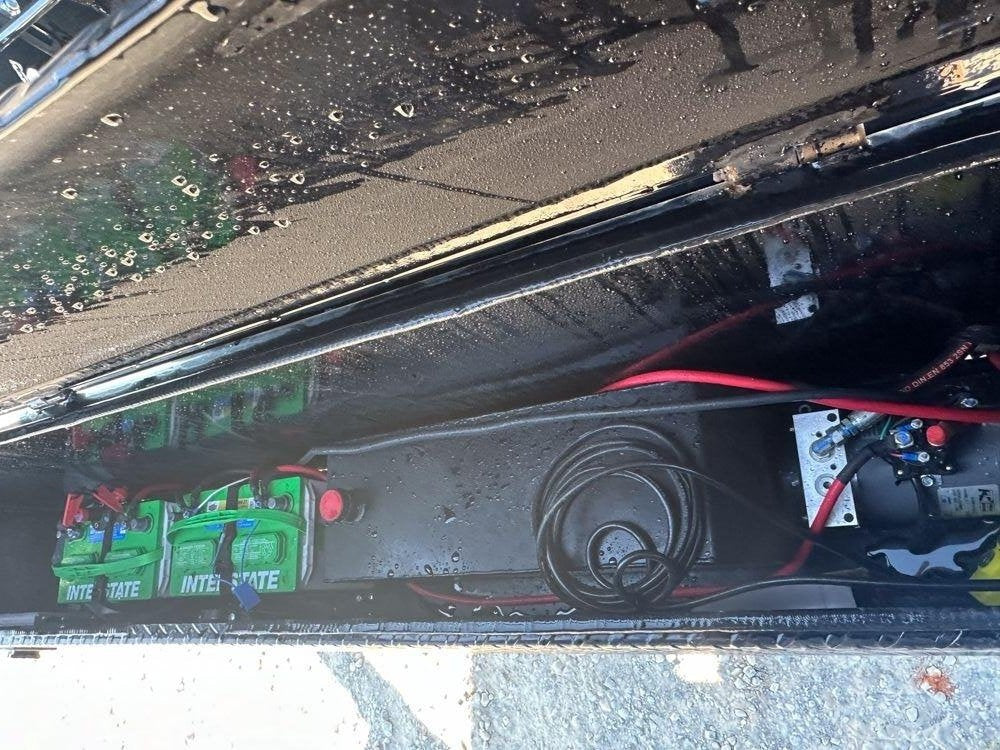

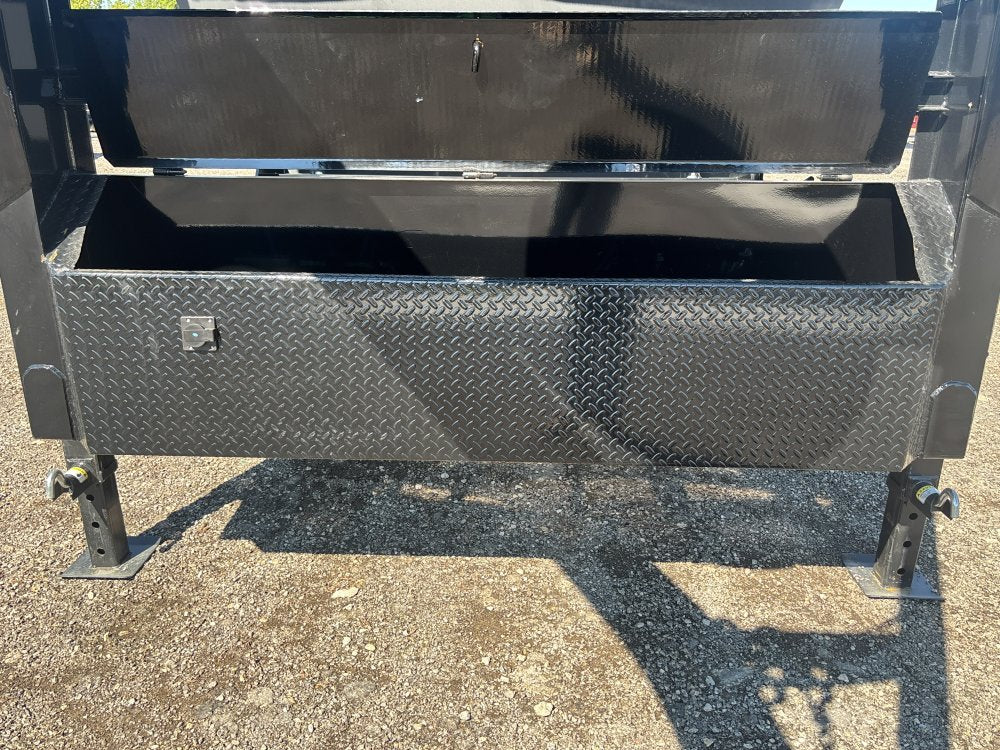

Lockable Toolbox
Explore our Lockable Toolbox designed for Gooseneck trailers, crafted to securely hold your battery and pump for easy access on your travels. It accommodates a 7.2 hp electric motor, two marine batteries, and an onboard trickle charger for enhanced functionality.
Multiple Size & Color Options
Choose your size with 14' or 16' lengths and 4' or 6' side wall heights. Then, personalize it from an extensive range of color options, applied through a durable 5-stage powdercoat/paint process. This premium finish provides lasting durability and a professional look that stands out on any job site.
Product Details
TRAILER DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Horizon Roll Off Trailer GN
- TYPE:
- Gooseneck
- LENGTHS:
- 14’ - 16'
- GVWR:
- 14,000 lbs
TRAILER FRAME & STRUCTURE
FRAME:
- MAIN FRAME:
- 10" I-Beam (12 lbs/ft)
- DECK BED FRAME:
- 2" x 3" x 7ga
- FLOORING:
- 1/8" Steel
- PAINT TYPE:
- Powdercoat or Painted
- COLORS:
- Flame Orange, Midnight Black, Blue Horizon, Ash Grey, True Red
TRAILER RUNNING GEAR & SAFETY
RUNNING GEAR:

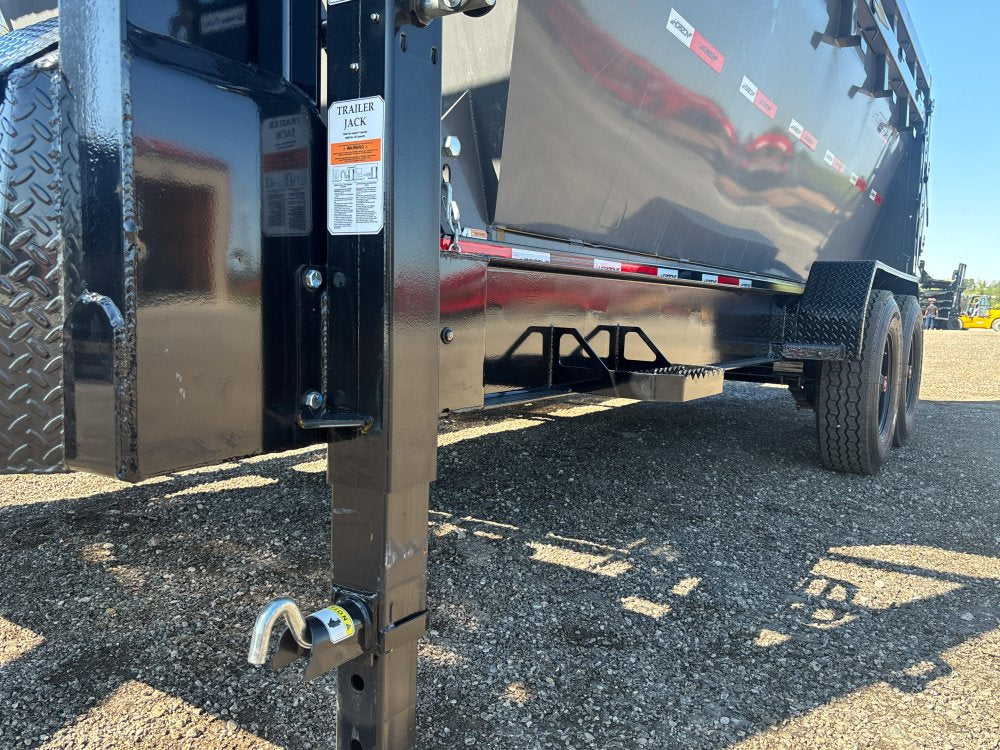

- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs) for Gooseneck
TRAILER FEATURES
STANDARD FEATURES:
- WINCH:
- 17,500 lbs Winchmax Winch, wireless controller
- BATTERIES:
- 2 deep cycle marine batteries with on-board trickle charger
- HOIST:
- Hydraulic Scissor Lift Hoist & 6" x 21" Cylinder with 40° Tilt Angle
- COMPATIBILITY:
- Universal Compatibility: Seamlessly Pair with Any Roll Off Dumpster or Deck
- TOOLBOX:
- Lockable Toolbox GN (Houses Battery and Pump) for Gooseneck
BIN DIMENSIONS & CAPACITY
BIN:
- MODEL:
- Horizon Roll Off Bin
- TYPE:
- Roll-off Dumpster
- LENGTHS:
- 14’ - 16'
- DESIGN:
- Lighter-duty counterpart to the robust HDZ
BIN STRUCTURE & FEATURES
STRUCTURE:
- SIDES:
- 10ga. Steel
- PAINT TYPE:
- Powdercoat or Painted
- COLORS:
- Flame Orange, Midnight Black, Blue Horizon, Ash Grey, True Red
FEATURES:

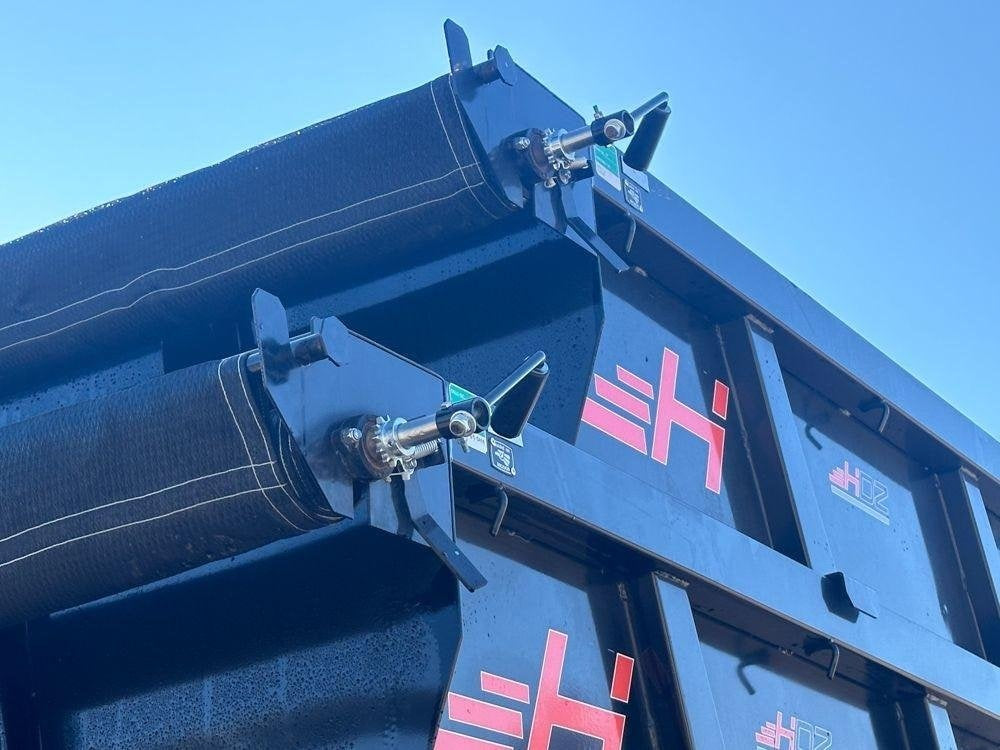

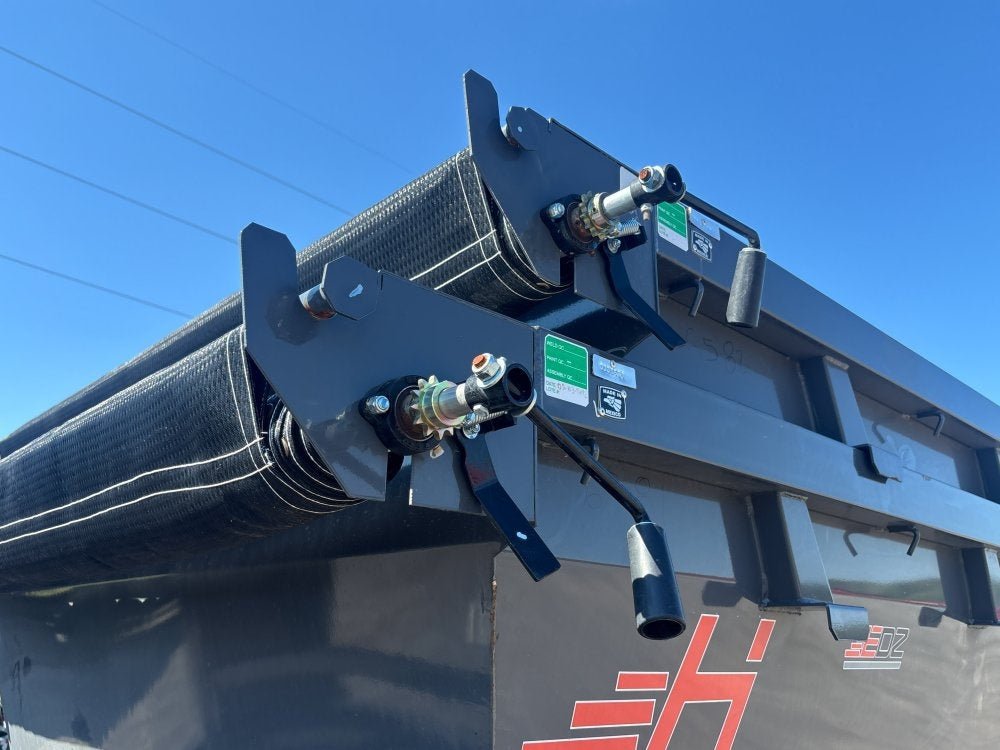

- TARP SYSTEM:
- Durable tarp system for secure load coverage
- ROLLERS:
- Front greasable rollers for effortless operation
- D-RING:
- Heavy-duty D-ring, providing a reliable anchoring point for winch attachments

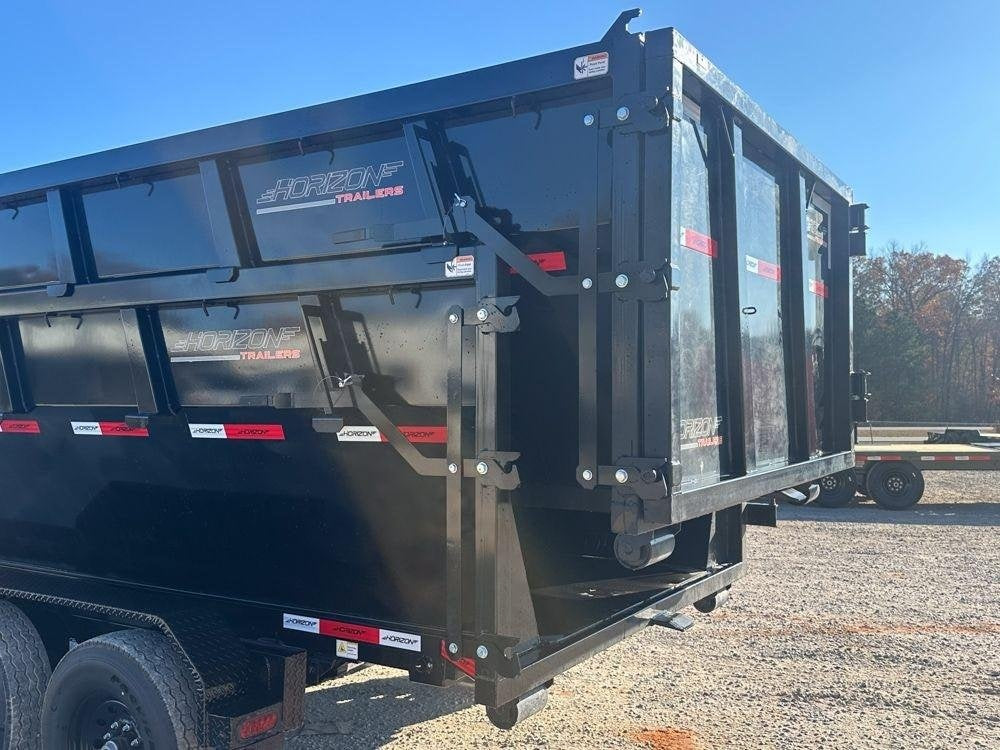

- REAR DOORS:
- Barn Style
WARRANTY
WARRANTY:
- TRAILER:
- 5 Year Lippert Spring Axle Warranty, Three (3) Year Frame/One (1) Year Parts Warranty
- BIN:
- Three (3) Year Frame/One (1) Year Parts Warranty
