At a Glance
TRAILER SPECS:
Specifications
- Brand:
RawMaxx
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
12'-16'
Inquire About This Trailer
Featured Video

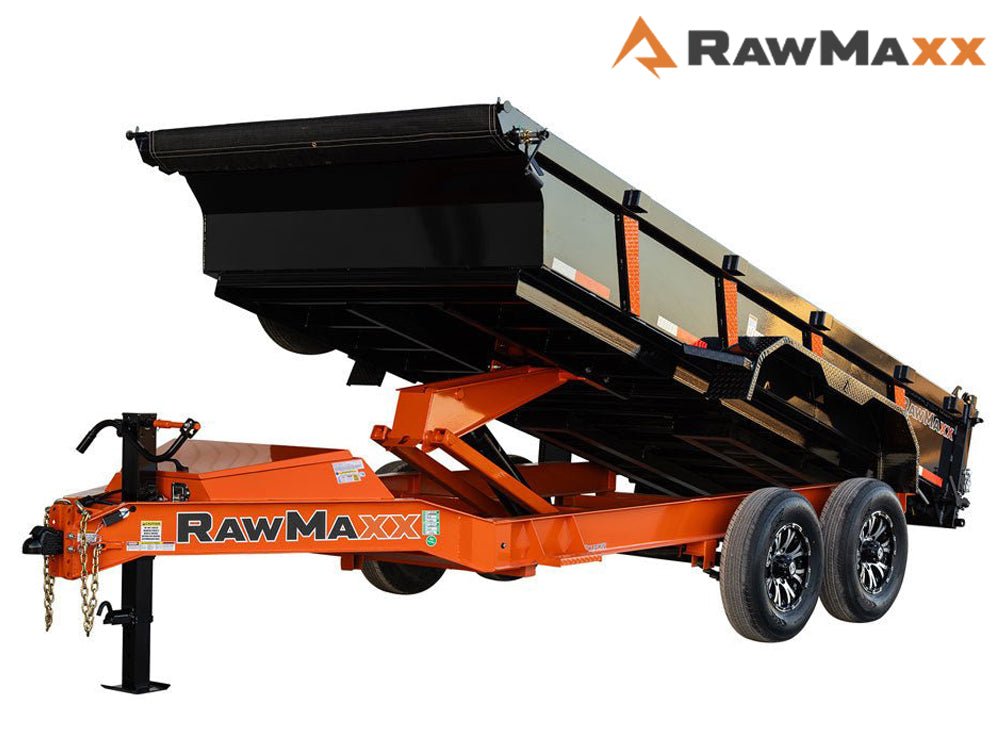

Product Features
Rugged Frame Construction
The LPX dump trailer boasts a solid foundation with its 8" x 13 lb. I-beam main frame and 4" x 6" x 3/16" tubing cross-members. This sturdy construction ensures durability across all sizes, capable of withstanding tough job site conditions and heavy loads without compromising performance.
Effortless Hydraulic Lift System
Powered by a KTI 12V hydraulic pump, the LPX dump trailer features a hydraulic power-up and power-down scissor lift system. This system enables easy raising and lowering of the dump bed for efficient loading and unloading tasks, enhancing productivity across all dimensions.
Versatile Rear Gate Design
Equipped with a three-way rear gate and EZ slam door latches, the LPX dump trailer offers versatile loading and unloading configurations for all sizes. This flexibility allows for easy customization based on specific hauling requirements, improving efficiency and adaptability on the job site.
Durable Flooring and Side Walls
With a 7G one-piece floor and 10G formed side walls, the LPX dump trailer ensures rugged durability across all dimensions. This construction provides reliable protection for transported materials and equipment, maintaining structural integrity and performance over time.
Reliable Running Gear
The LPX dump trailer is equipped with high-quality radial tires and spring axles across all sizes. With ST235/80R16 radial tires rated for 10 ply and 16” black mod wheels, coupled with a spring axle suspension system, this trailer ensures smooth and stable towing, enhancing safety and reliability on the road.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.Product Details
DIMENSIONS & CAPACITY
- LENGTHS:
- 12' x 83", 14' x 83", 16' x 83"
- WIDTH:
- 83"
- DECK HEIGHT:
- 28"
- GVWR:
- 14,000 lbs.
- GAWR:
- 7,000 lbs.
- EMPTY WEIGHT:
- 4,891 lbs.
- LOAD CAPACITY:
- 10,475 lbs.
- CARGO CAPACITY:
- 5.89 cubic yards
FINISH
- TYPE:
- Powder Coat
- PREP:
- Grit Blast
- STANDARD COLOR:
- Jet Black
PAINT UPGRADES:
- 2-Tone Paint Upgrade
WARRANTY
- AXLE:
- 5 Year Dexter
- TRAILER:
- 3 Year Structural / 1 Year Paint
TONGUE
- COUPLER:
- 2-5/16” Adjustable Ball Coupler
- JACK:
- Side Wind Drop Leg – 10,000 lbs.
- TOOL BOX:
- Mega Boxx for Pump, Battery & Charger
- TONGUE:
- 8" x 13 lb. I-beam
- TONGUE LENGTH:
- 65"
JACK OPTIONS:
- Single 12,000 lb Hydraulic Jack
- Dual 12,000 lb Hydraulic Jacks
- 7,000 lb Stabilizer Jacks (Pair)
SAFETY FEATURES
- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
CHASSIS
- MAIN FRAME:
- 8" x 13 lb. I-beam Frame
- CROSS-MEMBER:
- 4" x 6" x 3/16" Tubing
- SIDE STEP:
- 12G formed plate located at the front on both sides
DUMP BED
- TILT FRAME:
- 5' x 5" x 3/8" Angle
- CROSS-MEMBERS:
- 3" Channel / 16" Spacings
- INSIDE WIDTH:
- 83"
- SIDE HEIGHT:
- 22"
- SIDE WALLS:
- 10G Formed Walls
- FLOORING:
- 7G One-Piece Floor
- FENDERS:
- 12G Diamond Plate Steel
- D-RINGS:
- 4 (Welded Inside Corners)
- SIDE POSTS:
- 10G Formed Plate (3 per side)
- STAKE POCKETS:
- 10G Formed Plate (3 per side)
- SIDE RAIL:
- 10G Formed Plate
- SPARE TIRE MOUNT:
- Front passenger-side wall
- GATE:
- 3-Way Doors with EZ-Slam Latches
- RAMPS:
- 6' Slide-In Channel Ramps
SIDE HEIGHT OPTIONS (12' TRAILER):
- 36" High Sides
- 44" High Sides
REMOVABLE EXTENSIONS (12' TRAILER):
- 1' x 12' Removable Extensions
- 2' x 12' Removable Extensions
LIFT SYSTEM
- POWER:
- Hydraulic – Power Up / Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14' Cable with Control
- SCISSOR:
- Heavy-Duty Scissor Lift
- CYLINDER:
- 5" x 16"
- TILT ANGLE:
- 48°
OTHER OPTIONS:
- KTI Wireless Remote
TARP
- TYPE:
- Manual Tarp Kit
RUNNING GEAR
- TIRES:
- Radial ST235/80R16, 10-ply, 3,520 lb rating
- RIMS:
- 16” Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5”
- AXLE TYPE:
- Spring
- AXLES:
- 2
- RATING:
- 7,000 lbs.
- BRAKES:
- Electric
AXLE OPTIONS:
- 2 – 8,000 lb Spring Axles (14-ply tires)
TIRE & WHEEL UPGRADES:
- 4 – 14-ply Tires 235/80R16
- 4 – Aluminum Wheels
SPARE TIRE OPTIONS:
- Spare – 10-ply Tire 235/80R16
- Spare – 10-ply Tire 235/80R16 with Aluminum Wheel
- Spare – 14-ply Tire 235/80R16
- Spare – 14-ply Tire 235/80R16 with Aluminum Wheel
ELECTRICAL & LIGHTING
- FRONT PLUG:
- 7-Way Plug
- FRAME WIRING:
- All-Weather Wiring Harness
- SIDE MARKERS:
- 3/4" LED Bullet Lights
- REAR LIGHTS:
- DOT Approved LED Lights
BATTERY & CHARGING
- BATTERY:
- 27M Deep Cycle Marine
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
