At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Jet BlackMidnight BlackShadow GrayLava GrayCobalt BlueArmy GreenSunny BiegeDesert TanRuby RedClassic OrangeChalk WhiteGhost WhiteMinion YellowLemon Green
Get a Custom Quote
Featured Video
Product Features

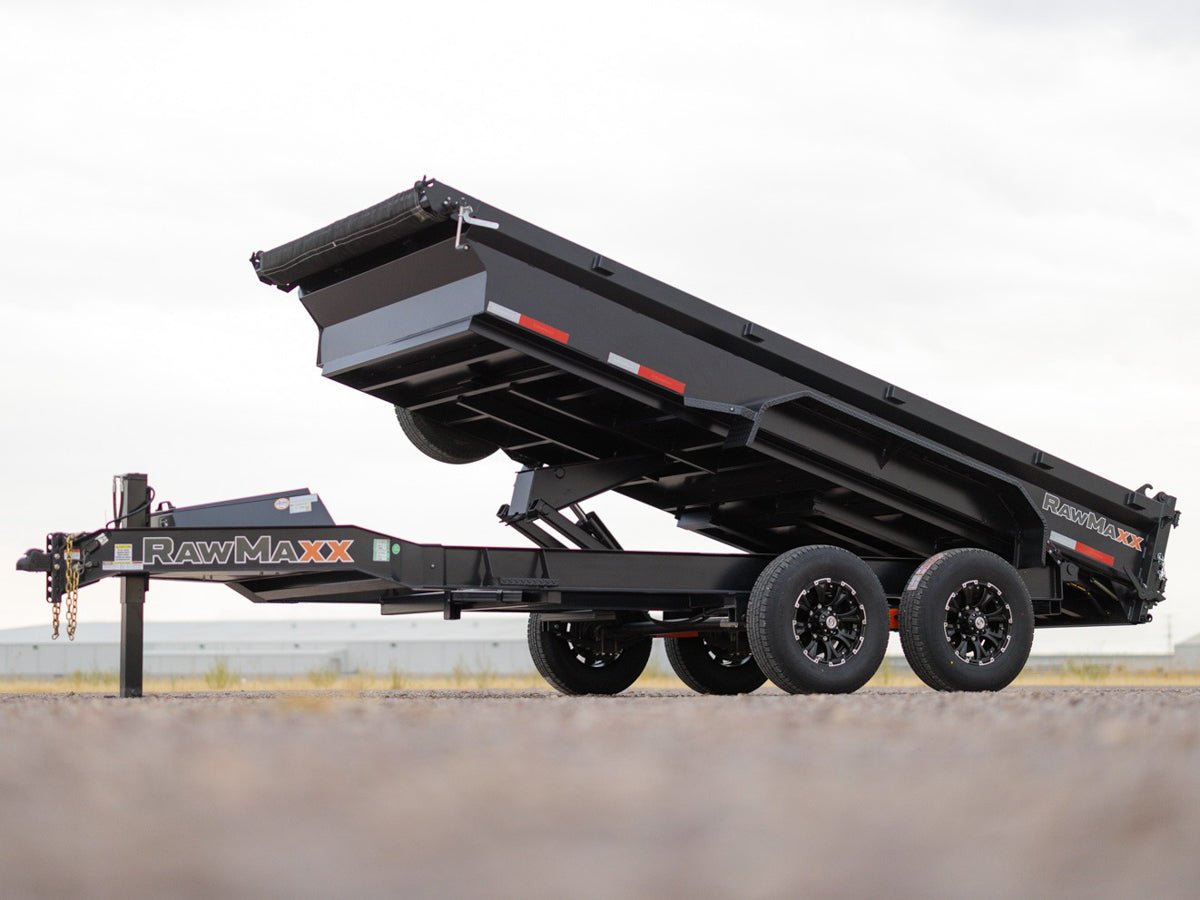

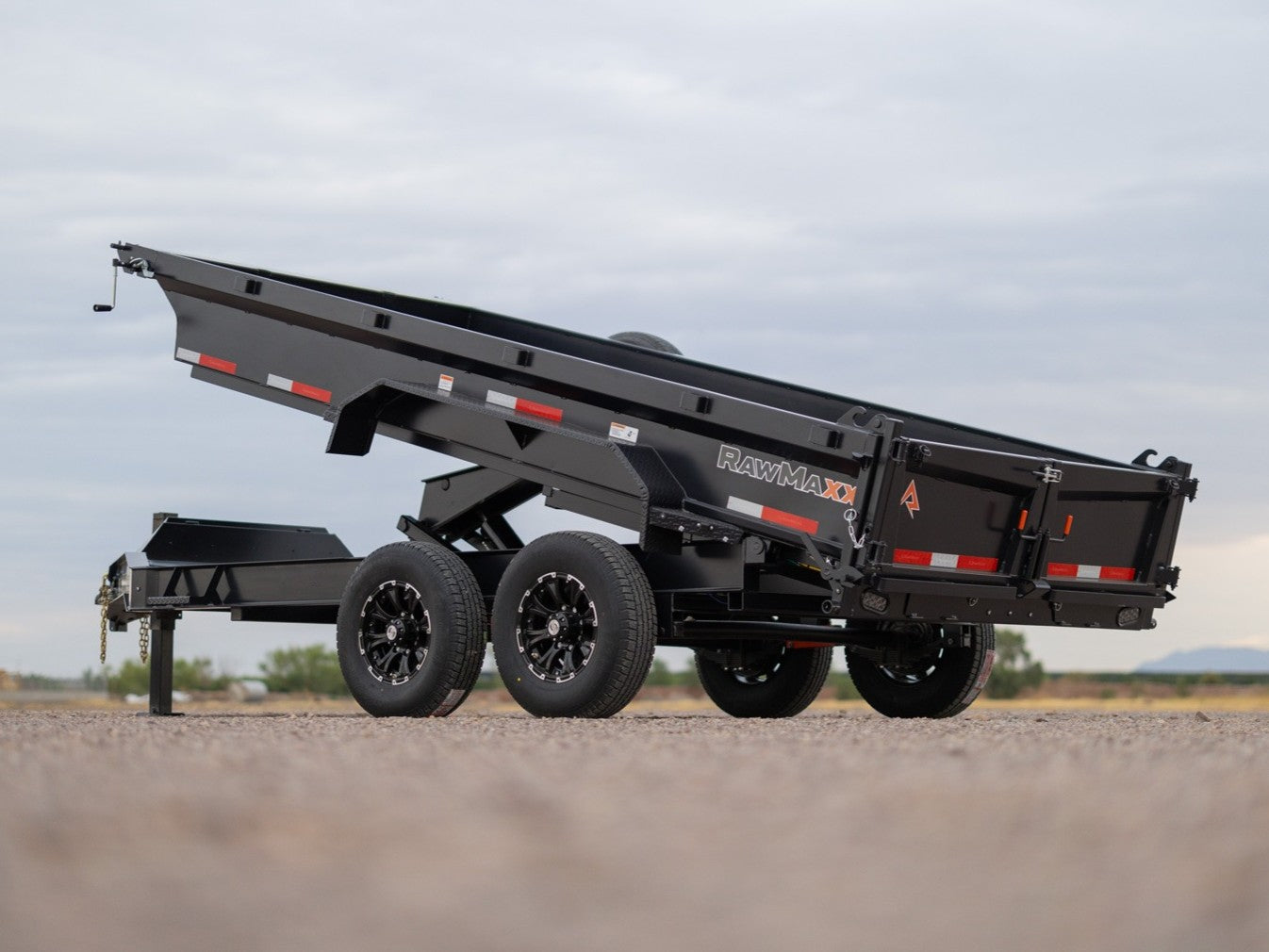

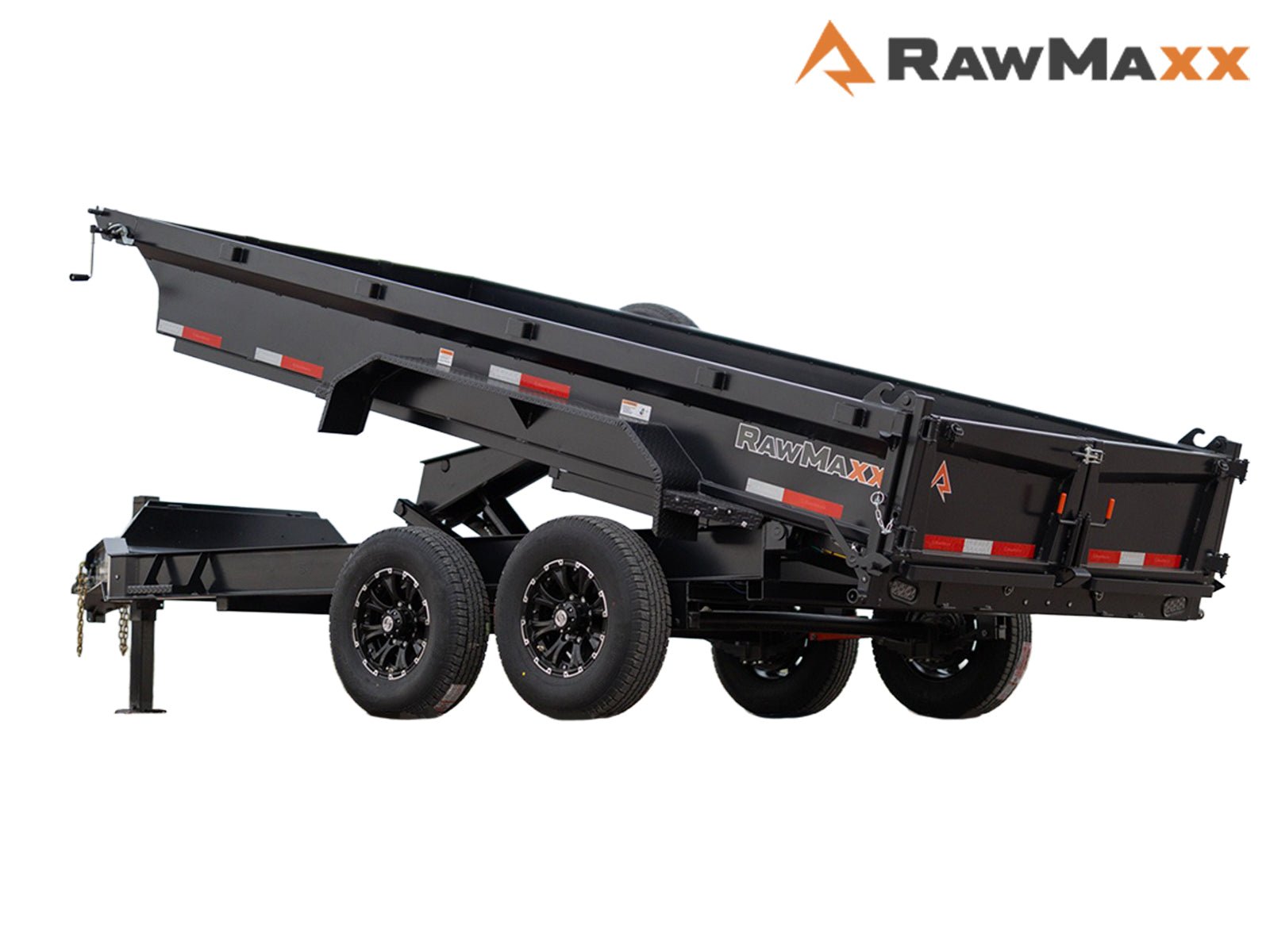

Efficient Hydraulic Dump System

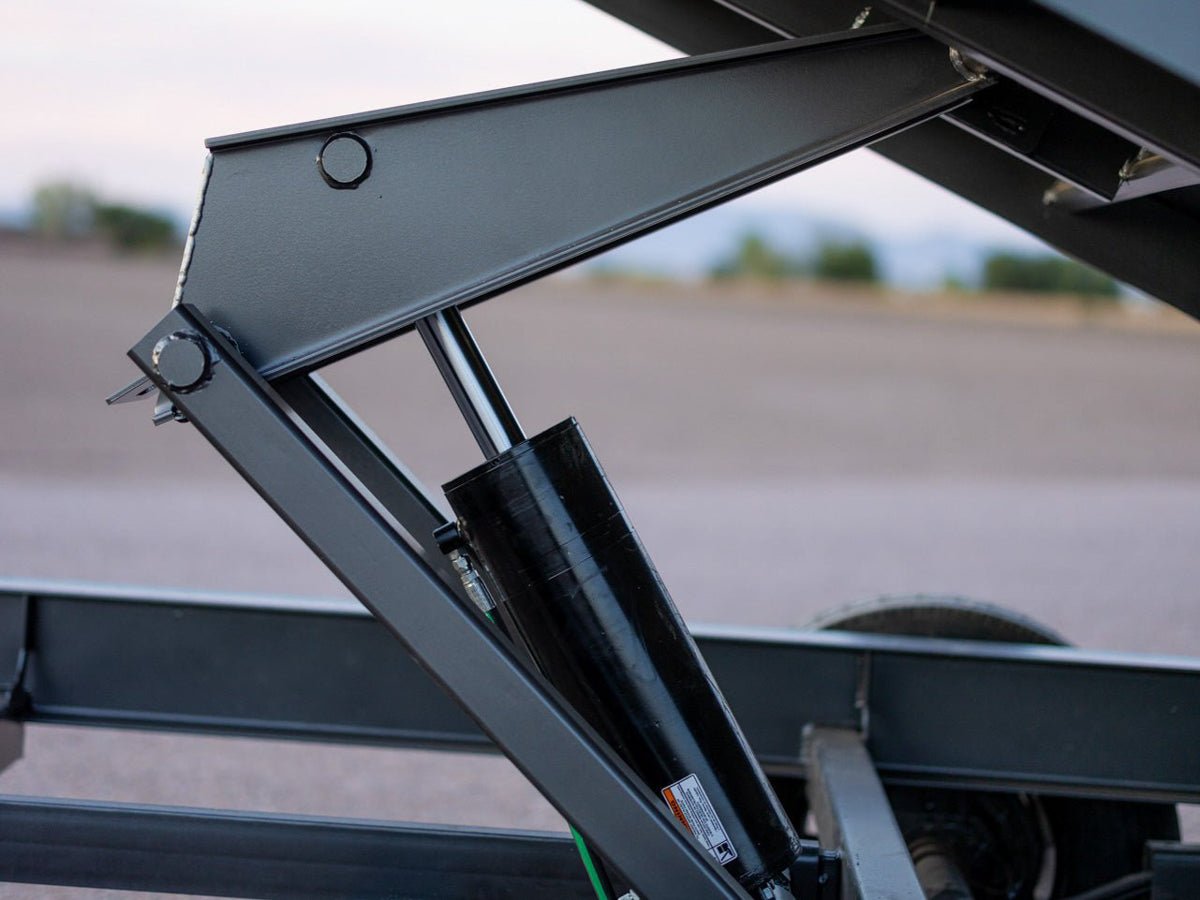

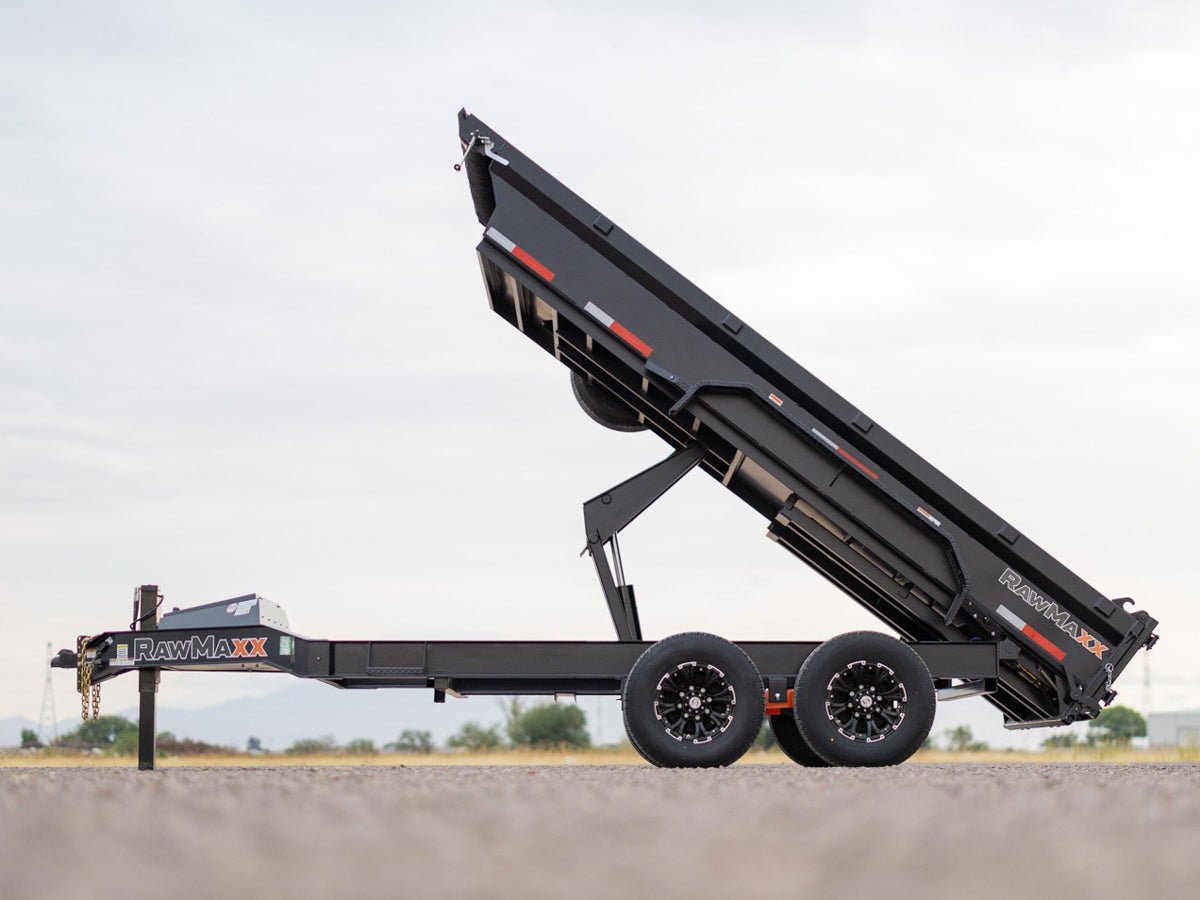

Command a full 38 to 41-degree dump angle with the robust 5x16 scissor lift system. Powered by a reliable KTI hydraulic pump and deep-cycle marine battery, it delivers consistent lifting power to quickly shed heavy loads of dirt, gravel, and debris.
Reliable Running Gear
Dual 7k Dexter axles with leaf spring suspension provide a stable, smooth ride even when fully loaded. Backed by a 5-year warranty, this proven running gear ensures your trailer can handle repeated heavy payloads with confidence.
Engineered for Stability & Safety

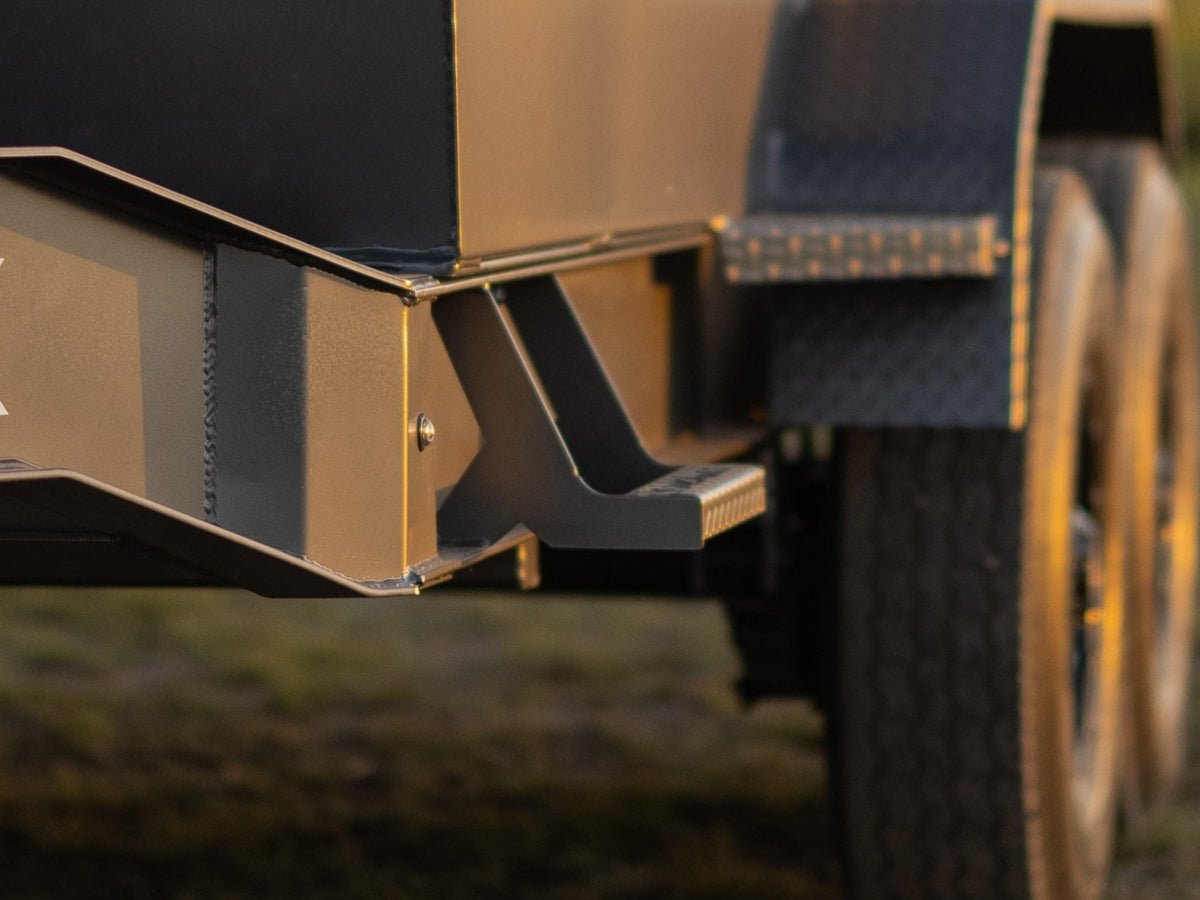

The robust 8" I-beam tongue and well-balanced design promote stable towing. For even greater confidence during dumping, optional rear stabilizer stands prevent rocking and shifting, creating a solid, safe foundation on uneven ground.
Unmatched Job-Site Versatility
Configure your GDX 3D to match your work. Choose from 12', 14', or 16' lengths and 2' or 3' side heights. With optional 1' or 2' removable side extensions, this single trailer can efficiently handle everything from heavy gravel and demolition debris to bulky, lightweight materials like mulch.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.
Premium Powdercoat Protection
Choose from 14 colors to match your style, all protected by a rugged powdercoat finish. This durable coating fights off rust, scratches, and UV damage, ensuring your trailer maintains its sharp look through years of hard work.
Product Details
DIMENSIONS
- LENGTH:
- 12', 14', 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2', 3'
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k
- GVWR:
- 14k
FINISH
- PAINT TYPE:
- Powdercoat
- COLORS:
- Jet Black, Midnight Black, Shadow Gray, Lava Gray, Cobalt Blue, Army Green, Sunny Beige, Desert Tan, Ruby Red, Classic Orange, Chalk White, Ghost White, Minion Yellow, Lemon Green
SAFETY
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

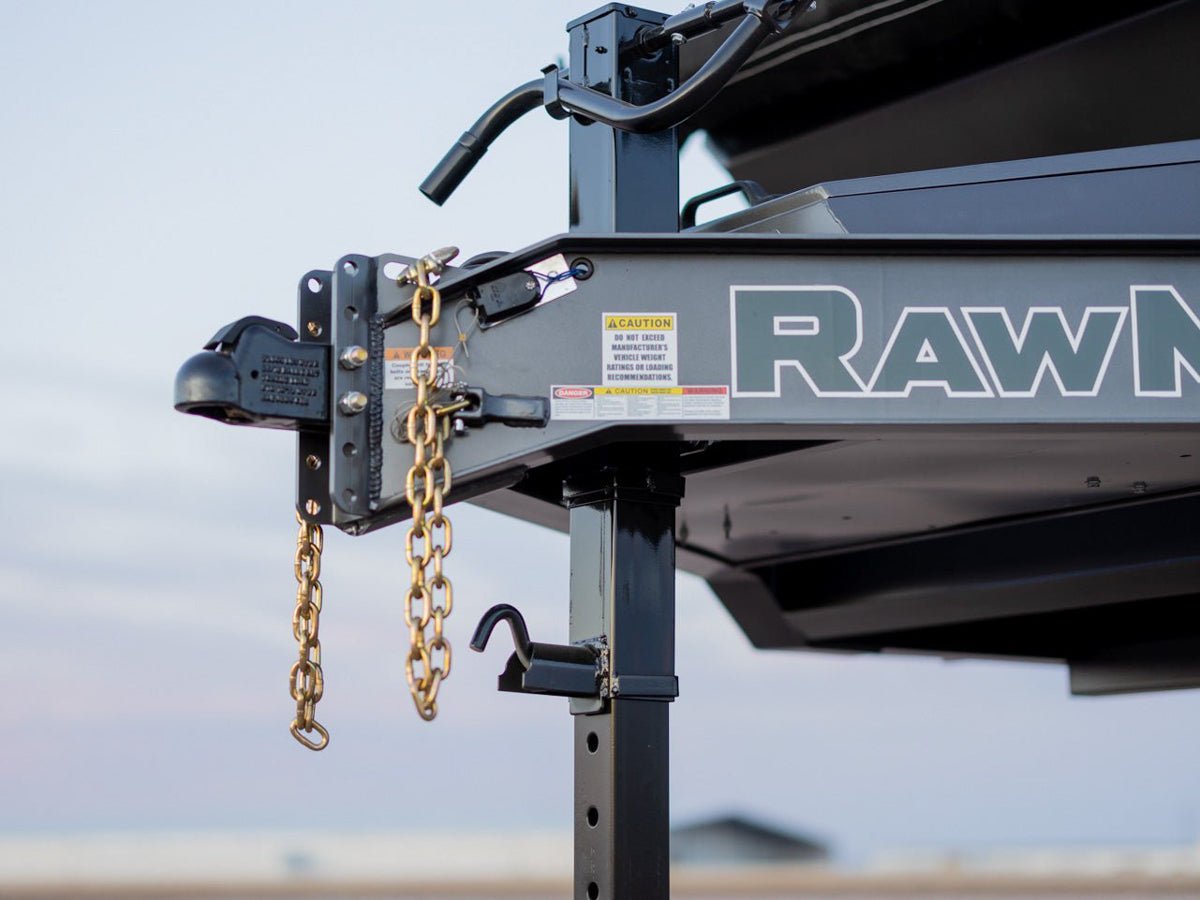

TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" I-Beam (13 lbs/ft)
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler
- FRONT JACK BP:
- Single 10,000 lb Drop-Leg Jack

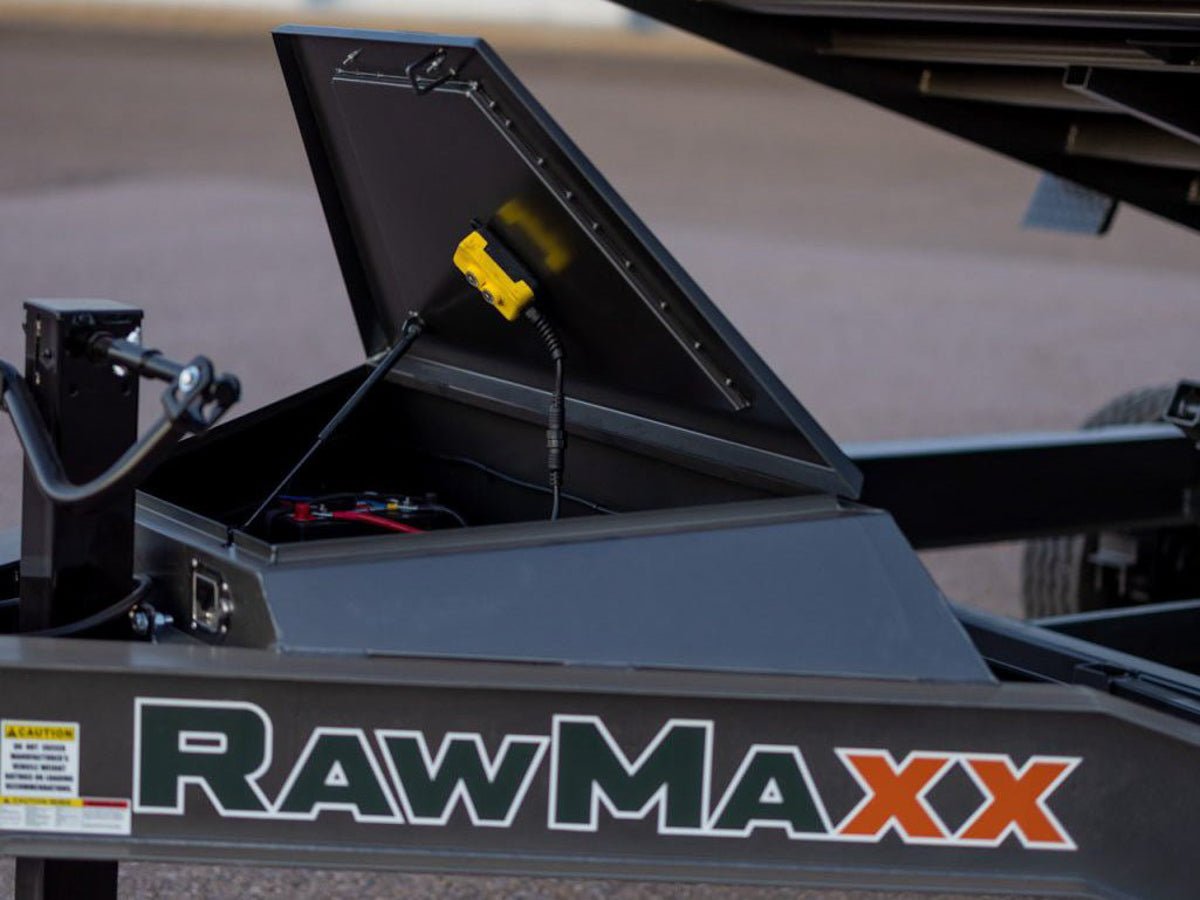

- TOOLBOX BP:
- Tongue Integrated Toolbox
CARGO AREA
- FLOORING:
- 10ga. Steel Bed
- GATE:
- 3 Way Spreader Gate
- SIDE HEIGHT:
- 19"
- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- 3 7/8" x 1 13/16"
- FENDERS:
- 12 Ga. Diamond Plate Fenders
- TARP:
- Crank Style Roll-Up Tarp
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER:
- 5x16 Scissor Lift (14', 16')
- DUMP ANGLE:
- 38 Degrees (14') / 41 Degrees (16')
RUNNING GEAR

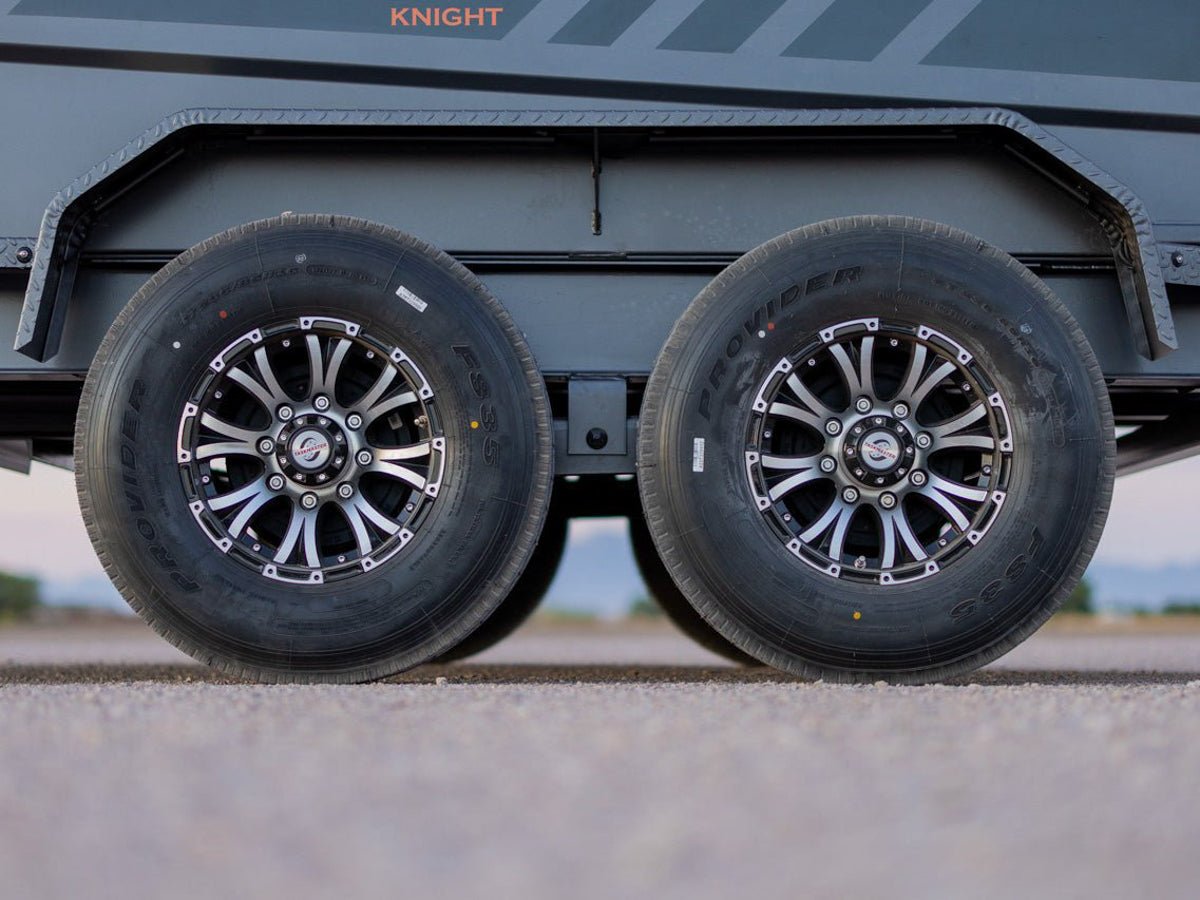

- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Leaf Spring
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- 6" Oval DOT Approved LED Lights
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Structural Warranty
OPTIONS
