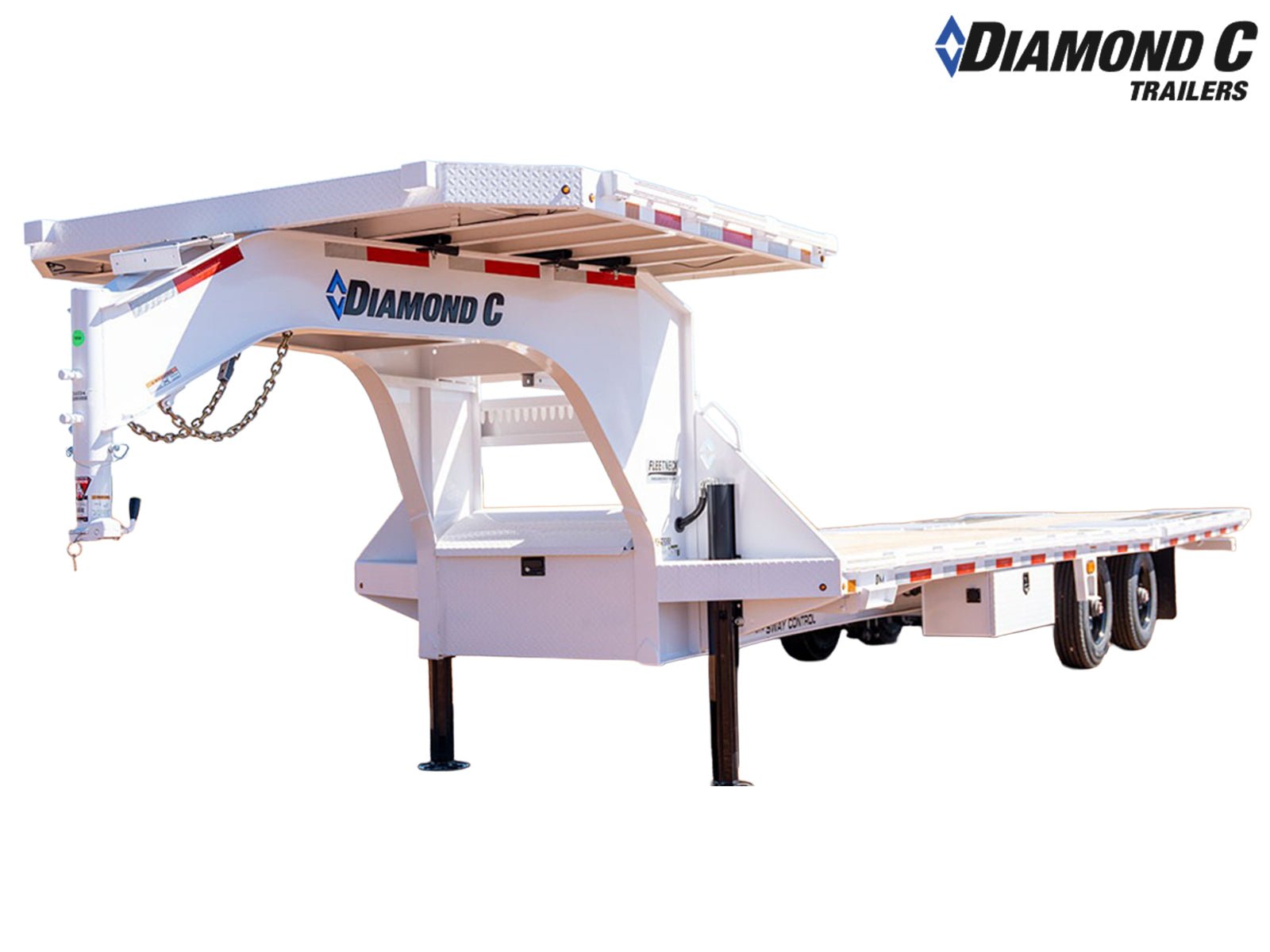

Diamond C FMAX Super Single Hydraulic Dovetail

Diamond C FMAX Super Single Hydraulic Dovetail

Diamond C FMAX Super Single Hydraulic Dovetail

Diamond C FMAX Super Single Hydraulic Dovetail

At a Glance

Brand Diamond C
Model FMAX SS HY
Pull type Gooseneck
GVWR 25k-25.9k lbs
Trailer Type Hydraulic Dovetail
Length 30'-44'
Axle Capacity 10k, 12k
Axles 2

TRAILER SPECS:

Finish

Colors:
Onyx Black
Mocha Metallic
Carbon Metallic Gray
Dynamic Blue Metallic
Platinum Silver Metallic
Scarlet Red
Arctic White
Cement Gray

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery

Get a Custom Quote

View full details

Product Features

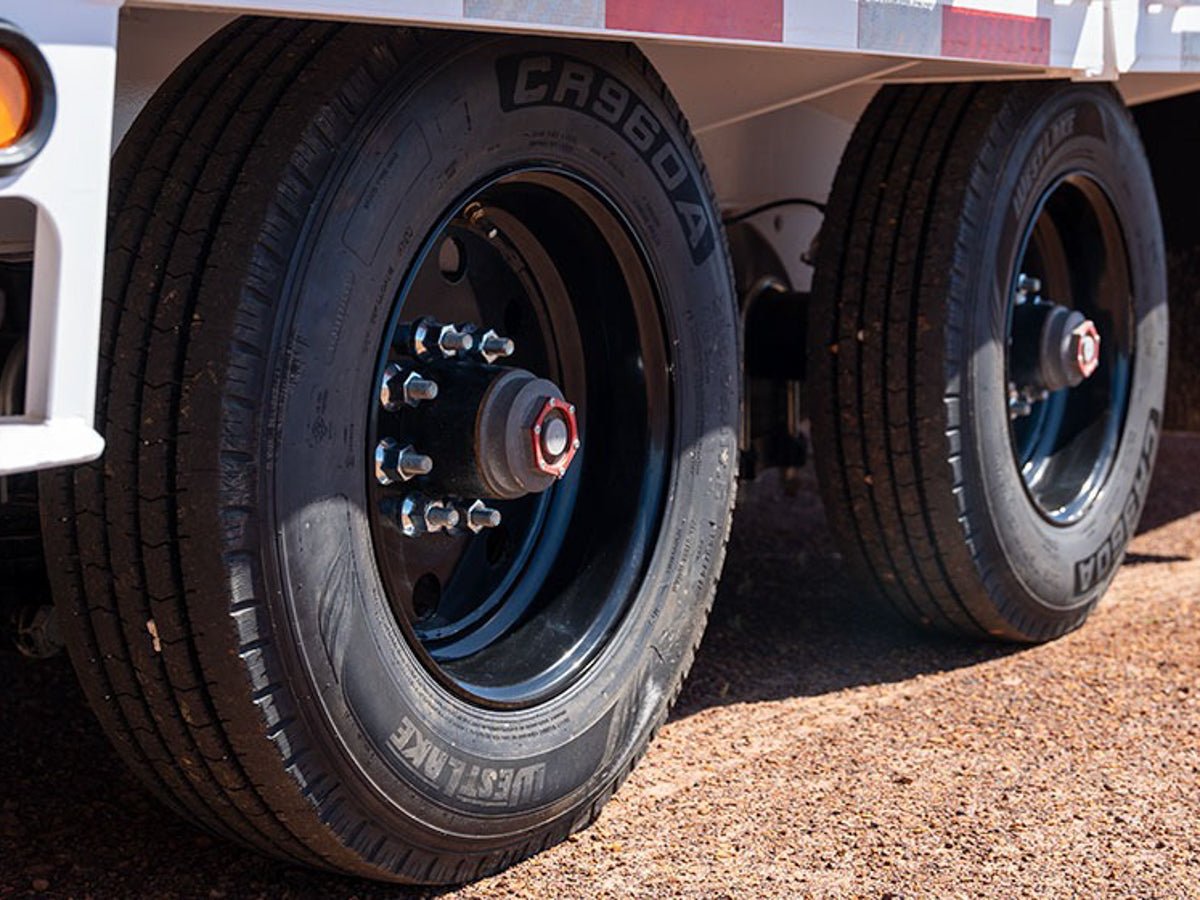

Heavy-Duty Super Single Axles

Built for stability and strength, our dual 10k or 12k Lippert Super Single Oil Bath Axles provide exceptional load capacity and performance. Paired with 18-ply radial tires and 17.5" wheels, this robust running gear delivers smooth towing and reliable performance under heavy loads.

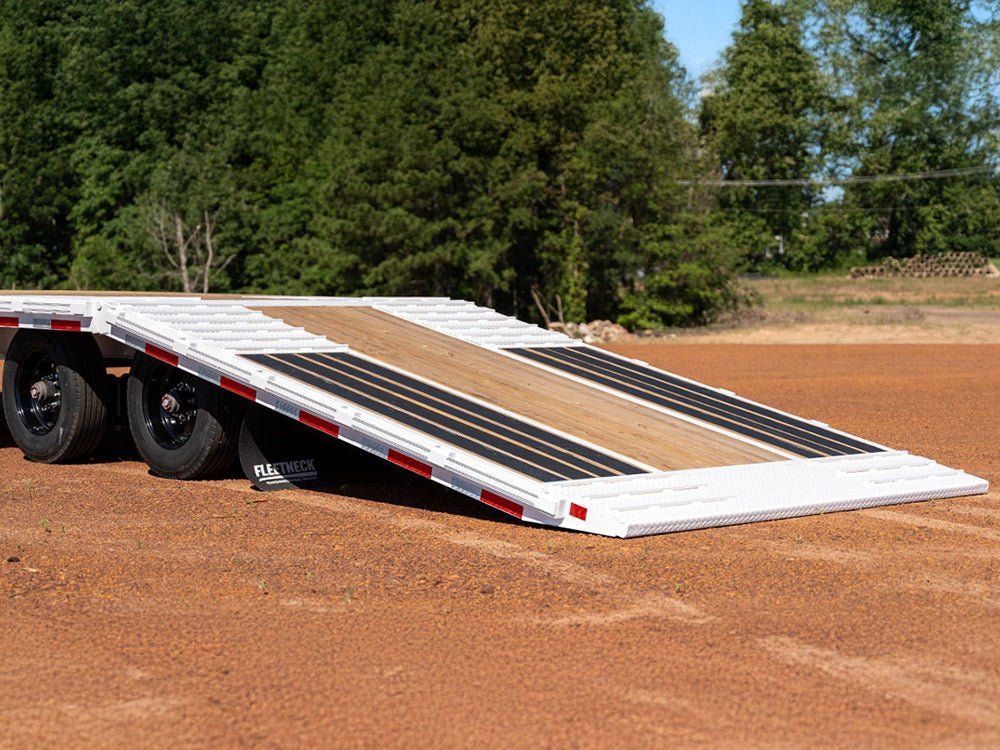

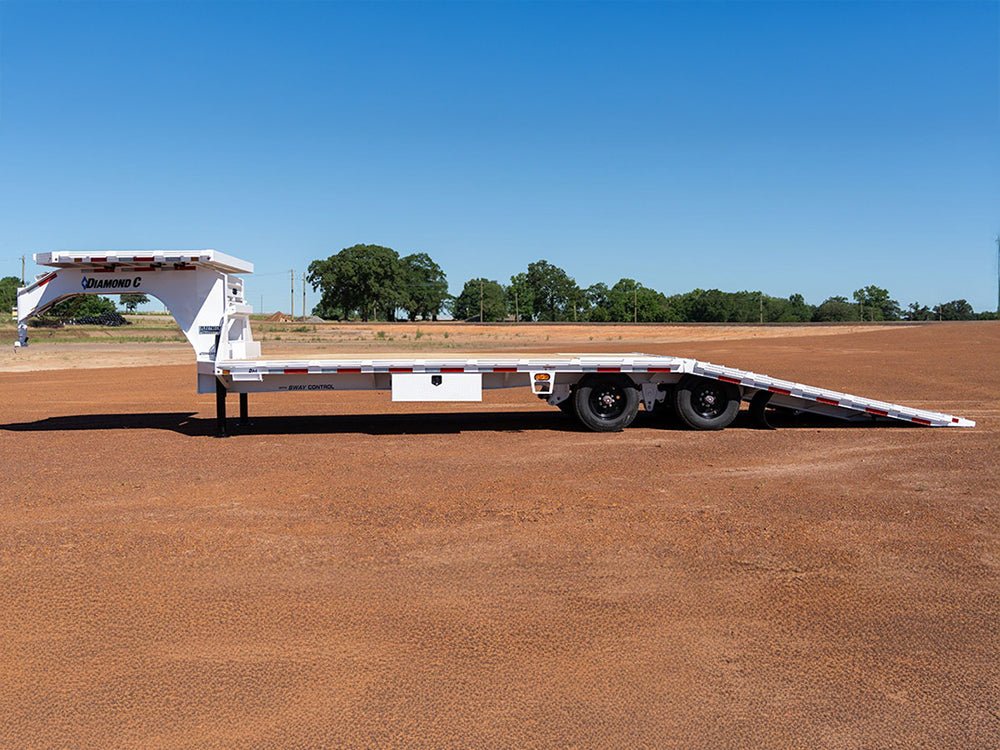

Effortless 12' Hydraulic Dovetail

Transform loading and unloading with the standard 12-foot hydraulic dovetail. This game-changing feature allows you to raise and lower the trailer bed with the simple push of a button, making it incredibly easy and safe to load heavy equipment, saving you time and effort on every job.

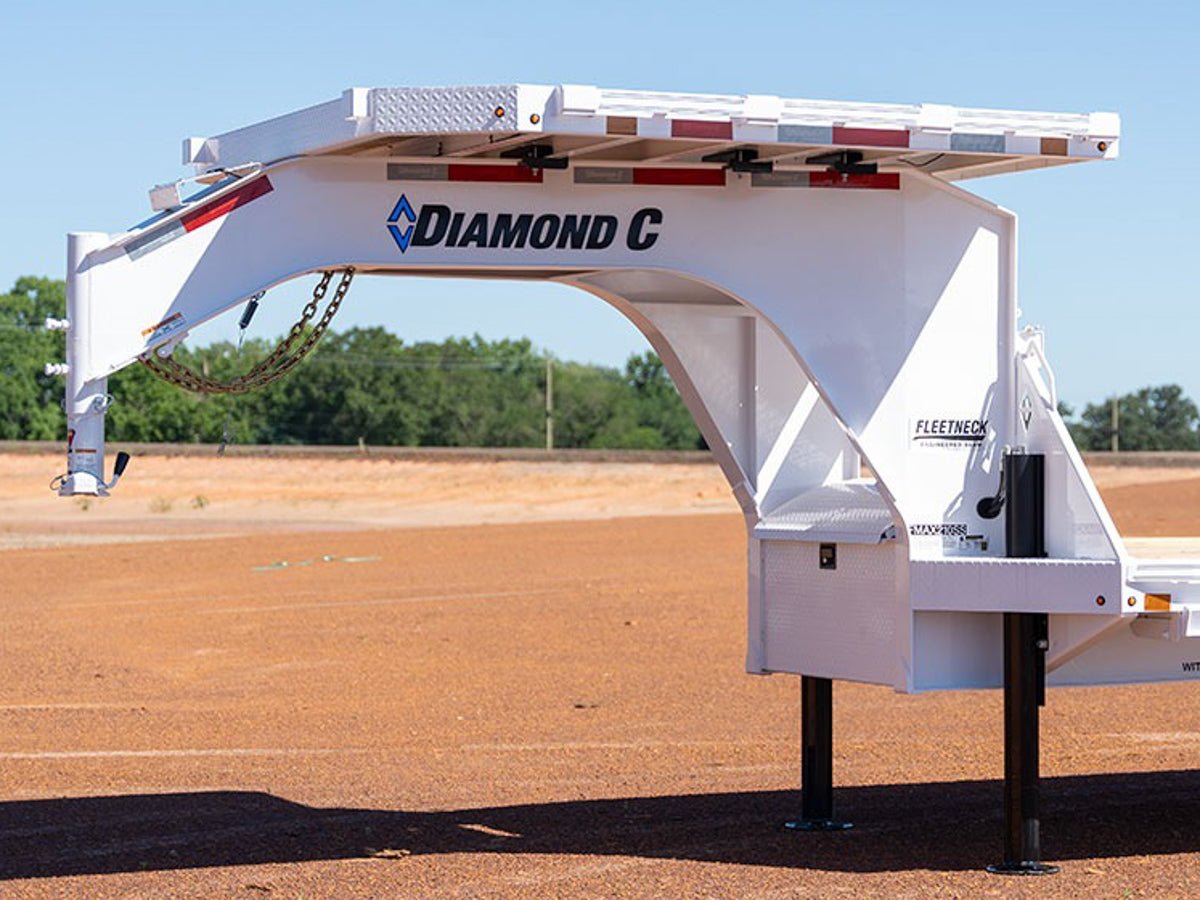

Engineered Curved Gooseneck

The heart of this trailer is its heavy-duty, curved engineered gooseneck. At 109" long and featuring a 30,000 lb rated Curt Cushion Coupler, it creates an incredibly strong, stable connection to your truck that absorbs road shock and provides superior towing control.

Premium Powdercoat Armor

Defend your investment against rust and wear with our premium powdercoat finish, applied through a meticulous 5-step preparation process. This durable, high-quality coating is available in eight modern colors, providing a superior, long-lasting shield that maintains its professional look through years of hard use and harsh weather.

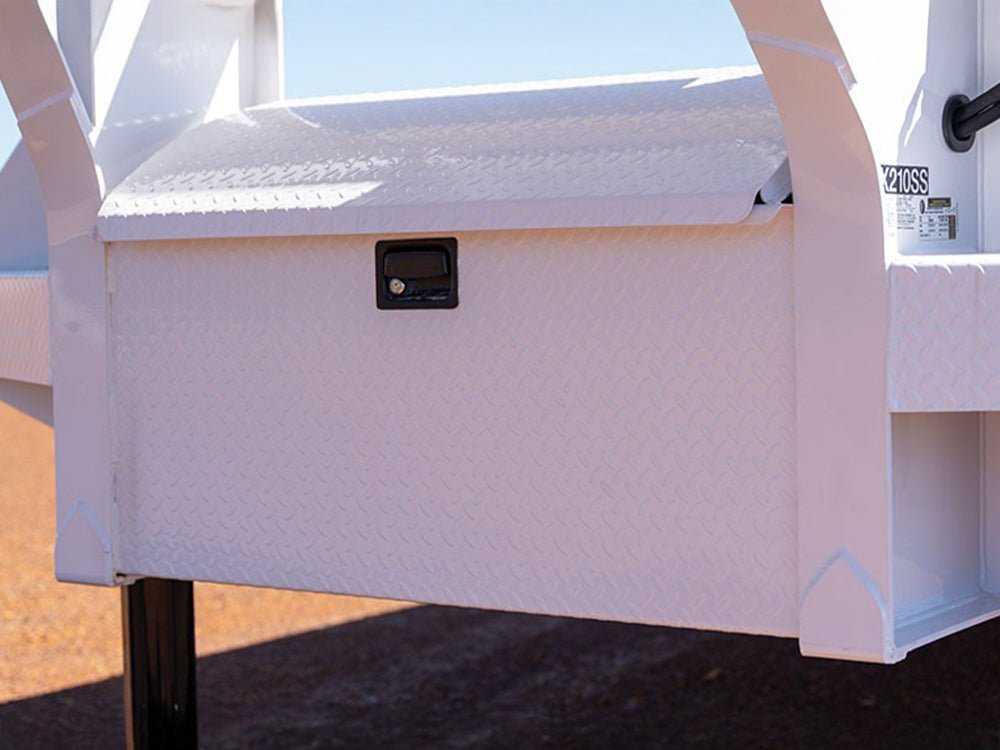

Smart, Secure Storage Built-In

Your essential gear has a dedicated, heavy-duty home. Our neck-mounted diamond plate toolbox, with its easy-lift gas-shock lid, provides immediate access to chains, binders, and tools, ensuring they are organized, secure, and ready for work at a moment’s notice.

Versatile Deck-On-Neck Option

Maximize your trailer's versatility with the available deck-on-neck configuration. This practical option provides a robust, flush-mounted deck surface over the gooseneck, giving you extra space for long or awkward cargo and increasing your trailer's overall load flexibility and utility.

Product Details

DIMENSIONS

LENGTH:
30' - 44'
WIDTH:
102"
DECK HEIGHT:
35"

WEIGHT RATINGS

GAWR:
10k, 12k
GVWR:
25,000 - 25,900 lbs

FINISH

PAINT TYPE:
Powdercoat
PREP:
5-Step Painting Process
COLORS:
Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray

TONGUE

TONGUE GOOSENECK:
Curved Engineered Gooseneck, 109" Long
STANDARD COUPLER GN:
Curt Cushion Coupler (30,000 lbs)
FRONT JACKS GN:
2 - 12,000 lb Drop-Leg Jacks
TOOLBOX GN:
Diamond Plate Neck Box w/ Gas Shock Assisted Lid

SAFETY

BREAKAWAY SYSTEM:
Safety Breakaway System w/ Cable
REFLECTIVE TAPE:
DOT Approved Safety Tape
SAFETY CHAINS:
2 Safety Chains
SWAY CONTROL:
Torque Tube (Standard on 30'+)

DECK & LOADING

DECK TYPE:
Wood
RAMPS:
12' Hydraulic Dovetail

ELECTRICAL & LIGHTING

BATTERY:
Group 27 Series Battery
CHARGING SYSTEM:
110V 5 Amp Charger
WIRING HARNESS:
Sealed Wiring Harness
REAR LIGHTS:
DOT Approved LED Lighting

RUNNING GEAR

TIRES:
Radial Tires, 235/75R17.5, 18 Ply
RIMS:
17.5" Black Wheels
BRAKES:
Electric Drum
AXLE TYPE:
2 - SS 10k Lippert Oil Bath Axles
2 - SS 12k Lippert Oil Bath Axles
AXLE COUNT:
2
SUSPENSION TYPE:
5-Leaf Slipper Springs, 6-Leaf Slipper Springs (12k)

FRAME & CONSTRUCTION

MAIN FRAME:
16" Low Profile Engineered Beam
CROSSMEMBERS:
3" I-Beam, 16" Centers w/ Formed Gussets

WARRANTY

TRAILER WARRANTY:
6 Year Structural / 2 Year Component Warranty

OPTIONS

JACKS & COUPLER

JACKS:
2 - 25,000lb Two-Speed Drop Leg Jacks
2 - 20,000 lb Hydraulic Jacks
COUPLER:
Shocker Hitch Air Ride Coupler
TOOLBOX:
Neck Storage Box in Winch Tray
WINCH MOUNT/WINCH:
12k Warrior Winch Package
17.5k Warrior Winch Package

ELECTRICAL & BRAKES

BATTERY:
Crown 27HDC Battery Upgrade
SOLAR:
7-Watt Solar Charging System
LIGHTS:
Bolt-On LED Loading Lights
Flashing Caution LED Light On Rear
Extra 3/4" Clearance Lights
BRAKE UPGRADE:
Electric-Over-Hydraulic Disc Brakes

SUSPENSION & CARGO

DECK ON NECK:
Option Available
SUSPENSION UPGRADE:
HD Hutch Suspension
Air Ride w/ Front Axle Lift
SPARE TIRE:
Spare Tire
RAIL SYSTEM:
Slide Track, Right Side, Left Side, or Both
WELD ON RATCHETS:
Weld On Ratchets
D-RINGS:
Additional D-Rings
