At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Get a Custom Quote
Product Features
Durable Powdercoat Protection
Our premium powdercoat finish, applied through a meticulous 5-step process, provides a superior shield against rust, chips, and UV damage. Available in eight modern colors, this durable coating ensures your trailer maintains its sharp, professional appearance through years of tough use and exposure to the elements

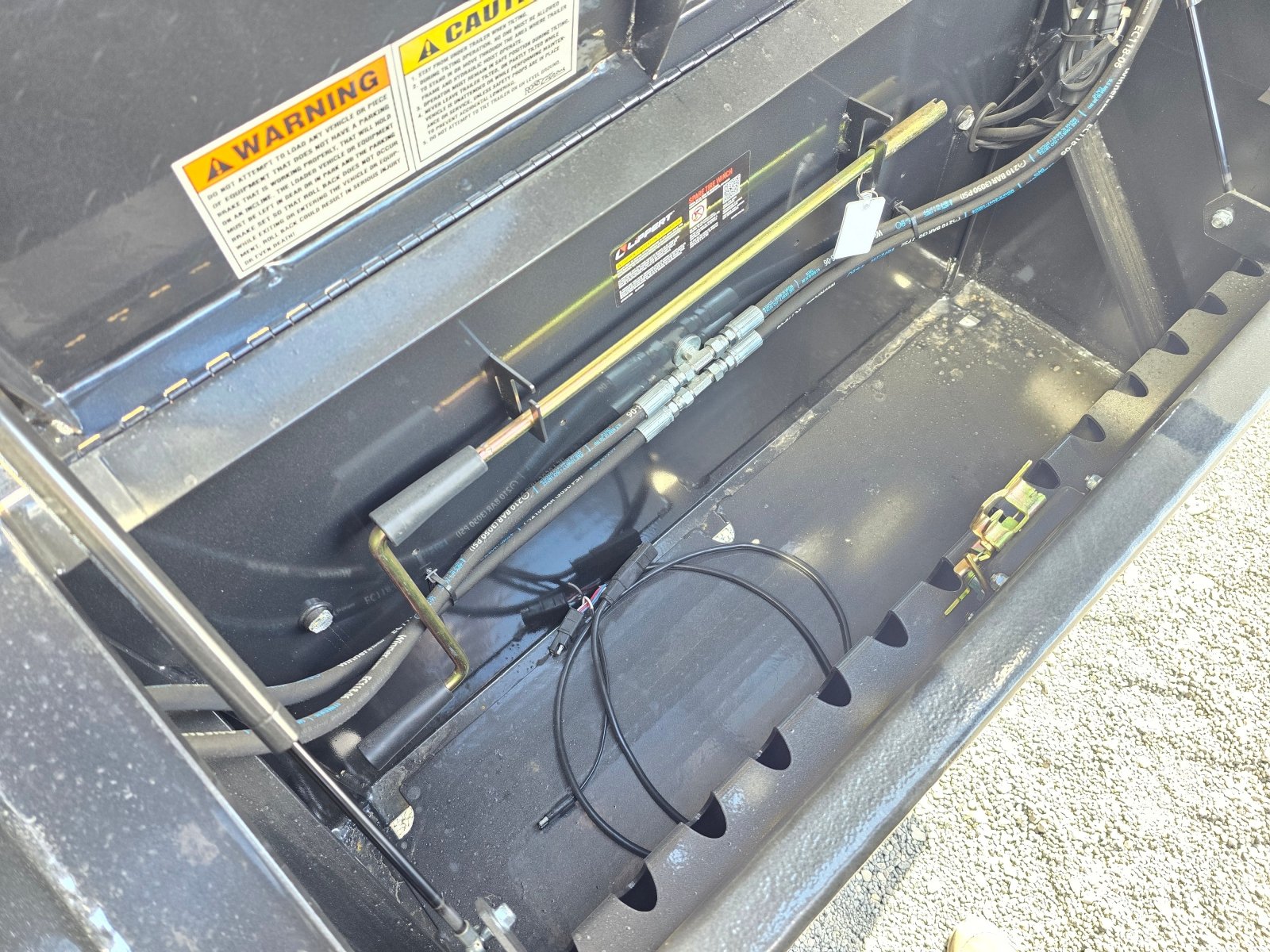

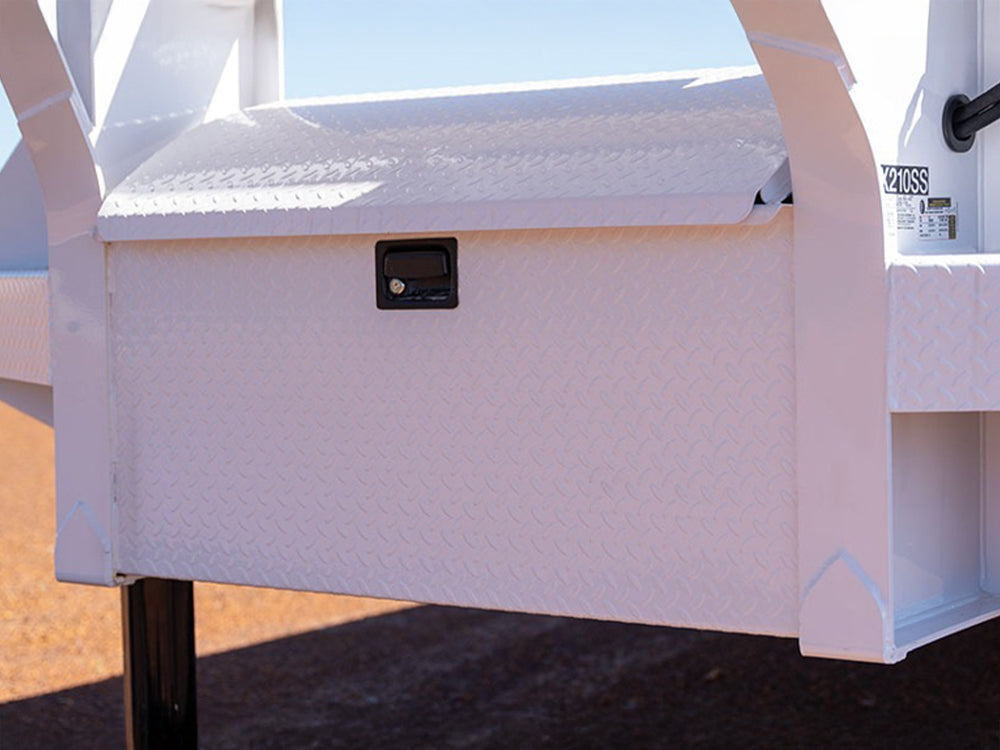

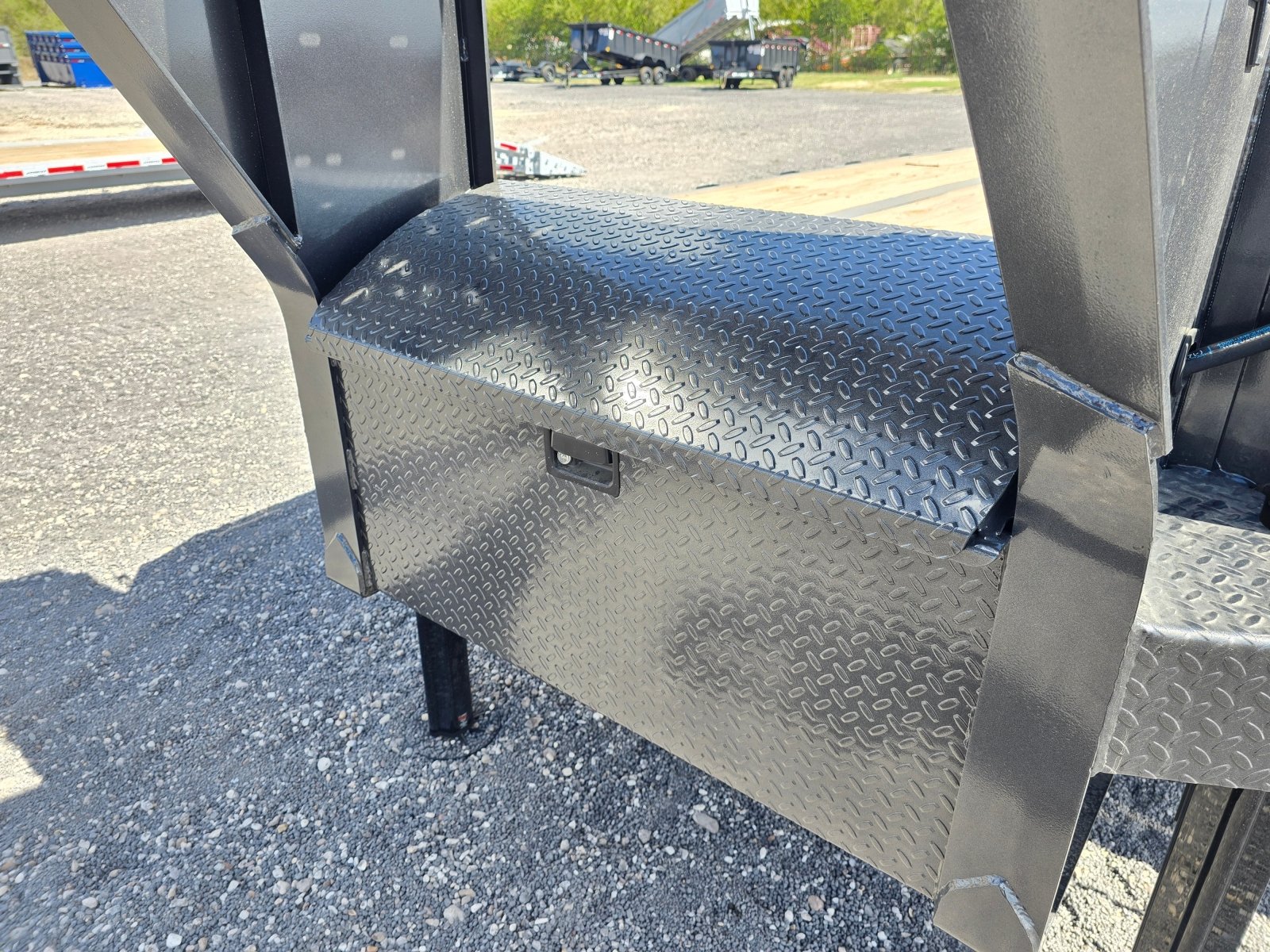

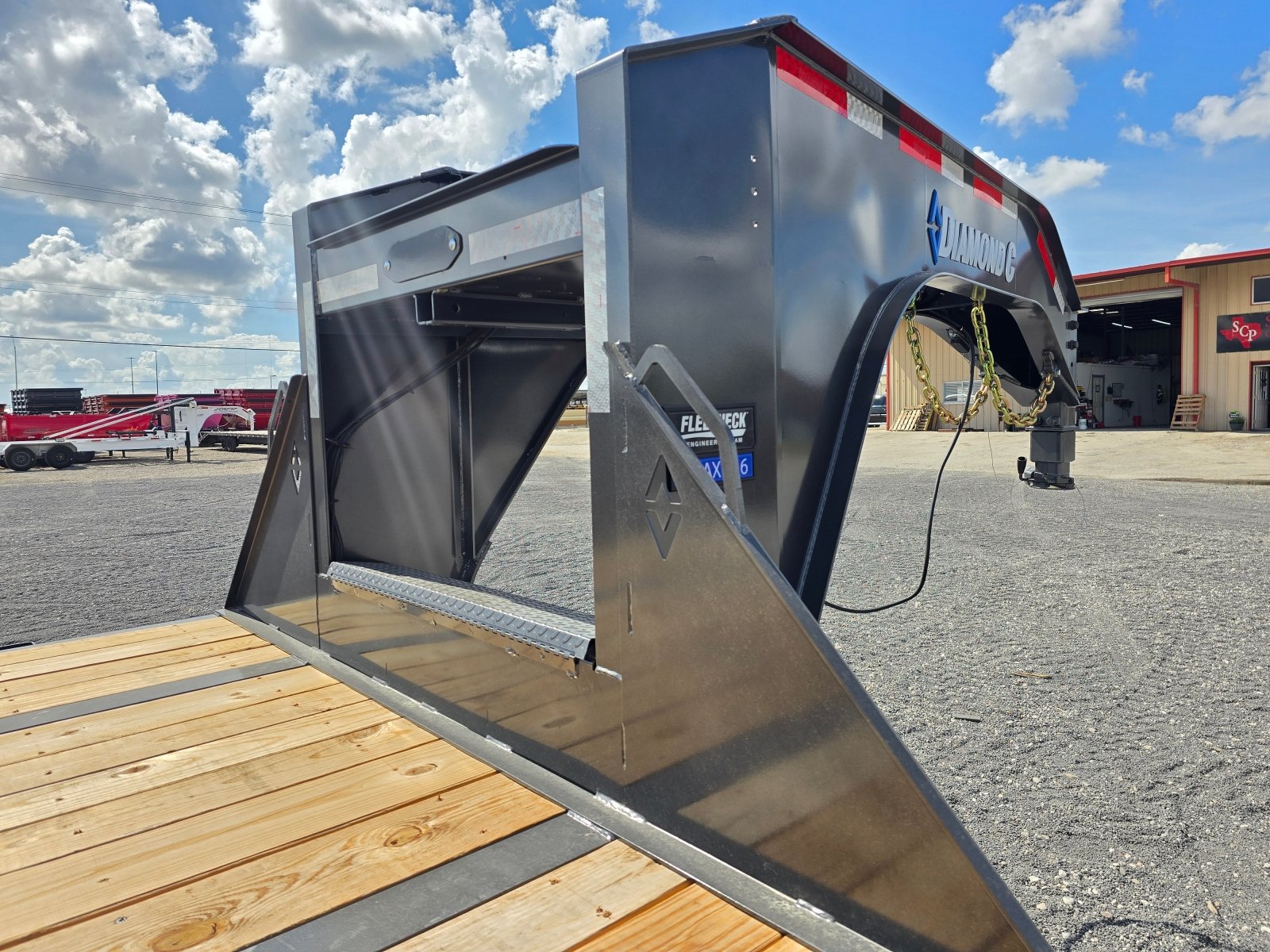

Integrated Diamond Plate Toolbox
Keep your gear secure and accessible with the standard diamond plate neck box. The gas-shock assisted lid allows for easy, one-handed operation, providing rugged, lockable storage for all your equipment right at the gooseneck. For even greater capacity, upgrade to the neck storage box integrated into a winch tray.

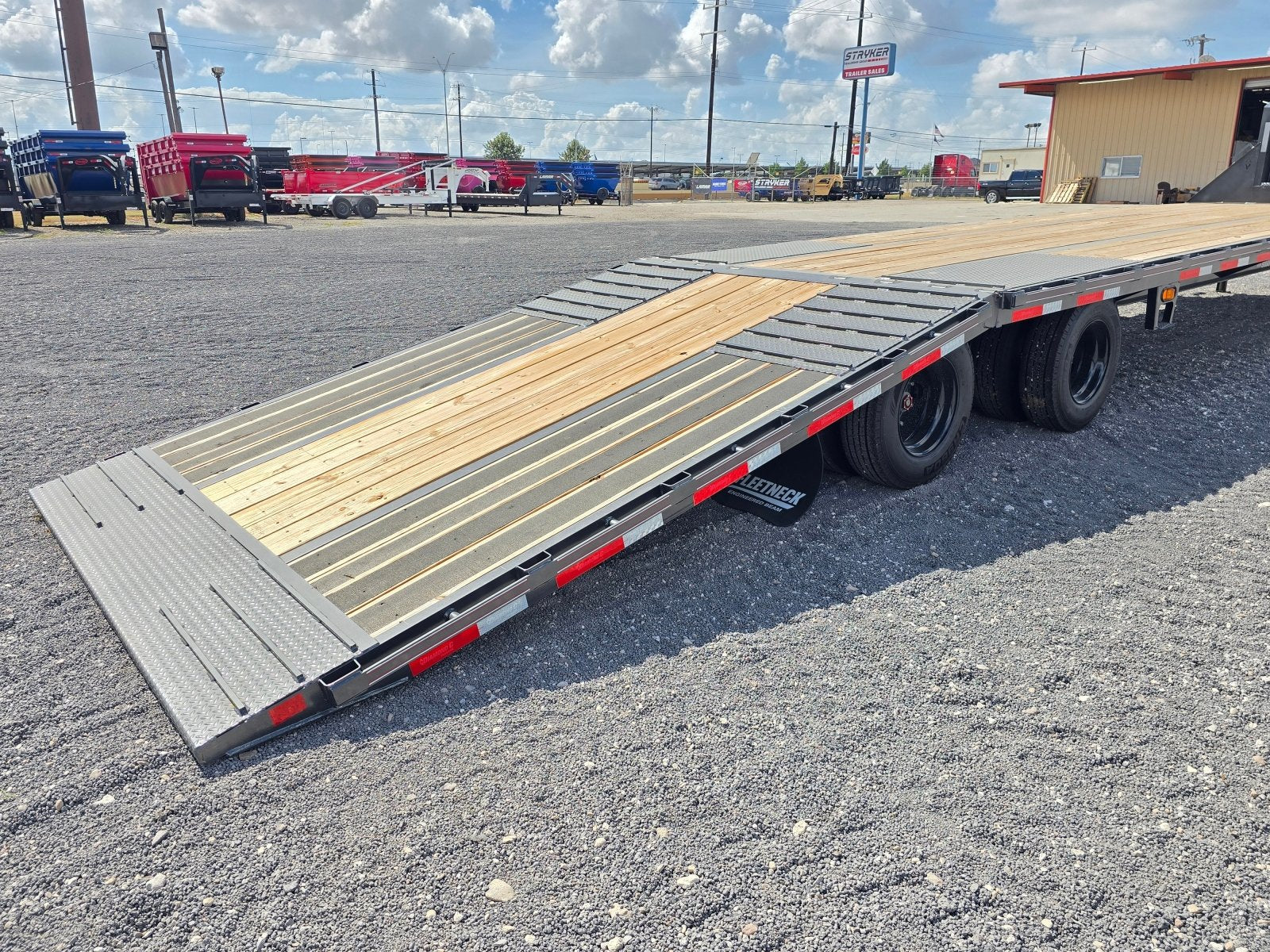

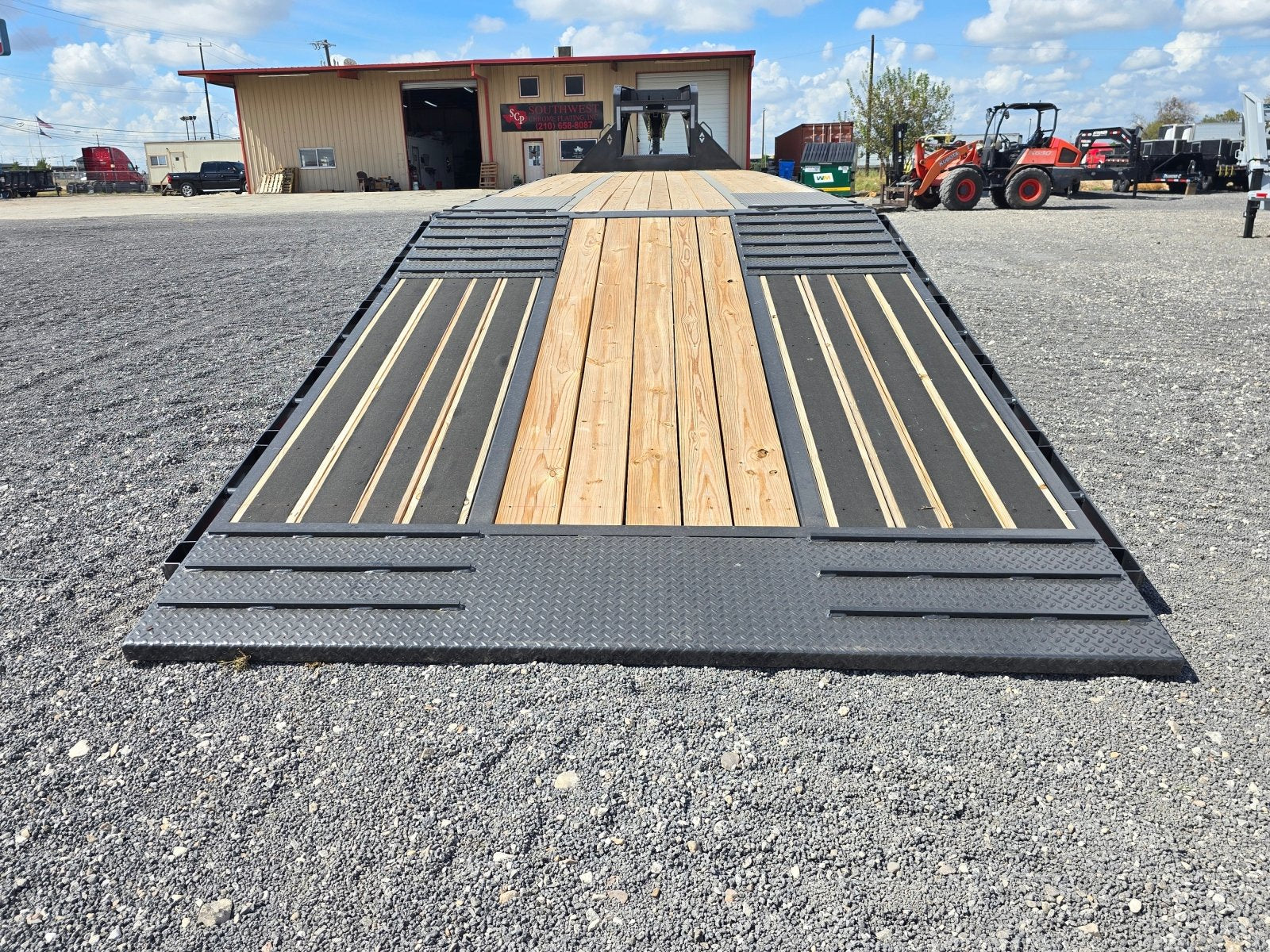

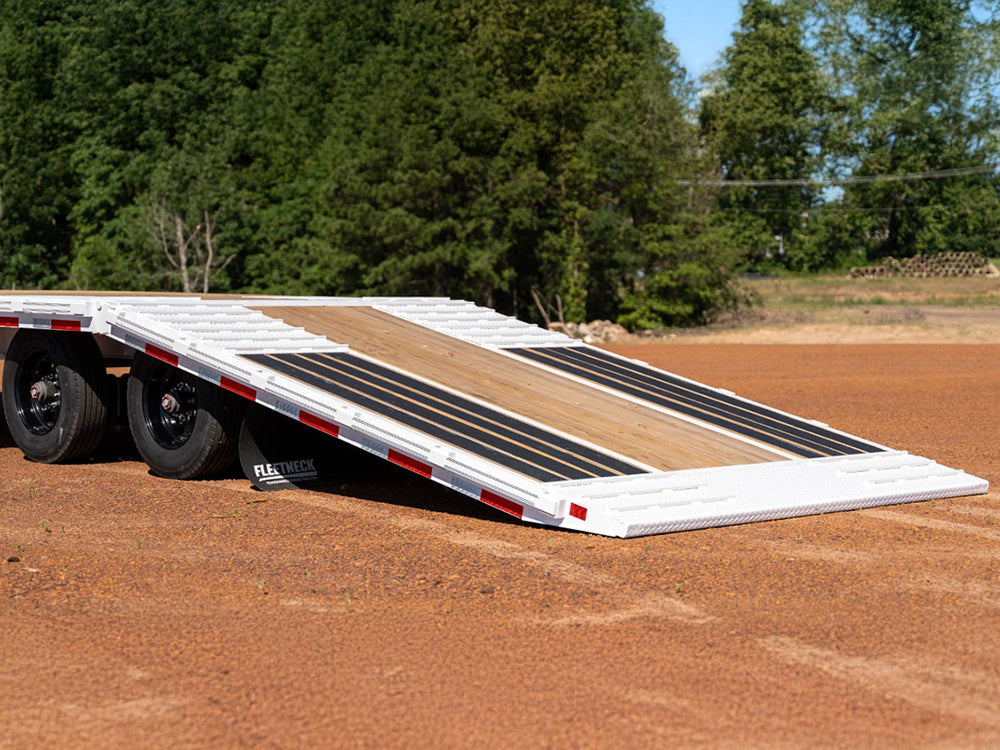

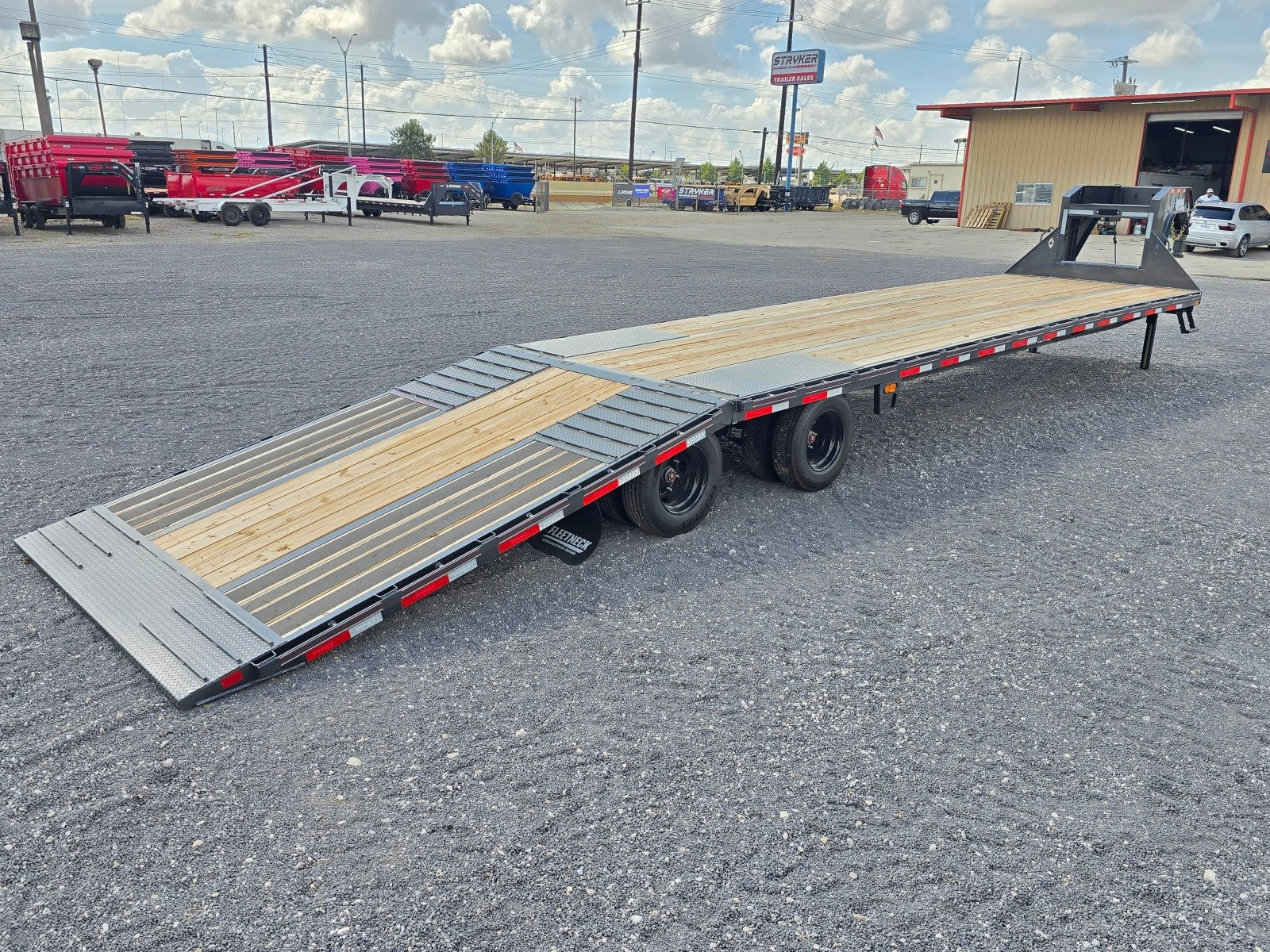

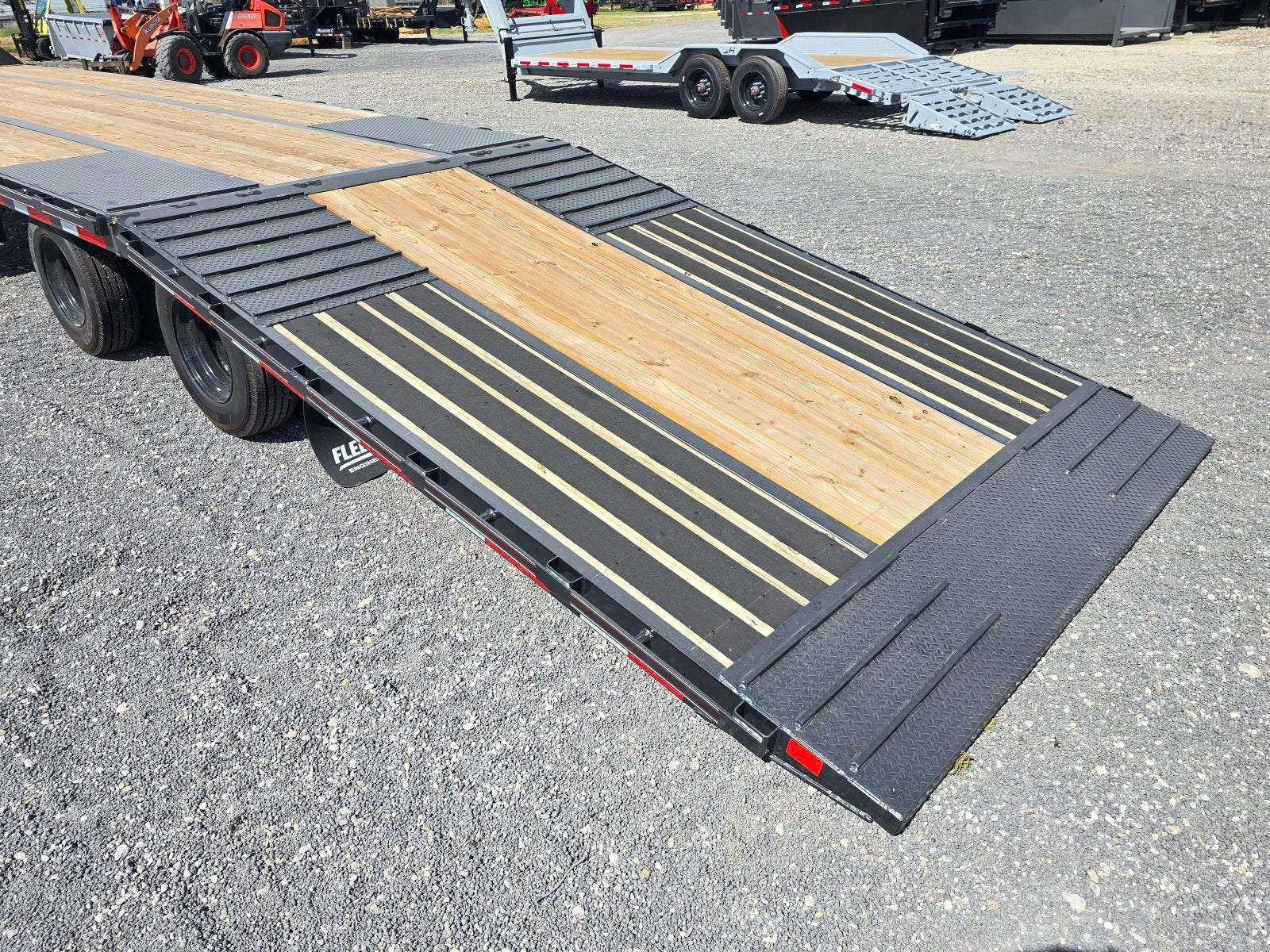

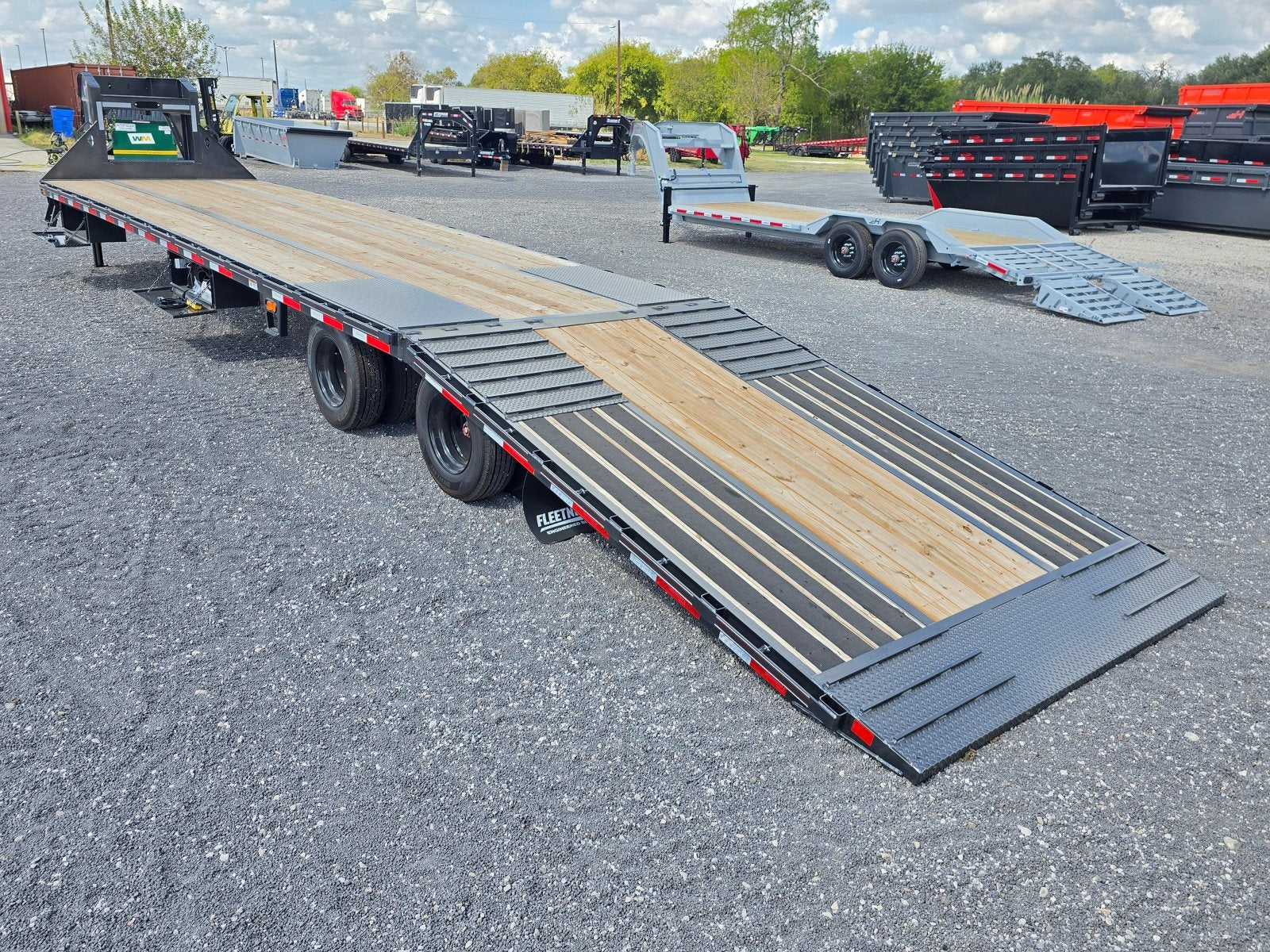

Effortless 12' Hydraulic Dovetail
Transform loading and unloading with the standard 12-foot hydraulic dovetail. This game-changing feature allows you to raise and lower the trailer bed with the simple push of a button, making it incredibly easy and safe to load heavy equipment, saving you time and effort on every job.

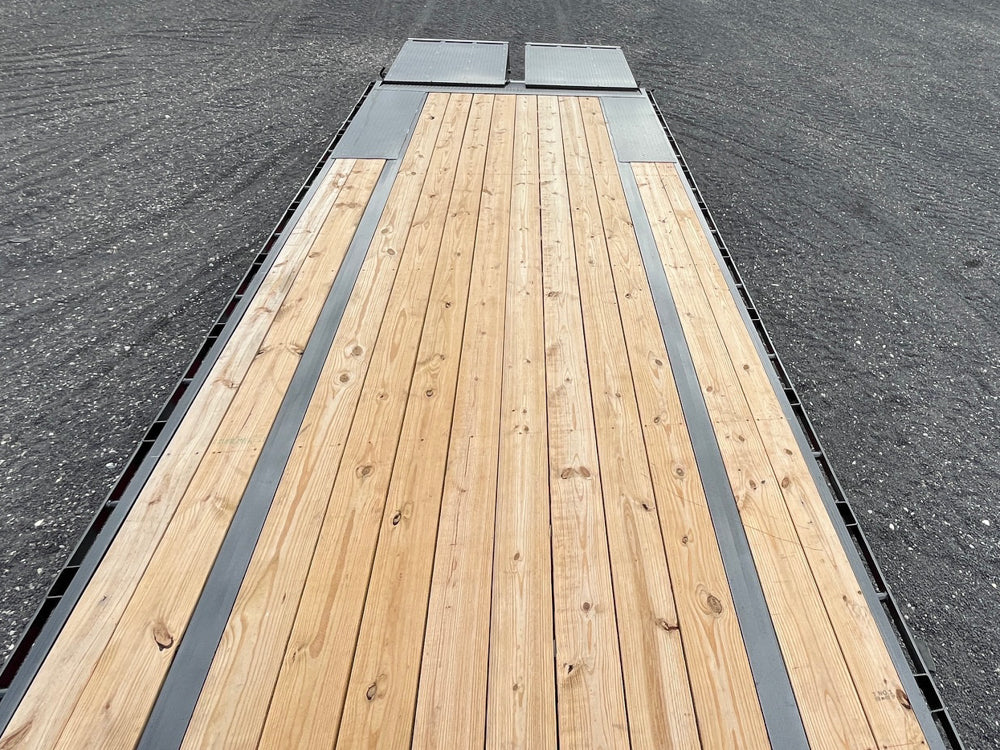

An Ultra-Rigid, High-Strength Deck
Built on a dense grid of 3" I-Beams spaced just 16" apart, our deck is engineered to eliminate flex and handle extreme point loads. This creates a rock-solid, stable platform that stands up to the heaviest and most concentrated equipment.
Massive Capacity. Maximum Control.

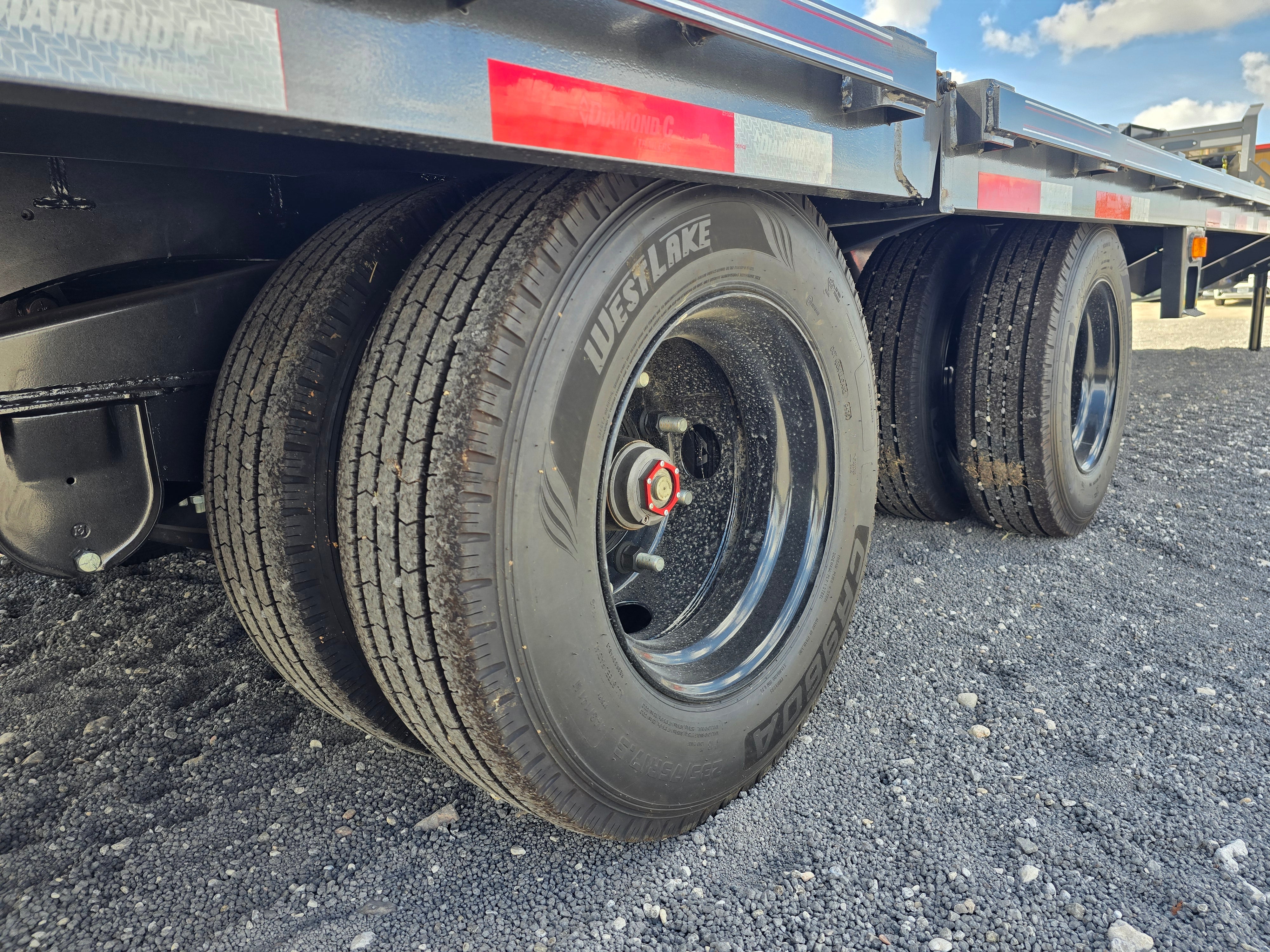

With dual 16k Lippert HD oil bath axles, the FMAX HD handles up to 40K GVWR with confidence. Electric-over-hydraulic disc brakes deliver powerful, consistent stopping when it counts.

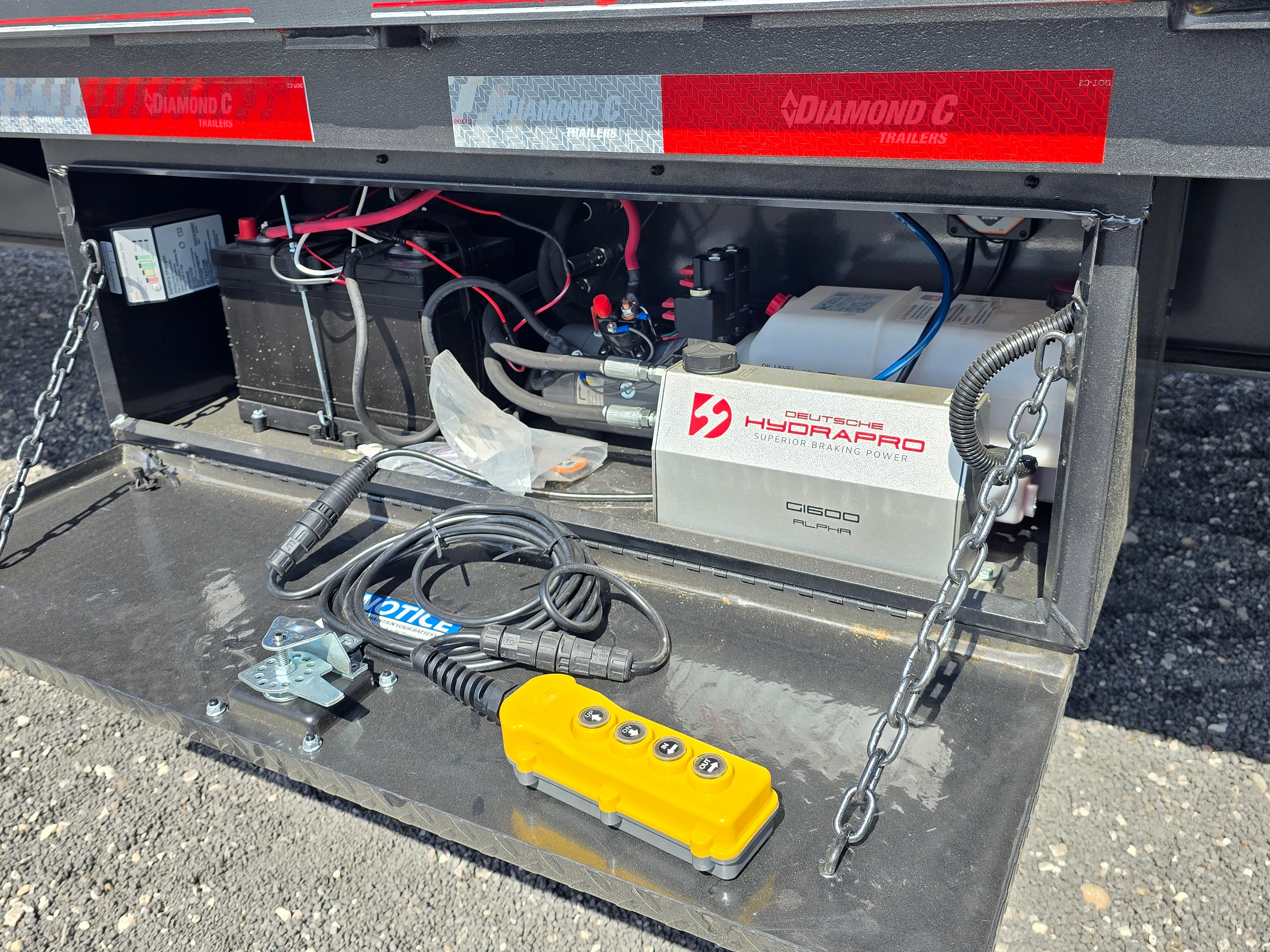

Hydraulic Power, On Demand
A reliable 110V 5-amp charger and Group 27 battery system power the dovetail and optional hydraulic jacks — ready whenever you are, without relying on your tow vehicle.
Product Details
DIMENSIONS
- LENGTH:
- 30' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 35"
WEIGHT RATINGS
- GAWR:
- 16k
- GVWR:
- 30k - 40k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
TONGUE
- TONGUE GOOSENECK:
- Curved Engineered Gooseneck, 109" Long
- STANDARD COUPLER GN:
- Curt Cushion Coupler (30,000 lbs)
- 40K GVWR COUPLER:
- 3" Ball - 40,000 lbs Adjustable Telescoupler

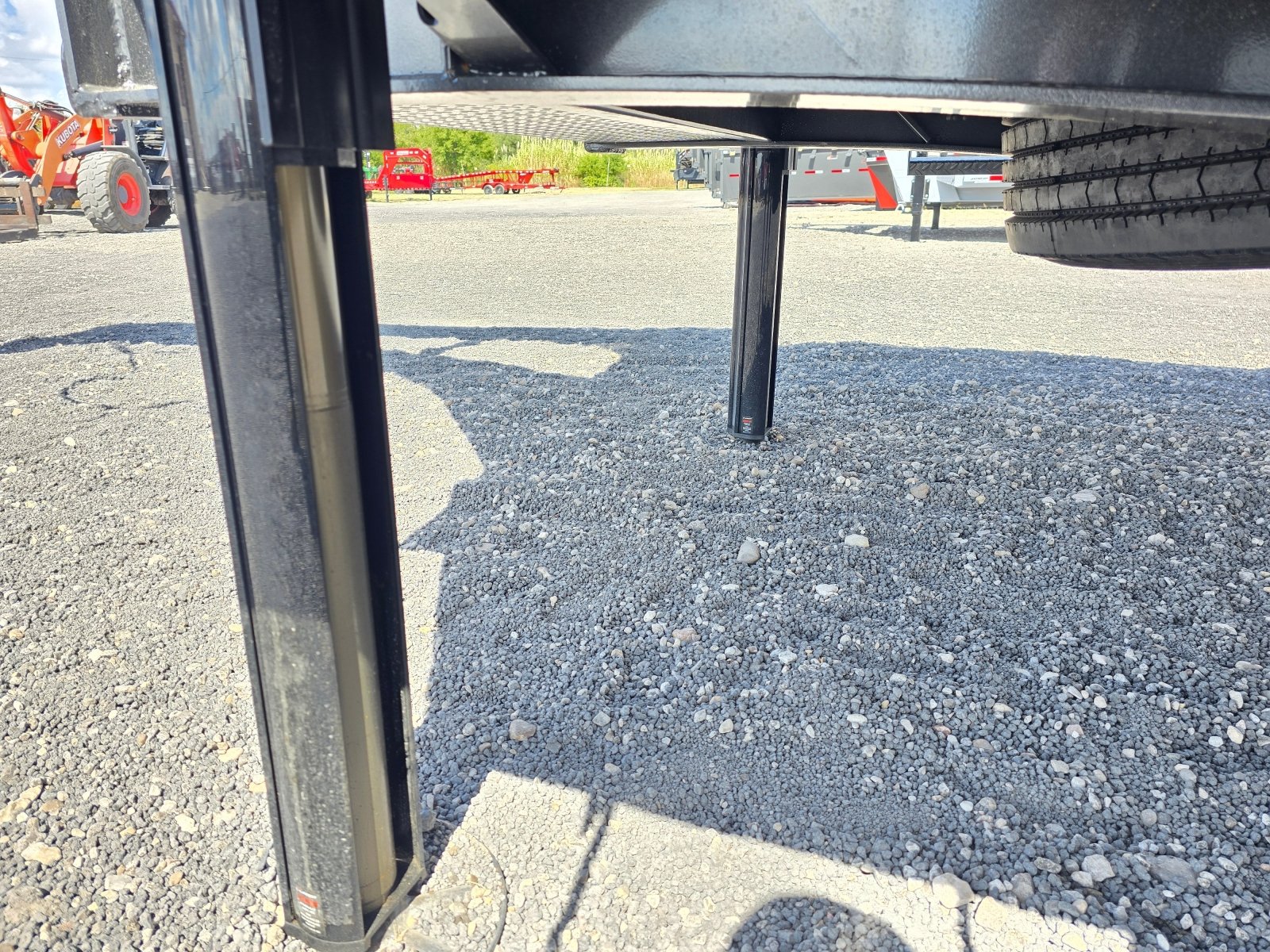

- FRONT JACKS GN:
- 2 - 12,000 lb Drop-Leg Jacks
- TOOLBOX GN:
- Diamond Plate Neck Box w/ Gas Shock Assisted Lid
SAFETY
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape

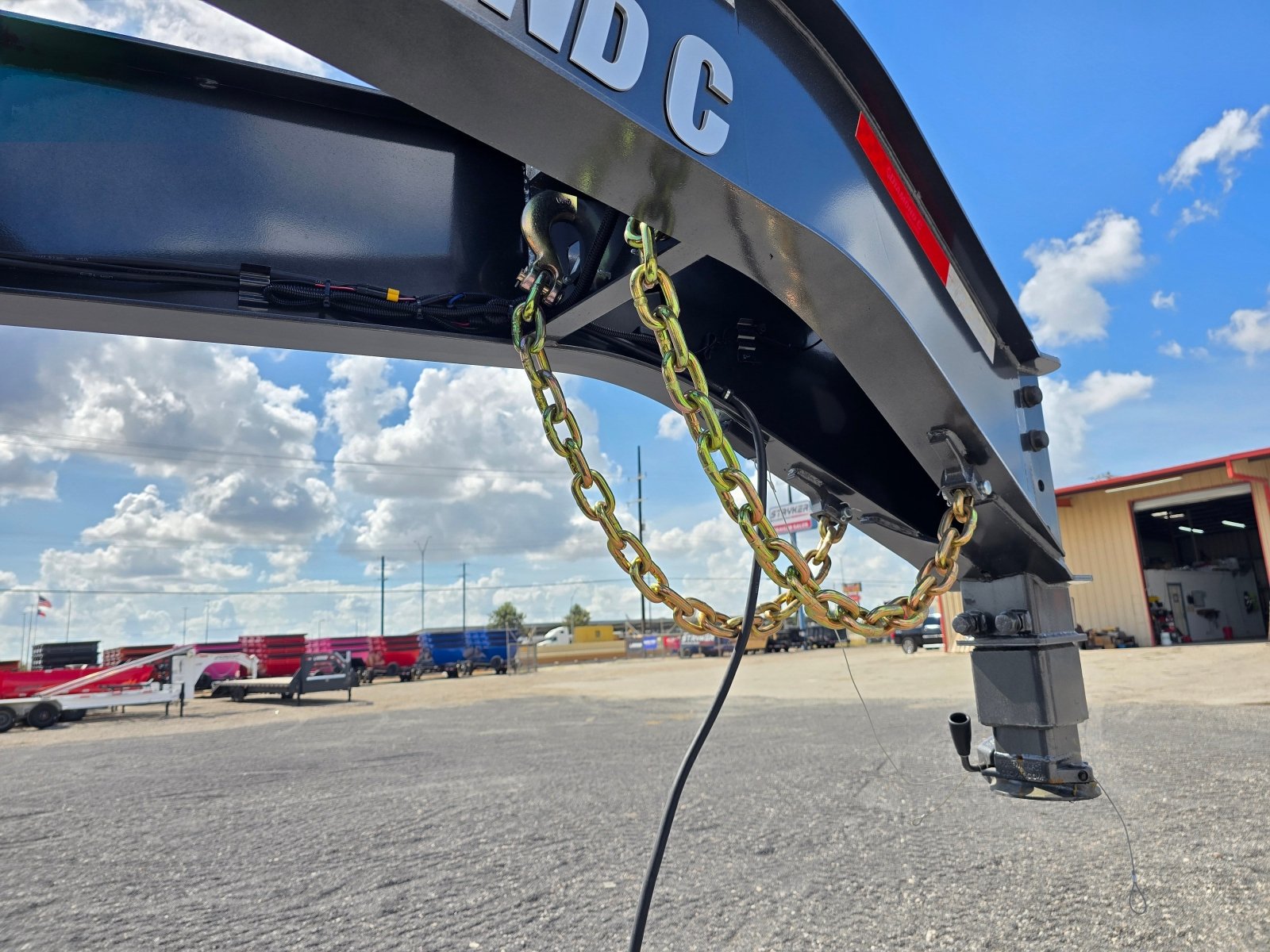

- SAFETY CHAINS:
- 2 Safety Chains
- SWAY CONTROL:
- Torque Tube (Standard on 30'+)
ELECTRICAL & LIGHTING
- BATTERY:
- Group 27 Series Battery
- CHARGING SYSTEM:
- 110V 5 Amp Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting

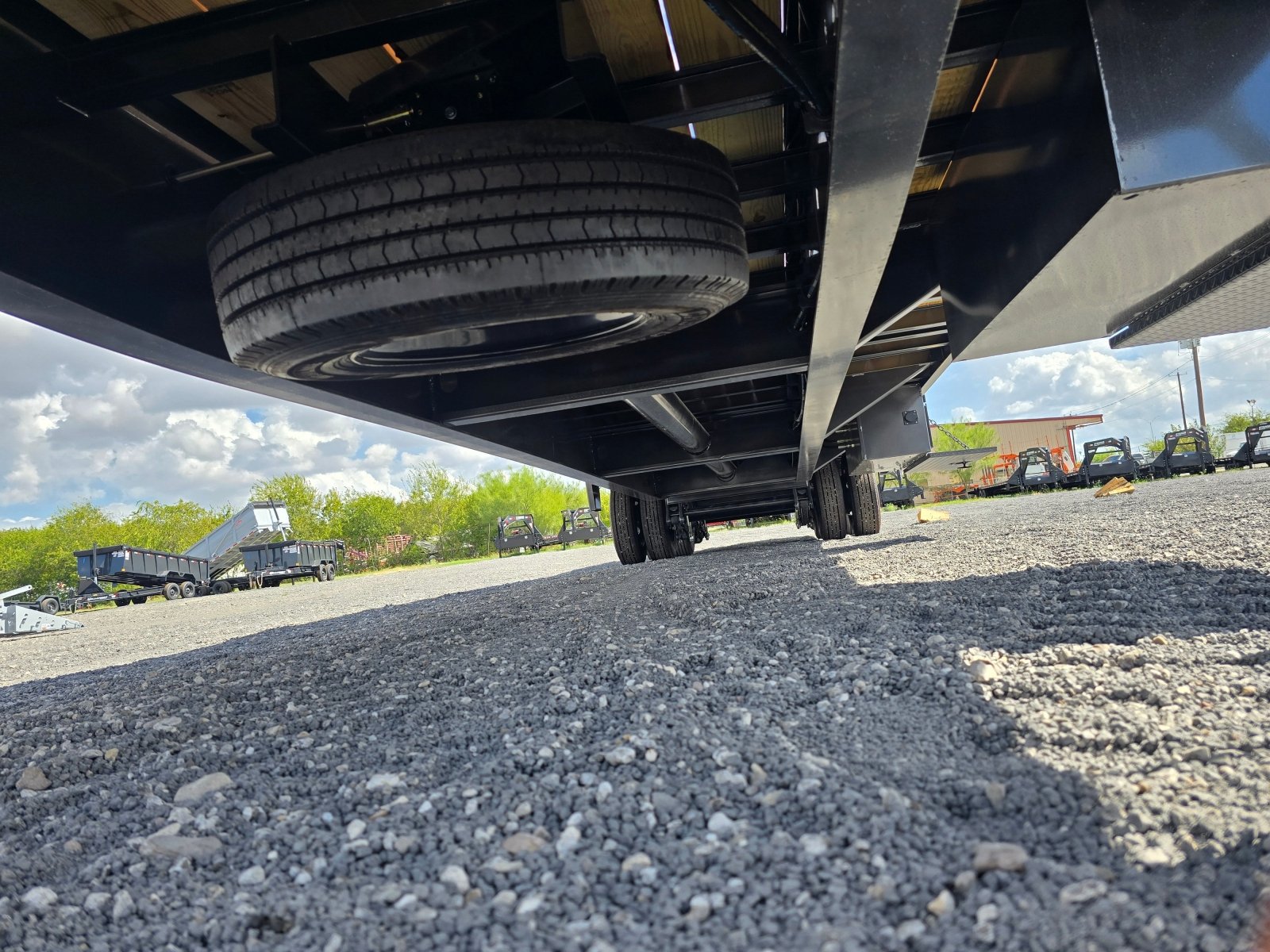

RUNNING GEAR
- TIRES:
- Radial Tires, 215/75R17.5, 18 Ply
- RIMS:
- 17.5" Black Wheels
- BRAKES:
- Electric-Over-Hydraulic Disc Brakes
- AXLE TYPE:
- 2 - 16k Lippert HD Oil Bath Axles
- AXLE COUNT:
- 2
- SUSPENSION TYPE:
- HD Hutch Suspension
FRAME & CONSTRUCTION
- MAIN FRAME:
- 16" - 18" Low Profile Engineered Beam (18" on 35'+)
- CROSSMEMBERS:
- 3" I-Beam, 16" Centers w/ Formed Gussets
- DECK TYPE:
- Wood
- RAMPS:
- 12' Hydraulic Dovetail
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
OPTIONS
