Product Features
Axles and Tires
Two 16k Electric Brake dual oil bath axles paired with HD double slipper mechanical suspension ensure stability and reliable handling. Tires are 18-ply, ST235/75R17.5, mounted on 17.5" black mod wheels.
DURABLE POWDER COAT FINISH
Finished with a high-quality powder coat and steel grit blasted prep, the HYZ trailer is built to withstand the elements and resist corrosion. Its durable construction and weather-resistant finish ensure long-lasting performance, maintaining the trailer's appearance and structural integrity over time.
Powerful Hydraulic System
Equipped with a KTI 12V hydraulic pump, the HYZ trailer delivers efficient lifting capabilities with a 10,000 lb lift capacity. The hydraulic system, powered by 2 - 4" x 16" single push cylinders, provides smooth and controlled operation for easy and precise loading and unloading.

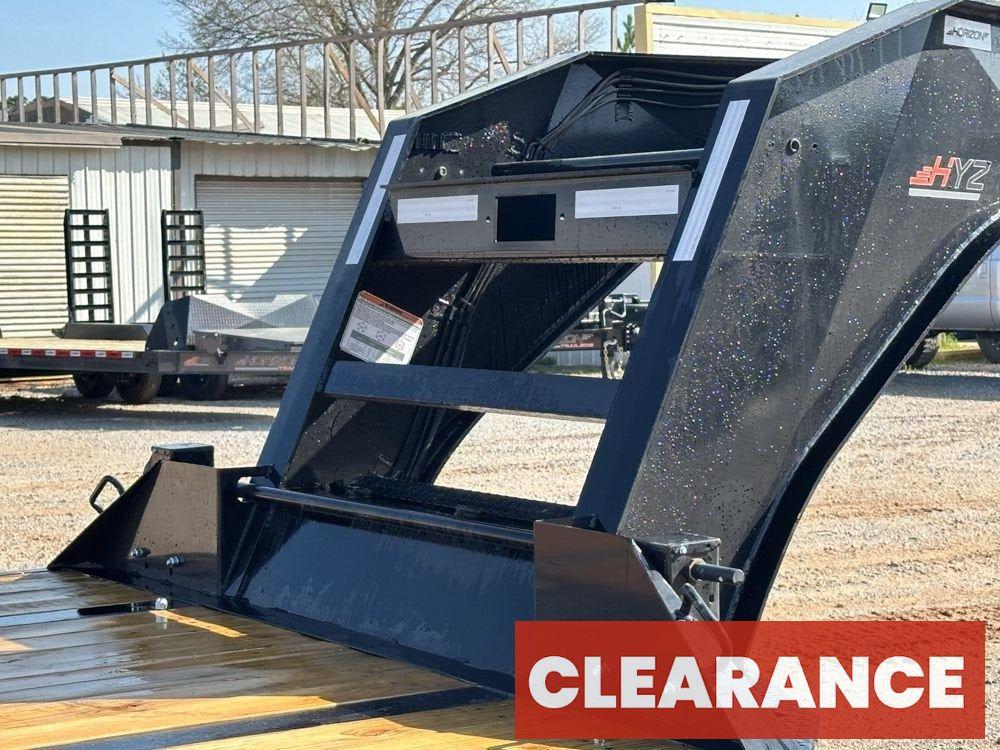

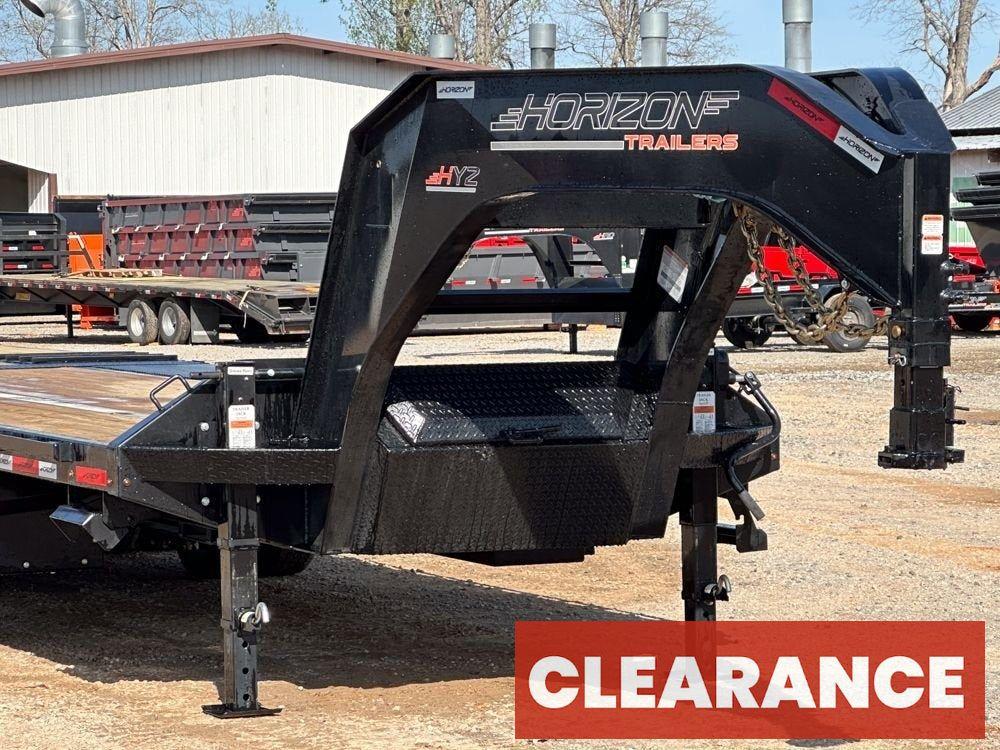

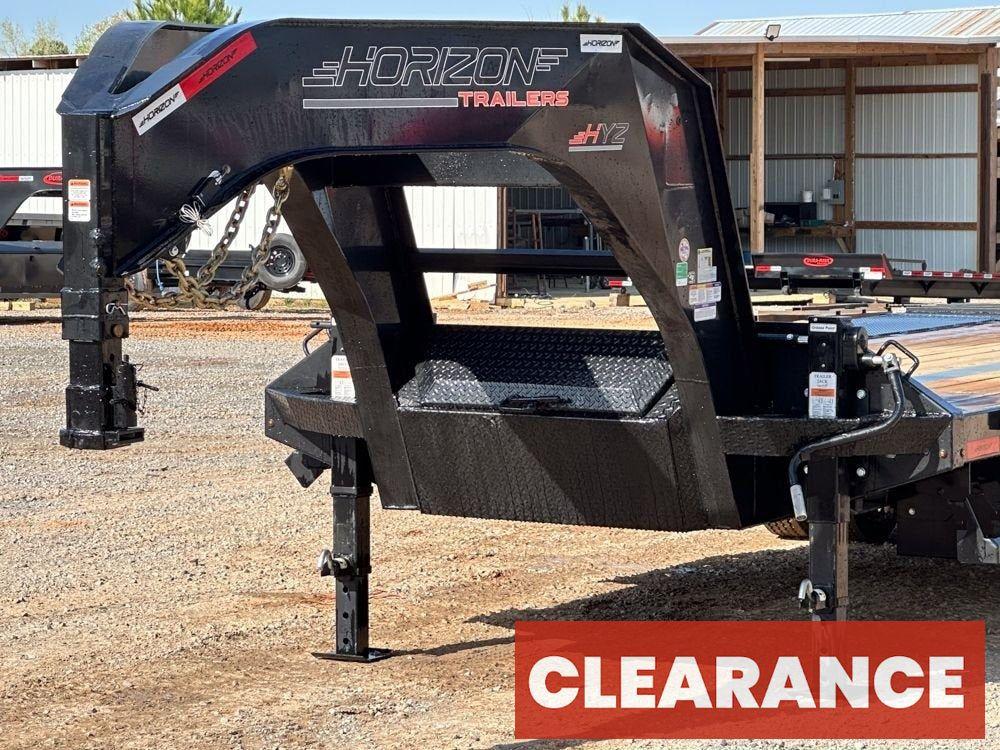

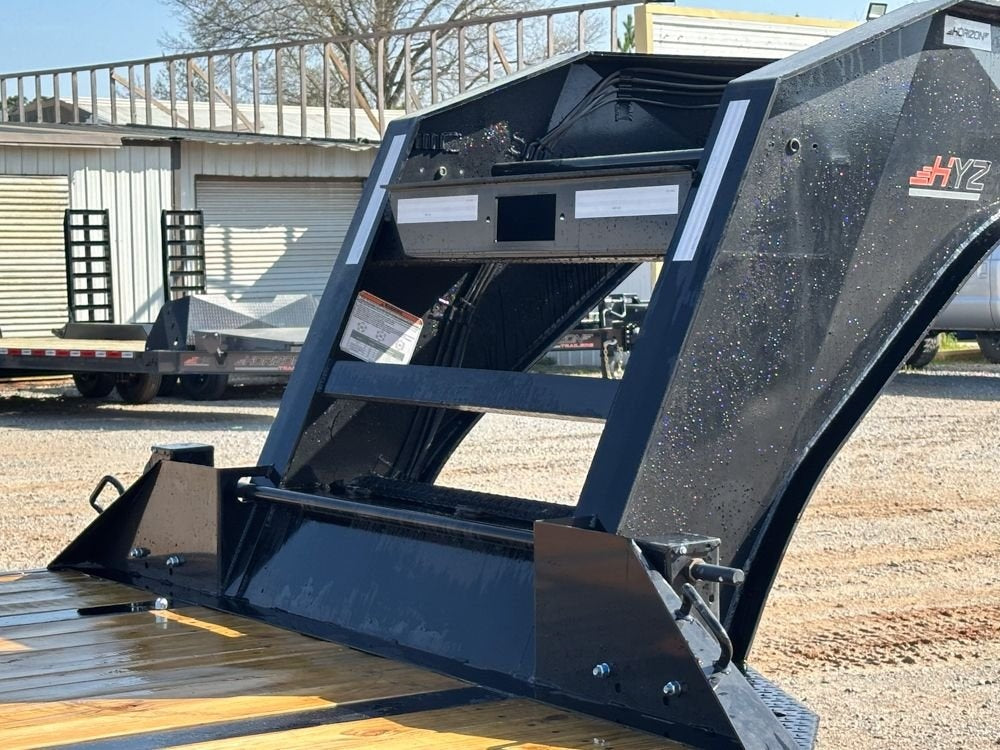

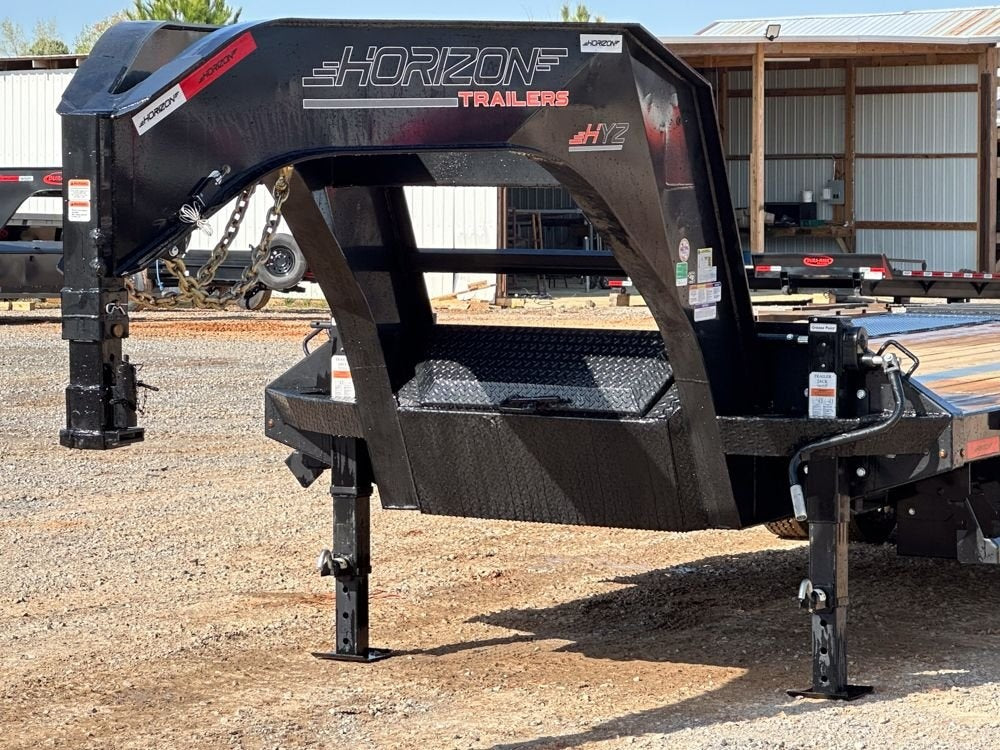

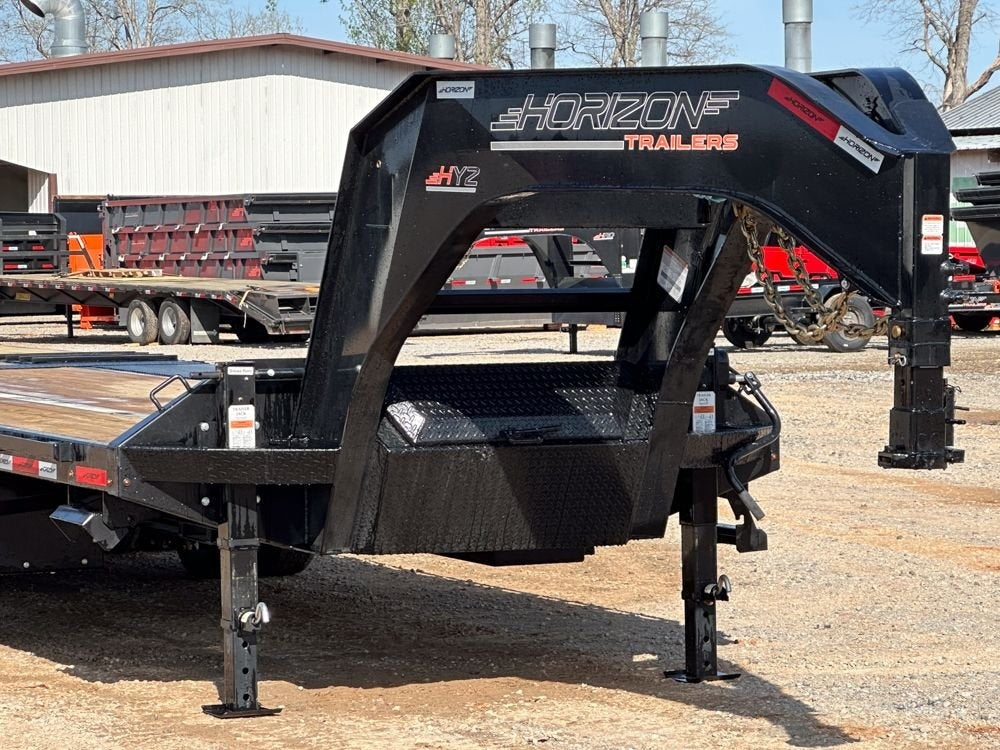

Gooseneck & Coupler
Features a curved engineered I-beam gooseneck (108" long from behind riser, 70" height from underneath neck) with an adjustable 3" coupler rated for 40,000 lbs. Front support includes two 17,500 lb Jost 2-speed drop jacks.
Heavy-Duty Frame & Deck
Built on a 14" I-Beam (22 lbs/ft) with 3" I-Beam crossmembers spaced every 16", this trailer offers a sturdy wood deck and a 4½" torque tube (30'+) for superior load support. Deck height is 35" for easy loading and transport.
Product Details
DIMENSIONS
- LENGTH:
- 30' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 35"
WEIGHT RATINGS
- GAWR:
- 16k
- GVWR:
- 40k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 1/2" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 108" Long
- COUPLER:
- Adjustable 3" Coupler (40,000 lbs)
- JACKS:
- 2 Side Wind Jost 2 Speed Drop Jack (17,500 lbs)
- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood

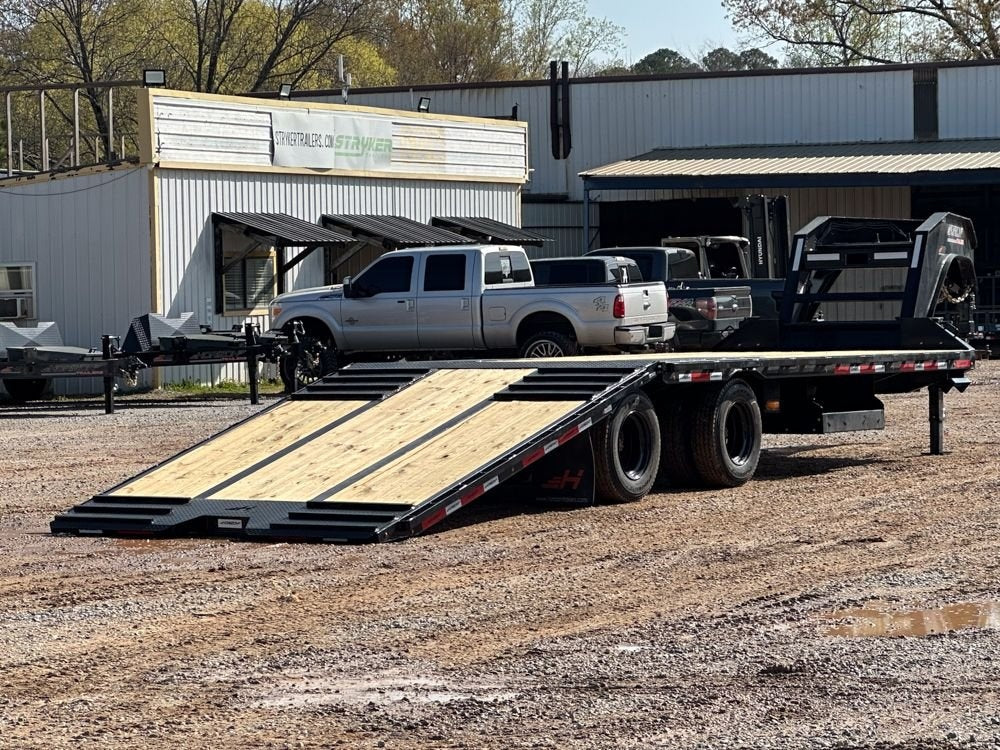

- RAMPS:
- 12' Hydraulic Dovetail
- SWAY CONTROL:
- 4 1/2" Torque Tube (30'+)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, ST235/75R17.5, 18 Ply
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 16k Electric Brake Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 10.83"
- SUSPENSION TYPE:
- HD Double Slipper Mechanical Suspension
HYDRAULIC SYSTEM
- SYSTEM:
- 2 Button - Power Up/Power Down
- PUMP:
- KTI 12V Hydraulic Pump
- CYLINDERS:
- 2 - 4x16" Single Push Cylinders
- LIFT CAPACITY:
- 10,000 lbs
FRAME & CONSTRUCTION
- MAIN FRAME:
- 14" I-Beam (22lbs/ft)
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
