Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

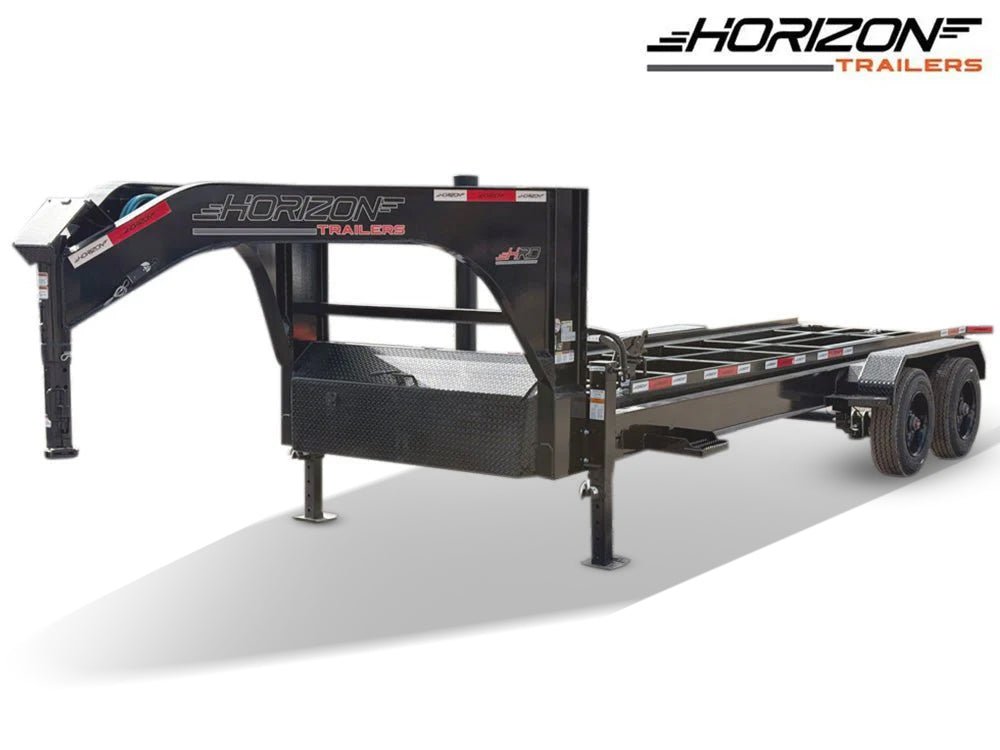

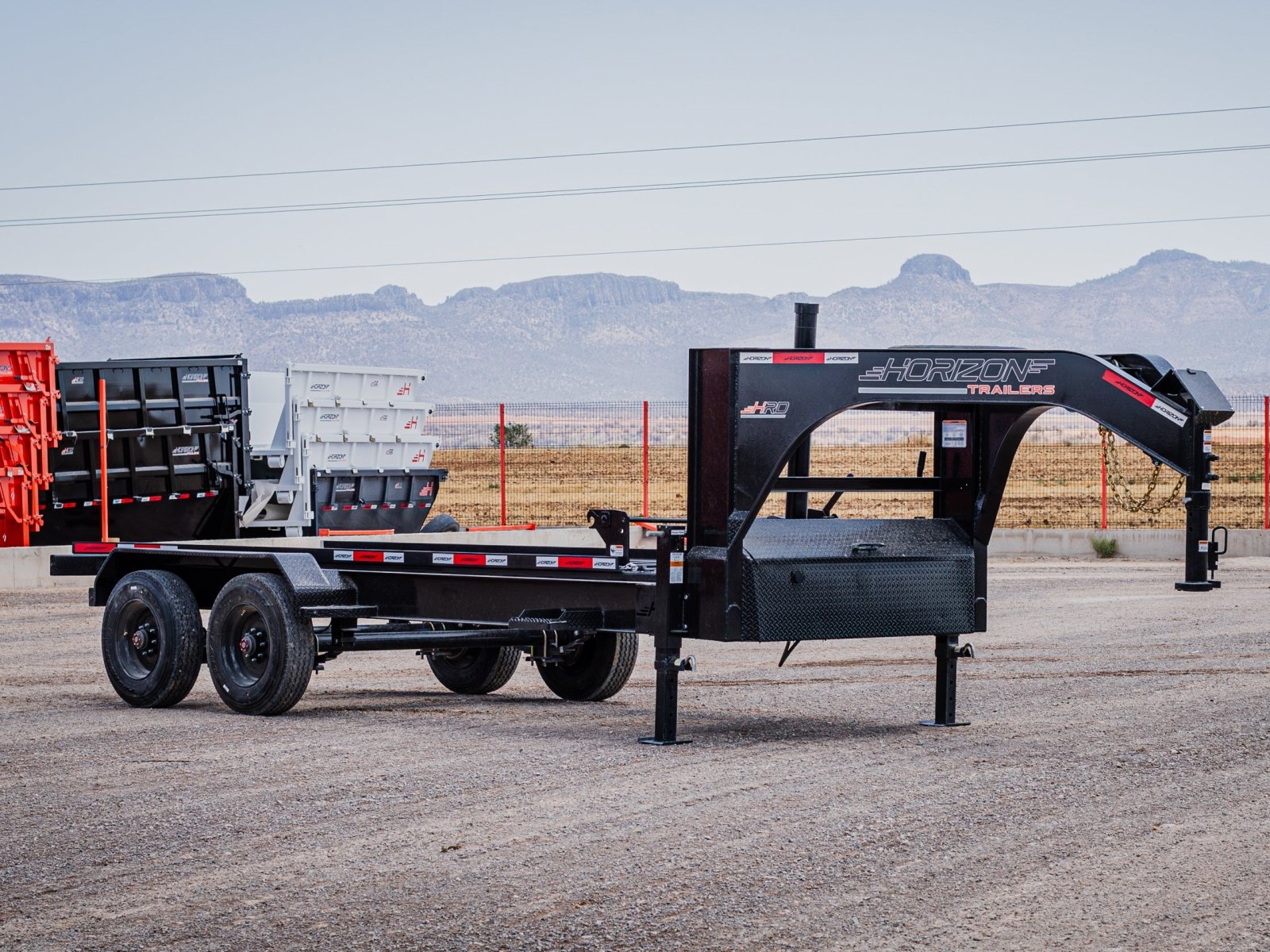

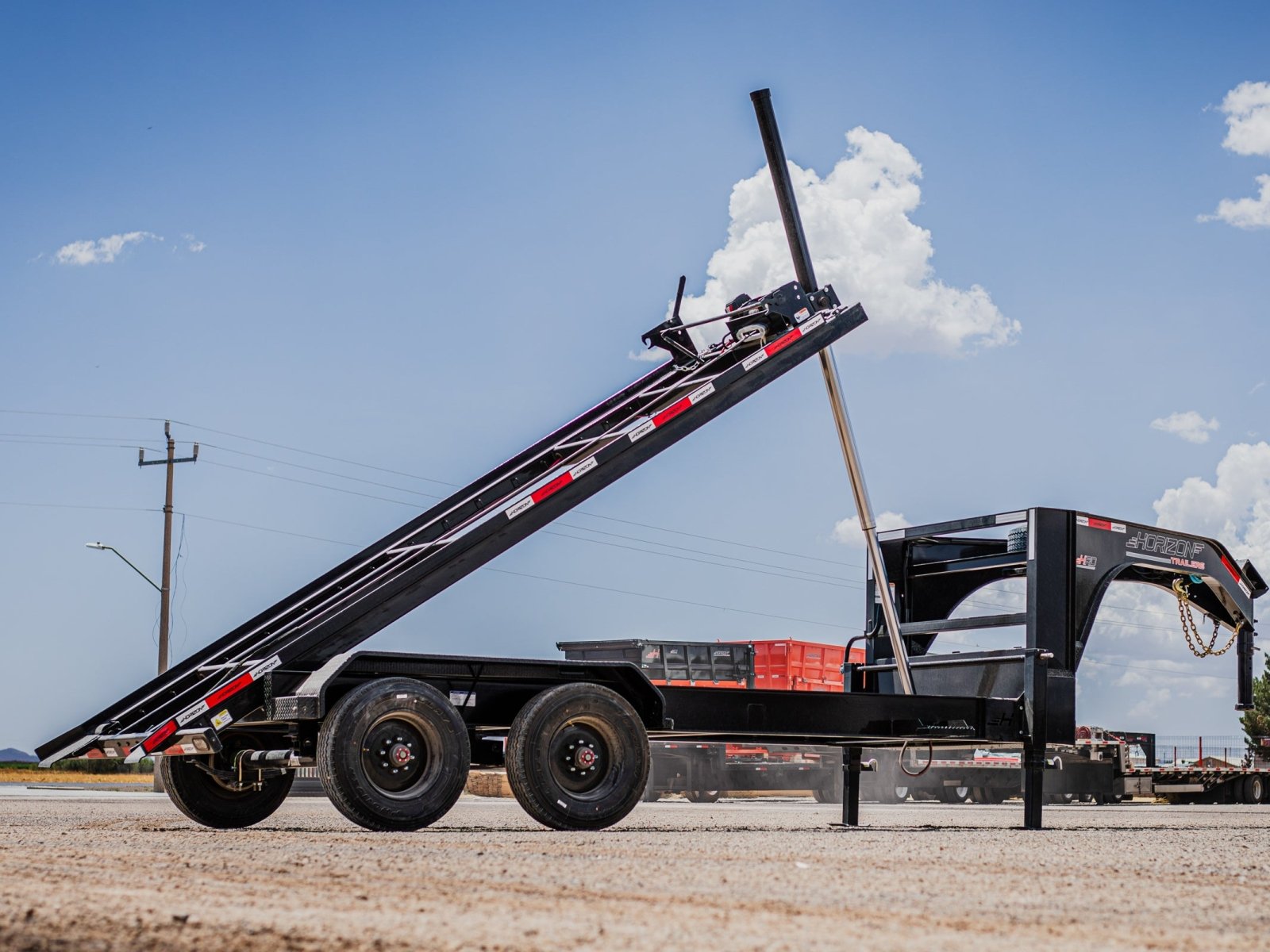

- Horizon HRD Gooseneck Roll Off Trailer
- LENGTH:
- 14’, 16’, 20’
- GVWR:
- 24,000 lbs - 25,000 lbs
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 10” I-Beam (17 lbs/ft)
- BED FRAME:
- 2” x 5” x 7 ga. Tubing Bed Frame
- CROSSMEMBERS:
- 2” x 5” x 7 ga. Crossmembers
- STEPS:
- Side Step On Both Sides
TONGUE & STORAGE

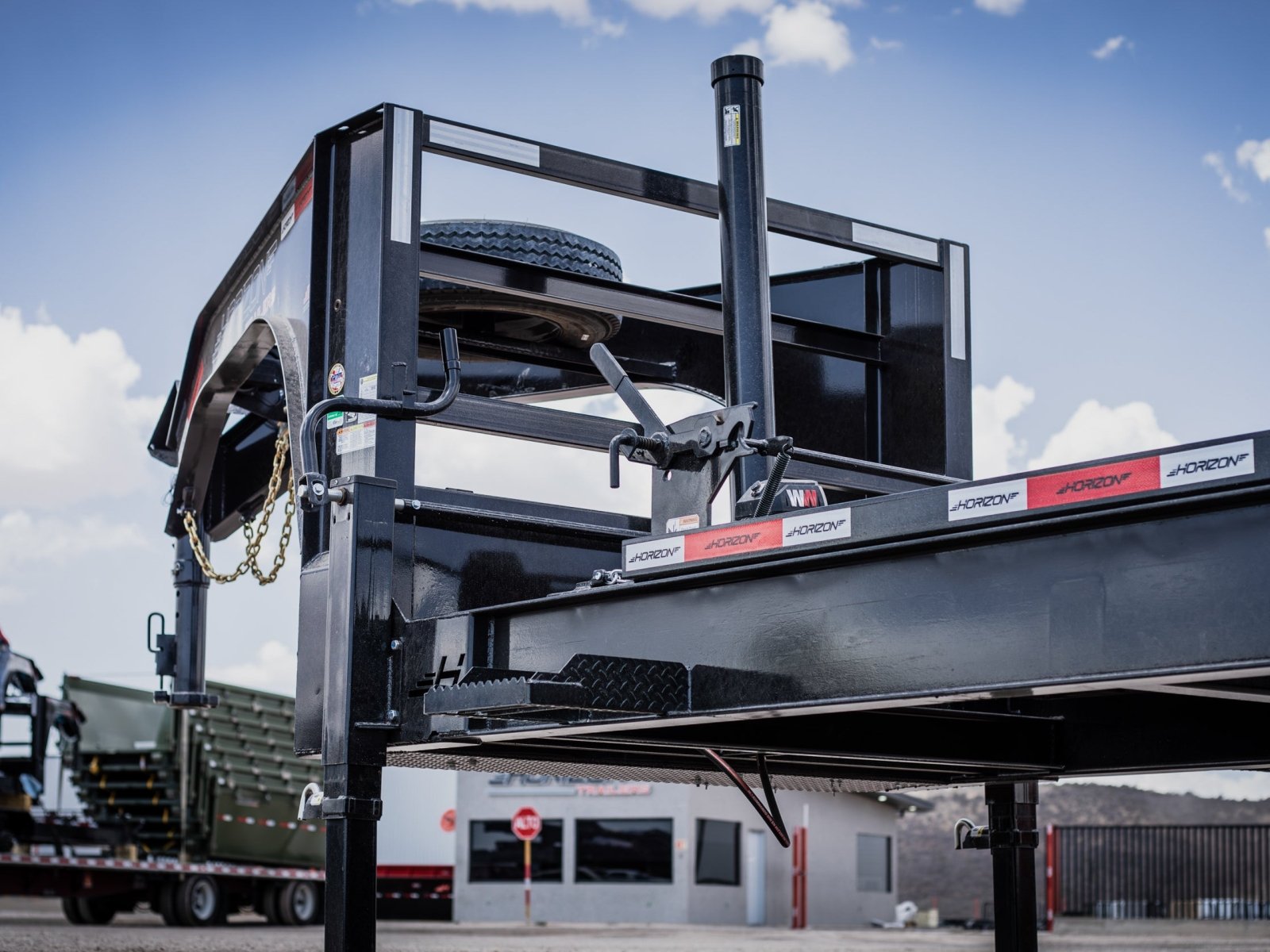

TONGUE:
- TYPE:
- 10” Engineered Steel I-Beam
- LENGTH:
- 98” (From Behind Riser)
- HEIGHT:
- 70” (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16” GN Coupler
- COUPLER RATING:
- 30,000 lbs
- JACK:
- 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
STORAGE:

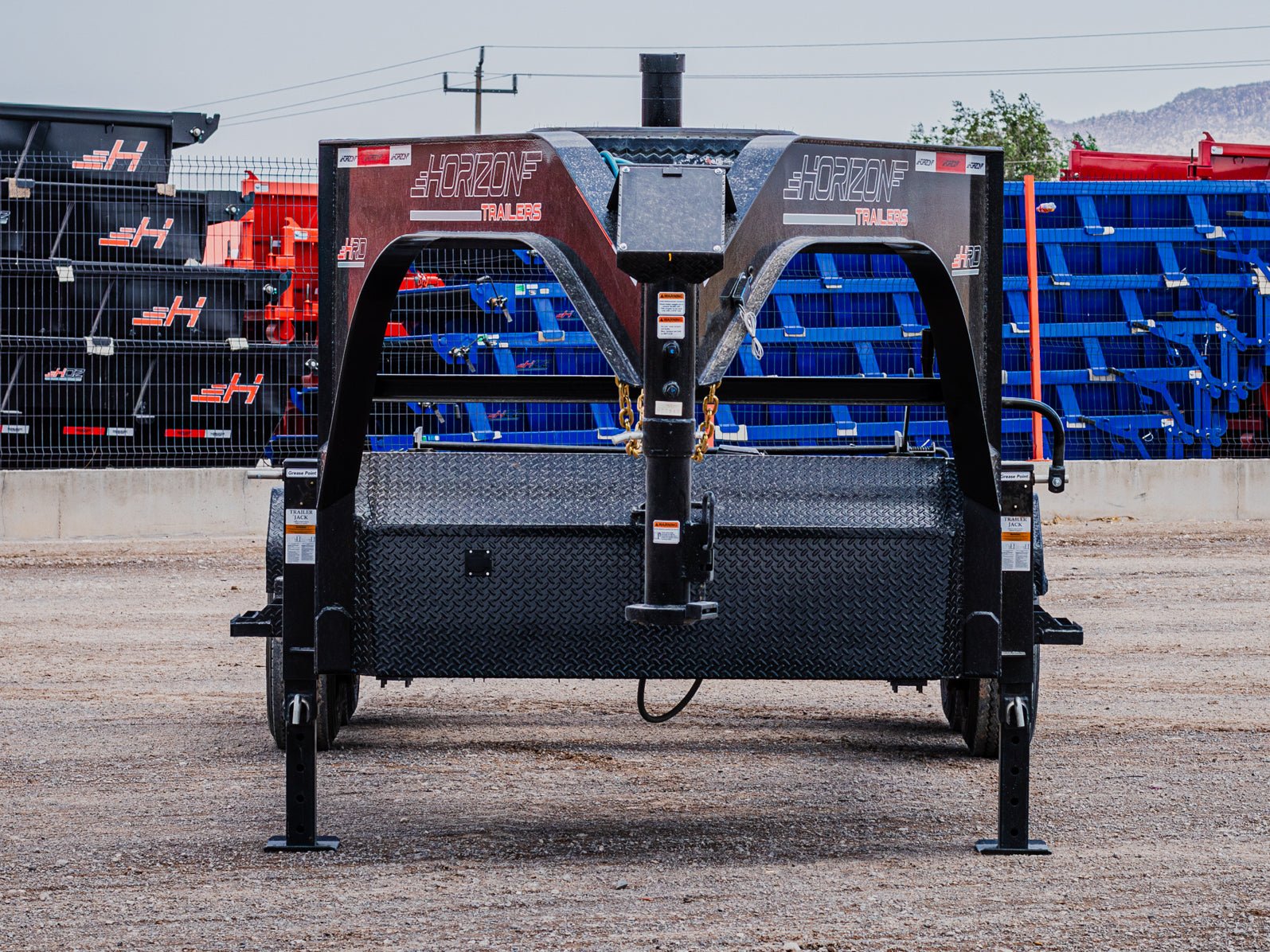

- TOOL BOX:
- Lockable Toolbox (Houses Batteries and Pump)
- SPARE TIRE MOUNT:
- Weld On Spare Tire Mount
- SPARE TIRE:
- ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
RUNNING GEAR

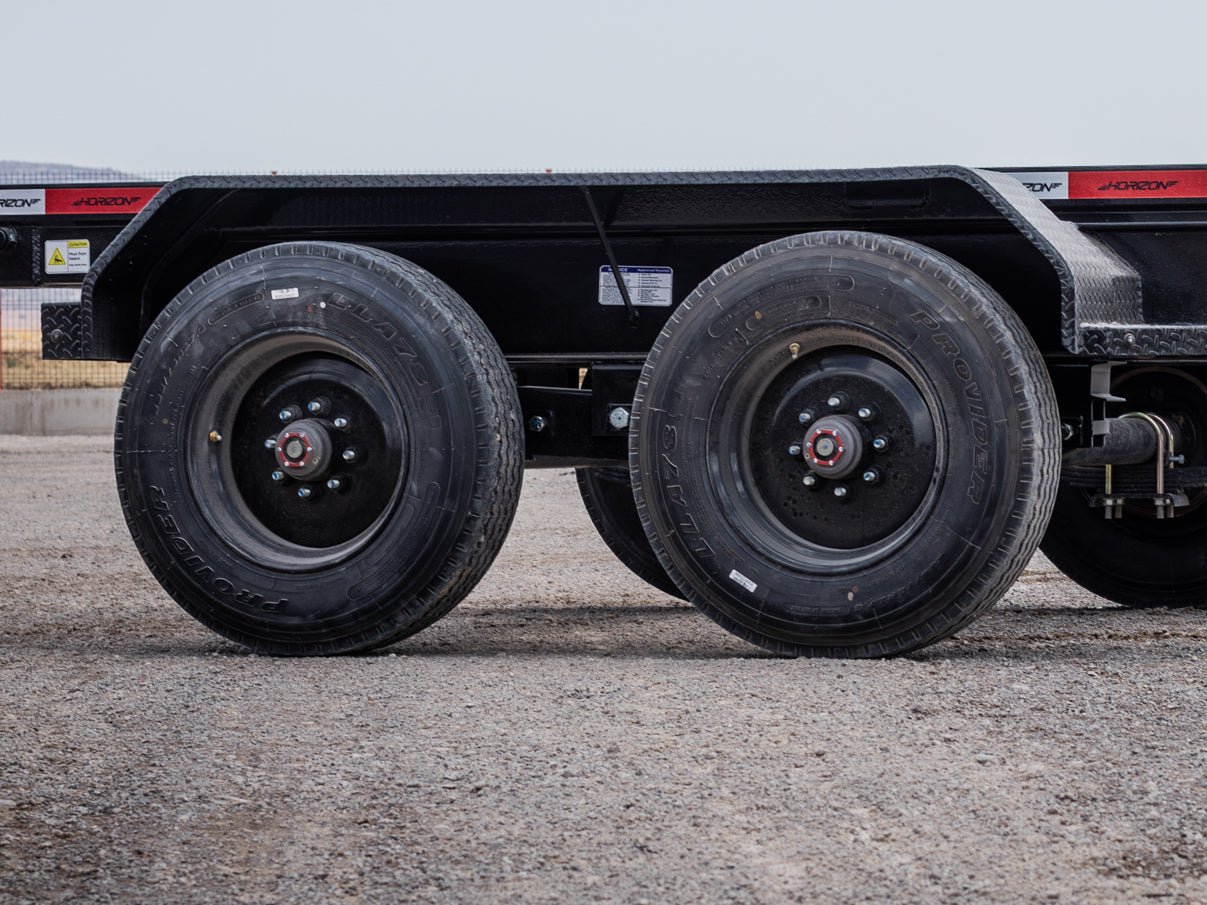

AXLES:
- TYPE:
- 2 - 10k Lippert Electric Brake Super Single Oil Bath Spring Axles
- BOLT PATTERN:
- 8 On 6.5”
- QUANTITY:
- 2
- SUSPENSION:
- Spring
- TIRES:
- ST235/75R17.5, Super Single, 18 Ply
- TIRE RATING:
- 6,005 lbs
- WHEELS:
- 17.5” Black Mod Wheels
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
SAFETY
SAFETY:
- SAFETY CHAINS:
- 3/8” Grade 70 Safety Chain
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
LOADING & ELECTRICAL
LOADING:
- LOADING ANGLE:
- 60”

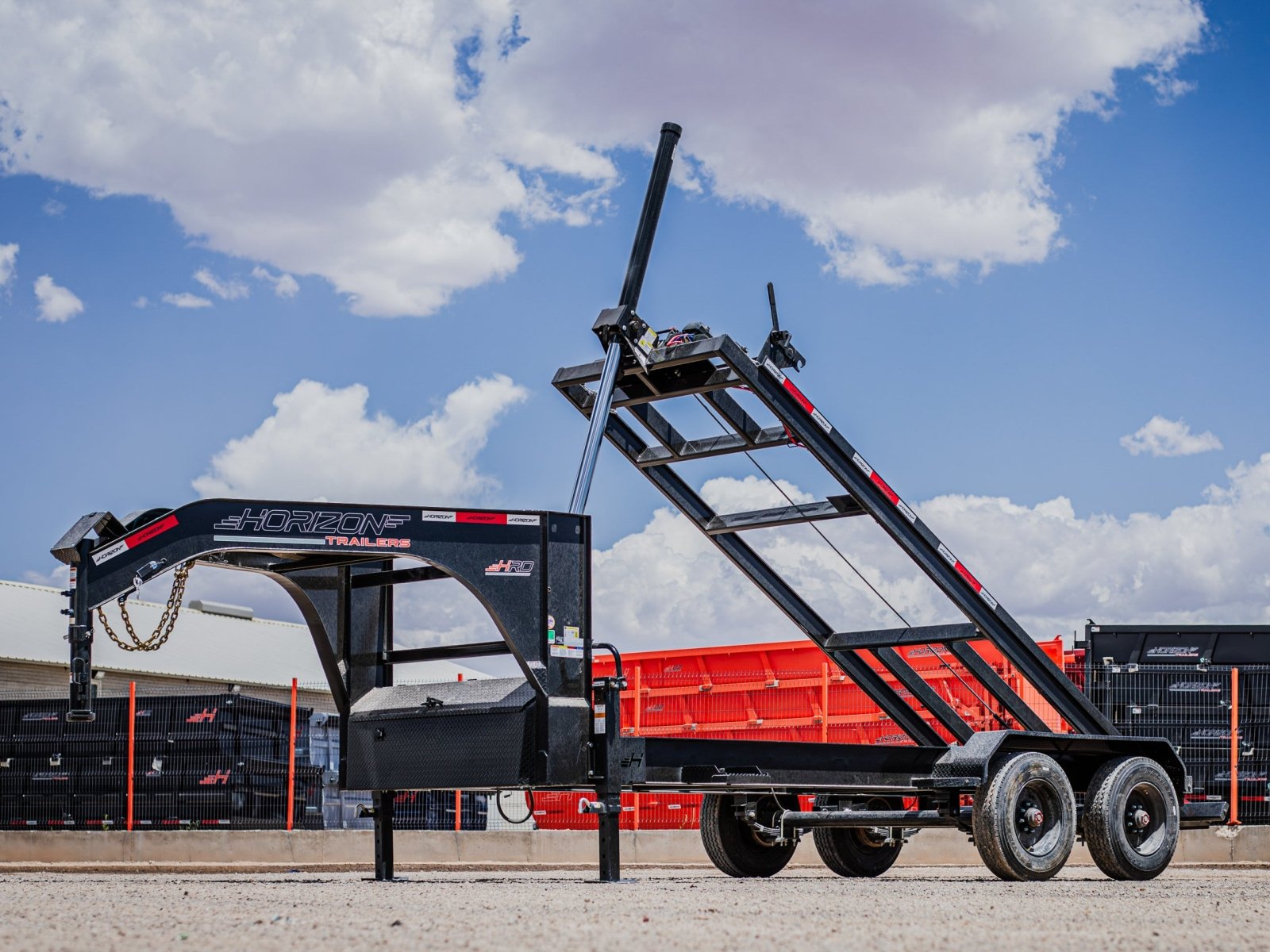

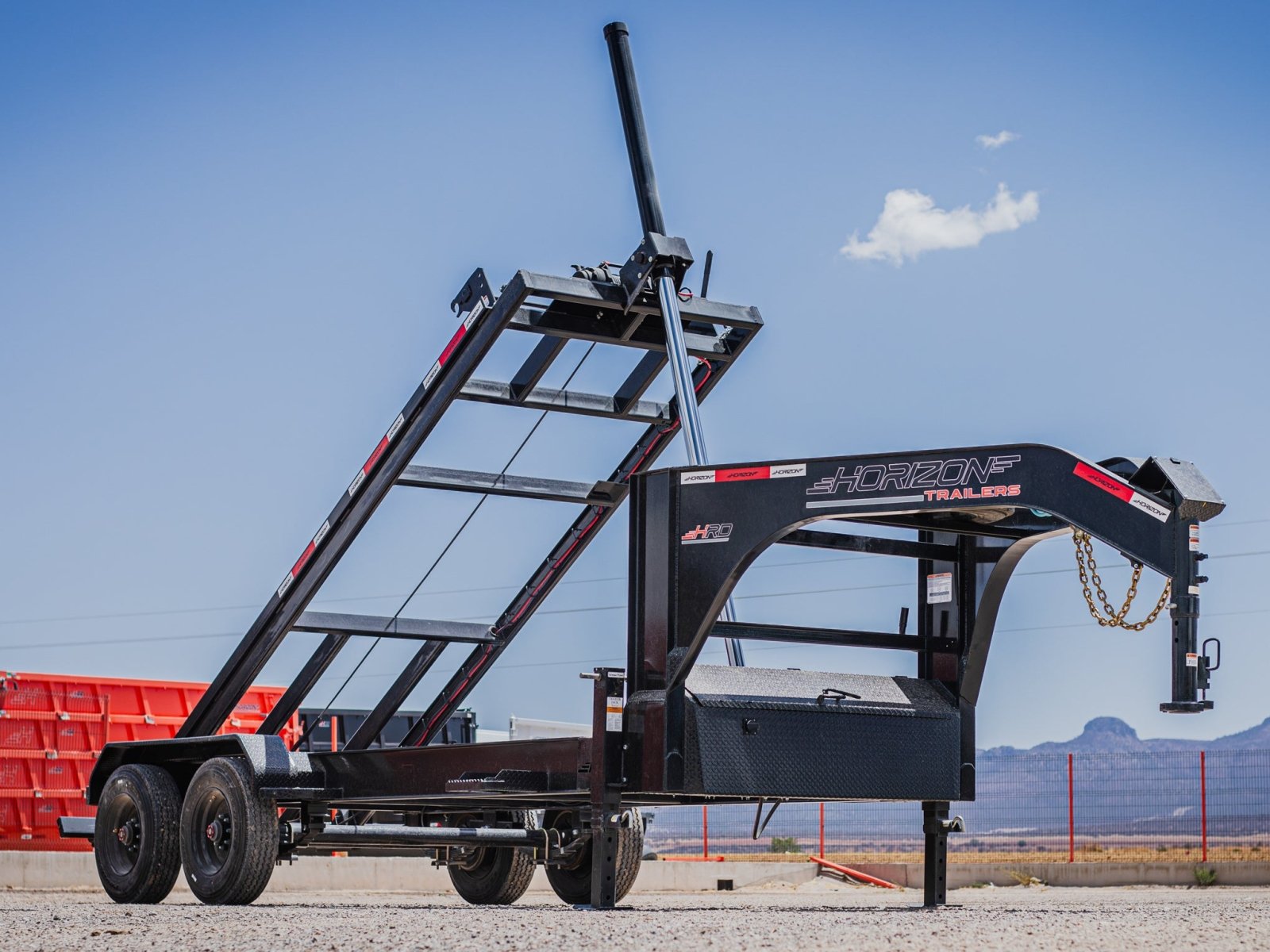

- LIFT SYSTEM:
- Telescopic Cylinder
- CYLINDER CAPACITY:
- 12 Ton

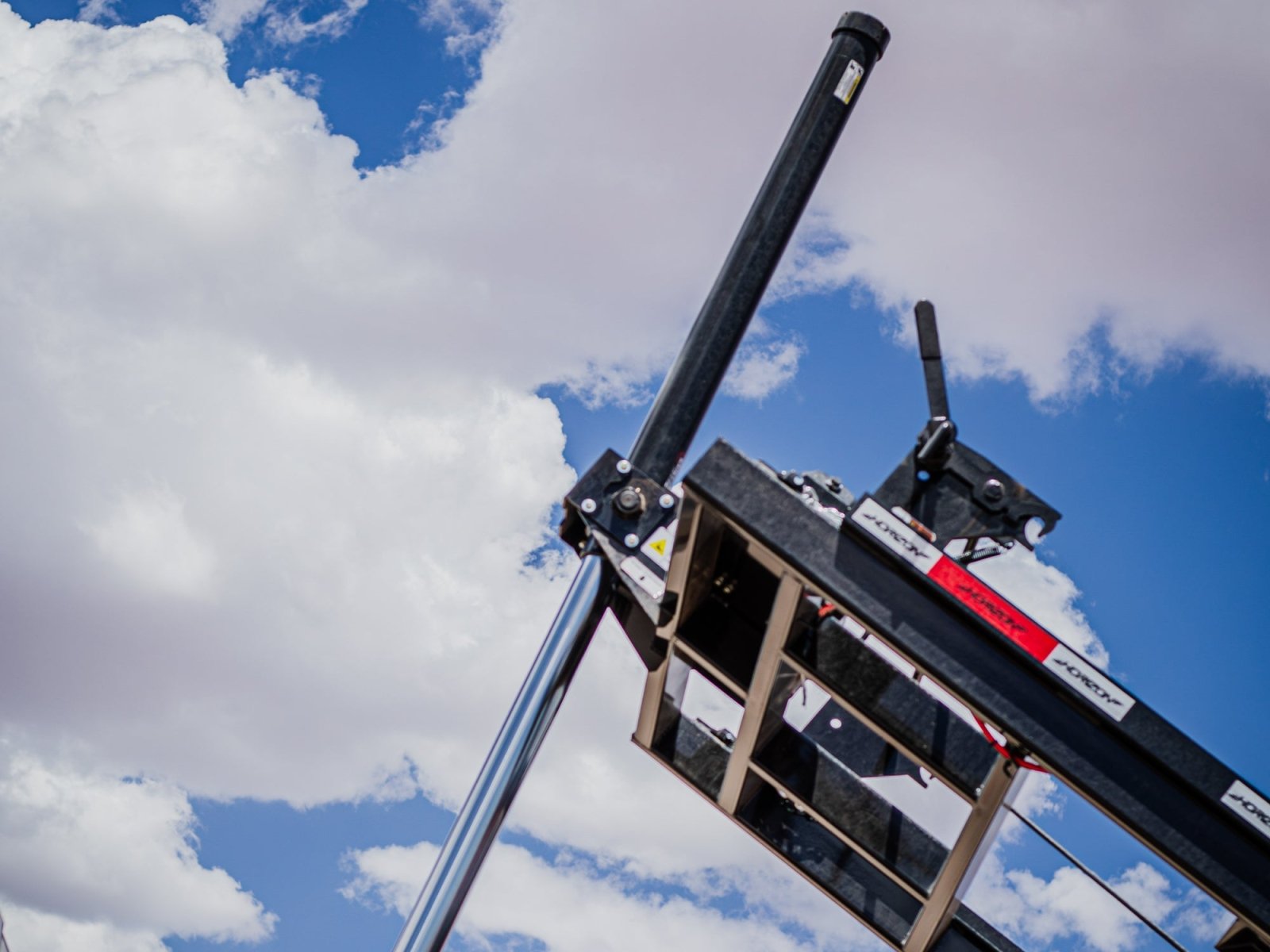

- CYLINDER:
- 14’ Lift: 6” x 21” Single Push Cylinder (20k)
- 16’ Lift: 6” x 30” Single Push Cylinder (20k)
- 20’ Lift: Telescopic Cylinder (12 Ton)
- WINCH:
- 20k Steel Cable Warrior Winch
- WINCH CONTROLLER:
- 12' Control Cable and Wireless Controller
ELECTRICAL:
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
BED
BED:
- DECK WIDTH:
- 61”
- DECK HEIGHT:
- 30”
