At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

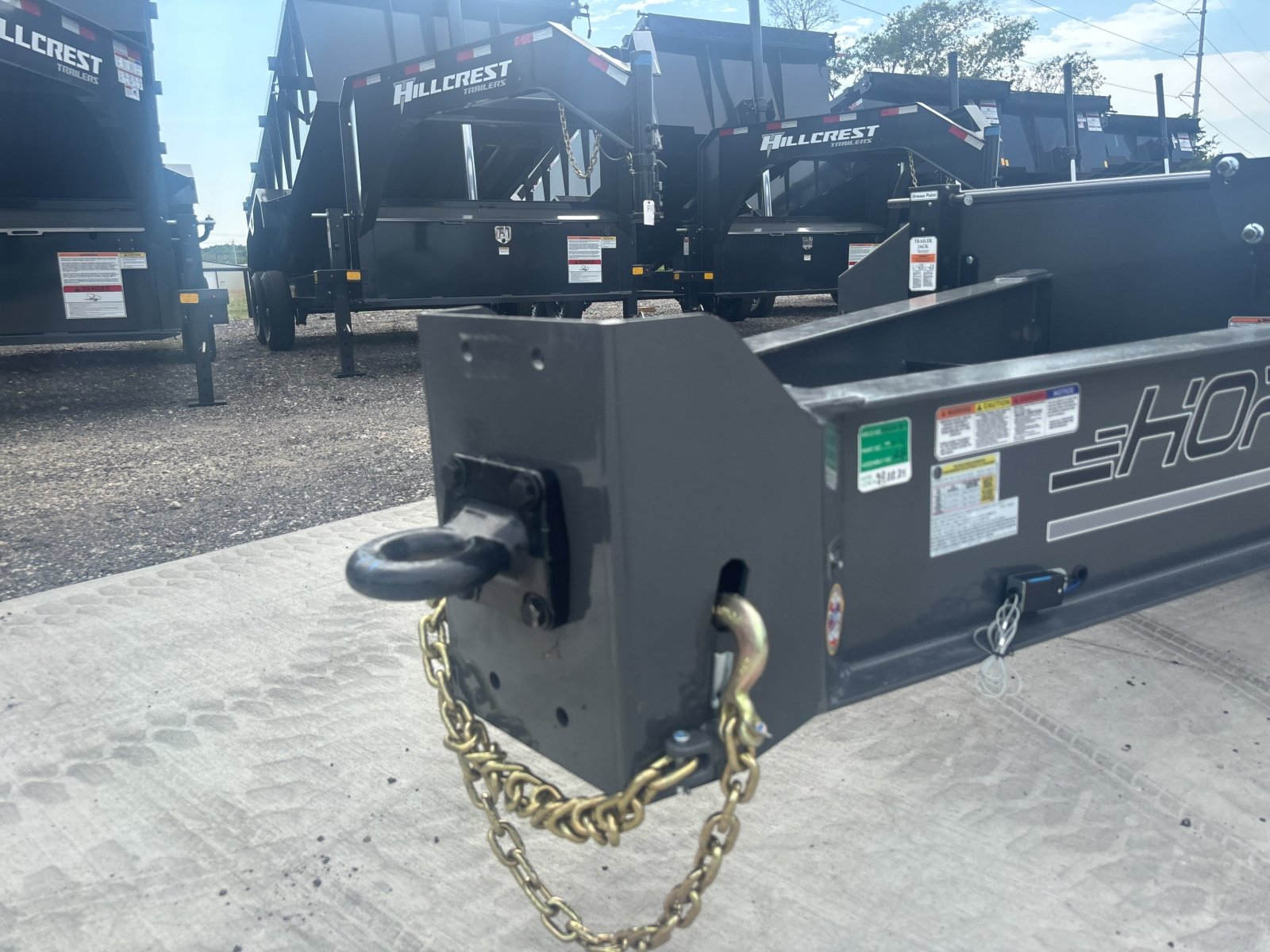

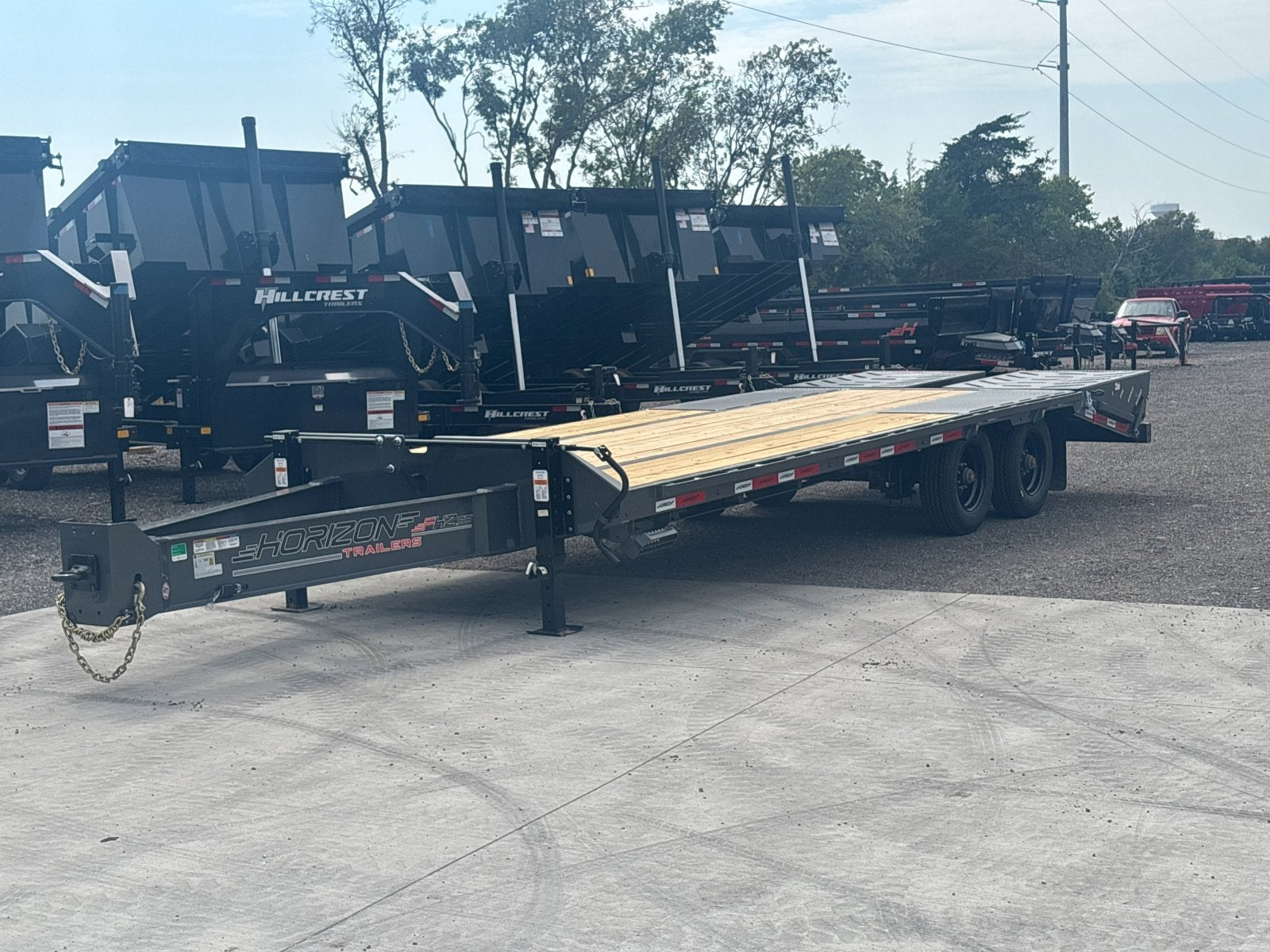

Pintle Hitch with 42,000 lb Ring
Designed with a heavy-duty pintle hitch system. Features an 83-inch tongue and a 42,000 lb capacity pintle ring for commercial-grade towing and connection.

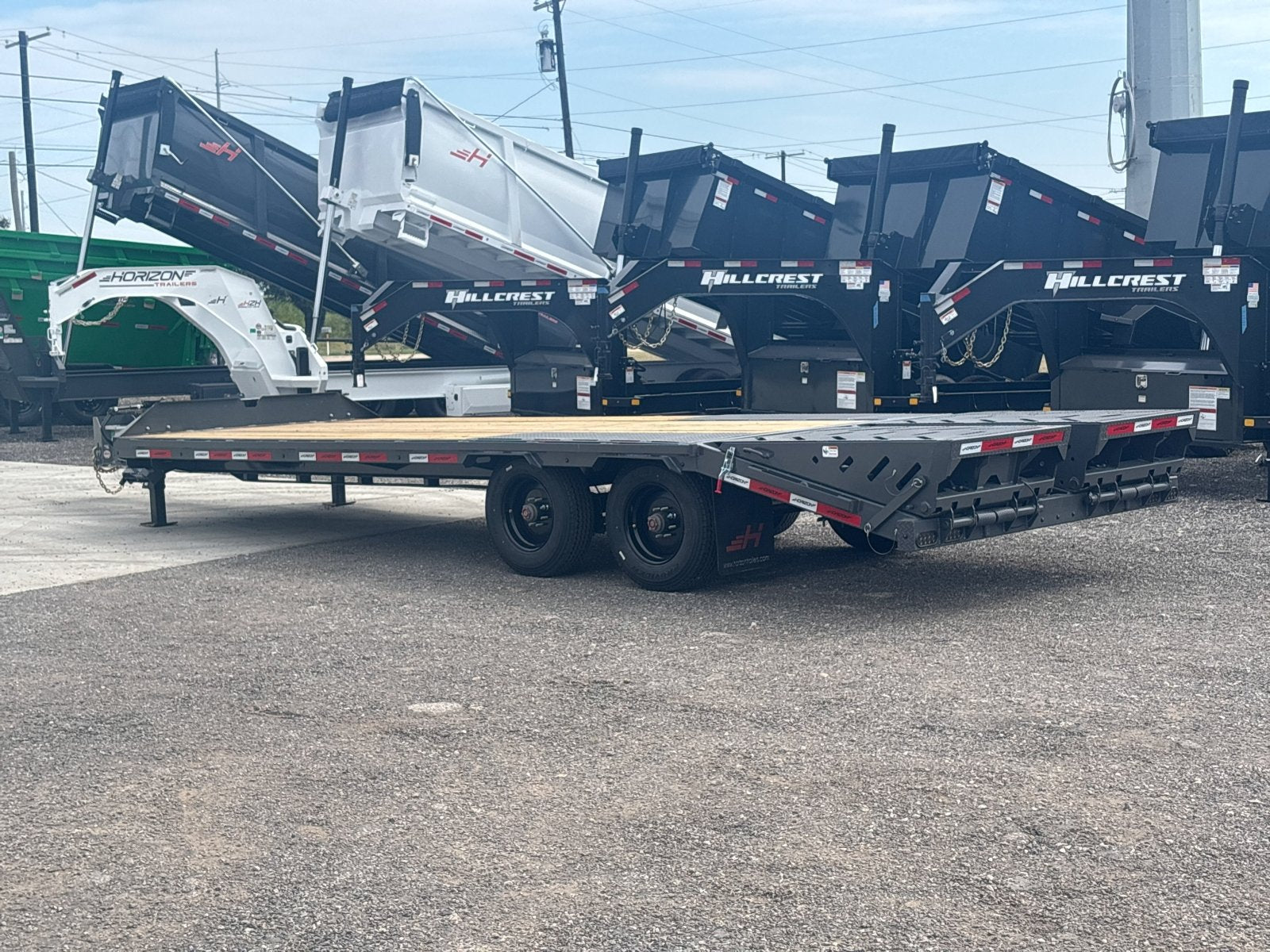

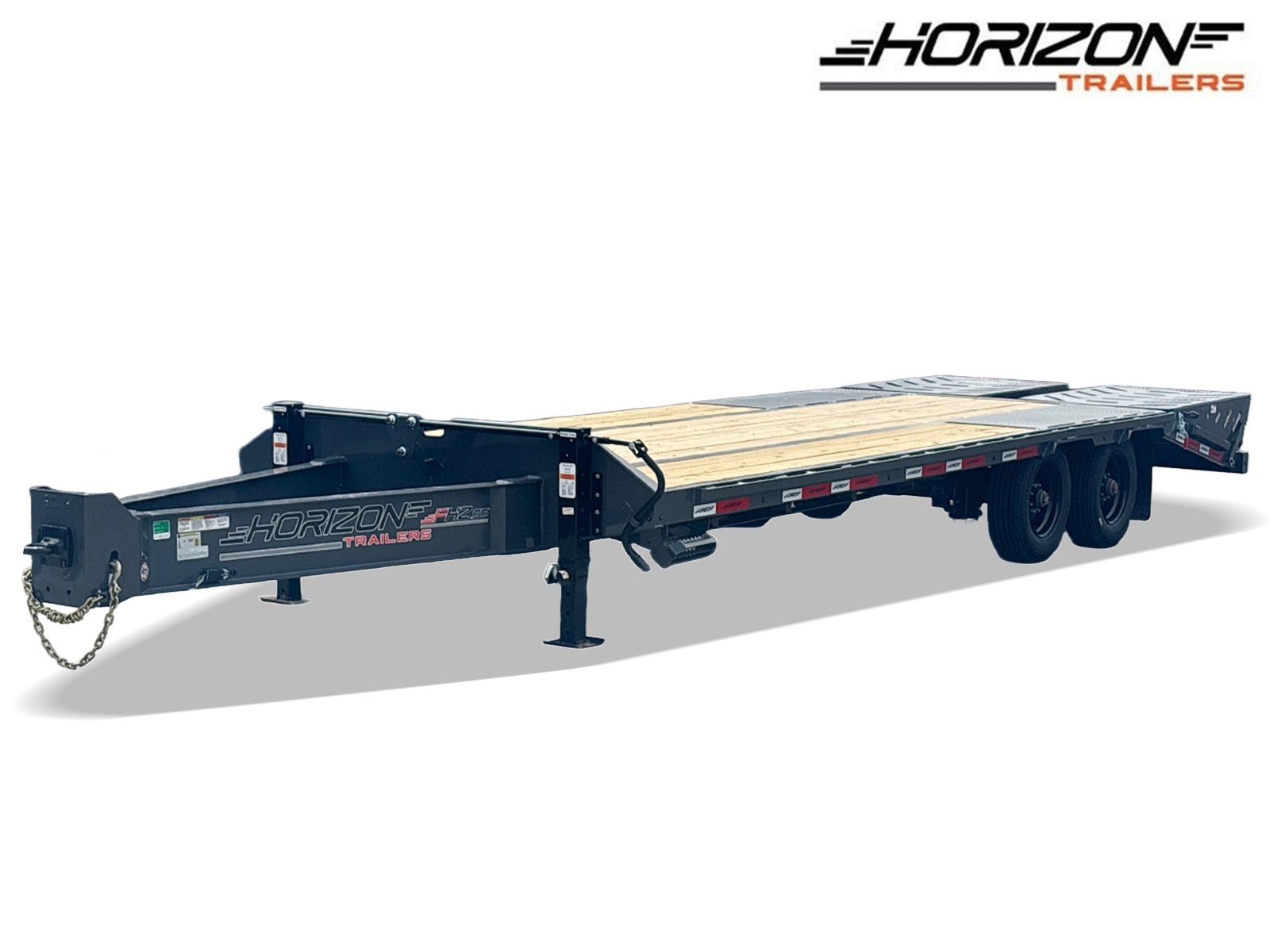

102" Deckover with 34" Deck Height
Built as a true deckover trailer with a 34-inch deck height. The full 102-inch wide deck provides an unobstructed load surface for wide equipment.

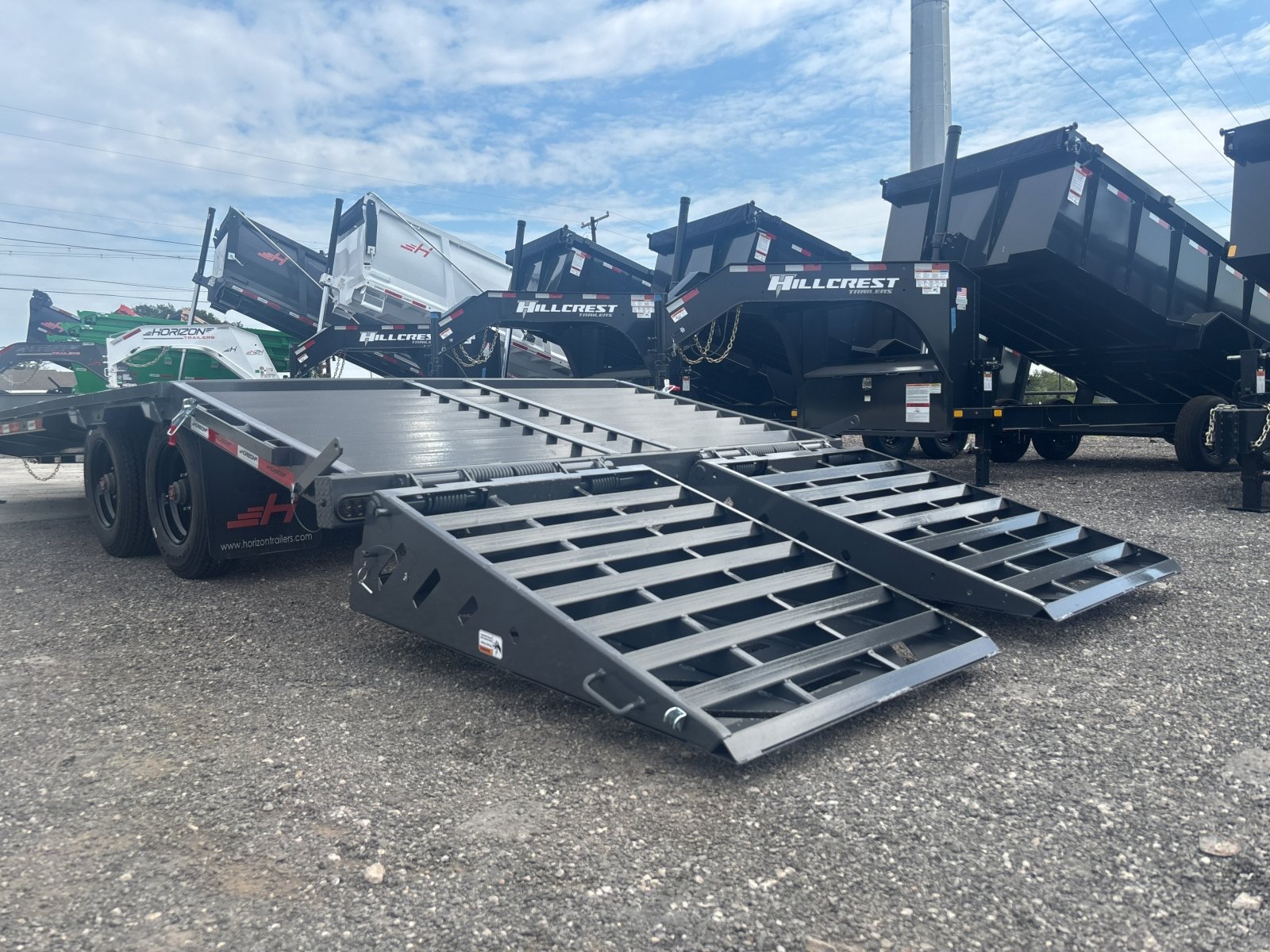

8-Foot Slide-In Ramps & Mega Ramp Option
Includes 8-foot long slide-in ramps as standard equipment. An optional package features a 5-foot dovetail with two heavy-duty mega ramps for extreme-duty loading.

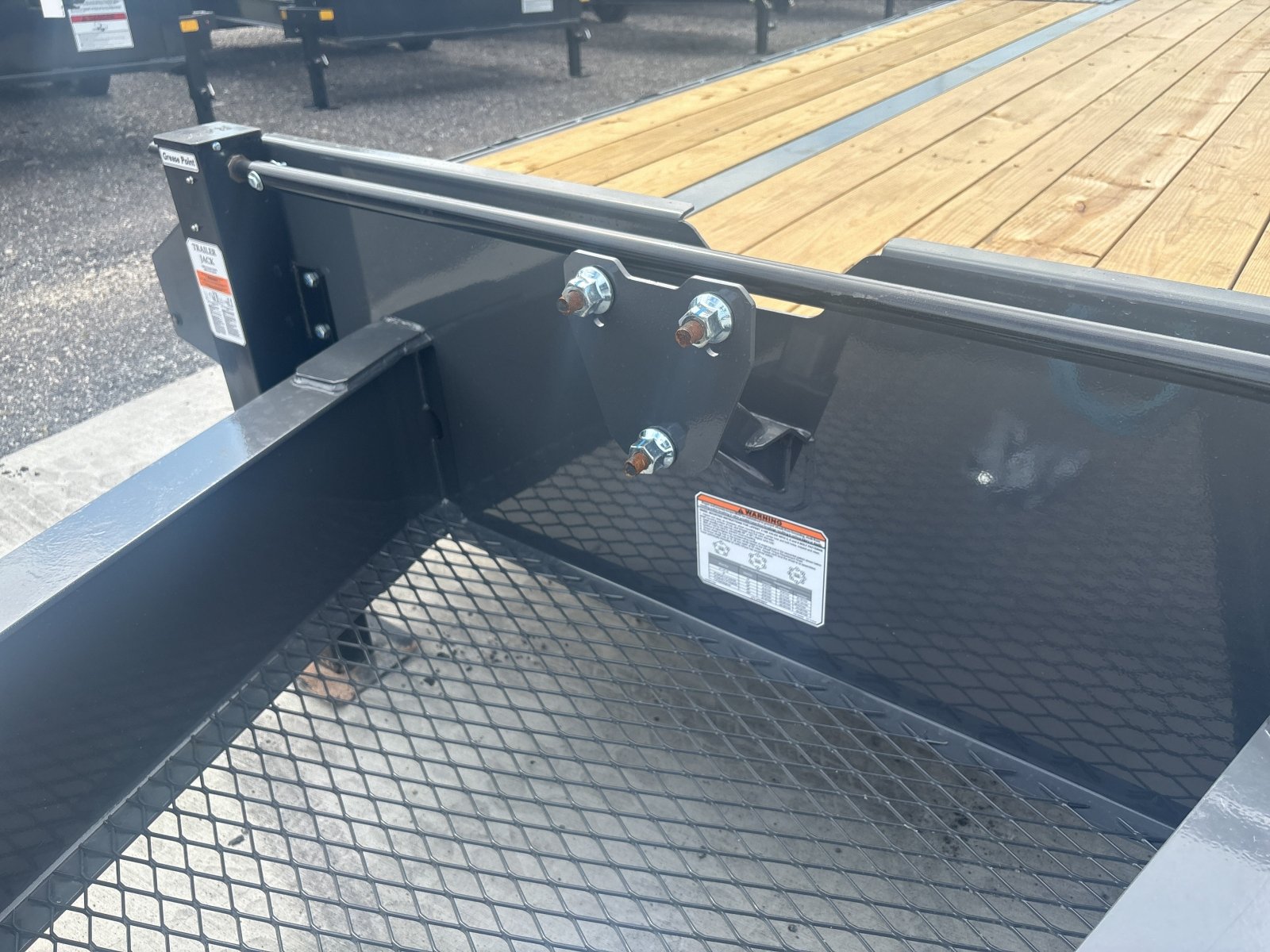

Diamond Mesh Floor Storage Box
Equipped with a unique diamond mesh floor storage box on the tongue. This design provides secure, ventilated storage for tools and chains without trapping moisture.

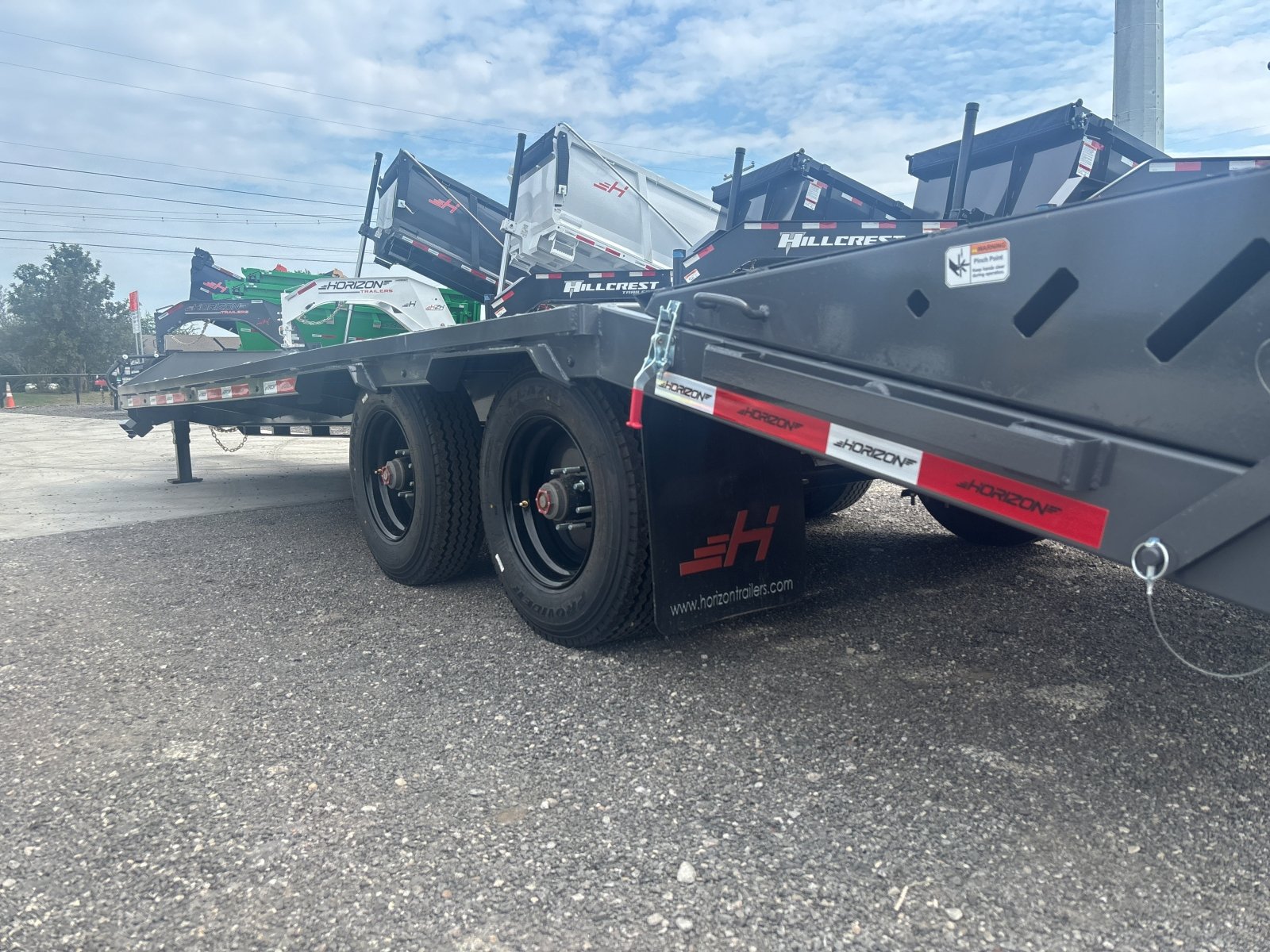

Axle Options from 10k to 16k Oil Bath
Configurable with high-capacity dual oil bath axles in 10k, 12k, or 16k ratings. All options use electric brakes and a traditional spring suspension.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k, 12k, 16k
- GVWR:
- 25k - 30k
RUNNING GEAR

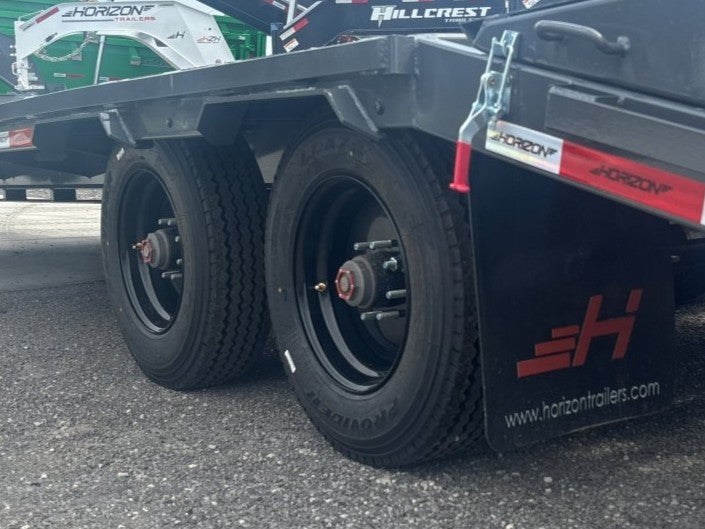

- TIRES:
- ST235/80R16
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,080 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k Electric Brake Dual Oil Bath Axles
2 - 12k Electric Brake Dual Oil Bath Axles
2 - 16k Electric Brake Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Spring
TONGUE
- PULL TYPE:
- Pintle Hitch
- TYPE:
- Pintle Hitch
- LENGTH:
- 83"
- JACKS:
- 2 - Side Wind Spring Loaded 12k Drop-Leg Jacks
- COUPLER:
- Pintle Ring (42,000 lbs)
- STORAGE:
- Diamond Mesh Wire Floor Storage
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" 19 lb I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
- RAMPS:
- 8' Slide In Ramps
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets
- TOOLBOX:
- Side Mount Toolbox
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
- UNDERCOAT:
- Zinc Primer Undercoat
- RAMPS:
- Ramps Painted Black
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
