At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

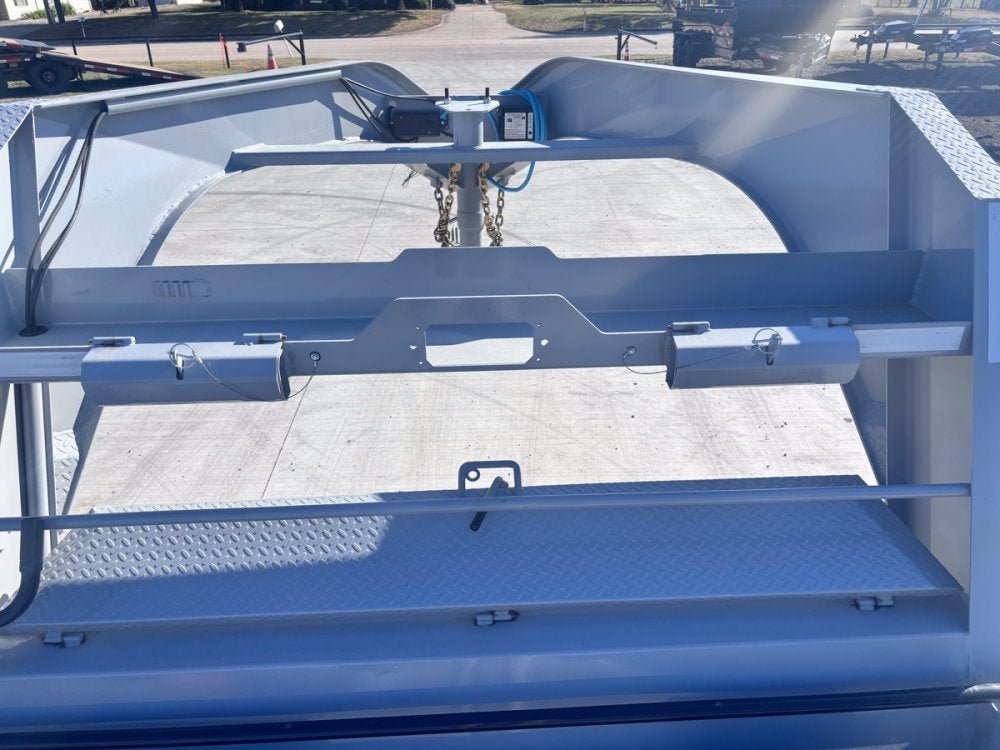

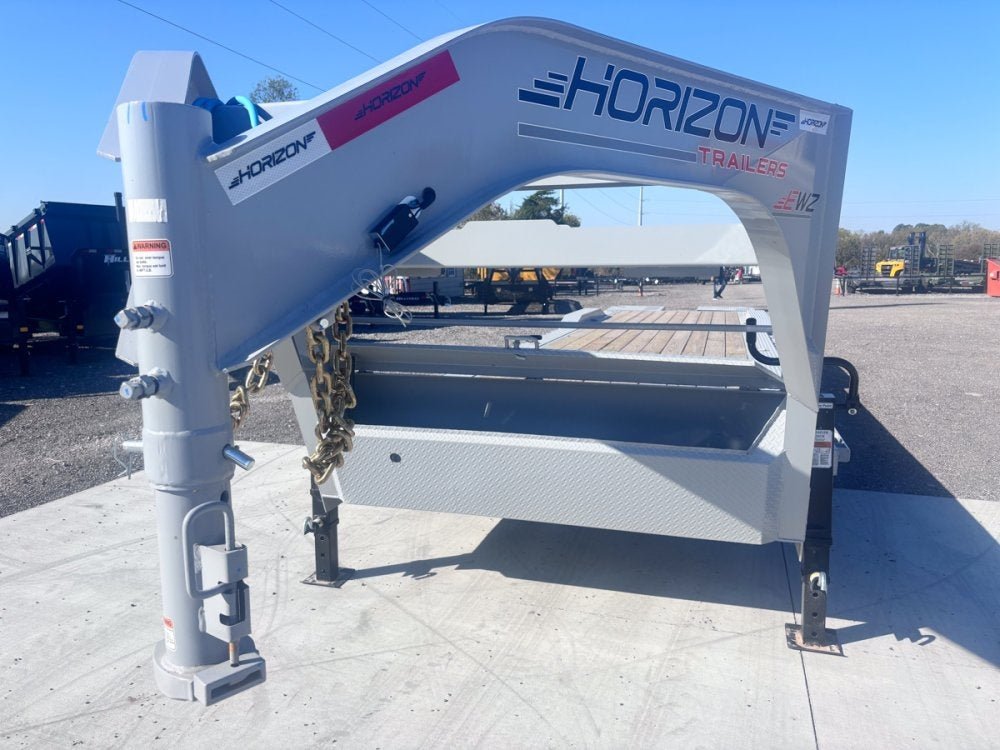

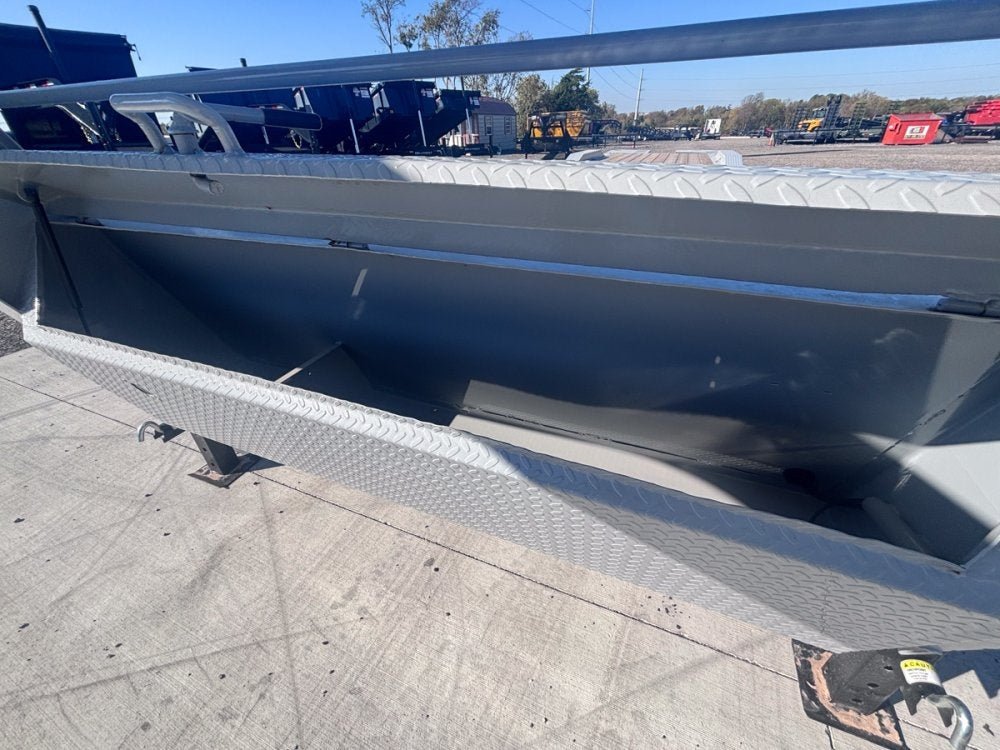

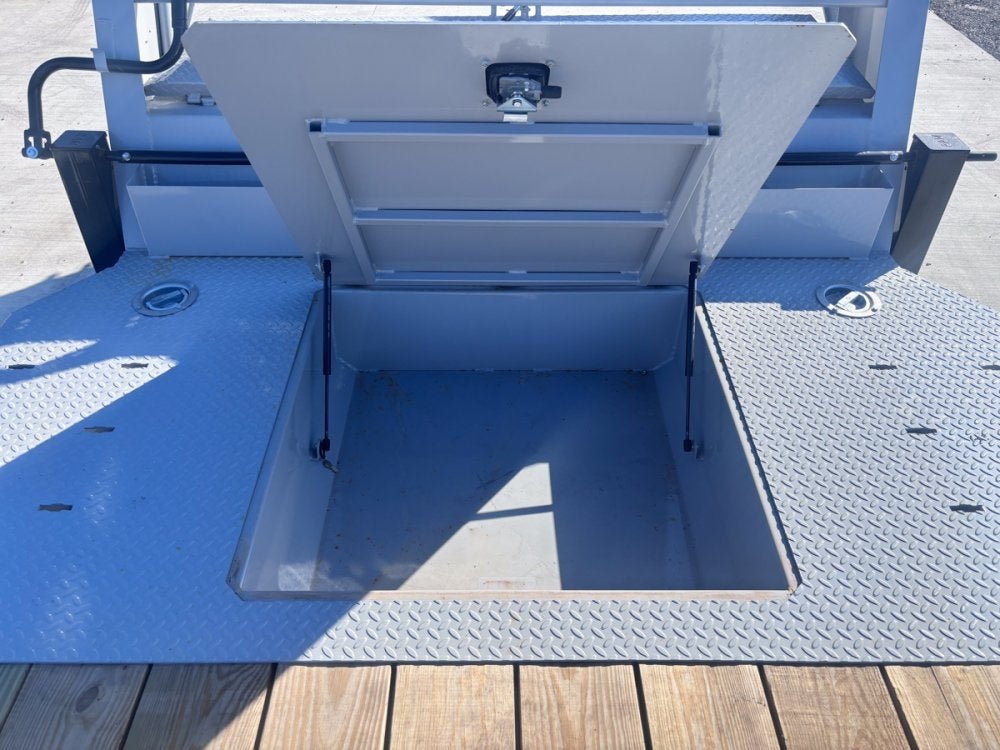

98" Engineered Neck with Mega Toolbox
Features a long 98-inch engineered 10-inch I-beam gooseneck neck. The neck is equipped with a large, lockable mega toolbox mounted on top for significant secure storage.

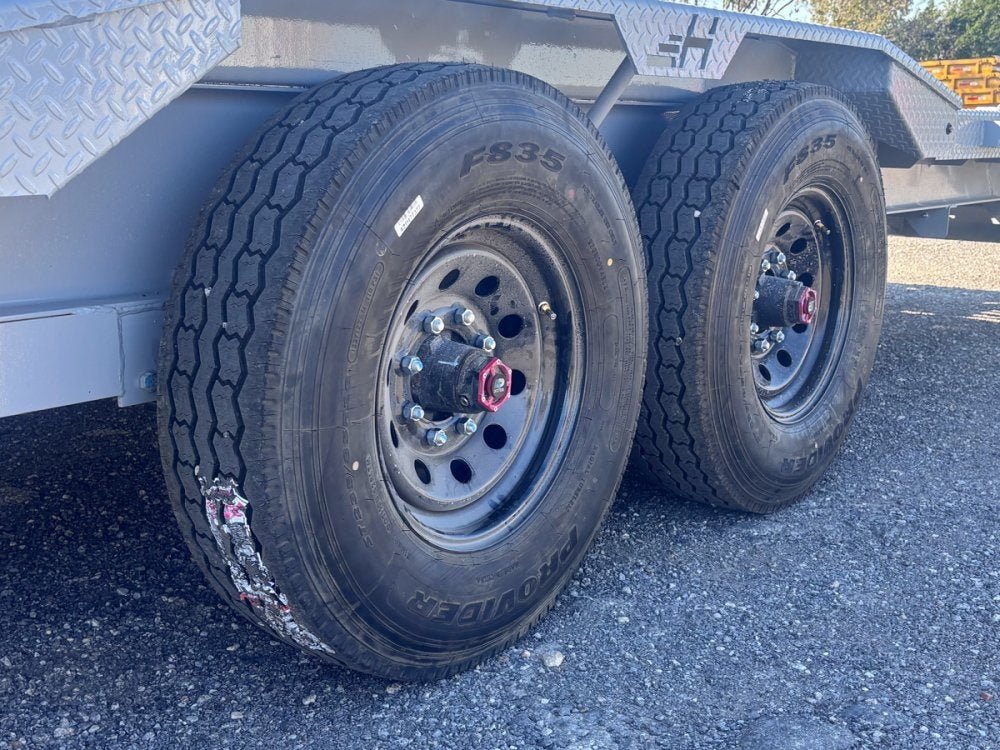

Axle Options from 7k to 10k Oil Bath
Configurable with Dexter axles ranging from 7k to 10k capacities. The top-tier option features 10k oil bath axles with electric brakes, paired with 17.5" wheels and 18-ply tires.
10" I-Beam Frame with 30" Deck Height
Built on a 10-inch I-beam main frame with a 30-inch deck height. This provides a balanced combination of heavy-duty strength and optimal loading clearance for larger equipment.
Heavy-Duty 4.5" Torque Tube (30'+)
Models 30 feet and longer are equipped with a heavy-duty 4.5-inch torque tube. This cross-axle structural component significantly increases frame rigidity and towing stability for extended-length trailers.

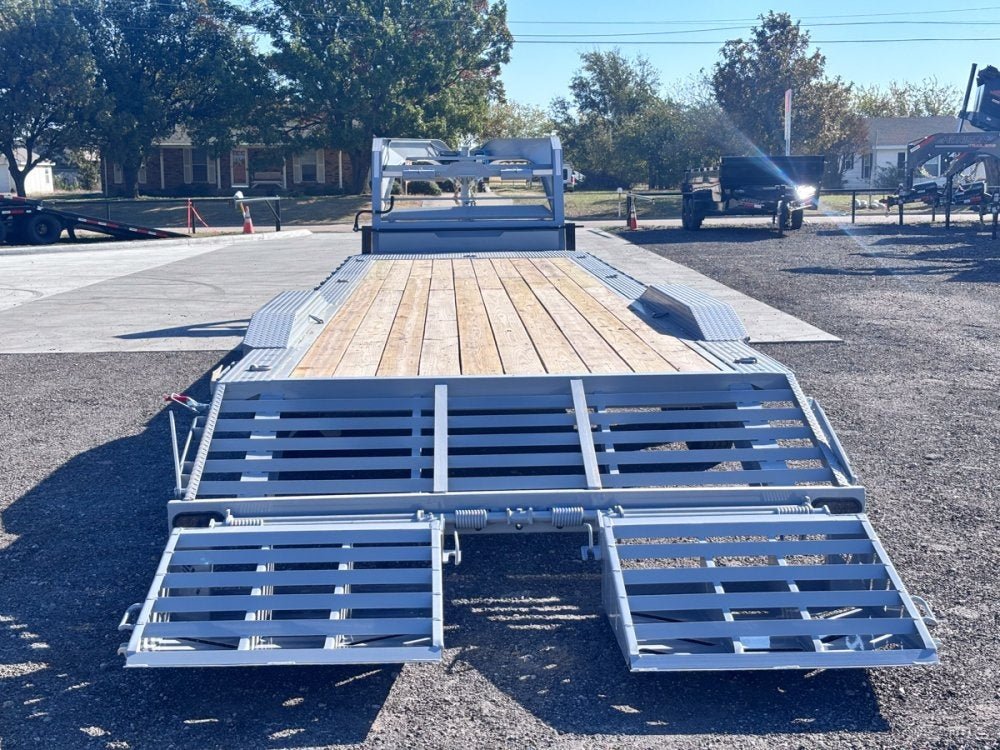

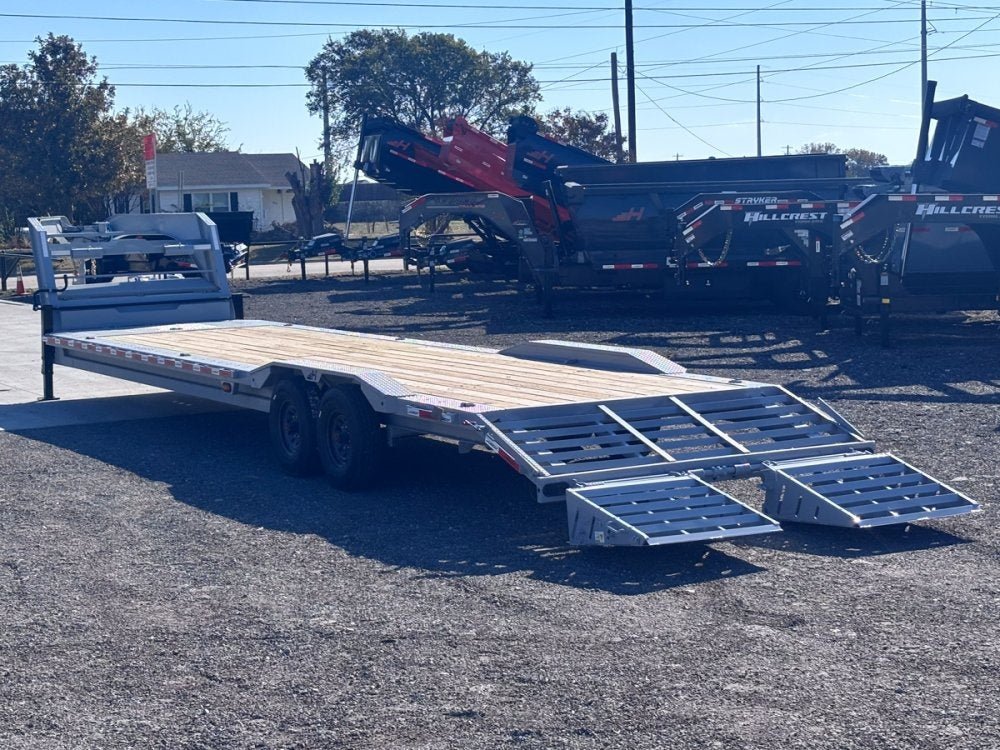

Stand-Up Ramps
Available with an optional stand-up ramp package. This includes a 2-foot dovetail and 24-inch wide by 5-foot-6-inch long ramps that store in an upright position at the rear of the trailer when not in use.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 28' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 30"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 15.7k - 22.4k
RUNNING GEAR
- TIRES:
- ST235/80R16 / ST235/85R16 (8k)
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Electric Brake Dexter Axles
2 - 8k Electric Brake Dexter Axles
2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 98" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)

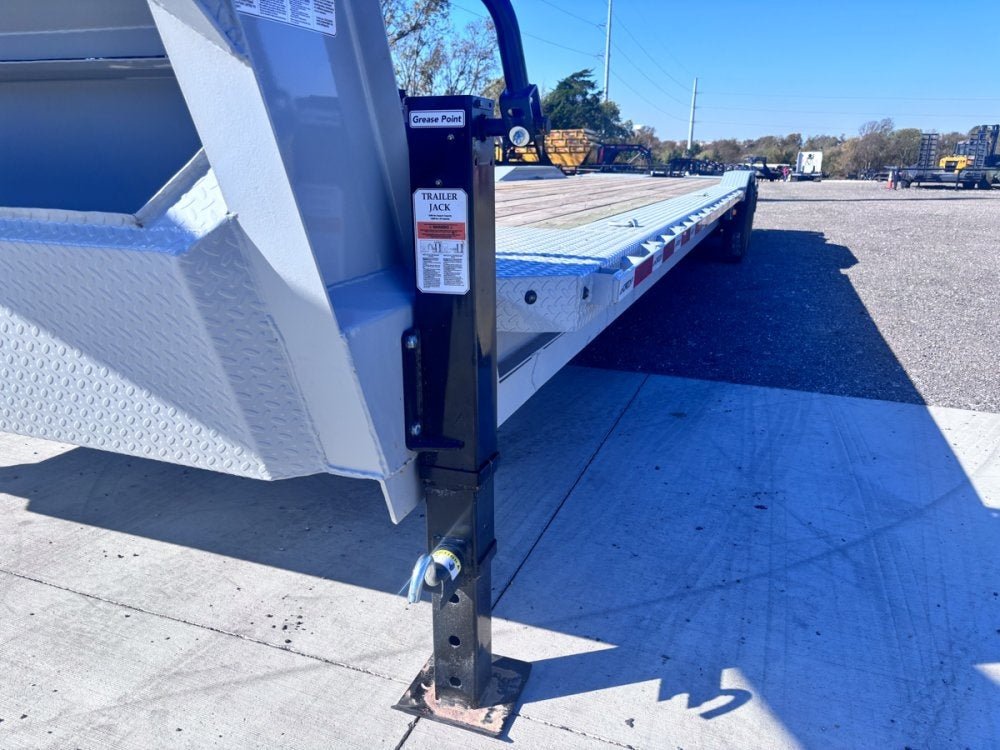

- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" (15lbs/ft on 7k & 17lbs/ft on 8k) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 3/16" Diamond Plate DOF
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
- RAMPS:
- 5'6" HD Slide In Ramps
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets
- TOOLBOX:
- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
